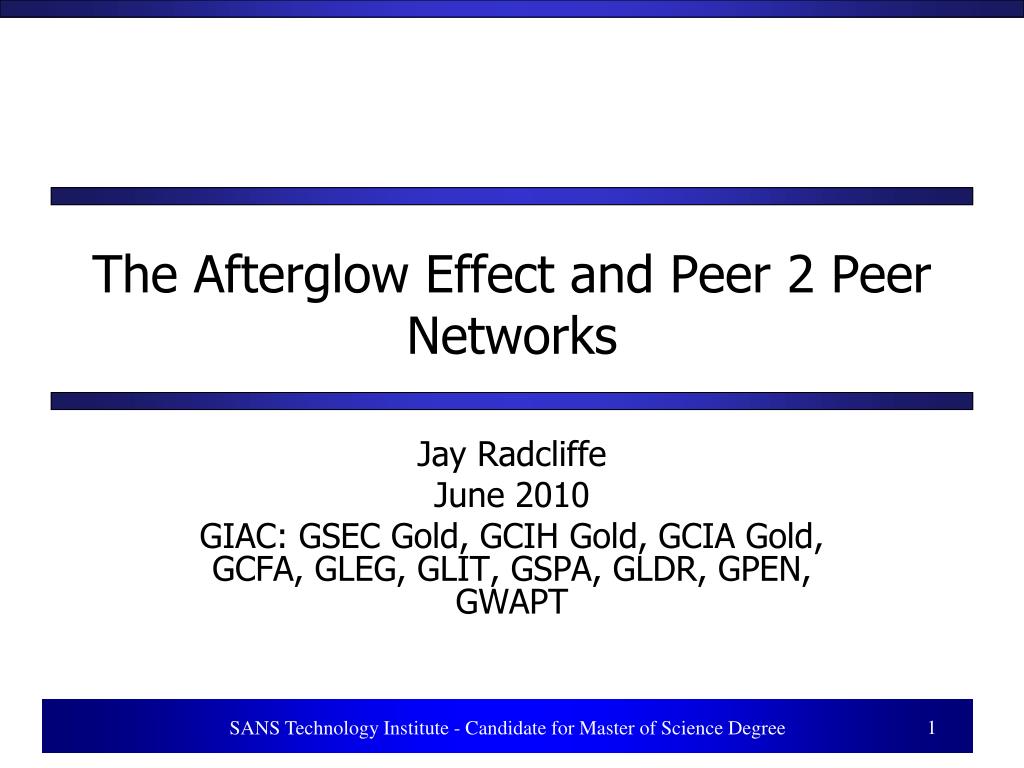

  1. The Afterglow Effect and Peer 2 Peer Networks Jay Radcliffe June 2010 GIAC: GSEC Gold, GCIH Gold, GCIA Gold, GCFA, GLEG, GLIT, GSPA, GLDR, GPEN, GWAPT SANS Technology Institute - Candidate for Master of Science Degree

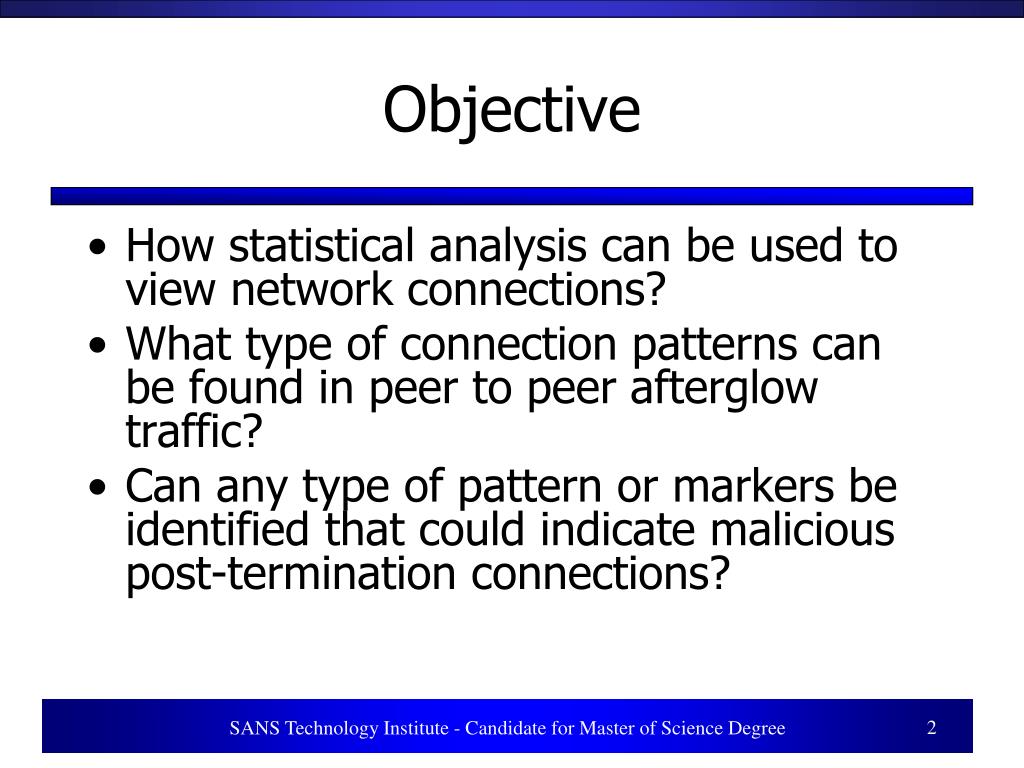

  2. Objective • How statistical analysis can be used to view network connections? • What type of connection patterns can be found in peer to peer afterglow traffic? • Can any type of pattern or markers be identified that could indicate malicious post-termination connections? SANS Technology Institute - Candidate for Master of Science Degree

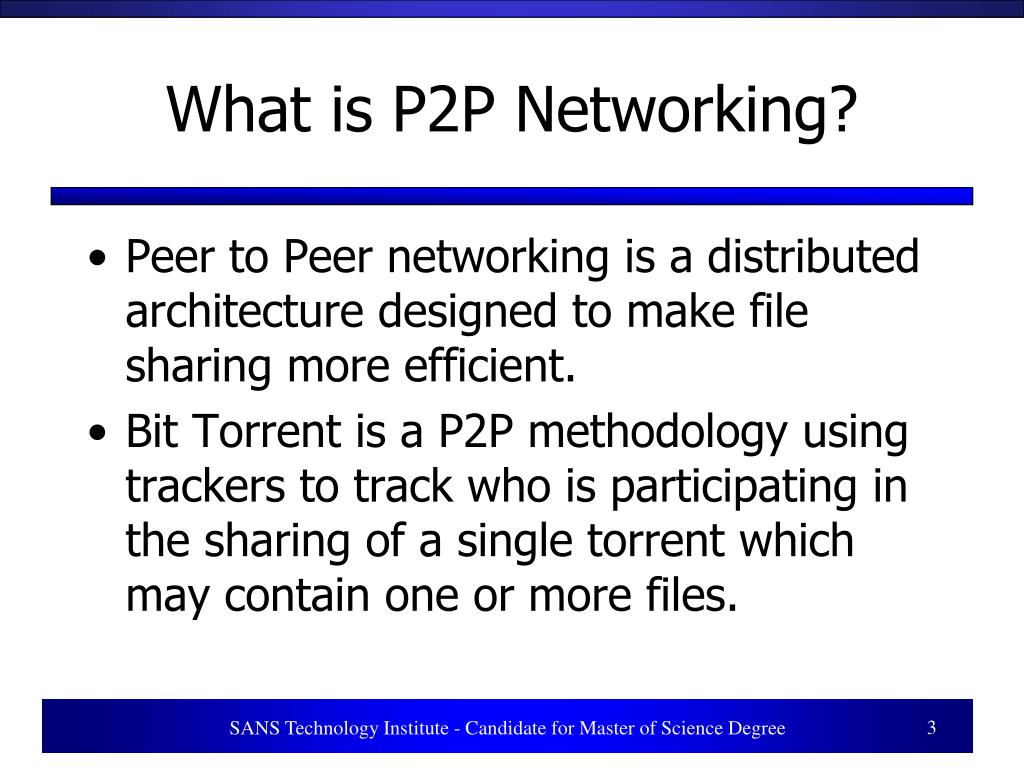

  3. What is P2P Networking? • Peer to Peer networking is a distributed architecture designed to make file sharing more efficient. • Bit Torrent is a P2P methodology using trackers to track who is participating in the sharing of a single torrent which may contain one or more files. SANS Technology Institute - Candidate for Master of Science Degree

  4. P2P Afterglow • An “Afterglow” connection is one that occurs after the client has terminated the P2P session. • The tracker will remove the IP address from the list of participating clients after a certain period of time, usually less then 20 minutes SANS Technology Institute - Candidate for Master of Science Degree

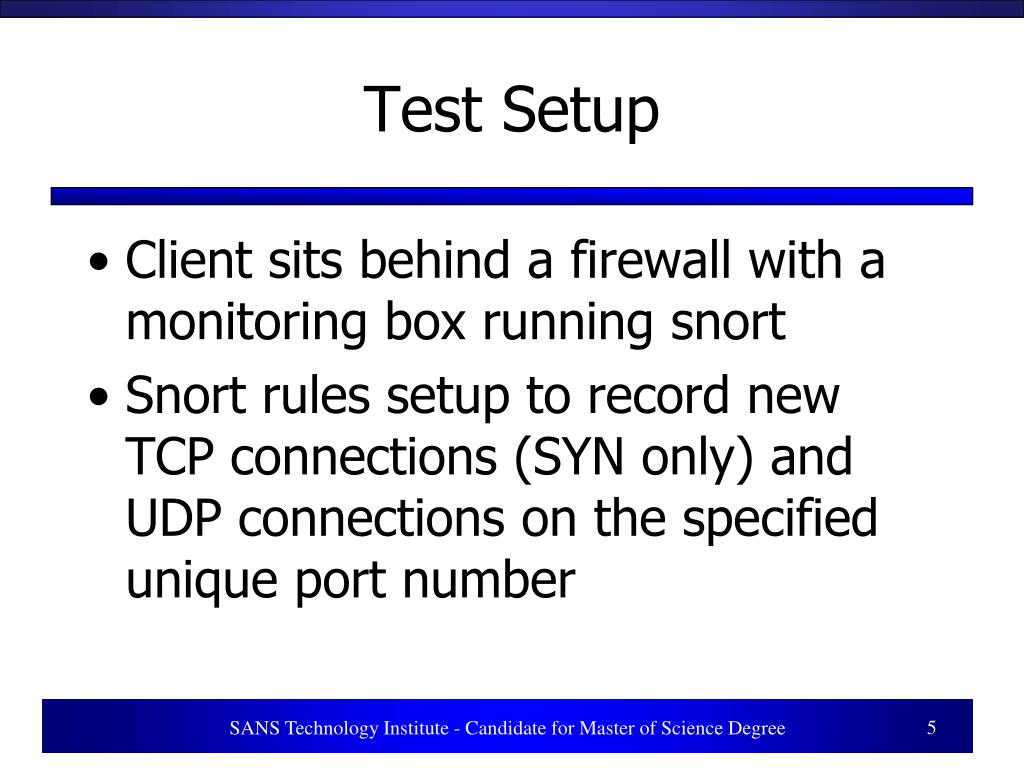

  5. Test Setup • Client sits behind a firewall with a monitoring box running snort • Snort rules setup to record new TCP connections (SYN only) and UDP connections on the specified unique port number SANS Technology Institute - Candidate for Master of Science Degree

  6. Test Conditions • Initiate a Bit Torrent P2P session using a Fedora Installation DVD ISO image. Terminate torrent session after twelve hours. • Continue monitoring for 14 hours after termination tracking afterglow connections SANS Technology Institute - Candidate for Master of Science Degree

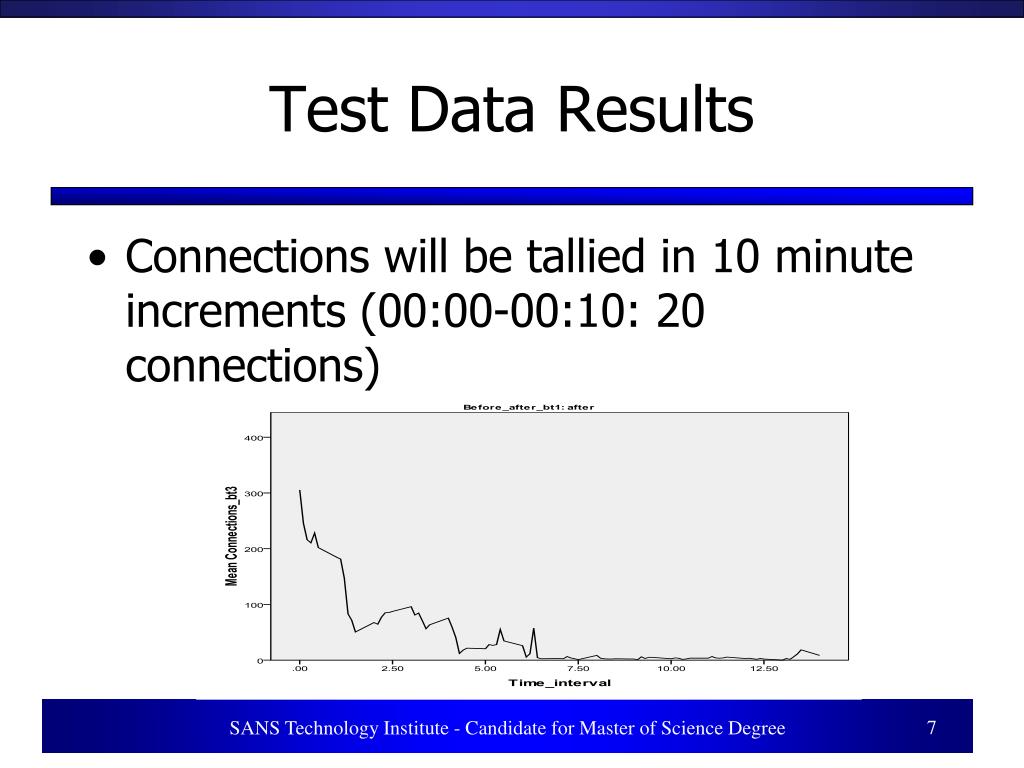

  7. Test Data Results • Connections will be tallied in 10 minute increments (00:00-00:10: 20 connections) SANS Technology Institute - Candidate for Master of Science Degree

  8. Results (Quantitative) • Data had non-standard distribution. This skews typical statistical analysis. • All three test runs had wide variance in standard deviation and skew. SANS Technology Institute - Candidate for Master of Science Degree

  9. Results (Qualitative) SANS Technology Institute - Candidate for Master of Science Degree

  10. Results (Source Country) • Using Whois/ARIN data to lookup the source countries of the afterglow connections SANS Technology Institute - Candidate for Master of Science Degree

  11. Unique Anomaly SANS Technology Institute - Candidate for Master of Science Degree

  12. Unique Anomaly • Theories on why there are spikes every two hours: • Unique client code (Timeout/retry, cached client list) • Dropped or Filtered Traffic • Malicious Retry to verify disconnection SANS Technology Institute - Candidate for Master of Science Degree

  13. Study Limitations • Limited number of Trial runs • Identical “safe” torrent files • Wide variance in data connection rates SANS Technology Institute - Candidate for Master of Science Degree

  14. Ideas for follow-up research Client identification (Certain P2P clients might have a fingerprint or signature) Packet Analysis (Flags or structure in Afterglow connections to identify malicious or non-typical connections) Traffic Analysis (Do other protocols/attacks exhibit similar patterns like 2 hour retry with 5 attempts) Torrent Variance (Movies, music, etc.) Directions for the Future SANS Technology Institute - Candidate for Master of Science Degree

  15. Summary • Certain qualitative statistical analysis can be used to look at network traffic for anomalies and patterns. Quantitative analysis is more difficult. • Unexplained connection patterns exist in P2P afterglow connections. SANS Technology Institute - Candidate for Master of Science Degree
