  1. Extracting Structured Data from Web Pages By Arsun ARTEL, Özgün ÖZIŞIKYILMAZ 05.11.2003 Instructor: Prof. Taflan Gündem

  2. General • Underlying Terminology • Modules and their operations Presentation Outline • Motivation • Example Pages • Model & Problem Formulation • Approach in Detail • Experimental Results • Conclusion

  3. General • Underlying Terminology • Modules and their operations What is next? • Motivation • Example Pages • Model & Problem Formulation • Approach in Detail • Experimental Results • Conclusion

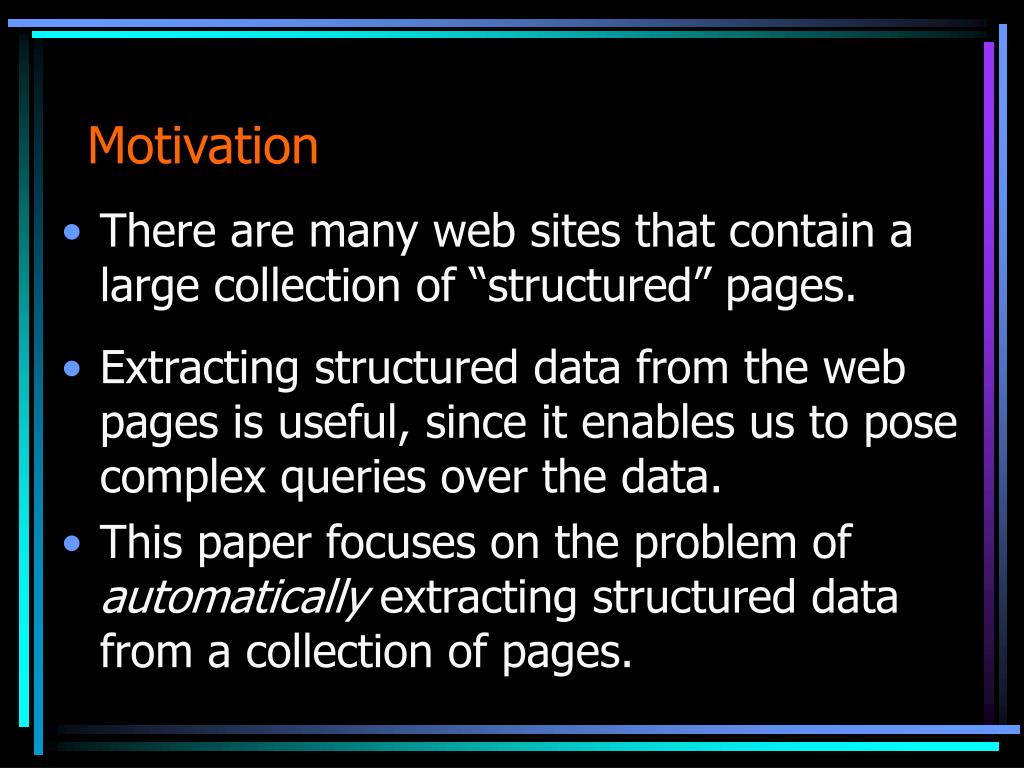

  4. Motivation • There are many web sites that contain a large collection of “structured” pages. • Extracting structured data from the web pages is useful, since it enables us to pose complex queries over the data. • This paper focuses on the problem of automatically extracting structured data from a collection of pages.

  5. General • Underlying Terminology • Modules and their operations What is next? • Motivation • Example Pages • Model & Problem Formulation • Approach in Detail • Experimental Results • Conclusion

  6. Example Pages • In the real world there are many examples for structured web pages. • amazon web site, e-bay web site etc. • Two examples from www.amazon.com • My System • An Eternal Golden Braid

  7. Example Pages (My System: 21st Century Edition)

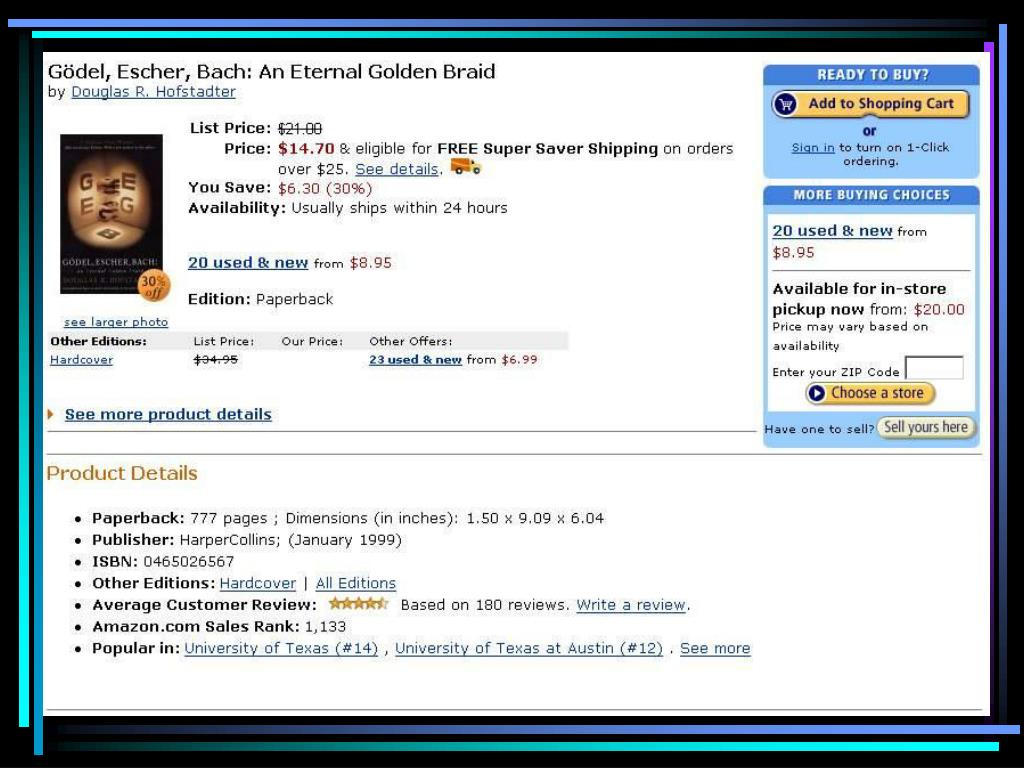

  8. Example Pages (An Eternal Golden Braid)

  9. General • Underlying Terminology • Modules and their operations What is next? • Motivation • Example Pages • Model & Problem Formulation • Approach in Detail • Experimental Results • Conclusion

  10. Underlying Problems • Complex Schema:The “schema” of the information encoded in the web pages could be very complex with arbitrary levels nesting. For instance, each book page can contain a set of authors, with each author having a set of addresses and so on. • Template vs. Data:Syntactically, there is nothing that distinguishes the text that is part of the template and the text that is part of the data.

  11. x extracted from the database How is a page created with template?

  12. Basic Type, Tuples and Sets • Basic Type: b,Basic unit of text • Tuple: Ordered List of types, <T1,T2,…,Tn> • Set: {T1} < C Programming Language, {< Brian, Kernighan >, < Dennis, Ritchie >}, $30.00 >

  13. Schema and Instance < C Programming Language, {< Brian, Kernighan >, < Dennis, Ritchie >}, $30.00 >

  14. Template Definition • Own example: • Schema: S = <b, {b}, b> • Template: TS = <A * B {*}E C * D> • A = ‘Title:’, B = ‘Presented by:’, C = ‘Cost:’, D = ‘ ’, E = ‘and’ • Instance of TS: Title: Extracting Structured Data Presented by: Arsun and Özgün Cost: 1hr

  15. Encoding l(T1,x1) Template

  16. General • Underlying Terminology • Modules and their operations What is next? • Motivation • Example Pages • Model & Problem Formulation • Approach in Detail • Experimental Results • Conclusion

  17. General Description of EXALG

  18. Set of Reviewers Multiple Pages

  19. Correct Solution for those pages

  20. Some Terminology (1) • The occurrence-vectorof a token t, is defined as the vector <f1,f2,…fn> where fi is the number of occurrences of t in ith page • An equivalence classis a maximal set of tokens having the same occurrence-vector. • A token is said to have unique role, if all the occurrences of the token in the pages, is generated by a single template-token.

  21. No unique role <1,1,1,1> <1,2,1,0> Some Terminology (2)

  22. Some Terminology (3) • For real pages, an equivalence class of large size and support is usually valid, where supportof a token is defined as the number of pages in which the token occurs. • Example for invalid equivalence class: • {Data, Mining, Jeff, 2, Jane, 6} has occurrence vector <0, 1, 0, 0>

  23. Some Terminology (4) • The equivalence classes with large size and support are called LFEQs (for Large and Frequent EQuivalence class). LFEQs are rarely formed by “chance”. • Threshold for size and support is set by the user (SizeThres, SupThres).

  24. Some Terminology(5) • Validequivalence class properties: Ordering and Nesting • Back to own example: • Template: TS = <A * B {*}E C * D> • A = ‘Title:’, B = ‘Presented by:’, C = ‘Cost:’, D = ‘ ’, E = ‘and’ • Ordered: A > B > C > D • Nesting: B > E > C

  25. Important Observations • In practice, two page-tokens with different occurrence-paths have different roles: html-parser • Two page-tokens having same occurrence paths, but with different neighbours also have different roles

  26. Explanation of observations

  27. Modules and their operations

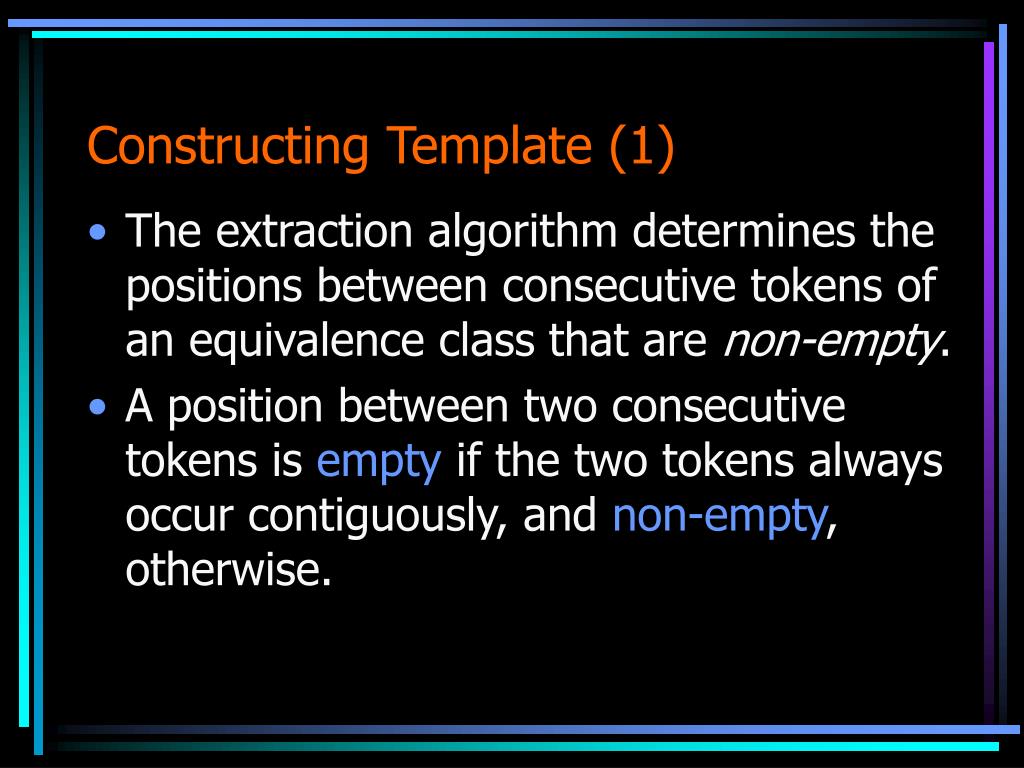

  28. Constructing Template (1) • The extraction algorithm determines the positions between consecutive tokens of an equivalence class that are non-empty. • A position between two consecutive tokens is empty if the two tokens always occur contiguously, and non-empty, otherwise.

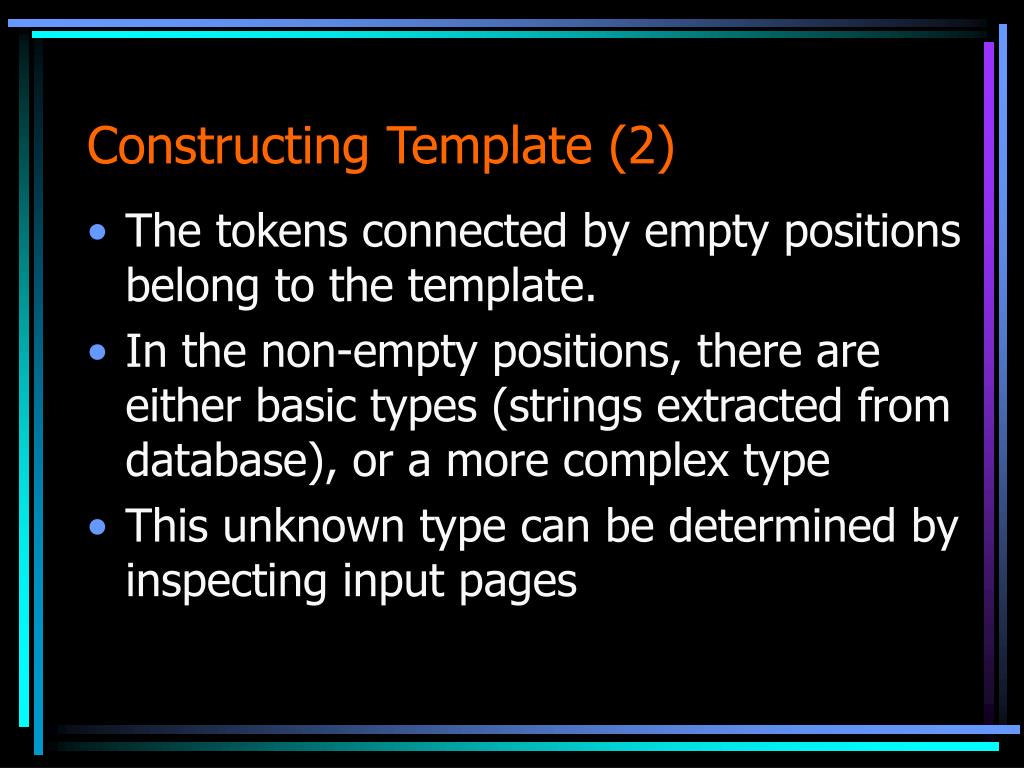

  29. Constructing Template (2) • The tokens connected by empty positions belong to the template. • In the non-empty positions, there are either basic types (strings extracted from database), or a more complex type • This unknown type can be determined by inspecting input pages

  30. Constructing Template(3)

  31. General • Underlying Terminology • Modules and their operations What is next? • Motivation • Example Pages • Model & Problem Formulation • Approach in Detail • Experimental Results • Conclusion

  32. Experimental Results (1) • Basically this project is compared with the RoadRunner, however RoadRunner makes simplifying assumptions. • The first 6 web pages are obtained from RoadRunner site. • The last three web pages have more complex structure.

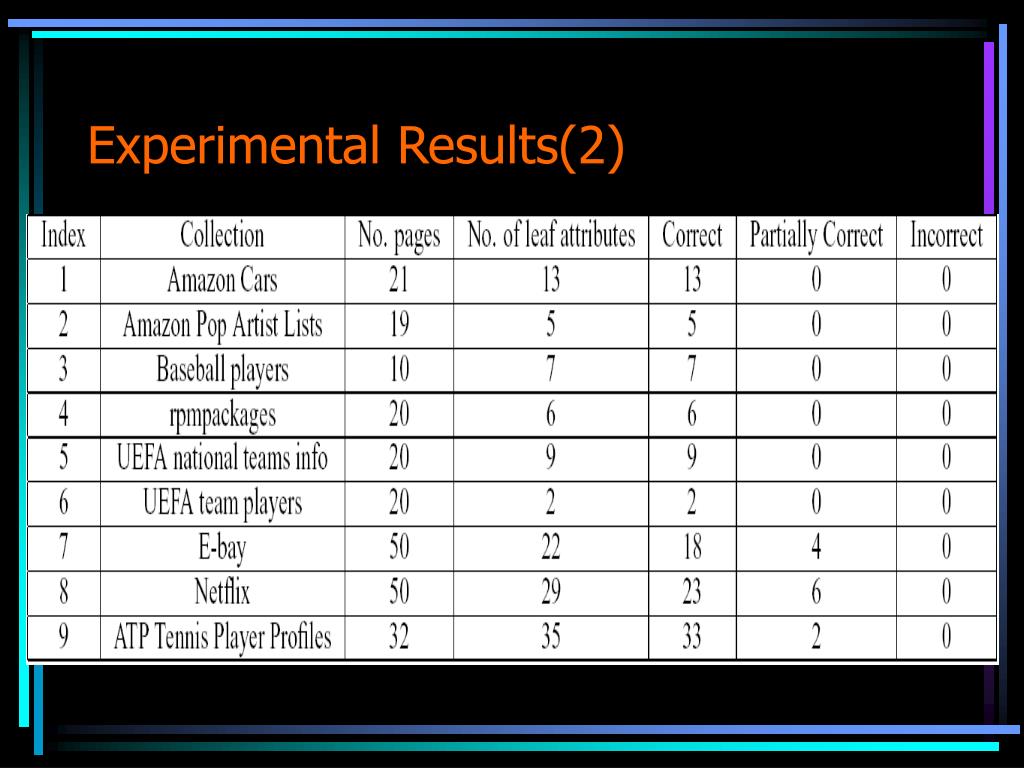

  33. Experimental Results(2)

  34. General • Underlying Terminology • Modules and their operations What is next? • Motivation • Example Pages • Model & Problem Formulation • Approach in Detail • Experimental Results • Conclusion

  35. Concluding Remarks • EXALG first discovers the unknown template that generated the pages and uses the discovered template to extract the data from the input pages. • Besides getting very good results, EXALG does not completely fail to extract any data even when some of the assumptions made by EXALG are not met by the input collection. • No human intervention – automatically getting template and data

  36. Future Work • Automatically locate collections of pages that are structured • Check, whether it is feasible to generate some large database from these pages

  37. Questions & Answers
