70 °C. 40 °C. VIBORG DISTRICT HEATING. VISIT November 3, 2010. Program. DENMARK DANISK ENERGY POLICY DISTRICT HEATING DANISH DISTIRICT HEATING DIMENSIONS ISSUES VIBORG DISTRICT HEATING ECONOMICAL ISSUES WHAT ARE WE DOING RIGHT NOW?. GENERAL INFORMATION ON DENMARK.
E N D
70 °C 40 °C VIBORG DISTRICT HEATING VISIT November 3, 2010
Program DENMARK DANISK ENERGY POLICY DISTRICT HEATING DANISH DISTIRICT HEATING DIMENSIONSISSUES VIBORG DISTRICT HEATING ECONOMICAL ISSUES WHAT ARE WE DOING RIGHT NOW?
ENERGY POLICY IN THE FIELD OF ELECTRICITY, HEATING AND NATURAL GAS • Agreement of 20. March 1990 • Conversion of existing stations to combined heat and power supply; • Increased use of natural gas and other environmentally-friendly fuels • Electricity savings. • Biomass Agreement of 14. June 1993 • On the future development of biomass. Biomass was to be used in electricity supply from 2000. • The biomass agreement also covers expansion of the use of biomass in the heating supply sector. • It must be possible to use biomass resources in combined heat and power supply • in the natural gas areas • in the decentralised combined heat and power sector if there is a local desire to do so. • Reform Follow-up Agreement of 22. March 2000 • Implementation of the EU Gas Directive; • Future development in the heating supply sector; • The further organisation of the biomass agreement; • Balancing the costs for prioritised production between East and West Denmark; • Initiatives in the energy-savings field; • The green energy market; • In the heating supply field, the agreement means, among other things, that benchmarking and income limits for district heating producers, right of pre-emption in connection with change of ownership and adjustment of the obligation to connect may be introduced and that help is provided for bare field plants. • Agreement of 20. February 2002 • The Danish Electricity Supply Act was amended with regard to inclusion of payment for minimum capacity, handling of electricity overflow, takeover of non-performing windmills, electrical safety and emergency planning. • The framework conditions of decentralised combined heat and power plants were improved. • An opportunity was created for sea windmills to be installed at Samsø.
ENERGY POLICY IN THE FIELD OF ELECTRICITY, HEATING AND NATURAL GAS • Energy policy agreement, 21 February 2008 • The goal is that total gross energy consumption should fall by 2% in 2011 and 4% up until 2020 compared to 2006, corresponding to a drop from 863 PJ in 2006 to 846 PJ in 2011. • A very significant portion of further energy savings will be obtained by increasing energy companies' overall energy savings obligation from about 3 PJ/year today to 5.4 PJ/year from 2010. Preparation for the increased savings is being discussed with the companies.
Renewableenergy A steadily growing portion of energy consumption in the coming years should come from renewable energy sources. An increase to a 20% share of renewable energy has been agreed for 2011. The Danish EU goal for renewable energy will be binding on Danish energy policy until 2020.
WhyDISTRICT HEATING? • A cleaner environment • Reduced costs for the consumers and the society • A steady and secure supply
CHP Proportion of Electricity and District Heating Production
DANISHDISTRICT HEATING NUMBER OF CHP AND DH PLANTS IN DENMARKPublic-heat supply (cities): 16 centralized CHP 285 decentralized CHP 130 decentralized DH plantsPrivate heat supply (enterprises, institutions): 380 CHP 100 DH plantsIn all: 665 CHP 230 DH plants
DANISHDISTRICT HEATING • DISTRICT-HEATING SUPPLY: KEY FIGURES • If all of the DH pipes were laid end to end, they would stretch for 50,000 kilometers • In the last ten years, 400,000 new consumers were connected to the grid • 60 % of DH is delivered by the 55-60 largest DH plants (most are owned by local authorities) • In 2008, the following fuels were used to produce DH: • 46.2% renewable energy • nonrenewable waste 8.9 %, • biomass 35.4 % • other renewables 2.1 % • natural gas 27.8% • coal 22.0% • oil 3.8%.
Costs Mainly we accept relative high establishing-costs in order to achieve the lowest possible running-costs

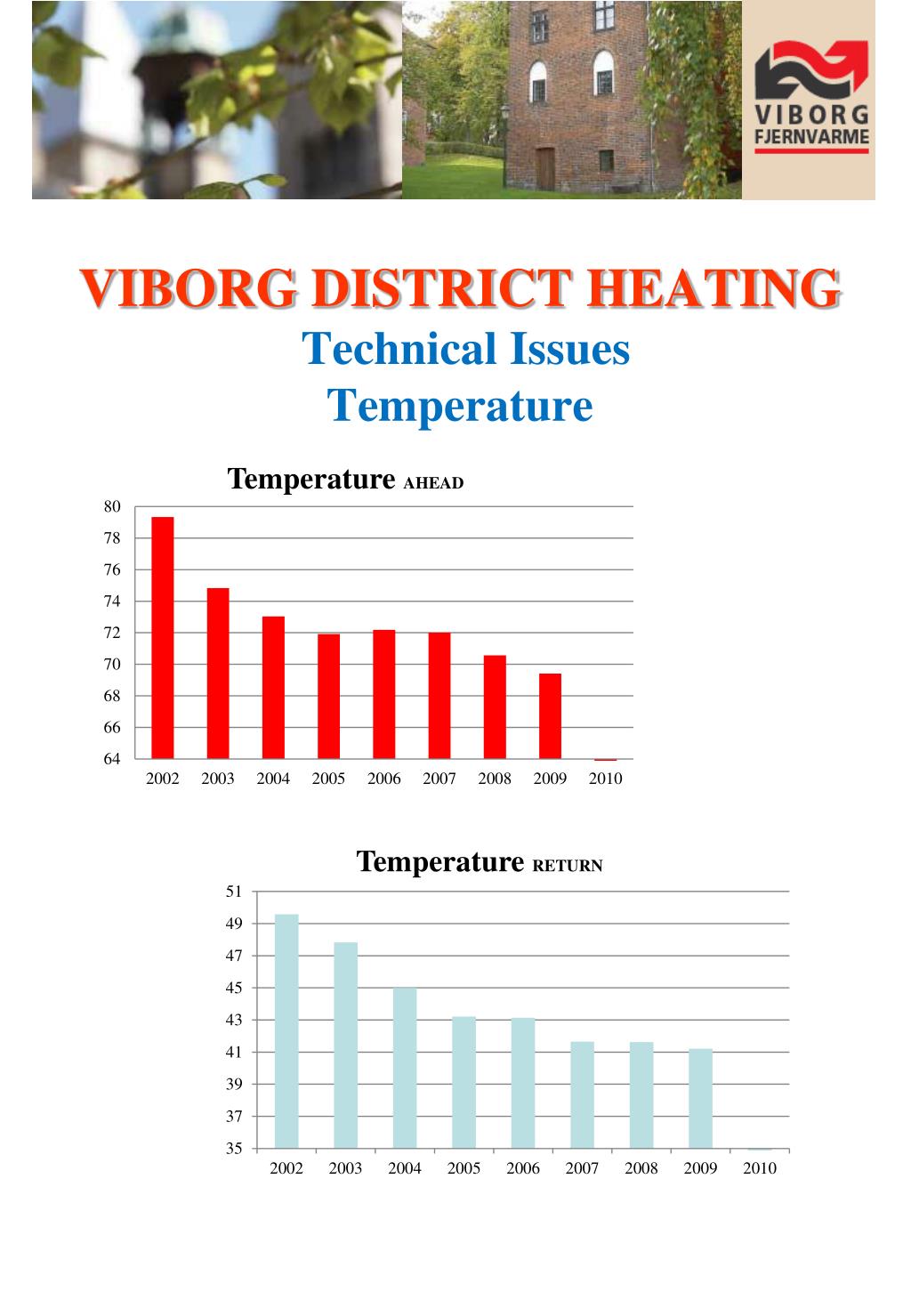

Dimension ofpipes Outdoor temperature -12 °C Forward temperature 75 - 120 °C Return temperature 40 - 50 °C Minimum pressure drop - velocity of water 1,5 - 2 m/s
User installations • Outdoor temperature - 12 °C • Forward 70 °C • Return 40 °C • Cooling 30 °C • Connection-methods • Direct connection • Direct connection with internal shunt • Connection with heat-exchanger

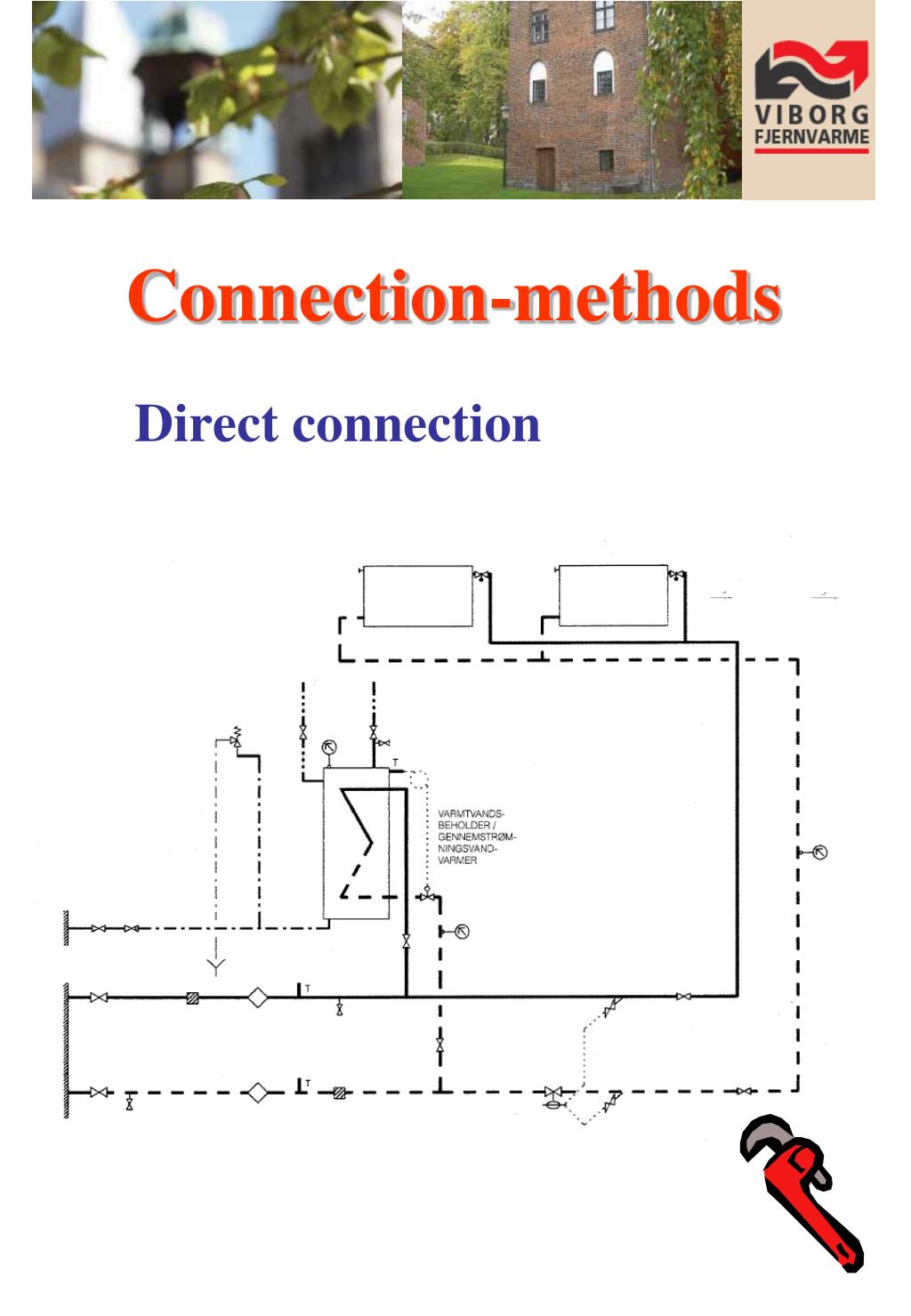

Connection-methods Direct connection

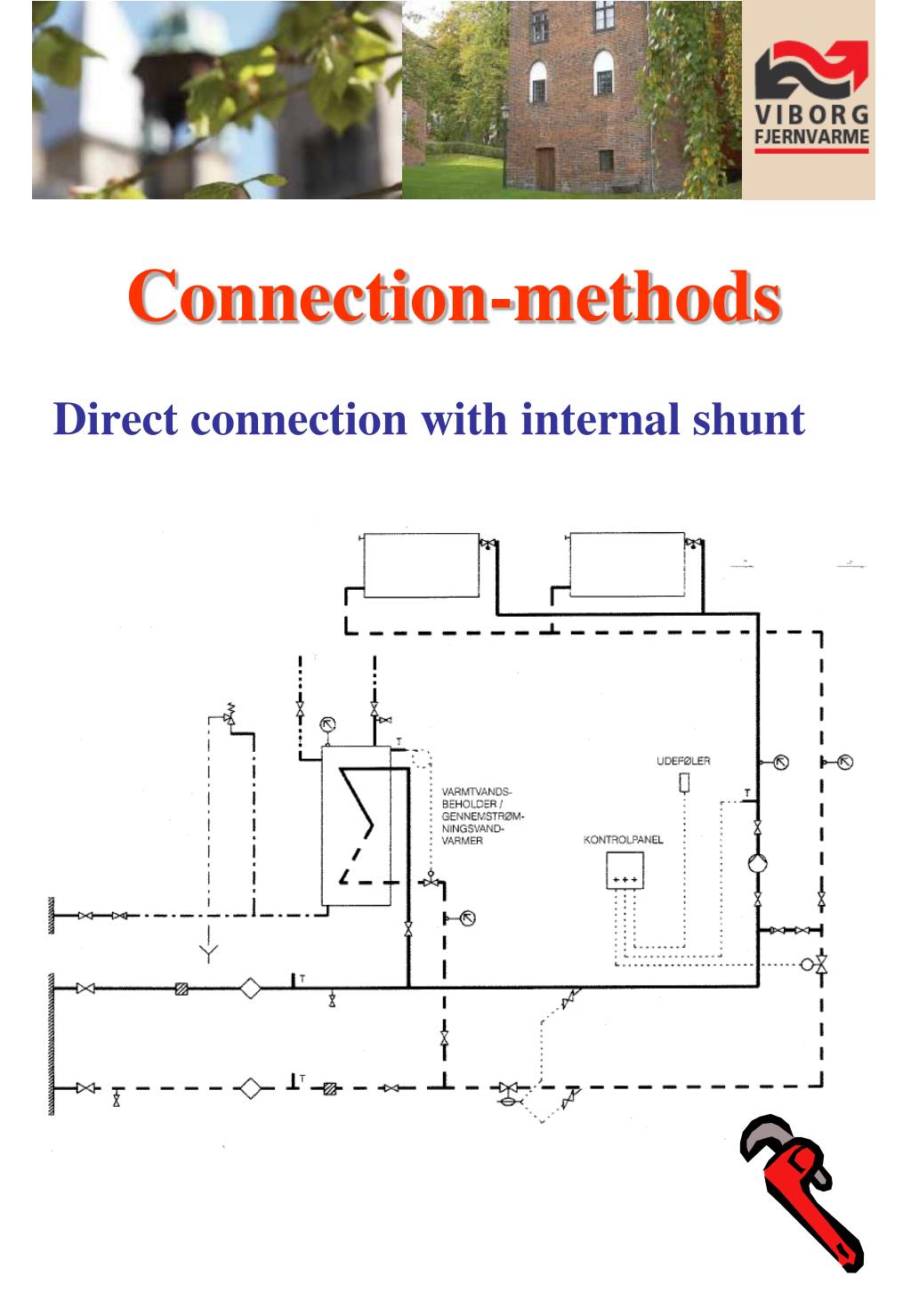

Connection-methods Direct connection with internal shunt

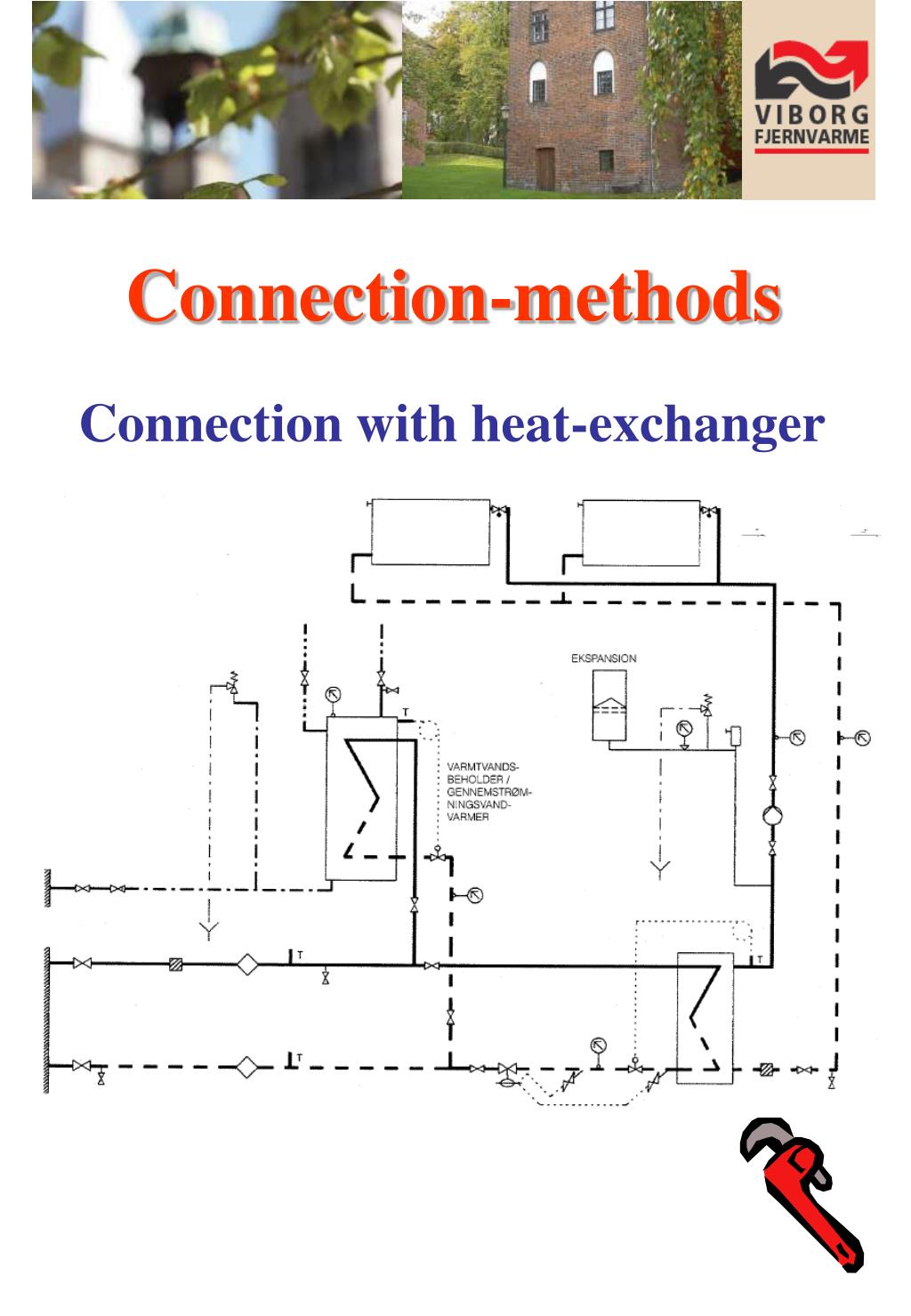

Connection-methods Connection with heat-exchanger
VIBORG DISTRICT HEATING? • Establish: • 16. April 1953 • as an company own by the consumers • (Interest Company)
Heating Distributions System MP: 174.001 m CP: 124.861 m Total: 298.862 m
VIBORG DISTRICT HEATING Organization: • Type: Union • Purpose: § 2.1 The main purpose of the Union is to distribute heat in municipal Viborg Owners: • VDH is owned by the consumers. • If VDH one should make money, it goes back to the consumers.
VIBORG DISTRICT HEATING • CHP • 7.887 installations • 1.922.000 m² • Purchase in 2009:264.064 MWh • Sold in 2009:201.562 MWh
Tariff model Transparent an understandable Easy to administer Costs covered by income from those parts off tariff, to which they naturally belong Each consumer must pay his share of the costs
Fixed Expenses Rent for Energy Meter VIBORG DISTRICT HEATINGECONOMICAL ISSUES Variable Expenses
Fixed Expenses VIBORG DISTRICT HEATINGECONOMICAL ISSUES • Maintenance of Distributions System • Cars • Insurance • Telephone • Technical assistance • Interest • Write off • Appropriation for future investments • Wages • Pensions Shared between the customers by the space in there houses DK Kr./m²
VIBORG DISTRICT HEATINGECONOMICAL ISSUES Variable Expenses • Purchase of heat from CHP-Viborg • Loss in pipes and energy meters • Electricity • Supplementary water • Chemicals for water treatment Shared between the customers by the consumption of heat DK Kr./kWh
Rent for Energy Meter VIBORG DISTRICT HEATINGECONOMICAL ISSUES • Maintenance of Energy Meter • Customers service • Making the Year account Shared between the customers by the size of there energy meter DK Kr.
Tariff 2009 Yearly charge: Capacity cont. (Housing area) DKr. per m2 14,00 Consumption charge DKr. per kWh 0,374 Subscription (meterrent): 1,5 m³ Multicall DKr. 532,00 2,5/3 m³ Multicall DKr. 538,00 5/6 m³ Multicall DKr. 1.092,00 10 m³ Multicall DKr. 1.312,00 15 m³ Multicall DKr. 1.507,00 25/30 m³ Multicall DKr. 1.689,00 40/50 m³ Multicall DKr. 1.689,00 Connection charge: DKr. 8.000,00 Develop charge: For each 1.000 m2 DKr. 14.000,00 Various works: Meter control DKr. 725,00 Change of owner/tenant: Reading of the meter (Viborg Fjernvarme) DKr. 250,00 Owner/tenant reads the meter DKr. 130,00 Reminder and interest fee: Interest for overdue payments is fixed at an annual interest, correspondent to the at any time fixed market rate, with a extra charge of 6%. 1. reminder for an overdue payment DKr. 100,00 Visit from Viborg Fjernvarme regarding overdue payment DKr. 260,00 Closing and reopening after overdue payment DKr. 820,00 All prices are exclusive VAT.
