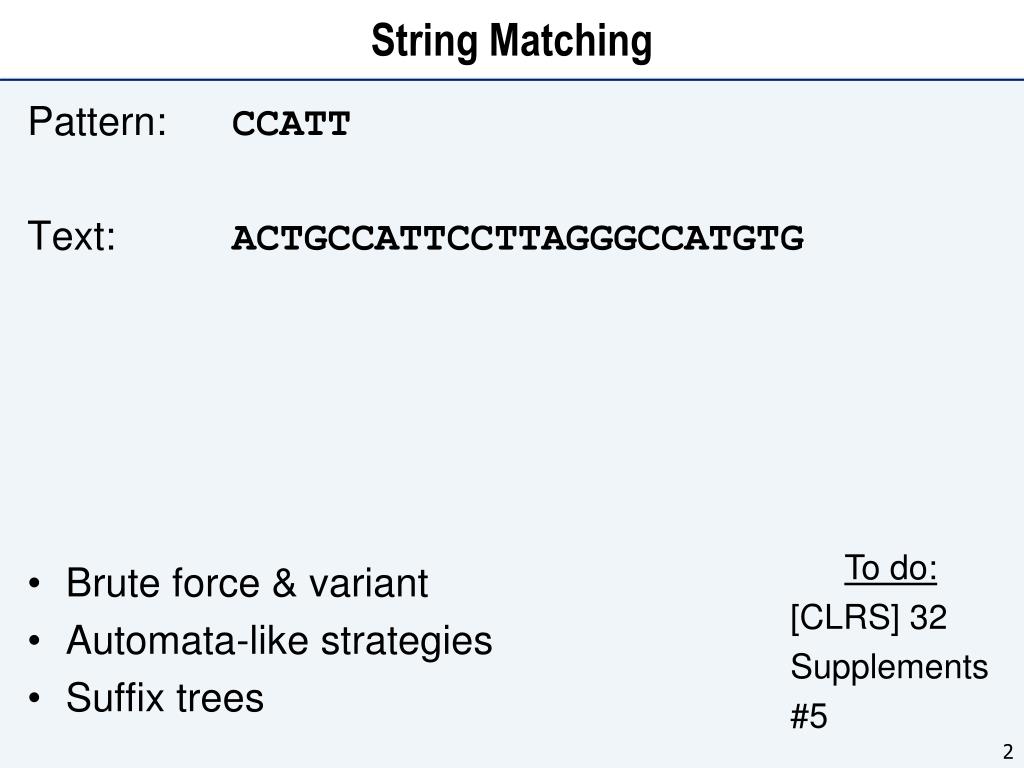

2. String Matching Pattern: CCATT Text: ACTGCCATTCCTTAGGGCCATGTG • Brute force & variant • Automata-like strategies • Suffix trees To do: [CLRS] 32 Supplements #5

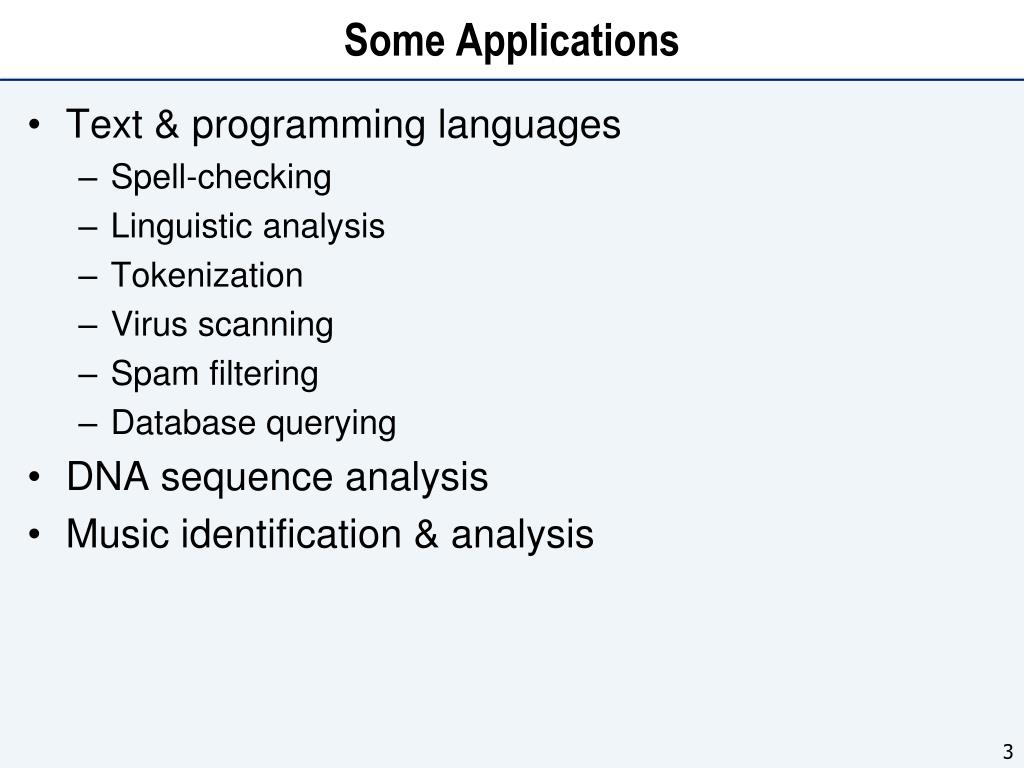

3. Some Applications • Text & programming languages • Spell-checking • Linguistic analysis • Tokenization • Virus scanning • Spam filtering • Database querying • DNAsequence analysis • Music identification & analysis

4. Brute Force Exact Match Pattern: CCATT Text: ACTGCCATTCCTTAGGGCCATGTG Algorithm? Example of worst case? Running time?

5. Rabin-Karp, 1981 Pattern: CCATT Text: ACTGCCATTCCTTAGGGCCATGTG Hash pattern & -substrings • Compare hashes. • Compare strings only when hashes match. • easily computed from , Best and worst cases?

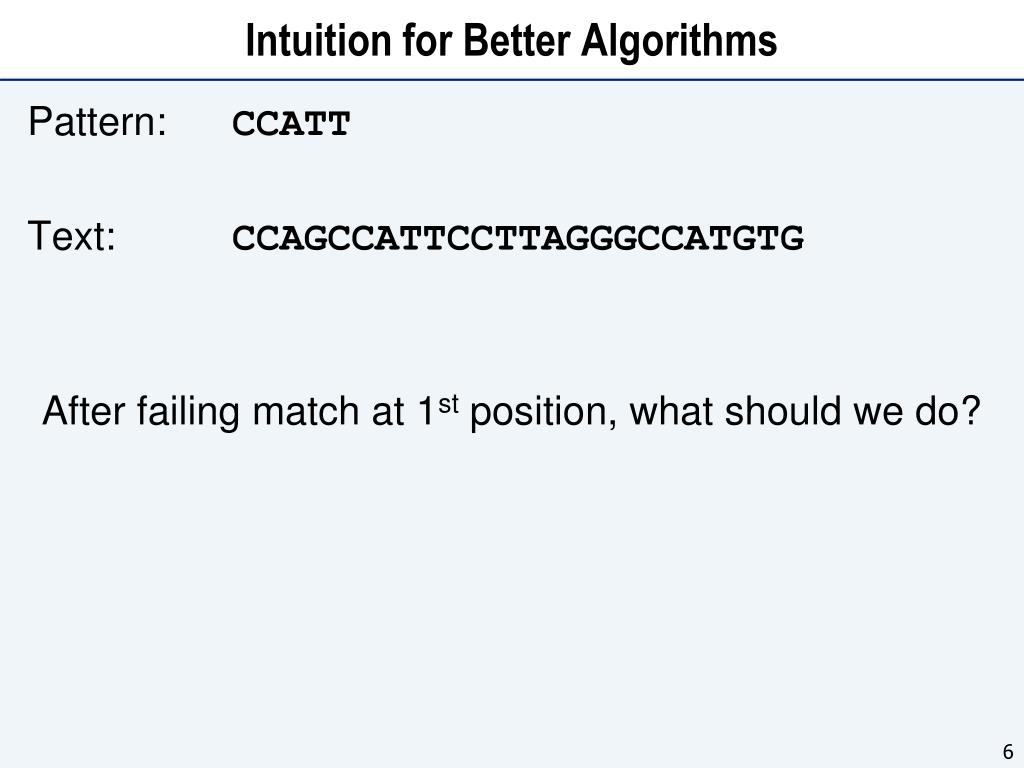

6. Intuition for Better Algorithms Pattern: CCATT Text: CCAGCCATTCCTTAGGGCCATGTG After failing match at 1st position, what should we do?

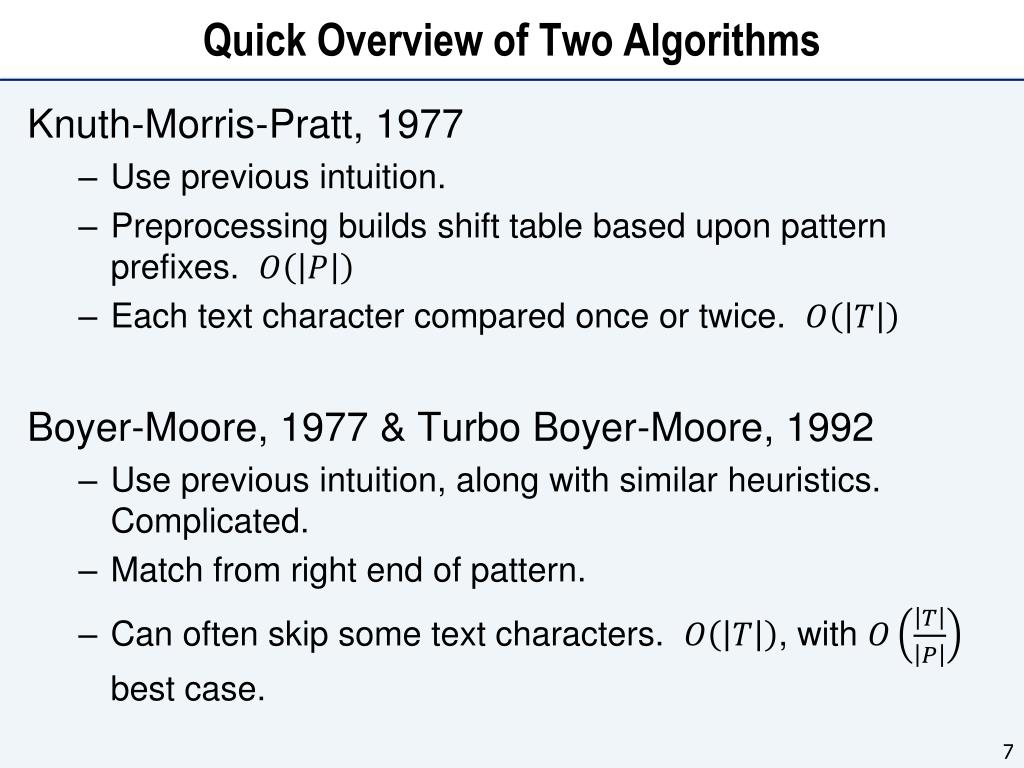

7. Quick Overview of Two Algorithms Knuth-Morris-Pratt, 1977 • Use previous intuition. • Preprocessing builds shift table based upon pattern prefixes. • Each text character compared once or twice. Boyer-Moore, 1977 & Turbo Boyer-Moore, 1992 • Use previous intuition, along with similar heuristics. Complicated. • Match from right end of pattern. • Can often skip some text characters. , with best case.

8. Finite Automata Matching Example Pattern: CCATT Text: CCAGCCATTCCTTAGGGCCATGTG C C C C CC A C C C T CCA CCAT T CCATT to build

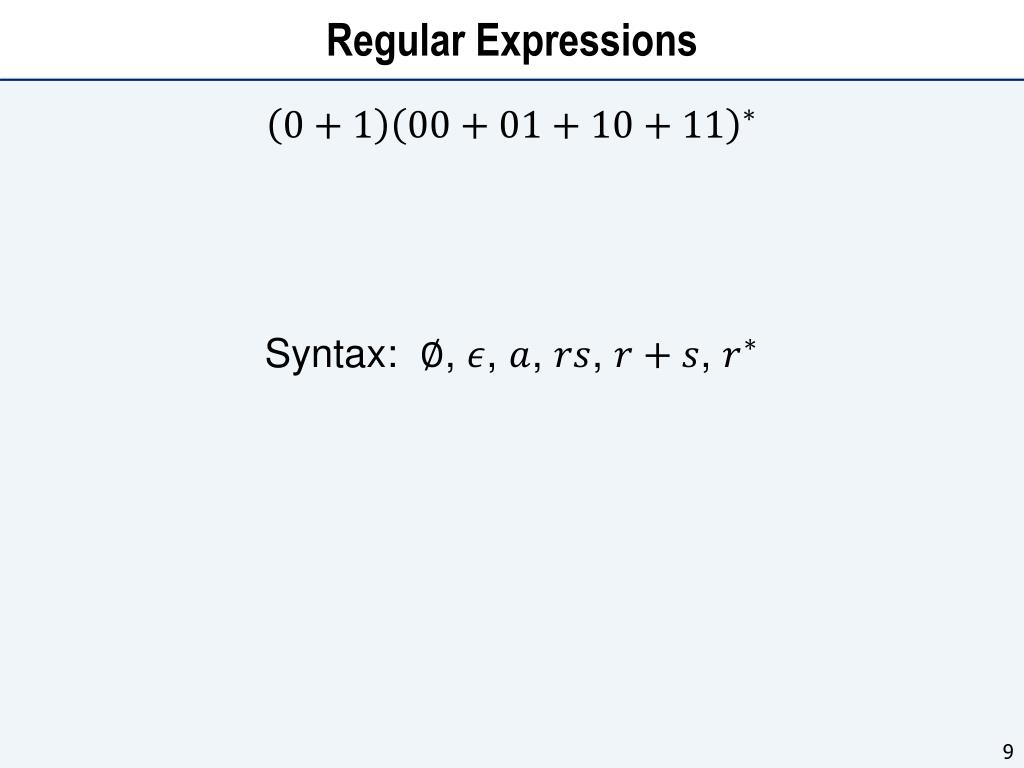

9. Regular Expressions Syntax: , , , , ,

10. Regular Expression to Finite Automaton

11. Regular Expression to Finite Automaton

12. Eliminating

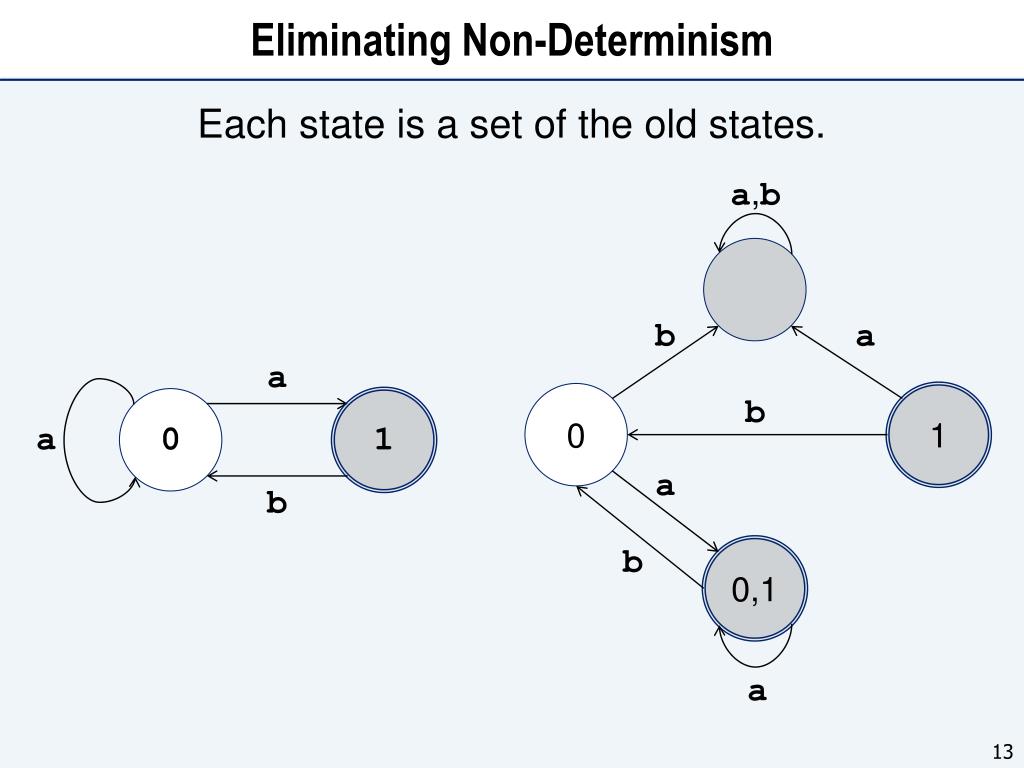

13. Eliminating Non-Determinism Each state is a set of the old states. a,b a 0 1 a b a b b 0 1 a b 0,1 a

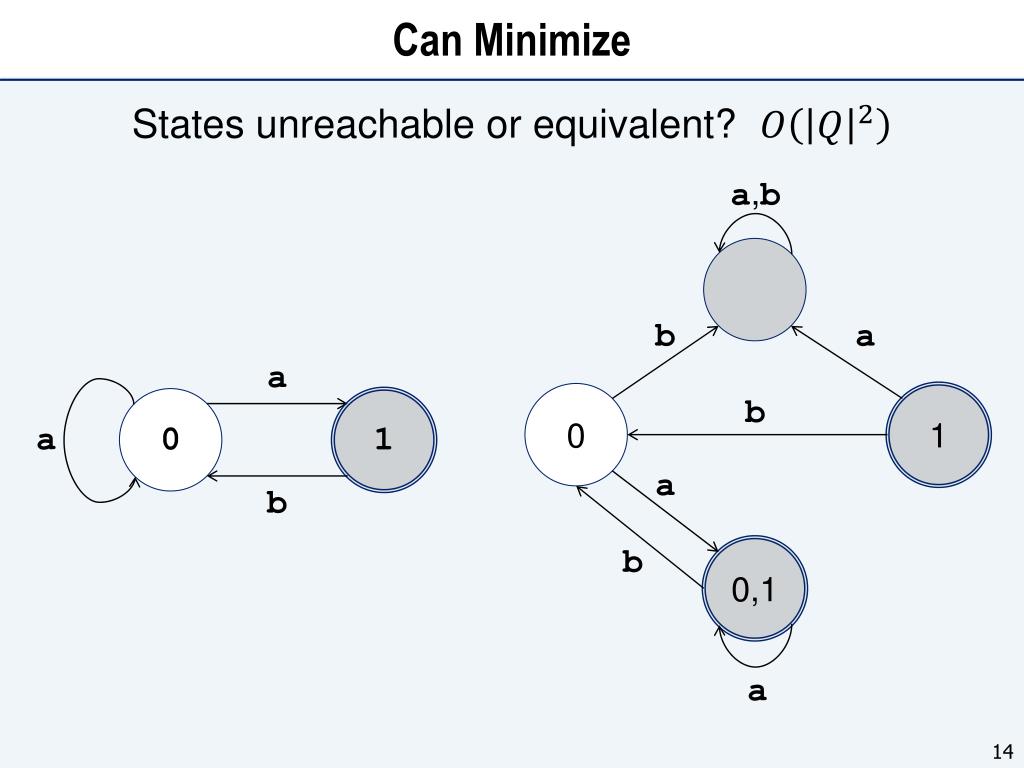

14. Can Minimize States unreachable or equivalent? a,b a 0 1 a b a b 0 1 b a b 0,1 a

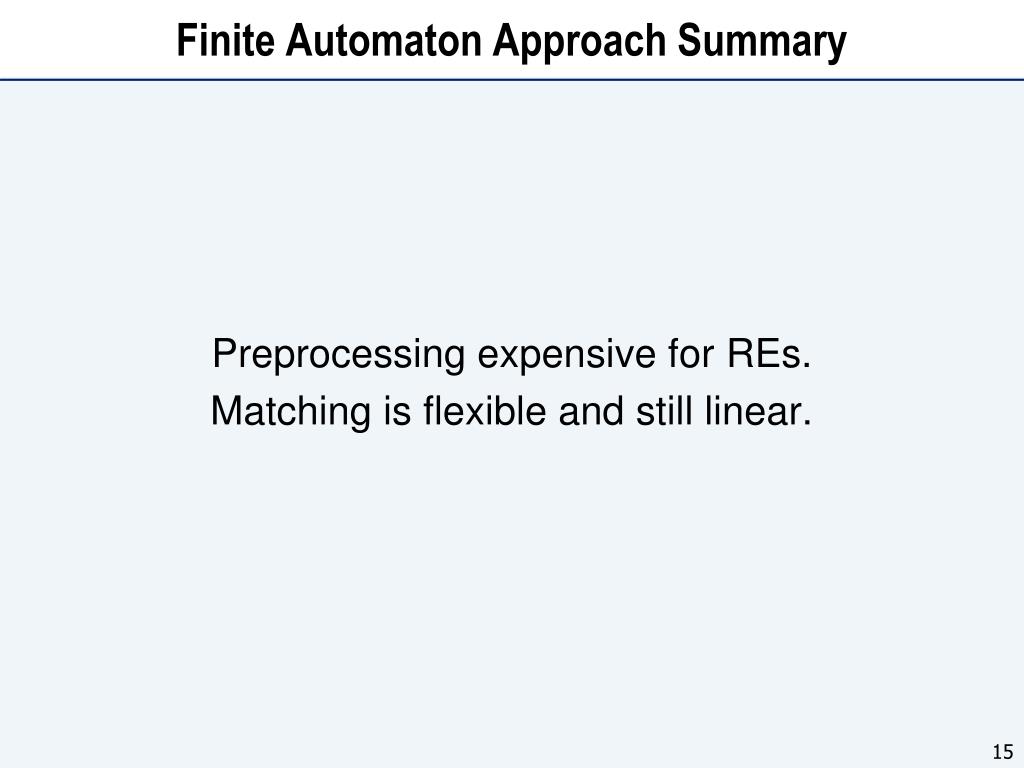

15. Finite Automaton Approach Summary Preprocessing expensive for REs. Matching is flexible and still linear.

16. Suffix Tree (Trie) Text: CCAGAT How many leaves, nodes, edges? Total space? How to search for a pattern? Running time? Each edge labeled with two indices. T A GAT C 6 4 T GAT AGAT CAGAT 5 3 2 1

17. Require Suffixes to End at Leaves Text: CCAGAT Reason: Simplicity. Distinguish nodes & leaves. Example text that would break that? T A GAT C 6 4 T GAT AGAT CAGAT 5 3 2 1

18. Forcing Suffixes to End at Leaves Text: CCAGAC$ $ A GAC$ C 7 4 $ AGAC$ C$ GAC$ CAGAC$ 5 3 6 2 1

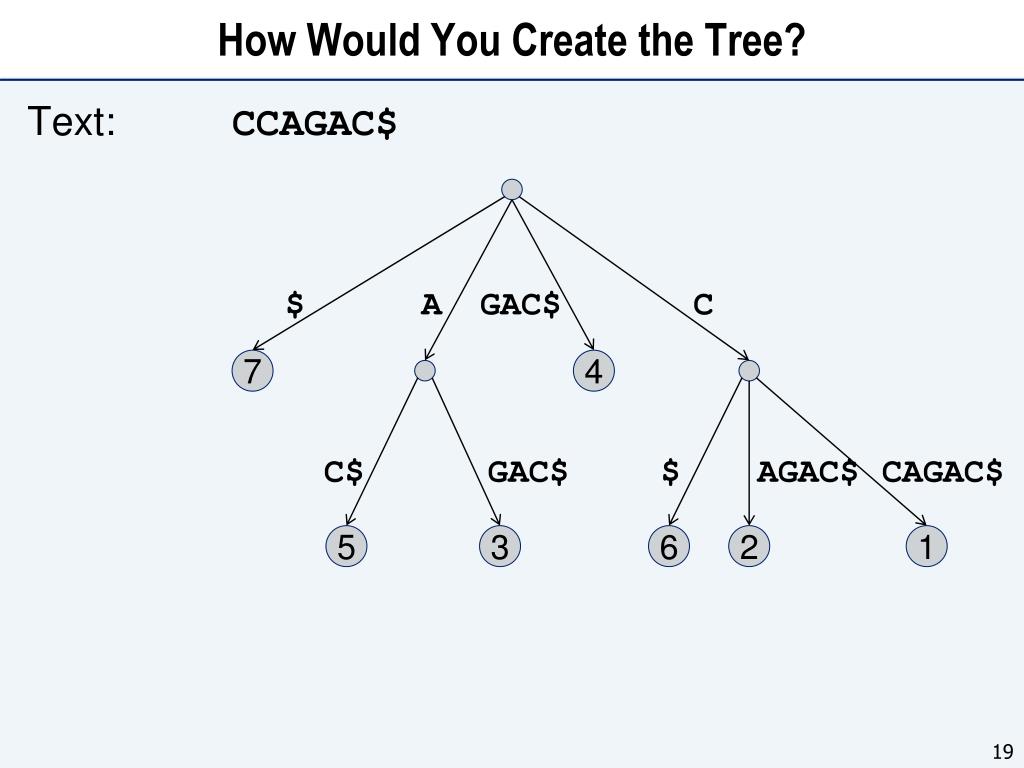

19. How Would You Create the Tree? Text: CCAGAC$ $ A GAC$ C 7 4 $ AGAC$ C$ GAC$ CAGAC$ 5 3 6 2 1

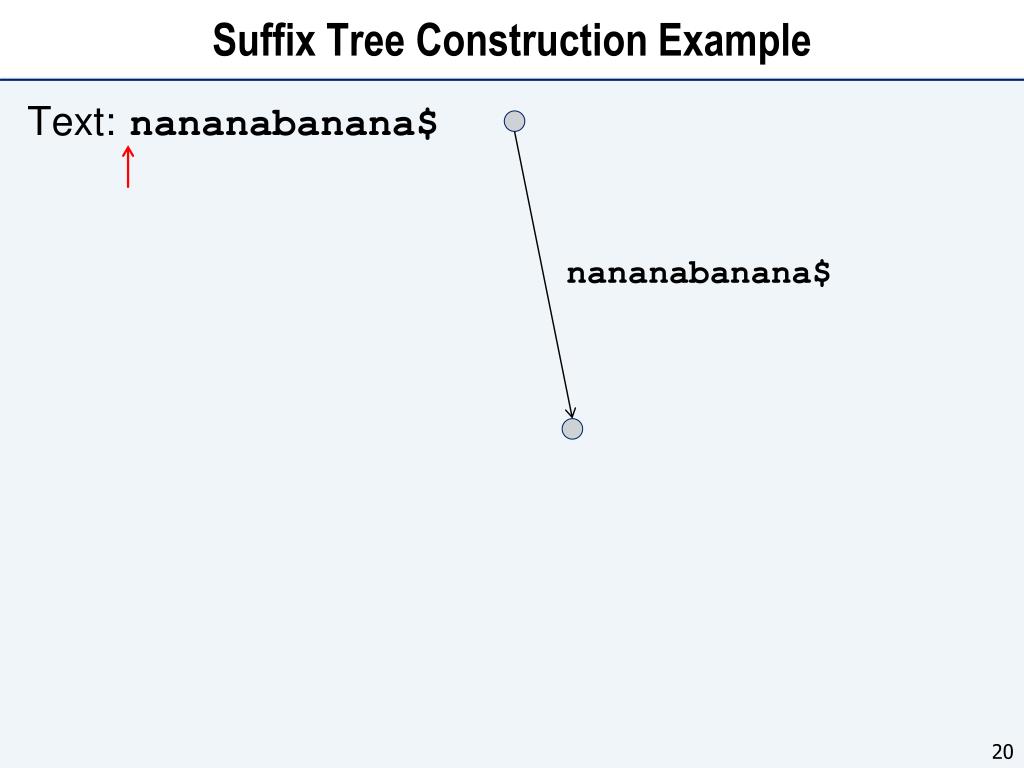

20. Suffix Tree Construction Example Text: nananabanana$ nananabanana$

21. Suffix Tree Construction Example Text: nananabanana$ ananabanana$ nananabanana$

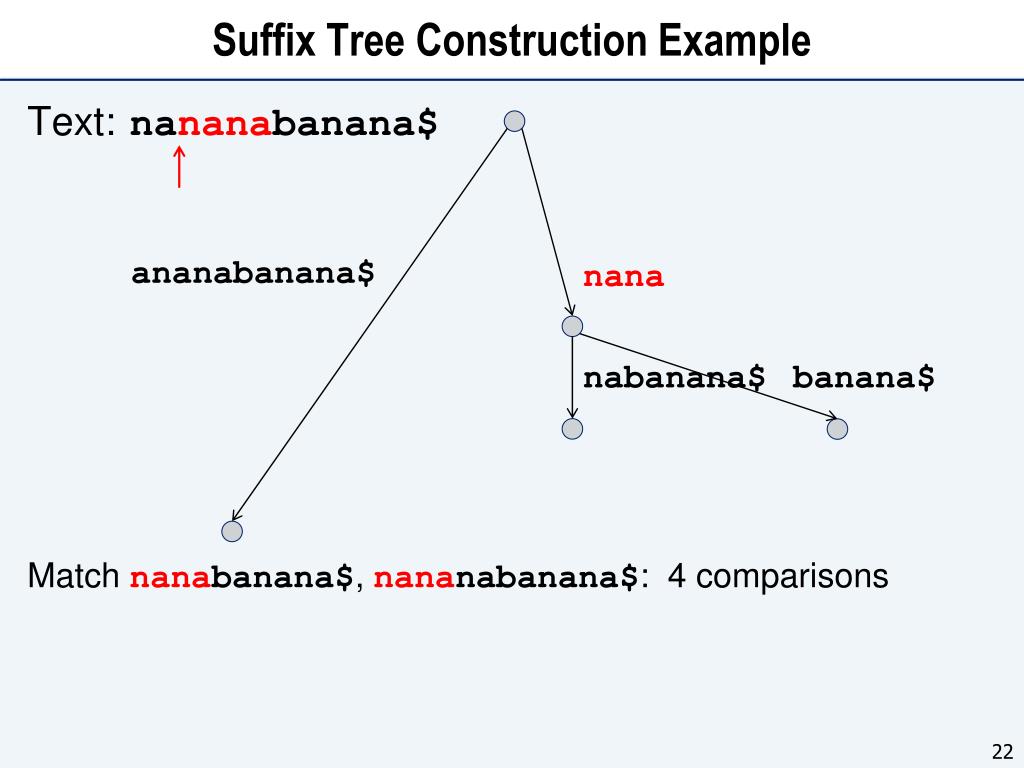

22. Suffix Tree Construction Example Text: nananabanana$ Match nanabanana$,nananabanana$: 4 comparisons ananabanana$ nana nabanana$ banana$

23. Suffix Tree Construction Example Text: nananabanana$ Match anabanana$, ananabanana$: 3 redundant comps Next … Match nabanana$, nanabanana$: 2 redundant comps Match abanana$, anabanana$: 1 redundant comp ana nana banana$ nabanana$ banana$ nabanana$

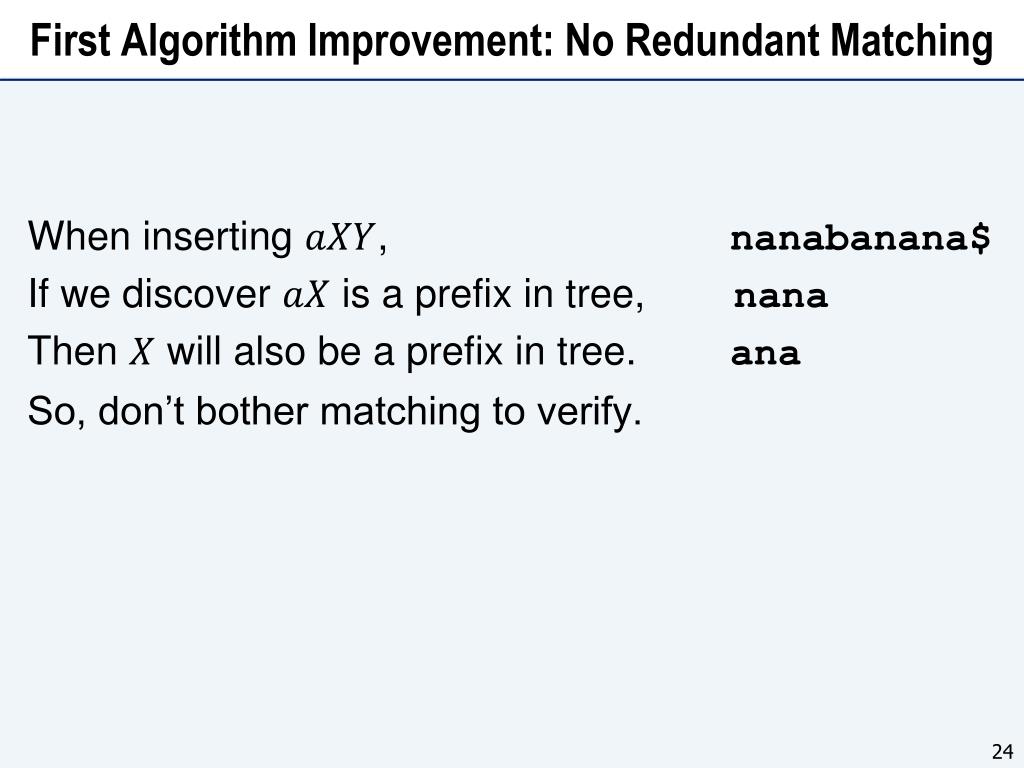

24. First Algorithm Improvement: No Redundant Matching When inserting , nanabanana$ If we discover is a prefix in tree,nana Then will also be a prefix in tree. ana So, don’t bother matching to verify.

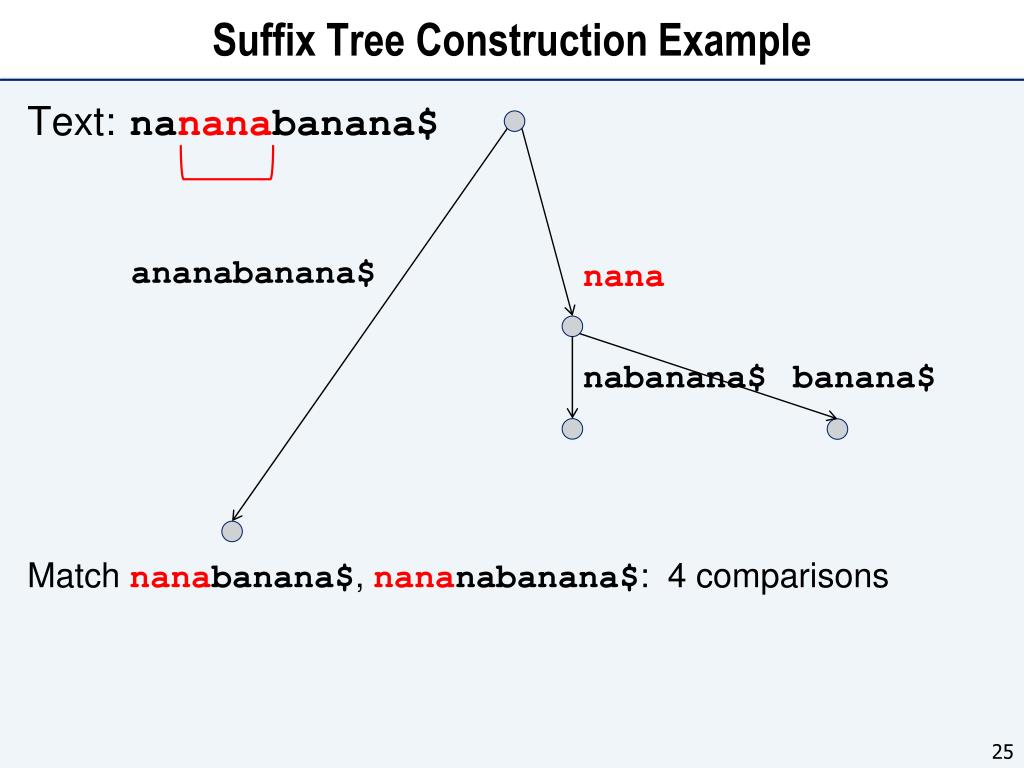

25. Suffix Tree Construction Example Text: nananabanana$ Match nanabanana$,nananabanana$: 4 comparisons ananabanana$ nana nabanana$ banana$

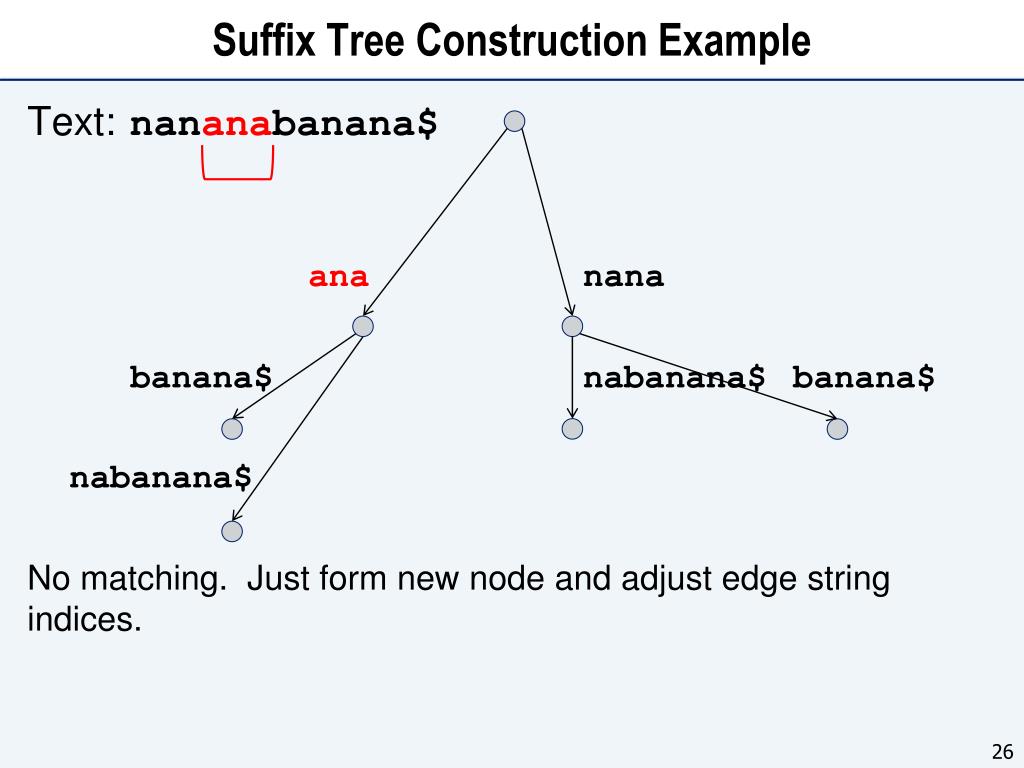

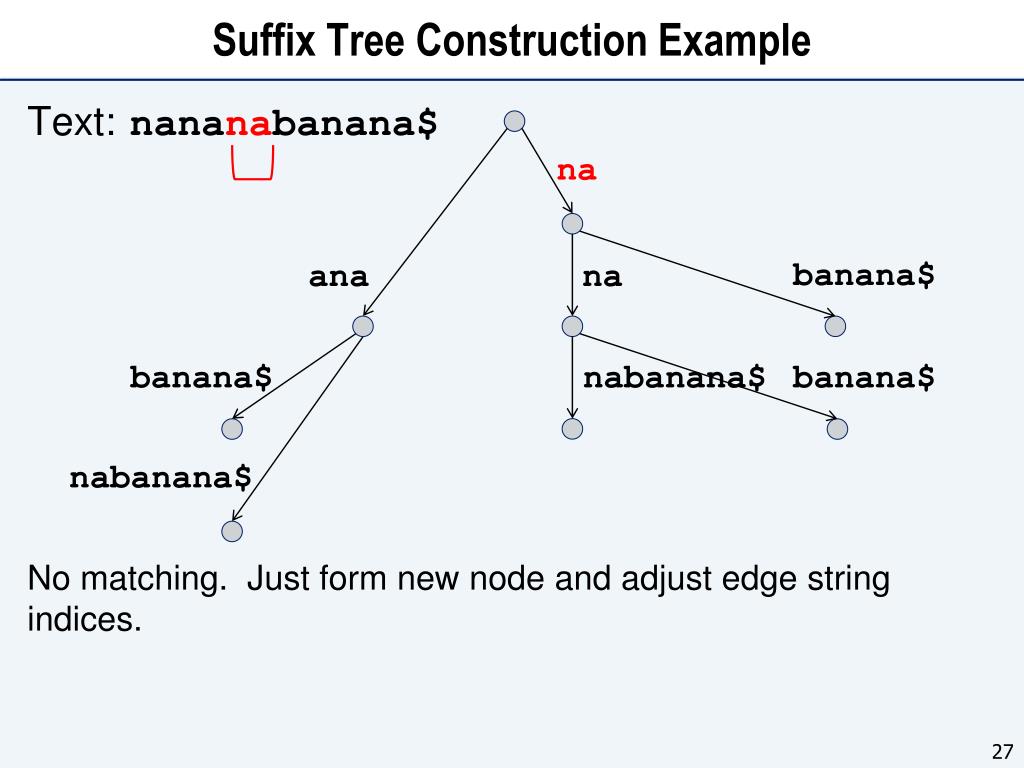

26. Suffix Tree Construction Example Text: nananabanana$ No matching. Just form new node and adjust edge string indices. ana nana banana$ nabanana$ banana$ nabanana$

27. Suffix Tree Construction Example Text: nananabanana$ No matching. Just form new node and adjust edge string indices. na banana$ ana na banana$ nabanana$ banana$ nabanana$

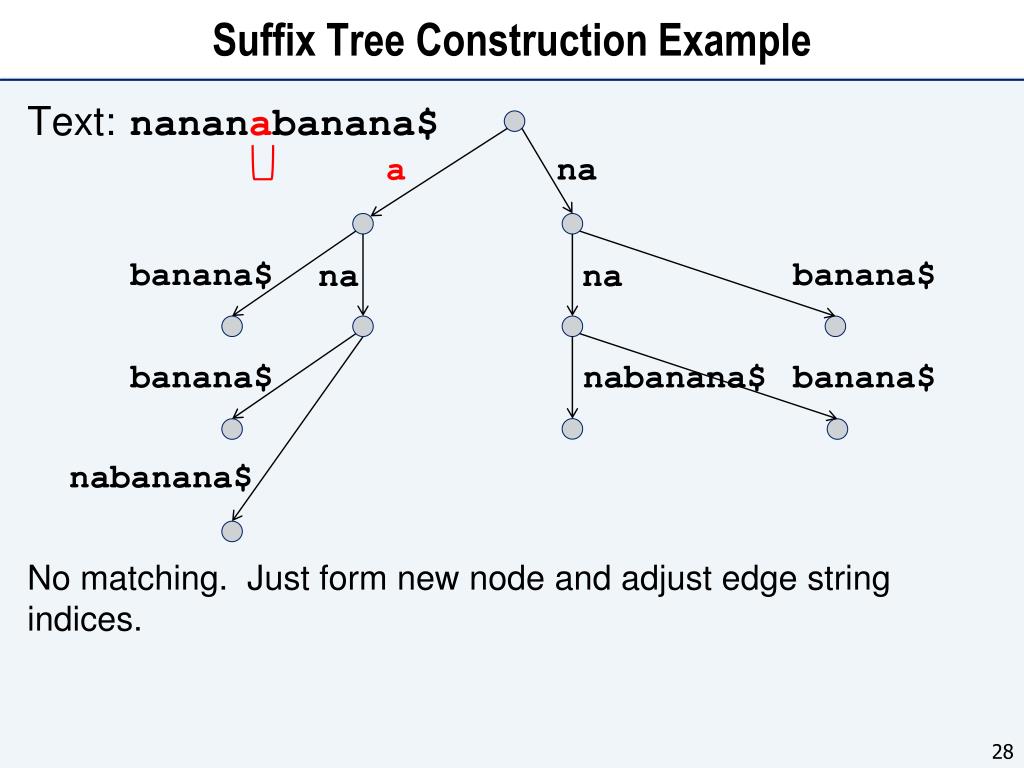

28. Suffix Tree Construction Example Text: nananabanana$ No matching. Just form new node and adjust edge string indices. a na banana$ banana$ na na banana$ nabanana$ banana$ nabanana$

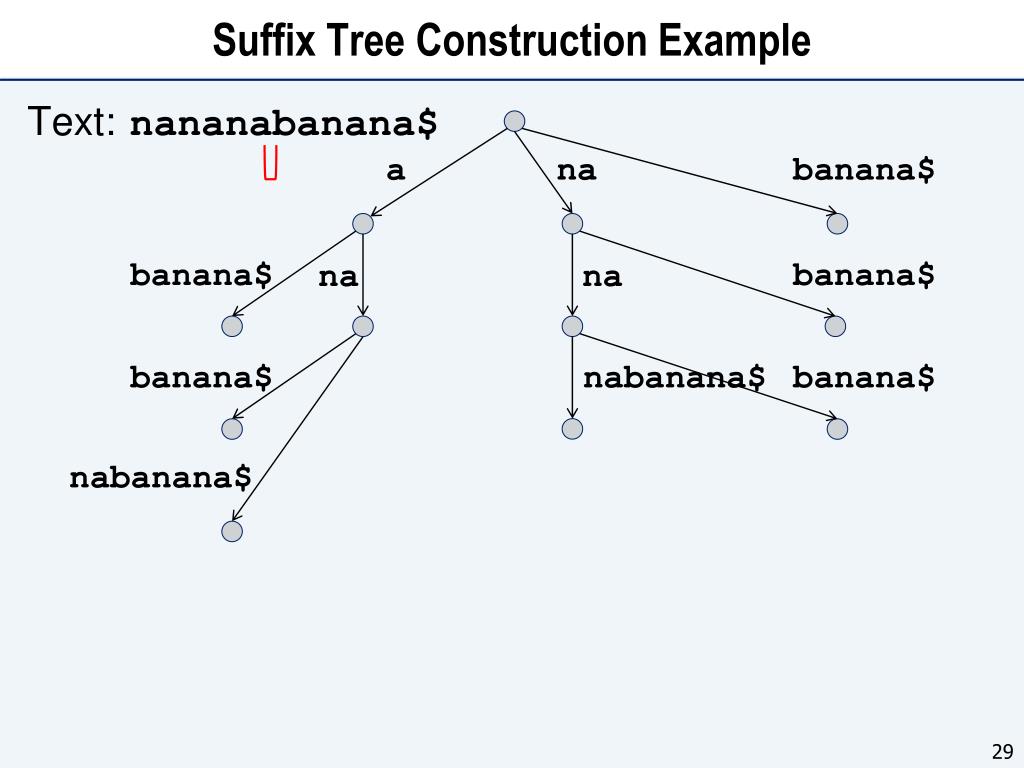

29. Suffix Tree Construction Example Text: nananabanana$ a na banana$ banana$ banana$ na na banana$ nabanana$ banana$ nabanana$

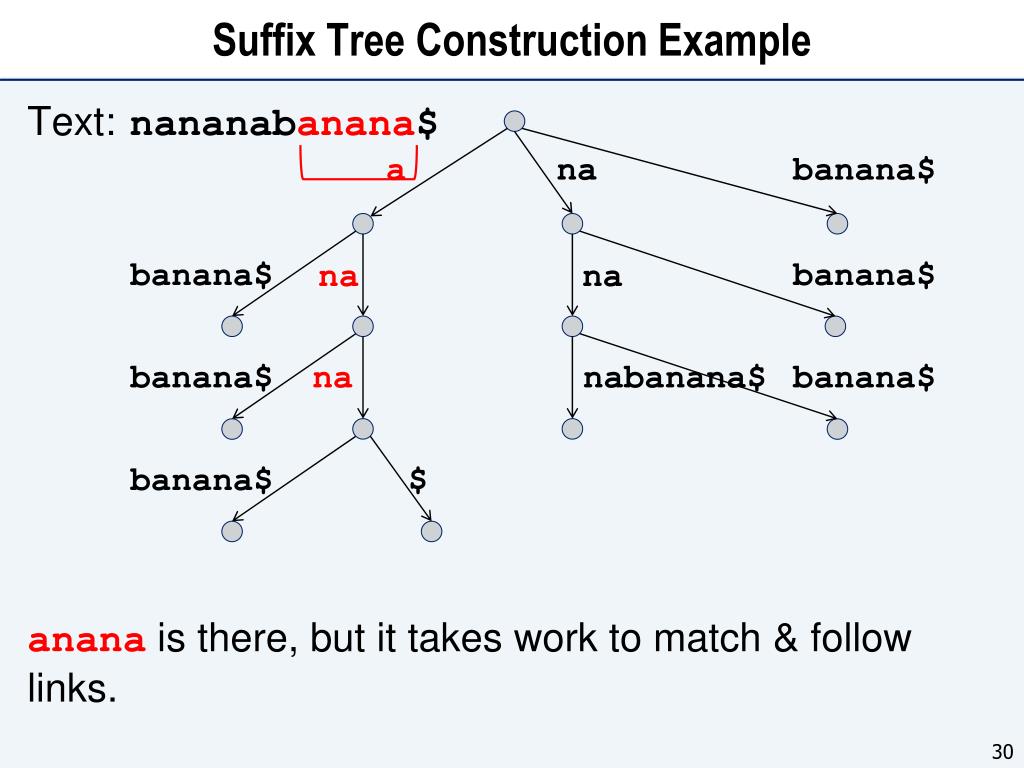

30. Suffix Tree Construction Example Text: nananabanana$ ananais there, but it takes work to match & follow links. a na banana$ banana$ banana$ na na banana$ na nabanana$ banana$ banana$ $

31. Suffix Tree Construction Example Text: nananabanana$ nana is there, but it takes work to match & follow links. a na banana$ banana$ banana$ na na banana$ na $ nabanana$ banana$ banana$ $

32. Second Algorithm Improvement: Suffix Links Text: nananabanana$ Each internal node for has pointer to node for . a na banana$ $ banana$ na $ na banana$ banana$ na $ $ nabanana$ banana$ banana$ $

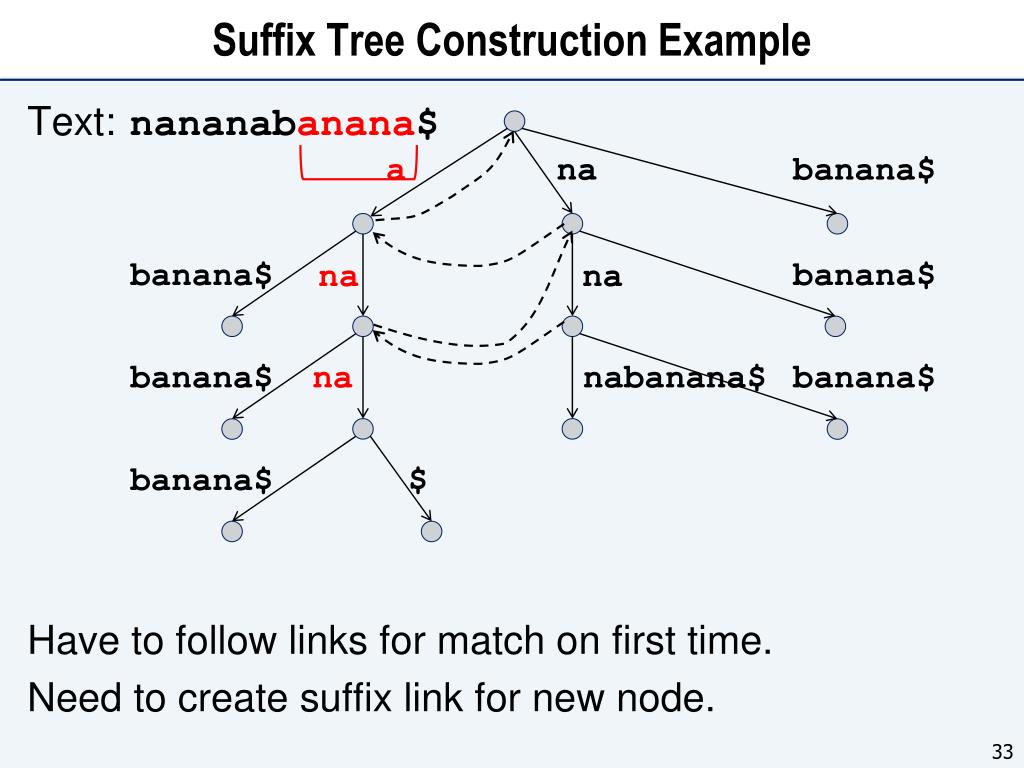

33. Suffix Tree Construction Example Text: nananabanana$ Have to follow links for match on first time. Need to create suffix link for new node. a na banana$ banana$ banana$ na na banana$ na nabanana$ banana$ banana$ $

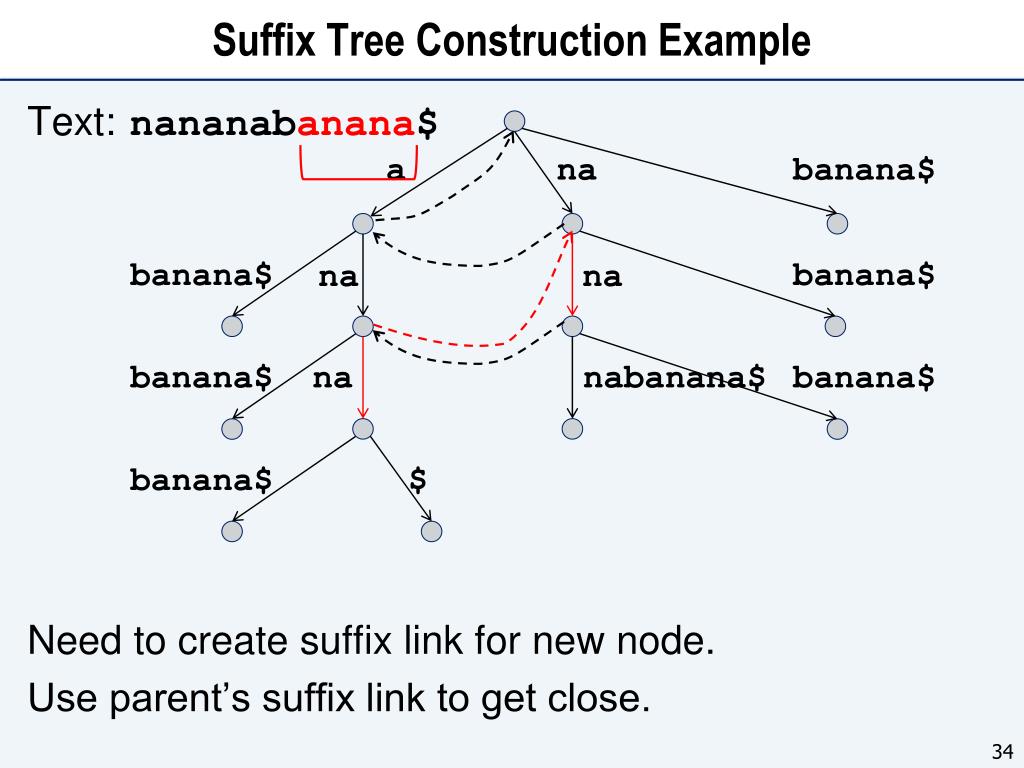

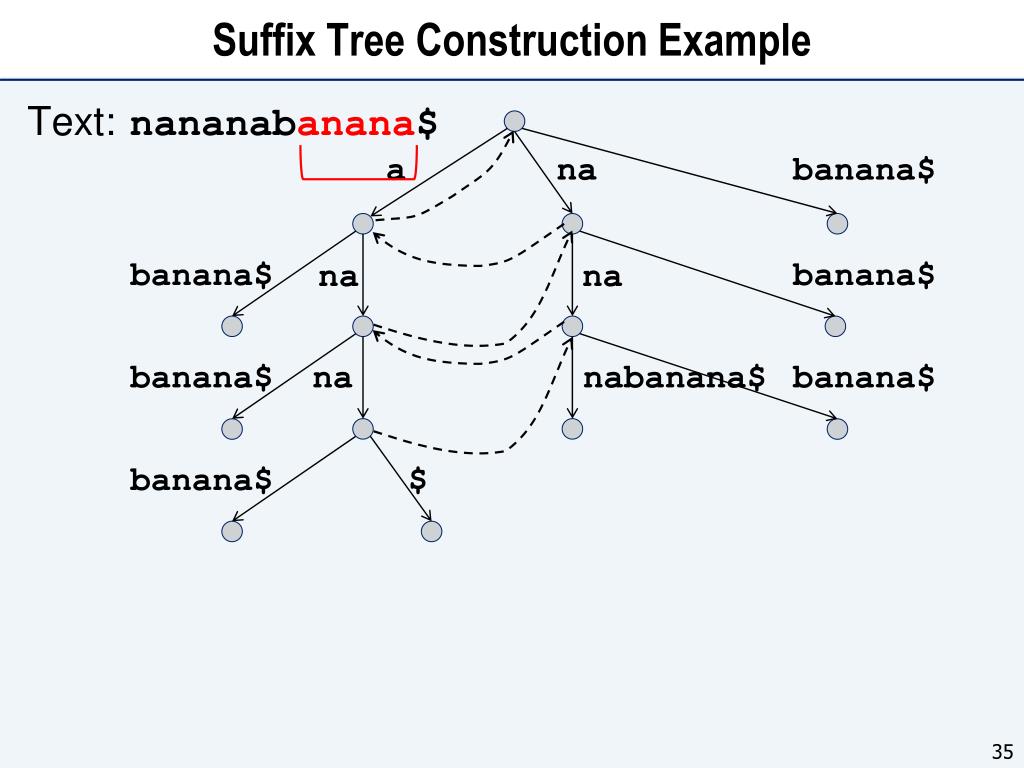

34. Suffix Tree Construction Example Text: nananabanana$ Need to create suffix link for new node. Use parent’s suffix link to get close. a na banana$ banana$ banana$ na na banana$ na nabanana$ banana$ banana$ $

35. Suffix Tree Construction Example Text: nananabanana$ a na banana$ banana$ banana$ na na banana$ na nabanana$ banana$ banana$ $

36. Suffix Tree Construction Example Text: nananabanana$ Already found node. No searching or matching. a na banana$ banana$ banana$ na na banana$ na $ nabanana$ banana$ banana$ $

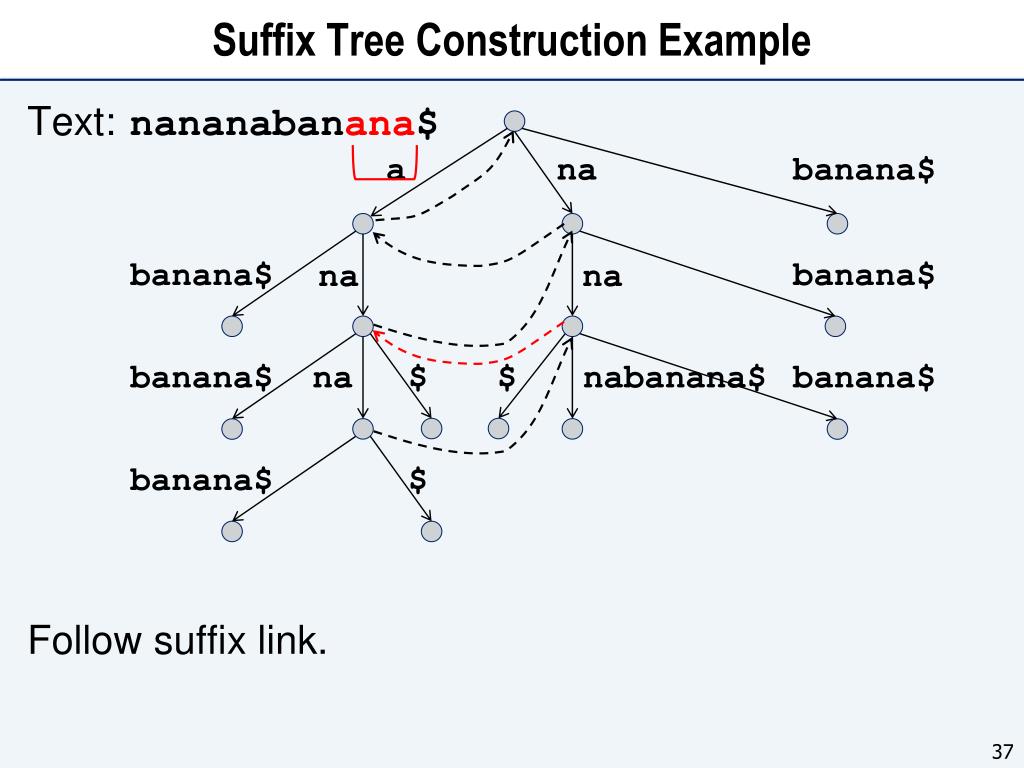

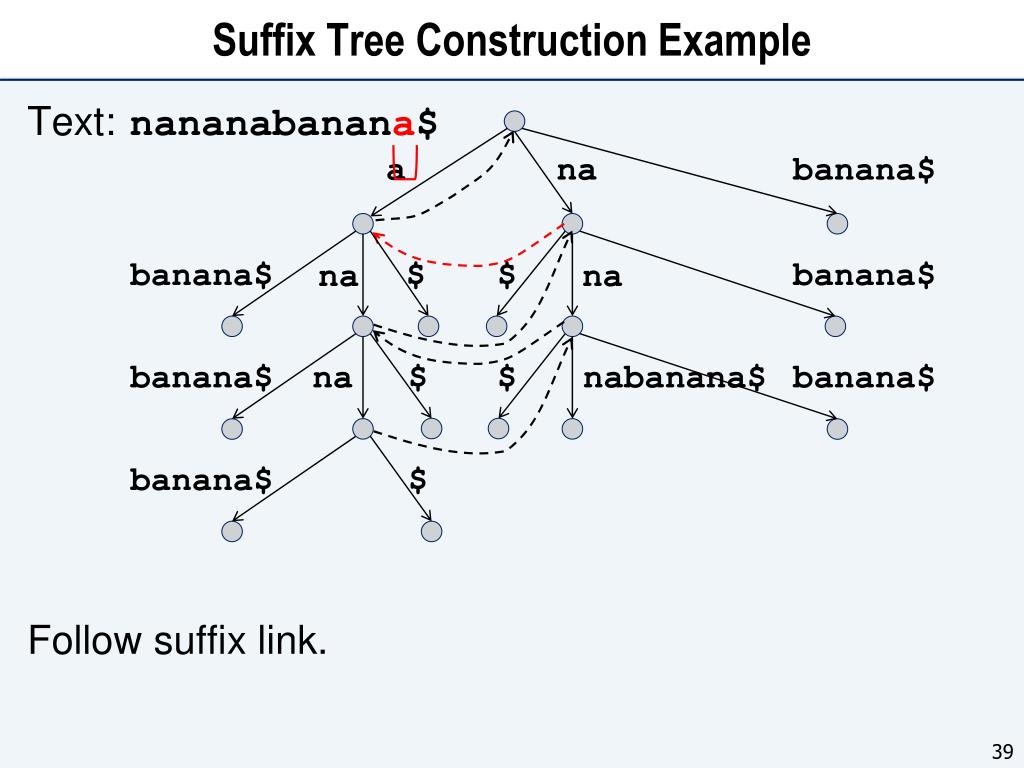

37. Suffix Tree Construction Example Text: nananabanana$ Follow suffix link. a na banana$ banana$ banana$ na na banana$ na $ $ nabanana$ banana$ banana$ $

38. Suffix Tree Construction Example Text: nananabanana$ Follow suffix link. a na banana$ banana$ $ banana$ na na banana$ na $ $ nabanana$ banana$ banana$ $

39. Suffix Tree Construction Example Text: nananabanana$ Follow suffix link. a na banana$ $ banana$ $ banana$ na na banana$ na $ $ nabanana$ banana$ banana$ $

40. Suffix Tree Construction Example Text: nananabanana$ Done. , but roughly how big is ? $ a na banana$ $ banana$ $ banana$ na na banana$ na $ $ nabanana$ banana$ banana$ $

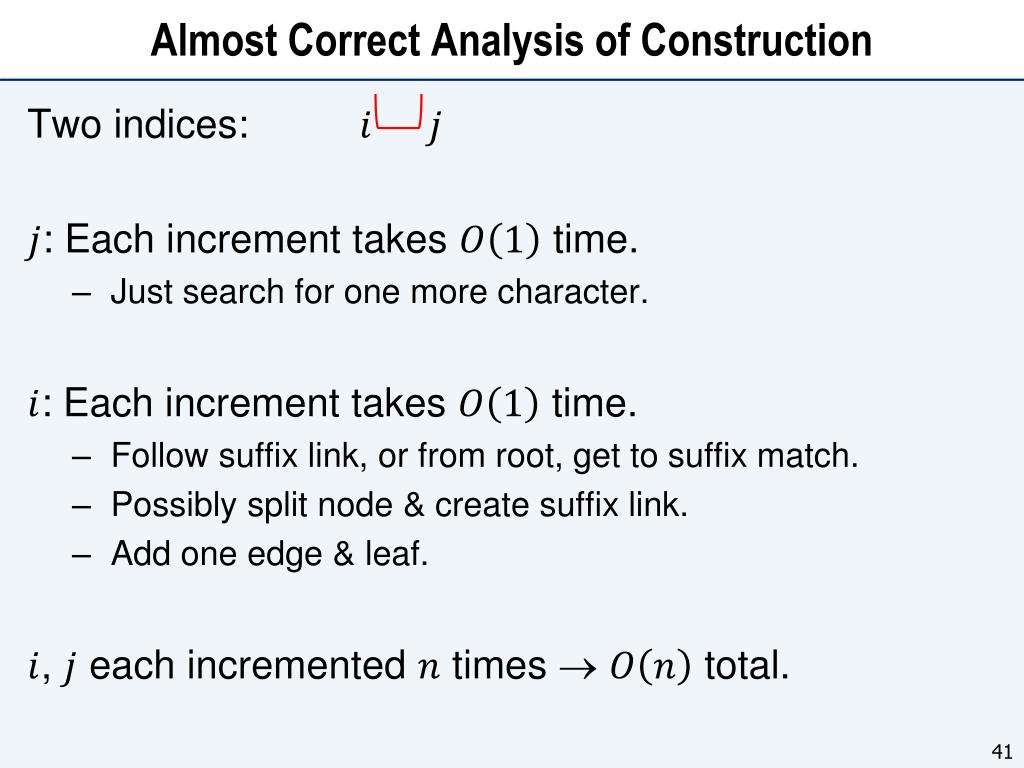

41. Almost Correct Analysis of Construction Two indices: : Each increment takes time. • Just search for one more character. :Each increment takes time. • Follow suffix link, or from root, get to suffix match. • Possibly split node & create suffix link. • Add one edge & leaf. , each incremented times  total.

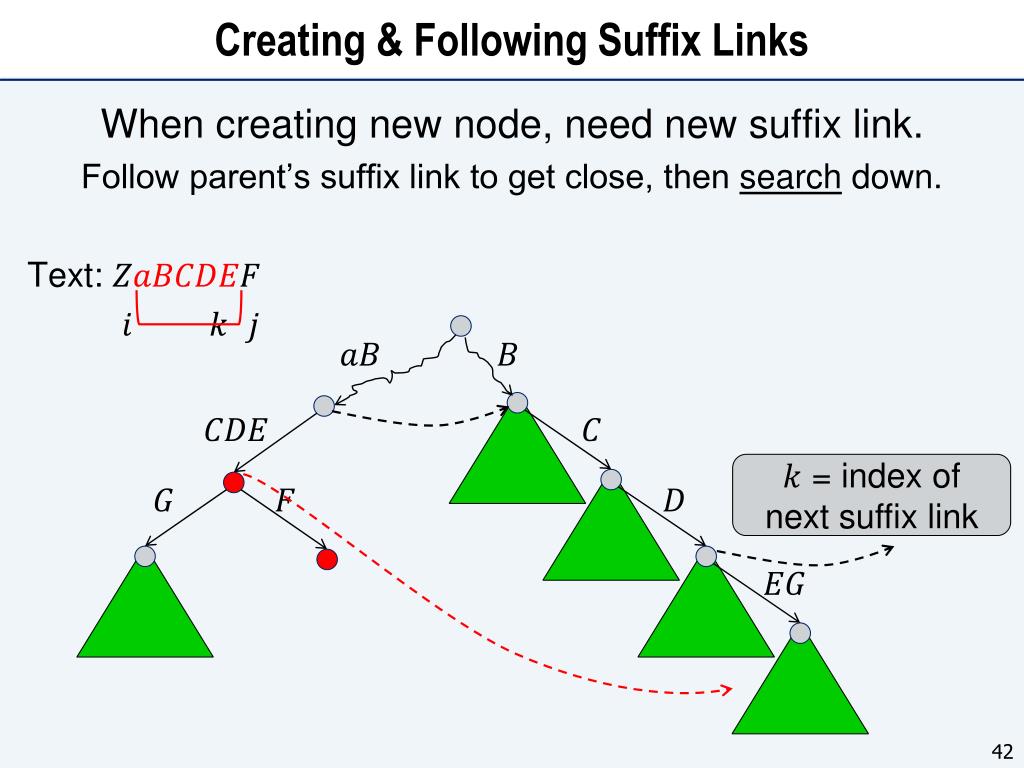

42. Creating & Following Suffix Links When creating new node, need new suffix link. Follow parent’s suffix link to get close, then search down. Text: = index of next suffix link

43. Correct Analysis of Construction Three indices: ( not part of alg.) : Each increment takes time. : Follow some number of links in time. Increments by at least . : Each increment takes time in addition to that considered for . , , each incremented at most times  total.

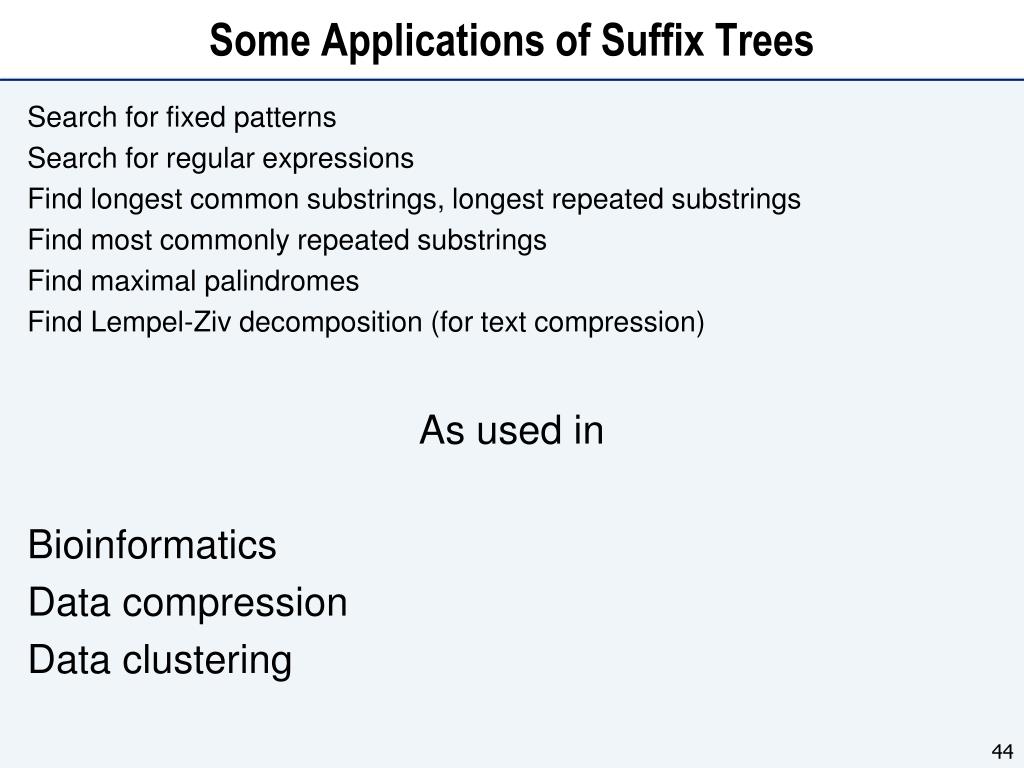

44. Some Applications of Suffix Trees Search for fixed patterns Search for regular expressions Find longest common substrings, longest repeated substrings Find most commonly repeated substrings Find maximal palindromes Find Lempel-Ziv decomposition (for text compression) As used in Bioinformatics Data compression Data clustering
