  1. Datacenter Basics Fred Chong 290N Green Computing

  2. Figure : Storage hierarchy of a Warehouse-scale computer Storage Hierarchy

  3. Figure : Latency, bandwidth and capacity of a Warehouse-scale computer Performance Variations

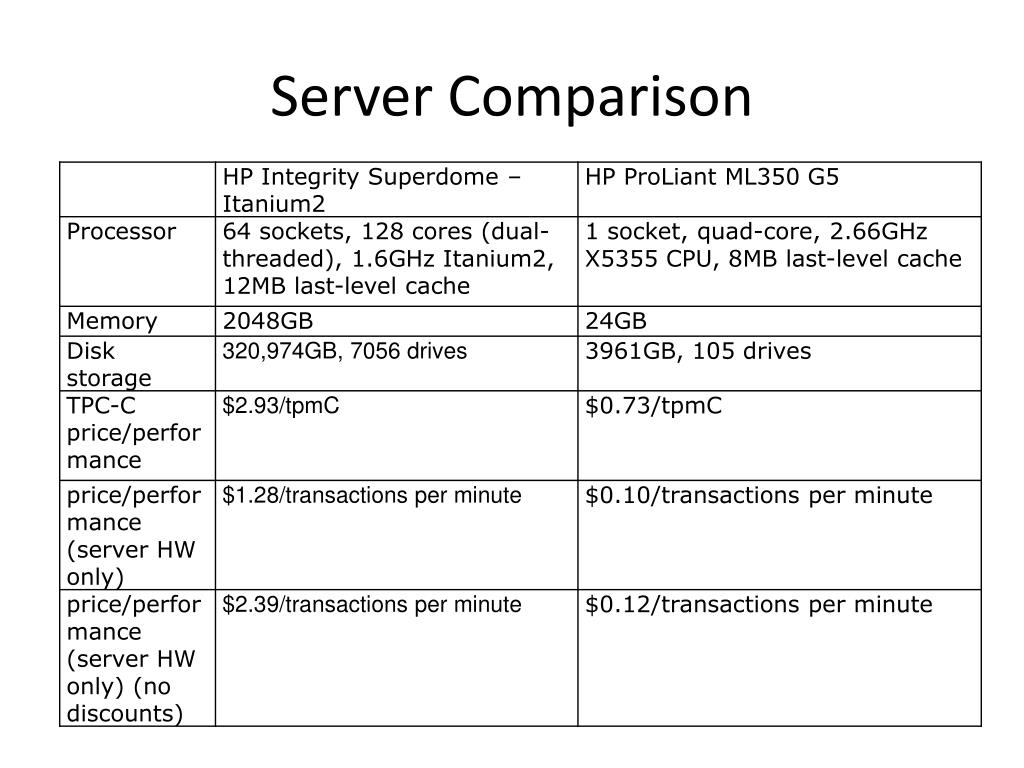

  4. Server Comparison

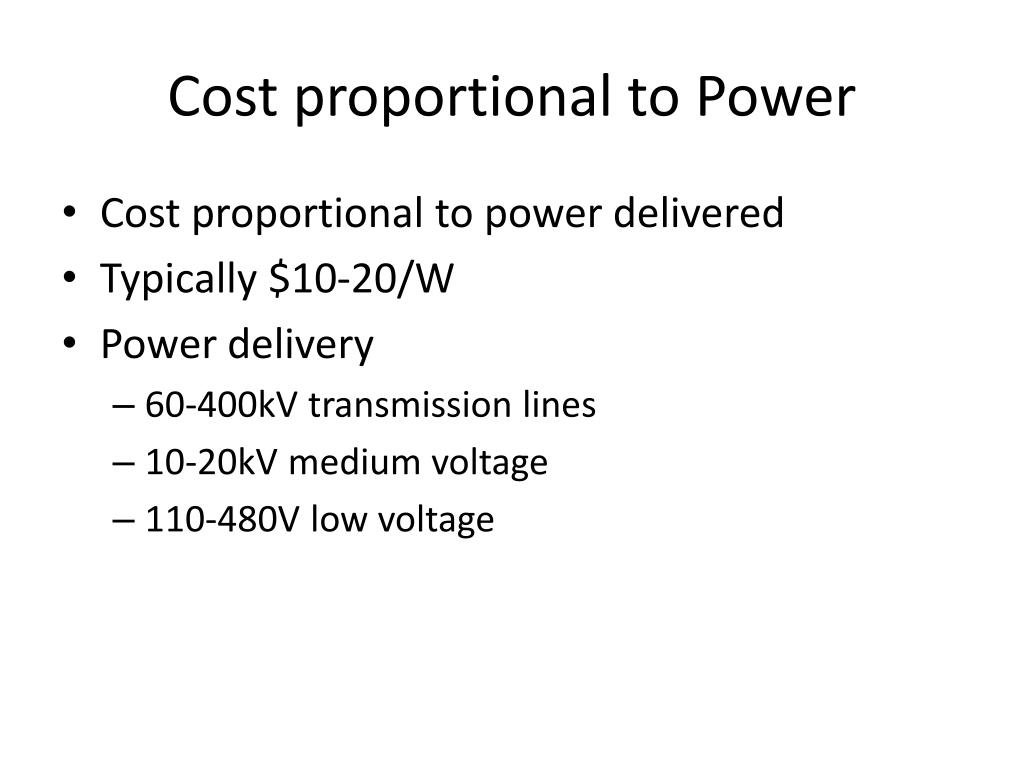

  5. Cost proportional to Power • Cost proportional to power delivered • Typically $10-20/W • Power delivery • 60-400kV transmission lines • 10-20kV medium voltage • 110-480V low voltage

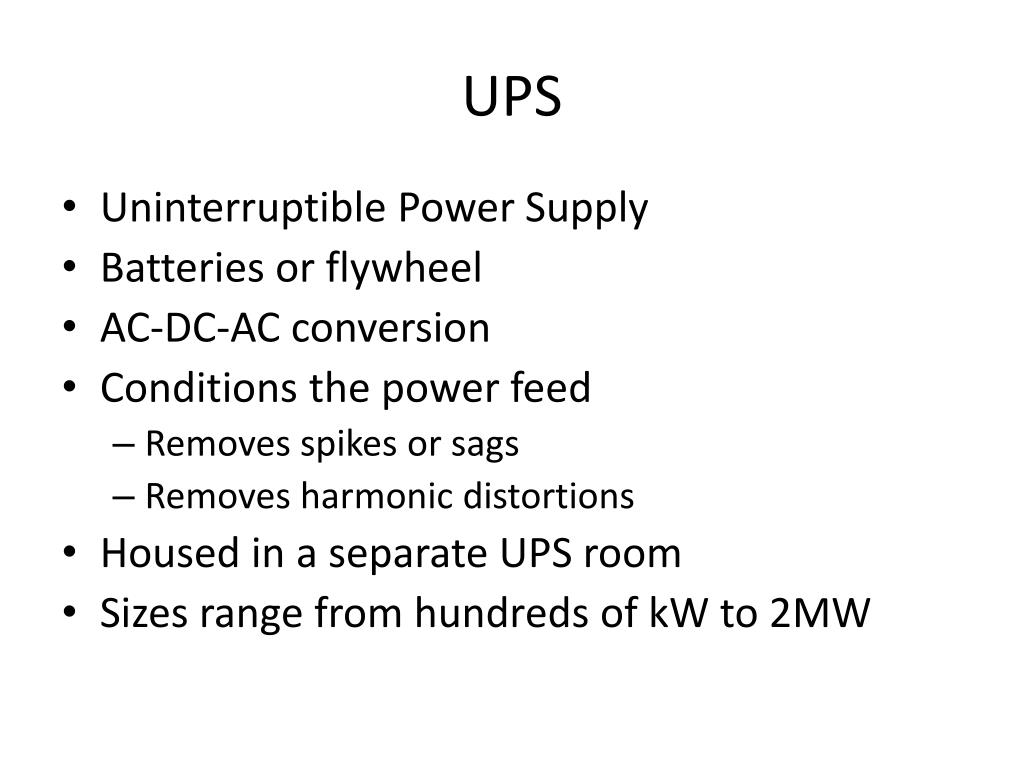

  6. UPS • Uninterruptible Power Supply • Batteries or flywheel • AC-DC-AC conversion • Conditions the power feed • Removes spikes or sags • Removes harmonic distortions • Housed in a separate UPS room • Sizes range from hundreds of kW to 2MW

  7. PDUs • Power Distribution Units • Breaker panels • Input 200-480V • Output many 110V or 220V • 75-225kW in 20-30A circuits (max 6 kW) • Redundancy from two independent power sources

  8. Paralleling • Multiple generators or UPSs • Feed a shared bus • N+1 (one failure) • N+2 (one maintenance, one failure) • 2N (redundant pairs)

  9. Cooling

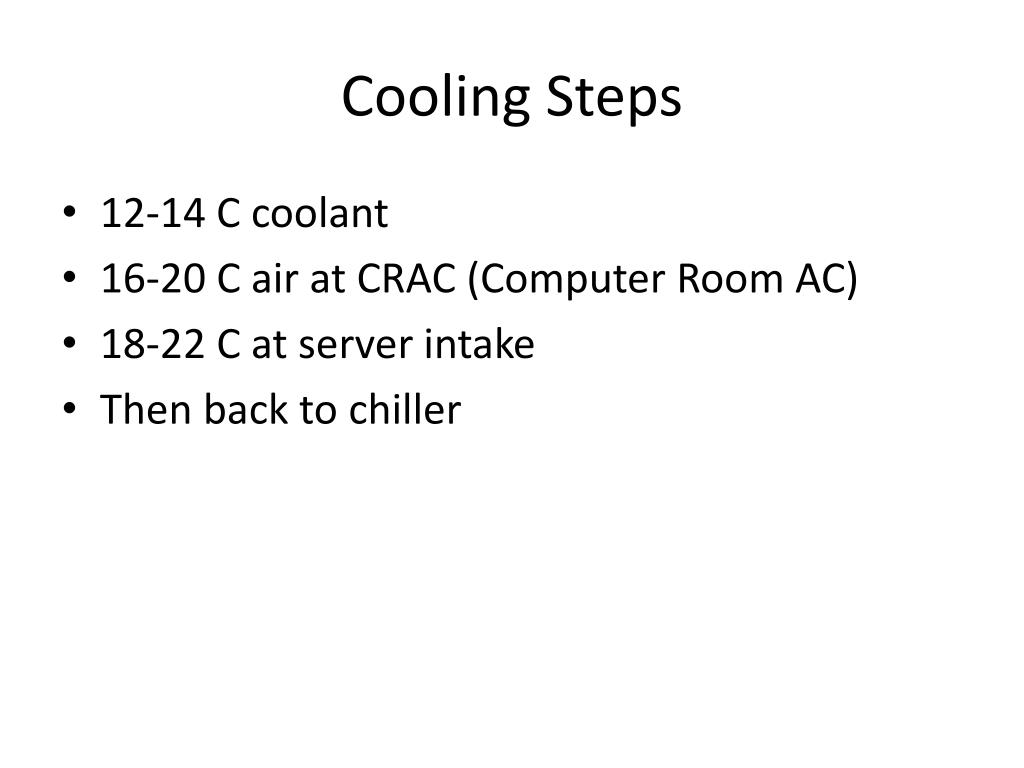

  10. Cooling Steps • 12-14 C coolant • 16-20 C air at CRAC (Computer Room AC) • 18-22 C at server intake • Then back to chiller

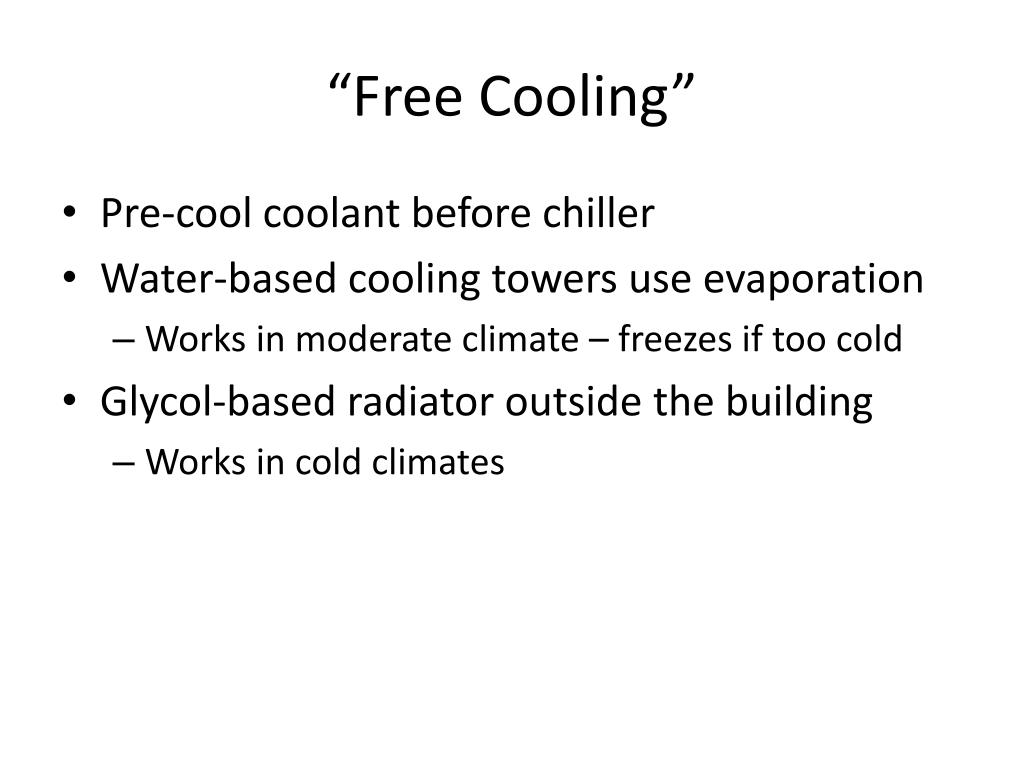

  11. “Free Cooling” • Pre-cool coolant before chiller • Water-based cooling towers use evaporation • Works in moderate climate – freezes if too cold • Glycol-based radiator outside the building • Works in cold climates

  12. Cooling is Critical • Datacenter would fail in minutes without cooling • Cooling backed up by generators and UPSs • Adds > 40% critical electrical load

  13. Airflow • 100 cfm (cubic feet per minute) per server • 10 servers would require 1000 cfm from perforated tiles • Typically no more than 150-200W / sq ft power density • Recirculation from one server’s hot air into the intake of a neighbor • Some avoid with overhead ducts

  14. Variations • In-rack cooling • Water cooled coils next on the server • Cost of plumbing • Damage from leaks (earthquake zones!) • Container-based datacenters • Shipping container 8’ x 8.5’ x 40’ • Similar to in-rack cooling but for the whole container • Higher power densities

  15. Power Efficiency • PUE – power usage efficiency • Datacenter power infrastructure

  16. Poor PUEs • 85% of datacenters PUE > 3 • Only 5% PUE = 2.0 • Chillers take 30-50% overhead • CRAC 10-30% overhead • UPS 7-12% overhead (AC-DC-AC) • Humidifiers, PDUs, lighting • EPA “achievable” PUE of 1.4 by 2011

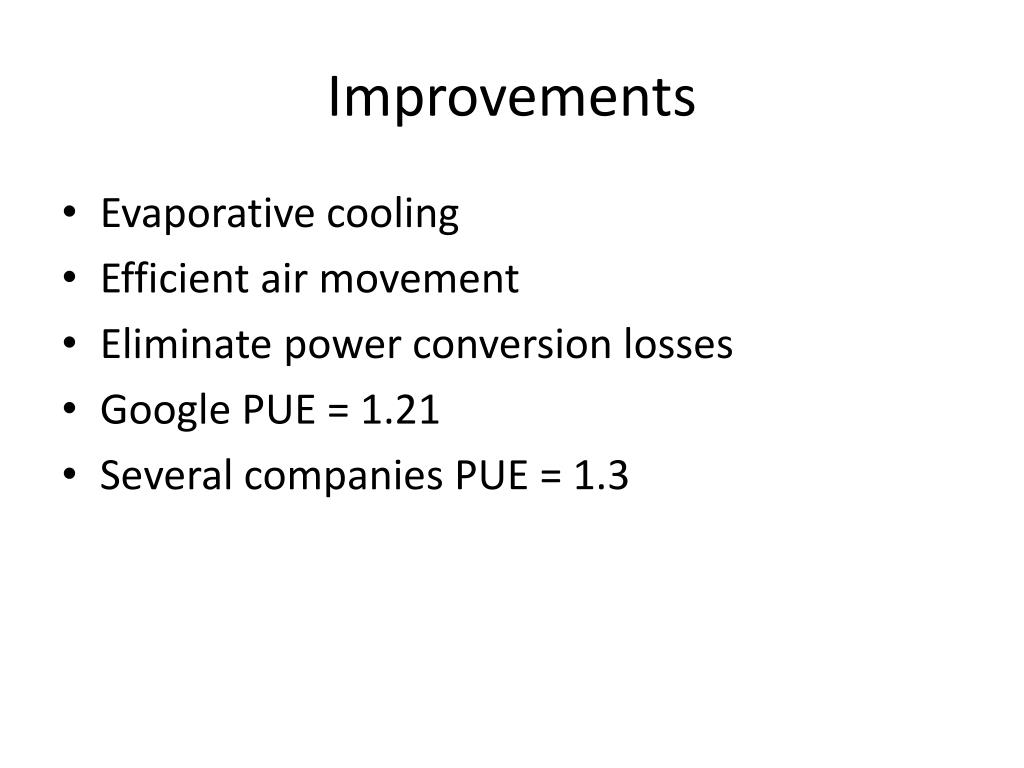

  17. Improvements • Evaporative cooling • Efficient air movement • Eliminate power conversion losses • Google PUE = 1.21 • Several companies PUE = 1.3

  18. A more comprehensive metric • (b) SPUE – server power usage efficiency • (c) computation energy efficiency

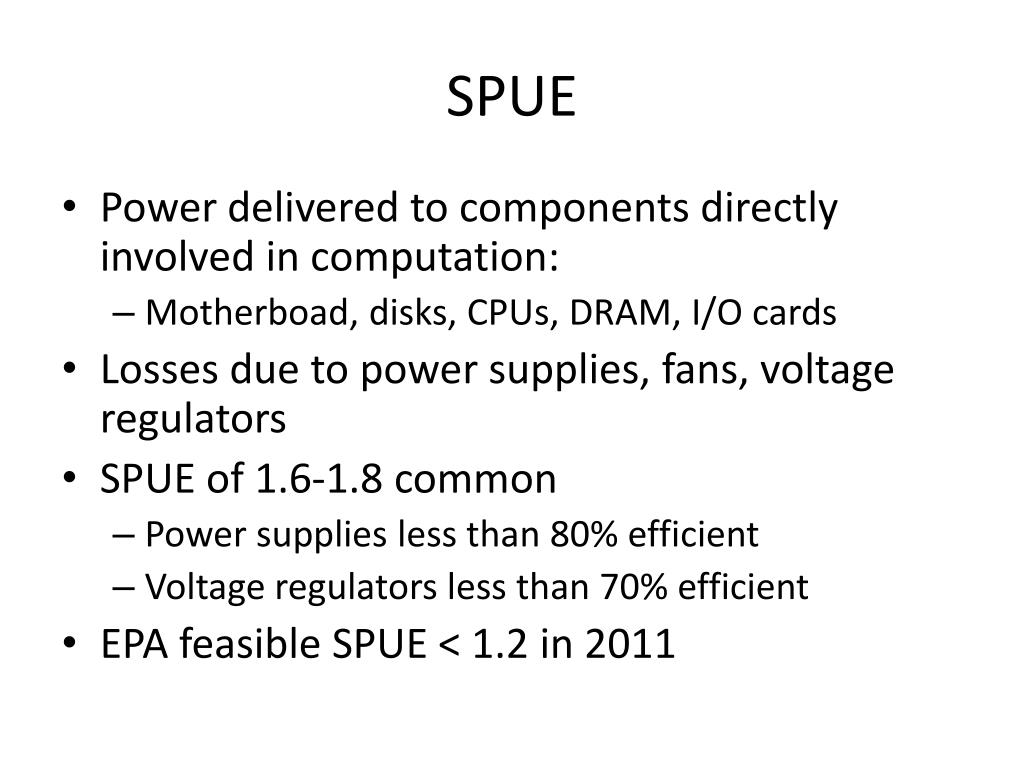

  19. SPUE • Power delivered to components directly involved in computation: • Motherboad, disks, CPUs, DRAM, I/O cards • Losses due to power supplies, fans, voltage regulators • SPUE of 1.6-1.8 common • Power supplies less than 80% efficient • Voltage regulators less than 70% efficient • EPA feasible SPUE < 1.2 in 2011

  20. TPUE • Total PUE = TPUE = PUE * SPUE • Average of 3.2 today (2.2 Watts wasted for every Watt in computation) • PUE 1.2 and SPUE 1.2 would give 2X benefit • TPUE of 1.25 probably the limit of what is economically feasible

  21. Computing Efficiency • Area of greatest potential • Hardest to measure • SPECpower • Joulesort • Storage Network Industry Association

  22. SPECPower Example

  23. Server Load

  24. Load vs Efficiency

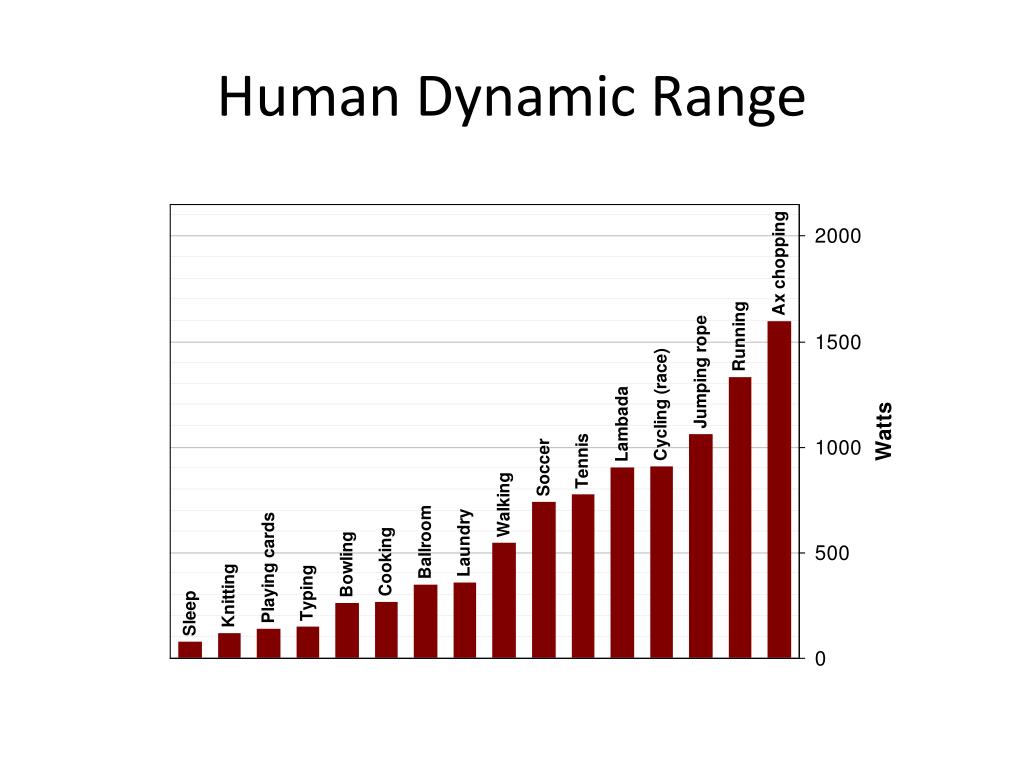

  25. Human Dynamic Range

  26. Component Efficiency

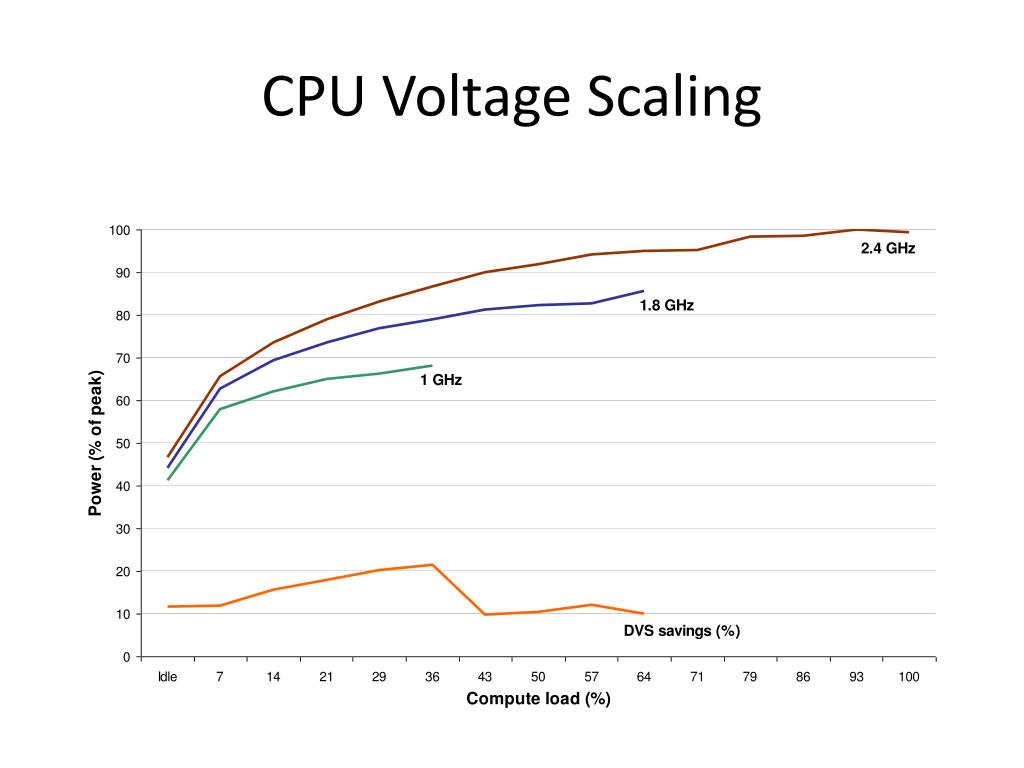

  27. CPU Voltage Scaling

  28. Disks • As much as 70% power to keep drives spinning • 1000X penalty to spin up and access • Multiple head, low RPM drives [Gurumurthi]

  29. Server Power Supplies

  30. Power Provisioning • $10-22 per deployed IT Watt • Given 10 year depreciation cycle • $1-2.20 per Watt per year • Assume $0.07 per kilowatt-hr and PUE 2.0 • 8766 hours in a year • (8766 / 1000) * $0.07 * 2.0 = $1.22724 • Up to 2X cost in provisioning • eg. 50% full datacenter = 2X provisioning cost

  31. Time at Power Level 80 servers 800 servers 8000 servers

  32. Oversubscription Opportunity • 7% for racks (80) • 22% for PDUs (800) • 28% for clusters (8000) • Could have hosted almost 40% more machines

  33. Underdeployment • New facilities plan for growth • Also discretization of capacity • Eg 2.5kW circuit may have four 520W servers • 17% underutilized, but can’t have one more
