  1. CHIP Collaborating Host-Independent PadsUsers Manual Ver.0 Meme Media Lab. Hokkaido Univ.itok@meme.hokudai.ac.jp Kimihito Ito

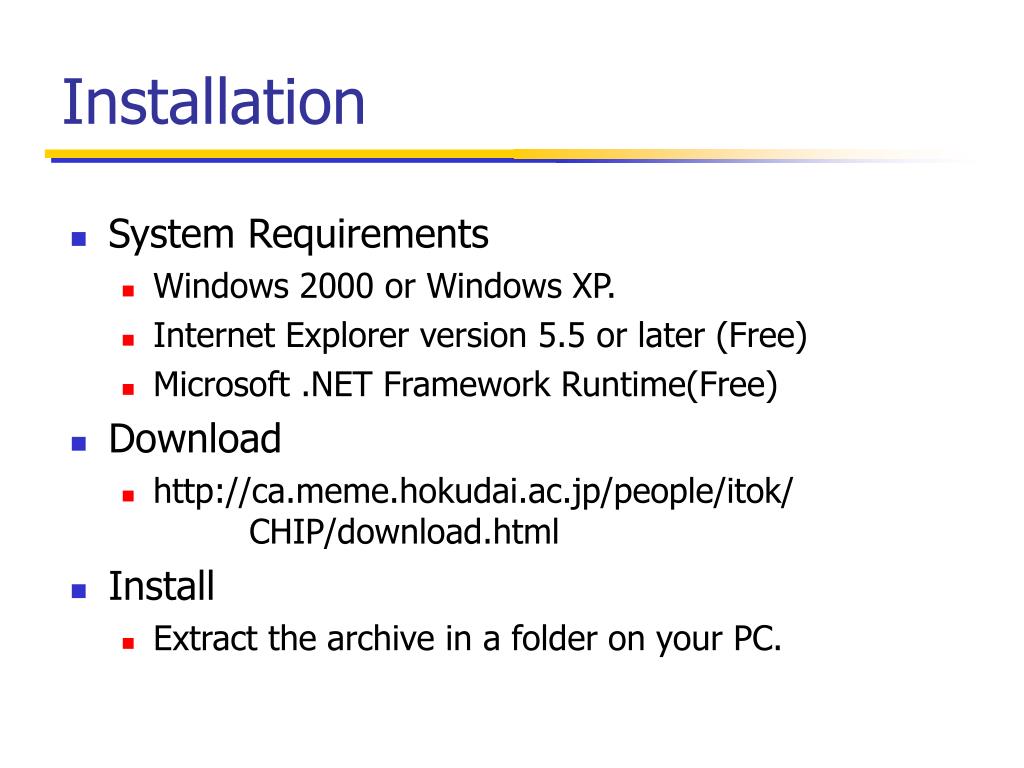

  2. Installation • System Requirements • Windows 2000 or Windows XP. • Internet Explorer version 5.5 or later (Free) • Microsoft .NET Framework Runtime(Free) • Download • http://ca.meme.hokudai.ac.jp/people/itok/ CHIP/download.html • Install • Extract the archive in a folder on your PC.

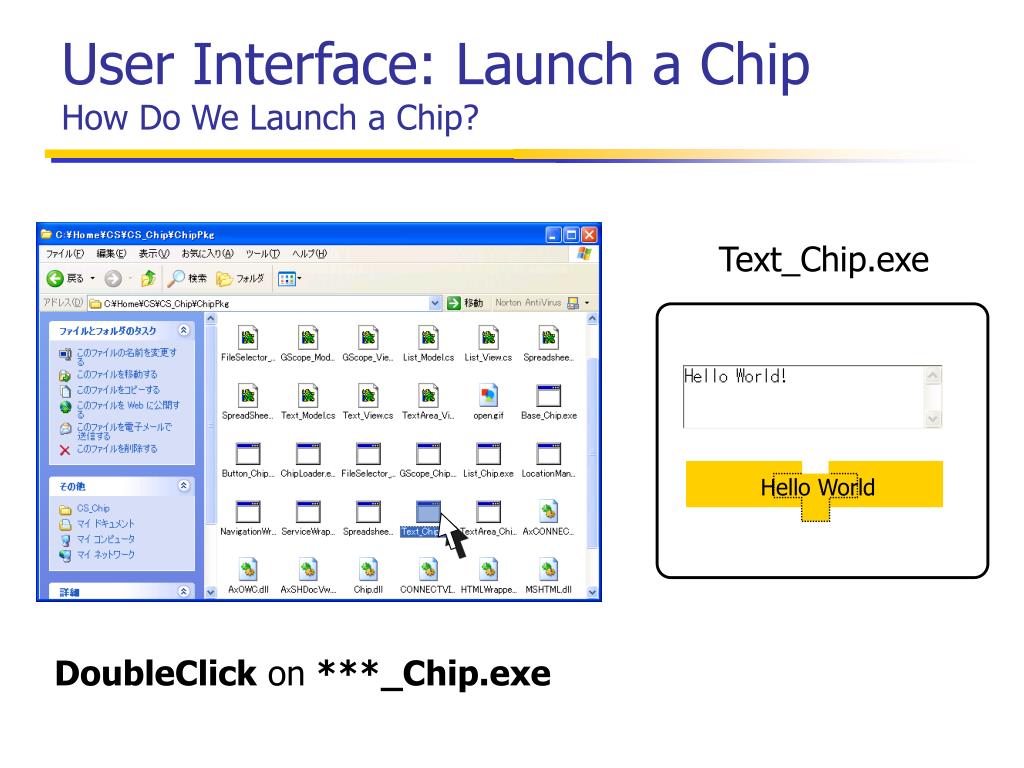

  3. User Interface: Launch a ChipHow Do We Launch a Chip? Text_Chip.exe Hello World DoubleClick on ***_Chip.exe

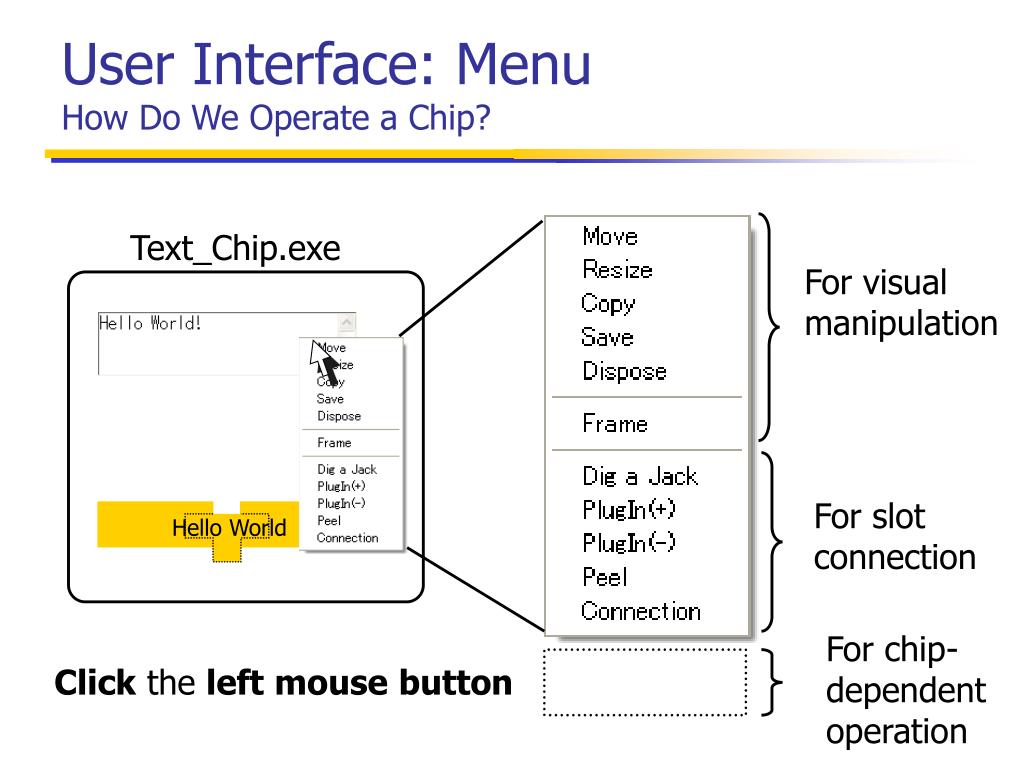

  4. User Interface: MenuHow Do We Operate a Chip? Text_Chip.exe For visual manipulation For slotconnection Hello World For chip-dependentoperation Click the leftmousebutton

  5. boot.ini User Interface: ConnectionHow Do We Connect two Pads? 1. 2. Hello World Hello World 3. 4. boot.ini n Hello World Hello World

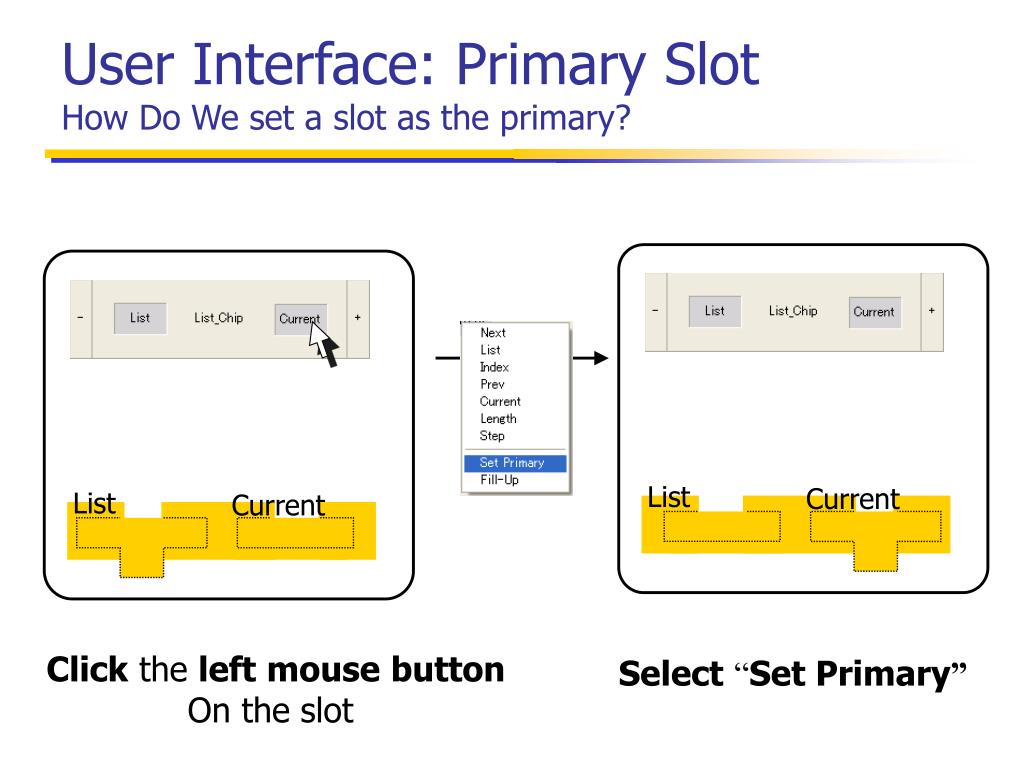

  6. User Interface: Primary SlotHow Do We set a slot as the primary? List Current List Current Click the leftmousebutton On the slot Select“Set Primary”

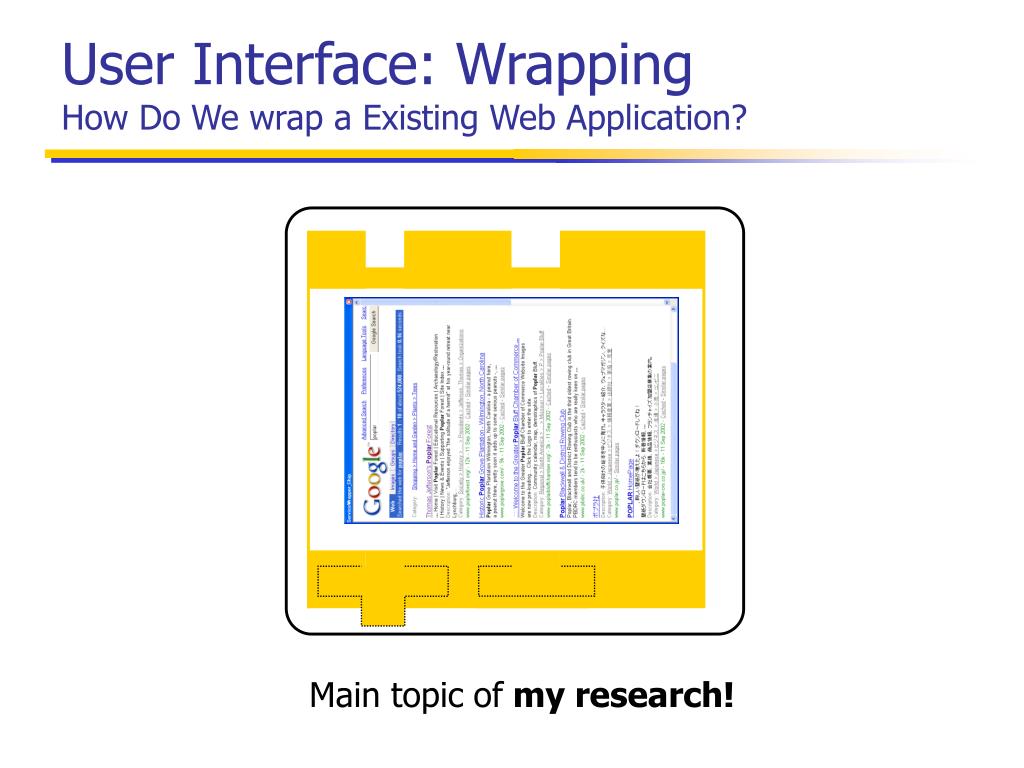

  7. User Interface: WrappingHow Do We wrap a Existing Web Application? Main topicof my research!

  8. System InterfaceEvery Chip Talks HTTP. Web browser. etc http://localhost:4020/ Java 2 Other Programs set 2 HTTP gimme POST /x HTTP/ 1.1 2 HTTP GET /z HTTP/1.1 x y z = 6 2 3 C# * http://localhost:4010/ HTTP update POST / HTTP1.1 update You can invoke Set, gimme and update messages via HTTP.

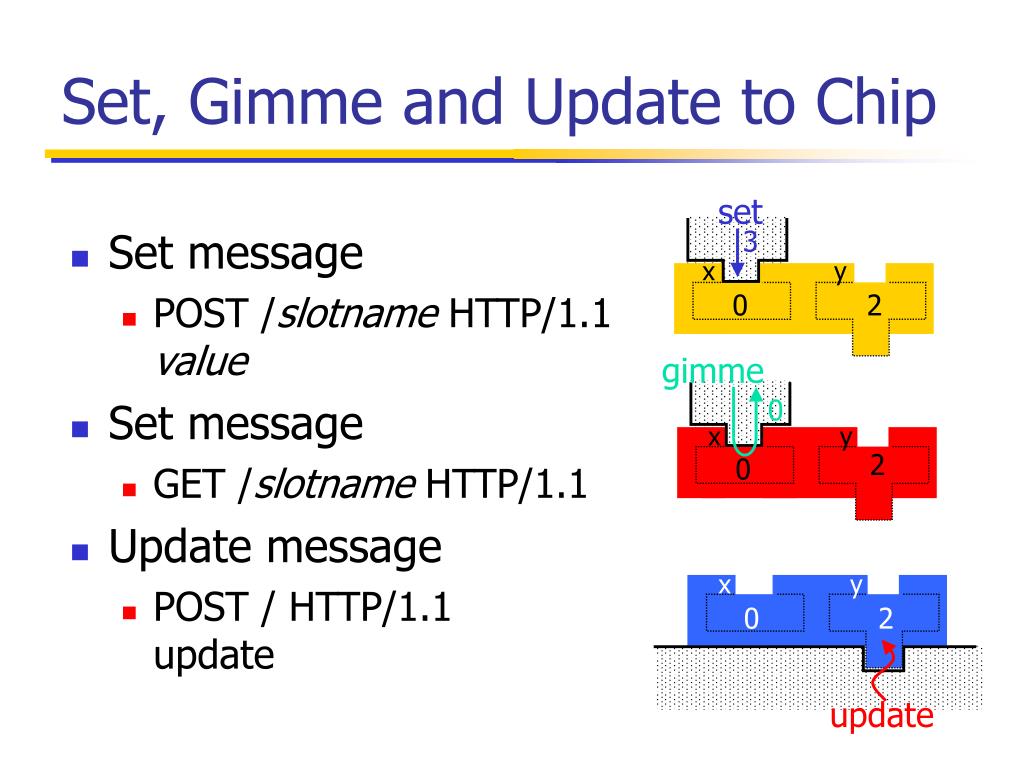

  9. Set, Gimme and Update to Chip • Set message • POST /slotname HTTP/1.1value • Set message • GET /slotname HTTP/1.1 • Update message • POST / HTTP/1.1update set 3 x y 0 2 gimme 0 x y 2 0 x y 0 2 update

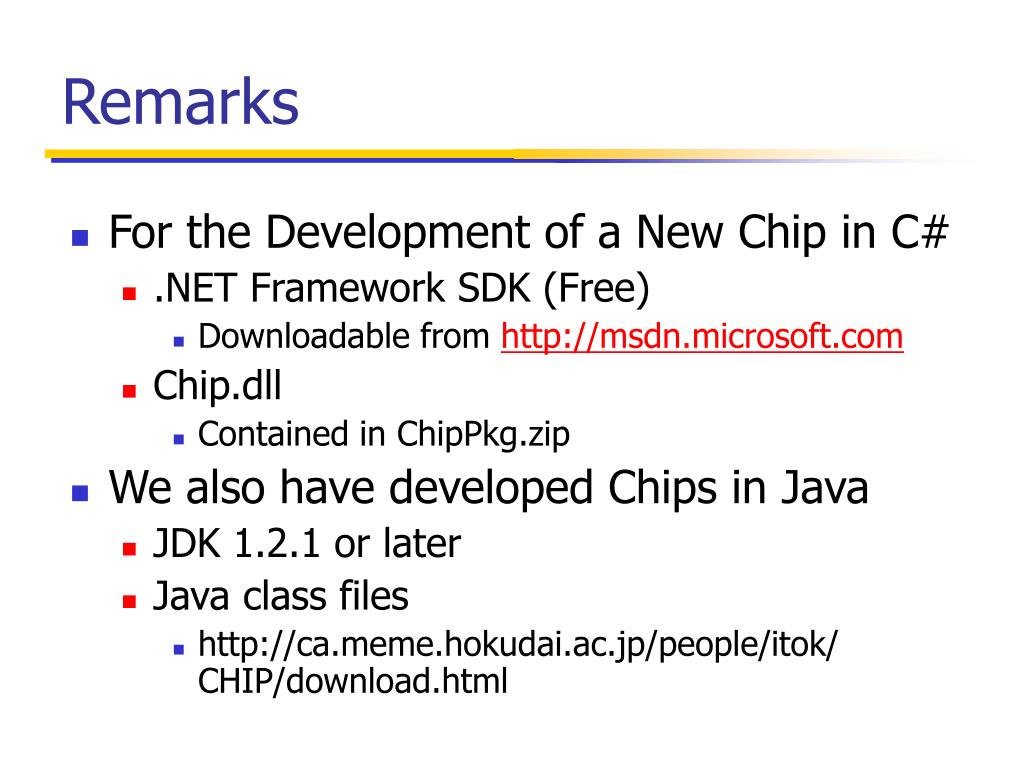

  10. Remarks • For the Development of a New Chip in C# • .NET Framework SDK (Free) • Downloadable from http://msdn.microsoft.com • Chip.dll • Contained in ChipPkg.zip • We also have developed Chips in Java • JDK 1.2.1 or later • Java class files • http://ca.meme.hokudai.ac.jp/people/itok/CHIP/download.html
