PRT WORK SESSION PRESENTATION

This presentation outlines the project guidelines for constructing an efficient Personal Rapid Transit (PRT) network across Sussex, Warren, and Hunterdon Counties. The proposed system aims to optimize travel by leveraging shape points and interchanges to navigate around obstacles, ensuring quick and profitable transit services for 90% of trips within the counties. With a grid-like structure, we will present detailed statistics on land area, population density, and ridership to support the implementation of a sustainable and effective PRT network.

more
Télécharger la présentation

PRT WORK SESSION PRESENTATION

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PRT WORK SESSION PRESENTATION By: Dao Mi and Matthew Douglas

  2. Project Guide Lines • Construct a PRT network throughout County. • Use Shape Points to direct guide ways around obstacles • Use Interchanges to facilitate faster transit from station to station. • Attain a Profitable Network that services 90% of trips in county.

  3. Grid-Like Structure

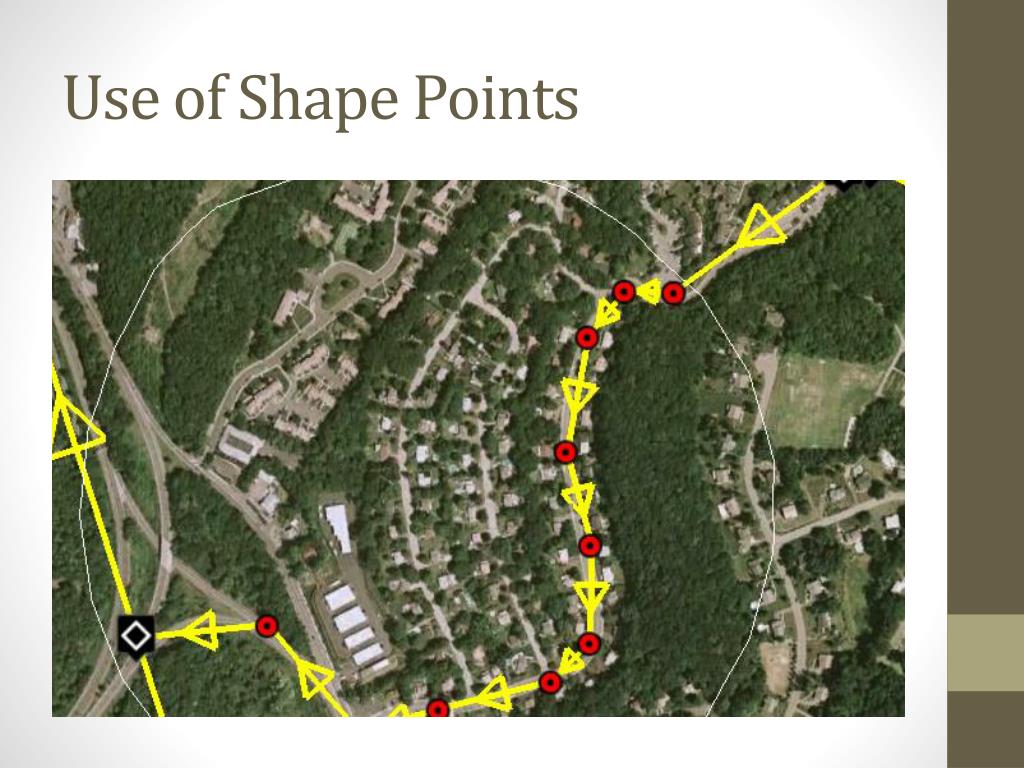

  4. Use of Shape Points

  5. Interchanges to Shorten Trip Length

  6. Sussex County • Founded June 8, 1753 • Population(2000): 153,384 • Density: 276.7/sq mi • Area • Total: 536 sq mi • Land: 521 sq mi

  7. Sussex County Final PRT Network

  8. Sussex Network Statistics

  9. Sussex Financial Statistics

  10. Warren County • Founded November 20, 1824 • Population(2000): 102,437 • Density: 287/sq mi • Area • Total : 363 sq mi • Land : 358 sqmi

  11. Warren County Final PRT Network

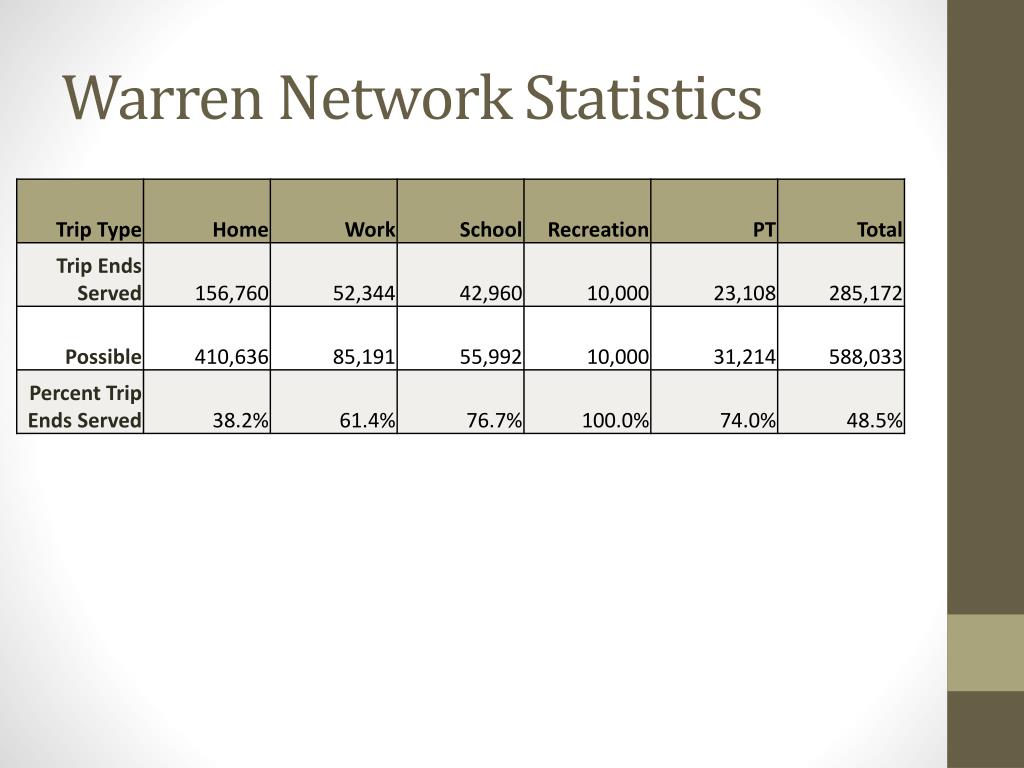

  12. Warren Network Statistics

  13. Warren Financial Statistics

  14. Hunterdon County • Founded 1714 • Population(2000): 121,989 • Density: 285/sq mi • Area • Total: 438 sq mi • Land: 430 sq mi

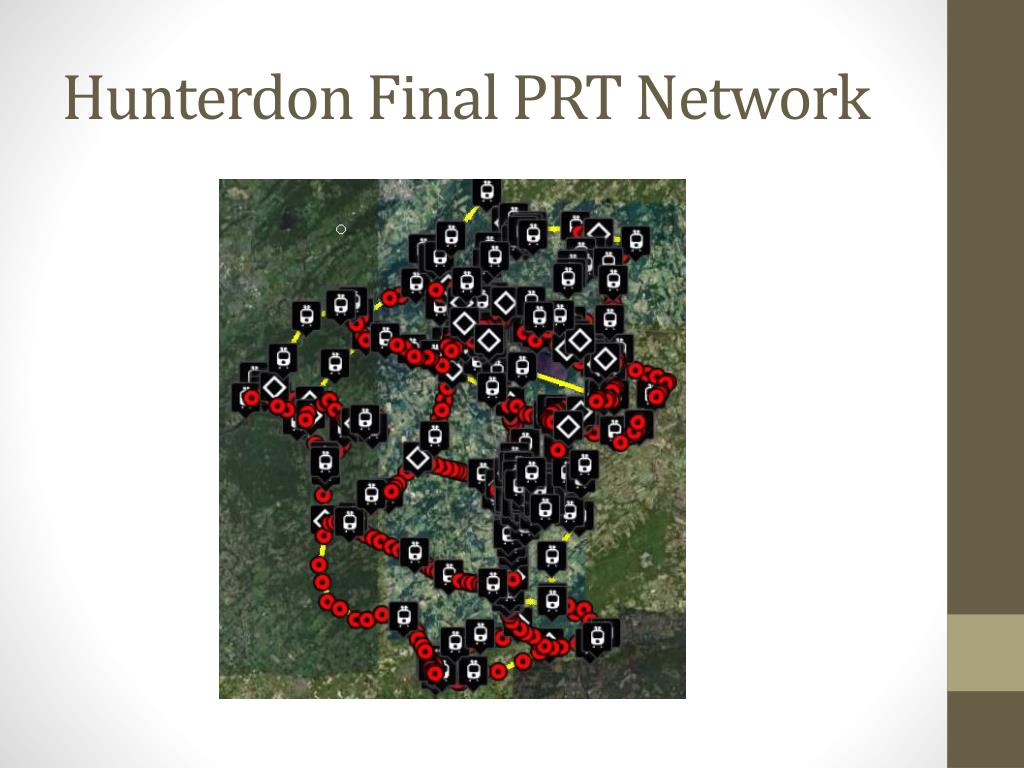

  15. Hunterdon Final PRT Network

  16. Hunterdon Financial Statistics (work in progress)

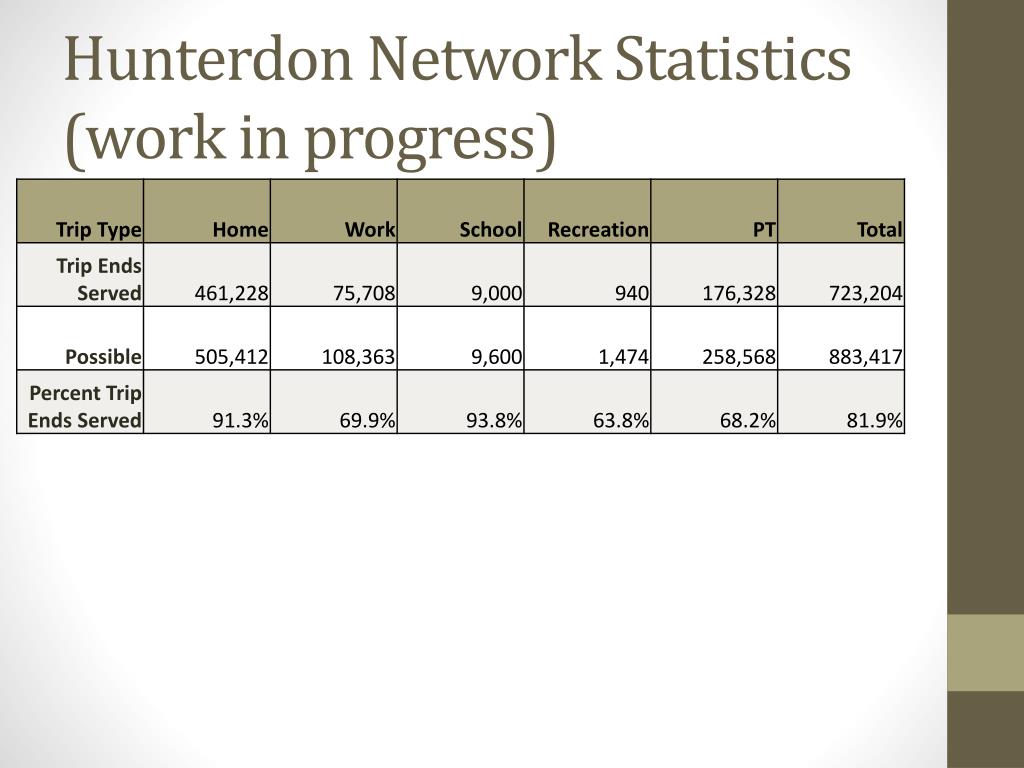

  17. Hunterdon Network Statistics (work in progress)

  18. Combined Network • Combined Stats: • Population: 377 810 • Land: 1309 sq miles • Density: 288.62/sq mi • PRT Network • Guideways: 930.8 mi • Fleet: 4403 • Stations: 473 • Interchanges: 306

  19. PRT Ridership

  20. Trip Density

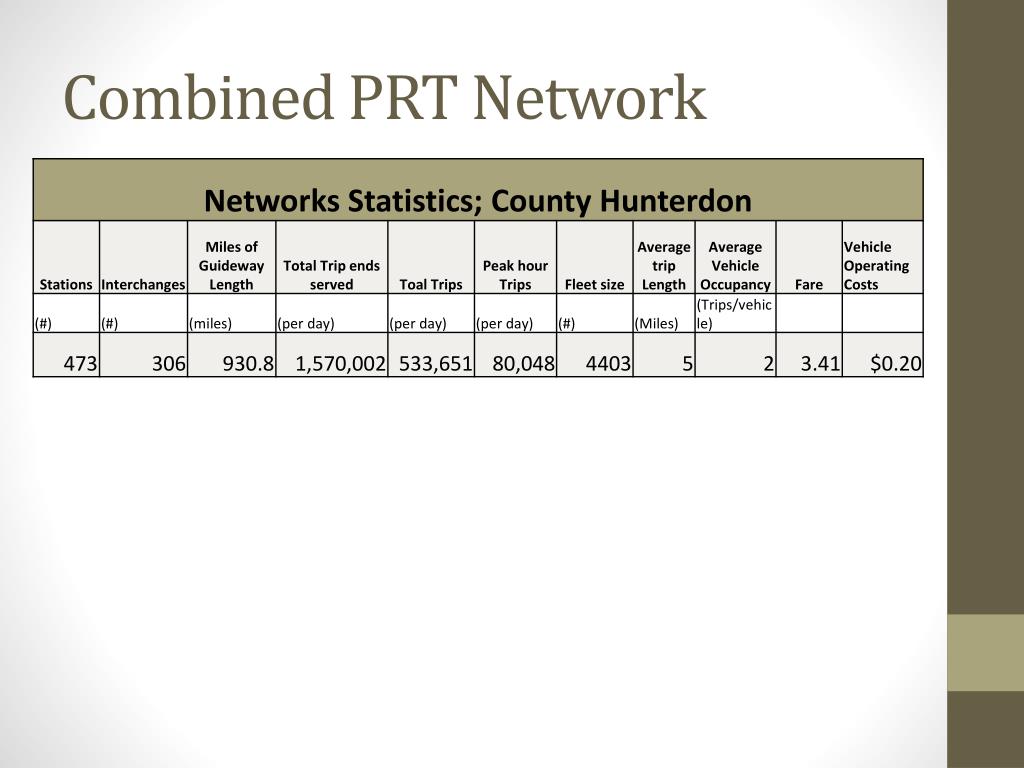

  21. Combined PRT Network

  22. Network Financials
