Computer System Overview

Computer System Overview Let’s figure out what’s inside this thing...

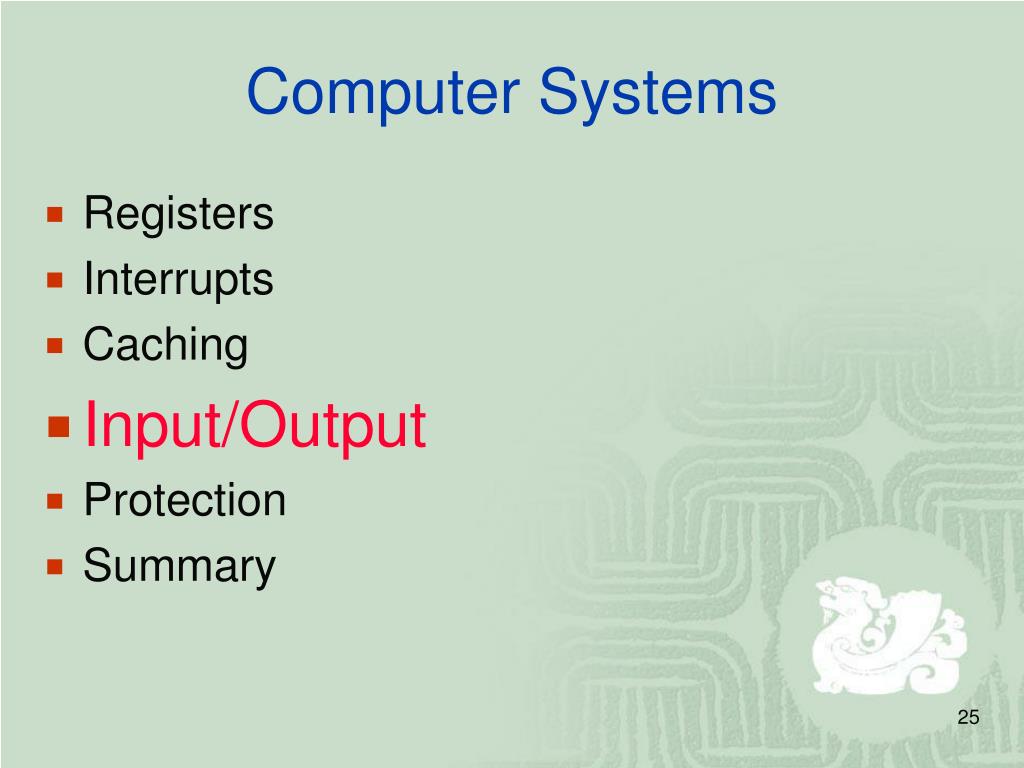

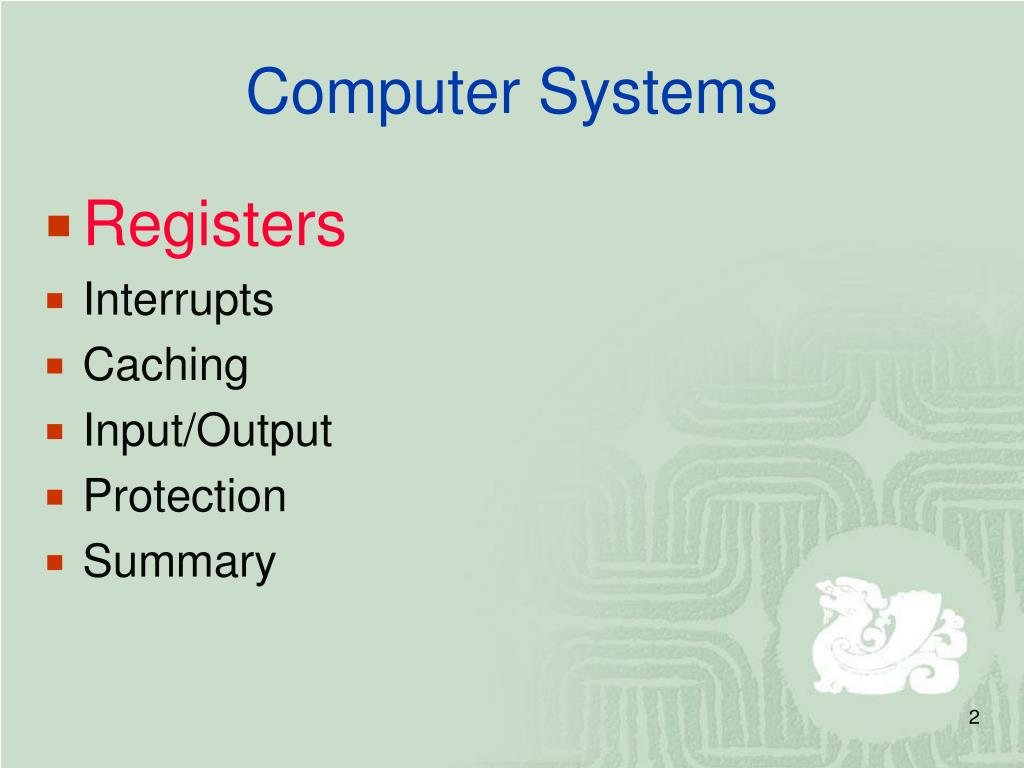

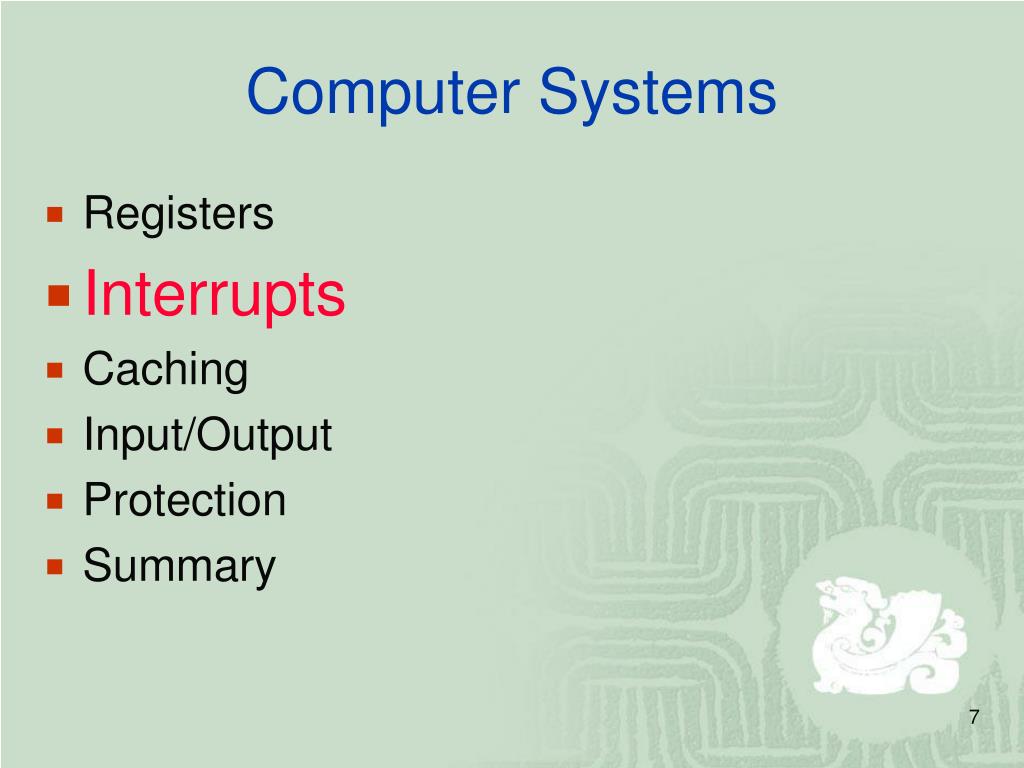

Computer Systems • Registers • Interrupts • Caching • Input/Output • Protection • Summary

Registers CPU

Registers Processor Registers • User-visible registers • May be referenced by machine language • Available to all programs - application programs and system programs • Data Registers – can be changed by user • Address Registers – could be separate from data register • Stack Registers – user / supervisor stacks • Condition Codes – results of operations • Control and status registers • May or may not be visible • Program Counter (PC) – address of next instruction • Instruction Register (IR) – most recently fetched instruction • MAR/MBR – memory reference registers • Program Status Word (PSW) – condition codes, interrupts, mode

Registers Instruction Execution • Processor executes instructions in a program • Instructions are fetched from memory on at a time Fetch Cycle Execute Cycle Fetch Next Instruction Execute Instruction START HALT

Lots of Registers…

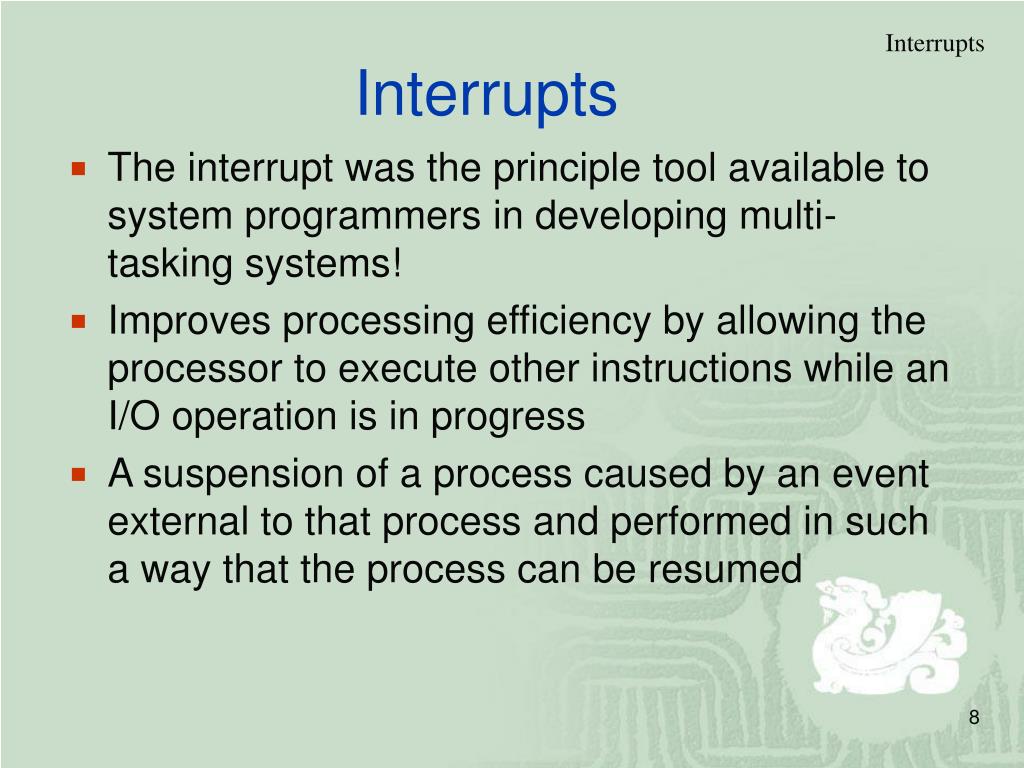

Interrupts Interrupts • The interrupt was the principle tool available to system programmers in developing multi-tasking systems! • Improves processing efficiency by allowing the processor to execute other instructions while an I/O operation is in progress • A suspension of a process caused by an event external to that process and performed in such a way that the process can be resumed

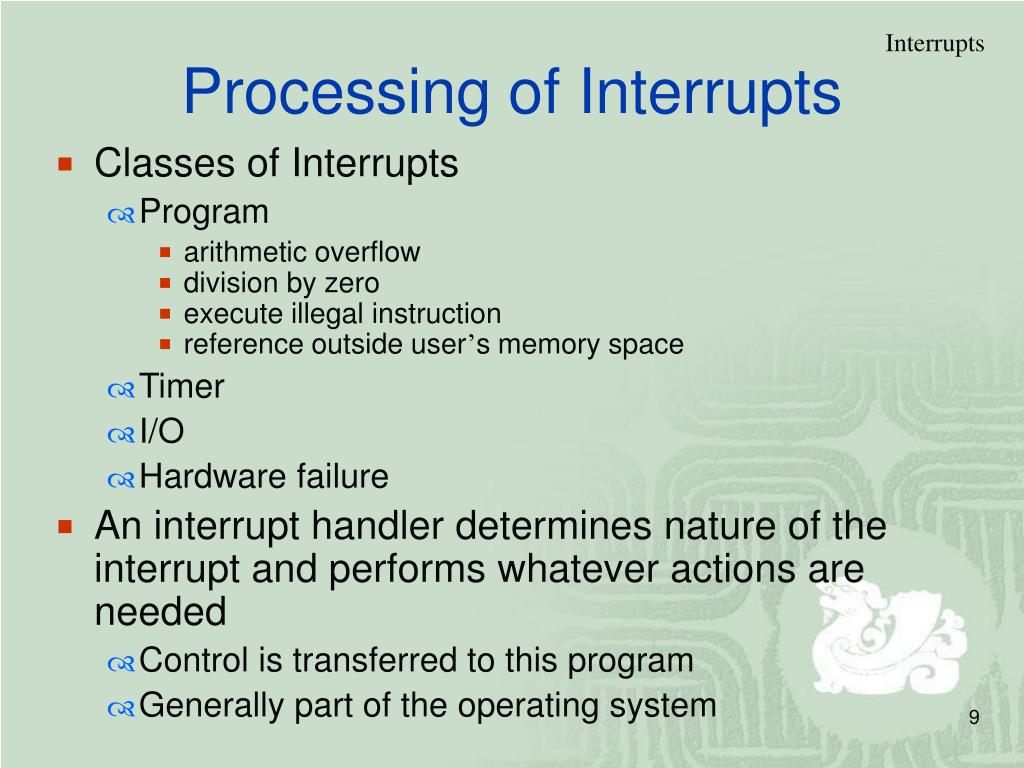

Interrupts Processing of Interrupts • Classes of Interrupts • Program • arithmetic overflow • division by zero • execute illegal instruction • reference outside user’s memory space • Timer • I/O • Hardware failure • An interrupt handler determines nature of the interrupt and performs whatever actions are needed • Control is transferred to this program • Generally part of the operating system

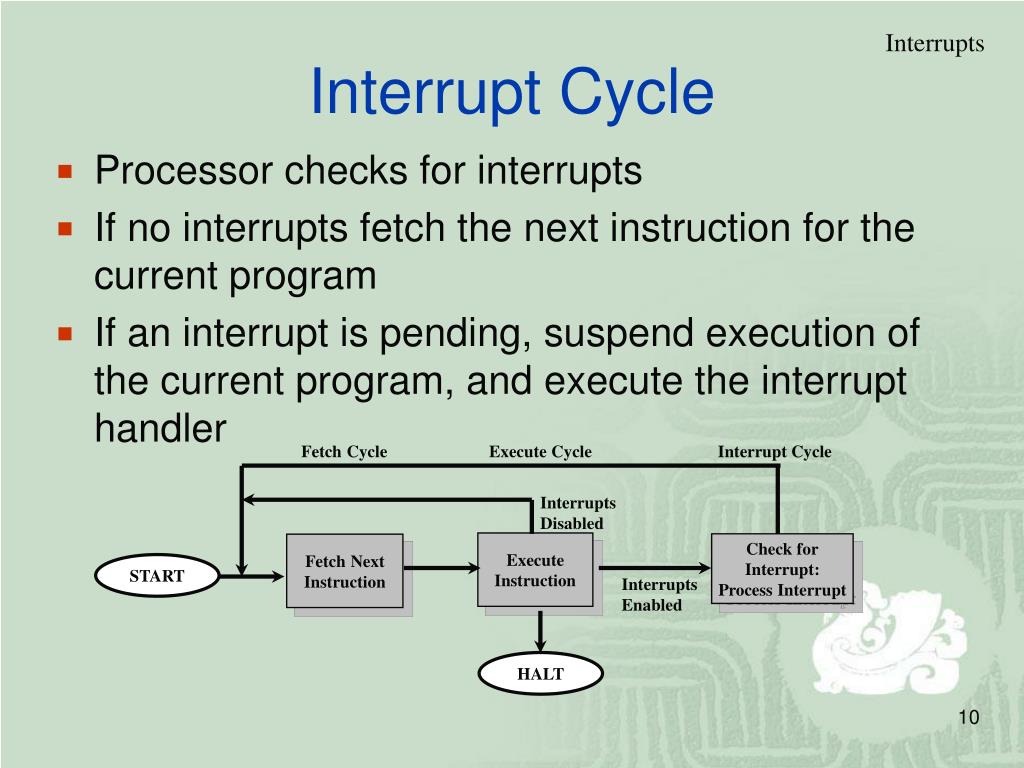

Fetch Cycle Execute Cycle Interrupt Cycle Interrupts Disabled Execute Instruction Check for Interrupt: Process Interrupt Fetch Next Instruction START Interrupts Enabled HALT Interrupts Interrupt Cycle • Processor checks for interrupts • If no interrupts fetch the next instruction for the current program • If an interrupt is pending, suspend execution of the current program, and execute the interrupt handler

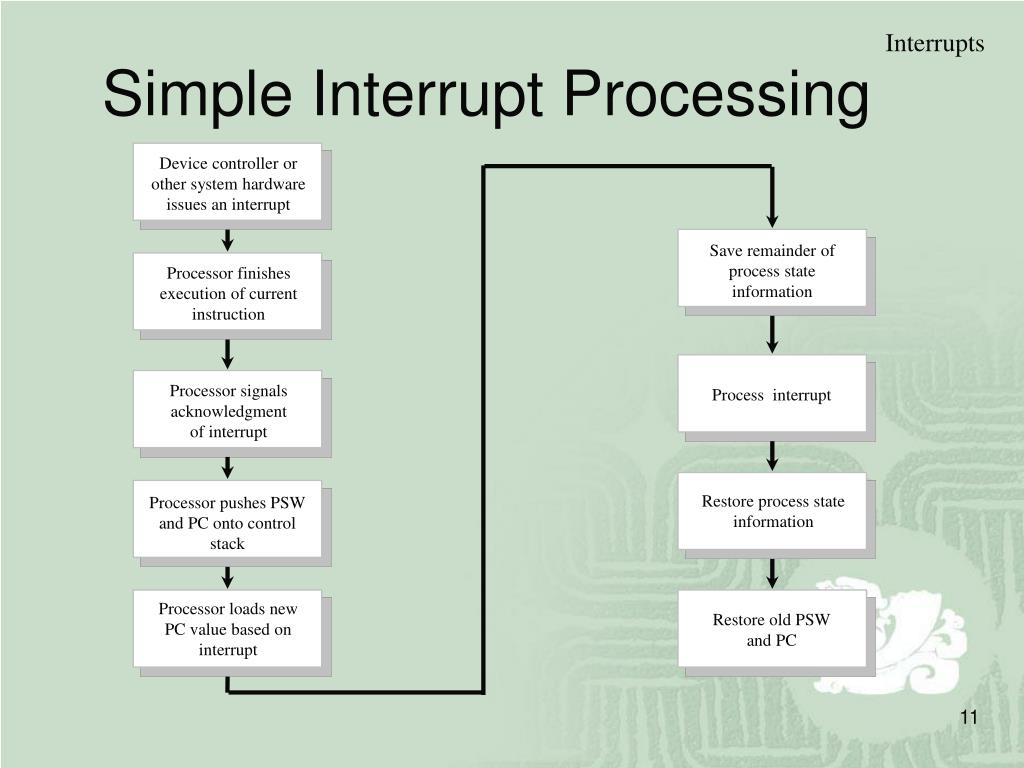

Interrupts Simple Interrupt Processing Device controller or other system hardware issues an interrupt Save remainder of process state information Processor finishes execution of current instruction Processor signals acknowledgment of interrupt Process interrupt Restore process state information Processor pushes PSW and PC onto control stack Processor loads new PC value based on interrupt Restore old PSW and PC

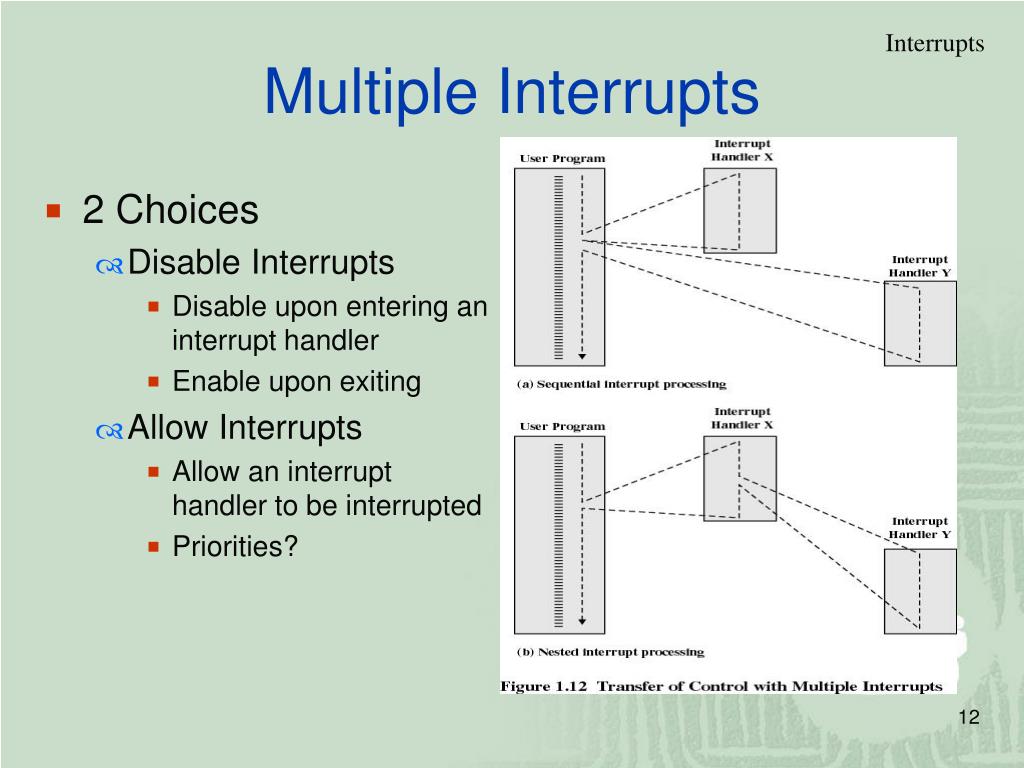

Interrupts Multiple Interrupts • 2 Choices • Disable Interrupts • Disable upon entering an interrupt handler • Enable upon exiting • Allow Interrupts • Allow an interrupt handler to be interrupted • Priorities?

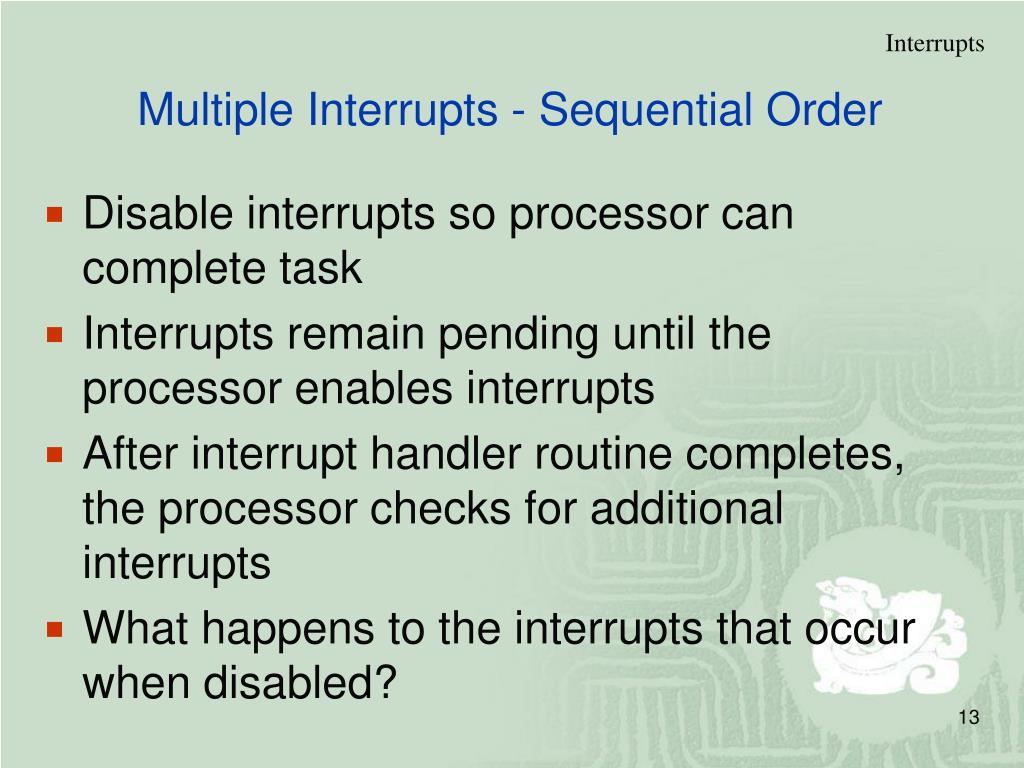

Interrupts Multiple Interrupts - Sequential Order • Disable interrupts so processor can complete task • Interrupts remain pending until the processor enables interrupts • After interrupt handler routine completes, the processor checks for additional interrupts • What happens to the interrupts that occur when disabled?

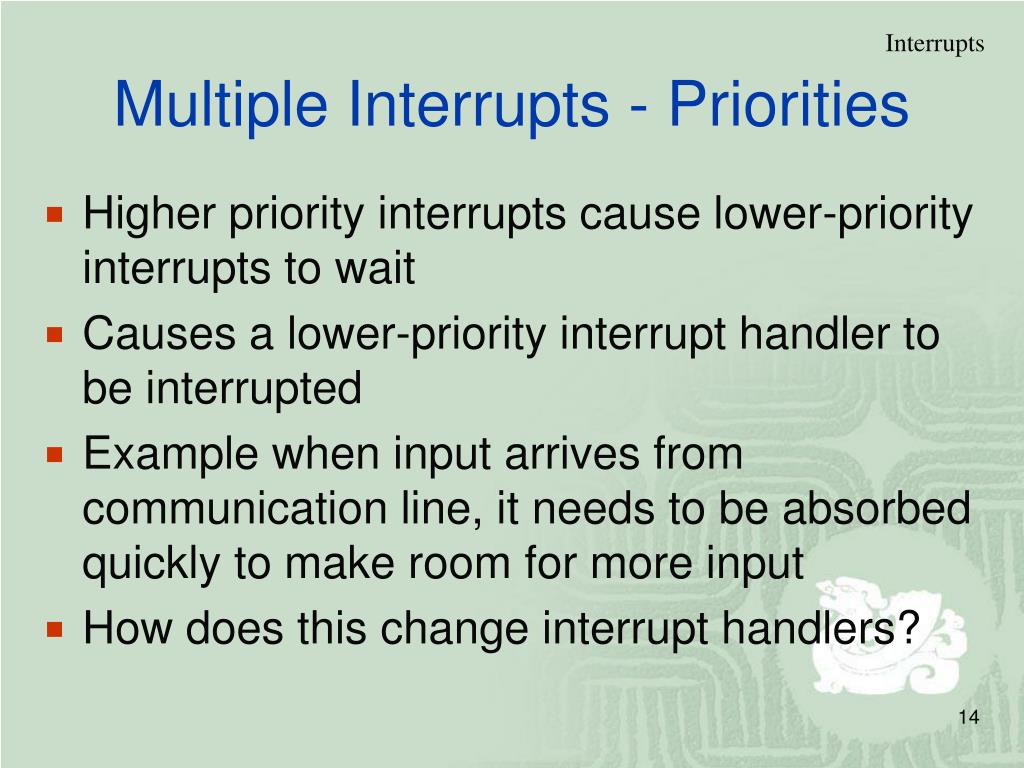

Interrupts Multiple Interrupts - Priorities • Higher priority interrupts cause lower-priority interrupts to wait • Causes a lower-priority interrupt handler to be interrupted • Example when input arrives from communication line, it needs to be absorbed quickly to make room for more input • How does this change interrupt handlers?

Storage-Device Hierarchy

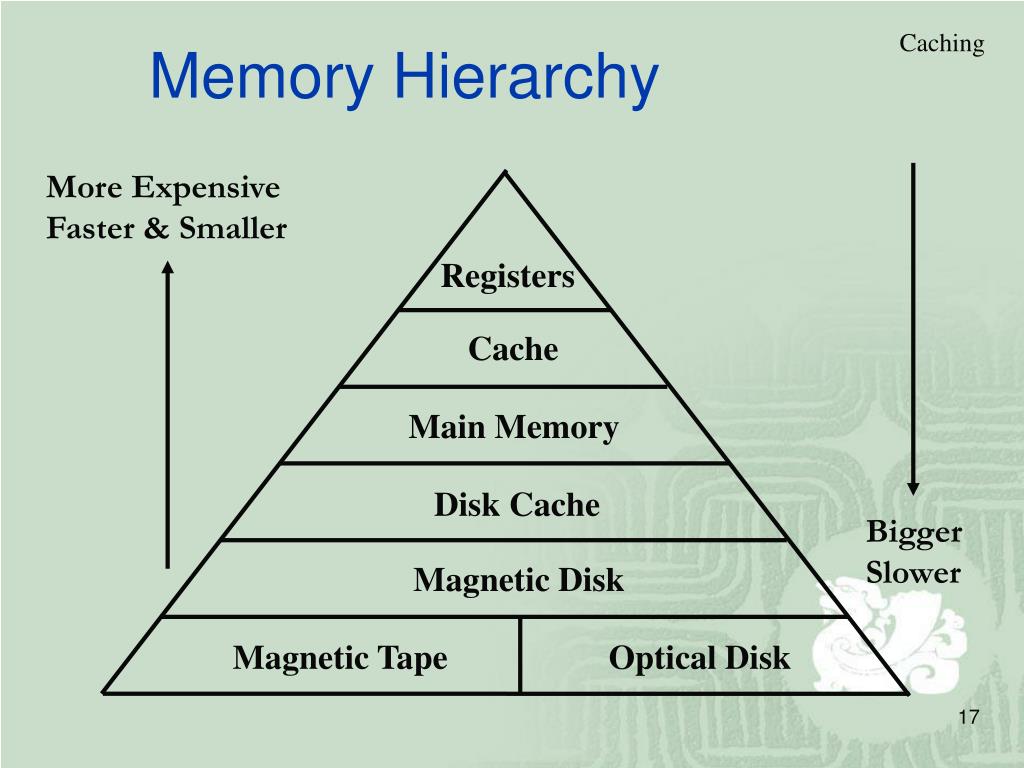

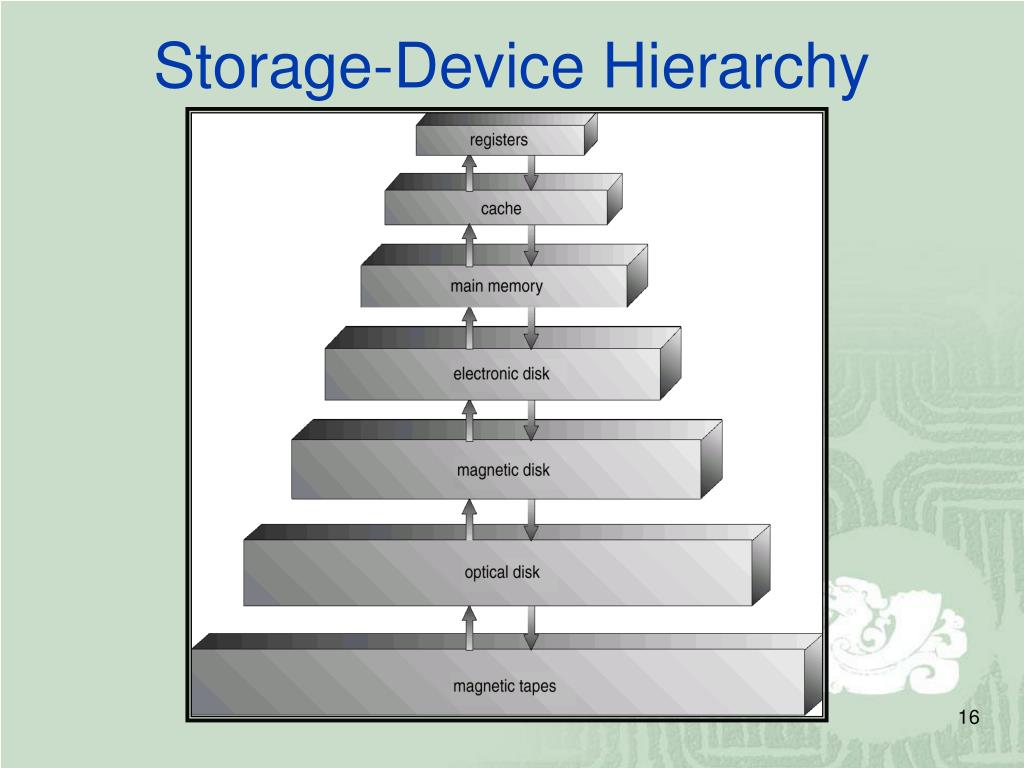

More Expensive Faster & Smaller Bigger Slower Caching Memory Hierarchy Registers Cache Main Memory Disk Cache Magnetic Disk Magnetic Tape Optical Disk

Comparative access timings • Processor registers: 5 nanoseconds • SRAM memory: 15 nanoseconds • DRAM memory: 60 nanoseconds • Magnetic disk: 10 milliseconds • Optical disk: (even slower)

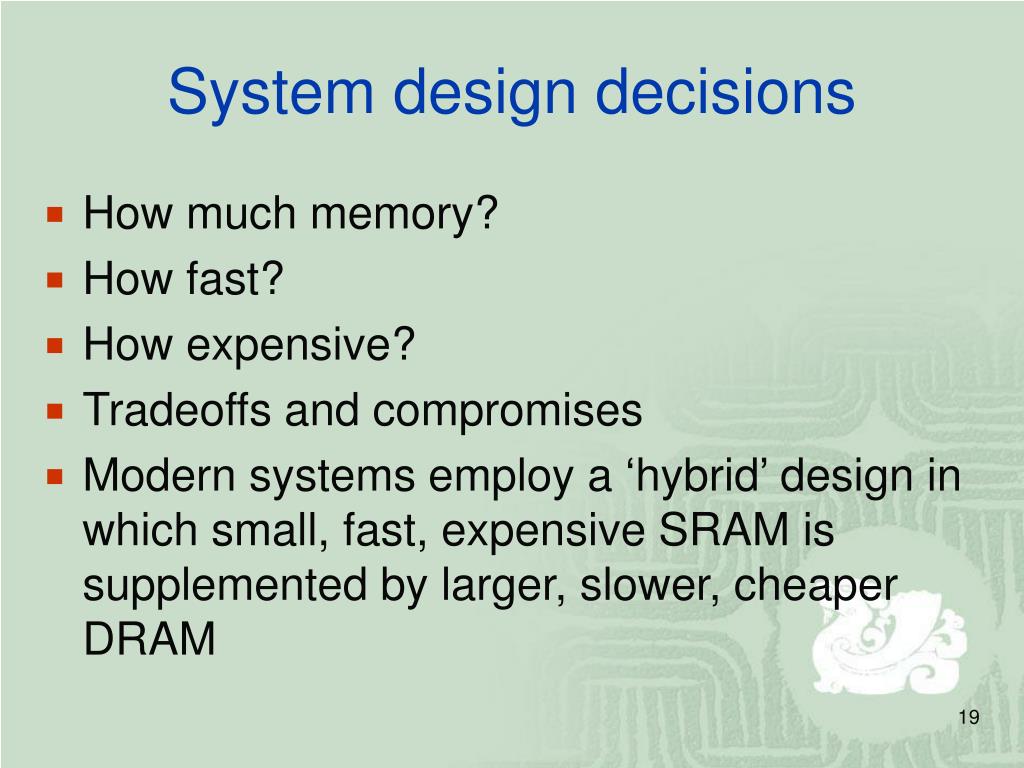

System design decisions • How much memory? • How fast? • How expensive? • Tradeoffs and compromises • Modern systems employ a ‘hybrid’ design in which small, fast, expensive SRAM is supplemented by larger, slower, cheaper DRAM

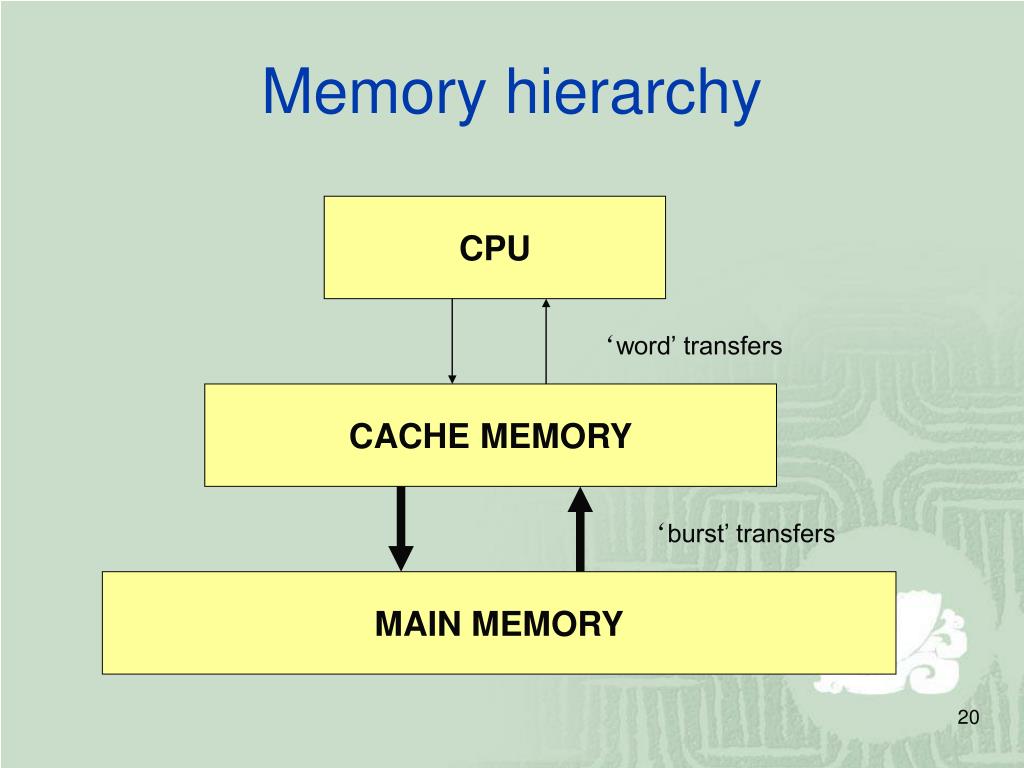

Memory hierarchy CPU ‘word’ transfers CACHE MEMORY ‘burst’ transfers MAIN MEMORY

Caching Memory Cache • Given: • Processor speed is faster than memory speed • Execution/data localizes • Cache: • Contains a portion of main memory • Invisible to operating system • Used similar to virtual memory • Increases the speed of memory • Processor first checks cache • If not found in cache, the block of memory containing the needed information is moved to the cache

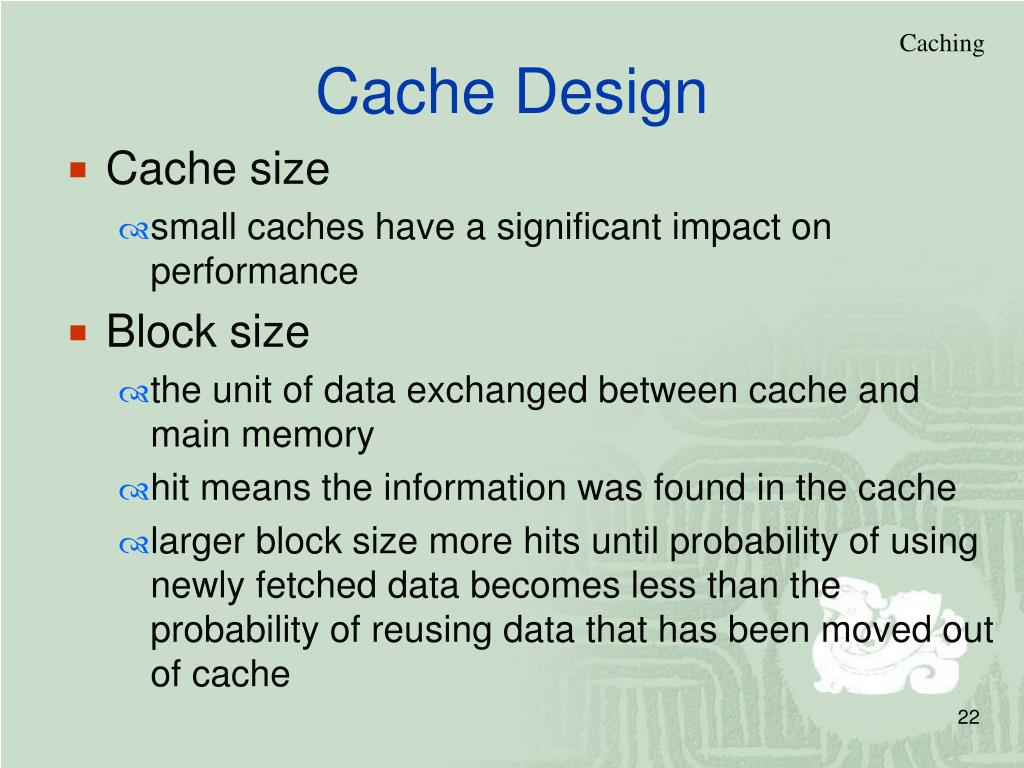

Caching Cache Design • Cache size • small caches have a significant impact on performance • Block size • the unit of data exchanged between cache and main memory • hit means the information was found in the cache • larger block size more hits until probability of using newly fetched data becomes less than the probability of reusing data that has been moved out of cache

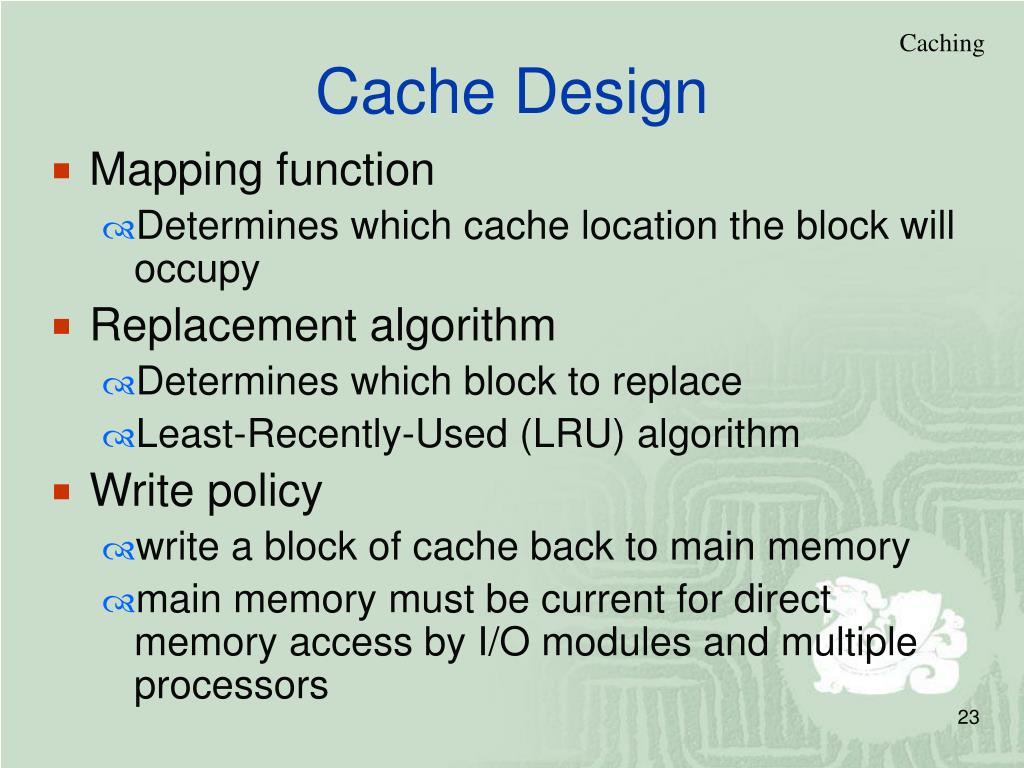

Caching Cache Design • Mapping function • Determines which cache location the block will occupy • Replacement algorithm • Determines which block to replace • Least-Recently-Used (LRU) algorithm • Write policy • write a block of cache back to main memory • main memory must be current for direct memory access by I/O modules and multiple processors

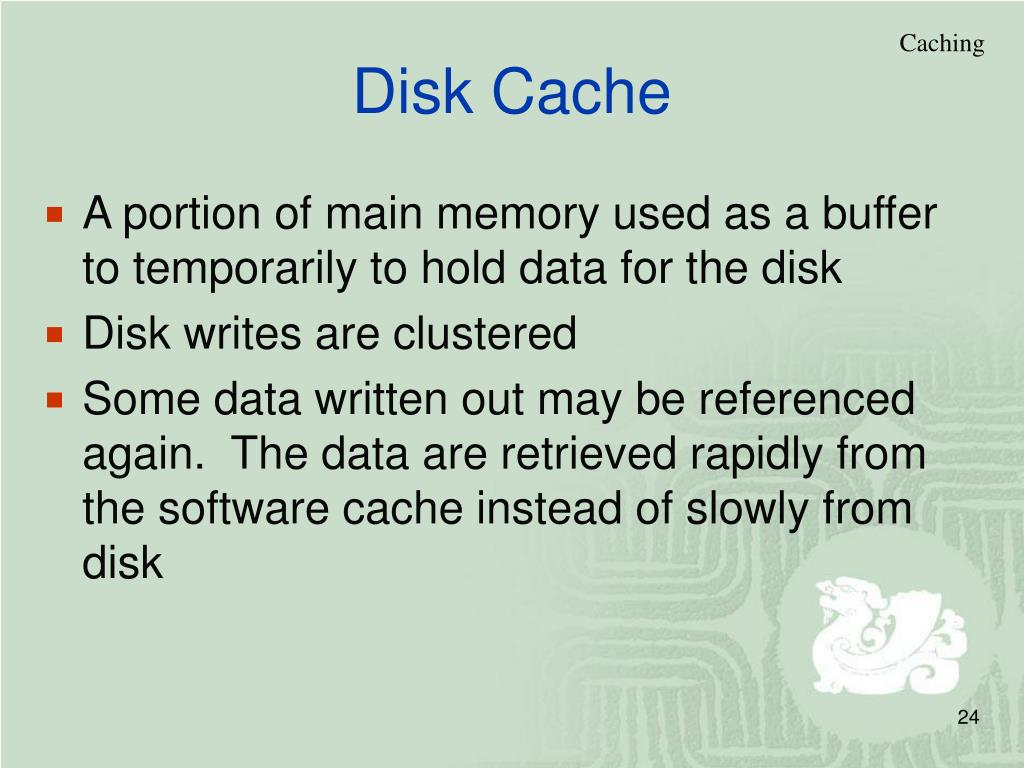

Caching Disk Cache • A portion of main memory used as a buffer to temporarily to hold data for the disk • Disk writes are clustered • Some data written out may be referenced again. The data are retrieved rapidly from the software cache instead of slowly from disk

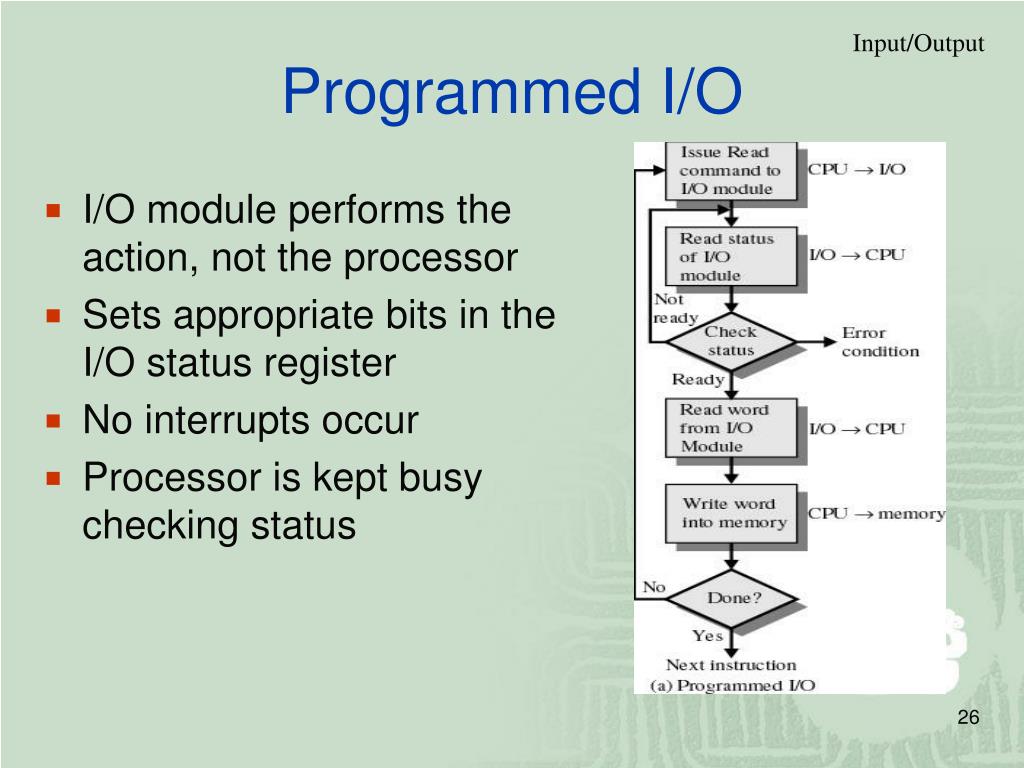

Input/Output Programmed I/O • I/O module performs the action, not the processor • Sets appropriate bits in the I/O status register • No interrupts occur • Processor is kept busy checking status

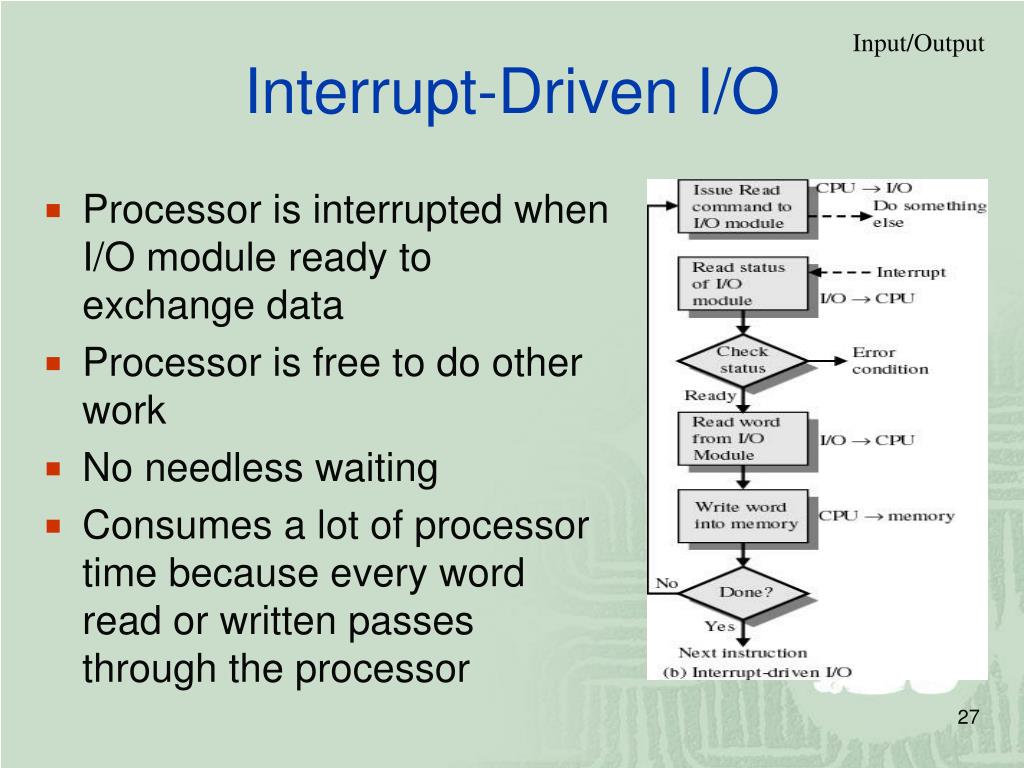

Input/Output Interrupt-Driven I/O • Processor is interrupted when I/O module ready to exchange data • Processor is free to do other work • No needless waiting • Consumes a lot of processor time because every word read or written passes through the processor

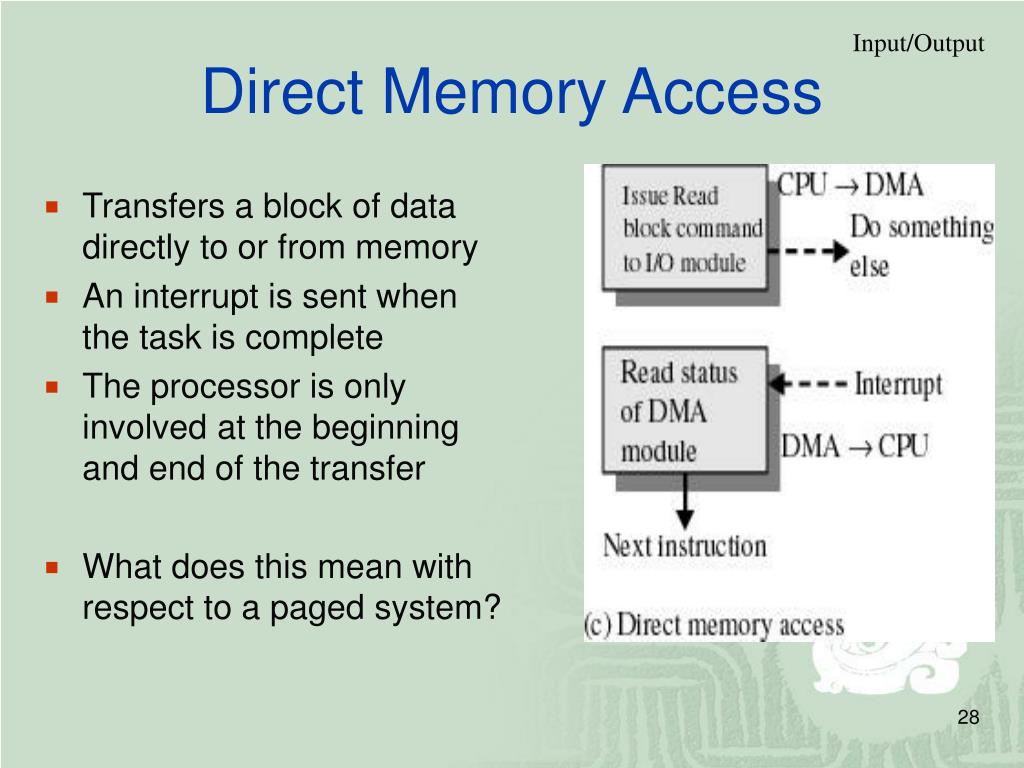

Input/Output Direct Memory Access • Transfers a block of data directly to or from memory • An interrupt is sent when the task is complete • The processor is only involved at the beginning and end of the transfer • What does this mean with respect to a paged system?

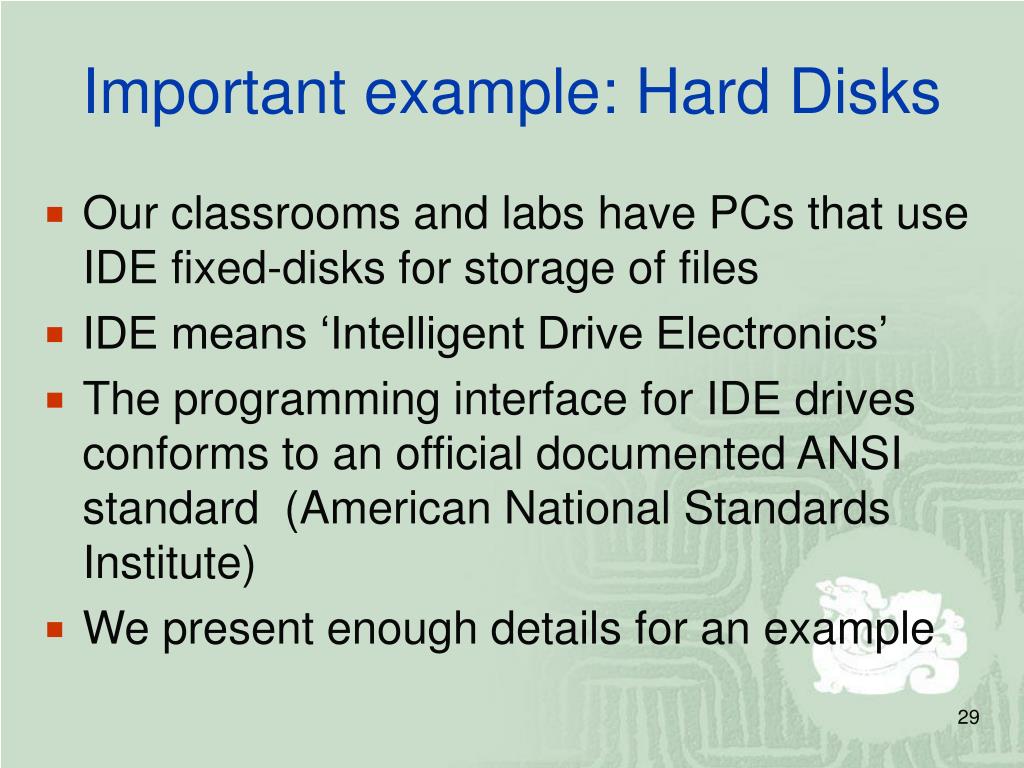

Important example: Hard Disks • Our classrooms and labs have PCs that use IDE fixed-disks for storage of files • IDE means ‘Intelligent Drive Electronics’ • The programming interface for IDE drives conforms to an official documented ANSI standard (American National Standards Institute) • We present enough details for an example

‘IDENTIFY DRIVE’ • There exist about 40 different commands (e.e., read, write, seek, format, sleep, etc) • Some are ‘mandatory’, others ‘optional’ • An example: the ‘Identify Drive’ command • It provides information on disk’s geometry and some other operational characteristics • It identifies the disk’s manufacturer and it provides a unique disk serial-number

IDE Command Protocol • IDE Commands typically have 3 phases: • COMMAND PHASE: CPU issues a command • DATA PHASE: data moves to/from IDE buffer • RESULT PHASE: CPU reads status/errors

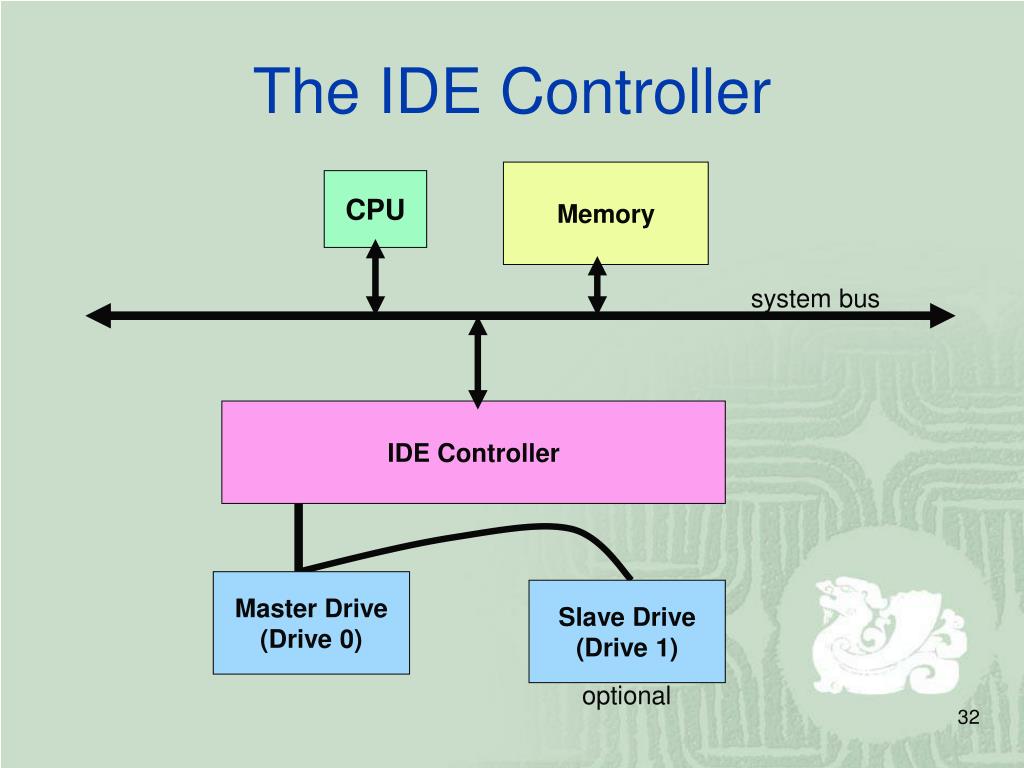

The IDE Controller Memory CPU system bus IDE Controller Master Drive (Drive 0) Slave Drive (Drive 1) optional

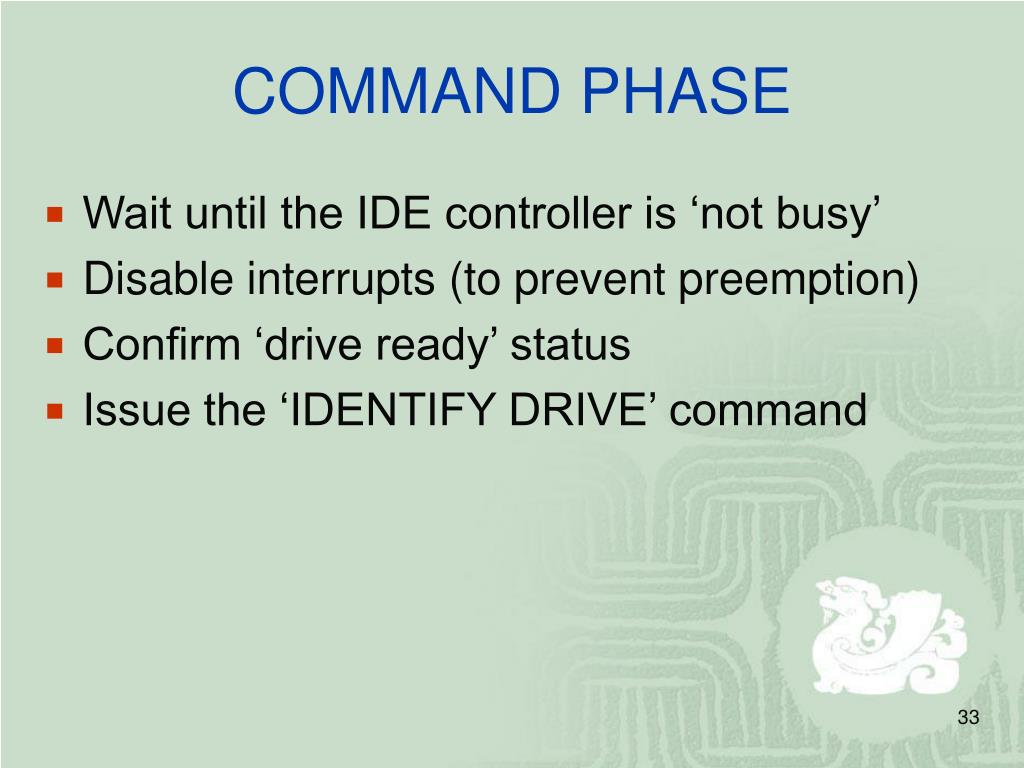

COMMAND PHASE • Wait until the IDE controller is ‘not busy’ • Disable interrupts (to prevent preemption) • Confirm ‘drive ready’ status • Issue the ‘IDENTIFY DRIVE’ command

DATA-TRANSFER PHASE • Continuously poll the Status Register until the DRQ (Data-Transfer Requested) bit is set, indicating that the data has been transferred into the controller’s internal ‘sector-buffer’ (size is 256 words) • Read the IDE Data-Register 256-times, saving the values into a memory area

RESULT PHASE • Verify that the DRQ status-bit is now clear, indicating Data-Transfer Phase is finished • Check the ERR status-bit, to see if errors occurred, and if so, read the Error Register to obtain details about what went wrong • Re-enable interrupts (so multitasking can resume)

Protection Hardware Protection • Why protect hardware? • From what? • Shared hardware resources – memory, disk, … • Errant programs • How? • CPU provides 2 modes of operation • User Mode (non-privileged) • Supervisor mode (privileged) • Privileged instructions can only be executed in monitor mode • All I/O instructions are privileged

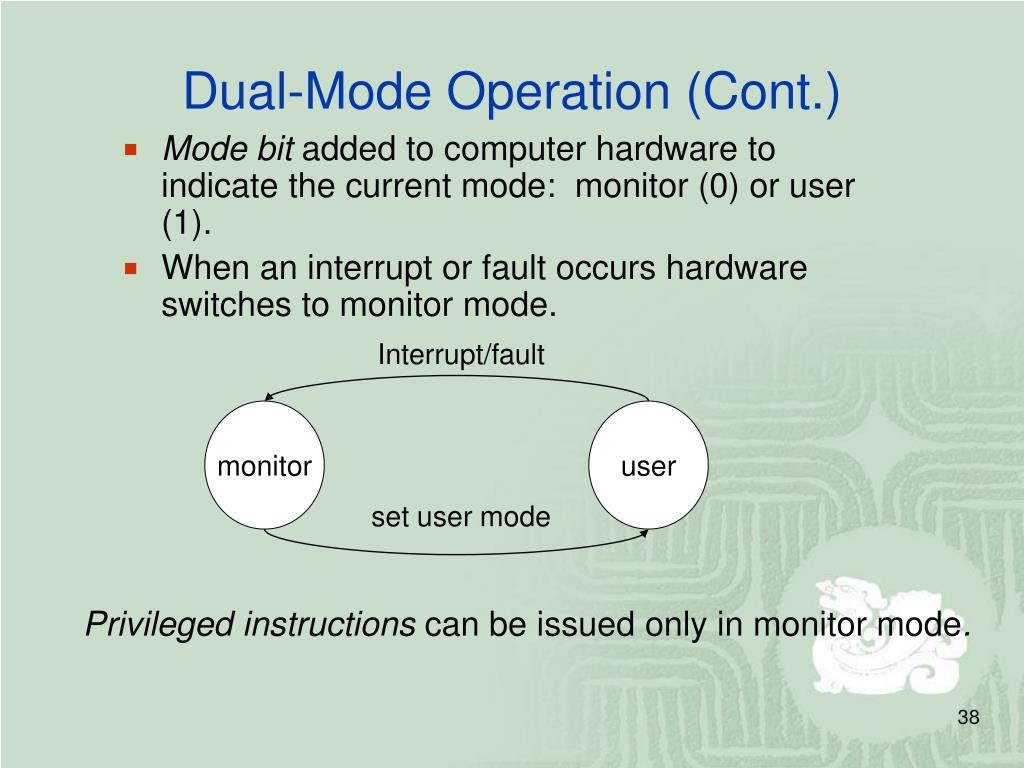

Dual-Mode Operation (Cont.) • Mode bit added to computer hardware to indicate the current mode: monitor (0) or user (1). • When an interrupt or fault occurs hardware switches to monitor mode. Interrupt/fault monitor user set user mode Privileged instructions can be issued only in monitor mode.

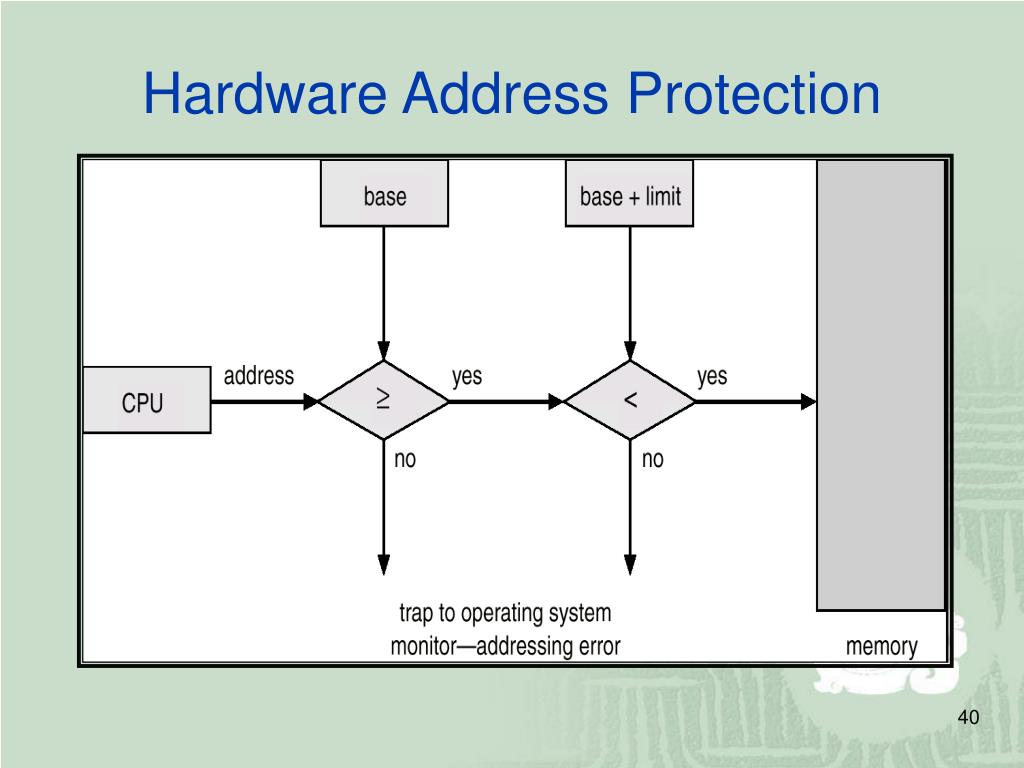

0 OS 256000 Job 1 300040 Job 2 420940 Job 3 880000 Base 300040 Job 4 1024000 Limit 120900 Protection Memory Protection • We must not allow a program access to memory outside of its space. • How? Add two registers • Base • Limit • Use the registers to check every reference

Hardware Address Protection

Protection CPU Protection • What is there to protect? • Configuration • CPU as a resource • Timer • Task Switching uses the timer • When process is loaded timer is set • Timer is decremented each cycle • When time is zero, an interrupt is generated • Process is switched • Load-timer is a privileged instruction

I/O Protection • All I/O instructions are privileged instructions. • Must ensure that a user program could never gain control of the computer in monitor mode (I.e., a user program that, as part of its execution, stores a new address in the interrupt vector).

Protection Protect at all cost? • If all I/O instructions are protected, how do you perform input or output? • System calls • Often the call is a trap to a ISR (Interrupt Service Routine) • Control is passed to the ISR which sets the mode bit to monitor mode • ISR verifies that parameters are correct • ISR executes request, resets mode • Control is returned to user program
