  1. Workshop on Uncertain Dynamical Systems Robust Semidefinite Programming andIts Application to Sampled-Data Control Yasuaki Oishi (Nanzan University) Udine, Italy August 26, 2011 *Joint work with Teodoro Alamo

  2. 1. Introduction Robust semidefinite programming problems • Optimization problems constrained by uncertain • linear matrix inequalities • Many applications in robust control Robust SDP problem • Affine parameter dependence • Polynomial or rational par. dep.

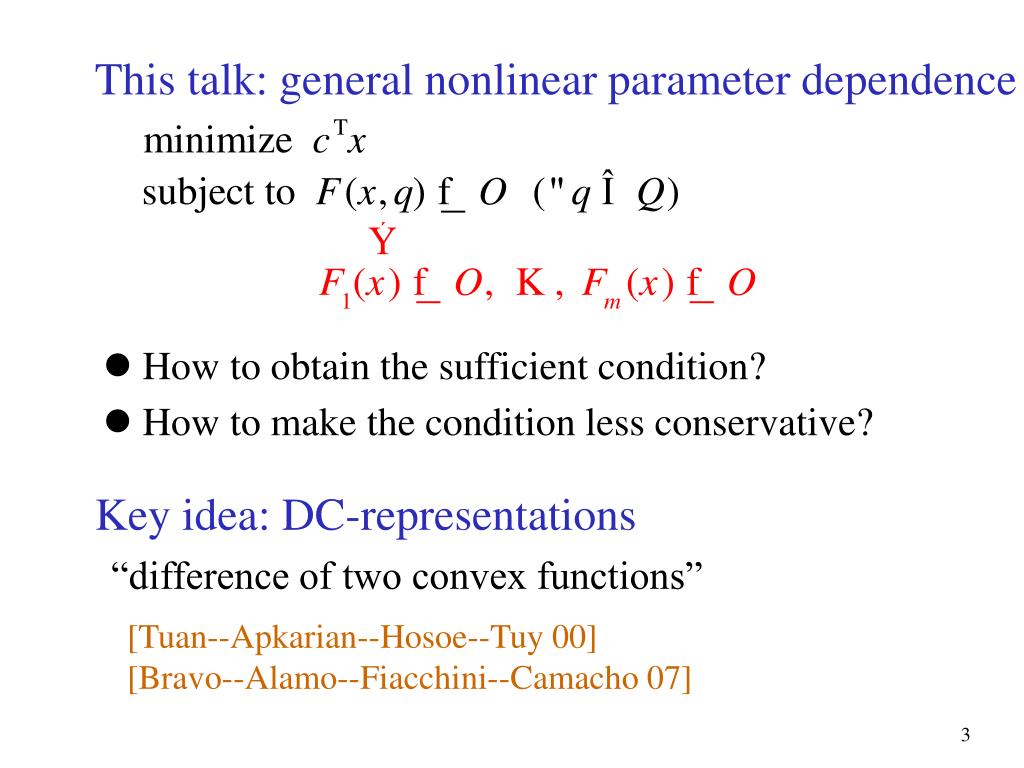

  3. This talk: general nonlinear parameter dependence • How to obtain the sufficient condition? • How to make the condition less conservative? Key idea: DC-representations “difference of two convex functions” [Tuan--Apkarian--Hosoe--Tuy 00] [Bravo--Alamo--Fiacchini--Camacho 07]

  4. 2. Preparations Problem nonlinear fn. • Assumption

  5. DC-representation convex convex Example

  6. Example cf. [Adjiman--Floudas 96] • Mild enough to assume

  7. 3. Proposed approach • Assumption: DC-representation is available convex convex • Key step: obtaining bounds concave convex

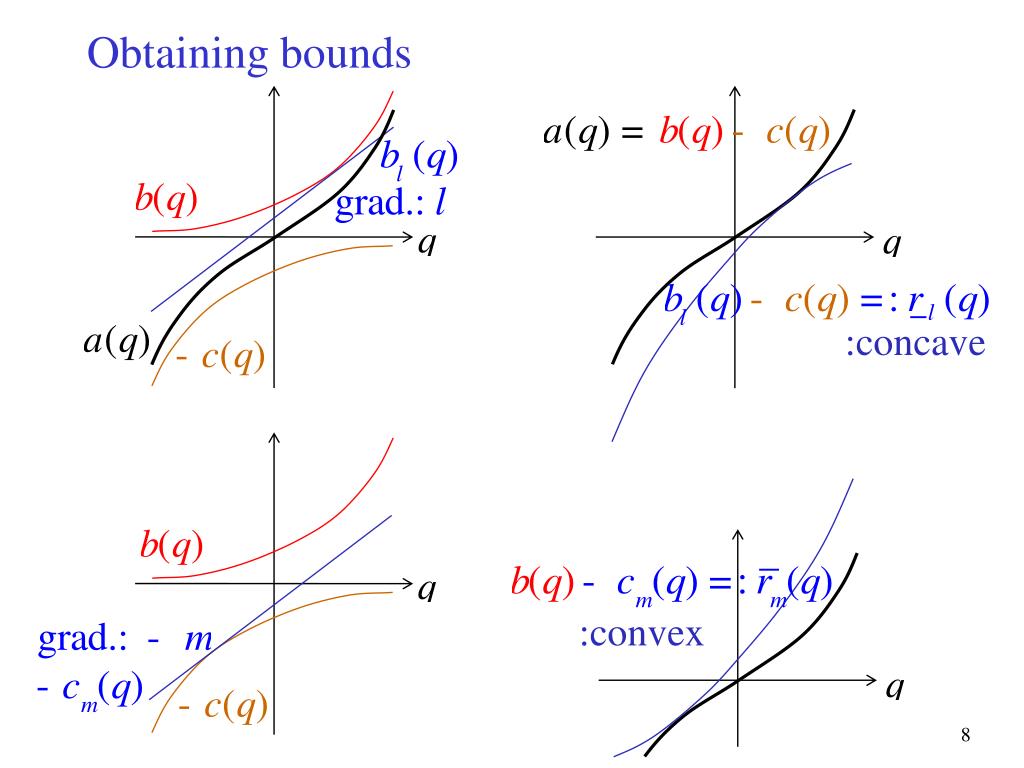

  8. Obtaining bounds :concave :convex

  9. concave convex

  10. Approximate problem • Approximate solution • Number of LMIs cf. NP-hardness • Conservative

  11. Reduction of conservatism • Adaptive division

  12. Quality of the approximation • depends on the choice • Measure of conservatism

  13. Measure of conservatism Theorem

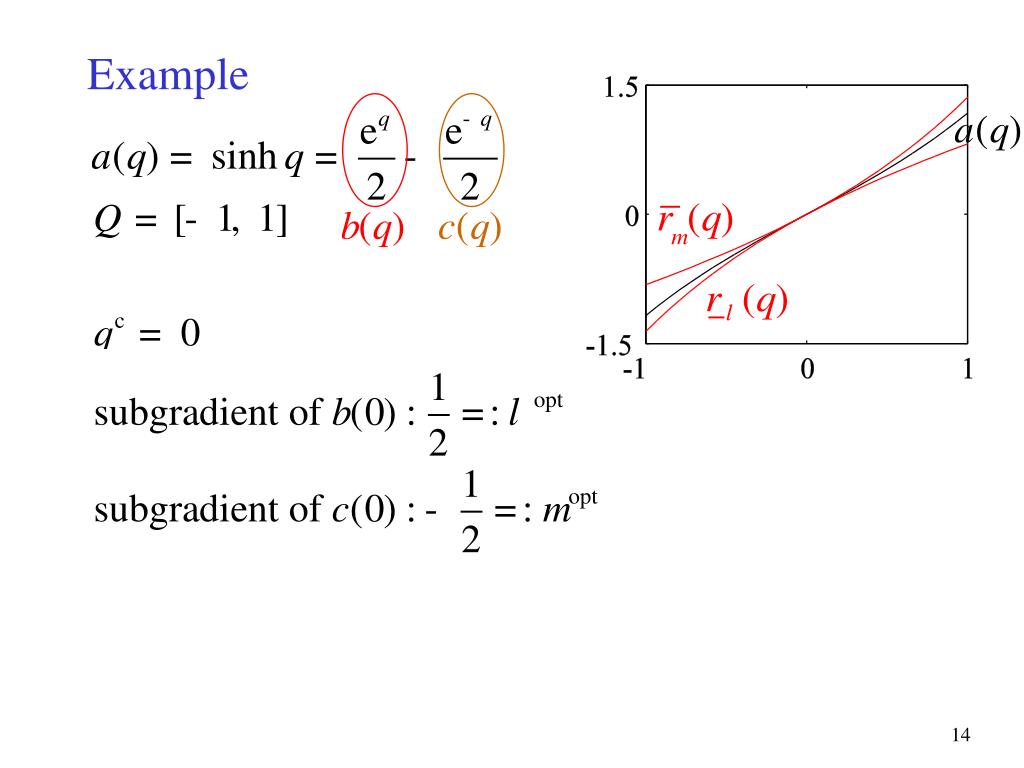

  14. Example

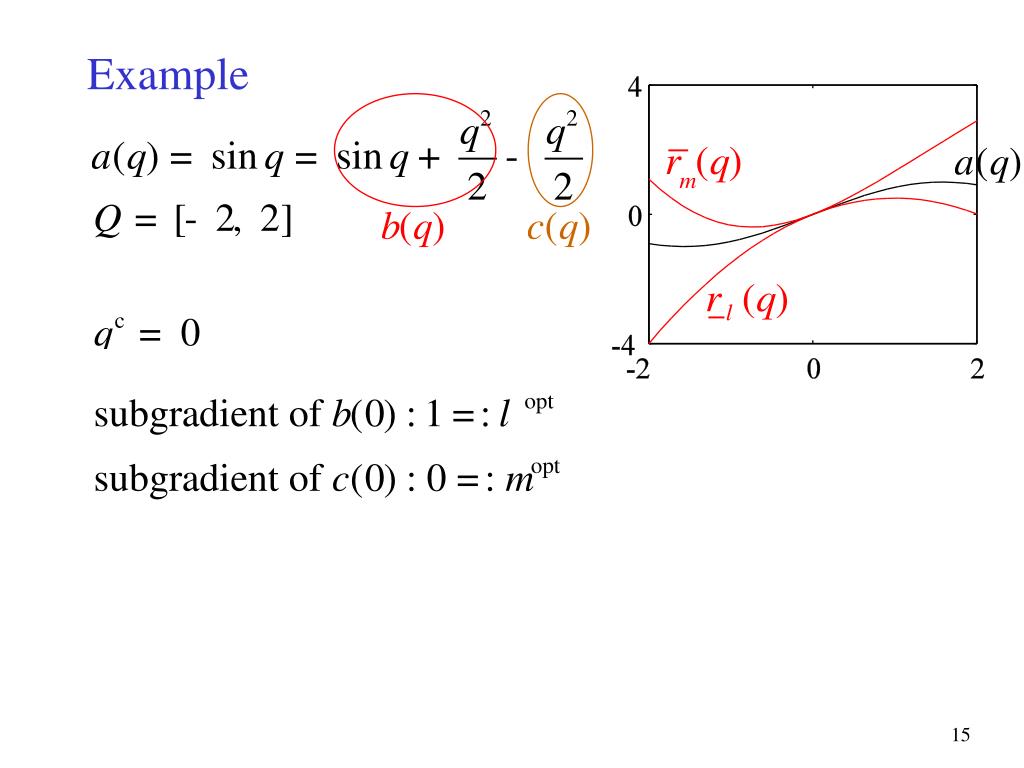

  15. Example

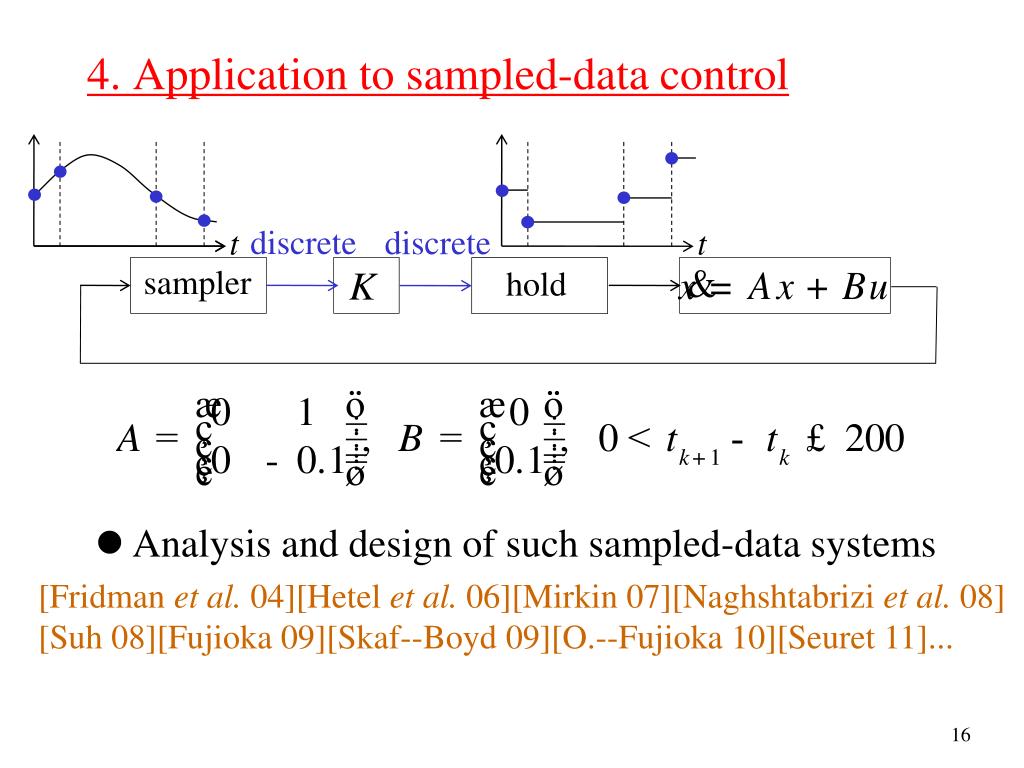

  16. 4. Application to sampled-data control sampler hold discrete discrete • Analysis and design of such sampled-data systems [Fridman et al. 04][Hetel et al. 06][Mirkin 07][Naghshtabrizi et al. 08] [Suh 08][Fujioka 09][Skaf--Boyd 09][O.--Fujioka 10][Seuret 11]...

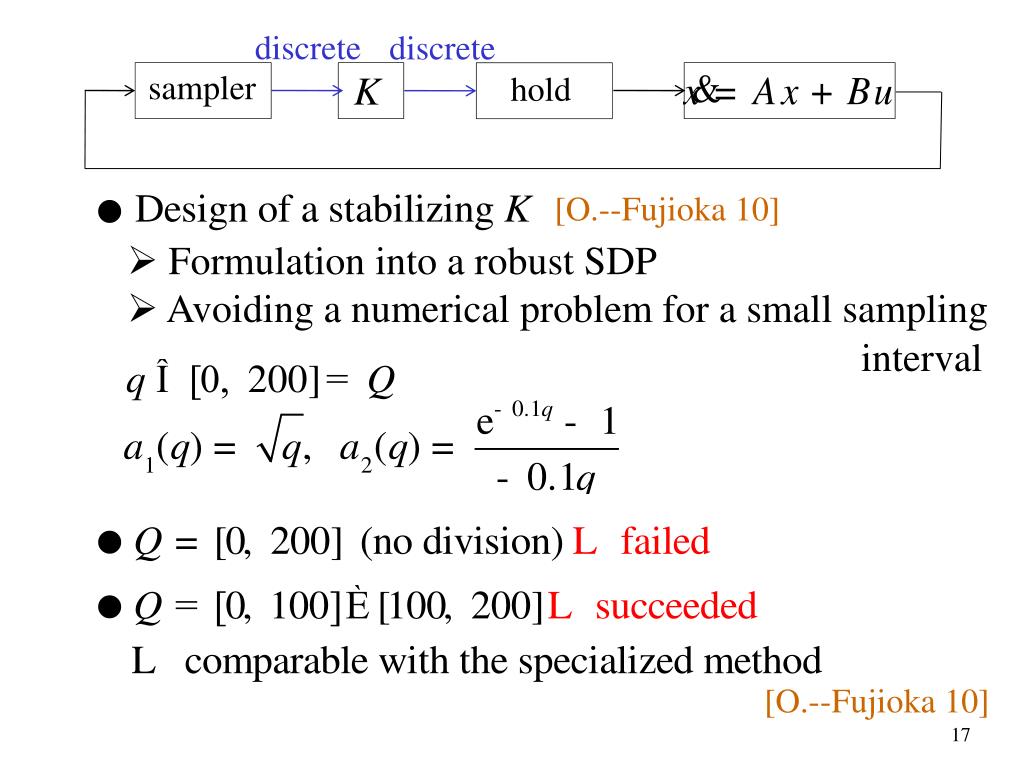

  17. [O.--Fujioka 10] sampler hold discrete discrete • Formulation into a robust SDP • Avoiding a numerical problem for a small sampling interval [O.--Fujioka 10]

  18. 6. Summary Robust SDP problems with nonlinear param. dep. • Conservative approach using DC-representations • Concave and convex bounds • Approximate problem • Reduction of conservatism • Optimization of the bounds w.r.t. some measure • Application to sampled-data control • Combination with the polynomial-based methods [Chesi--Hung 08][Peaucelle--Sato 09][O. 09]
