  1. MicroSCADA Pro SAS Application Offline Demo

  2. Contents • Installation • Download program files • Install MicroSCADA Pro • Install SAS Reference Application • Activate Demo License • Start MicroSCADA Pro

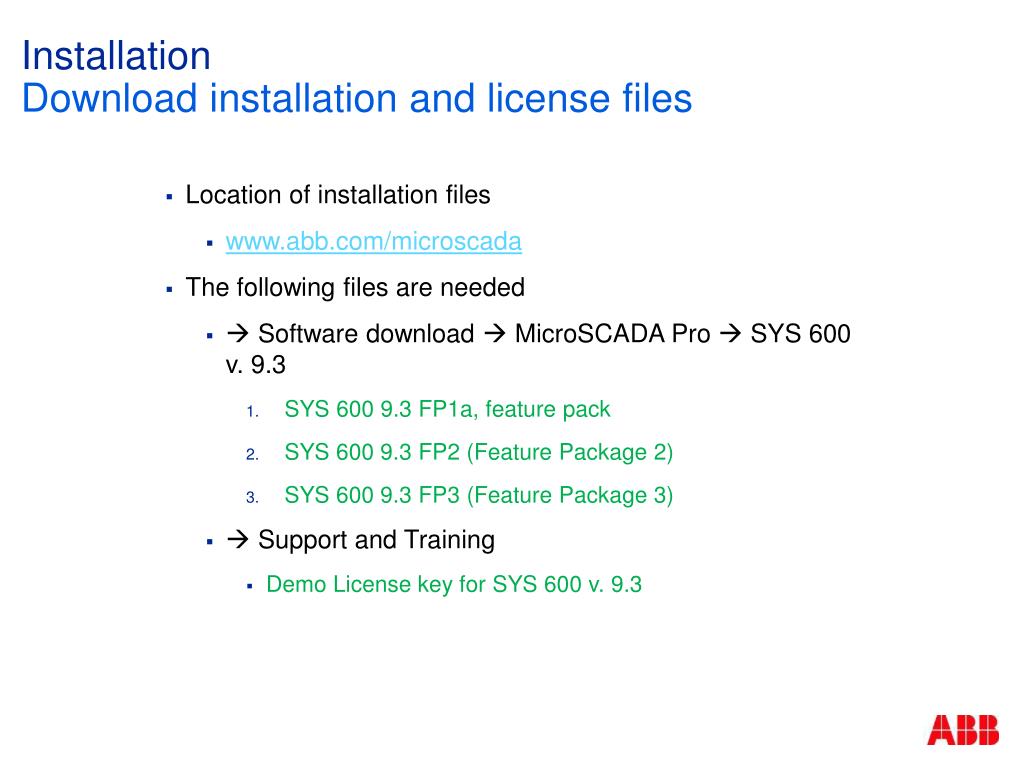

  3. Installation Download installationandlicensefiles • Location ofinstallationfiles • www.abb.com/microscada • The followingfilesareneeded •  Software download  MicroSCADA Pro  SYS 600 v. 9.3 • SYS 600 9.3 FP1a, feature pack • SYS 600 9.3 FP2 (Feature Package 2) • SYS 600 9.3 FP3 (Feature Package 3) •  Support and Training • Demo License key for SYS 600 v. 9.3

  4. Installation Unzip and execute installation files • Unzip and execute files exactly according following sequence • Unzip SYS 600 9.3 FP1a, feature packProgram setups OPC Server and create new user “MicroScada”;(create password for new user: “abb”) • Execute SYS600_93_FP1a.exe • Unzip SYS 600 9.3 FP2 (Feature Package 2) • Execute SYS600_93_FP2.exe • Restart PC • Unzip SYS 600 9.3 FP3 (Feature Package 3) • Execute SYS600_93_FP2.exe

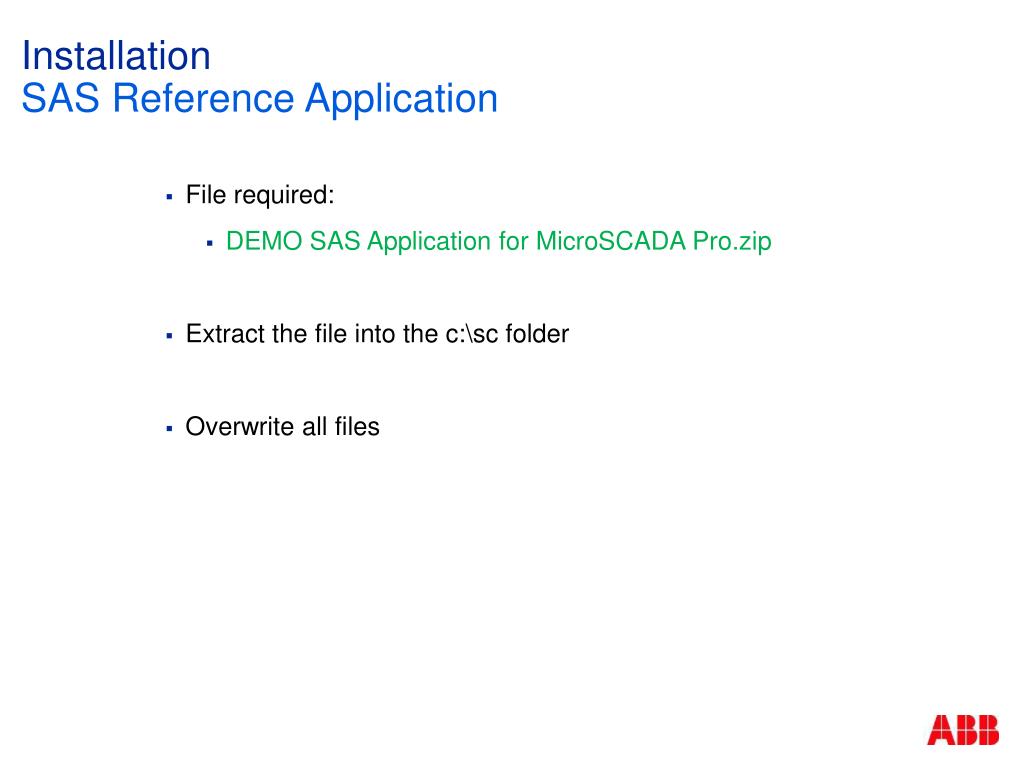

  5. Installation SAS Reference Application • File required: • DEMO SAS Application for MicroSCADA Pro.zip • Extract the file into the c:\sc folder • Overwrite all files

  6. Installation Activate the demo license (1/2) 1 3 5 2 4 • Open MicroSCADA Pro control dialogs

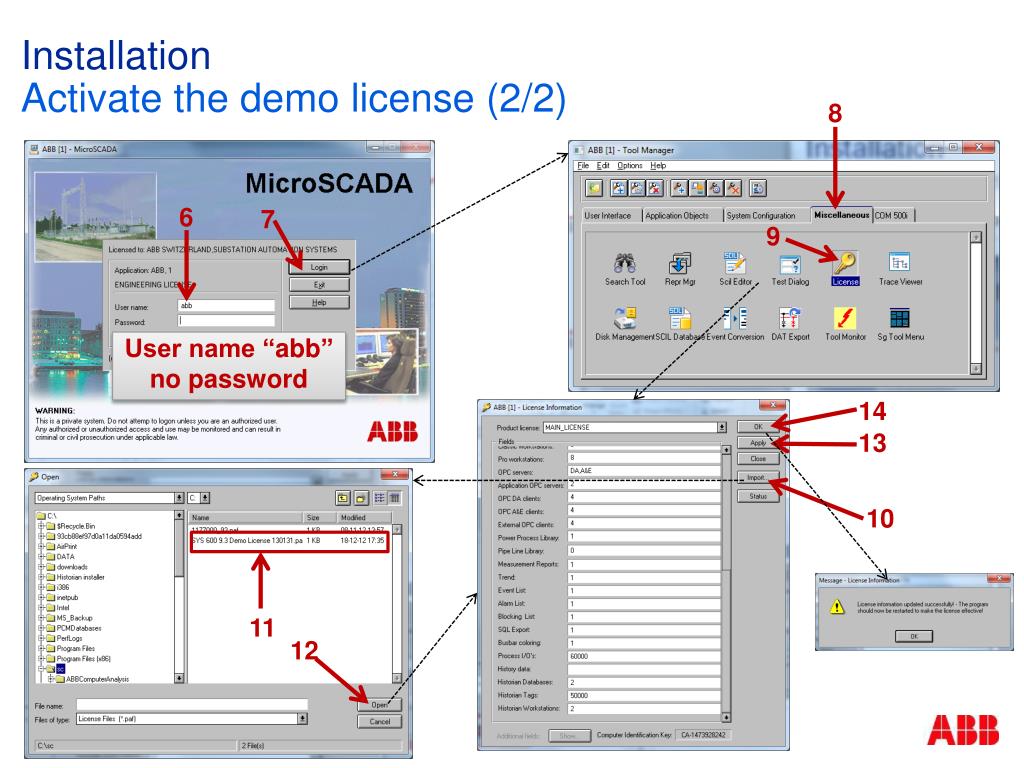

  7. Installation Activate the demo license (2/2) 8 6 7 9 User name “abb”no password 14 13 10 11 12

  8. Installation Stop MicroSCADA Service 15 • RestartMicroSCADAservicesafterimporting a licencefile

  9. Start MicroSCADA Pro 1 3 2 4 5 User name “abb”no password

  10. Modifed by: fikret.jakupovic@mamk.fi 31.03.2014
