Presentation Transcript

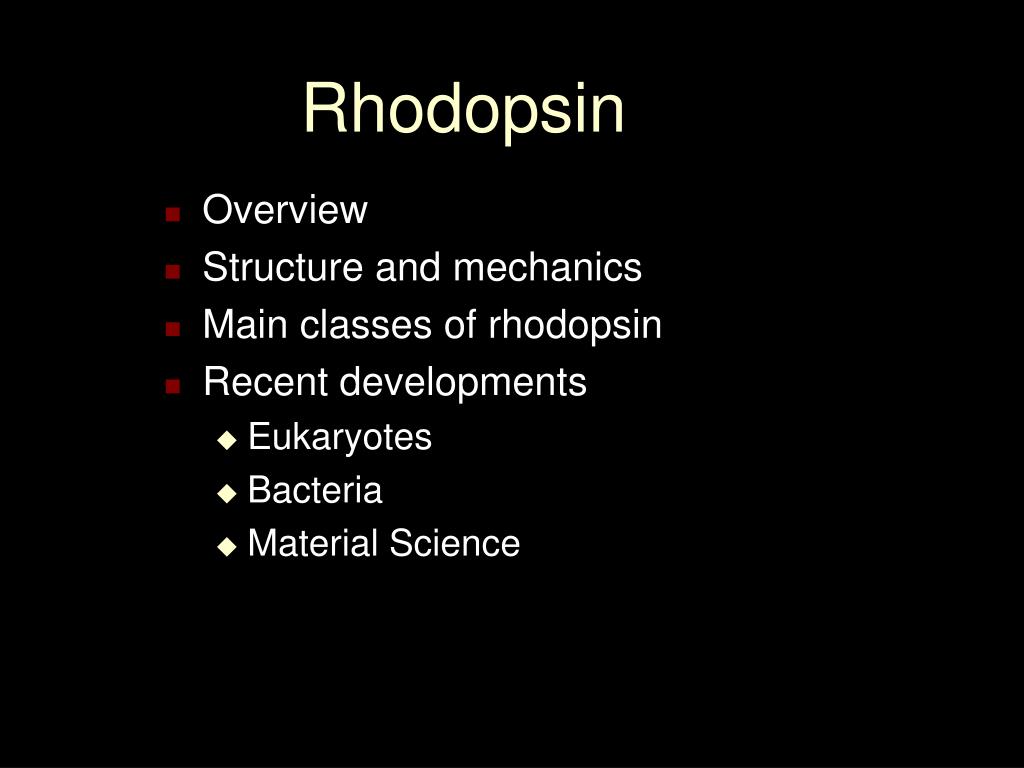

  1. Rhodopsin • Overview • Structure and mechanics • Main classes of rhodopsin • Recent developments • Eukaryotes • Bacteria • Material Science

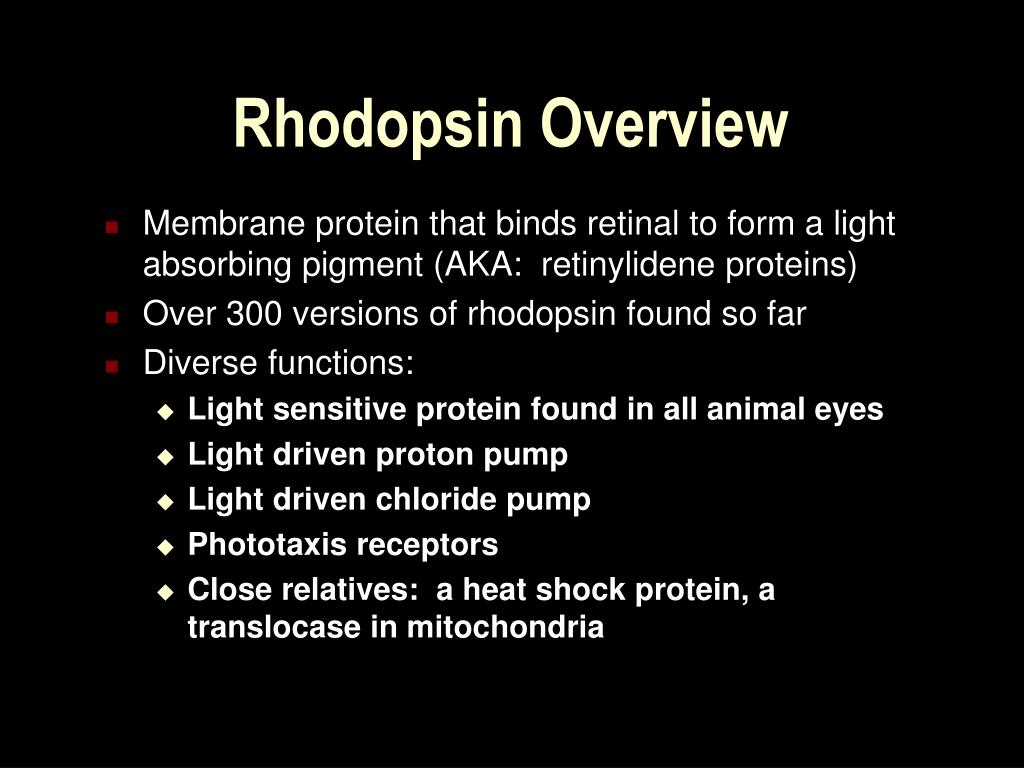

  2. Rhodopsin Overview • Membrane protein that binds retinal to form a light absorbing pigment (AKA: retinylidene proteins) • Over 300 versions of rhodopsin found so far • Diverse functions: • Light sensitive protein found in all animal eyes • Light driven proton pump • Light driven chloride pump • Phototaxis receptors • Close relatives: a heat shock protein, a translocase in mitochondria

  3. Structure and Mechanics • All have the same physical structure and mechanics • Seven trans-membrane alpha helices • Retinal attached by Schiff base linkage to a lysine residue in the seventh helix in all known cases • Structural changes induced by binding retinal are similar • Two distinct rhodopsin families: Type 1 and Type 2 • Look and act the same but the gene sequence is quite different

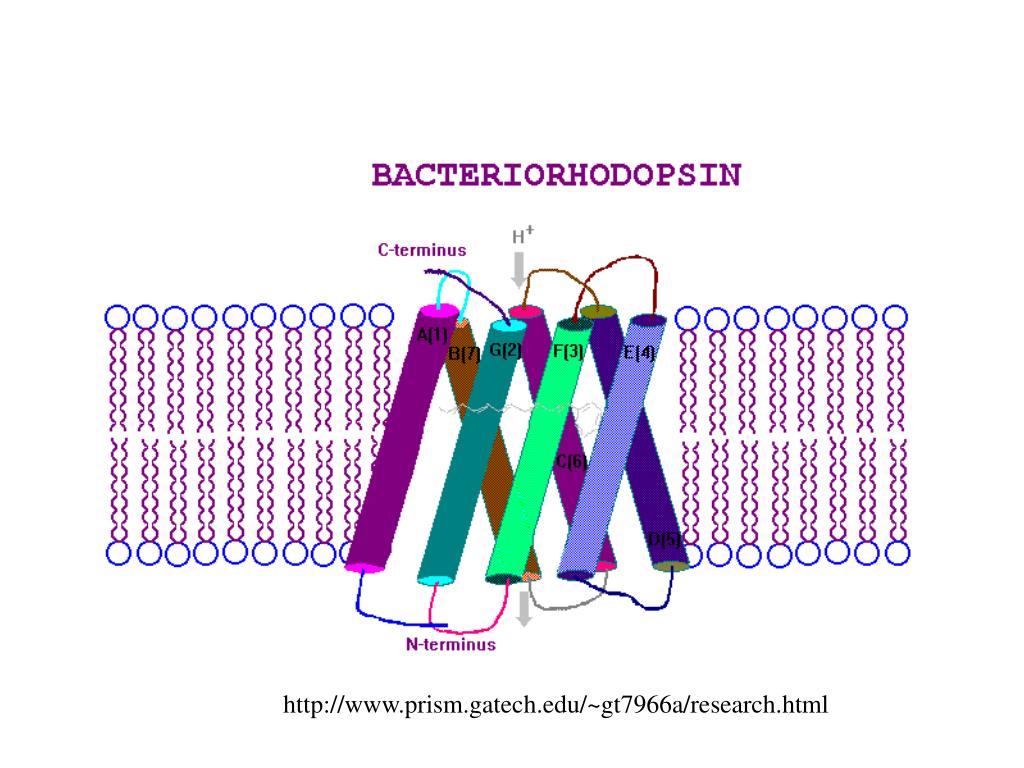

  4. http://www.prism.gatech.edu/~gt7966a/research.html

  5. Bacteriorhodopsin http://anx12.bio.uci.edu/~hudel/br/index.html

  6. Bacteriorhodopsin Ground state on left, bleached state on right http://anx12.bio.uci.edu/~hudel/br/index.html

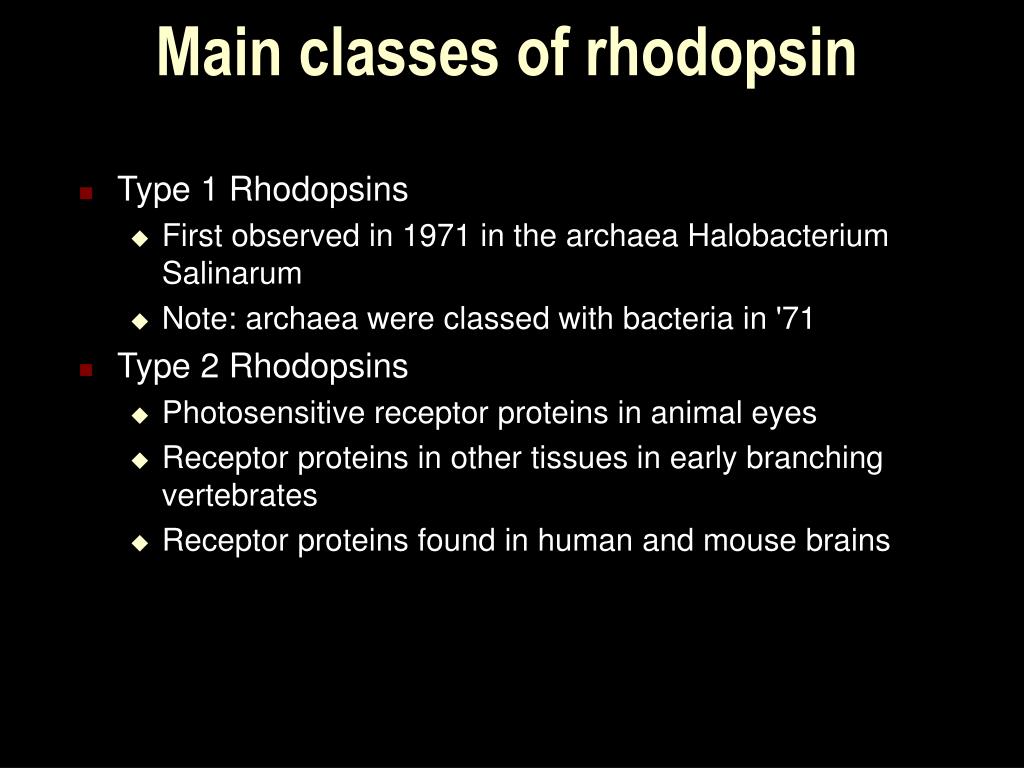

  7. Main classes of rhodopsin • Type 1 Rhodopsins • First observed in 1971 in the archaea Halobacterium Salinarum • Note: archaea were classed with bacteria in '71 • Type 2 Rhodopsins • Photosensitive receptor proteins in animal eyes • Receptor proteins in other tissues in early branching vertebrates • Receptor proteins found in human and mouse brains

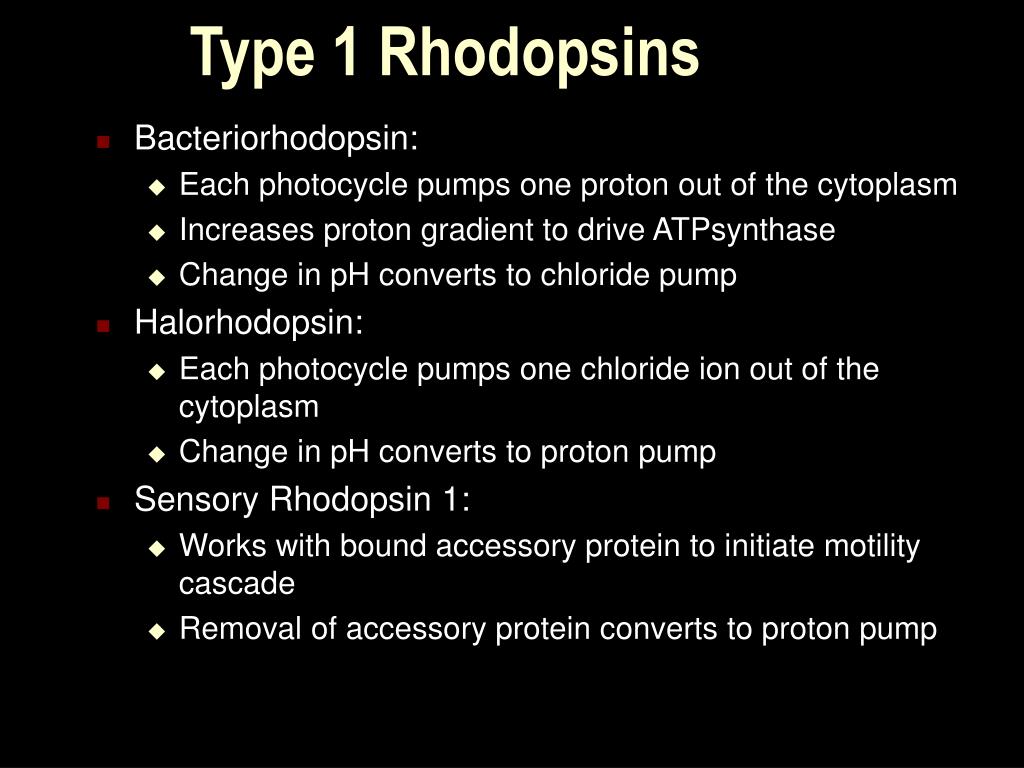

  8. Type 1 Rhodopsins • Bacteriorhodopsin: • Each photocycle pumps one proton out of the cytoplasm • Increases proton gradient to drive ATPsynthase • Change in pH converts to chloride pump • Halorhodopsin: • Each photocycle pumps one chloride ion out of the cytoplasm • Change in pH converts to proton pump • Sensory Rhodopsin 1: • Works with bound accessory protein to initiate motility cascade • Removal of accessory protein converts to proton pump

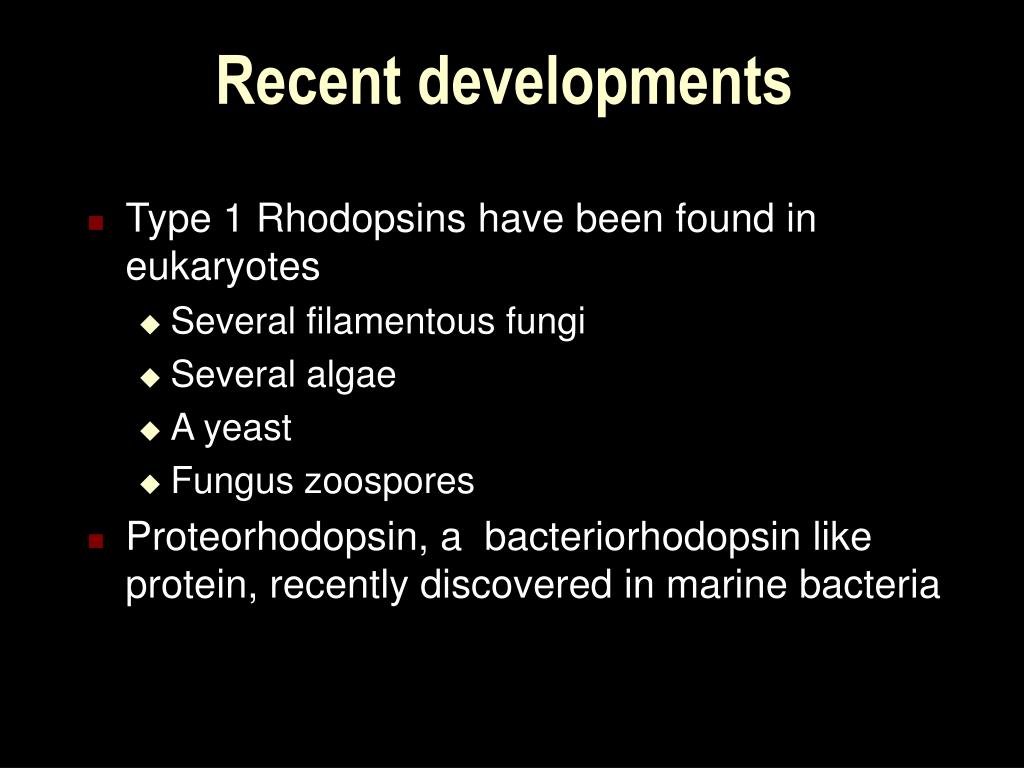

  9. Recent developments • Type 1 Rhodopsins have been found in eukaryotes • Several filamentous fungi • Several algae • A yeast • Fungus zoospores • Proteorhodopsin, a bacteriorhodopsin like protein, recently discovered in marine bacteria

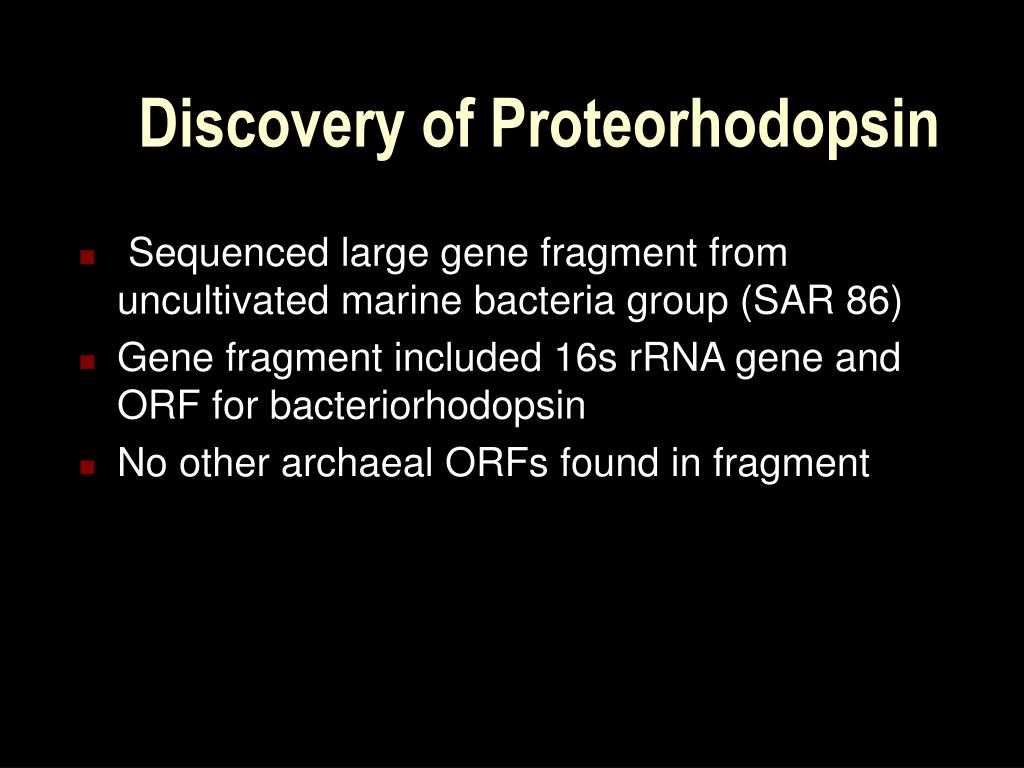

  10. Discovery of Proteorhodopsin •  Sequenced large gene fragment from uncultivated marine bacteria group (SAR 86) • Gene fragment included 16s rRNA gene and ORF for bacteriorhodopsin • No other archaeal ORFs found in fragment

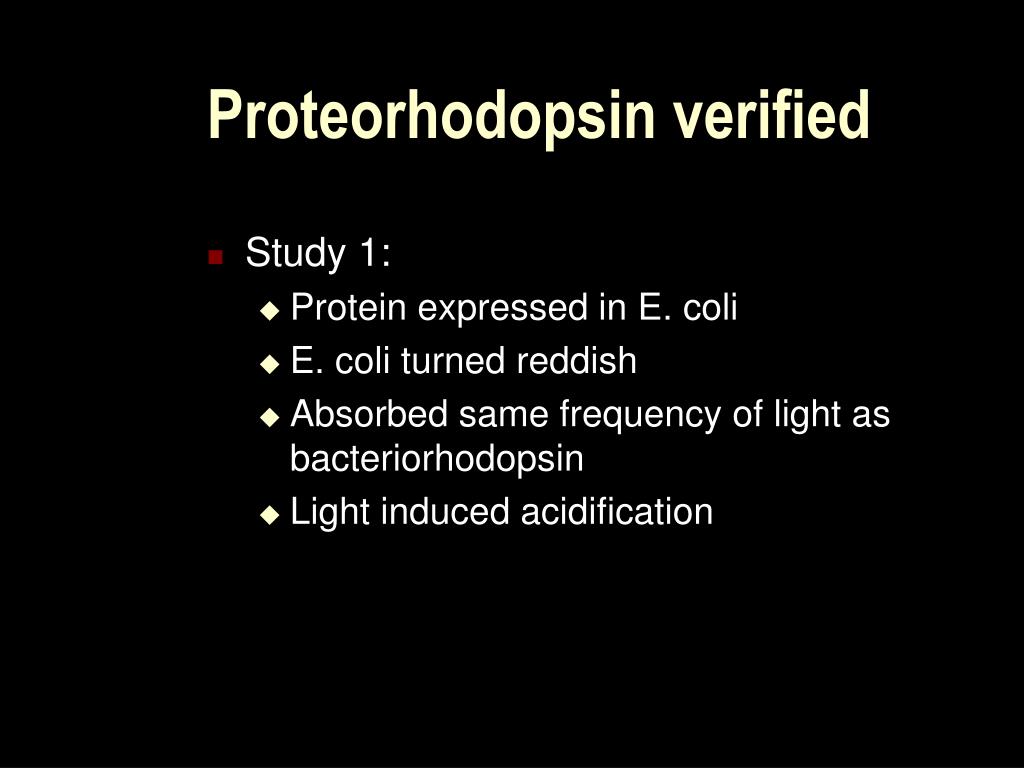

  11. Proteorhodopsin verified • Study 1: • Protein expressed in E. coli • E. coli turned reddish • Absorbed same frequency of light as bacteriorhodopsin • Light induced acidification

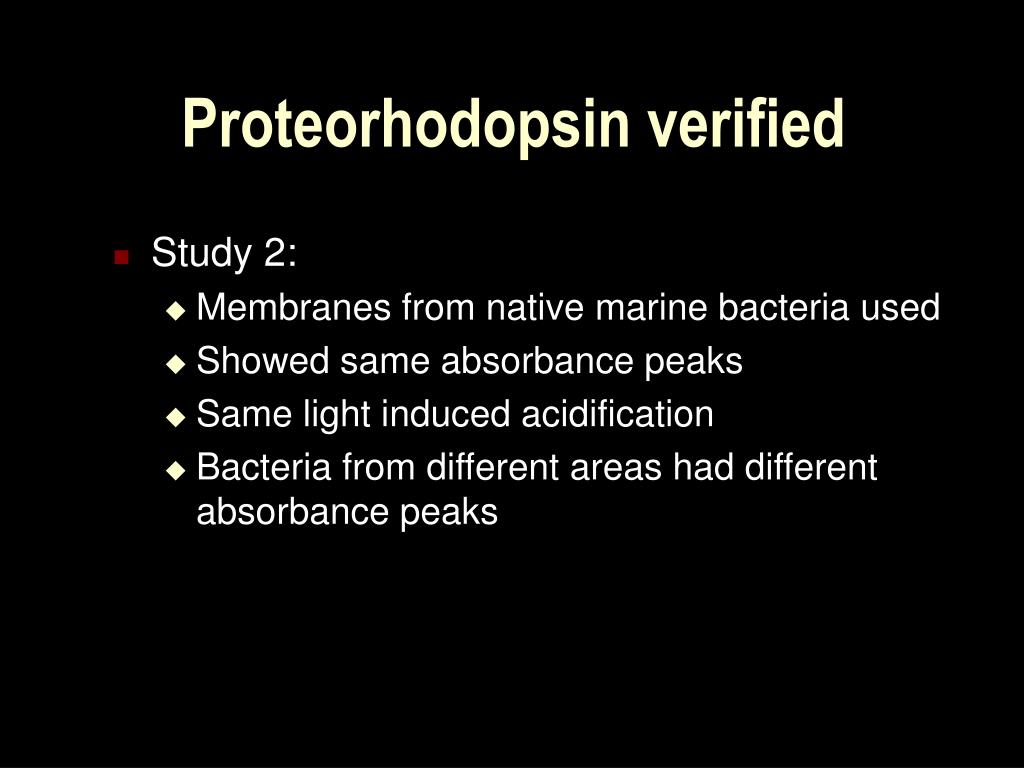

  12. Proteorhodopsin verified • Study 2: • Membranes from native marine bacteria used • Showed same absorbance peaks • Same light induced acidification • Bacteria from different areas had different absorbance peaks

  13. Proteorhodopsin is an important source of energy for SAR68 bacteria • Proteorhodopsin is highly expressed • Proteorhodopsin tuned for each environment • Many genetic variants have been found

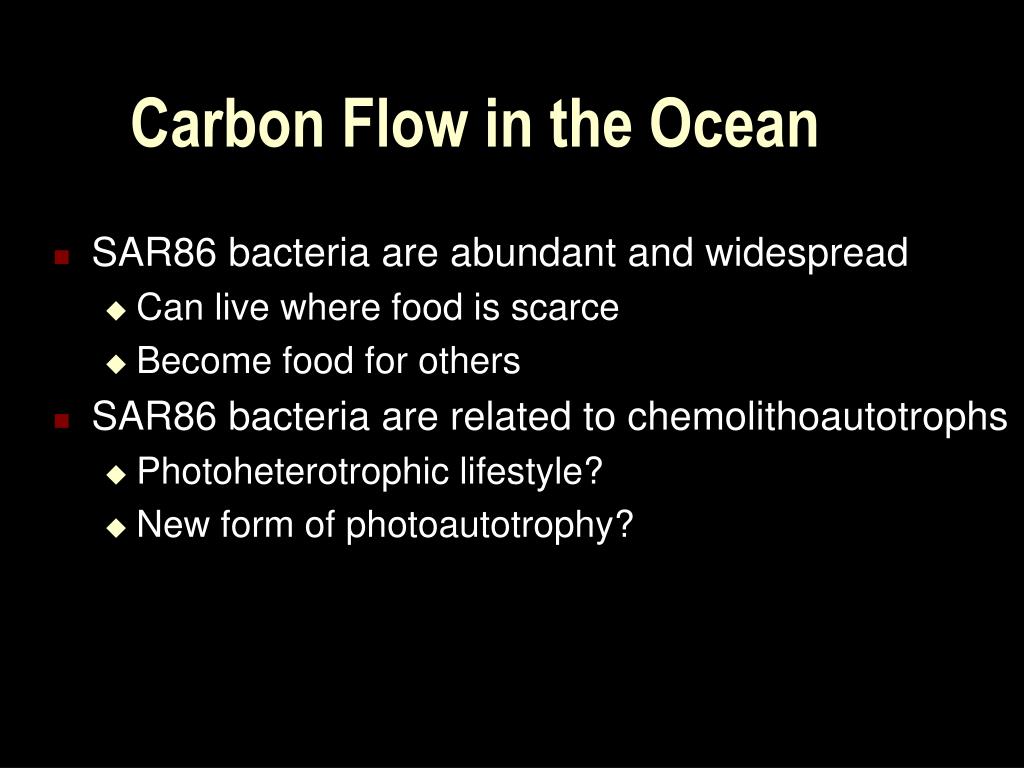

  14. Carbon Flow in the Ocean • SAR86 bacteria are abundant and widespread • Can live where food is scarce • Become food for others • SAR86 bacteria are related to chemolithoautotrophs • Photoheterotrophic lifestyle? • New form of photoautotrophy?

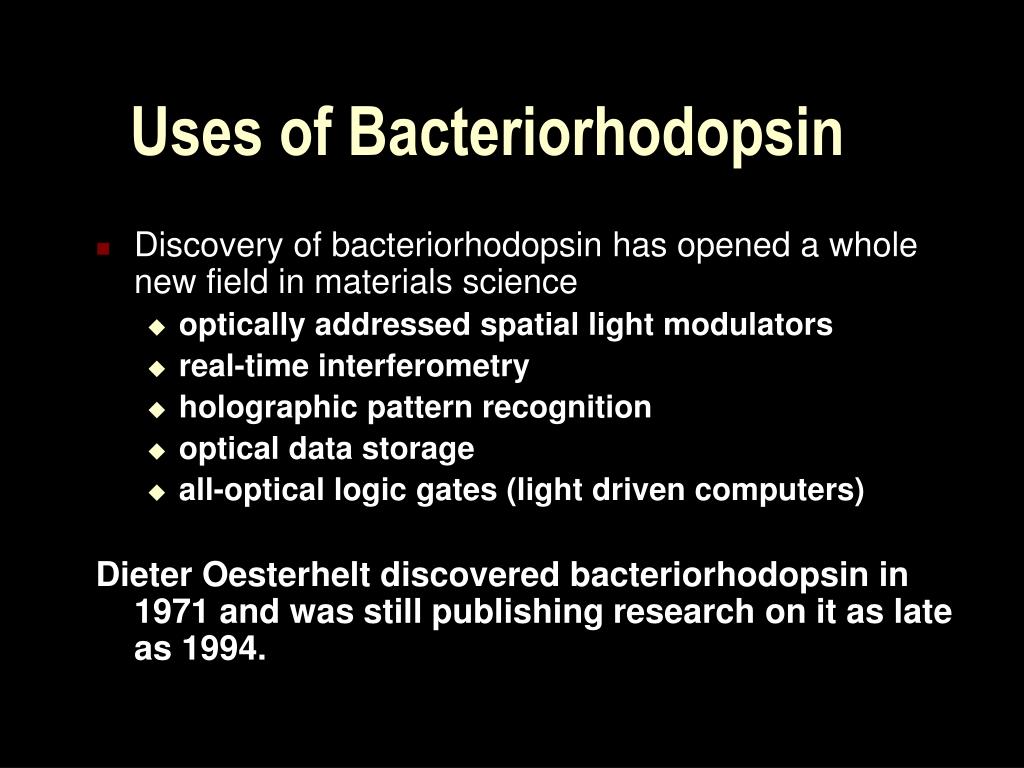

  15. Uses of Bacteriorhodopsin • Discovery of bacteriorhodopsin has opened a whole new field in materials science • optically addressed spatial light modulators • real-time interferometry • holographic pattern recognition • optical data storage • all-optical logic gates (light driven computers) Dieter Oesterhelt discovered bacteriorhodopsin in 1971 and was still publishing research on it as late as 1994.

  16. References • Spudich, J.L., Yang, C.S. Jung, K. H., & Spudich, E. N. • Retinylidene proteins: Structures and functions from archaea to humans. • Annu. Rev. Cell Dev. Biol. 16, 365-392 (2000). • Oesterhelt D., & Stoeckenius, W. • Rhodopsin like protein from the purple membrane of Halobacterium halobium • Nature233, 149-152 (1971) • Beja, O., Aravind, L., Koonin, V., Suzuki, M., Hadd, A., Nguyen, L., Jovanovich, S., Gates, C., Feldman, R., Spudich, J., Spudich, E. & DeLong, E. • Bacterial Rhodopsin: Evidence for a New Type of Phototrophy in the Sea • Science289, 1902-1906 (2000) • Beja, O., DeLong, E., Spudich, J., Leclerc, M. & DeLong, E. • Proteorhodopsin phototrophy in the ocean • Nature411, 786-789 (2001) • Hampp, N., Thoma, R. & Bräuchle, Kreuzer, C.F.-H., Maurer, R., & Oesterhelt, D. • Bacteriorhodopsin variants for optical information processing: A new approach in material science • AIP Conference Proceedings -- July 20, 1992 -- Volume 262, Issue 1, pp. 181-190  • Zhang, T., Zhang, C., Fu, G., Li, Y., Gu, L., Zhang, G., Song, Q. W., Parsons, B., Birge, R. • All-optical logic gates using bacteriorhodopsin films • Optical Engineering -- February 2000 -- Volume 39, Issue 2, pp. 527-534
