  1. Elastic recoil of arteries Arterioles Ventricular relaxation Ventricular contraction Fig.15-4

  2. Systole and diastole Similar to Fig.14-24

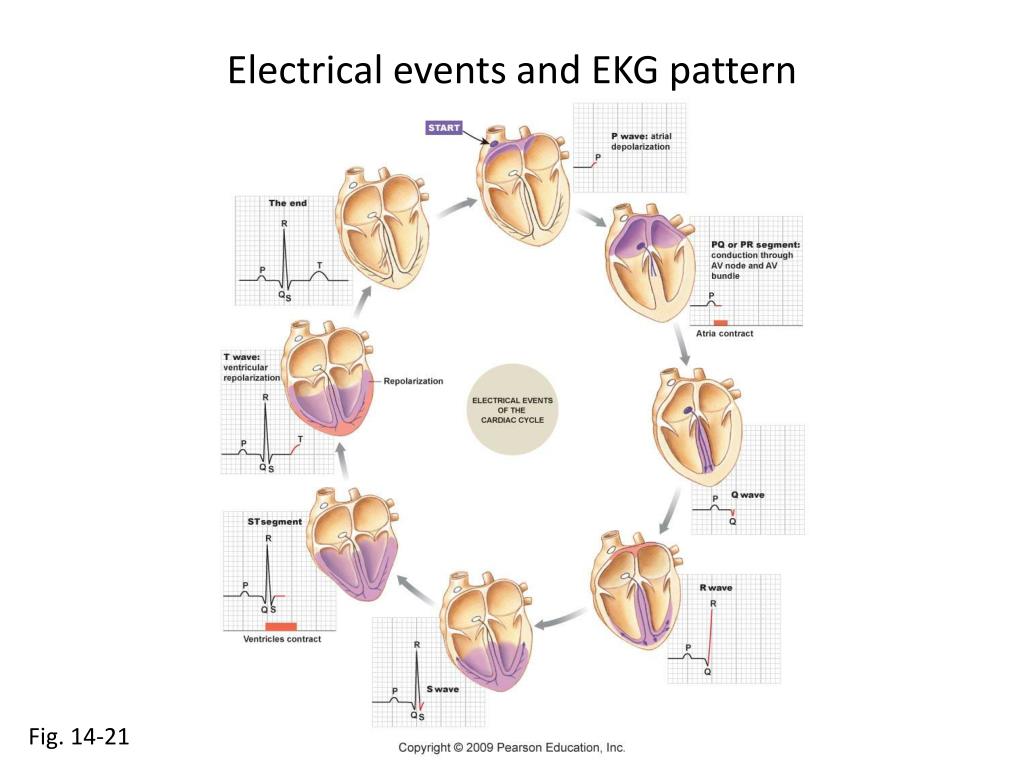

  3. Electrical events and EKG pattern Fig. 14-21

  4. Fig. 14-26

  5. Fig. 14-26

  6. Fig. 14-26

  7. Fig. 14-26

  8. Effects of sympathetic activity on HR Fig. 14-16

  9. Effects of parasympathetic activity on HR Fig. 14-16

  10. Starling’s Law Fig. 14-28

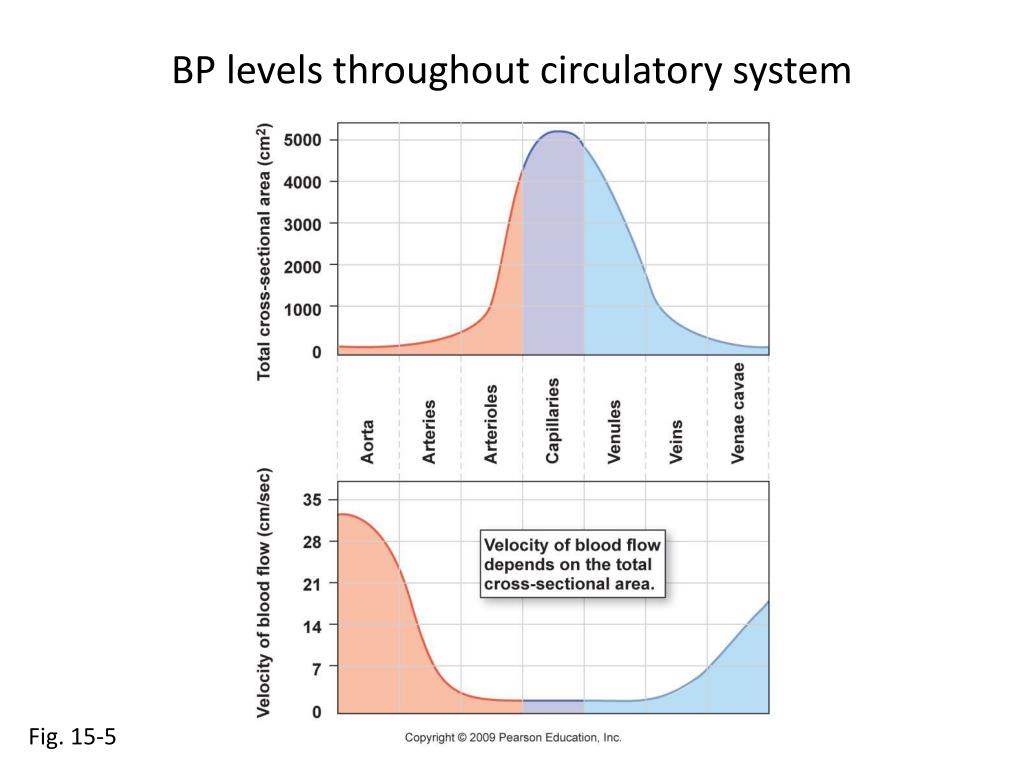

  11. BP levels throughout circulatory system Fig. 15-5

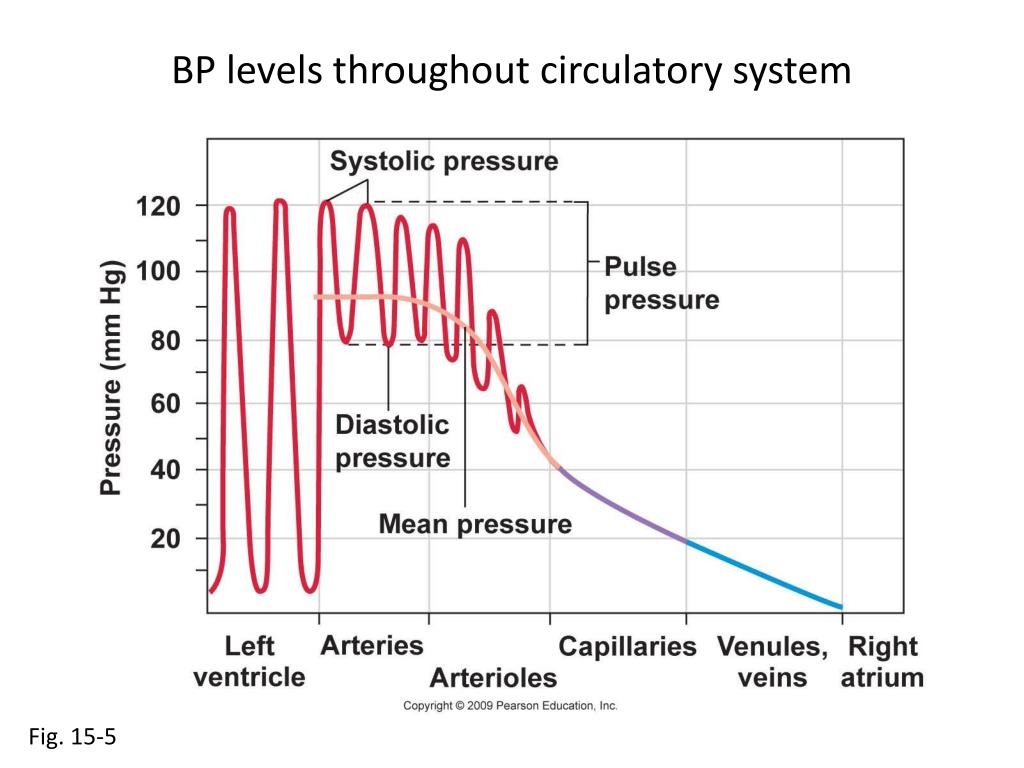

  12. BP levels throughout circulatory system Fig. 15-5

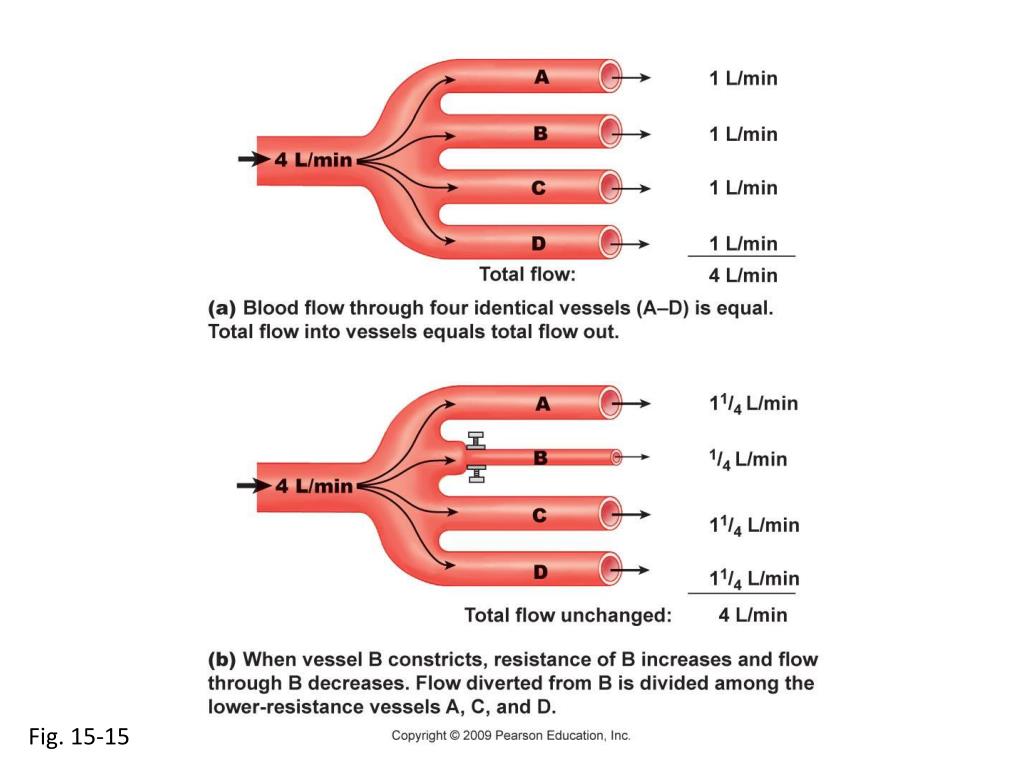

  13. Fig. 15-15

  14. Fig. 15-14

  15. Movement across capillary walls Similar to Fig. 15-17

  16. Lymph capillary Overlapping endothelial cells Interstitial fluid Lymph

  17. Uptake of lymph Venule Arteriole Netfiltration Netabsorption Lymphvessels Fig. 15-19

  18. Lymphatic system Thymus Lymph fluid empties into superior vena cava. Spleen Blind-end lymphcapillaries Lymph nodes Fig. 15-19

  19. Gas exchange Fig. 15-19

  20. Pulmonary system Pharynx Vocal cords Upperrespiratorysystem Larynx Trachea Lowerrespiratorysystem Right lung Left lung Diaphragm Left bronchus Rightbronchus Fig. 17-2

  21. Respiratory tree Fig. 17-4

  22. Alveoli Bronchiole Branch ofpulmonary artery Smooth muscle Elasticfibers Lymphaticvessel Branch ofpulmonaryvein Capillary beds Alveoli Fig. 17-2

  23. Gas exchange RBC Plasma Capillary Endothelium ~1 μm Alveolarair space Alveolus Fusedbasementmembranes Surfactant Alveolarepithelium Fig. 17-2
