HASH ALGORITHMS - Chapter 12

MD5 SHA RIPEMD-160 HMAC. HASH ALGORITHMS - Chapter 12. Message Digest Compression Elementary Operations. MD5. MESSAGE DIGEST GENERATION MD5. MD5 COMPRESSION FUNCTION. ELEMENTARY MD5 OPERATION. Table 9.1 – truth table B C D || F G H I

moshe
Télécharger la présentation

HASH ALGORITHMS - Chapter 12

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MD5 • SHA • RIPEMD-160 • HMAC HASH ALGORITHMS - Chapter 12

  2. Message Digest • Compression • Elementary Operations MD5

  3. MESSAGE DIGEST GENERATIONMD5

  4. MD5 COMPRESSION FUNCTION

  5. ELEMENTARY MD5 OPERATION

  6. Table 9.1 – truth table • B C D || F G H I • -------------------------------------- • 0 0 0 || 0 0 0 1 • 0 0 1 || 1 0 1 0 • 0 1 0 || 0 1 1 0 • 0 1 1 || 1 0 0 1 • 1 0 0 || 0 0 1 1 • 1 0 1 || 0 1 0 1 • 1 1 0 || 1 1 0 0 • 1 1 1 || 1 1 1 0 KEY ELEMENTS OF MD5

  7. Message Digest • Compression • Elementary Operations SECURE HASH ALGORITHM SHA-1

  8. SHA-1 COMPRESSION FUNCTION

  9. ELEMENTARY SHA OPERATION

  10. B C D || f0..19 f20..39 f40..59 f60..79 • ---------------------------------------------------------------------------- • 0 0 0 | 0 0 0 0 • 0 0 1 | 1 1 0 1 • 0 1 0 | 0 1 0 1 • 0 1 1 | 1 0 1 0 • 0 0 | 0 1 0 1 • 1 0 1 | 0 0 1 0 • 1 0 | 1 0 1 0 • 1 1 1 | 1 1 1 1 TRUTH TABLE for ft – SHA-1

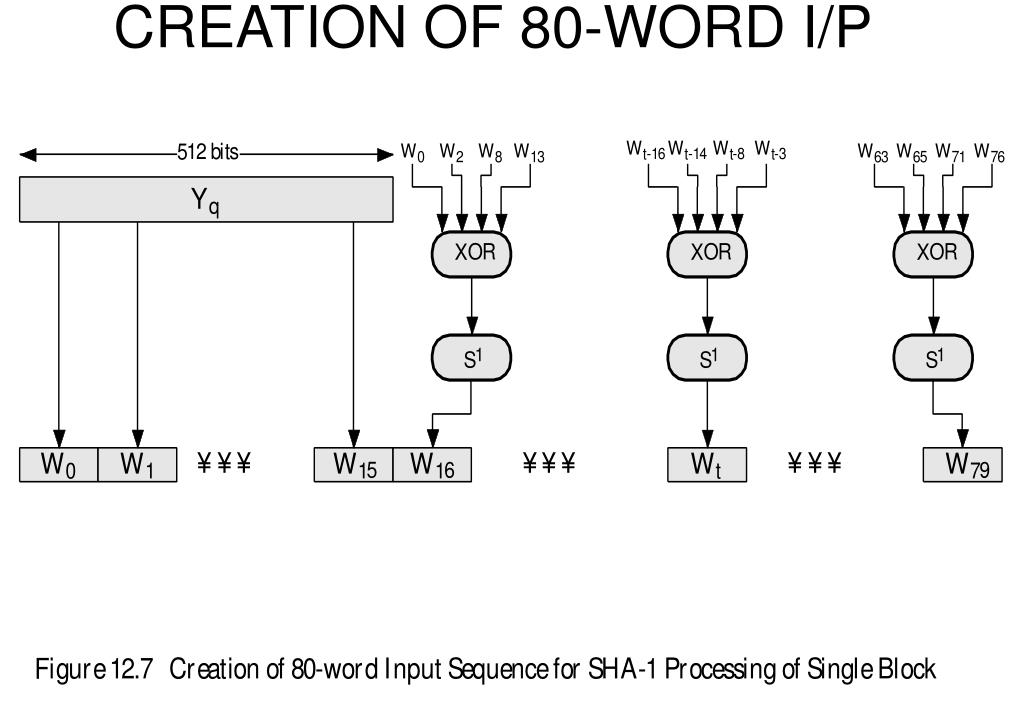

  11. CREATION OF 80-WORD I/P

  12. MD5 message digest – 128 bits SHA-1 message digest – 160 bits Find two messages with same digest: MD5 – 264 operations SHA-1 - 280 operations Comparison: MD5 vs SHA1

  13. SHA-256 • SHA-384 • SHA-512 • message digest lengths: 256, 384, 512 • to provide compatibility with AES • (see Tables 12.3 and 12.4) NEW SHA ALGORITHMS

  14. Message Digest • Compression • Elementary Operations RIPEMD - 160

  15. RIPEMD – 160COMPRESSION FUNCTION

  16. RIPEMD – 160ELEMENTARY OPERATION

  17. Tables 12.5 – 12.9 RIPEMD – 160 - data

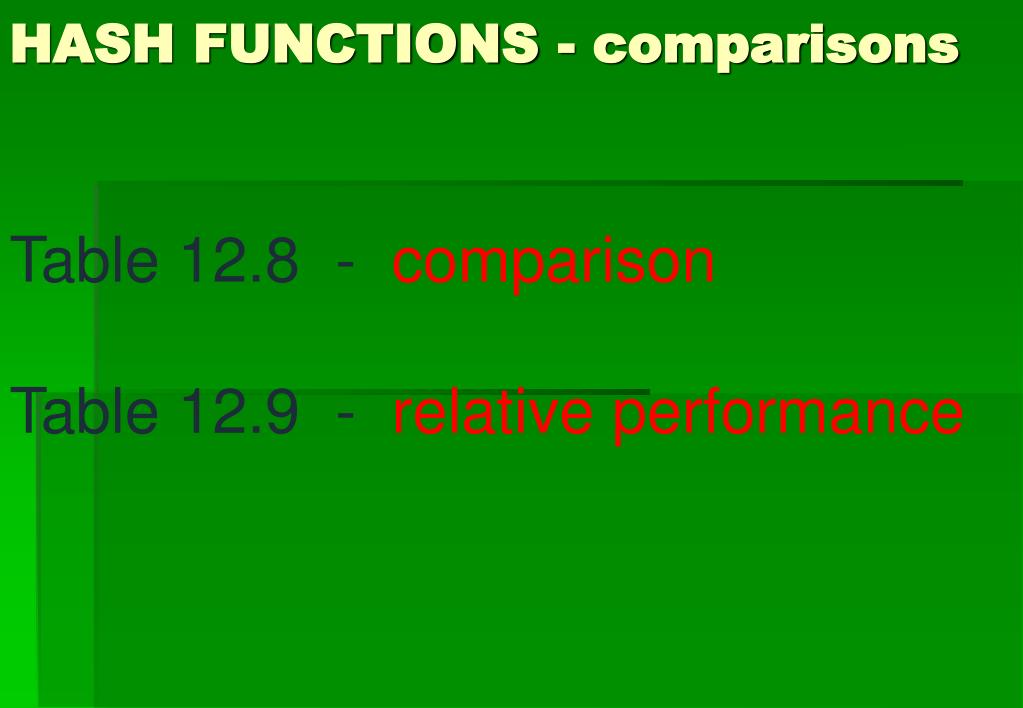

  18. Table 12.8 - comparison Table 12.9 - relative performance HASH FUNCTIONS - comparisons

  19. Why? Hash functions (e.g. MD5, SHA-1) execute faster than Sym. Key (e.g. DES) HMAC combines HASH with Secret Key to make a MAC HMACK(M) = H[(K+ + opad)||H[K+ + ipad)||M]] Security(H)  Security(HMAC) HMAC – a MAC from a HASH

  20. HMAC STRUCTURE

  21. EFFICIENT IMPLEMENTATION of HMAC
