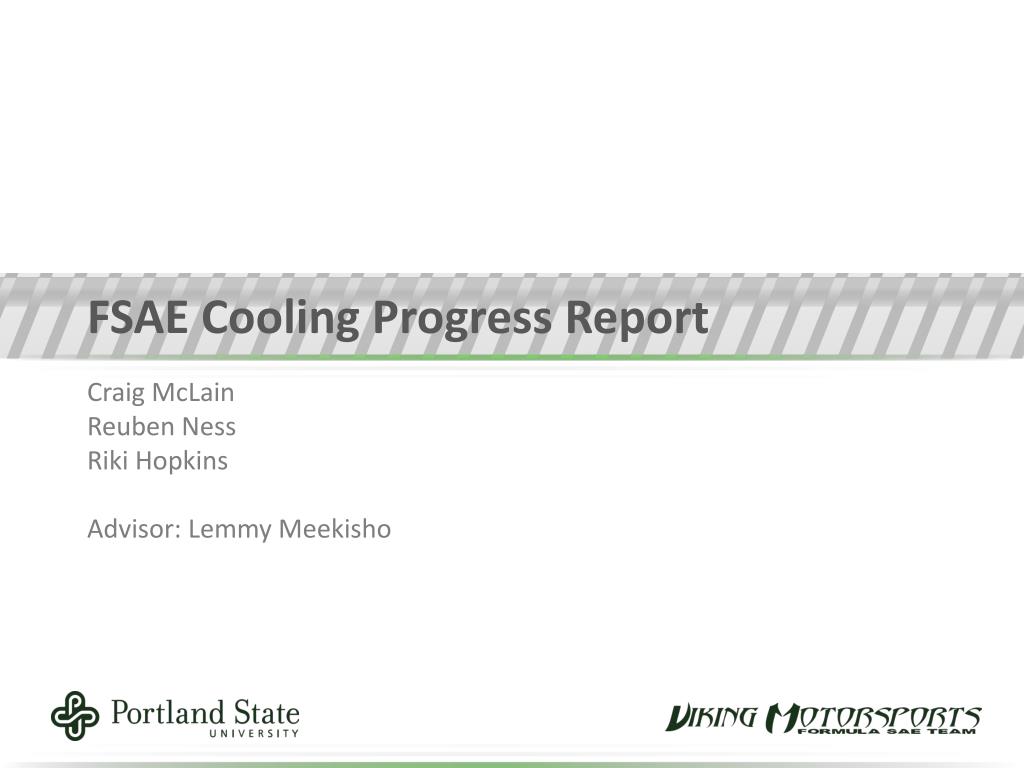

FSAE Cooling Progress Report. Craig McLain Reuben Ness Riki Hopkins Advisor: Lemmy Meekisho. Content. What We Have Done So Far Research Calculation Design Manufacture What We Are Doing Manufacture Experiments What’s Next Finish Design/Manufacture Assembly & Real-World Testing.

mrinal
Télécharger la présentation

FSAE Cooling Progress Report

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FSAE Cooling Progress Report Craig McLain Reuben Ness Riki Hopkins Advisor: Lemmy Meekisho

  2. Content • What We Have Done So Far • Research • Calculation • Design • Manufacture • What We Are Doing • Manufacture • Experiments • What’s Next • Finish Design/Manufacture • Assembly & Real-World Testing

  3. What We Have Done So Far • PDS • 210°F Top Tank Temperature • Reliability • Research • Internal/External • Single Radiator • No Oil Cooler

  4. What We Have Done So Far • Calculation • Assumptions Based on Research • Calculations • Heat Transfer/Fluids • Factor of Safety • Experiments

  5. What We Have Done So Far • Design • Radiator Sizing • Fan Size • House Routing • Mounts

  6. What We Have Done So Far • Manufacture • Radiator Custom Made by Mac’s Radiator

  7. What We Are Doing • Design • Radiator Mounts

  8. What We Are Doing • Manufacture • Solid Hoses • Aluminum Tubing

  9. What We Are Doing • Experiments • To Confirm Our Calculations • Define Core Characteristics • Heat Rejection per Unit Area

  10. What’s Next • Finish Design of Mounts • Manufacture Mounts • Solid Hose Routing • Assembly & Real-World Testing

  11. Questions?
