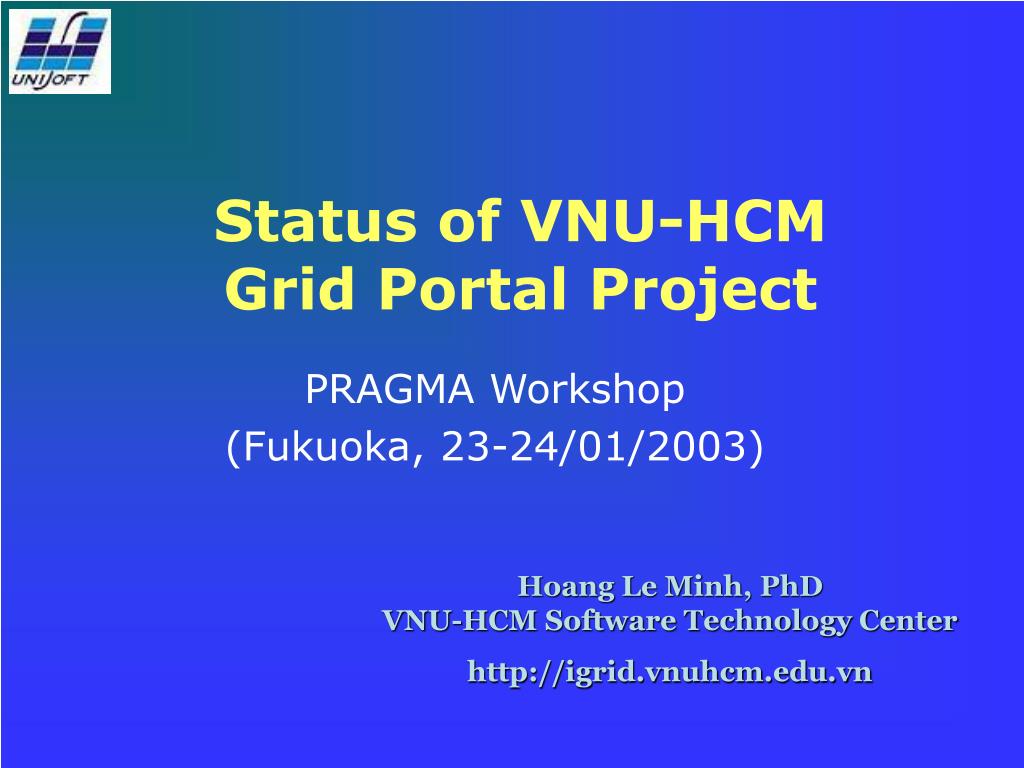

  1. Status of VNU-HCM Grid Portal Project PRAGMA Workshop (Fukuoka, 23-24/01/2003) Hoang Le Minh, PhDVNU-HCM Software Technology Center http://igrid.vnuhcm.edu.vn

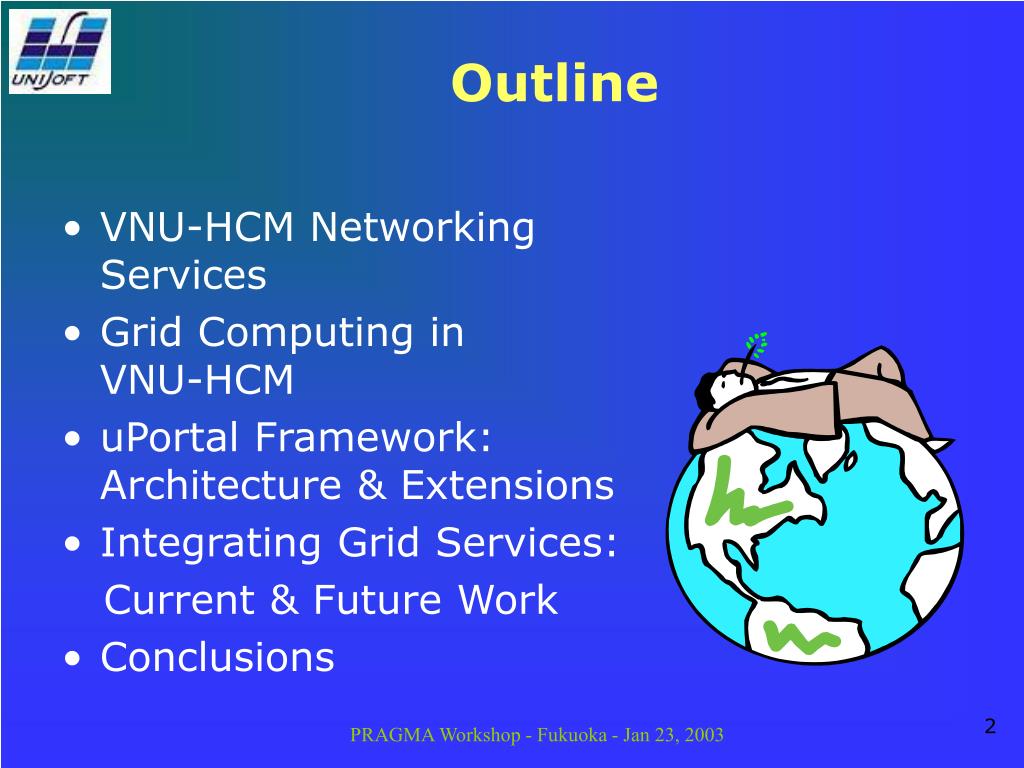

  2. Outline • VNU-HCM Networking Services • Grid Computing in VNU-HCM • uPortal Framework:Architecture & Extensions • Integrating Grid Services: Current & Future Work • Conclusions PRAGMA Workshop - Fukuoka - Jan 23, 2003

  3. Where we are ? PRAGMA Workshop - Fukuoka - Jan 23, 2003

  4. Hochiminh City Population: 6 millions Area: 2,093 sq km19% of total GDP 30% of state budget30 Univ. & Inst. 300.000 students PRAGMA Workshop - Fukuoka - Jan 23, 2003

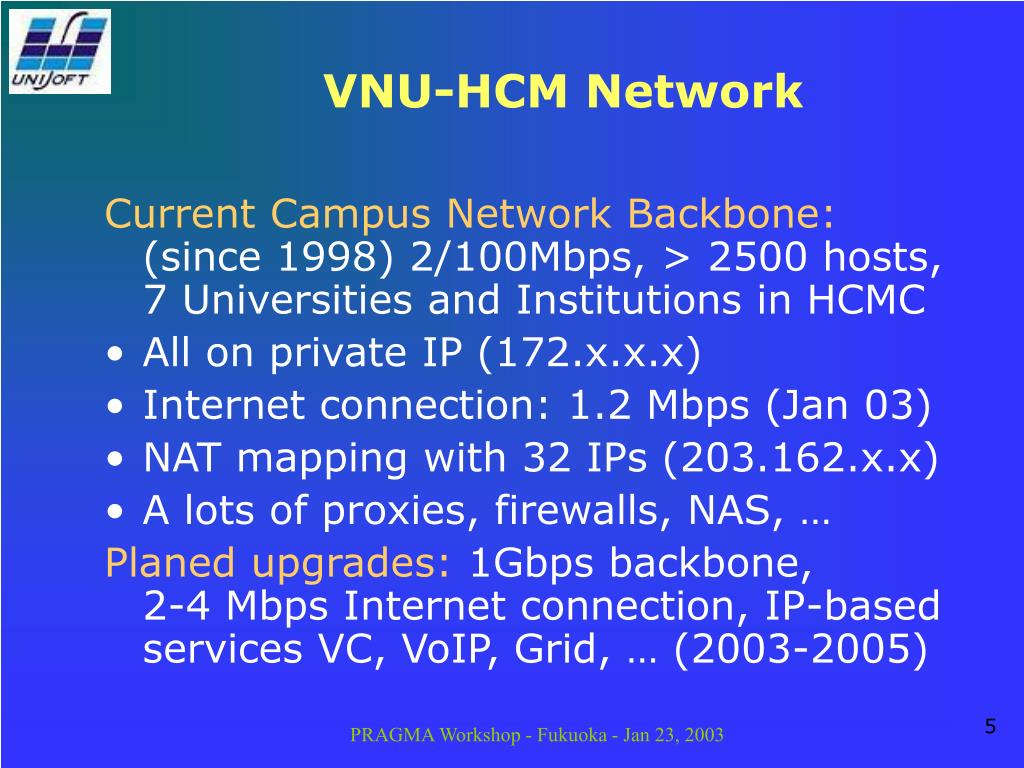

  5. VNU-HCM Network Current Campus Network Backbone: (since 1998) 2/100Mbps, > 2500 hosts, 7 Universities and Institutions in HCMC • All on private IP (172.x.x.x) • Internet connection: 1.2 Mbps (Jan 03) • NAT mapping with 32 IPs (203.162.x.x) • A lots of proxies, firewalls, NAS, … Planed upgrades: 1Gbps backbone, 2-4 Mbps Internet connection, IP-based services VC, VoIP, Grid, … (2003-2005) PRAGMA Workshop - Fukuoka - Jan 23, 2003

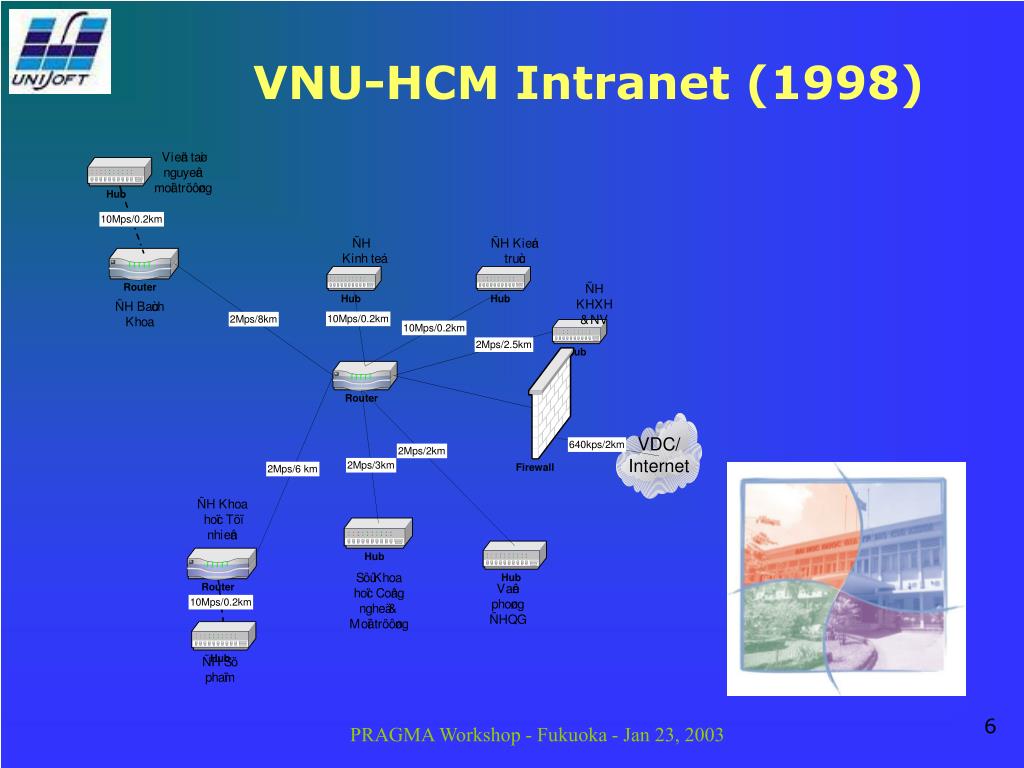

  6. VNU-HCM Intranet (1998) PRAGMA Workshop - Fukuoka - Jan 23, 2003

  7. VNU-HCM Intranet (2003-2005) PRAGMA Workshop - Fukuoka - Jan 23, 2003

  8. VNU-HCM Networking Services • Provided E-mail, website, Internet access network-related services & management for > 25,000 full-time students, 2500 staff members • User management to access central services: e-mail, e-learning, databases, applications, computing resources • VNU-HCM Information Portal is being developed based on the Open Source uPortal Framework (www.ja-sig.org) • A lots of work has been done: single-sign on, news, e-mail, address book, LDAP user profile, user & group management, applications … PRAGMA Workshop - Fukuoka - Jan 23, 2003

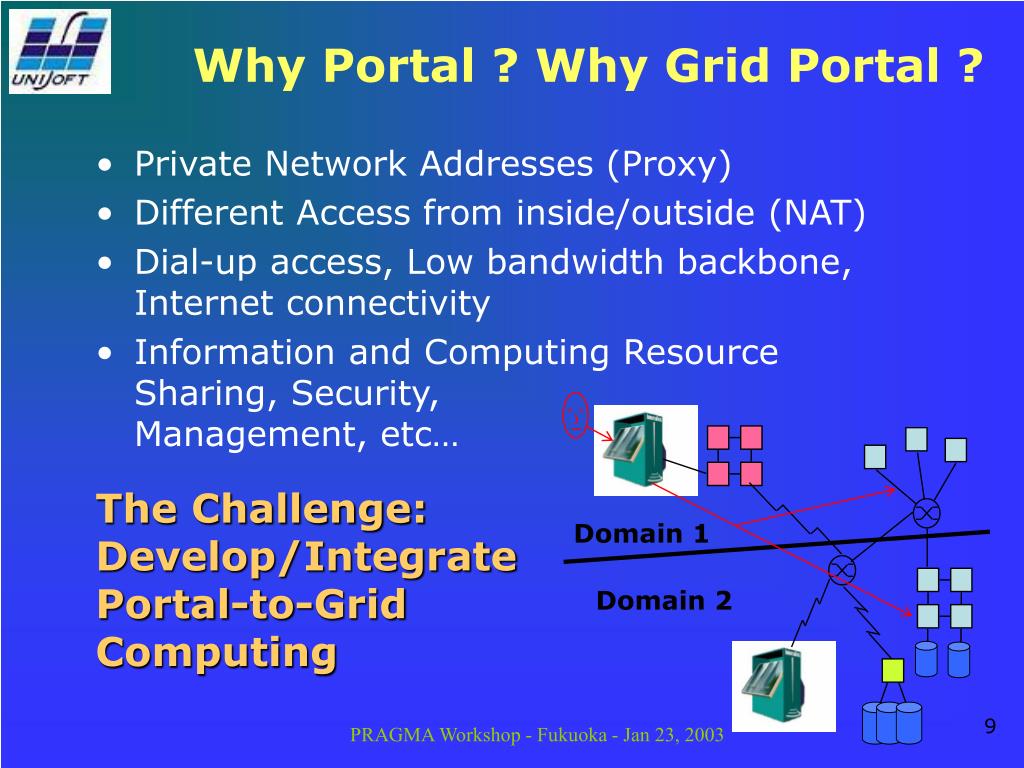

  9. Why Portal ? Why Grid Portal ? • Private Network Addresses (Proxy) • Different Access from inside/outside (NAT) • Dial-up access, Low bandwidth backbone, Internet connectivity • Information and Computing Resource Sharing, Security, Management, etc… The Challenge:Develop/Integrate Portal-to-Grid Computing Domain 1 Domain 2 PRAGMA Workshop - Fukuoka - Jan 23, 2003

  10. Grid Computing in VNU-HCM • 1998-2001: Cluster parallel computing • 2002: uPortal Framework (iPortal) • 2002: Grid Computing Experiences with GLOBUS 2.x + Installed on 10 Linux PC servers + Self-certified (DNS, simpleCA) + LDAP/MDS + GRAM + GridFTP (Globus 2.2)Command line interface: very difficult to use. Cannot access from out side • 2003: Grid integration with Portal PRAGMA Workshop - Fukuoka - Jan 23, 2003

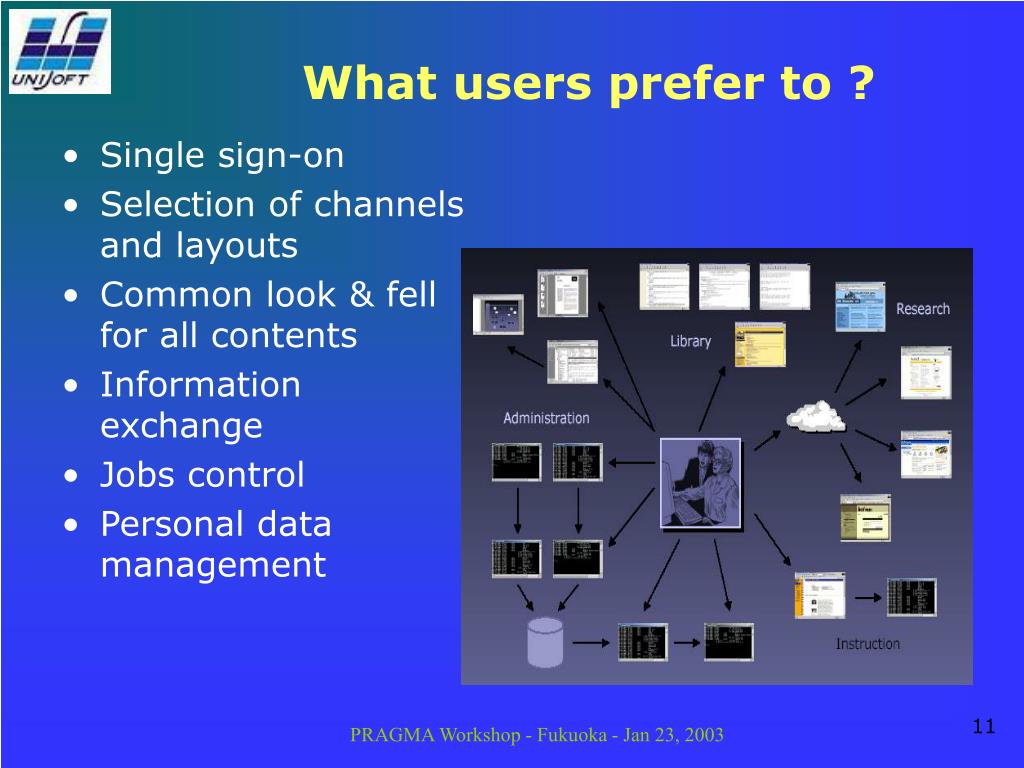

  11. What users prefer to ? • Single sign-on • Selection of channels and layouts • Common look & fell for all contents • Information exchange • Jobs control • Personal datamanagement PRAGMA Workshop - Fukuoka - Jan 23, 2003

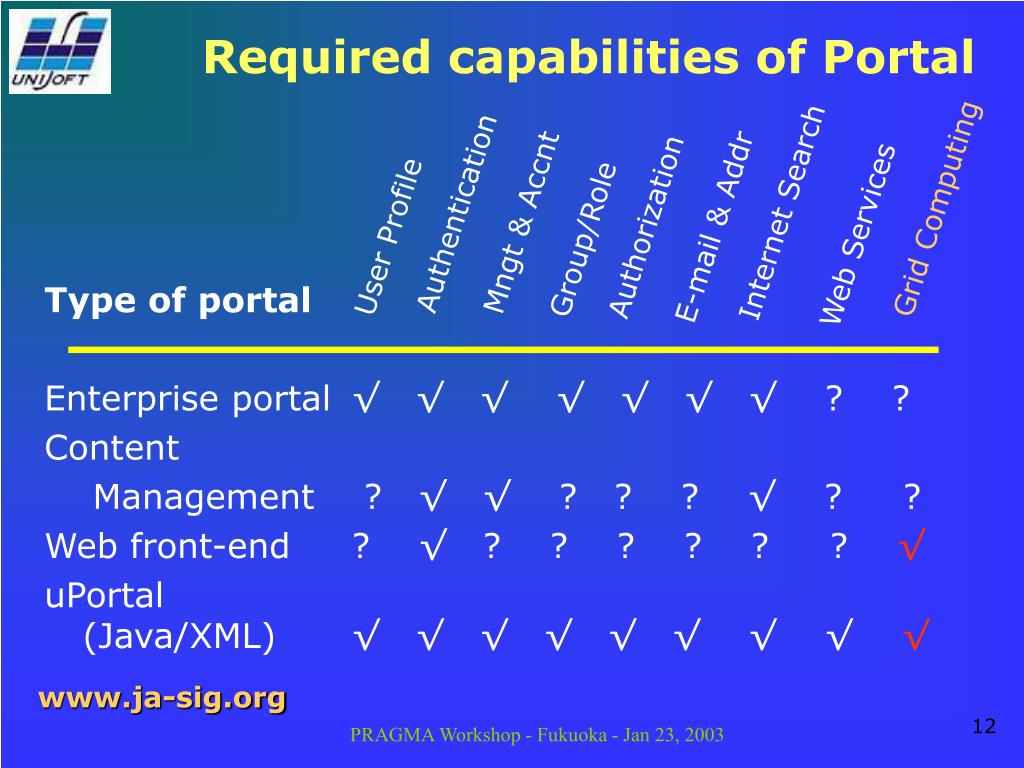

  12. Required capabilities of Portal Grid Computing Type of portal Enterprise portal √ √ √ √ √ √ √ ? ? Content Management ? √ √ ? ? ? √ ? ? Web front-end ? √ ? ? ? ? ? ? √ uPortal (Java/XML) √ √ √ √ √ √ √ √ √ Internet Search Authentication Mngt & Accnt Authorization E-mail & Addr Web Services User Profile Group/Role www.ja-sig.org PRAGMA Workshop - Fukuoka - Jan 23, 2003

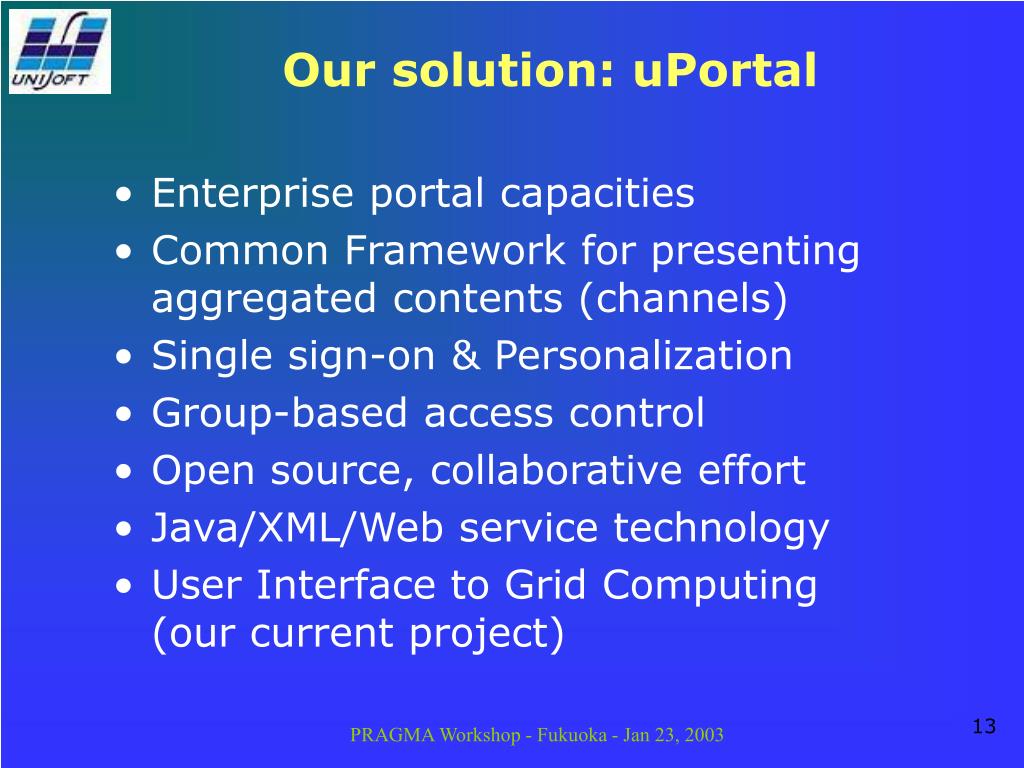

  13. Our solution: uPortal • Enterprise portal capacities • Common Framework for presenting aggregated contents (channels) • Single sign-on & Personalization • Group-based access control • Open source, collaborative effort • Java/XML/Web service technology • User Interface to Grid Computing(our current project) PRAGMA Workshop - Fukuoka - Jan 23, 2003

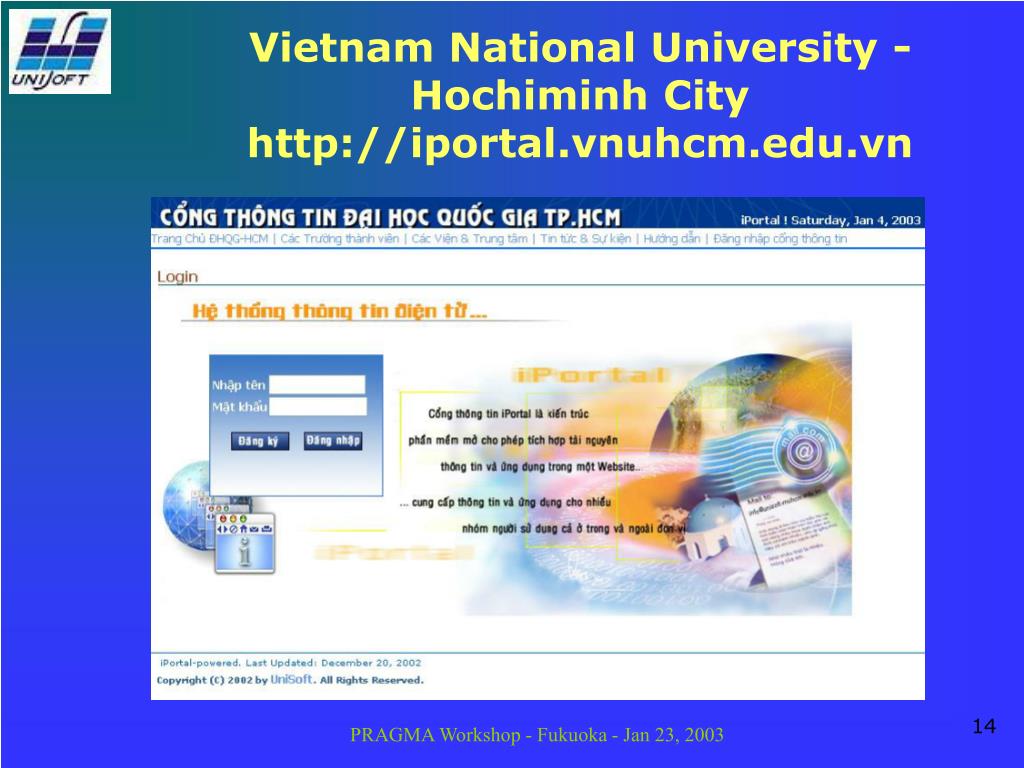

  14. Vietnam National University -Hochiminh Cityhttp://iportal.vnuhcm.edu.vn PRAGMA Workshop - Fukuoka - Jan 23, 2003

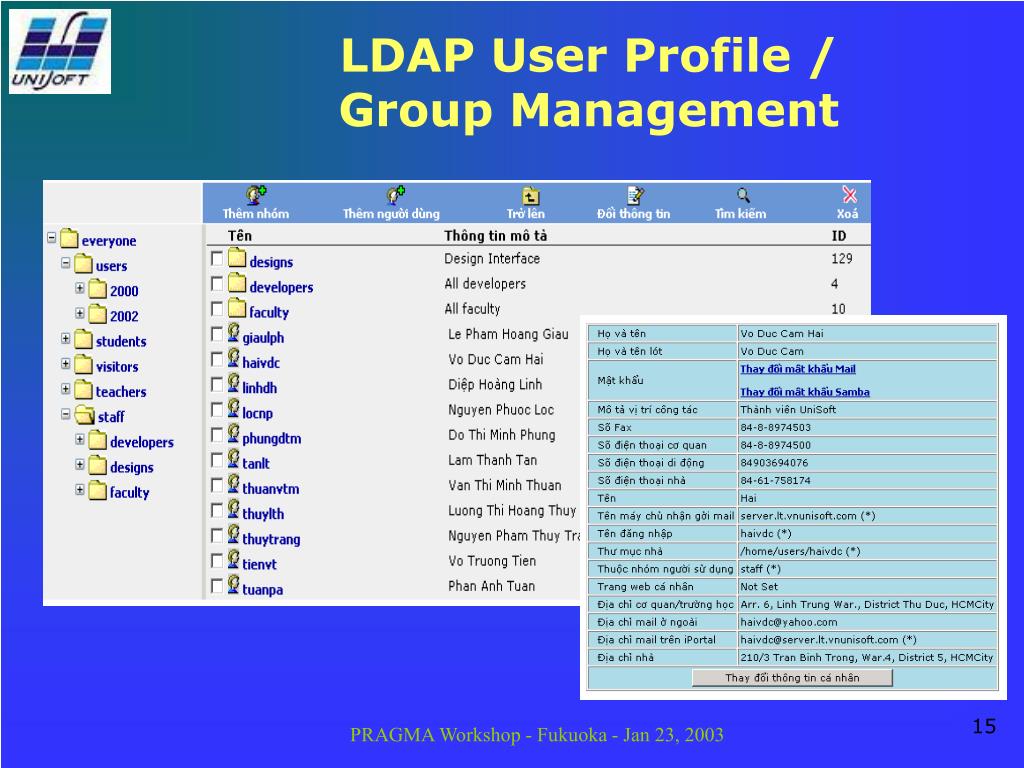

  15. LDAP User Profile / Group Management PRAGMA Workshop - Fukuoka - Jan 23, 2003

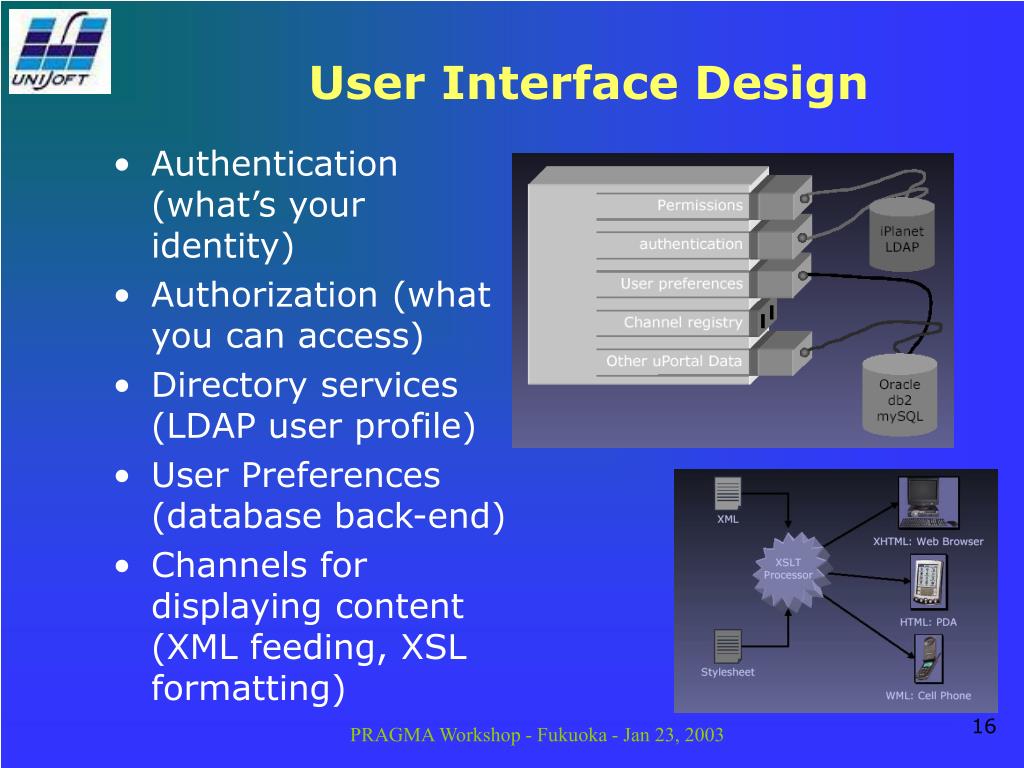

  16. User Interface Design • Authentication (what’s your identity) • Authorization (what you can access) • Directory services (LDAP user profile) • User Preferences (database back-end) • Channels for displaying content (XML feeding, XSL formatting) PRAGMA Workshop - Fukuoka - Jan 23, 2003

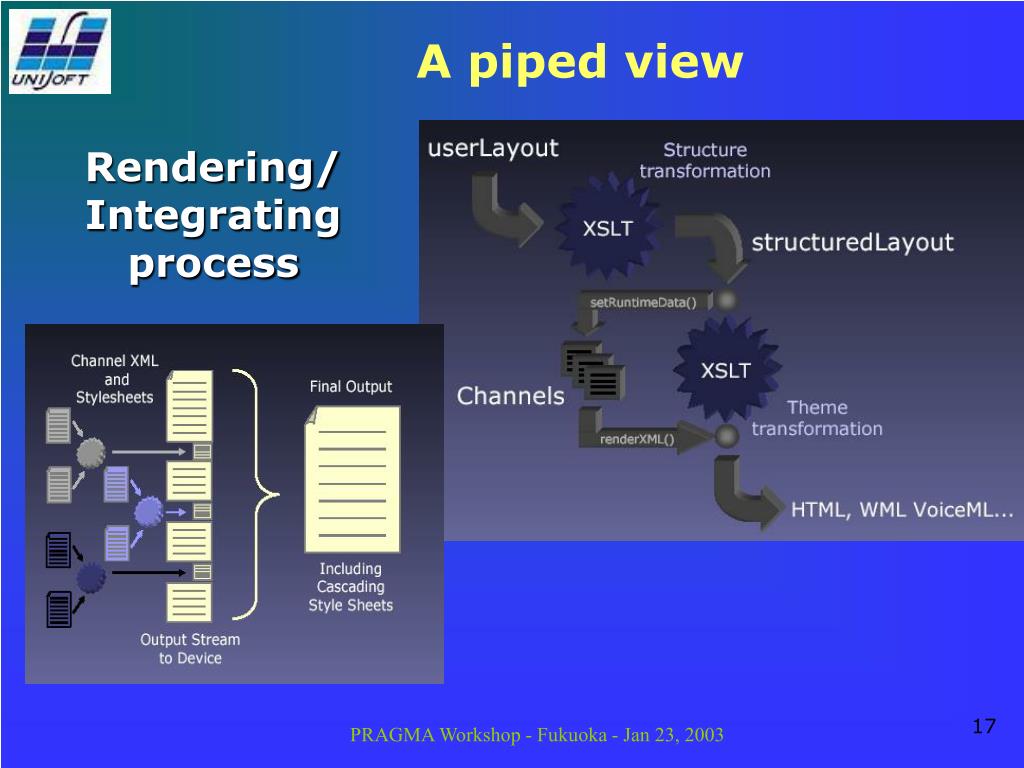

  17. A piped view Rendering/Integrating process PRAGMA Workshop - Fukuoka - Jan 23, 2003

  18. Grid interface • Globus command-line interfaces may be good for programmers, but not for usersglobusrun –s –r igrid.vnuhcm.edu.vn “&(executable=‘/home/users/hdung/submit’)(arguments=‘/home/users/hdung/script.job’) • Computational science environment is complex: • Users should access to a variety of distributed resources • Interfaces, OS’s, Grid tools vary and change often • Environment changes: Relocation/upgrade/Policies • Using multiple resources can be cumbersome • Grid adds complexity for programmers PRAGMA Workshop - Fukuoka - Jan 23, 2003

  19. Software Technologies in use • Portal framework for GSI: authentication, authorization, secure data transfer, computing resource sharing & management+ Authentication: LDAP/Proxy/Certificate+ Security: PKI-based system+ Information management: LDAP/MDS+ Resource management: GRAM, Job broker+ Data management: GSI-SSH, Grid-FTP • Grid Portal to Globus infrastructure services (upgrade to Globus 3.0 needed) • Open Source Technologies: Commodity Grid (Java CoG), GPDK -> uPortal framework (Java/XML), Web services • www.globus.org, dast.nlanr.net , www.ja-sig.org PRAGMA Workshop - Fukuoka - Jan 23, 2003

  20. uPortal and Globus • Multi-tier web application with scalability • HTML/WML browser communicate with Portal server by http/https • Portal services can integrate / communicate with Java Commodity Grid services of Globus • Globus provides access to Gatekeeper, MDS, PKI. • Web Services/XML as main data/service exchange format between tiers PRAGMA Workshop - Fukuoka - Jan 23, 2003

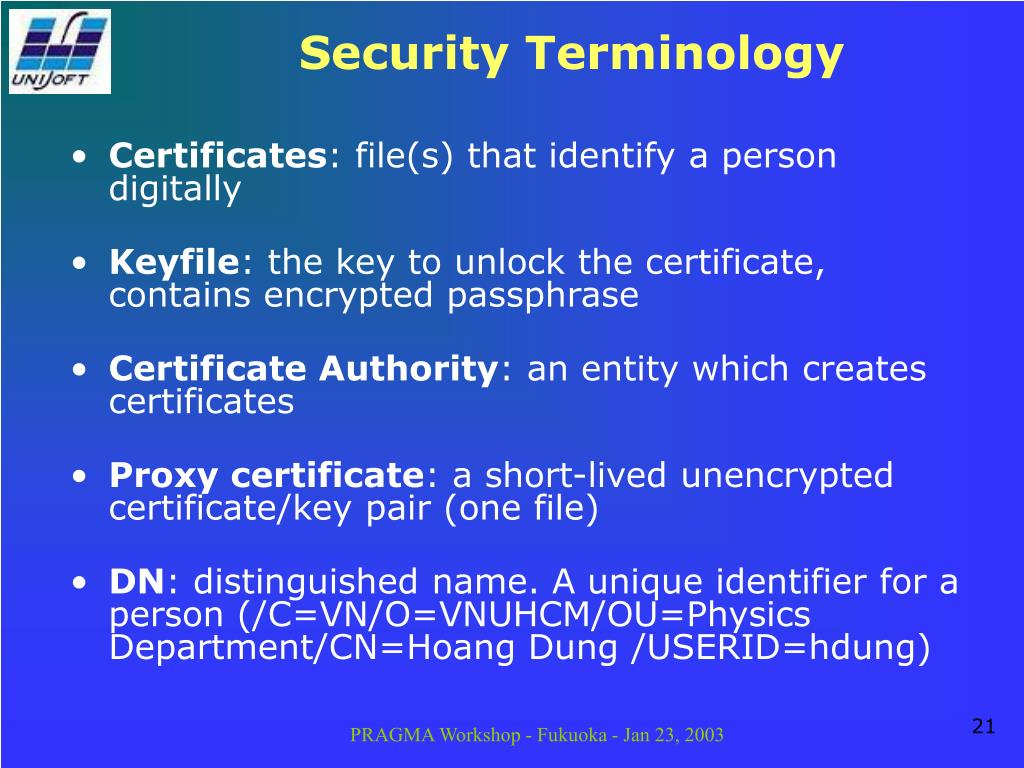

  21. Security Terminology • Certificates: file(s) that identify a person digitally • Keyfile: the key to unlock the certificate, contains encrypted passphrase • Certificate Authority: an entity which creates certificates • Proxy certificate: a short-lived unencrypted certificate/key pair (one file) • DN: distinguished name. A unique identifier for a person (/C=VN/O=VNUHCM/OU=Physics Department/CN=Hoang Dung /USERID=hdung) PRAGMA Workshop - Fukuoka - Jan 23, 2003

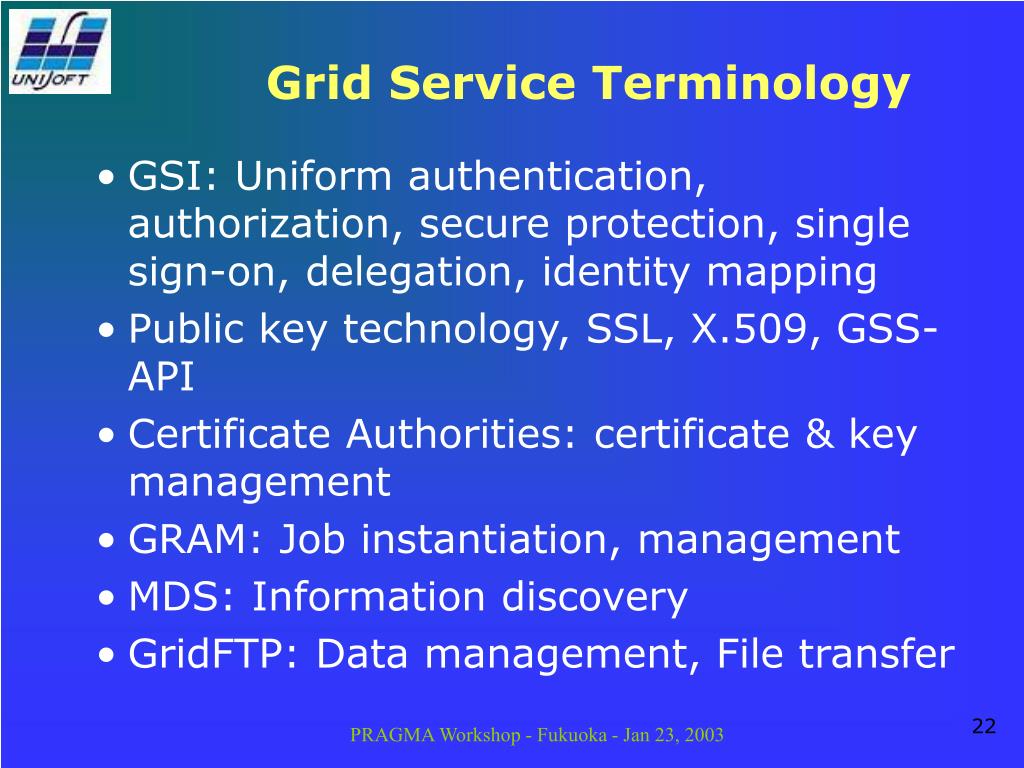

  22. Grid Service Terminology • GSI: Uniform authentication, authorization, secure protection, single sign-on, delegation, identity mapping • Public key technology, SSL, X.509, GSS-API • Certificate Authorities: certificate & key management • GRAM: Job instantiation, management • MDS: Information discovery • GridFTP: Data management, File transfer PRAGMA Workshop - Fukuoka - Jan 23, 2003

  23. Authentication challenge • To run on behalf of the user: • User needs to have access to the end resource • User needs to delegate permission to the portal • User gives proxy certificate to the portal • Portal uses proxy certificate to access resources • X.509 Certificates: Digital identification • Usercert.pem • Userkey.pem • Allows for delegation of authority • Create proxy certificate • Short lived unencrypted certificate/key PRAGMA Workshop - Fukuoka - Jan 23, 2003

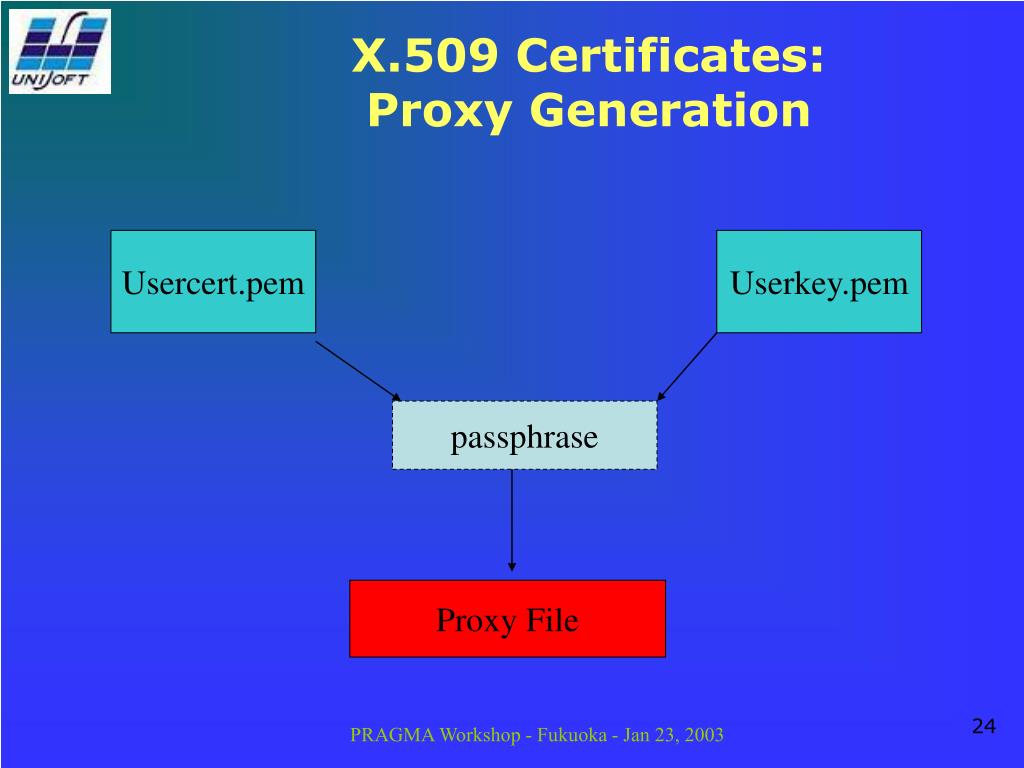

  24. X.509 Certificates: Proxy Generation Usercert.pem Userkey.pem passphrase Proxy File PRAGMA Workshop - Fukuoka - Jan 23, 2003

  25. Portal Functions • Secure authentication / authorization to remote resources. • View/store resource/user info on remote LDAP databases (MDS) • Proxy retrieve/delegation • Schedule jobs on remote hosts • Move large data between machines Proxy Job PRAGMA Workshop - Fukuoka - Jan 23, 2003

  26. Delegation of Authority • User generates proxy and delegates authority to portal • Portal uses the proxy credential as the basis for acting on behalf of the user • The proxy credential is passed to the computational resource by the portal through a grid service to prove authority to act for the user PRAGMA Workshop - Fukuoka - Jan 23, 2003

  27. The challenge • Proxy/MyProxy: Enabling secure, controlled remote access to heterogeneous computational resources and management of remote computation • Authentication and authorization • Resource discovery & characterization • Reservation and allocation • Computation monitoring and control • Gatekeeper • Single point of entry • Authenticates user, maps to local security environment, runs service • In essence, a “secure inetd” • Job manager • A gatekeeper service • Layers on top of local resource management system (e.g., PBS, LSF, etc.) • Handles remote interaction with the job PRAGMA Workshop - Fukuoka - Jan 23, 2003

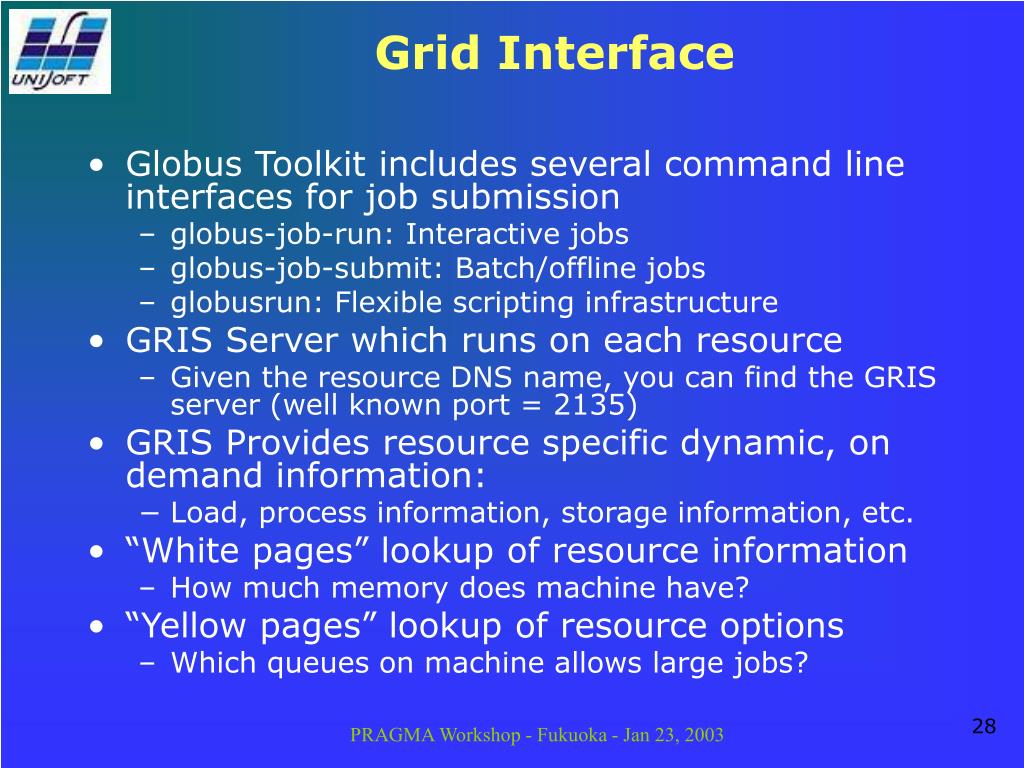

  28. Grid Interface • Globus Toolkit includes several command line interfaces for job submission • globus-job-run: Interactive jobs • globus-job-submit: Batch/offline jobs • globusrun: Flexible scripting infrastructure • GRIS Server which runs on each resource • Given the resource DNS name, you can find the GRIS server (well known port = 2135) • GRIS Provides resource specific dynamic, on demand information: • Load, process information, storage information, etc. • “White pages” lookup of resource information • How much memory does machine have? • “Yellow pages” lookup of resource options • Which queues on machine allows large jobs? PRAGMA Workshop - Fukuoka - Jan 23, 2003

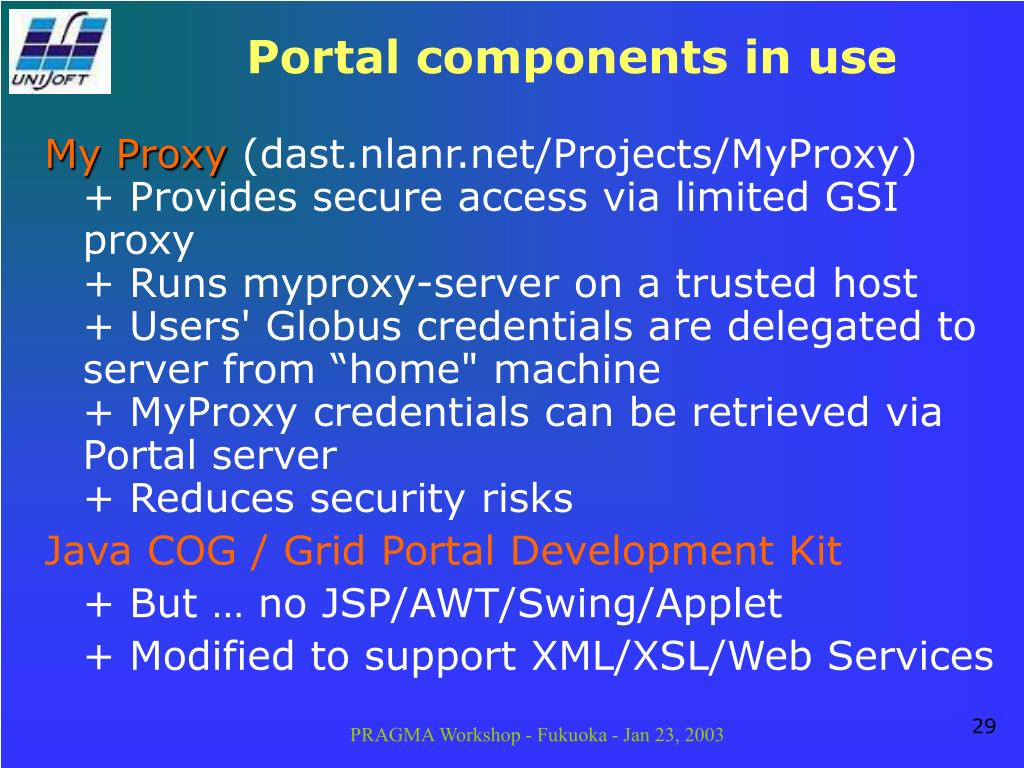

  29. Portal components in use My Proxy(dast.nlanr.net/Projects/MyProxy)+ Provides secure access via limited GSI proxy+ Runs myproxy-server on a trusted host+ Users' Globus credentials are delegated to server from “home" machine+ MyProxy credentials can be retrieved via Portal server+ Reduces security risks Java COG / Grid Portal Development Kit + But … no JSP/AWT/Swing/Applet + Modified to support XML/XSL/Web Services PRAGMA Workshop - Fukuoka - Jan 23, 2003

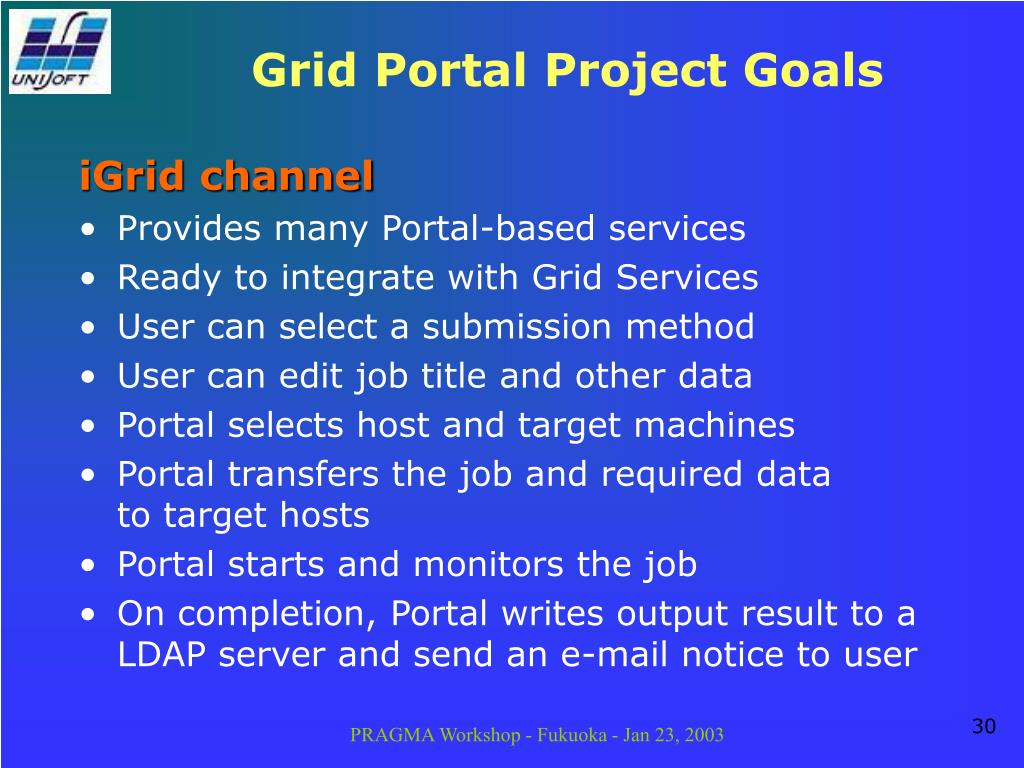

  30. Grid Portal Project Goals iGrid channel • Provides many Portal-based services • Ready to integrate with Grid Services • User can select a submission method • User can edit job title and other data • Portal selects host and target machines • Portal transfers the job and required datato target hosts • Portal starts and monitors the job • On completion, Portal writes output result to a LDAP server and send an e-mail notice to user PRAGMA Workshop - Fukuoka - Jan 23, 2003

  31. Grid Portal Project Goals Globus 3 integration • Must be migrated to Globus 3 • Scheduling Algorithm: target machines should be selected automatically based on MDS info (load, CPU, memory, etc.) • Web/Grid services integration • hen job status have been checked, transfer the results to user repositories and LDAP directory automatically PRAGMA Workshop - Fukuoka - Jan 23, 2003

  32. Grid Portal Project Goals Visualization to Grid Portal • View simulation (code, resources, etc.) • View Located/Acquired resources • View Initiated/Steered computation • View Collaborated jobs • View Usage accounting • View Results/Charts/Graphics AccessGrid Portal ? Why not PRAGMA Workshop - Fukuoka - Jan 23, 2003

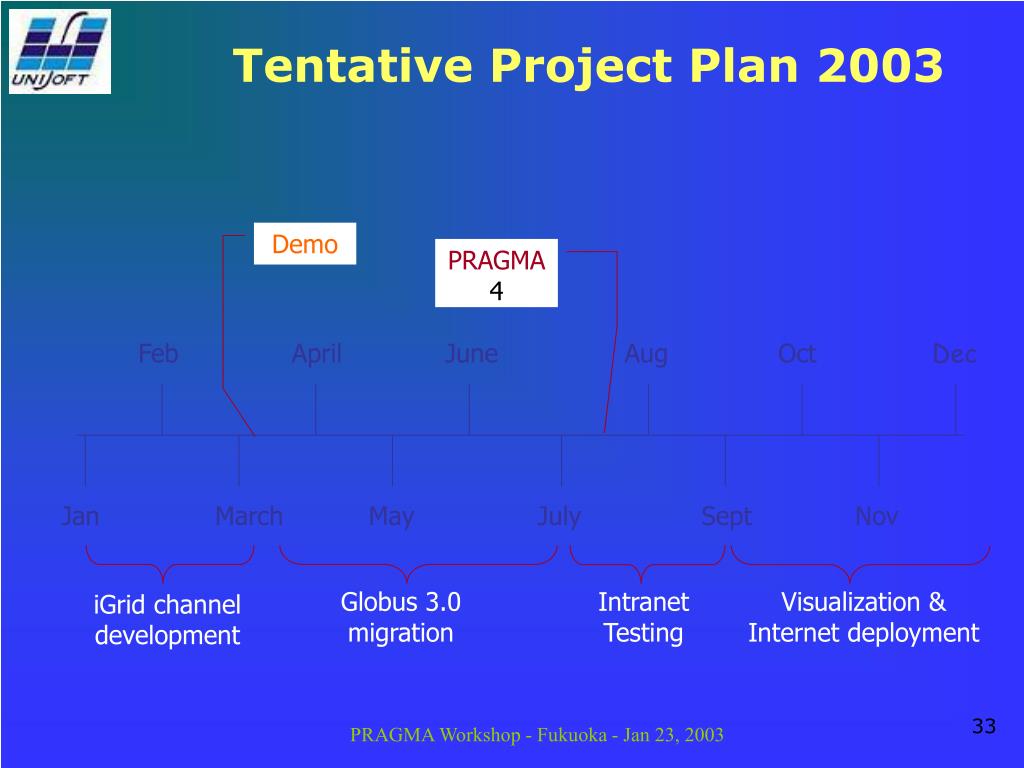

  33. Feb Oct Aug June April Dec Sept May July Jan Nov March Tentative Project Plan 2003 Demo PRAGMA 4 Globus 3.0 migration Intranet Testing Visualization & Internet deployment iGrid channel development PRAGMA Workshop - Fukuoka - Jan 23, 2003

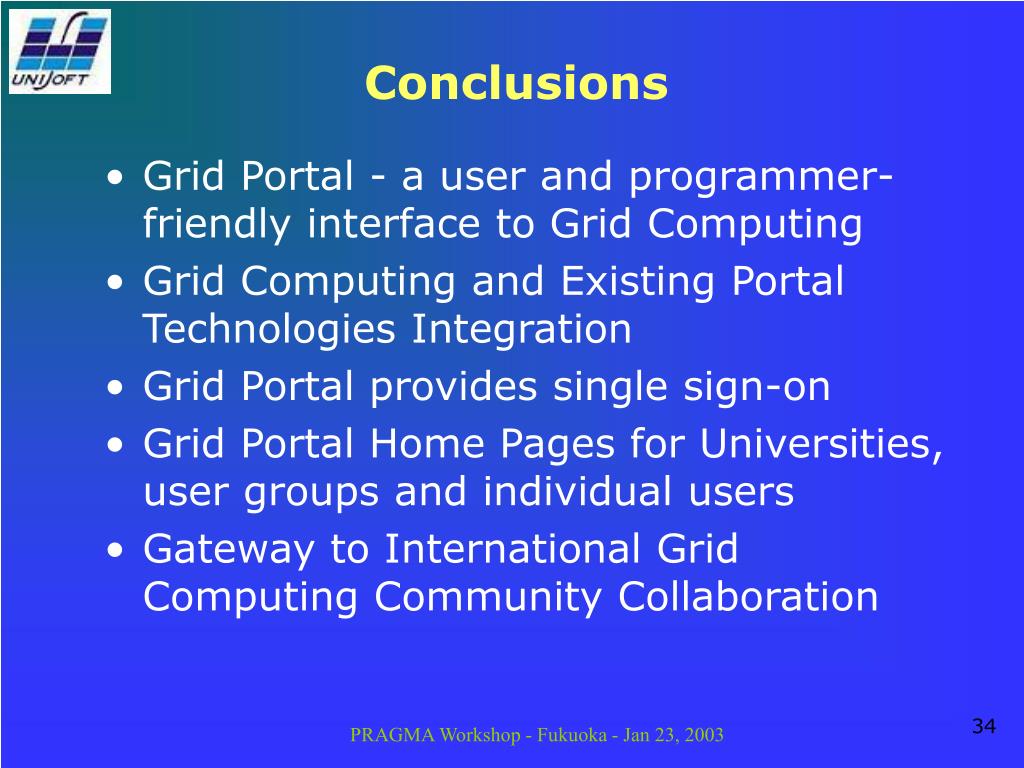

  34. Conclusions • Grid Portal - a user and programmer-friendly interface to Grid Computing • Grid Computing and Existing Portal Technologies Integration • Grid Portal provides single sign-on • Grid Portal Home Pages for Universities, user groups and individual users • Gateway to International Grid Computing Community Collaboration PRAGMA Workshop - Fukuoka - Jan 23, 2003

  35. Thank you for attention PRAGMA Workshop - Fukuoka - Jan 23, 2003
