  1. Portal Access Grid Andrew Rowley Anja LeBlanc, Michael Daw, Martin Turner, Tobias Schiebeck University of Manchester

  2. Contents • What is AG(Tk) • Why do we need PAG? • Standards • Features • Implementation • Timeline • Screenshots • Demo

  3. What is AG(Tk)?

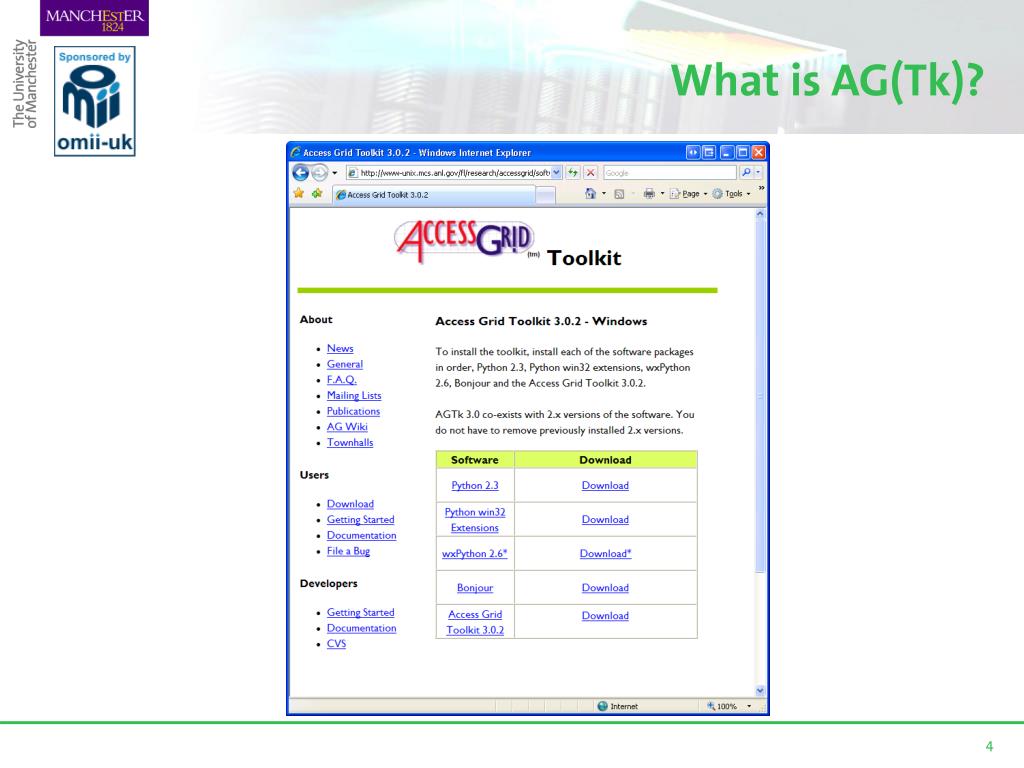

  4. What is AG(Tk)?

  5. What is AG(Tk)? Access Grid Toolkit Version 1

  6. What is AG(Tk)? AGTk Server Globus TCP Globus TCP Globus TCP Bridge Server

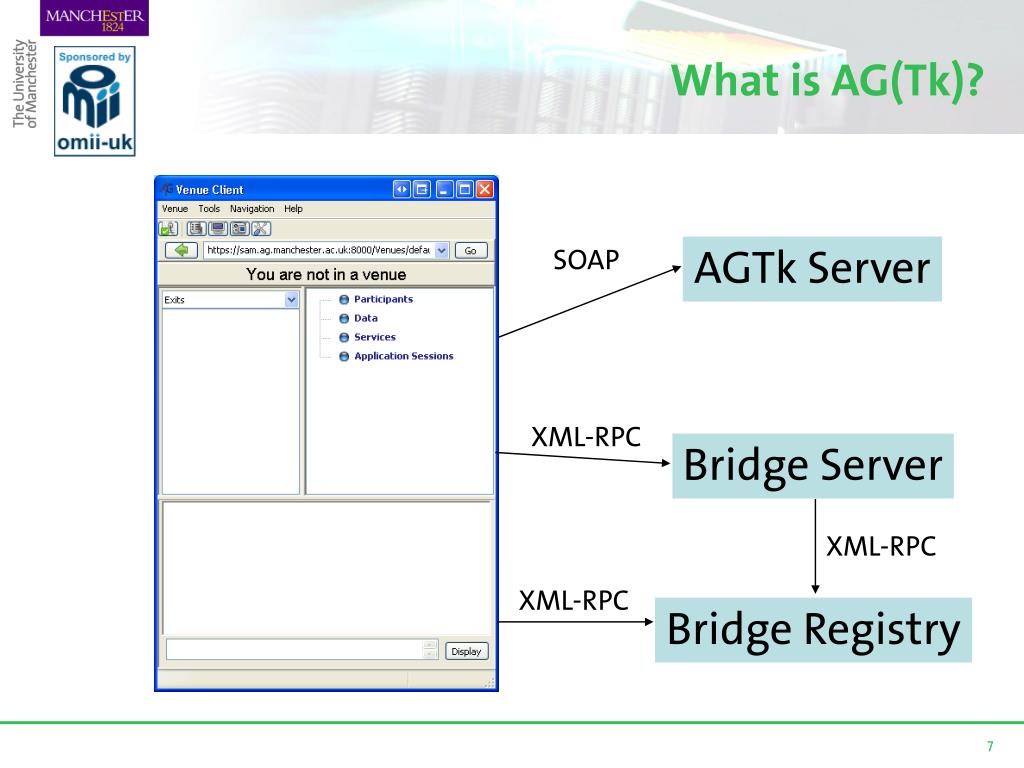

  7. What is AG(Tk)? AGTk Server SOAP XML-RPC Bridge Server XML-RPC XML-RPC Bridge Registry

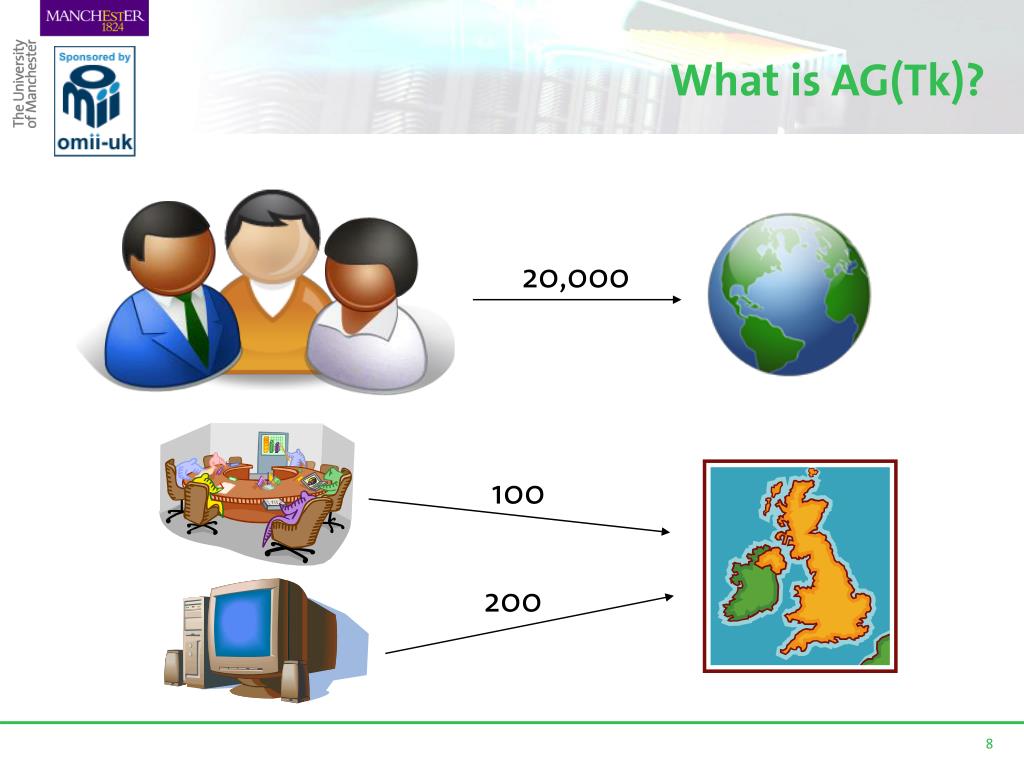

  8. What is AG(Tk)? 20,000 100 200

  9. Why do we need PAG? Difficulty connecting to a venue (e.g. firewall or multicast problems) not being a multicast site …switch to the unicast bridge …” AGSC Surveys 2006 and 2007 Common Problems Many partners have problems connecting because they are setting up temporary nodes. Most of the problems are due to inexperience with NAT (port forwarding) & firewall configurations AG Firewall rules and Muilticast / Unicast are a nightmare – These need to be simplified and made more reliable

  10. Why do we need PAG? Greater coverage of Access Grid across institutions that do not currently have it Speed of the venue client More reliability AGSC Surveys 2006 and 2007 Requested Improvements …integration into portals … Make it more user friendly The AGSC should work towards providing training and advice for user managed desktop access to the system Increase in use of the personal access grid

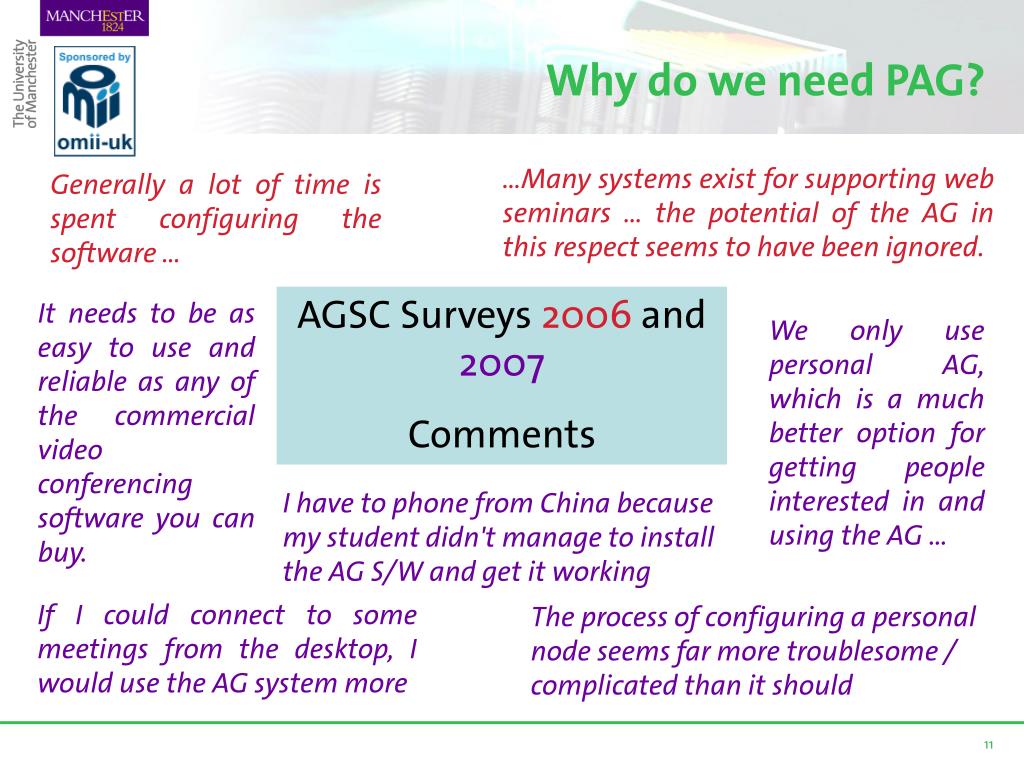

  11. Why do we need PAG? …Many systems exist for supporting web seminars … the potential of the AG in this respect seems to have been ignored. Generally a lot of time is spent configuring the software … AGSC Surveys 2006 and 2007 Comments It needs to be as easy to use and reliable as any of the commercial video conferencing software you can buy. We only use personal AG, which is a much better option for getting people interested in and using the AG … I have to phone from China because my student didn't manage to install the AG S/W and get it working If I could connect to some meetings from the desktop, I would use the AG system more The process of configuring a personal node seems far more troublesome / complicated than it should

  12. Why do we need PAG?

  13. Standards JSR-168 / 286 SOAP AJAX HTTPS RTP L16 UDP XML-RPC H.261

  14. Features

  15. Features

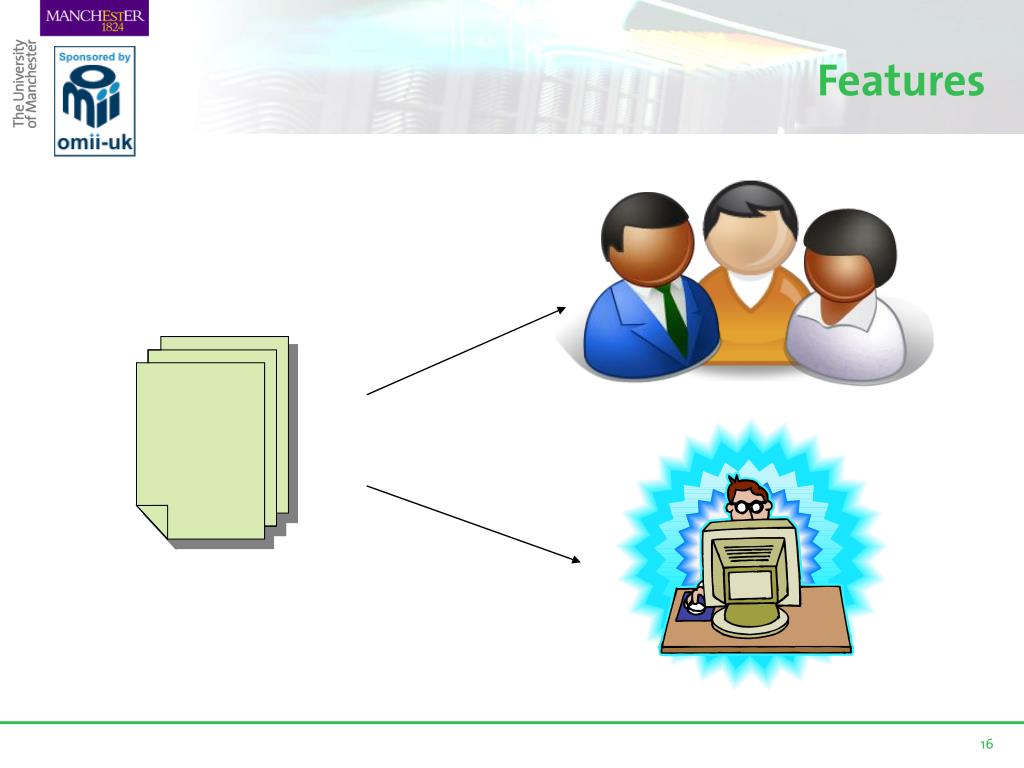

  16. Features

  17. Implementation Multicast Access Grid Toolkit Version 3 Server BridgeServer UDP/TCP UDP XML-RPC Java Web-Start Application SOAP XML-RPC AJAX Java Servlet UDP JavaScript Session LiveConnect Vic / Rat / Other JSP Pages Java Applet Java Portlet

  18. Timeline Pre-Release: September 2007 Official Release: April 2008

  19. Screenshots

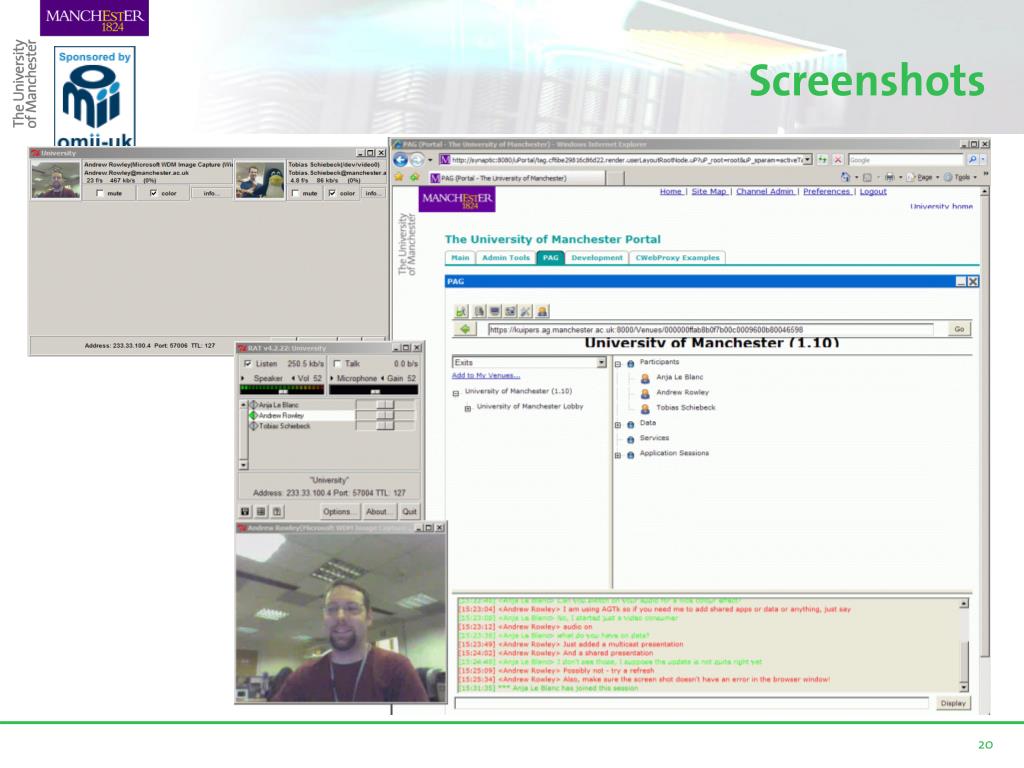

  20. Screenshots

  21. Portal Access Grid Demo Joint Demo between OMII-UK, ESNW and AGSC stands Tuesday 11th at 4:30pm Research Computing Services

  22. Portal Access Grid Contact Details http://www.rcs.manchester.ac.uk/projects/PAG Andrew.Rowley@manchester.ac.uk Research Computing Services
