  1. Lecture 8 – INTERTIDAL - ZONATION PHYSICAL FACTORS

  2. Studies of intertidal ecology Descriptive phase Understand process Understand interactions Investigate physiological/genetic/cellular mechanisms

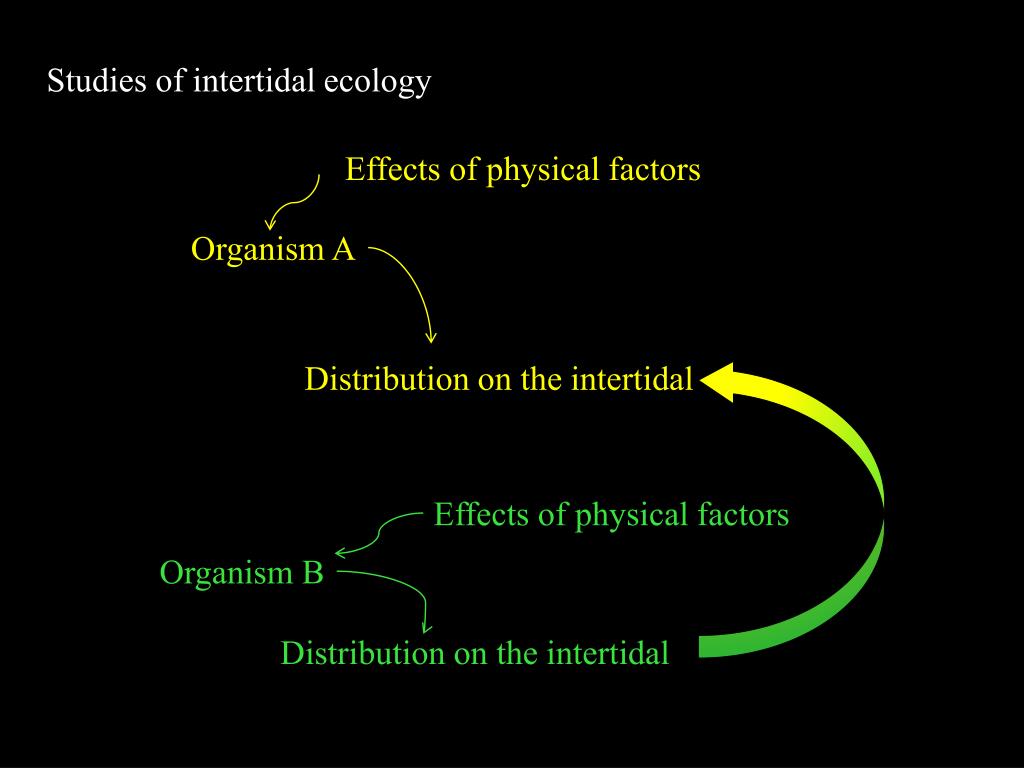

  3. Studies of intertidal ecology Effects of physical factors Organism A Distribution on the intertidal Effects of physical factors Organism B Distribution on the intertidal

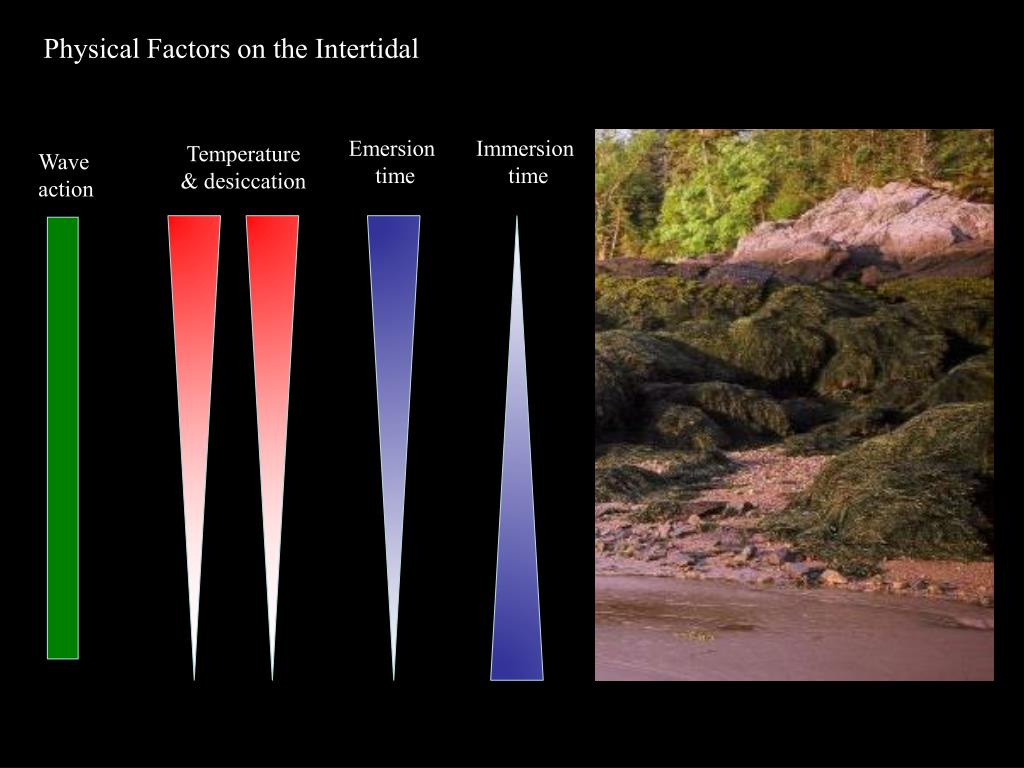

  4. Physical Factors on the Intertidal Emersion time Immersion time Temperature & desiccation Wave action

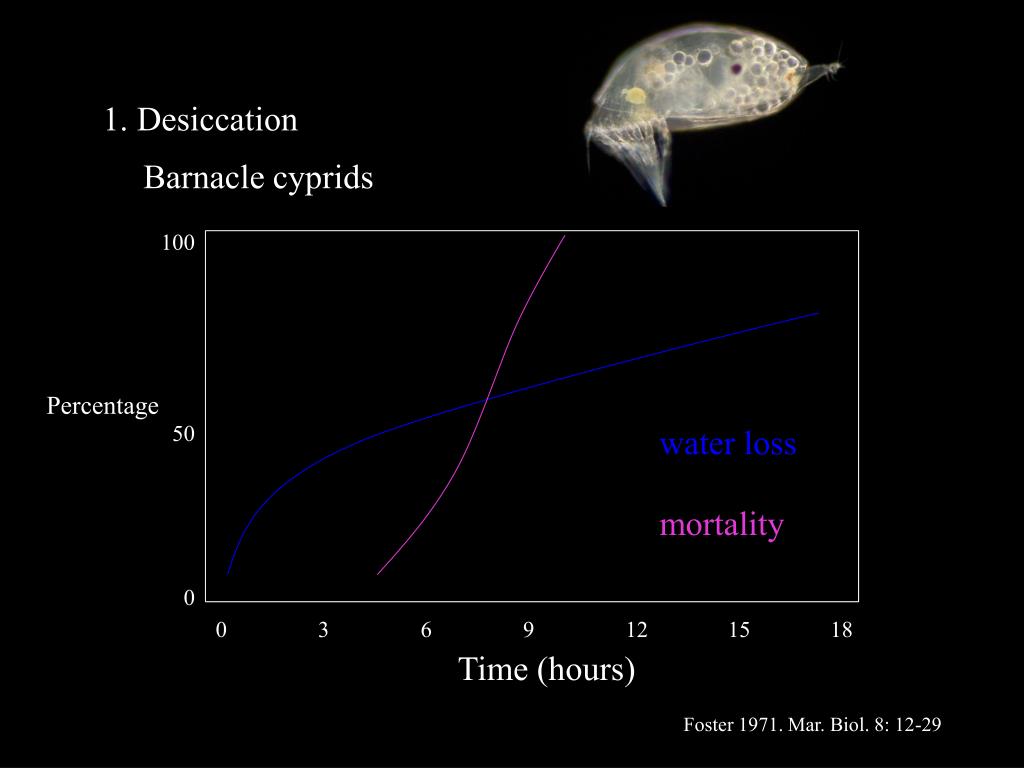

  5. 1. Desiccation Barnacle cyprids 100 50 0 Percentage water loss mortality 0 3 6 9 12 15 18 Time (hours) Foster 1971. Mar. Biol. 8: 12-29

  6. 1. Desiccation 12 10 8 6 4 2 0 Balanus crenatus Basal diameter (mm) Elminius modestus Semibalanus balanoides 0 20 40 60 80 100 120 140 Median lethal time (hours) Foster 1971. Mar. Biol. 8: 12-29

  7. Why are larger animals more resistant to desiccation? 1 cm Surface area = 6 cm2 Ratio = 6:1 Volume = 1 cm3 1 cm 1 cm 2 cm Surface area = 24 cm2 Ratio = 3:1 Volume = 8 cm3 2 cm 2 cm

  8. 1. DESICCATION A second kind of experiment (Foster ‘71, J. Anim. Ecol. 40:33)

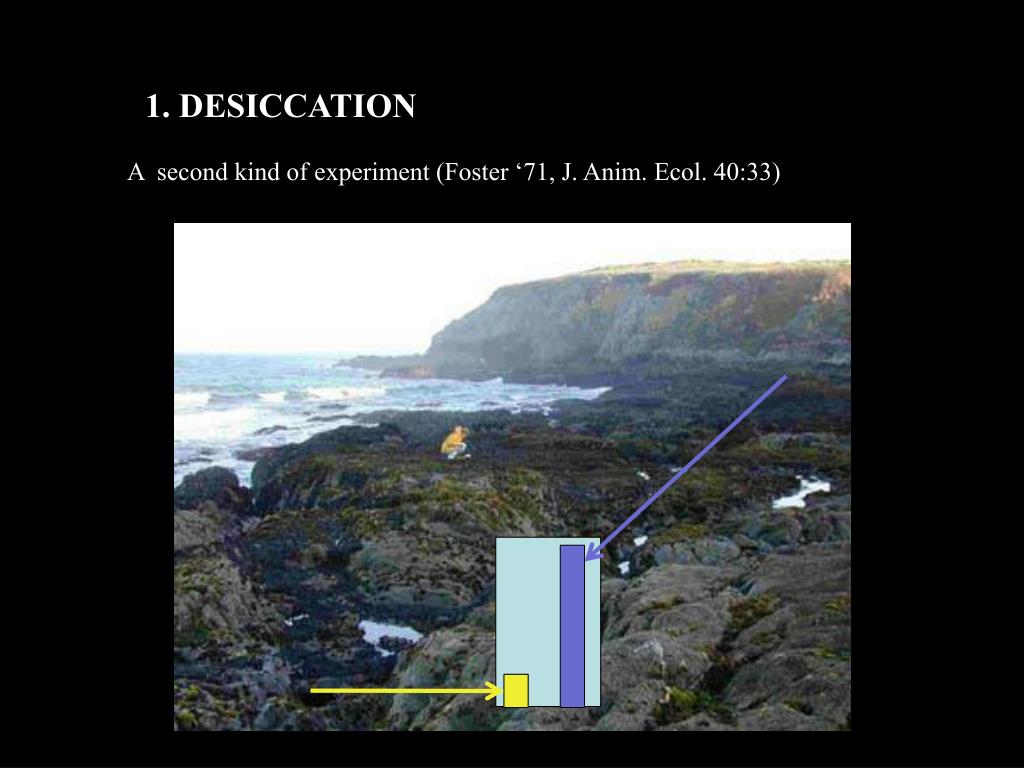

  9. 1. DESICCATION A second kind of experiment (Foster ‘71, J. Anim. Ecol. 40:33)

  10. 1. DESICCATION Avoiding drying -seeking refuge (Kensler, 1967, Carefoot, 1977) Outer Region Inner Region Middle Region Gravel, shells, coarse sand Clay, fine silt, sand Transient species Very few inhabitants Highest diversity

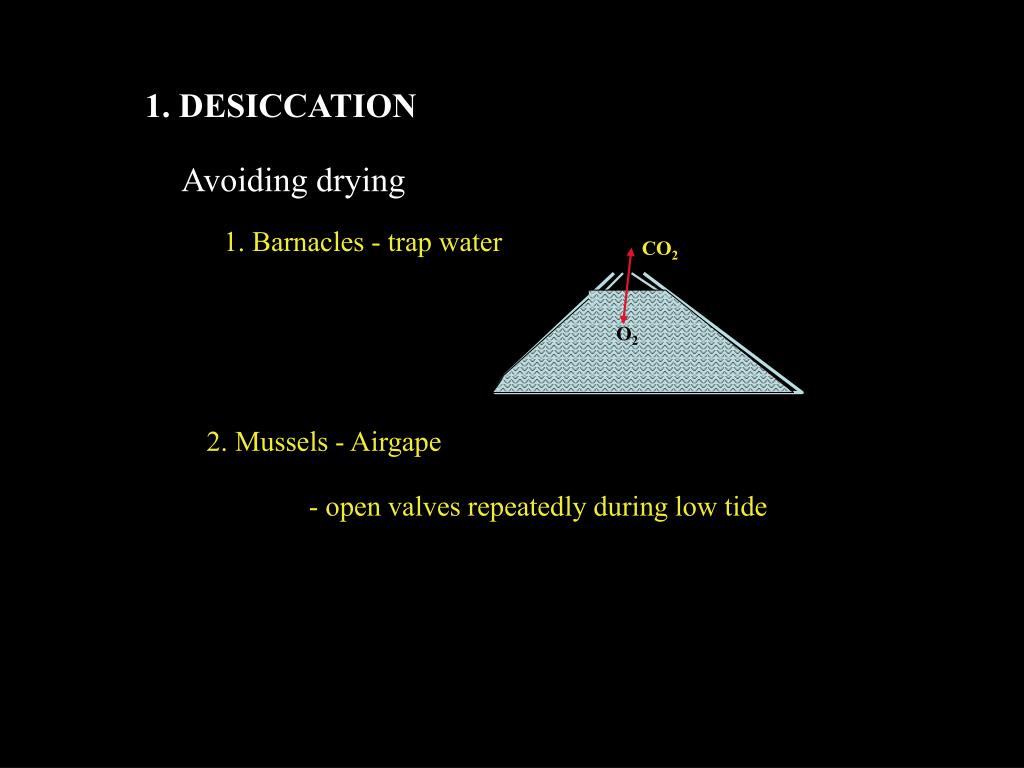

  11. 1. DESICCATION Avoiding drying 1. Barnacles - trap water CO2 O2 2. Mussels - Airgape - open valves repeatedly during low tide

  12. 1. DESICCATION Coping with oxygen depletion Fucus resubmerge 100 Percentage of initial water retained O2 consump-tion 50 100 Percentage of initial water lost

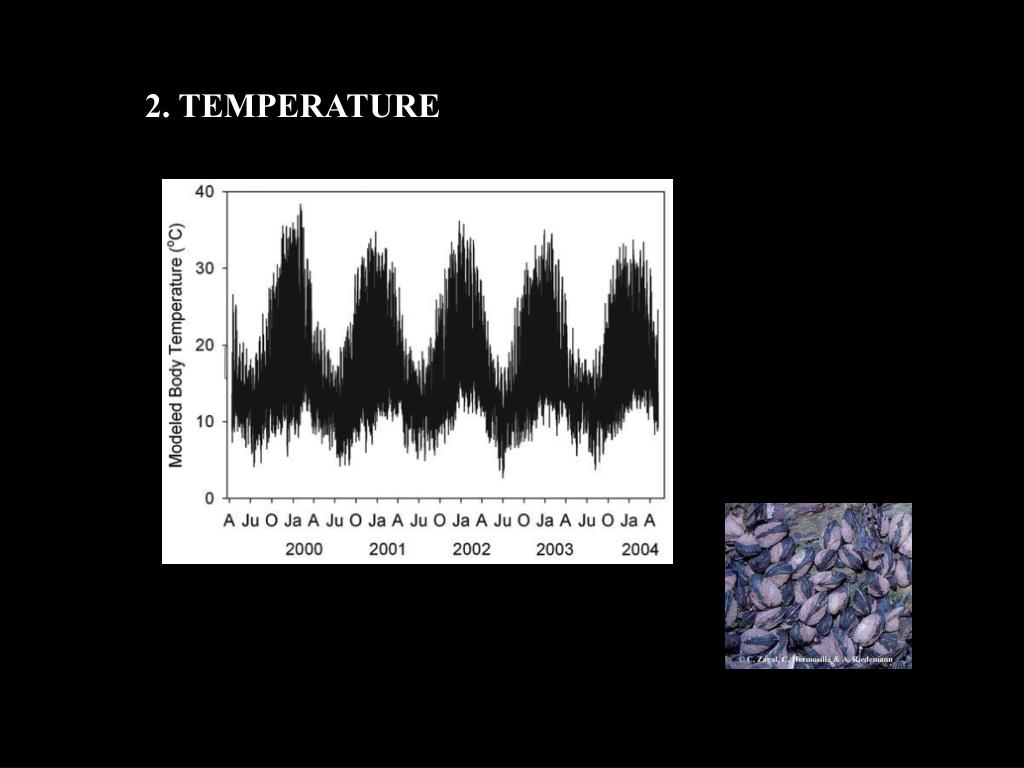

  13. 2. TEMPERATURE

  14. 2. TEMPERATURE

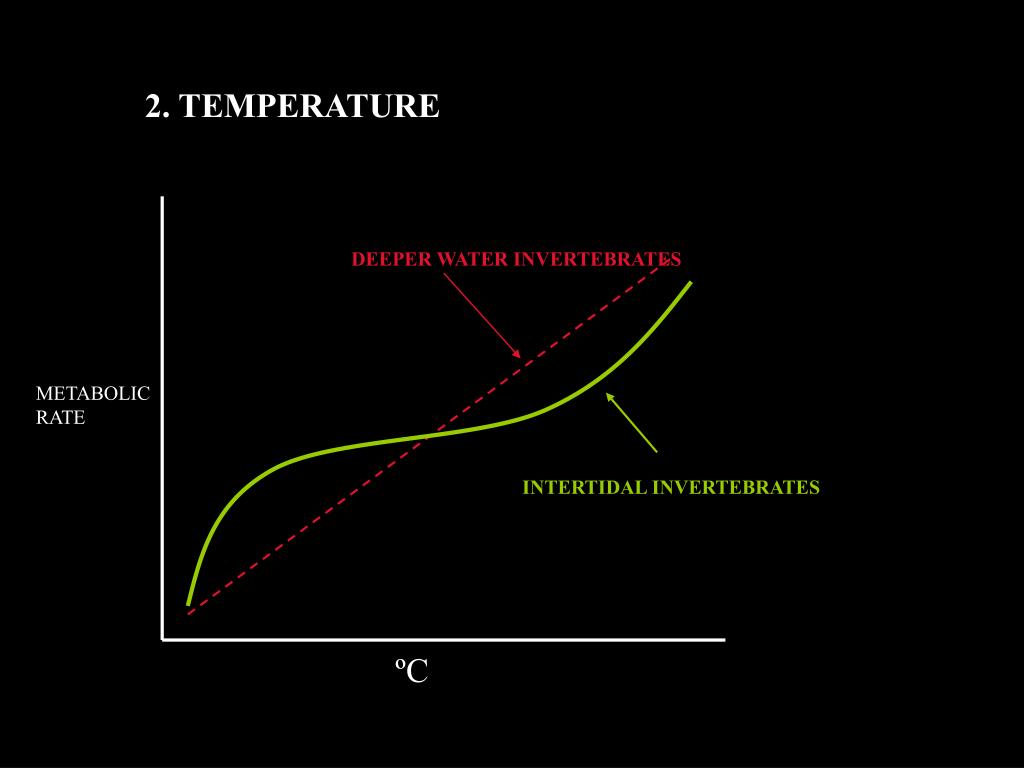

  15. 2. TEMPERATURE DEEPER WATER INVERTEBRATES METABOLIC RATE INTERTIDAL INVERTEBRATES ºC

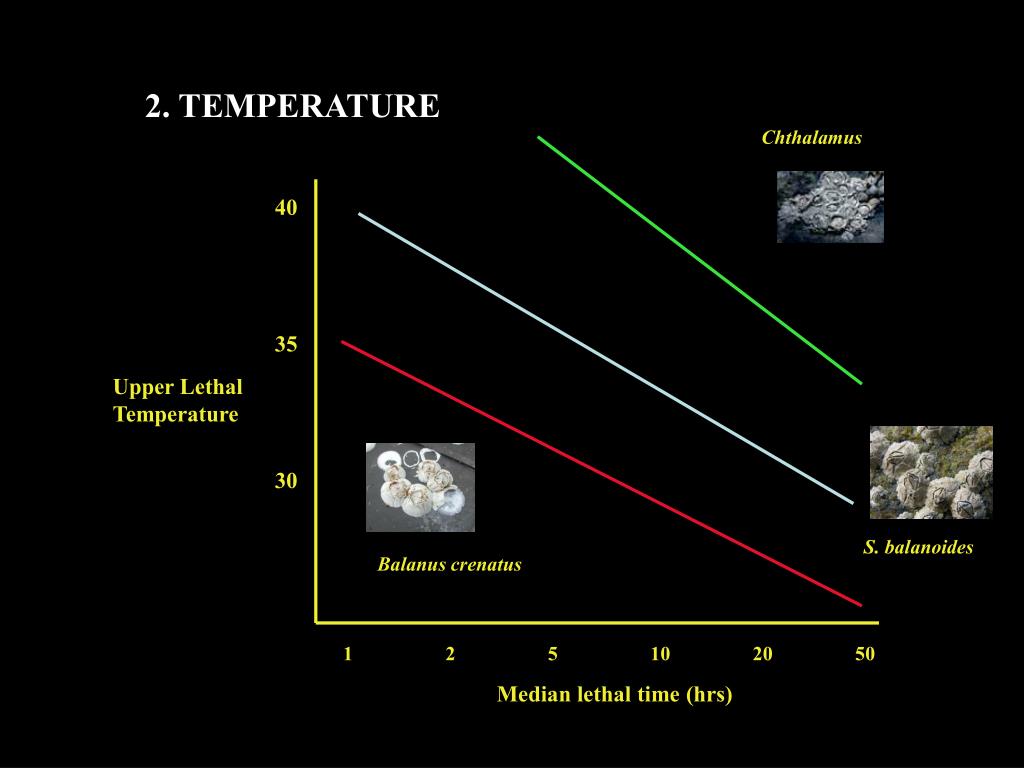

  16. 2. TEMPERATURE Chthalamus 40 35 30 Upper Lethal Temperature S. balanoides Balanus crenatus 1 2 5 10 20 50 Median lethal time (hrs)

  17. 2. TEMPERATURE 45 40 35 30 Ilyanasa Upper Lethal Temperature Uca Arbacia Ophioderma Asterias 50 100 Median lethal time (mins)

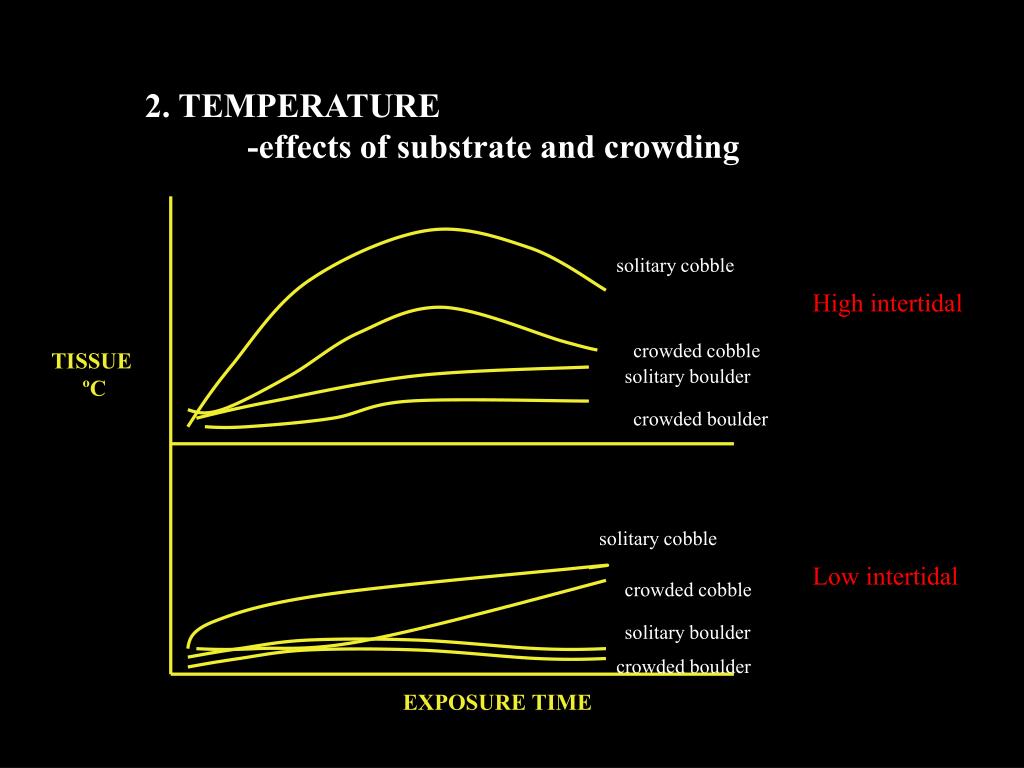

  18. 2. TEMPERATURE -effects of substrate and crowding solitary cobble High intertidal crowded cobble TISSUE ºC solitary boulder crowded boulder solitary cobble Low intertidal crowded cobble solitary boulder crowded boulder EXPOSURE TIME

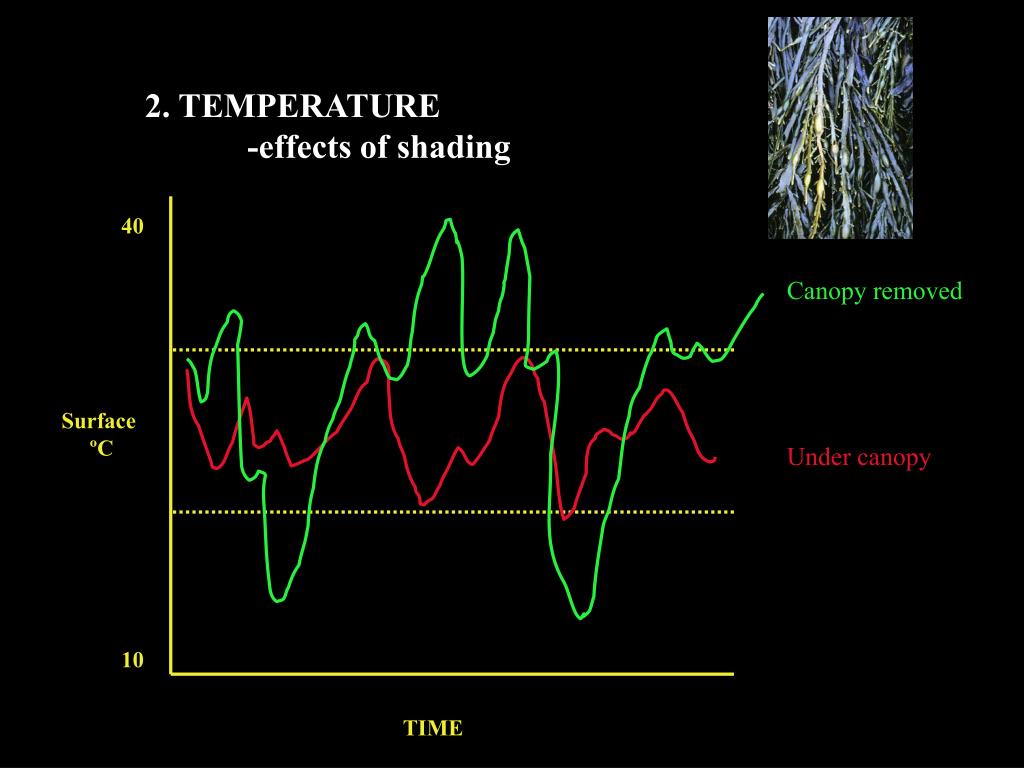

  19. 2. TEMPERATURE -effects of shading 40 Canopy removed Surface ºC Under canopy 10 TIME

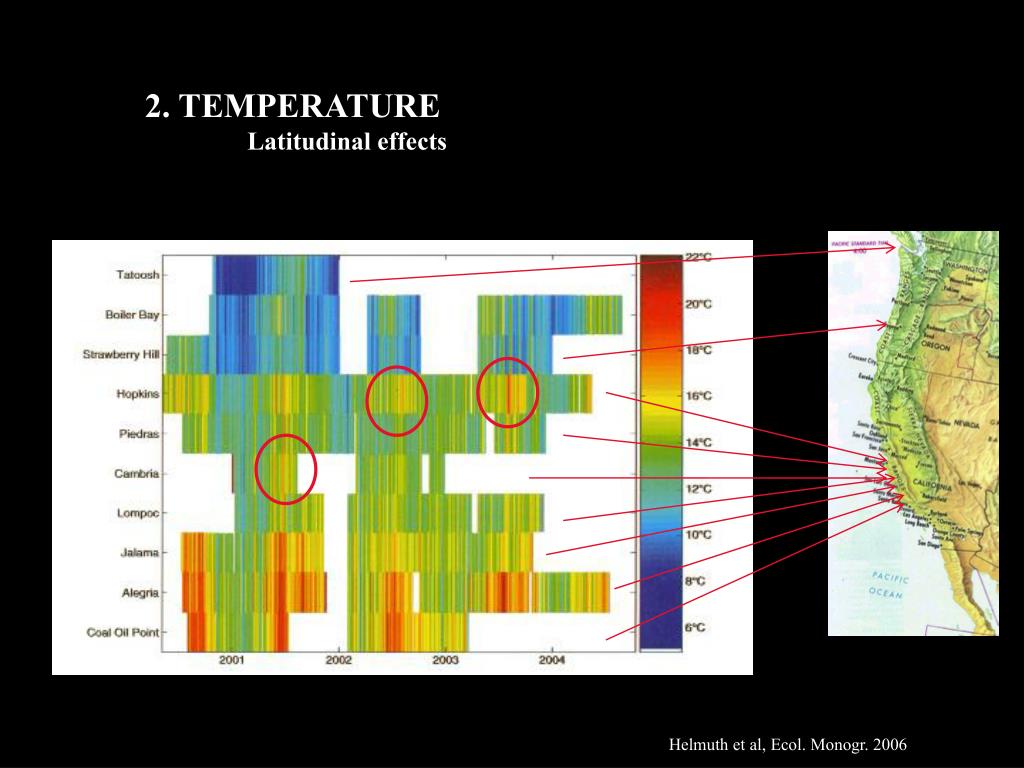

  20. 2. TEMPERATURE Latitudinal effects Helmuth et al, Ecol. Monogr. 2006

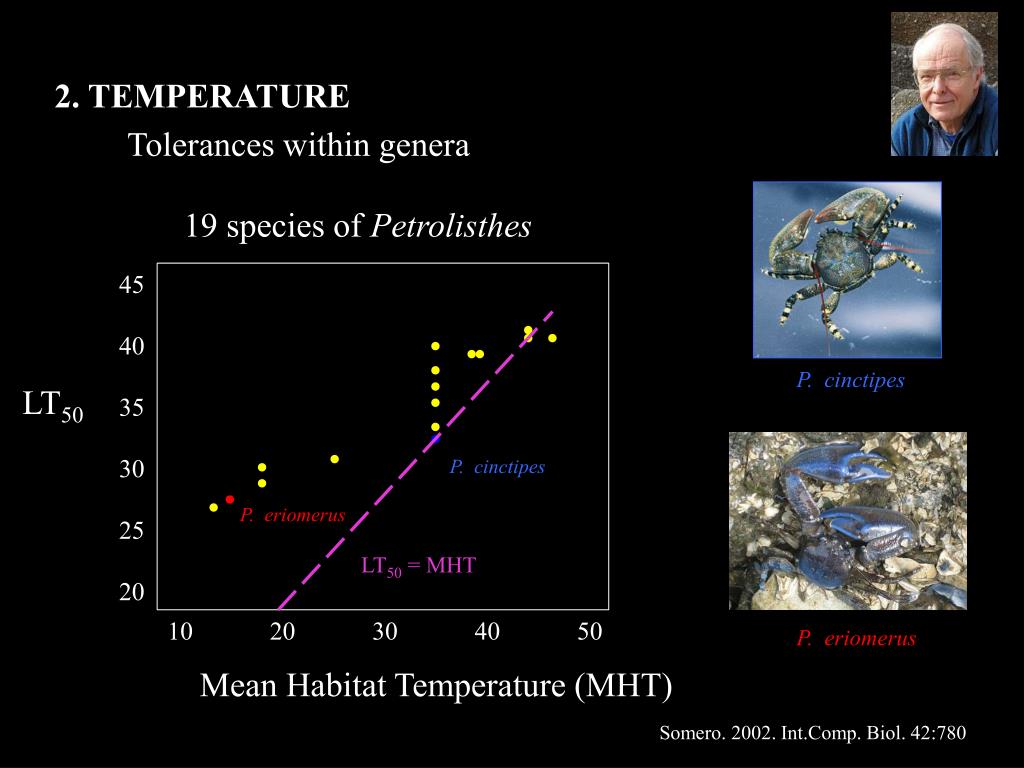

  21. 2. TEMPERATURE Tolerances within genera 19 species of Petrolisthes 45 40 35 30 25 20 • • • • • • • • P. cinctipes LT50 • • • • • P. cinctipes • • • P. eriomerus LT50 = MHT 10 20 30 40 50 P. eriomerus Mean Habitat Temperature (MHT) Somero. 2002. Int.Comp. Biol. 42:780

  22. 2. TEMPERATURE Tolerances within genera L. sctulata L. keenae T. funebralis T. brunnea T. montereyi Somero. 2002. Int.Comp. Biol. 42:780

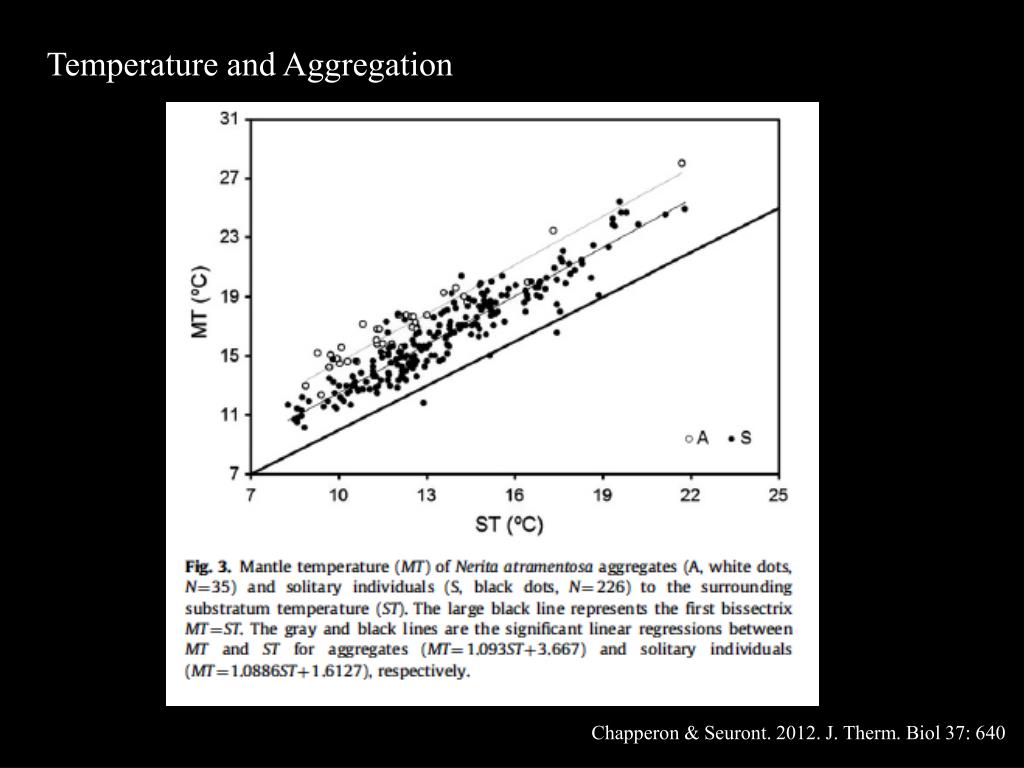

  23. Temperature and Aggregation Chapperon & Seuront. 2012. J. Therm. Biol 37: 640

  24. Temperature and Aggregation Chapperon & Seuront. 2012. J. Therm. Biol 37: 640

  25. Temperature and Aggregation Chapperon & Seuront. 2012. J. Therm. Biol 37: 640

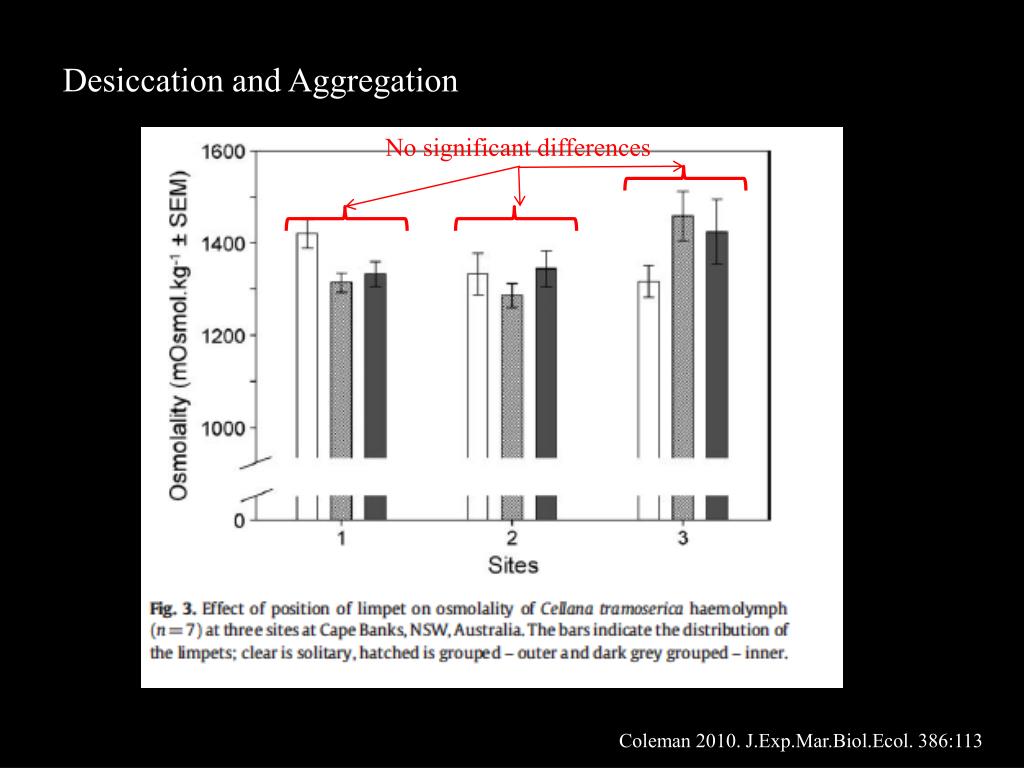

  26. Desiccation and Aggregation No significant differences Coleman 2010. J.Exp.Mar.Biol.Ecol. 386:113

  27. Desiccation and Aggregation No significant differences Coleman 2010. J.Exp.Mar.Biol.Ecol. 386:113

  28. 2. TEMPERATURE -low temperature

  29. 2. TEMPERATURE -low temperature Dendronotus frondosus (Gionet & Aiken, 1992) 100 50 0 % Survivorship 0 -4 -8 -10 -12 Temperature (4 hr exposure)

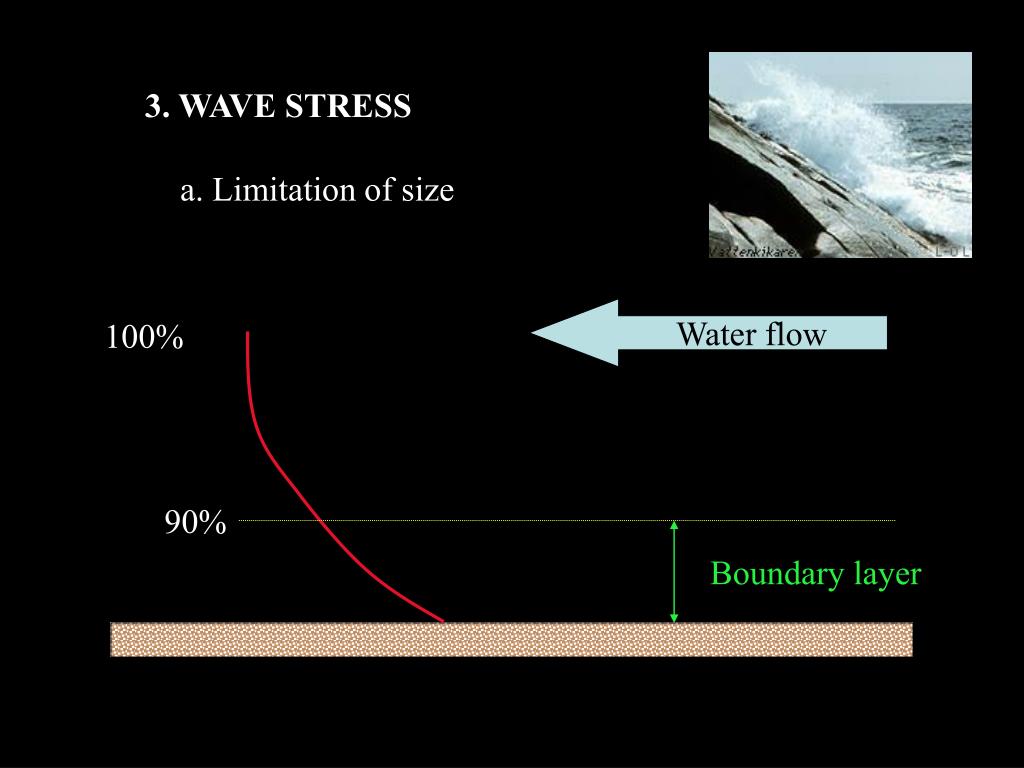

  30. 3. WAVE STRESS a. Limitation of size Water flow 100% 90% Boundary layer

  31. 3. WAVE STRESS a. Limitation of size Water flow

  32. 3. WAVE STRESS b. Holding on Keyhole limpet

  33. 3. WAVE STRESS b. Holding on - body orientation Water flow

  34. 3. WAVE STRESS b. Holding on - body orientation <.5 m/s >.5 m/s Freq -90 0 90 -90 0 90 Orientation (º to flow)

  35. 3. WAVE STRESS b. Holding on - tenacity What is “tenacity”? 1. Suction? Atmospheric pressure ≈ 1 kg/cm2 Patella ≈ 5 - 7 kg/cm2

  36. 3. WAVE STRESS b. Holding on - tenacity What is “tenacity”? Patella

  37. 3. WAVE STRESS b. Holding on - tenacity What is “tenacity”? 2. Adhesion area 2 AS d surface tension F = thickness Theoretical adhesion = 600 kg/cm2

  38. 3. WAVE STRESS b. Holding on - tenacity What is “tenacity”? 2. Adhesion 1 d F Tenacity (kg/cm2 to detach) Weight of mucous

  39. 3. WAVE STRESS • Limitation of size - plants Laminaria

  40. 3. WAVE STRESS - How plants deal with it current Movement of plant – dissipates E Inertial force Reaction force

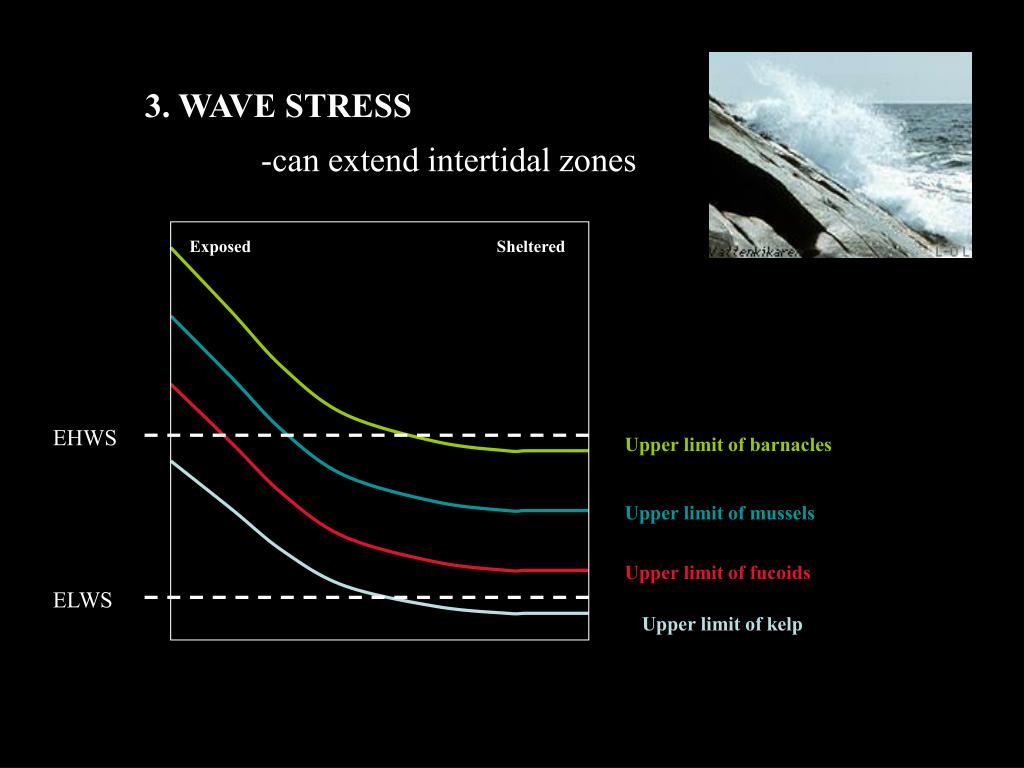

  41. 3. WAVE STRESS -can extend intertidal zones Exposed Sheltered EHWS Upper limit of barnacles Upper limit of mussels Upper limit of fucoids ELWS Upper limit of kelp

  42. Effects on limpet distribution Todgham et al, 1997

  43. Effects on limpet distribution Todgham et al, 1997 HYPOTHESES 1. Greater density of limpets the wave-exposed site. 2. Limpets will be found more frequently in habitats with refuges. 3. Limpets will be found less frequently in wave protected habitats with refuges.

  44. Effects on limpet distribution Todgham et al, 1997 Habitats Exposed Protected

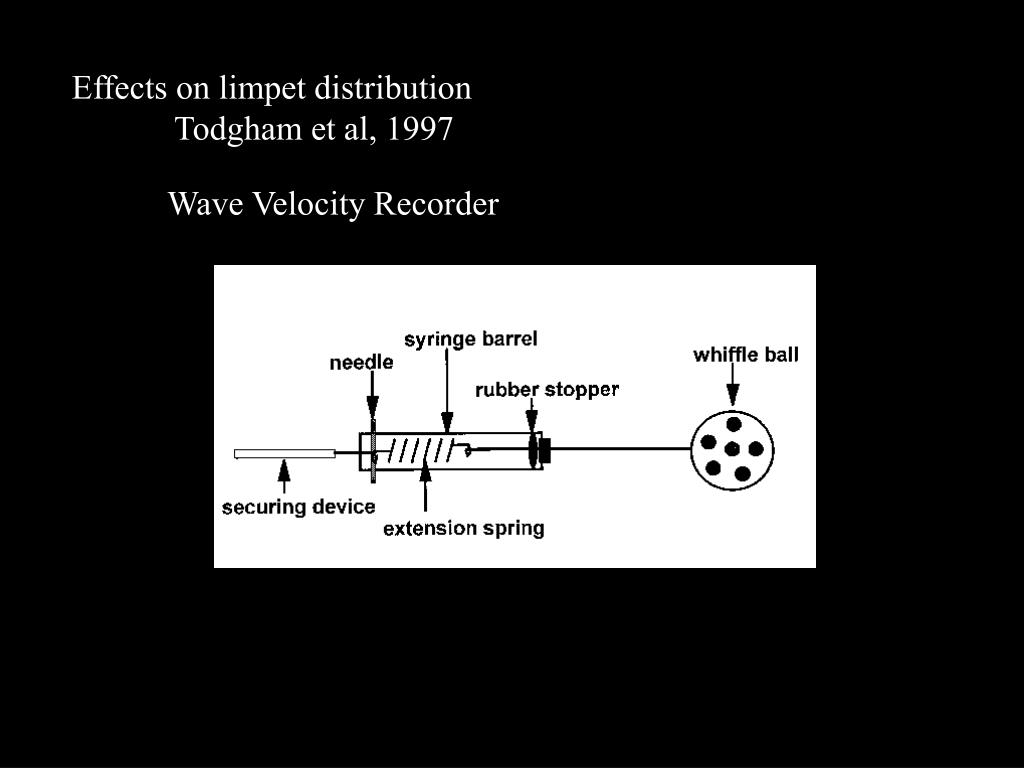

  45. Effects on limpet distribution Todgham et al, 1997 Wave Velocity Recorder

  46. Effects on limpet distribution Todgham et al, 1997 Lottia digitalis Lottia paradigitalis Lottia pelta Tectura personna Tectura scutum

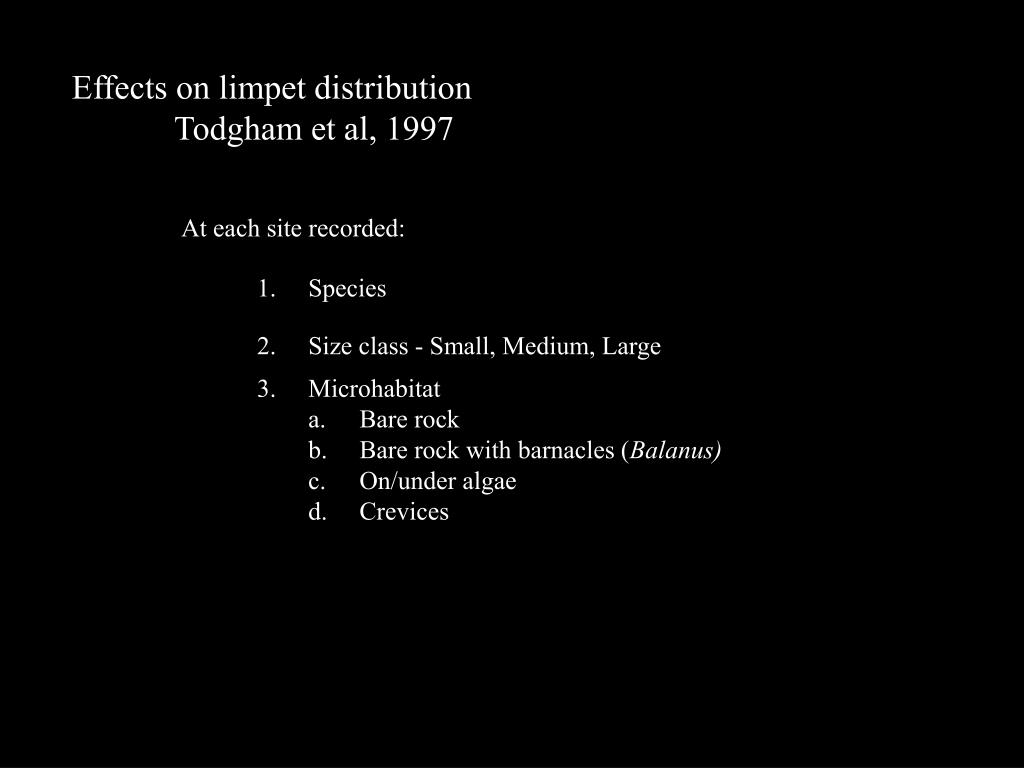

  47. Effects on limpet distribution Todgham et al, 1997 At each site recorded: Species 2. Size class - Small, Medium, Large • Microhabitat • Bare rock • Bare rock with barnacles (Balanus) • On/under algae • Crevices

  48. Effects on limpet distribution Todgham et al, 1997
