  1. Analysis of GWAP-based Geospatial Tagging Systems Ling-Jyh Chen, Yu-Song Syu, Bo-Chun Wang Academia Sinica, Taiwan Wang-Chien Lee The Pennsylvania State University

  2. Geospatial Tagging Systems (GeoTagging) • An emerging location-based application • Helps users find various location-specific information • e.g., “Find a good restaurant nearby” • Conventional GeoTagging services • 3 major drawbacks • Two-phase operation model • Photo  go back home  upload • Clustering at hot spots • Tendency to popular places • Lack of specialized tasks • Restaurants allowing pets

  3. GWAP-based geotagging services (Games With APurpose) • Collect information through games Where is the Capital Hall? asker Take a picture for the White House solver : pending unsolved tasks : Locations of Interest (LOI) • Avoid the 3 major drawbacks • Tasks are uploaded right after taking photos • Tasks are assigned by the system • Tasks can be specialized

  4. Problems • Which task to assign? • Will the solver accept the assigned task? • How to measure the system performance?

  5. Acceptance rate of a solver • When a solver u appears, the system decides to assign the task in LOI v • u is more likely to accept the task when… • Population(v) ↗, • Distance(u,v) ↘, Pv[k]: probability that k users appear in v τ Sigmoid Function

  6. Evaluation Metrics (1/3) • Throughput Utility: • To solve as many tasks as possible • Increase #tags • assign easily accepted tasks • Results cluster at hot spots System Throughput #solved tasks (throughput) fairness All solved tasks from the beginning at all locations Starvation Problem

  7. Evaluation Metrics (2/3) • Fairness Utility: • To balance number of solved tasks at LOIs • Balancing • assigntasks at unproductive LOIs • Tasks are more easily rejected Coefficient of Variation Balancing (fairness) throughput c.v. of normalized #solved tasks at all locations Equality of Outcome

  8. Evaluation Metrics (3/3) • System Utility: • To accommodate Uthroughput& Ufairness

  9. Task Assignment Strategies • Simple Assignment (SA) • Only assign the task at the same LOI with the solver (Local Task) • Random Assignment (RA) • Provide abaseline of system performance • Least Throughput First Assignment (LTFA) • Prefer the task from the node of the least throughput •  to maximize Ufairness • Acceptance Rate First Assignment (ARFA) • Prefer the task of the highest acceptance rate •  to maximize Uthroughput • Hybrid Assignment (HA) • Assign the task contributing the highest System Utility (Usystem)

  10. Simulation – Configurations • An equal-sized grid map • size: 20 x 20 • #askers:#solvers = 2:1 • We repeat 100 Times to achieve the average performance

  11. Simulation – Assumptions • Players arrive LOIi at a Poisson Rateλi • λ is unknown in real systems • Approximate based on current & past population at LOIi • EMA - exponential moving average • Here, α = 0.95 α: smoothing factor Ni(t): current population in LOIi at time t

  12. Network Scenarios • EXP • λi (i=1…N) is an exponential distribution with the parameter 0.2  E(λ) = 5 • SLAW (Self-similar Least Action Walk, Infocom’09) • SLAW waypoint generator • Used in simulations of “Human Mobility” • generate fractional Brownian Motion waypoints • In this work, population of LOIs • TPE • A real map in Taipei City • λiis determined by #bus stops at LOIi

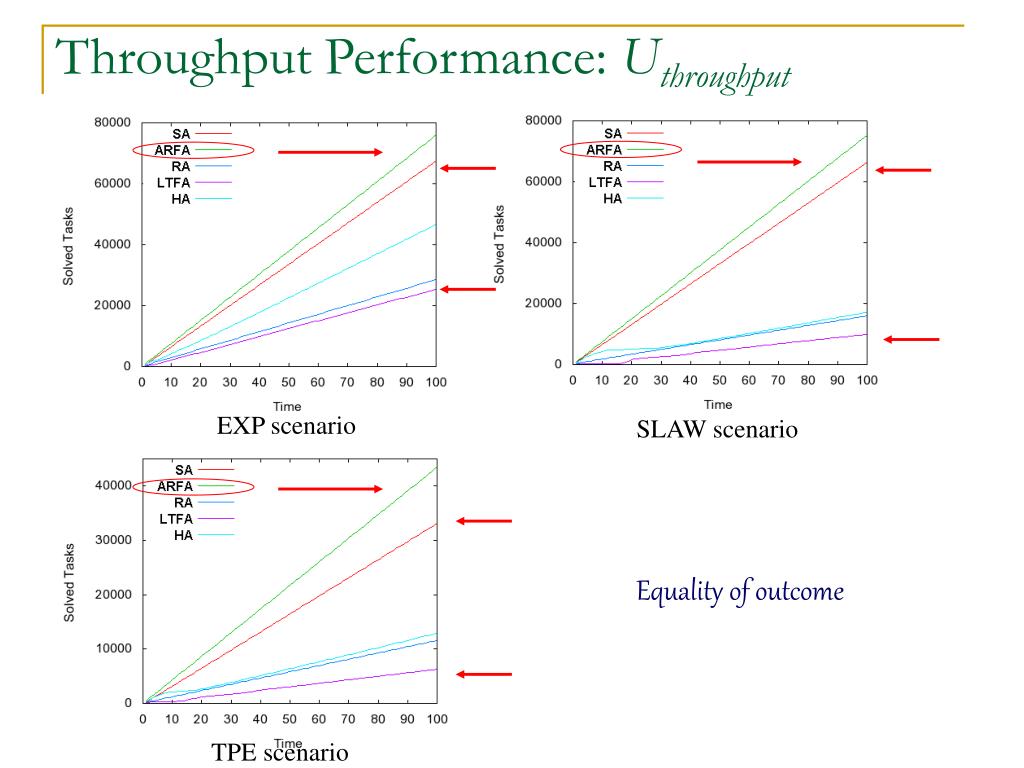

  13. Throughput Performance: Uthroughput EXP scenario SLAW scenario Equality of outcome TPE scenario

  14. Fairness Performance: Ufairness EXP scenario SLAW scenario Starvation Problem TPE scenario

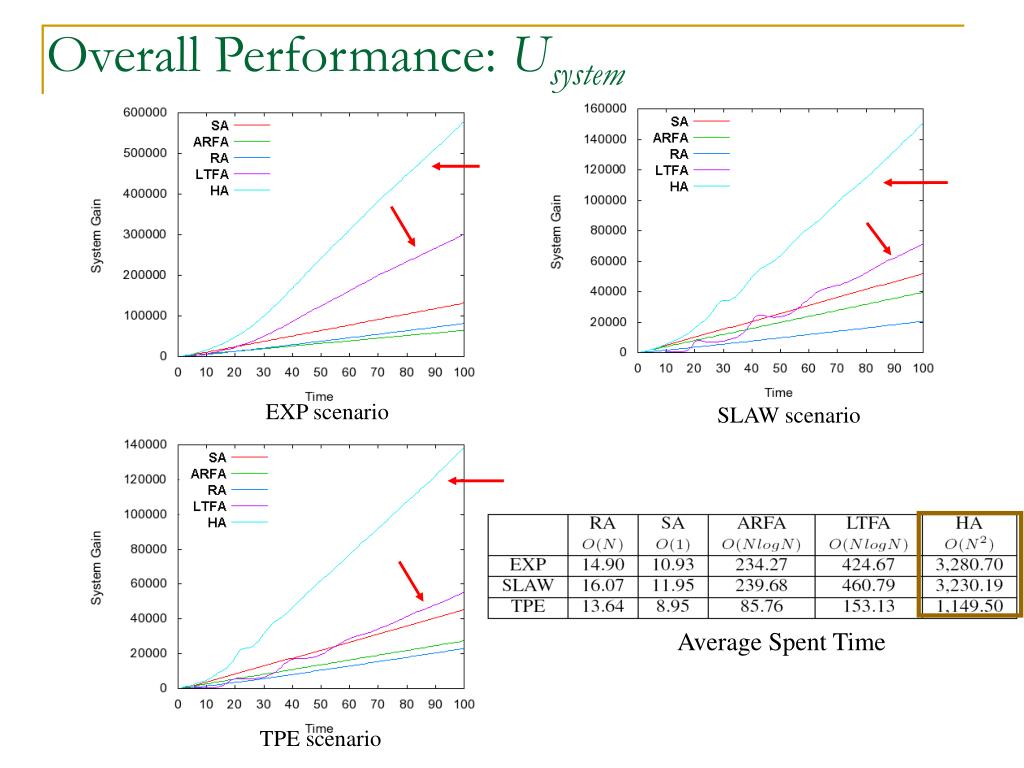

  15. Overall Performance: Usystem EXP scenario SLAW scenario Average Spent Time TPE scenario

  16. Usystem(100) Assigning multiple tasks Usystem(100) EXP scenario SLAW scenario • When a solver appears, the system assigns • more than 1 task to the solver • Solver can choose 1 or none of them • K: Number of tasks that the system assigns to • the solver in a round Usystem(100) TPE scenario

  17. Work in progress • Include “time” and “quality” factors in our model • Different values of “#askers/#solvers” • Consider more complex tasks • E.g., what is the fastest way to get to the airport from downtown in rush hour?

  18. Conclusion • Study GWAP-based Geotagging games analytically • Propose 3 metrics to evaluate system performance • Propose 5 task assignment strategies • HA achieves best system performance • computation-hungry • LTFA is the most suitable one in practice • comparable performance to the HA scheme • Acceptable computation complexity • Considering multiple tasks,system performance ↗ when K ↗ • but players may be sick of too many tasks assigned in a round • It’s better to assign multiple tasks1-by-1, rather than all-at-once • For higher System Utility

  19. Thank You
