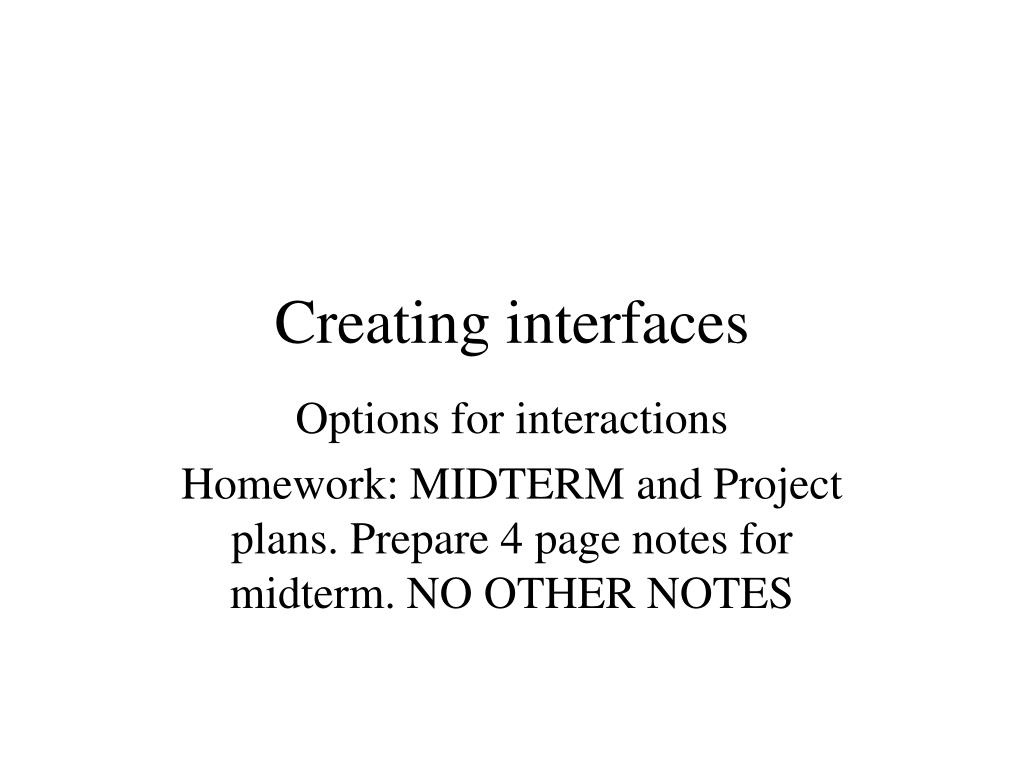

  1. Creating interfaces Options for interactions Homework: MIDTERM and Project plans. Prepare 4 page notes for midterm. NO OTHER NOTES

  2. Project plans • Purpose, audience(s) / user names, functions • Content • Diagram(s) indicating interactions (storyboard) • How will you know if the interface is working?

  3. Interactions For project: depends on topic AND your background • JavaScript: can do calculations and return information. Cannot store information on client • may be an exception if you create an ActionX module AND change security settings. • Will show: Voting for TV show example • Server-side programming: can store in database or file. Can also use XML file • will show: contacts example using php

  4. TV shows poll • JavaScript reads an xml file • Updates data in memory—not stored in external file (see later chart) • Shows results in alert message (could be in form input tag) • Works only in IE6 • Check out newmedia.purchase.edu/~Jeanine/xmlstuff

  5. favorites.xml <?xml version="1.0" ?> - <shows>- <show> <show_title>The Sopranos</show_title> <score>0</score></show>- <show> <show_title>NYPD</show_title> <score>0</score></show>- <show> <show_title>Law and Order</show_title> <score>0</score></show>- <show> <show_title>Judging Amy</show_title> <score>0</score></show>- <show> <show_title>The News Hour</show_title> <score>0</score></show> </shows>

  6. xmlchangetest.html • read in favorites.xml file • generate (using document.write) the html form, with a radio button for each show. Form onsubmit is call to update function • function update: updates internal data and displays using alert statement • body of html contains [only] thank you.

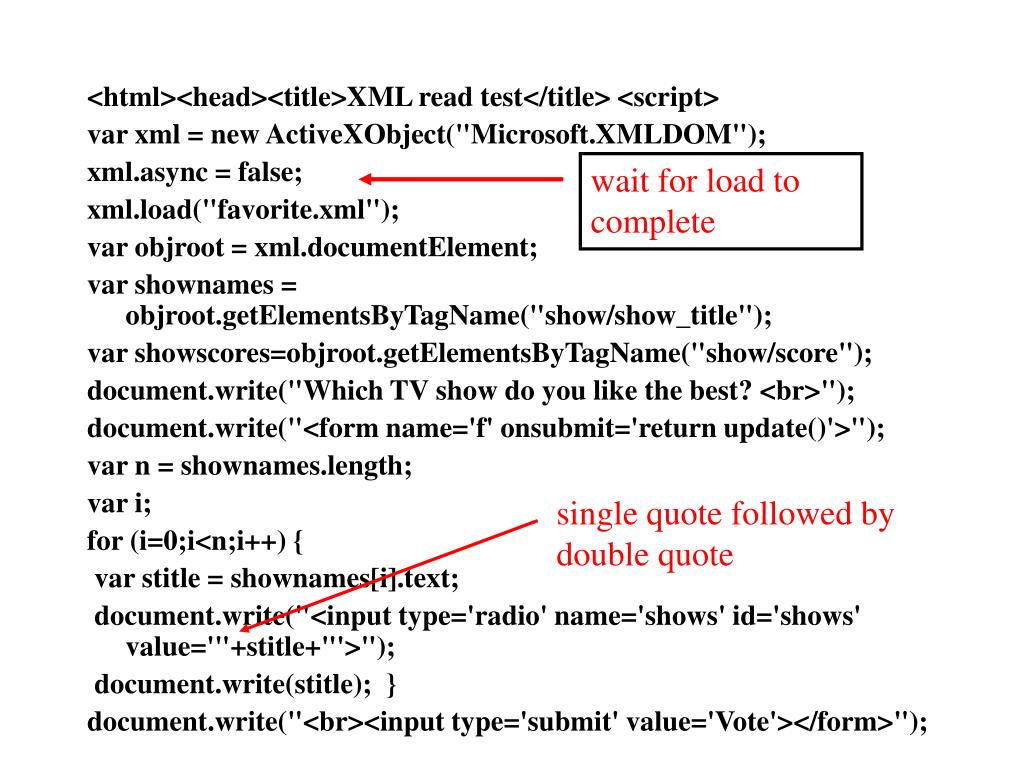

  7. wait for load to complete <html><head><title>XML read test</title> <script> var xml = new ActiveXObject("Microsoft.XMLDOM"); xml.async = false; xml.load("favorite.xml"); var objroot = xml.documentElement; var shownames = objroot.getElementsByTagName("show/show_title"); var showscores=objroot.getElementsByTagName("show/score"); document.write("Which TV show do you like the best? <br>"); document.write("<form name='f' onsubmit='return update()'>"); var n = shownames.length; var i; for (i=0;i<n;i++) { var stitle = shownames[i].text; document.write("<input type='radio' name='shows' id='shows' value='"+stitle+"'>"); document.write(stitle); } document.write("<br><input type='submit' value='Vote'></form>"); single quote followed by double quote

  8. function update() { for (i=0;i<n;i++){ if (document.f.shows[i].checked){ showscores[i].text=1 + parseInt(showscores[i].text); xml.documentElement.getElementsByTagName("show/score").item(i).text=showscores[i].text; objroot = xml.documentElement; showscores=objroot.getElementsByTagName("show/score"); } } var scores ="Totals: "; for (i=0;i<n;i++) { scores = scores + shownames[i].text+": "+showscores[i].text+" "; } alert(scores); return false; } </script></head> <body> Thank you! </body> </html>

  9. Dangerous: To allow permanent changes • But here is how you do it: xml.save("favorite.xml"); • On computer on which code will be run: go to IE toolbar/Tools/Internet Options/Security custom settings: change to enable Initialize and script ActiveX controls not marked as safe. (Internet and Intranet)

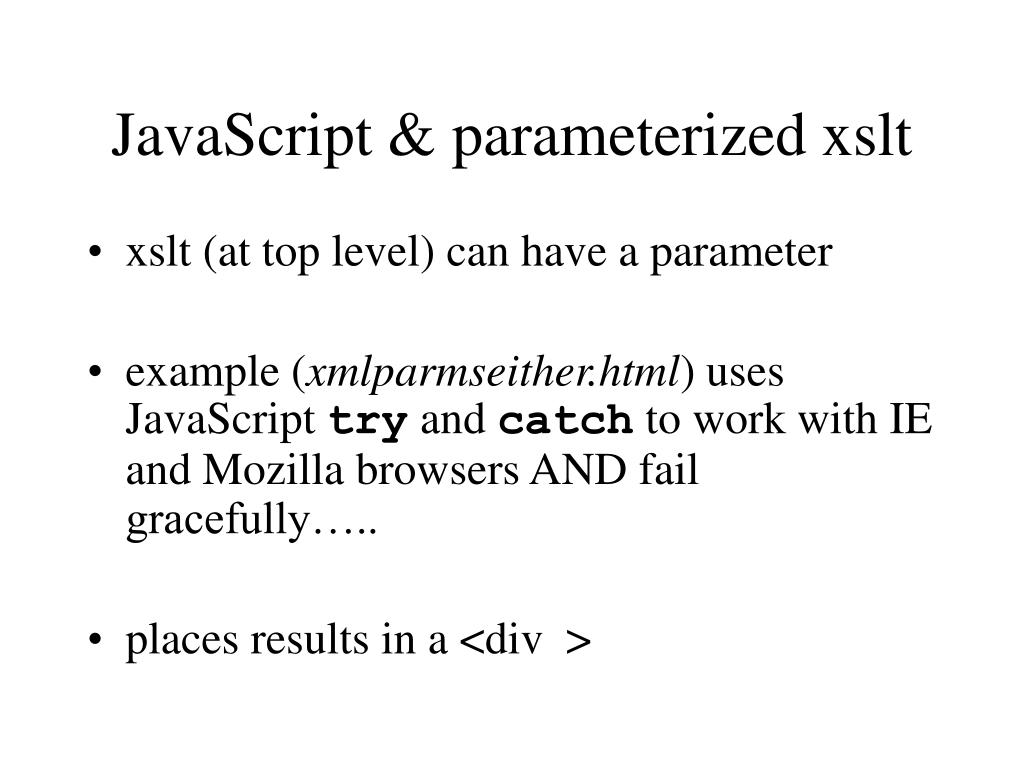

  10. JavaScript & parameterized xslt • xslt (at top level) can have a parameter • example (xmlparmseither.html) uses JavaScript try and catch to work with IE and Mozilla browsers AND fail gracefully….. • places results in a <div >

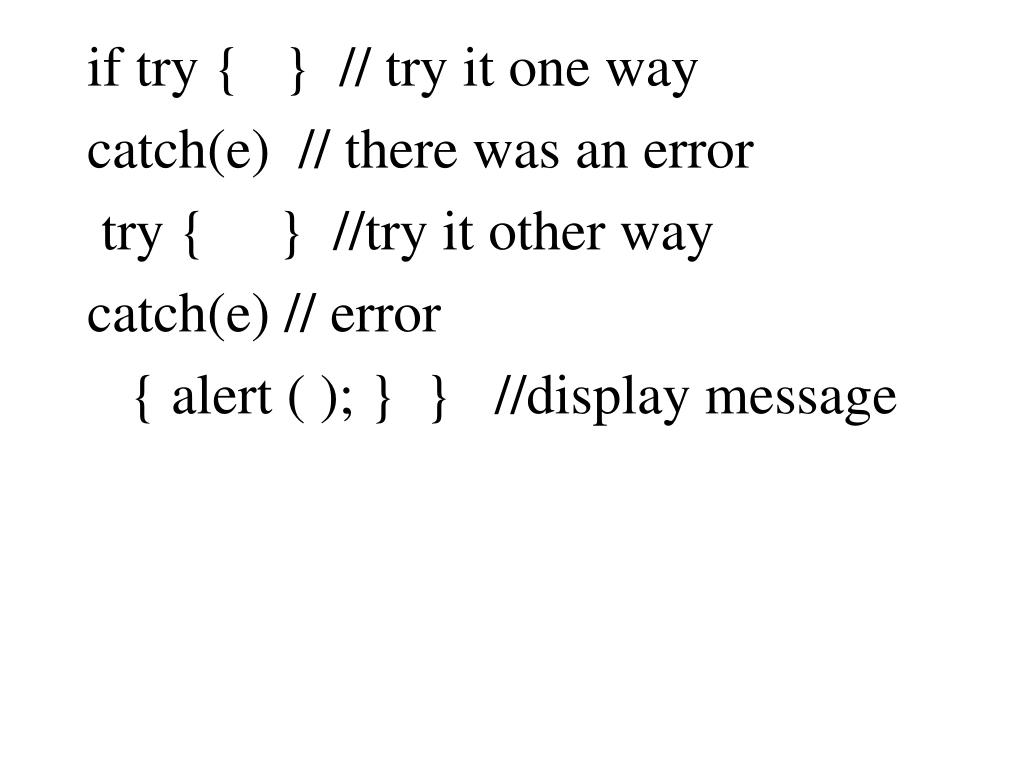

  11. if try { } // try it one way catch(e) // there was an error try { } //try it other way catch(e) // error { alert ( ); } } //display message

  12. var xslt = new ActiveXObject("Msxml2.XSLTemplate"); var xslDoc = new ActiveXObject("Msxml2.FreeThreadedDOMDocument"); var xslProc; xslDoc.async = false; xslDoc.resolveExternals = false; xslDoc.load("contactsuseparm.xsl"); xslt.stylesheet = xslDoc; var xmlDoc = new ActiveXObject("Msxml2.DOMDocument"); xmlDoc.async = false; xmlDoc.resolveExternals = false; xmlDoc.load("contactsextra.xml"); xslProc = xslt.createProcessor(); xslProc.input = xmlDoc; xslProc.addParameter("subj", subject); xslProc.transform(); document.write(xslProc.output);

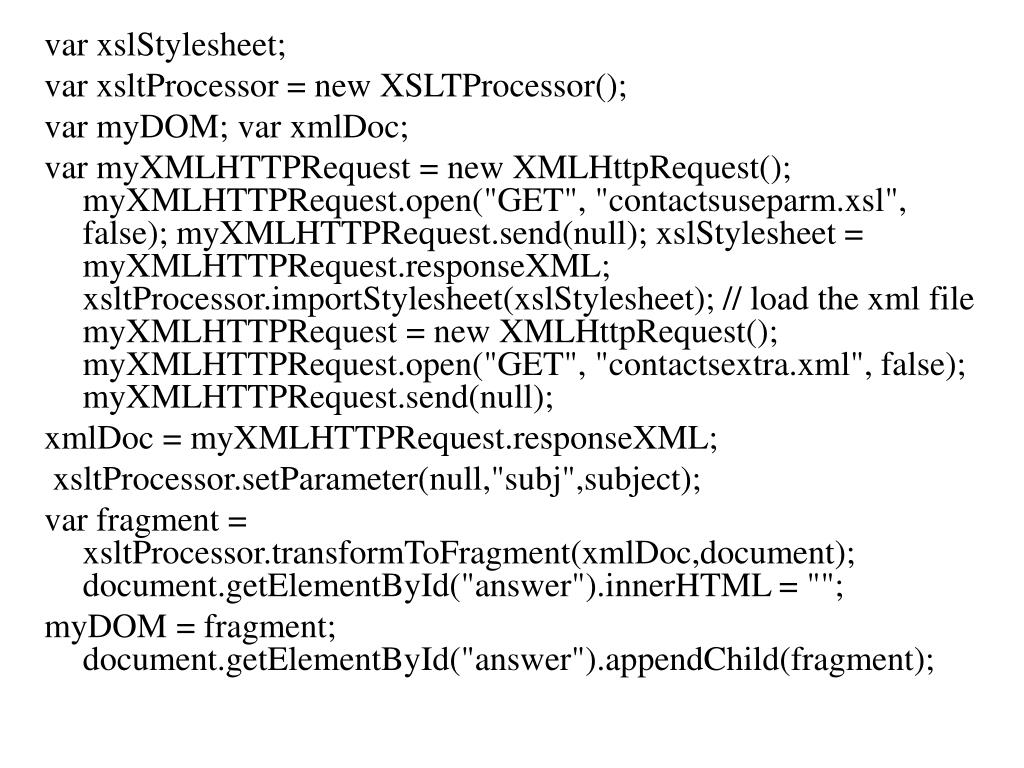

  13. var xslStylesheet; var xsltProcessor = new XSLTProcessor(); var myDOM; var xmlDoc; var myXMLHTTPRequest = new XMLHttpRequest(); myXMLHTTPRequest.open("GET", "contactsuseparm.xsl", false); myXMLHTTPRequest.send(null); xslStylesheet = myXMLHTTPRequest.responseXML; xsltProcessor.importStylesheet(xslStylesheet); // load the xml file myXMLHTTPRequest = new XMLHttpRequest(); myXMLHTTPRequest.open("GET", "contactsextra.xml", false); myXMLHTTPRequest.send(null); xmlDoc = myXMLHTTPRequest.responseXML; xsltProcessor.setParameter(null,"subj",subject); var fragment = xsltProcessor.transformToFragment(xmlDoc,document); document.getElementById("answer").innerHTML = ""; myDOM = fragment; document.getElementById("answer").appendChild(fragment);

  14. <body> <a href="javascript:outputgroup('computer science');">Computer Science </a> <br/> <a href="javascript:outputgroup('physics');">Physics </a> <br/> <a href="javascript:outputgroup('mathematics');">Mathematics </a> <br/> <div id="answer"> </div> <br/> <br/> <a href="xmlparmseither.html">Repeat</a> </body> </html>

  15. Server-side: php • Server-side code has advantage of being able to access files and databases on server computer, including modifying files and databases. • php is Open Source tool. • Other tools are: asp with VBScript or JavaScript, Cold Fusion, cgi with perl or other languages, asp.net. • This example: phpxmlsax.php only shows use of XML, not saving data/modifying any files.

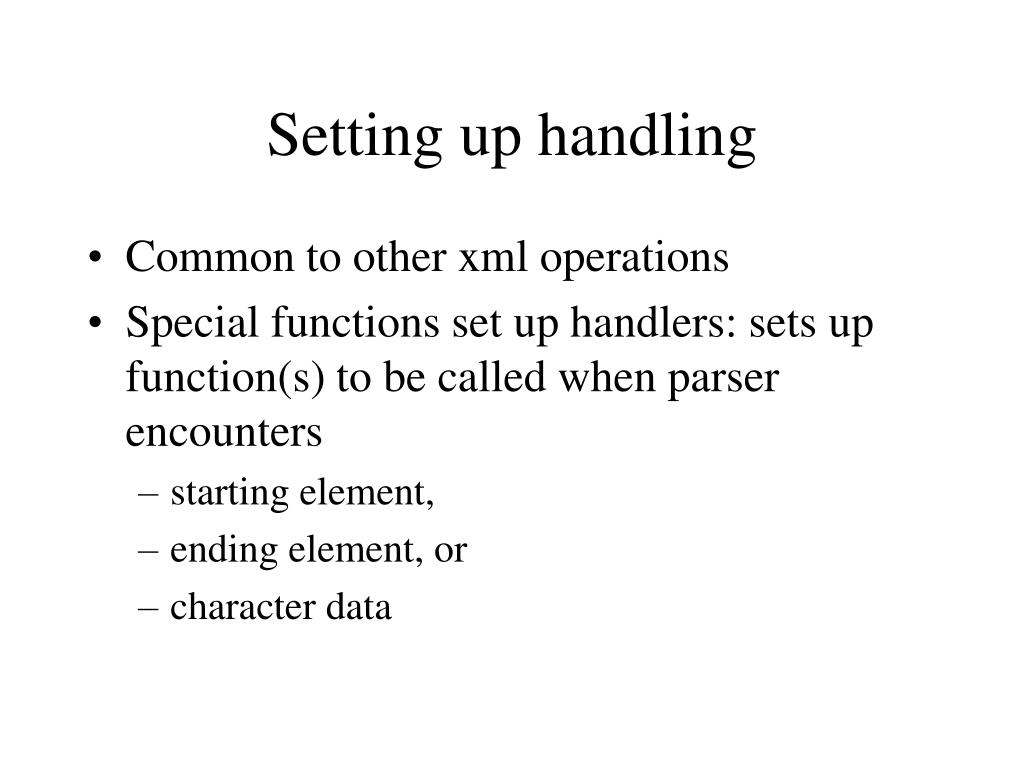

  16. Setting up handling • Common to other xml operations • Special functions set up handlers: sets up function(s) to be called when parser encounters • starting element, • ending element, or • character data

  17. phpxmlsax.php • php (all server-side/middleware) produce HTML to be shown on the client. • This program sets up how starting elements, ending elements, and character data are to be handled: 3 functions. • global variable is used: currenttag • 3 functions do formatting. • NOTE: required uppercase for element names even though the contactsnoref.xml used lower case.

  18. <html><head><title>PHP xml SAX test </title> <style type="text/css"> td {font-family: Arial; font-size: smaller} h2 {font-family: Comic Sans MS} </style> </head> <body> <h2>Address book </h2><p> <table border="1"> <tr><td>Name</td><td>E-mail</td></tr>

  19. <? $file="D:\inetpub\wwwroot\jeanine\xmlstuff\contactsnoref.xml"; $currenttag=""; function startElement($parser,$name,$attrs) { global $currenttag; $currenttag=$name; switch($name) { case "CONTACT": print("<tr>"); break; case "NAME": print("<td>"); break; case "EMAIL": print("<td>"); break; default: break;} }

  20. function endElement($parser,$name) { global $currenttag; switch ($name) { case "CONTACT": print("</tr>"); break; case "NAME": print ("</td>"); break; case "EMAIL": print("</td>"); break; default: break; } $currenttag=""; }

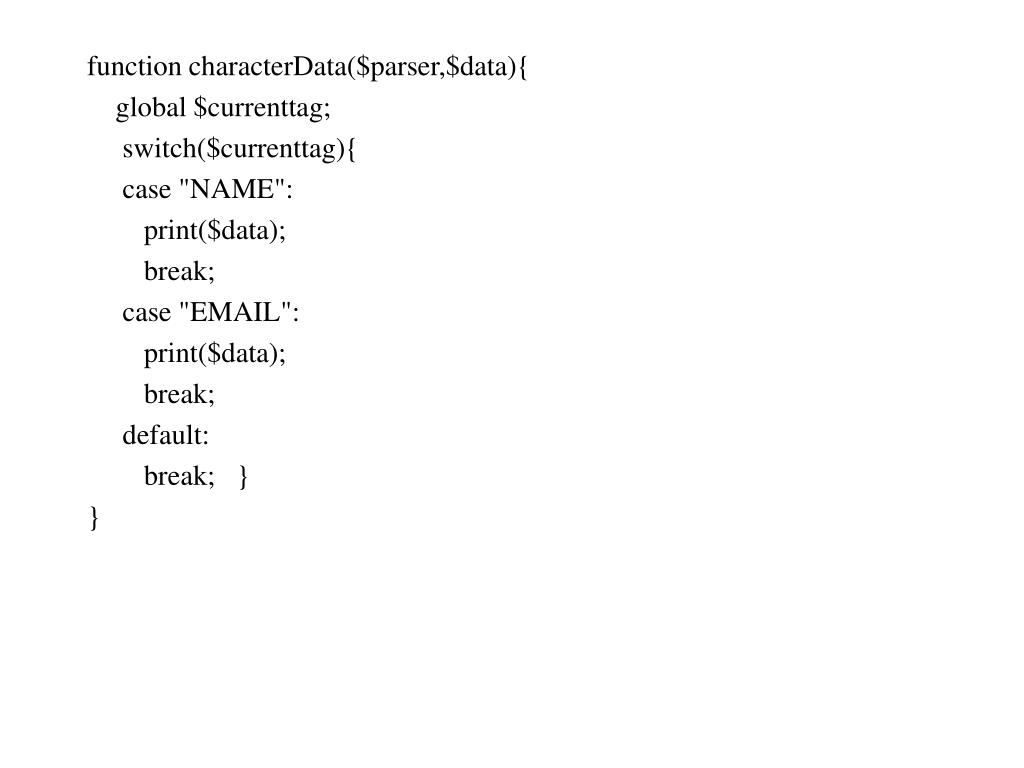

  21. function characterData($parser,$data){ global $currenttag; switch($currenttag){ case "NAME": print($data); break; case "EMAIL": print($data); break; default: break; } }

  22. $xml_parser=xml_parser_create(); xml_set_element_handler($xml_parser,"startElement","endElement"); xml_set_character_data_handler($xml_parser,"characterData"); if (!($fp=fopen($file,"r"))) { die("Cannot locate XML data file: $file"); } while ($data=fread($fp,4096)) { if (!xml_parse($xml_parser,$data,feof($fp))) { die(sprintf("XML error: %s at %d", xml_error_string(xml_get_error_code($xml_parser)), xml_get_current_line_number($xml_parser))); } } xml_parser_free($xml_parser); ?> </table> </body> </html>

  23. Homework • Study for midterm (10/10) • Project plans presentation AFTER MIDTERM • Prepare 4 pages (front and back) notes for midterm.
