  1. Optimizing TCP Forwarder Performance IEEE/ACM TRANSACTIONS ON NETWORKING, VOL. 8, NO. 2, APRIL 2000 資工碩一 M9129018 陳宏仁

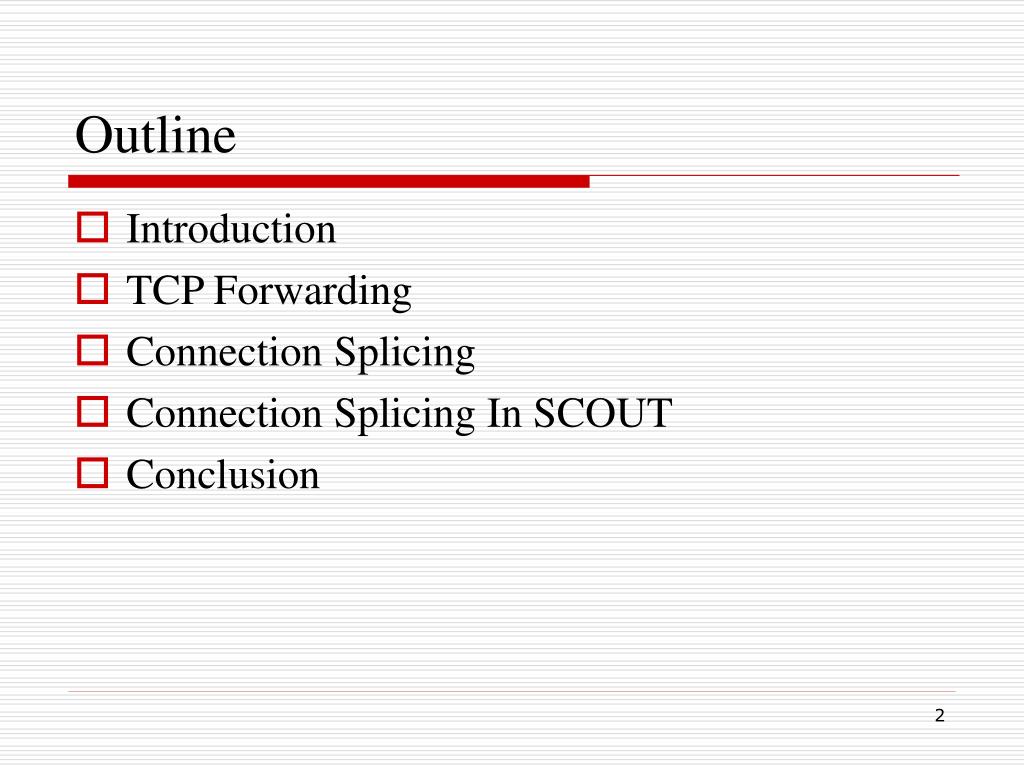

  2. Outline • Introduction • TCP Forwarding • Connection Splicing • Connection Splicing In SCOUT • Conclusion

  3. Introduction

  4. Introduction • TCP forwarder • A network node that establishes and forwards data between a pair of TCP connection • TCP forwarding • Indirect TCP communication via a proxy • Connection splicing • Improve TCP forwarding performance TCP forwarder TCP connection TCP connection

  5. TCP Forwarding

  6. TCP Forwarding • Proxy • Mediate the communication • Interpose between two connection • Control the flow of data between the communicating parties • Proxy has two mode • Control mode • Forwarding mode Control Mode Forwarding Mode Control Mode Back to control mode Processing control function Move data between connection

  7. TCP Forwarding (cont.) • Proxy can be classified into four categories • First • In control mode only during connection setup • After connection setup, switch to forwarding mode for the duration of connection • Second • Authenticate the user or request • Check user ID, password , and destination of the Telnet request FTP Proxy Telnet Proxy

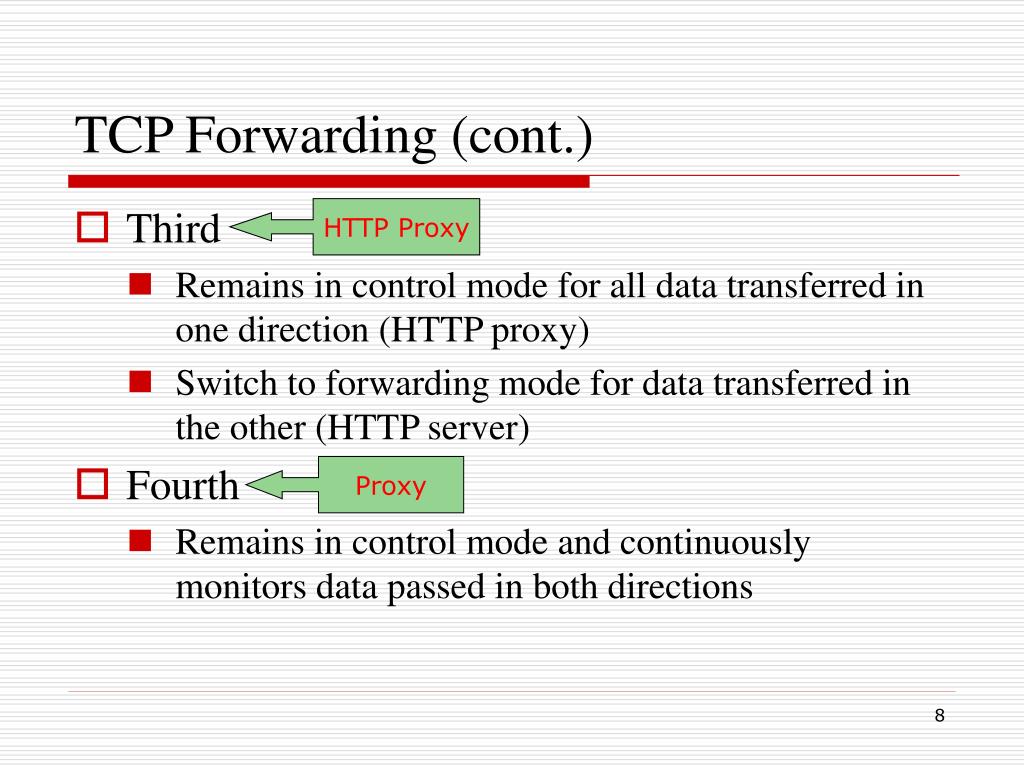

  8. TCP Forwarding (cont.) • Third • Remains in control mode for all data transferred in one direction (HTTP proxy) • Switch to forwarding mode for data transferred in the other (HTTP server) • Fourth • Remains in control mode and continuously monitors data passed in both directions HTTP Proxy Proxy

  9. Firewall • Data from one network pass through the proxy which forwards them to the other network • If the desired security guarantees are not violated

  10. Mobile Computing • Filtering data • Reduce or remove too big data • When mobile host is connected to wired network • Only relay data in forward mode • Allow a mobile host to change its point of attachment to network • Mobile host can terminate TCP connections • Move to new location with a new IP address • Establish a new set of TCP connections to proxy

  11. Connection Splicing

  12. Connection Splicing • The basic idea of connection splicing • To detect when a proxy makes a transition from control mode to forwarding mode • Splice two TCP connections together into a single forwarding path through the system Unoptimized TCP forwarder Optimized TCP forwarder With spliced connection

  13. Forwarding • Primary task on FWD processing step • Change the header of incoming TCP segment to account for the differences in the two original TCP connections

  14. Forwarding (cont.) • From connection A to connection B • Output.DstPort = RemotePortB • Output.SrcPort = LocalPortB • Output.SeqNum = Input.SeqNum + SeqNumOffsetA->B • Output.Ack = Input.Ack – SeqNumOffsetB->A • Output.Cksum = Input.Cksum + CksumPatchA->B Connection A Connection B TCP forwarder

  15. Splicing • TCP buffers contain acknowledged data • Forwarder can’t let TCP acknowledge new data • Give it more data to deliver reliably • Impractical to wait until two connections go idle before completing the splice

  16. Splicing (cont.) • Two way to handle newly arriving segment during transition period • Delay the activation of spliced connection until after buffers have drained • TCP acknowledge segments • After transition is complete, buffered segments are processed by FWD • Allow FWD to begin forwarding data concurrently with draining the buffers • All newly arriving segments are delivered to both the original TCP protocol and to FWD

  17. Unsplicing • When the forwarding proxy switches from forwarding mode to control mode, connections must be unspliced • Difficult to decide when proxy should switch back to control mode • Proxy has to find control information by looking at out-of-order segments

  18. Unsplicing (cont.) • Dealing with acknowledgements makes it difficult to unsplice a connection • No acknowledged segment • Reconstruct TCP connections • Acknowledged segment • Wait for all of segments be acknowledged • Continuously monitor segment stream until copy all unacknowledged segments

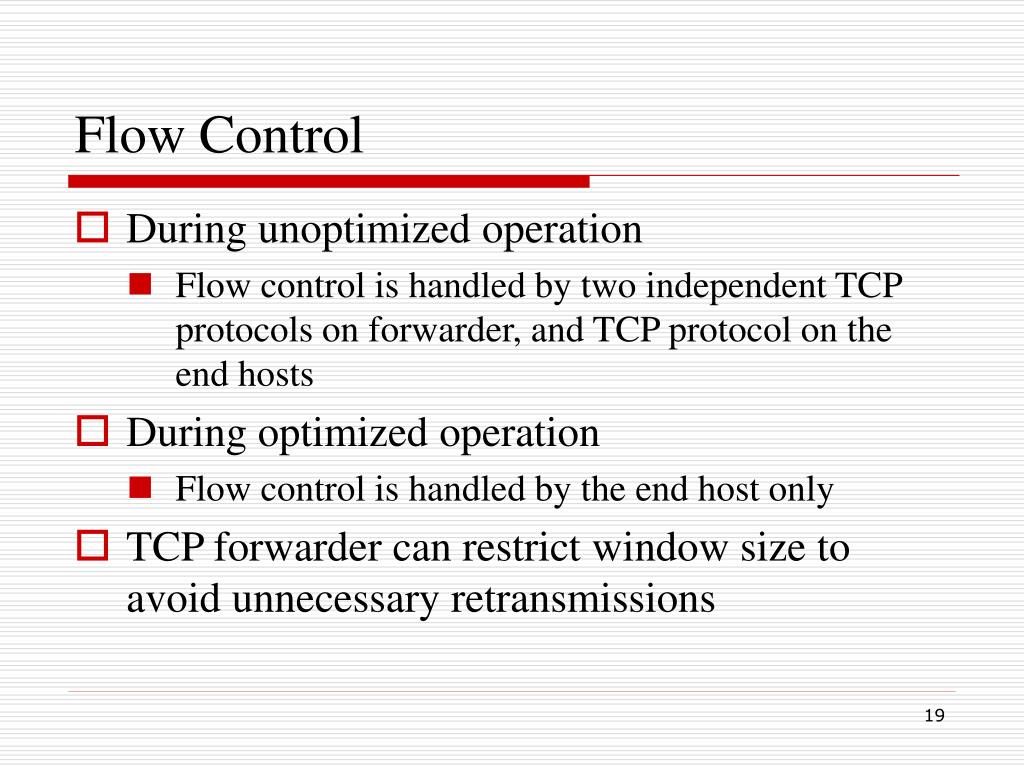

  19. Flow Control • During unoptimized operation • Flow control is handled by two independent TCP protocols on forwarder, and TCP protocol on the end hosts • During optimized operation • Flow control is handled by the end host only • TCP forwarder can restrict window size to avoid unnecessary retransmissions

  20. Additional Optimizations • Connection splicing optimization can be applied not only at TCP level, but also to unfragmented IP datagram • Forwarder can process IP datagrams similarly to an IP router, with additional TCP segment header manipulation

  21. Connection Splicing in SCOUT

  22. Connection Splicing In SCOUT • SCOUT is a configurable OS explicitly designed to support data flow • Video streams through an MPGE player • A pair of TCP connections through a firewall

  23. 2-Path • As going from one path to another often will require a context switch • Like firewall structure

  24. 1-Path • Similar to 2-path configuration, except two network devices are connected by a single path

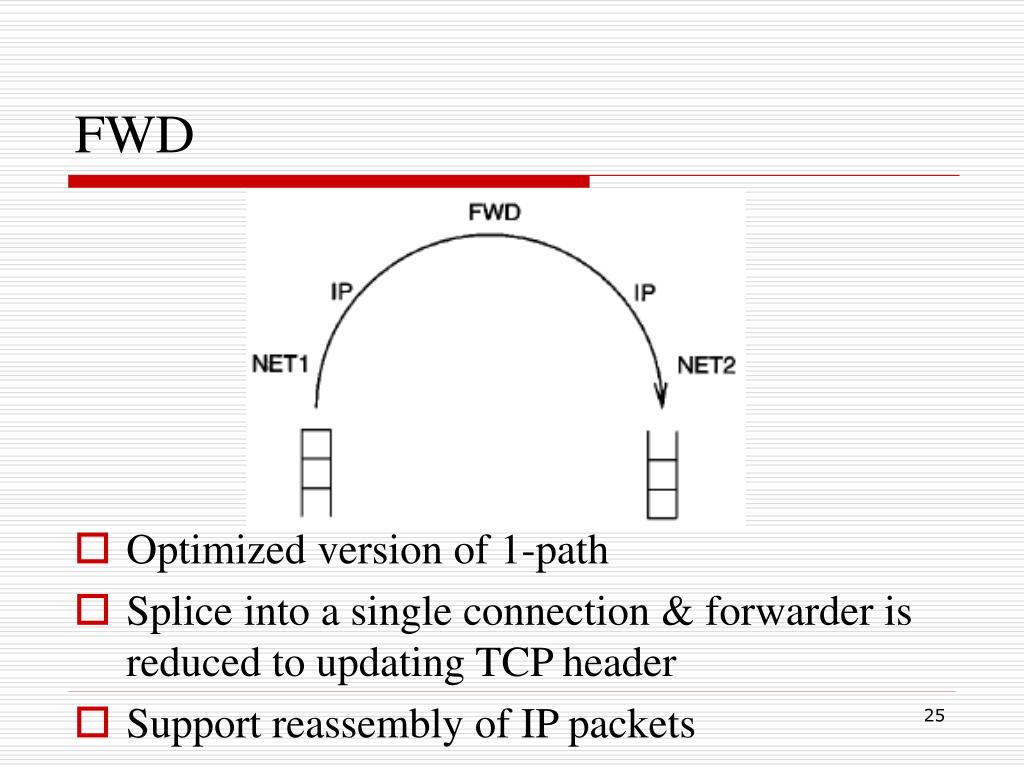

  25. FWD • Optimized version of 1-path • Splice into a single connection & forwarder is reduced to updating TCP header • Support reassembly of IP packets

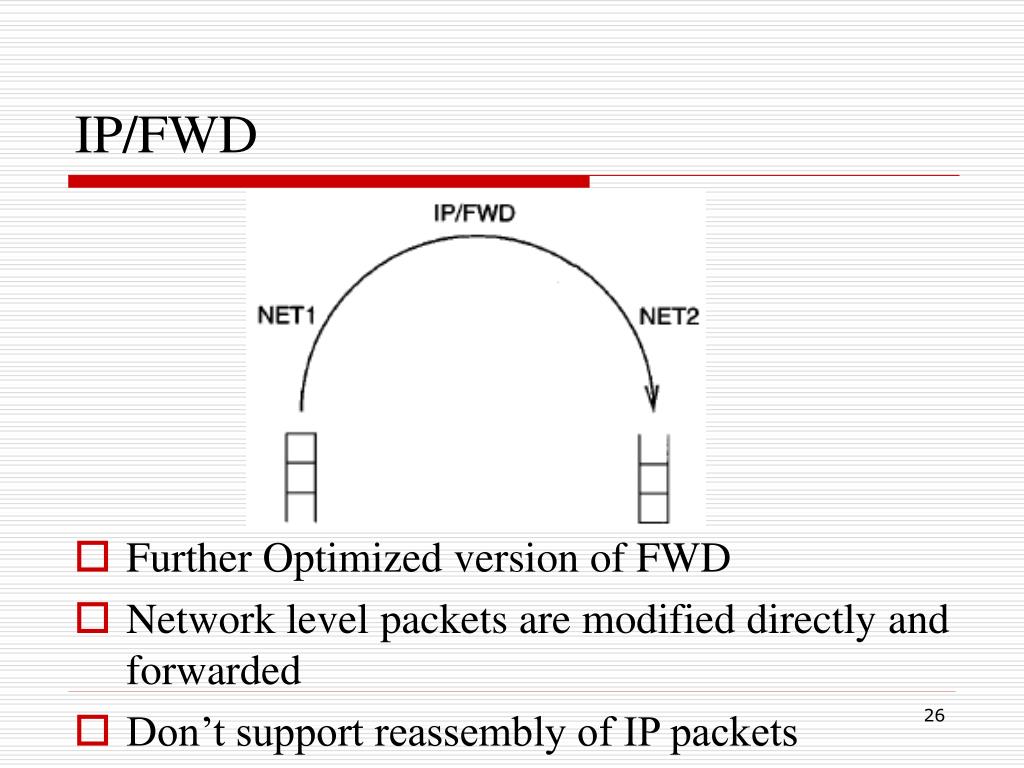

  26. IP/FWD • Further Optimized version of FWD • Network level packets are modified directly and forwarded • Don’t support reassembly of IP packets

  27. IP Router • Modify network packets directly in the same way as IP/FWD • Not update TCP header

  28. In Linux Configuration • TIS firewall • Offer full filter functionality, but use a null filter • Filtering IP router • Filtering on IP addresses, protocol & port number • Like IP/FWD case in SCOUT • IP router • Basic in-kernel Linux IP forwarding with no filtering

  29. Test Setup • 200MHz PentiumPro workstation • 256KB cache, 128MB RAM • Digital Fast EtherWORKS PCI 10/100 32-bit PCI 10/100 MB/s adapters • Linux version 2.0.30

  30. Processing Overhead • Back-to-back latency & network interface latency

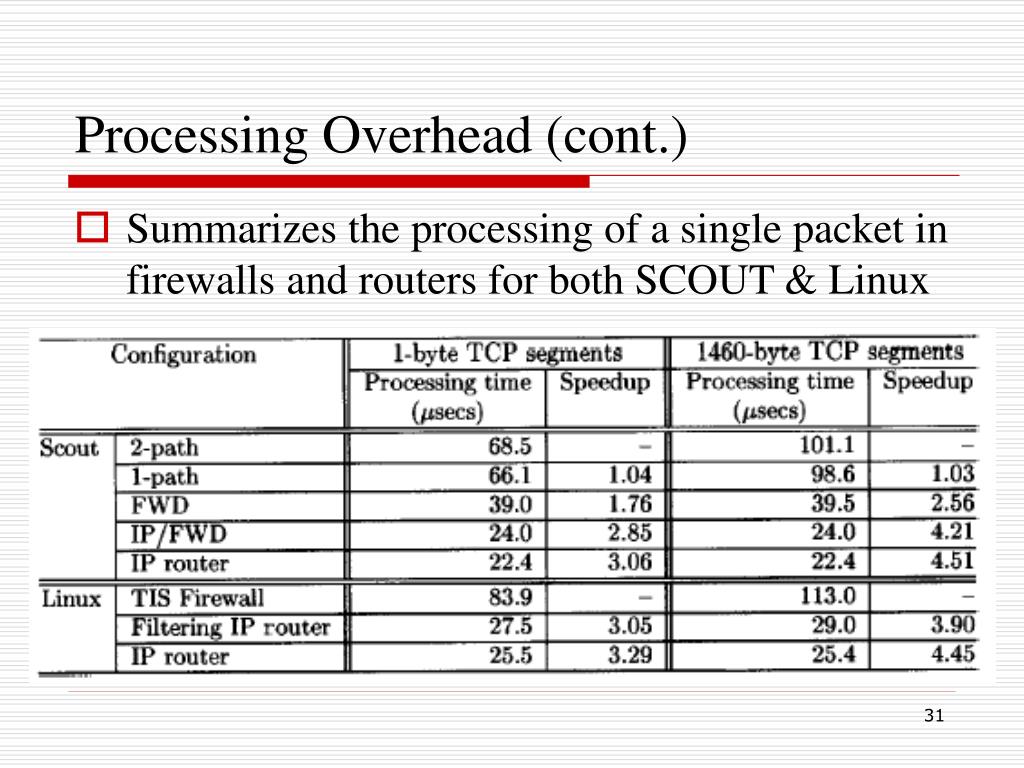

  31. Processing Overhead (cont.) • Summarizes the processing of a single packet in firewalls and routers for both SCOUT & Linux

  32. Aggregate Throughput • Measure aggregate throughput of one, two, and three concurrent TCP connections over 2-path & IP/FWD • Packet is 1460 bytes in 100Mbit Ethernet Mbyte/S

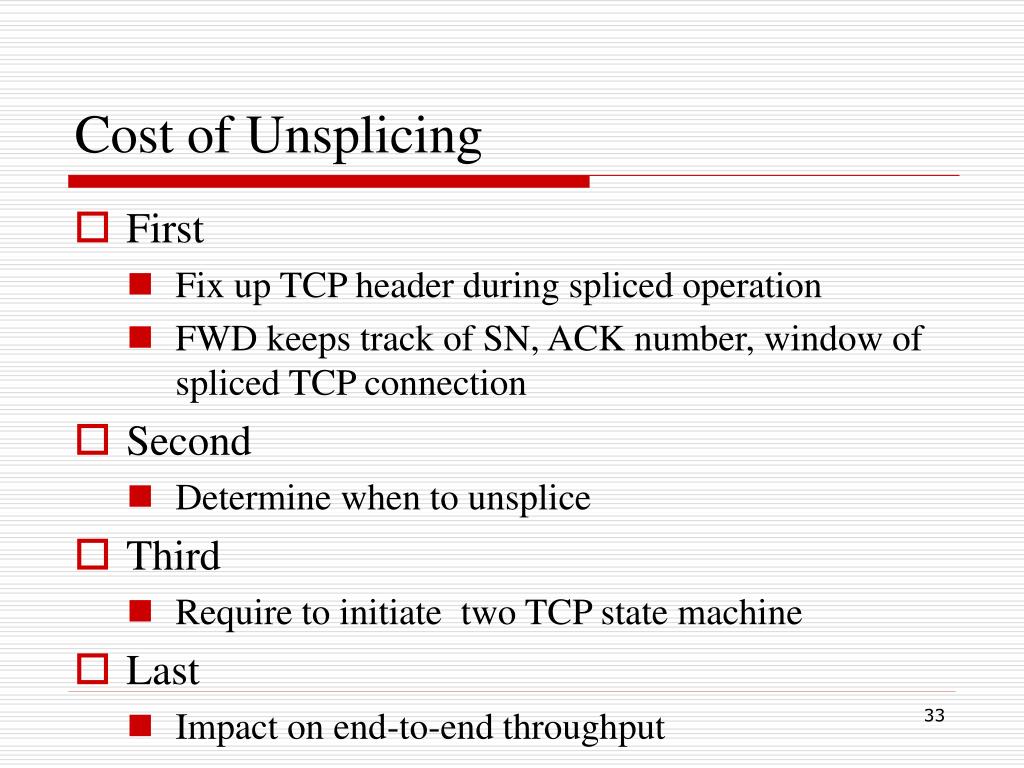

  33. Cost of Unsplicing • First • Fix up TCP header during spliced operation • FWD keeps track of SN, ACK number, window of spliced TCP connection • Second • Determine when to unsplice • Third • Require to initiate two TCP state machine • Last • Impact on end-to-end throughput

  34. Conclusion

  35. Conclusion • Connection splicing is a good idea, but it doesn’t tell us how to implement

  36. THE END

  37. Cost Of Splicing • TCP sequence number trace showing the effects of the SCOUT implementation of splicing

  38. Connection Splicing • An optimization technique that improves TCP forwarding performance • Basic idea of connection splicing • To detect when a proxy makes a transition from control mode to forwarding mode • And then splice the two TCP connections together into a single forwarding path through the system

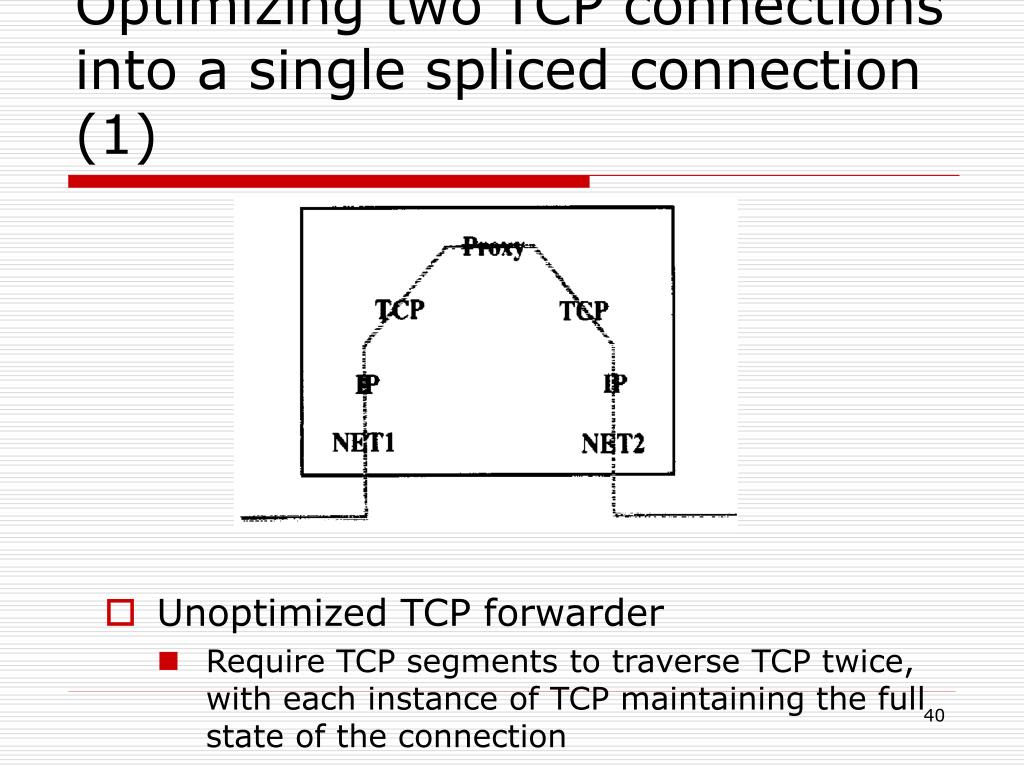

  39. Optimizing two TCP connectionsinto a single spliced connection (1) • Unoptimized TCP forwarder • Require TCP segments to traverse TCP twice, with each instance of TCP maintaining the full state of the connection

  40. Optimizing two TCP connectionsinto a single spliced connection (2) • Optimized TCP forwarder (with spliced connection) • Replace the proxy and two TCP processing steps with a single FWD processing step • FWD maintains just enough state to forward TCP segment successfully from one network to another

  41. Flow Path of TCP Forwarding • TCP forwarding starts in the unoptimized configuration • When proxy shifts from control to forwarding mode • Makes a transition to optimized configuration • When TCP forwarding back to control mode • Revert back to the unoptimized configuration

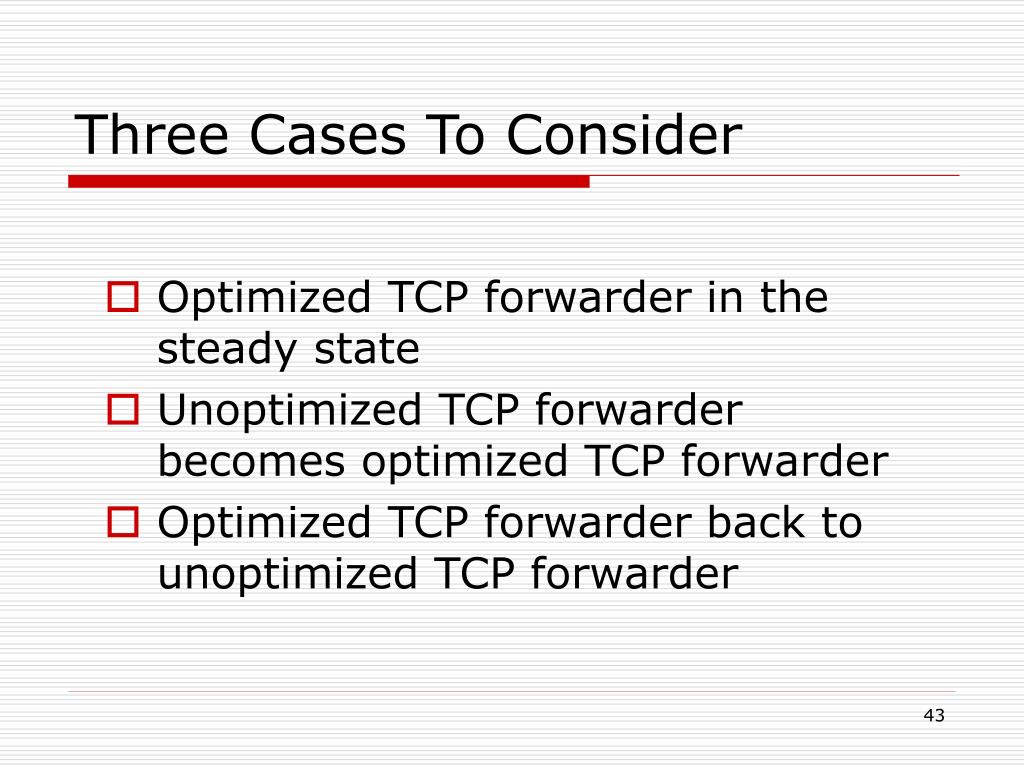

  42. Three Cases To Consider • Optimized TCP forwarder in the steady state • Unoptimized TCP forwarder becomes optimized TCP forwarder • Optimized TCP forwarder back to unoptimized TCP forwarder

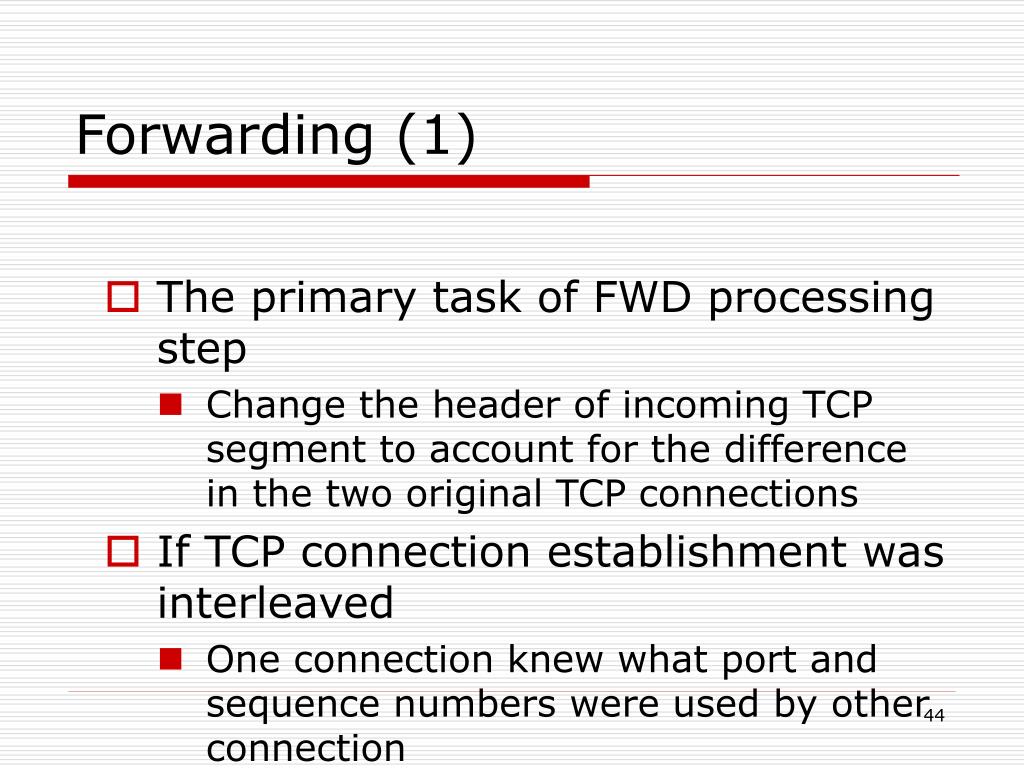

  43. Forwarding (1) • The primary task of FWD processing step • Change the header of incoming TCP segment to account for the difference in the two original TCP connections • If TCP connection establishment was interleaved • One connection knew what port and sequence numbers were used by other connection • Additional optimization are possible

  44. Forwarding (2)

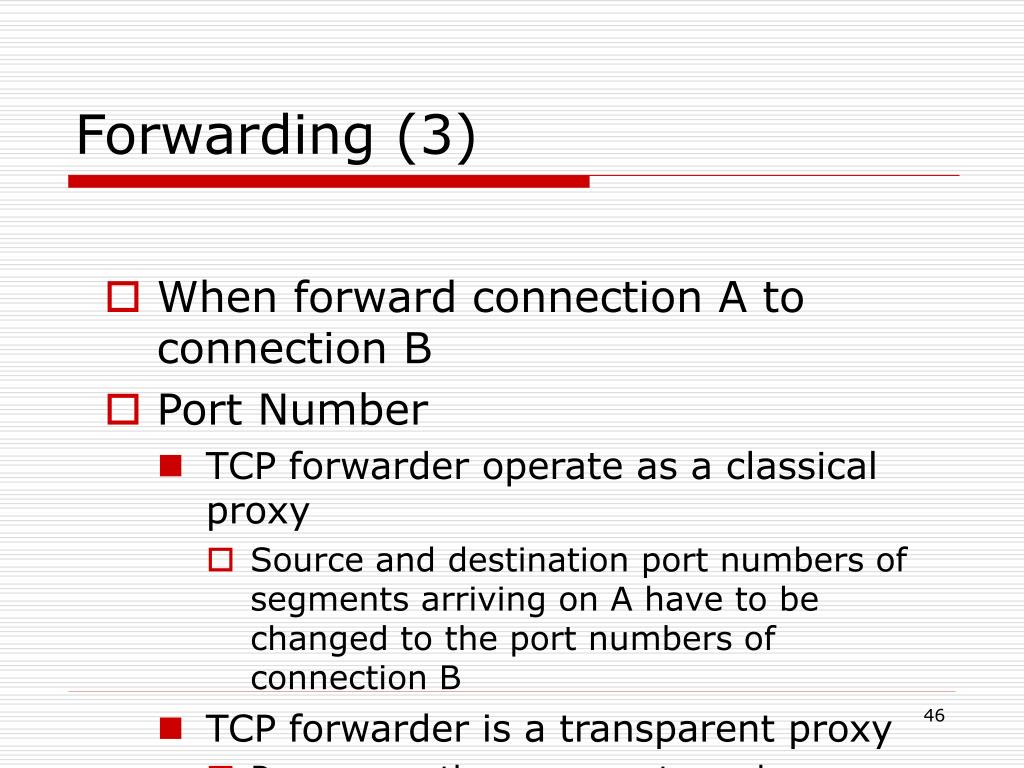

  45. Forwarding (3) • When forward connection A to connection B • Port Number • TCP forwarder operate as a classical proxy • Source and destination port numbers of segments arriving on A have to be changed to the port numbers of connection B • TCP forwarder is a transparent proxy • Proxy uses the same port numbers • Output.DstPort = RemotePortB • Output.SrcPort = LocalPortB

  46. Forwarding (4) • Sequence Number • TCP initializes SN randomly for each independent connection • The SN for an outgoing segment is computed by adding a fixed offset to the SN in the incoming segment • Output.SeqNum = Input.SeqNum + SeqNumOffsetA->B

  47. Forwarding (5) ????????? • Acknowledge Number • ACK number acknowledges SN forwarded in the other direction • ACK number in a outgoing segment is computed by subtracting from the SN in the incoming segment, the SN offset for segments flowing in the other direction • Output.Ack = Input.Ack – SeqNumOffsetB->A • In my opinion • Output.Ack = Input.Ack + SeqNumOffsetA->B

  48. Forwarding (6) • Checksum • Modifying the other fields require adjusting the TCP checksum • Output.Cksum = Input.Cksum + CksumPatchA->B

  49. Forwarding (7) • In the unspliced case • Segments sent to proxy are put to Incoming TCP stack • Check if they can reach their destination • Data are buffered in outgoing TCP stack until they are acknowledged by the destination • In the spliced case • No longer traverse the two TCP protocol stack • Not acknowledge proxy, nor resend data to destination
