  1. Architectural Reasoningin ArchJavaJonathan AldrichCraig ChambersDavid NotkinUniversity of WashingtonECOOP ‘02, 13 June 2002

  2. Software Architecture • High-level system structure [GS93,PW92] • Components and connections • Automated analysis • Support program evolution • Source of defect • Effect of change • Invariants to preserve Jonathan Aldrich - ECOOP '02 - ArchJava

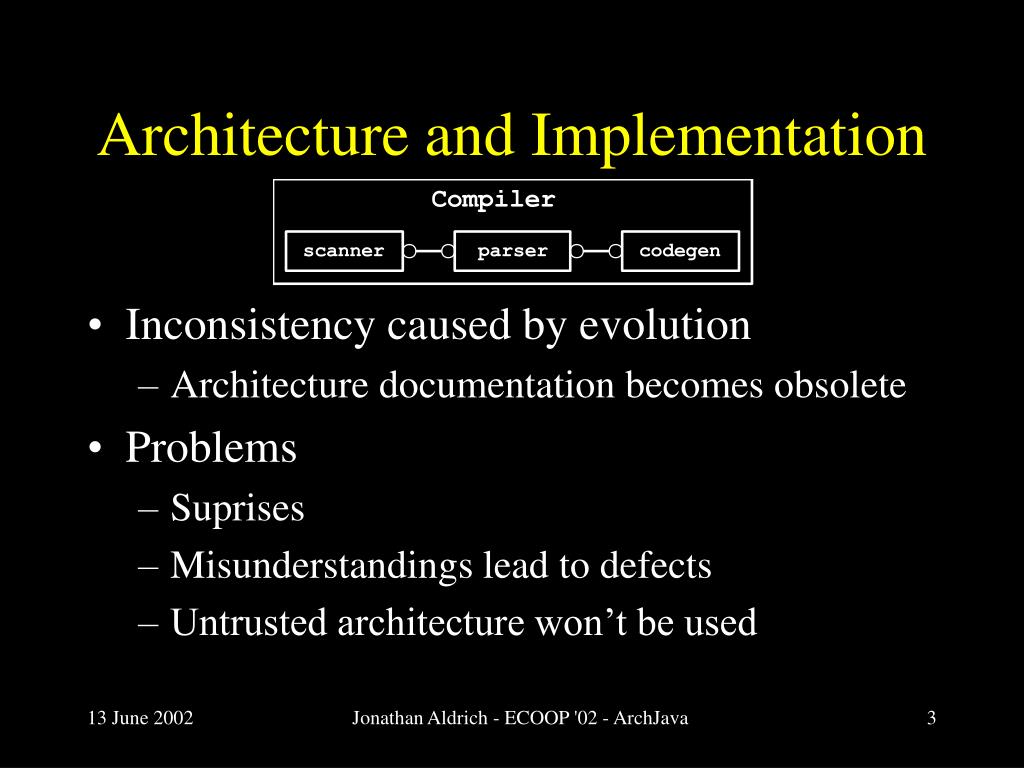

  3. Architecture and Implementation • Inconsistency caused by evolution • Architecture documentation becomes obsolete • Problems • Suprises • Misunderstandings lead to defects • Untrusted architecture won’t be used Jonathan Aldrich - ECOOP '02 - ArchJava

  4. Architecture and Implementation • Does code conform to architecture? • Communication integrity [LV95,MQR95] • All communication is documented • Interfaces and connectivity • Enables effective architectural reasoning • Quickly learn how components fit together • Local information is sufficient Jonathan Aldrich - ECOOP '02 - ArchJava

  5. ArchJava • Specifies architecture within Java code • Verifies control flow architecture • Statically checked (except for casts, as in Java) • Code and architecture evolve together • Is flexible • Supports dynamically changing architectures • Allows common implementation techniques • Case study on a 12,000-line program • Evaluates expressiveness, benefits, limitations Jonathan Aldrich - ECOOP '02 - ArchJava

  6. A Parser Component public component class Parser { Component class • Defines architectural object • Must obey architectural constraints Jonathan Aldrich - ECOOP '02 - ArchJava

  7. A Parser Component public component class Parser { public port in { requires Token nextToken(); } public port out { provides AST parse(); } Components communicate through Ports • A two-way interface • Define provided and required methods Jonathan Aldrich - ECOOP '02 - ArchJava

  8. A Parser Component public component class Parser { public port in { requiresToken nextToken(); } public port out { providesAST parse(); } Ordinary (non-component) objects • Passed between components • Sharing is permitted • Can use just as in Java Jonathan Aldrich - ECOOP '02 - ArchJava

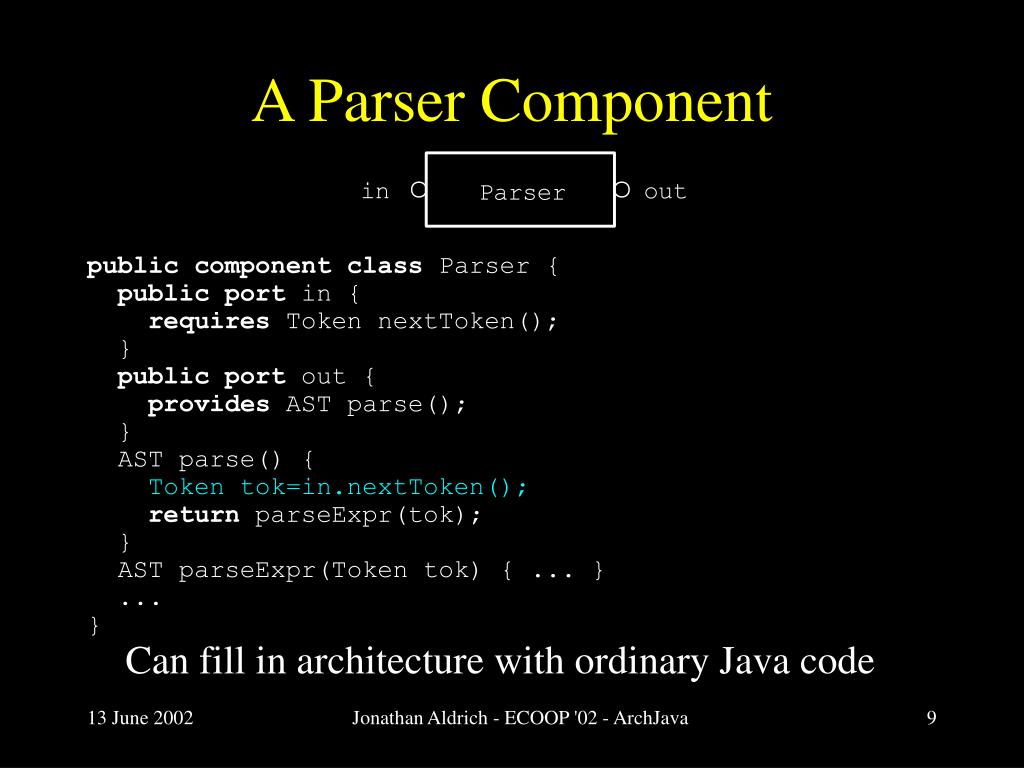

  9. A Parser Component public component class Parser { public port in { requires Token nextToken(); } public port out { provides AST parse(); } AST parse() { Token tok=in.nextToken(); return parseExpr(tok); } AST parseExpr(Token tok) { ... } ... } Can fill in architecture with ordinary Java code Jonathan Aldrich - ECOOP '02 - ArchJava

  10. Hierarchical Composition public component class Compiler { private final Scanner scanner = new Scanner(); private final Parser parser = new Parser(); private final CodeGen codegen = new CodeGen(); Subcomponents • Component instances inside another component • Communicate through connected ports Jonathan Aldrich - ECOOP '02 - ArchJava

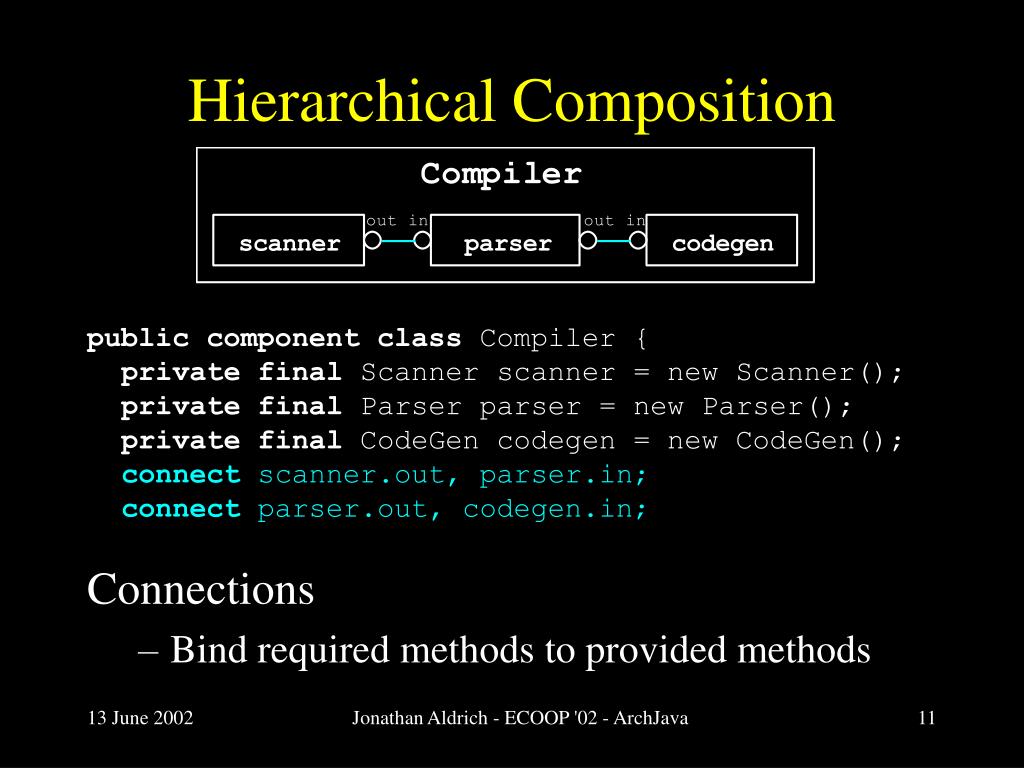

  11. Hierarchical Composition public component class Compiler { private final Scanner scanner = new Scanner(); private final Parser parser = new Parser(); private final CodeGen codegen = new CodeGen(); connect scanner.out, parser.in; connect parser.out, codegen.in; Connections • Bind required methods to provided methods Jonathan Aldrich - ECOOP '02 - ArchJava

  12. Evaluation Questions • Does ArchJava guarantee communication integrity? • Is ArchJava expressive enough for real systems? • What are the benefits and limitations of ArchJava? Jonathan Aldrich - ECOOP '02 - ArchJava

  13. Communication Integrity A component may only communicate with the components it is connected to in the architecture ArchJava enforces integrity for control flow • No method calls permitted from one component to another except • From a parent to its nested subcomponents • Through connections in the architecture Jonathan Aldrich - ECOOP '02 - ArchJava

  14. Communication Integrity A component may only communicate with the components it is connected to in the architecture ArchJava enforces integrity for control flow • No method calls permitted from one component to another except • From a parent to its immediate subcomponents • Through connections in the architecture Jonathan Aldrich - ECOOP '02 - ArchJava

  15. Communication Integrity A component may only communicate with the components it is connected to in the architecture ArchJava enforces integrity for control flow Other communication paths • Shared data (current work) • Run-time system Jonathan Aldrich - ECOOP '02 - ArchJava

  16. Control Communication Integrity • Architecture allows • Calls between connected components Jonathan Aldrich - ECOOP '02 - ArchJava

  17. Control Communication Integrity • Architecture allows • Calls between connected components • Calls from a parent to its immediate subcomponents Jonathan Aldrich - ECOOP '02 - ArchJava

  18. Control Communication Integrity • Architecture allows • Calls between connected components • Calls from a parent to its immediate subcomponents • Architecture forbids • External calls to subcomponents Jonathan Aldrich - ECOOP '02 - ArchJava

  19. Control Communication Integrity • Architecture allows • Calls between connected components • Calls from a parent to its immediate subcomponents • Architecture forbids • External calls to subcomponents • Calls between unconnected subcomponents Jonathan Aldrich - ECOOP '02 - ArchJava

  20. Control Communication Integrity • Architecture allows • Calls between connected components • Calls from a parent to its immediate subcomponents • Architecture forbids • External calls to subcomponents • Calls between unconnected subcomponents • Calls violating architectural hierarchy • Benefit: local reasoning about control flow Jonathan Aldrich - ECOOP '02 - ArchJava

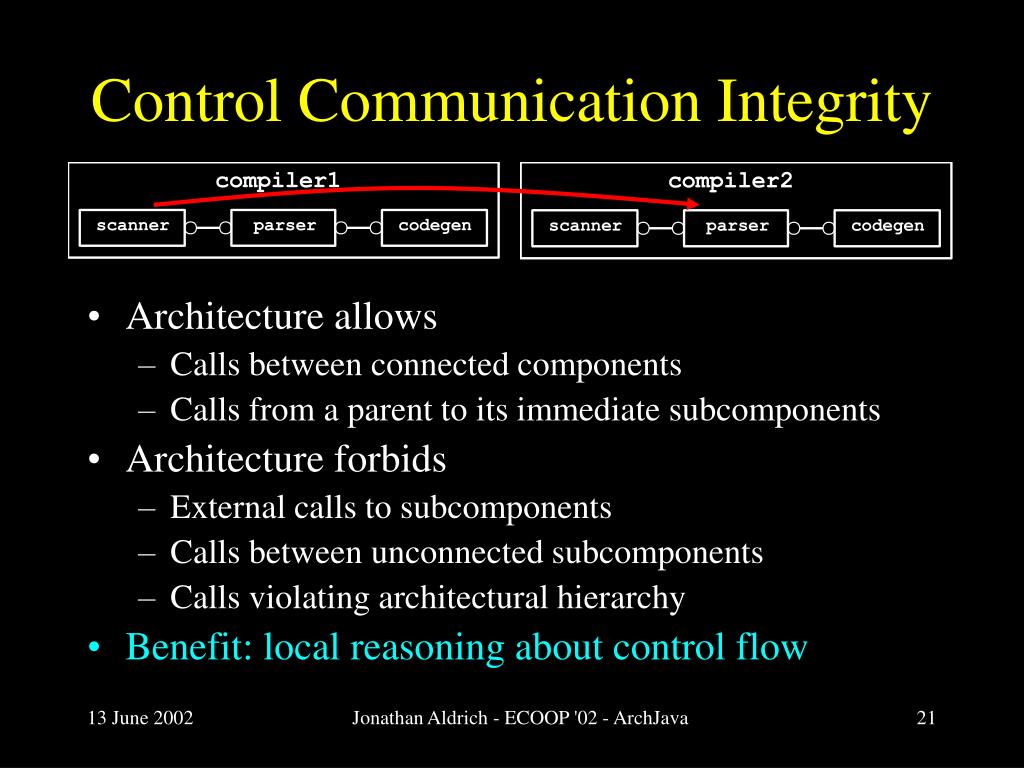

  21. Control Communication Integrity • Architecture allows • Calls between connected components • Calls from a parent to its immediate subcomponents • Architecture forbids • External calls to subcomponents • Calls between unconnected subcomponents • Calls violating architectural hierarchy • Benefit: local reasoning about control flow Jonathan Aldrich - ECOOP '02 - ArchJava

  22. Why Not Use Modules? • Implicit Invocation Example • Jiazzi [MFH01] : strong encapsulation, module linking • Action object is passed down pipeline • Invocations through action violate architecture • Other issues • First-class functions • Dynamic architectures • Instance encapsulation Jonathan Aldrich - ECOOP '02 - ArchJava

  23. Why Not Use Modules? • Implicit Invocation Example • Jiazzi [MFH01] : strong encapsulation, module linking • Action object is passed down pipeline • Invocations through action violate architecture • Other issues • First-class functions • Dynamic architectures • Instance encapsulation Jonathan Aldrich - ECOOP '02 - ArchJava

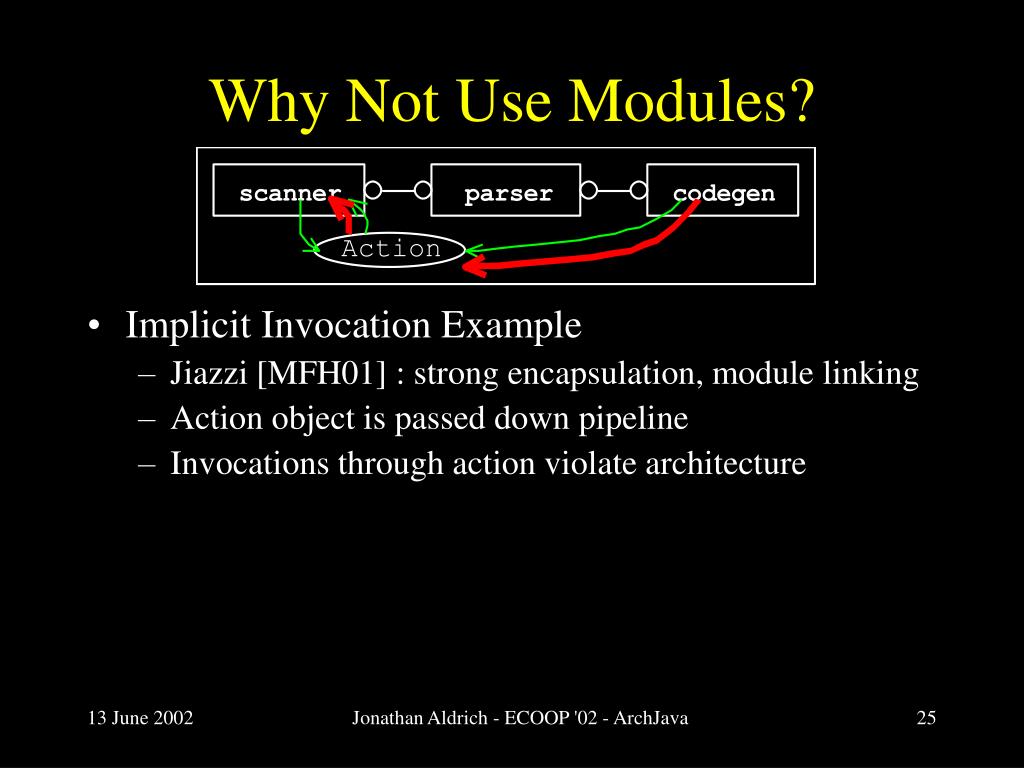

  24. Why Not Use Modules? • Implicit Invocation Example • Jiazzi [MFH01] : strong encapsulation, module linking • Action object is passed down pipeline • Invocations through action violate architecture • Other issues • First-class functions • Dynamic architectures • Instance encapsulation Jonathan Aldrich - ECOOP '02 - ArchJava

  25. Why Not Use Modules? • Implicit Invocation Example • Jiazzi [MFH01] : strong encapsulation, module linking • Action object is passed down pipeline • Invocations through action violate architecture • Other issues • First-class functions • Dynamic architectures • Instance encapsulation Jonathan Aldrich - ECOOP '02 - ArchJava

  26. Why Not Use Modules? • Implicit Invocation Example • Jiazzi [MFH01] : strong encapsulation, module linking • Action object is passed down pipeline • Invocations through action violate architecture • Other issues • First-class functions (like Actions) • Instance encapsulation (2 compiler example) • Dynamically changing architectures Jonathan Aldrich - ECOOP '02 - ArchJava

  27. Action Example in ArchJava X • Classes can’t refer to components • Action can’t store reference to scanner component • Components can share Action • Allows communication through side effects • current work: specify & enforce this • Type system prevents control flow through Action Jonathan Aldrich - ECOOP '02 - ArchJava

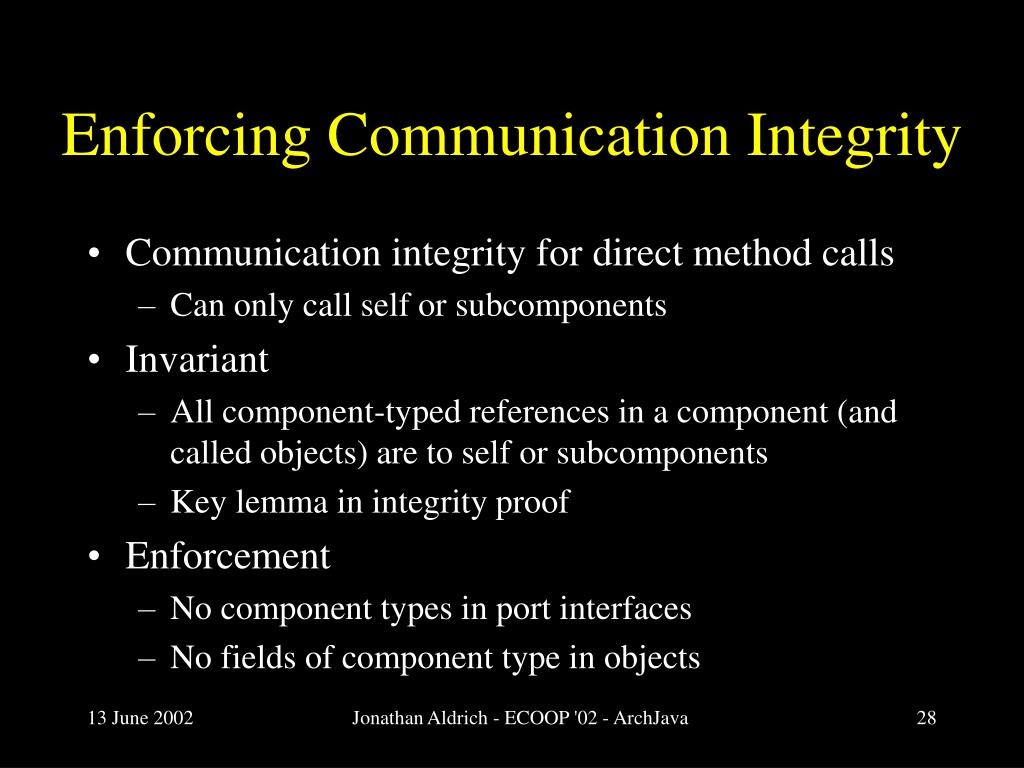

  28. Enforcing Communication Integrity • Communication integrity for direct method calls • Can only call self or subcomponents • Invariant • All component-typed references in a component (and called objects) are to self or subcomponents • Key lemma in integrity proof • Enforcement • No component types in port interfaces • No fields of component type in objects Jonathan Aldrich - ECOOP '02 - ArchJava

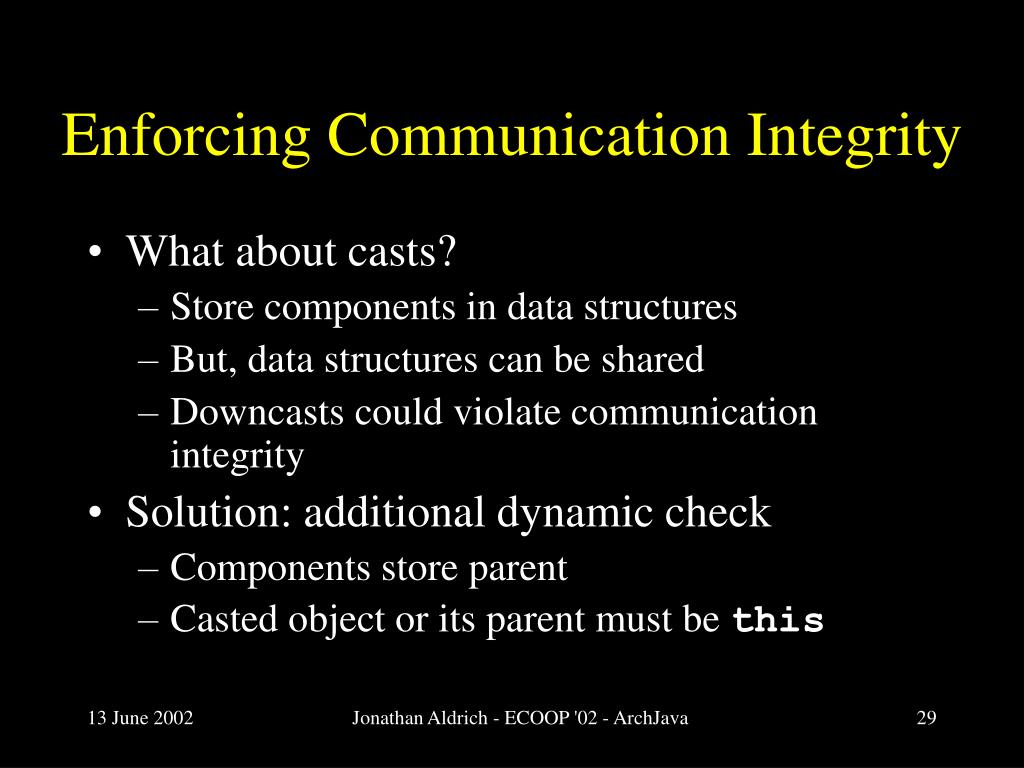

  29. Enforcing Communication Integrity • What about casts? • Store components in data structures • But, data structures can be shared • Downcasts could violate communication integrity • Solution: additional dynamic check • Components store parent • Casted object or its parent must be this Jonathan Aldrich - ECOOP '02 - ArchJava

  30. Other Integrity Issues • Dynamically changing architectures • Patterns specify permissible connections • Dependent types • Relate a connection to a component instance • Restrictions on inheritance, inner classes • e.g., components may not implement interfaces • Reasonable in component libraries • Relax to use existing Java libraries • Investigating ways to relax restrictions safely Jonathan Aldrich - ECOOP '02 - ArchJava

  31. ArchFJ : A Formal Framework • Based on Featherweight Java [OOPSLA 99] • Includes components, ports, connections • Benefits • Precise semantics • Shows how integrity is enforced • Proven: • Type safety • Control communication integrity Jonathan Aldrich - ECOOP '02 - ArchJava

  32. Evaluation Questions • Does ArchJava guarantee control communication integrity? • Yes, using the type system • Is ArchJava expressive enough for real systems? • What are the benefits and limitations of ArchJava? • Two case studies • 12,000 lines of Java code each • Asked developer to draw architecture • Tried to specify architecture in ArchJava Jonathan Aldrich - ECOOP '02 - ArchJava

  33. Evaluation Questions • Does ArchJava guarantee control communication integrity? • Yes, using the type system • Is ArchJava expressive enough for real systems? • What are the benefits and limitations of ArchJava? • Case study: Taprats • 12,000 lines of Java code • Two challenges • Drawn by original developer • Dynamic changes Jonathan Aldrich - ECOOP '02 - ArchJava

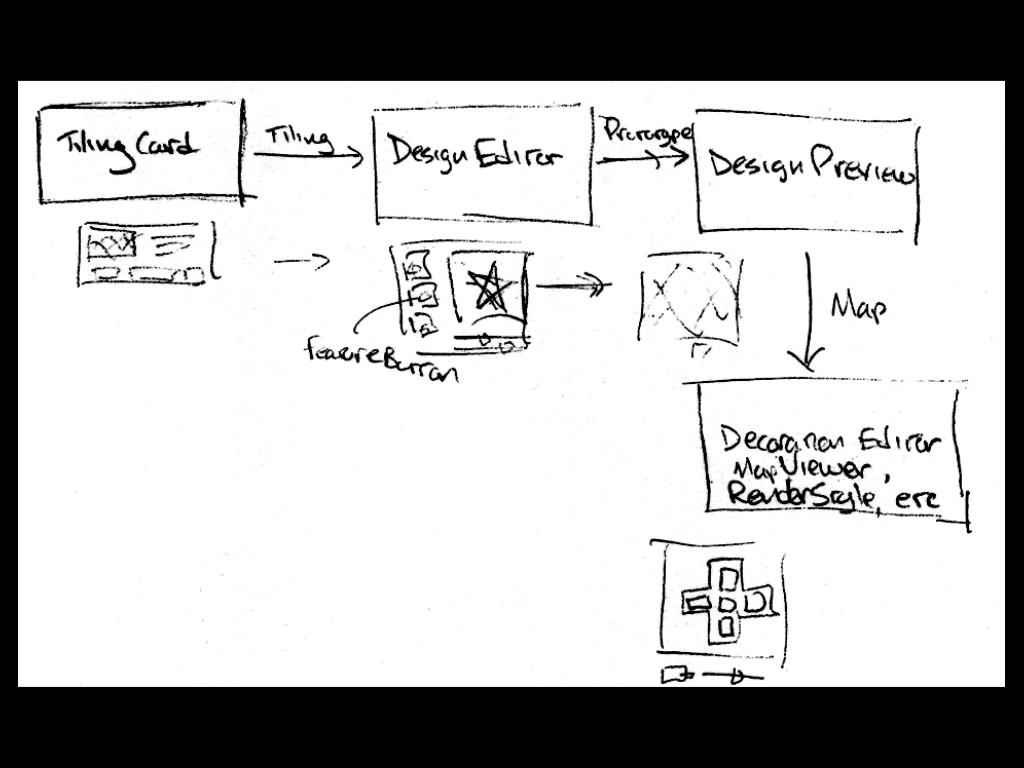

  34. Jonathan Aldrich - ECOOP '02 - ArchJava

  35. Architectural Comparison Jonathan Aldrich - ECOOP '02 - ArchJava

  36. ArchJava Architecture • Architecture shows design characteristics • Pipeline of components • Dynamically created • Largely independent • Architecture matches intuition • But ArchJava guarantees correctness! • Architecture evolves with implementation Jonathan Aldrich - ECOOP '02 - ArchJava

  37. Evaluation Questions • Does ArchJava guarantee control communication integrity? • Yes • Is ArchJava expressive enough for real systems? • Yes (validated by 2 other case studies) • Three experiments • Understanding Aphyds communication • Refactoring Aphdys • Reparing a defect Jonathan Aldrich - ECOOP '02 - ArchJava

  38. Evaluation Questions • Does ArchJava guarantee control communication integrity? • Yes • Is ArchJava expressive enough for real systems? • Yes (validated by 2 other case studies) • What are the benefits and limitations of ArchJava? Jonathan Aldrich - ECOOP '02 - ArchJava

  39. RenderView PreviewPanel Coupling in Taprats RenderPanel render.getView().setTheta(t); • PreviewPanel coupled to RenderPanel • Depends on View representation of RenderPanel • Programs are fragile, change is difficult • Law of Demeter [Lieberherr et al.] • Design guideline • “Only talk with your neighbors” Jonathan Aldrich - ECOOP '02 - ArchJava

  40. PreviewPanel Taprats in ArchJava RenderPanel RenderView render.getView().setTheta(t); • Control communication integrity • Components only talk with connected components • Compile-time error in ArchJava • PreviewPanel can only reference local connections • Call through architecture, reducing coupling Hypothesis: Enforcing communication integrity helps to reduce system coupling Jonathan Aldrich - ECOOP '02 - ArchJava

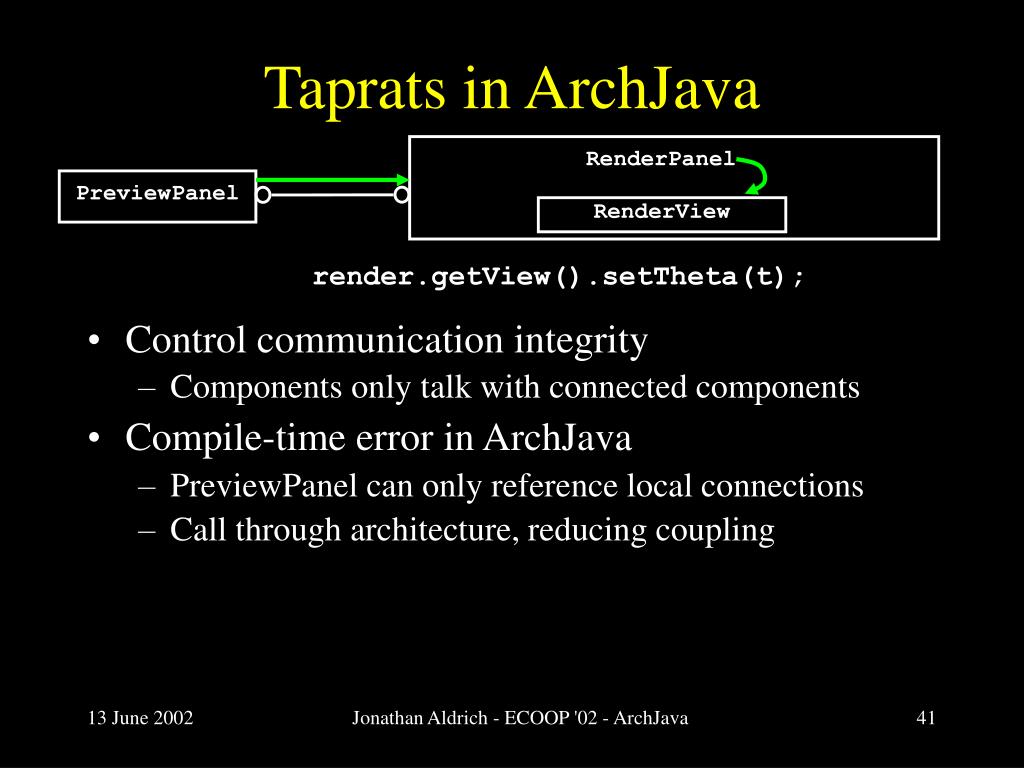

  41. PreviewPanel Taprats in ArchJava RenderPanel RenderView render.getView().setTheta(t); • Control communication integrity • Components only talk with connected components • Compile-time error in ArchJava • PreviewPanel can only reference local connections • Call through architecture, reducing coupling Hypothesis: Enforcing communication integrity helps to reduce system coupling Jonathan Aldrich - ECOOP '02 - ArchJava

  42. PreviewPanel Taprats in ArchJava RenderPanel RenderView render.getView().setTheta(t); • Control communication integrity • Components only talk with connected components • Compile-time error in ArchJava • PreviewPanel can only reference local connections • Call through architecture, reducing coupling Hypothesis: Enforcing communication integrity helps to reduce system coupling Jonathan Aldrich - ECOOP '02 - ArchJava

  43. Case Study Summary • Successful overall • Expressed dynamic architecture • Made design explicit • Reduced coupling • Low cost (5 hours, 500 lines of additional code) • Lessons Learned • Some unnecessary casts • Creation slightly awkward Jonathan Aldrich - ECOOP '02 - ArchJava

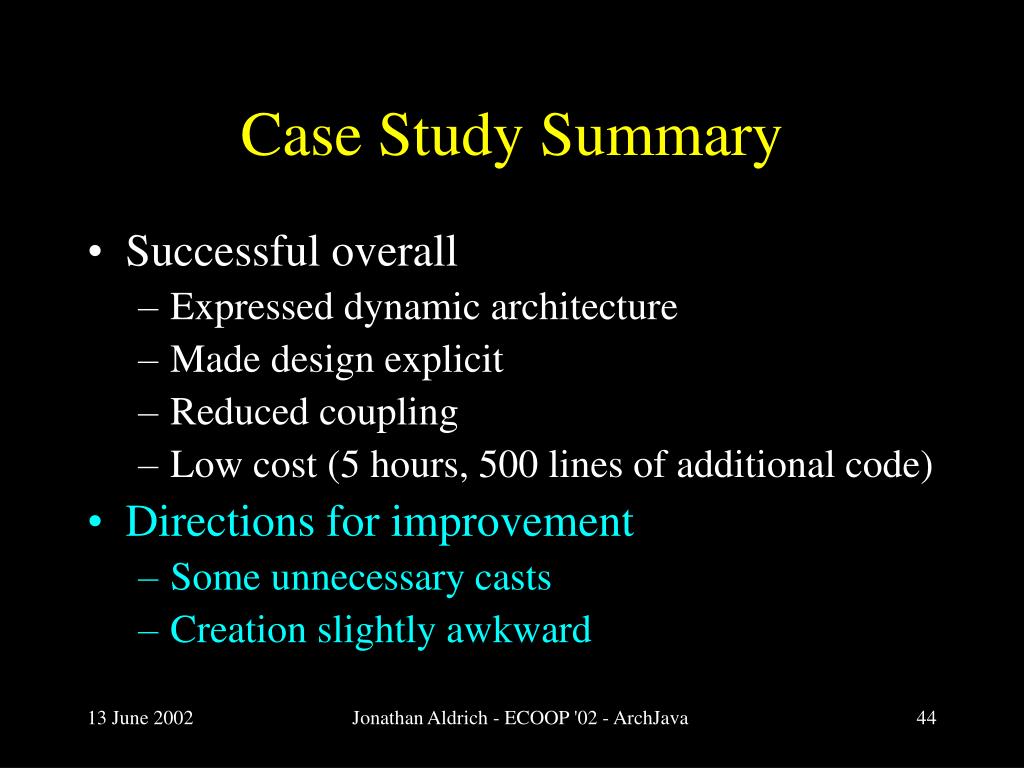

  44. Case Study Summary • Successful overall • Expressed dynamic architecture • Made design explicit • Reduced coupling • Low cost (5 hours, 500 lines of additional code) • Directions for improvement • Some unnecessary casts • Creation slightly awkward Jonathan Aldrich - ECOOP '02 - ArchJava

  45. More in paper • Formalization of language & properties • Architectural design principles • Architectural refactoring patterns • Comparison to earlier case study Jonathan Aldrich - ECOOP '02 - ArchJava

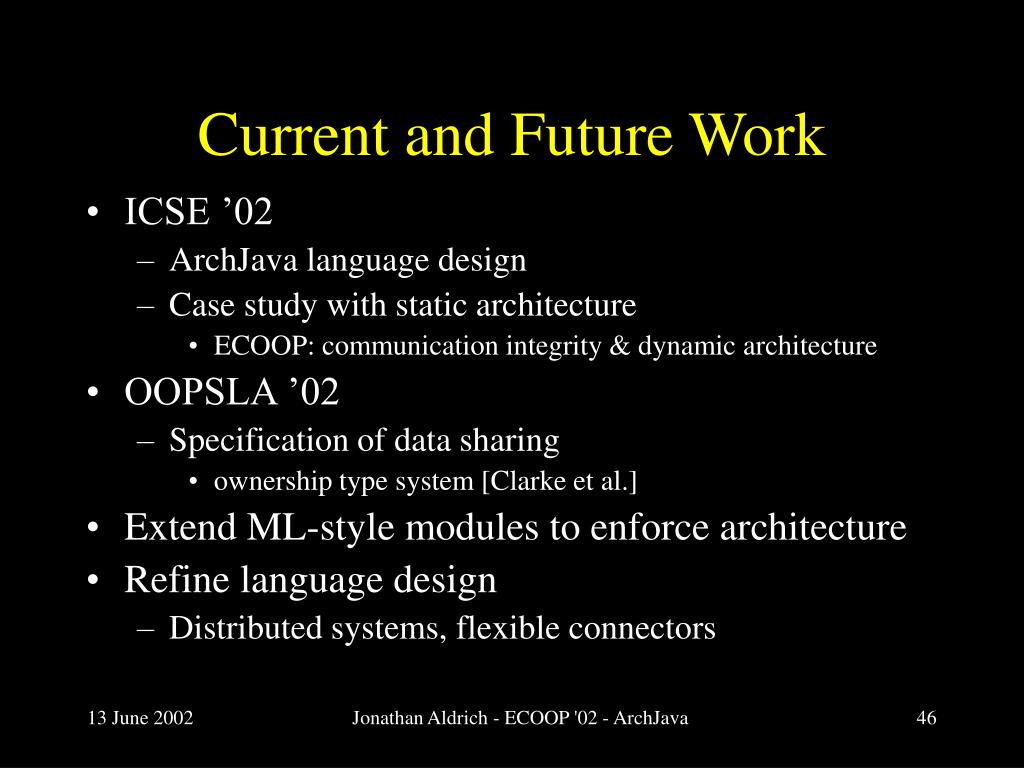

  46. Current and Future Work • ICSE ’02 • ArchJava language design • Case study with static architecture • ECOOP: communication integrity & dynamic architecture • OOPSLA ’02 • Specification of data sharing • ownership type system [Clarke et al.] • Extend ML-style modules to enforce architecture • Refine language design • Distributed systems, flexible connectors Jonathan Aldrich - ECOOP '02 - ArchJava

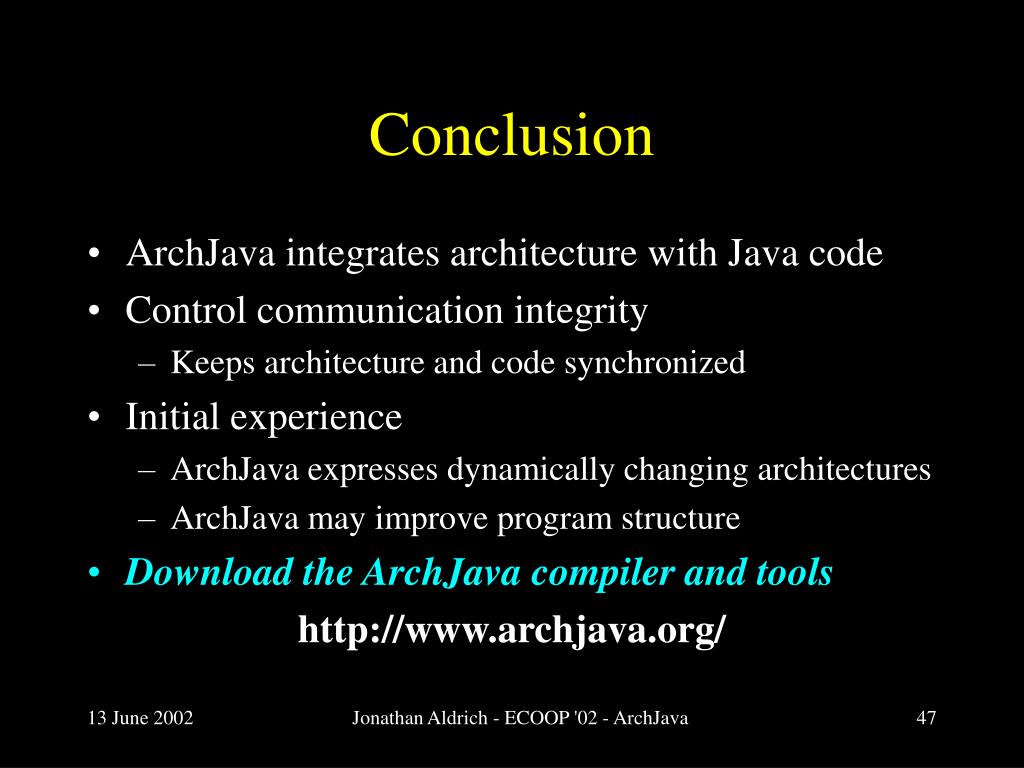

  47. Conclusion • ArchJava integrates architecture with Java code • Control communication integrity • Keeps architecture and code synchronized • Initial experience • ArchJava expresses dynamically changing architectures • ArchJava may improve program structure • Download the ArchJava compiler and tools http://www.archjava.org/ Jonathan Aldrich - ECOOP '02 - ArchJava

  48. Limitations of ArchJava • Some idioms are awkward • Implicit invocation architectures • Dynamic component creation and connection • Some extra casts • Architecture is very concrete • Connections must be method calls • Can’t express all architectural properties • Data sharing (partial solution: OOPSLA ‘02) • Others (temporal protocols, styles, etc.) Jonathan Aldrich - ECOOP '02 - ArchJava
