Recent cross-wiring issue and implication for circuits protection. Bozhidar Panev TE-MPE-CP 14.04.2011. Short chronology of the event from 07.04.2011. FPA during pre-cycle on RB.A45 at 07:12:09.270 Energy was extracted without problems. Current in main circuit – 2349A
E N D
Recent cross-wiring issue and implication for circuits protection Bozhidar Panev TE-MPE-CP 14.04.2011
Short chronology of the event from 07.04.2011 • FPA during pre-cycle on RB.A45 at 07:12:09.270 • Energy was extracted without problems. Current in main circuit – 2349A • The origin of the trip was found: • DQQDC board_A detected: U_HTS = 3mV and open the quench loop. U_RES in the same moment was ~20mV (threshold 100mV) • The new feature recently introduced in main current lead protection units toggles detector boards (every 25s) allowing to record U_HTS and U_RES also for the redundant channel (board_B)
Short chronology of the event from 07.04.2011 • Unusual behavior has been pointed out between board A and B in respect of U_HTS. • Both two boards were checked through QPS Test Mode, simulating a voltage rise on the HTS and/or Resistive part • Correct performance observed of board A and B • Analysis of the event’s data and results from Test Mode bring the conclusion of abnormal behavior of U_HTS concerning board_B • Eventual short in the cable or inverted pins (Hypothesis of Reiner) • Giorgio also assured no errors found between PE and cold part of leads during ELQA campaign
What was wrong? • Intervention in the Tunnel to check the cabling and discover what was wrong • Cable patch - correct • The Error was found in connector P60 of cable between QPS crate and Proximity cable patch. Pin 15(EE22) and 16(EE42) were inverted.
Verification for correct wiring of 13kA circuits (RB,RQD,RQF) • Due to the available acquisition data from boards A and B. It became possible to check by TIMBER the rest RB, RQD/F circuits for swapped pins. • The only what was necessary to be done was take a look and check how U_HTS and U_RES behave during the rump. U_HTS Board_A I_MEAS U_HTS Board_B

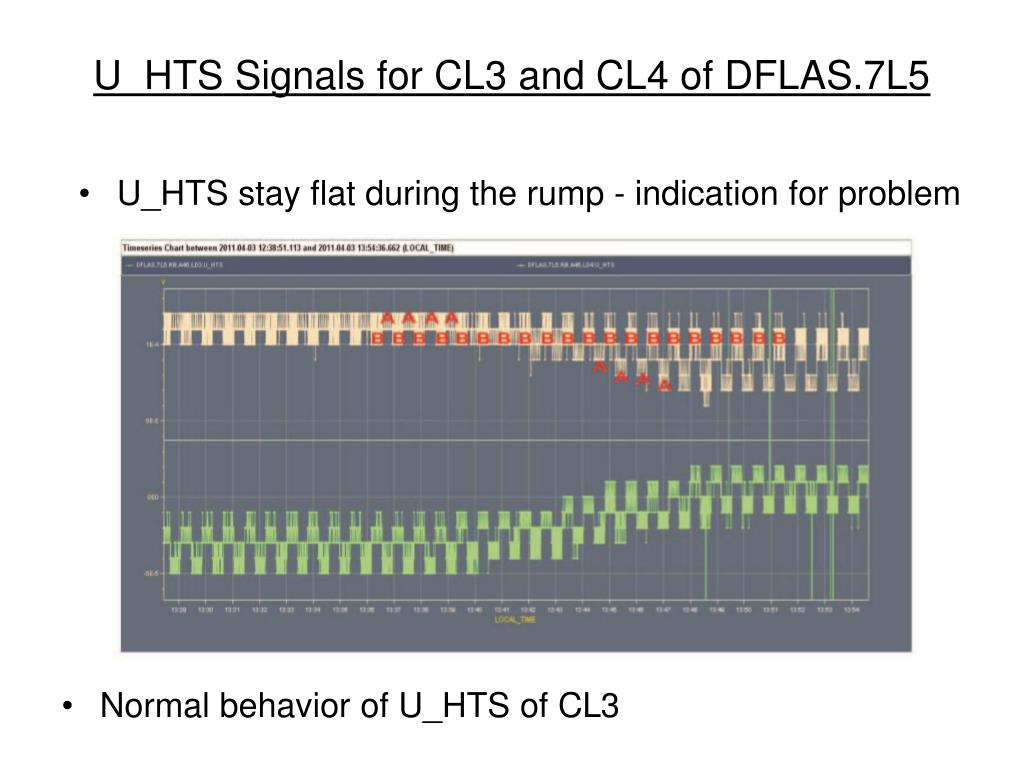

U_HTS Signals for CL3 and CL4 of DFLAS.7L5 • U_HTS stay flat during the rump - indication for problem • Normal behavior of U_HTS of CL3
Verification for correct wiring of all IPDs, IPQs and ITs circuits – 08th of April • A dedicated PNO.a7 which does unbalanced powering was carried out over all IPQs. • As no automatic swap between boards. The test has been done twice. Once at board_A and second at board_B. • For IPDs and ITs a manual rump was done. • Difficulties that were found: • When tried to switch to board_B, some B_board did not give power permit (13 circuits). It has required a local power-cycle. • The analysis of U_HTS signals
Criteria for correct wiring of IPQs, IPDs and ITs • Verification of U_RES and U_HTS for all IPDs, IPQS, ITs • Done for board A and B • Resistive part of leads during asymmetric powering of RQ.8R1 • HTS part of leads during asymmetric powering of RQ.8R1
Conclusion 8th of April • On Thu 7th of April all 13kA circuits were checked for correct wiring. • On Fri 8th April all IPDs, IPQs, ITs also pased verification. • 600A were not checked because its were checked by QPS team before with a correct procedure and dedicated tester – all tests are documented • Green light for powering has been given
