  1. Soil and Practice Effects Bare Mulch + Grass Silt Fence Sediment Trap R. A. McLaughlin NCSU Soil Science

  2. Ground Covers: Protect From Droplets R. A. McLaughlin NCSU Soil Science

  3. Mulch Doesn’t Work In Ditches Mulch piled up at rock check dam. R. A. McLaughlin NCSU Soil Science

  4. Erosion – Even on Flat, Sandy Sites! R. A. McLaughlin NCSU Soil Science

  5. Soft Armor for Gentle Slopes R. A. McLaughlin NCSU Soil Science

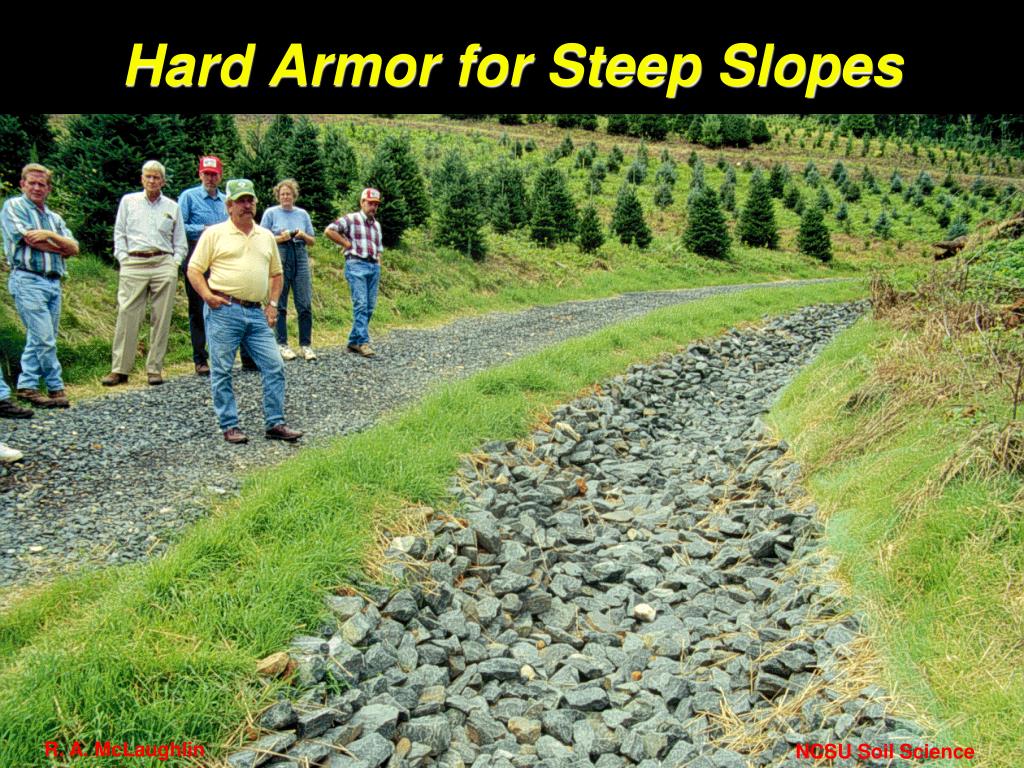

  6. Hard Armor for Steep Slopes R. A. McLaughlin NCSU Soil Science

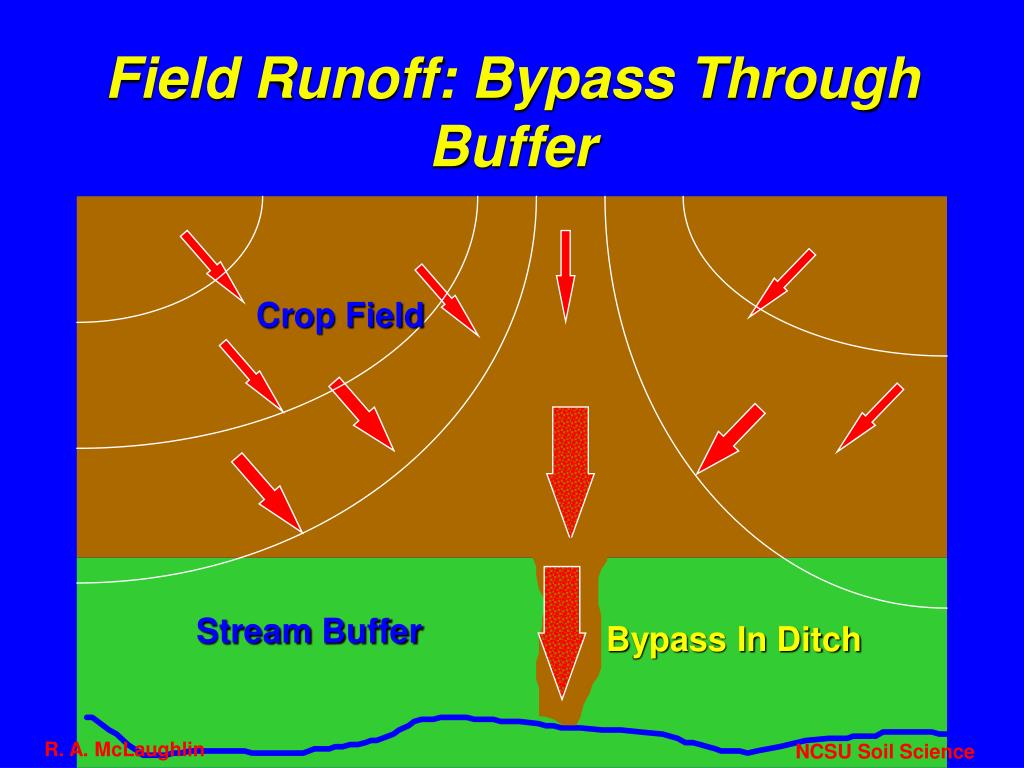

  7. Field Runoff: Bypass Through Buffer Crop Field StreamBuffer Bypass In Ditch R. A. McLaughlin NCSU Soil Science

  8. Field Runoff: Spread Across Buffer For Treatment Crop Field Spreader StreamBuffer Sheet Flow R. A. McLaughlin NCSU Soil Science

  9. Silt Fence: Works but Needs Maintenance! R. A. McLaughlin NCSU Soil Science

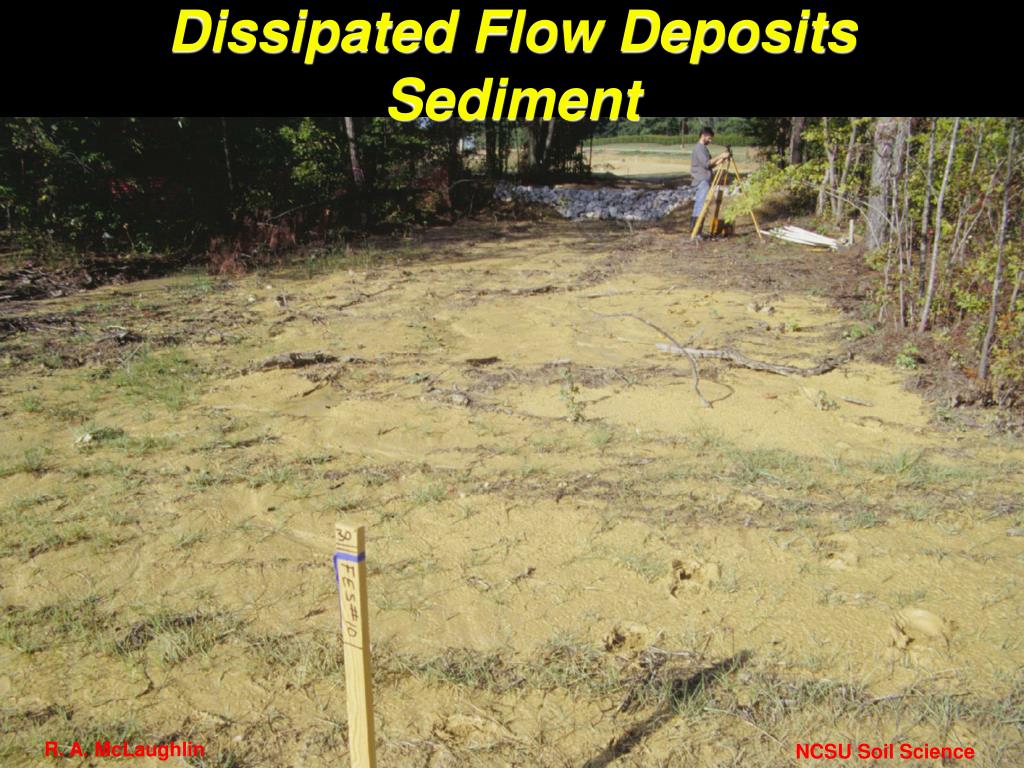

  10. Dissipated Flow Deposits Sediment R. A. McLaughlin NCSU Soil Science

  11. Sediment control fabric Backfill 1.5-in PVC pipe 3 -5 in. 2ft. rebar 2 ft. Level Spreaders Can Dissipate Flow: Example Level & On Contour Flow R.A. McLaughlin NCSU Soil Science

  12. Simple Math for Sedimentation • V=((4/3)pi(r3)*(d1-d2)*g)/(2pirz3) • OR…larger particles fall faster once flow is slowed/stopped. R.A. McLaughlin NCSU Soil Science

  13. Sedimentation: Size Matters Coarse Clay Silt Fine sand R.A. McLaughlin NCSU Soil Science

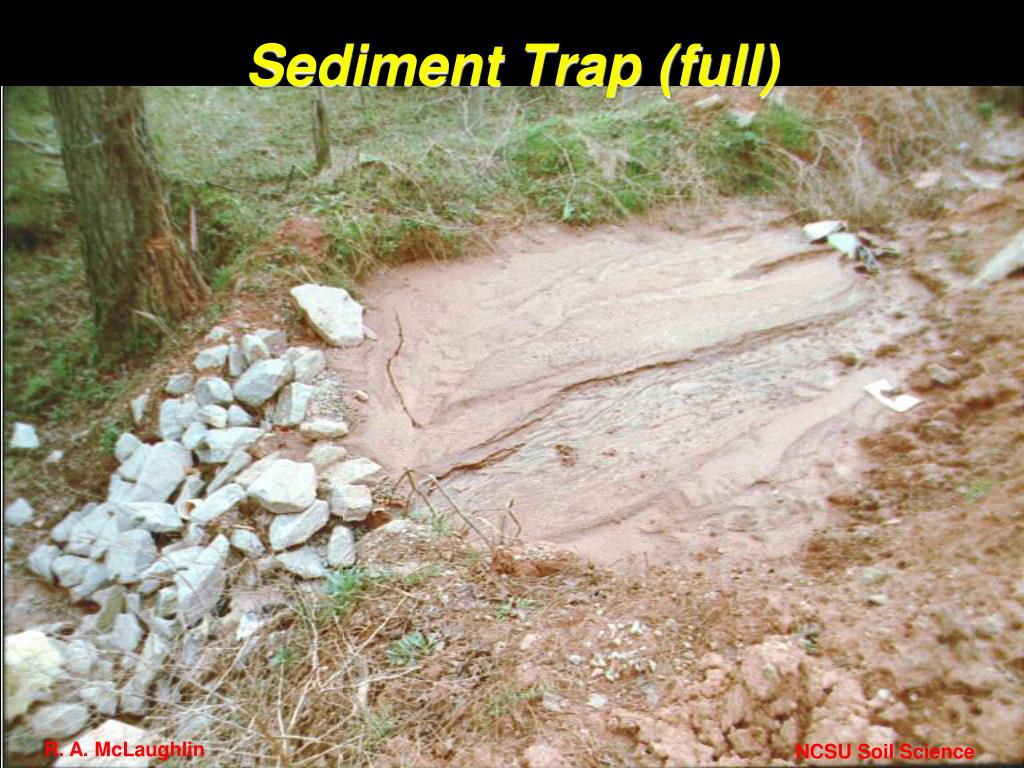

  14. Sediment Trap (full) R. A. McLaughlin NCSU Soil Science

  15. Sediment Deposit at Basin Inlet R. A. McLaughlin NCSU Soil Science

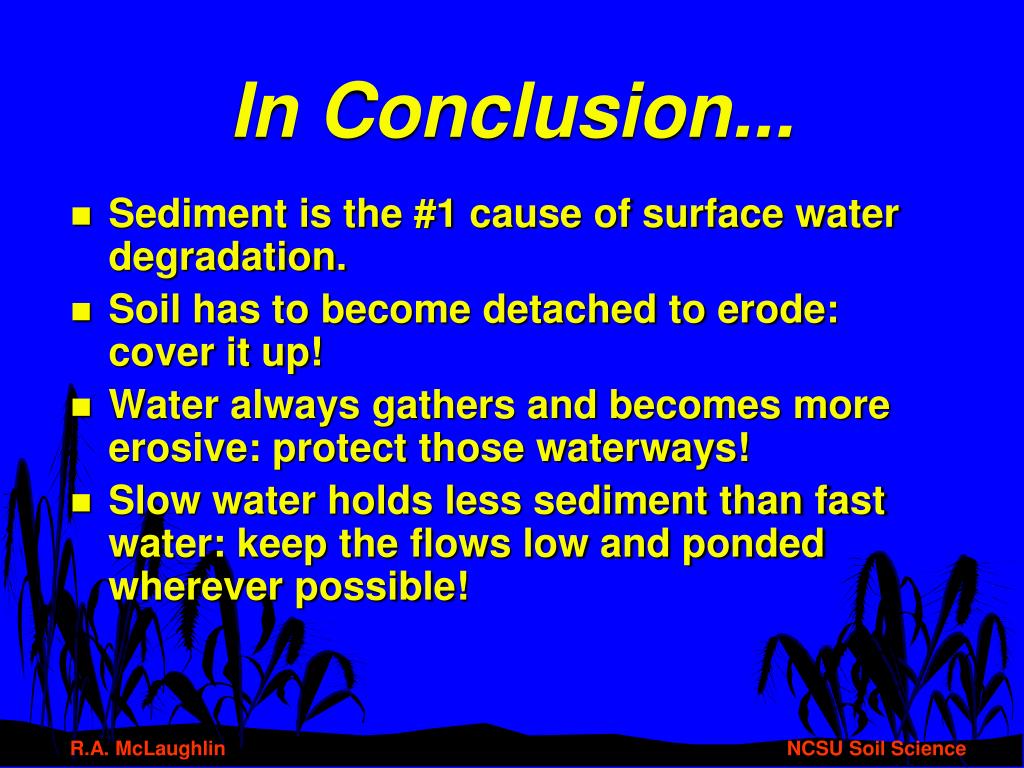

  16. In Conclusion... • Sediment is the #1 cause of surface water degradation. • Soil has to become detached to erode: cover it up! • Water always gathers and becomes more erosive: protect those waterways! • Slow water holds less sediment than fast water: keep the flows low and ponded wherever possible! R.A. McLaughlin NCSU Soil Science
