Angle Measures in Regular Polygons: Example Solutions

Learn how to find angle measures in regular pentagons and squares using central angles. Explore solutions step by step.

naomi
Télécharger la présentation

Angle Measures in Regular Polygons: Example Solutions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. In the diagram, ABCDEis a regular pentagon inscribed in F. Find each angle measure. 360° 5 a. m AFB AFB is a central angle,som AFB = , or 72°. Find angle measures in a regular polygon EXAMPLE 1 SOLUTION

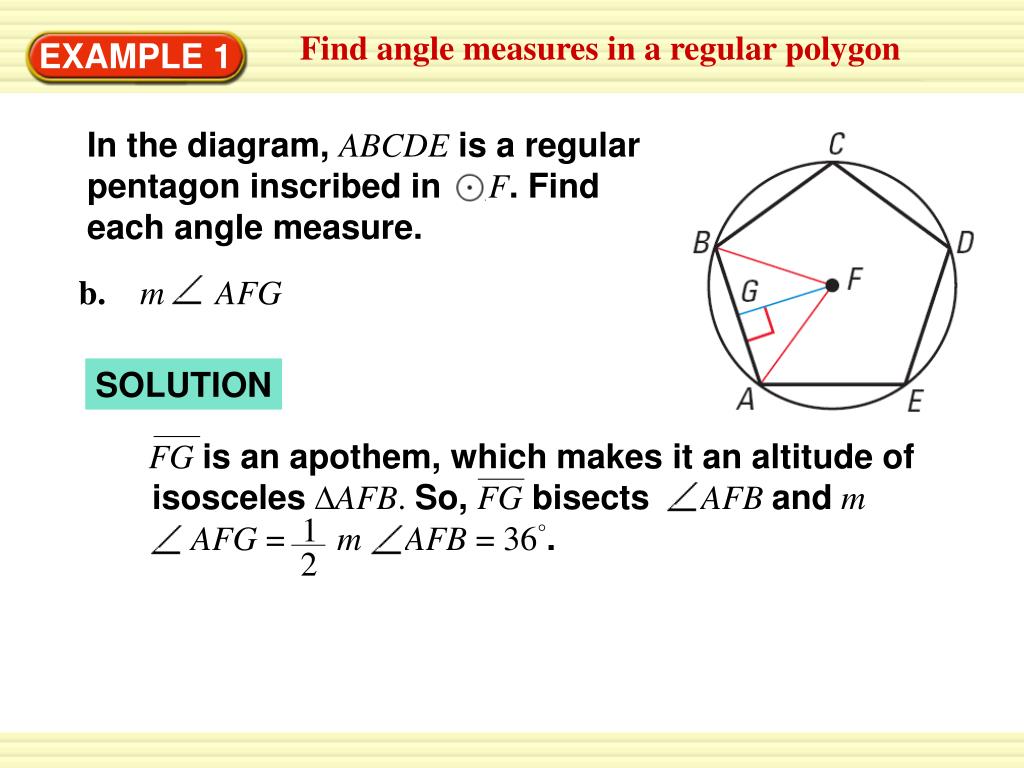

  2. In the diagram, ABCDEis a regular pentagon inscribed in F. Find each angle measure. b. m AFG FG is an apothem, which makes it an altitude ofisosceles ∆AFB. So, FGbisectsAFB andm AFG = m AFB = 36°. 1 2 Find angle measures in a regular polygon EXAMPLE 1 SOLUTION

  3. In the diagram, ABCDEis a regular pentagon inscribed in F. Find each angle measure. c. m GAF The sum of the measures of right ∆GAF is 180°. So, 90° + 36° + m GAF = 180°, andm GAF = 54°. Find angle measures in a regular polygon EXAMPLE 1 SOLUTION

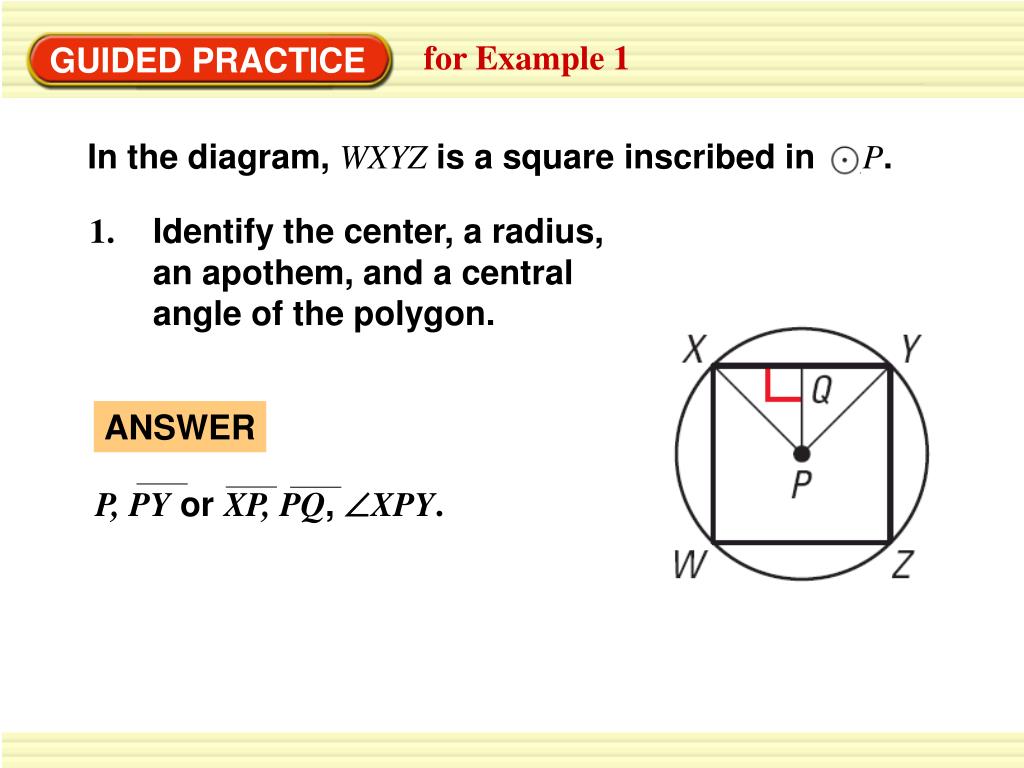

  4. In the diagram, WXYZis a square inscribed in P. 1. Identify the center, a radius, an apothem, and a central angle of the polygon. ANSWER P, PY or XP, PQ, XPY. for Example 1 GUIDED PRACTICE

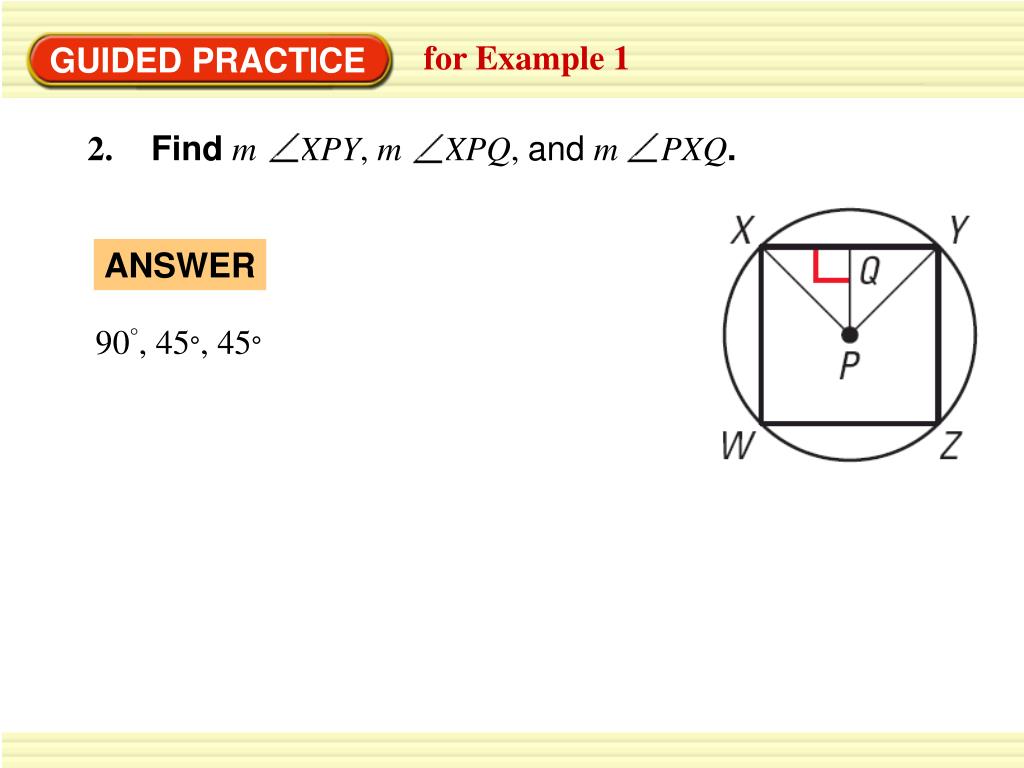

  5. 2. Find m XPY, m XPQ, andm PXQ. ANSWER 90°, 45°, 45° for Example 1 GUIDED PRACTICE
