1 / 9

FLOW NOZZLES

FLOW NOZZLES. INTRODUCTION. It’s a venturimeter without it diverging cone. Principle behind flow nozzles is same as in case of orificemeter and venturimeter – Bernoulli's principle. Made of generally gun metal, stainless steel or monel metal. Flow Meters. Orifice Meters Venturi Meters

nardo
Télécharger la présentation

FLOW NOZZLES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FLOW NOZZLES

  2. INTRODUCTION • It’s a venturimeter without it diverging cone. • Principle behind flow nozzles is same as in case of orificemeter and venturimeter – Bernoulli's principle. • Made of generally gun metal, stainless steel or monel metal.

  3. Flow Meters • Orifice Meters • Venturi Meters • Flow Nozzles

  4. Flow through a Nozzle Basic Equations: a.) Continuity: mass in = mass out b.) Bernoulli’s Eqn. Total energy/ pressure is constant throughout

  5. Flow through a Nozzle

  6. Flow through a Nozzle

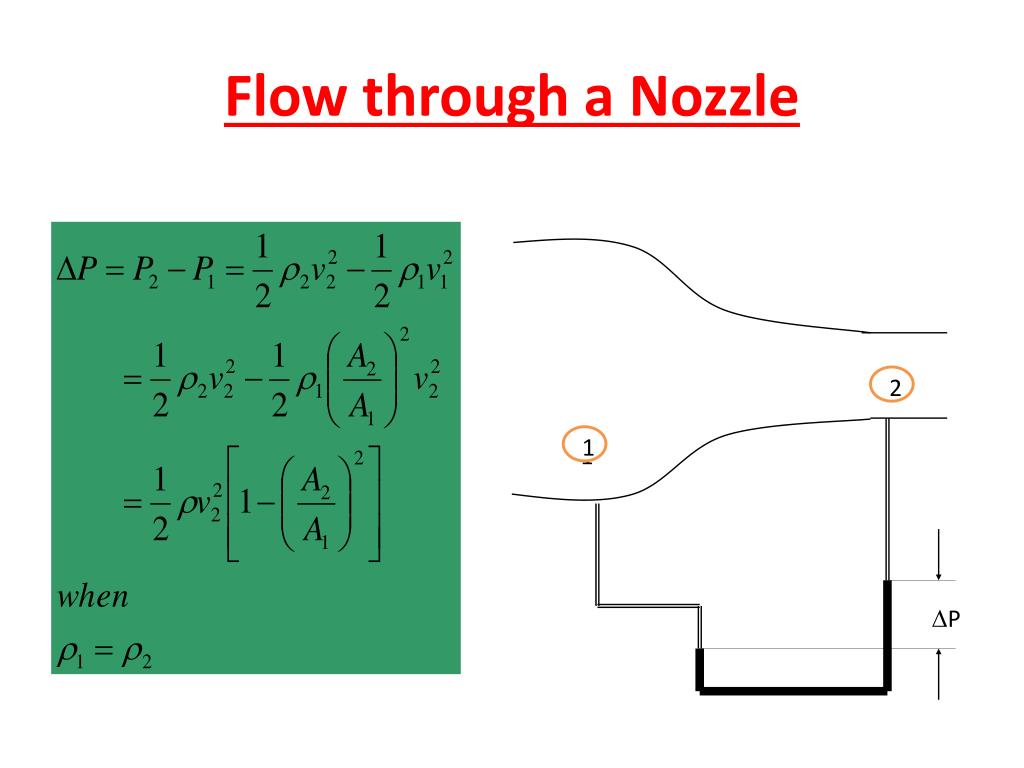

  7. Flow through a Nozzle 2 1 1 DP

  8. ADVANTAGES • Higher coefficient of discharge than orificemeter • Cheaper and easier to install • Physical length is less compared to venturimeter • Useful for flow measurement containing solid particles

  9. DISADVANTAGES • Expensive and difficult to install than orificemeter • Poor pressure recovery • Limited moderate pipe size
