Flying and Judging F3A

1. Flying and Judging F3A SCHEMATIC MANOEUVRE ILLUSTRATIONS SCHEDULE A-13

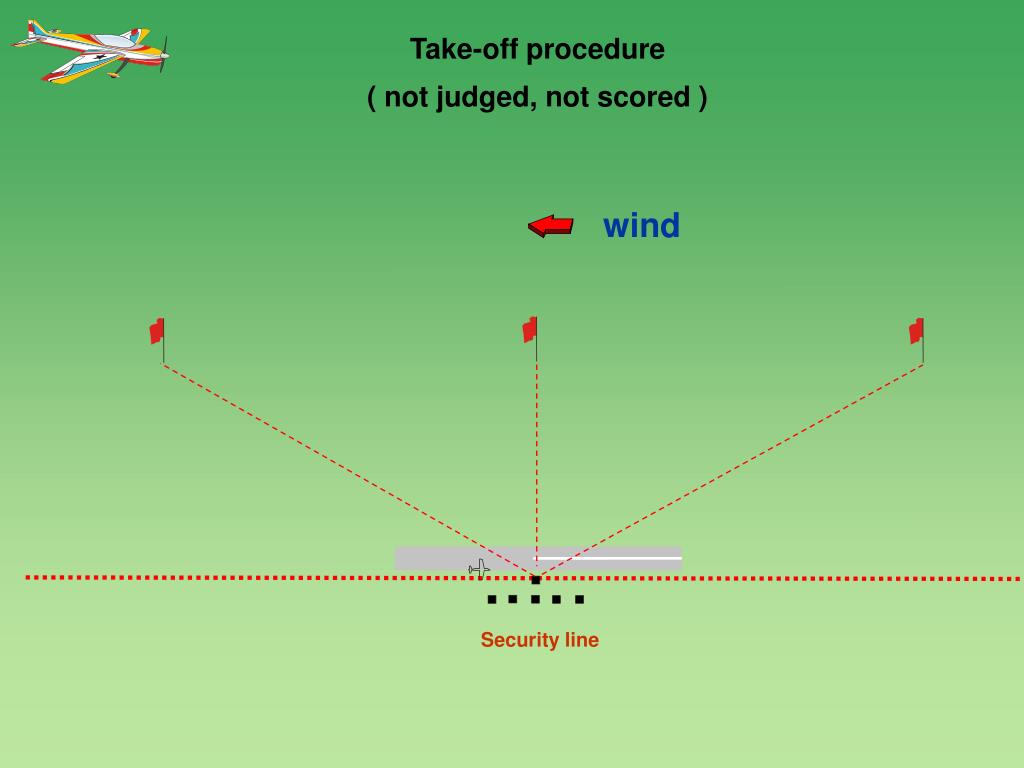

2. Take-off procedure ( not judged, not scored ) wind 1200 Security line 4

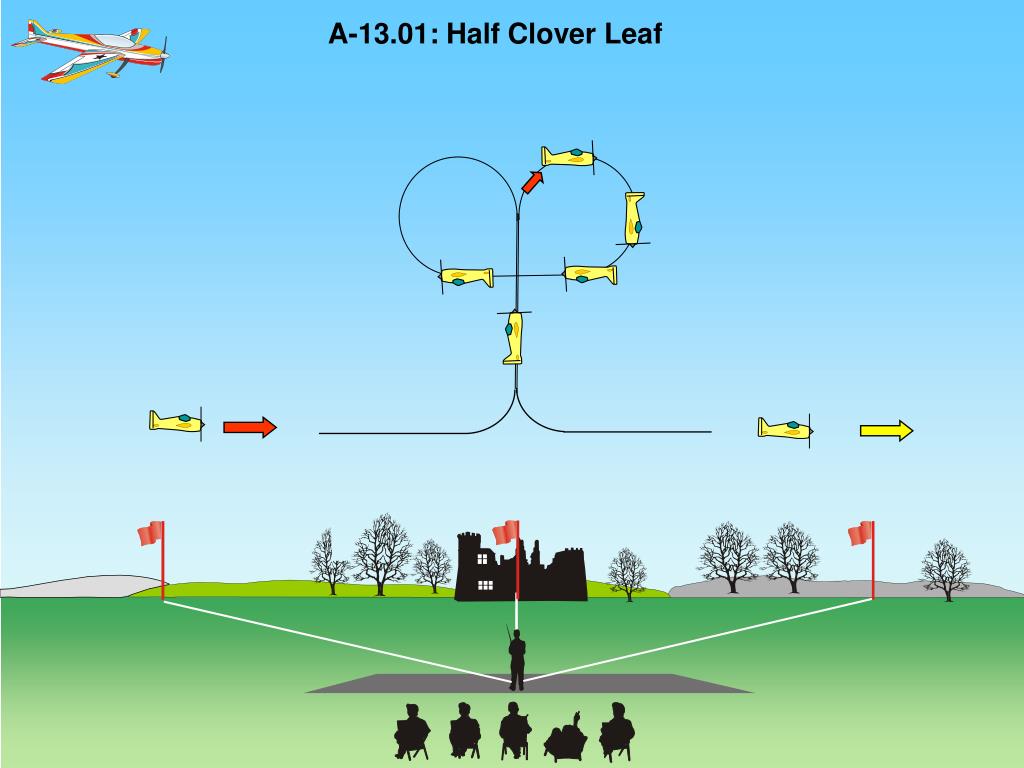

3. A-13.01: Half Clover Leaf

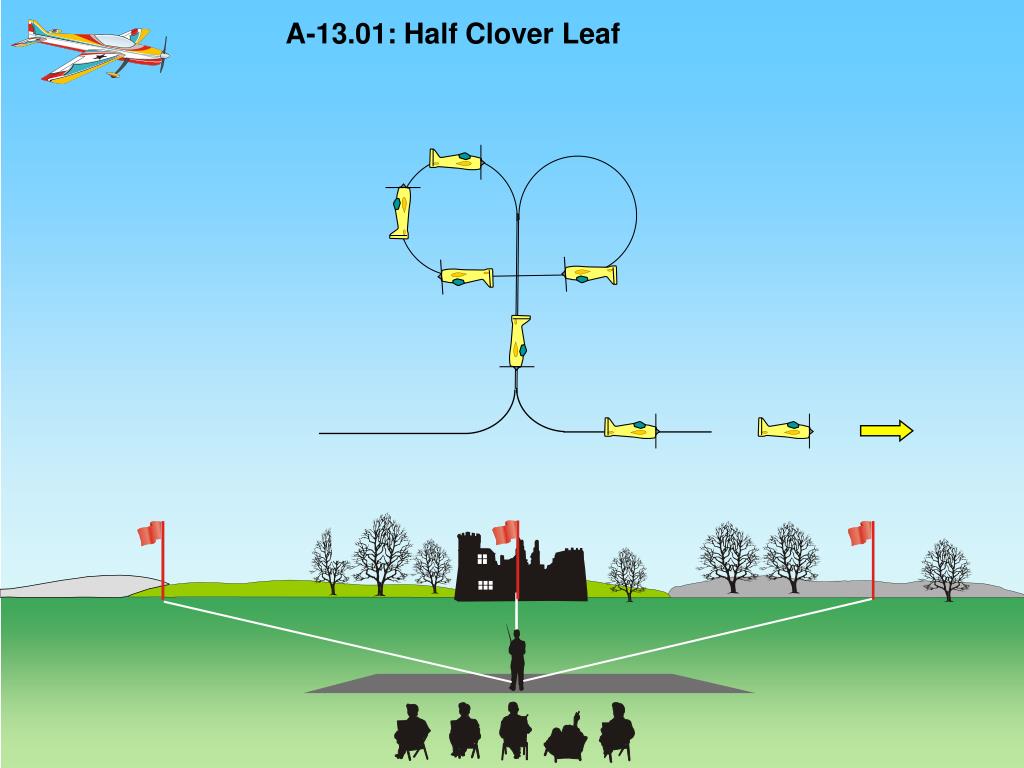

4. A-13.01: Half Clover Leaf

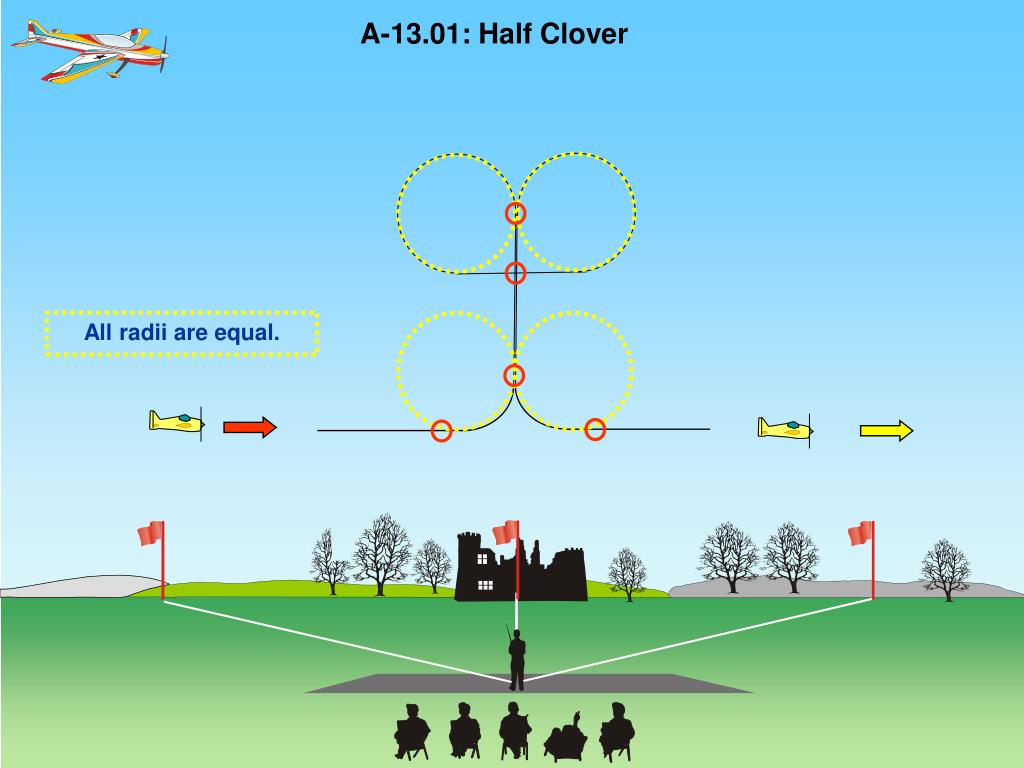

5. A-13.01: Half Clover All radii are equal.

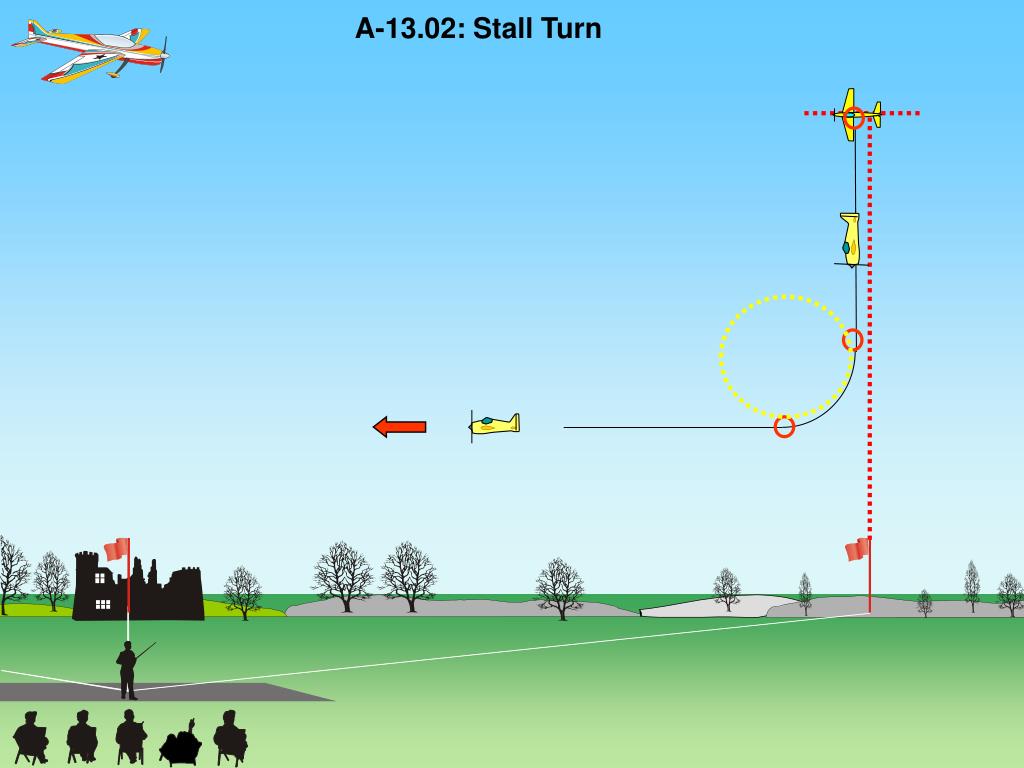

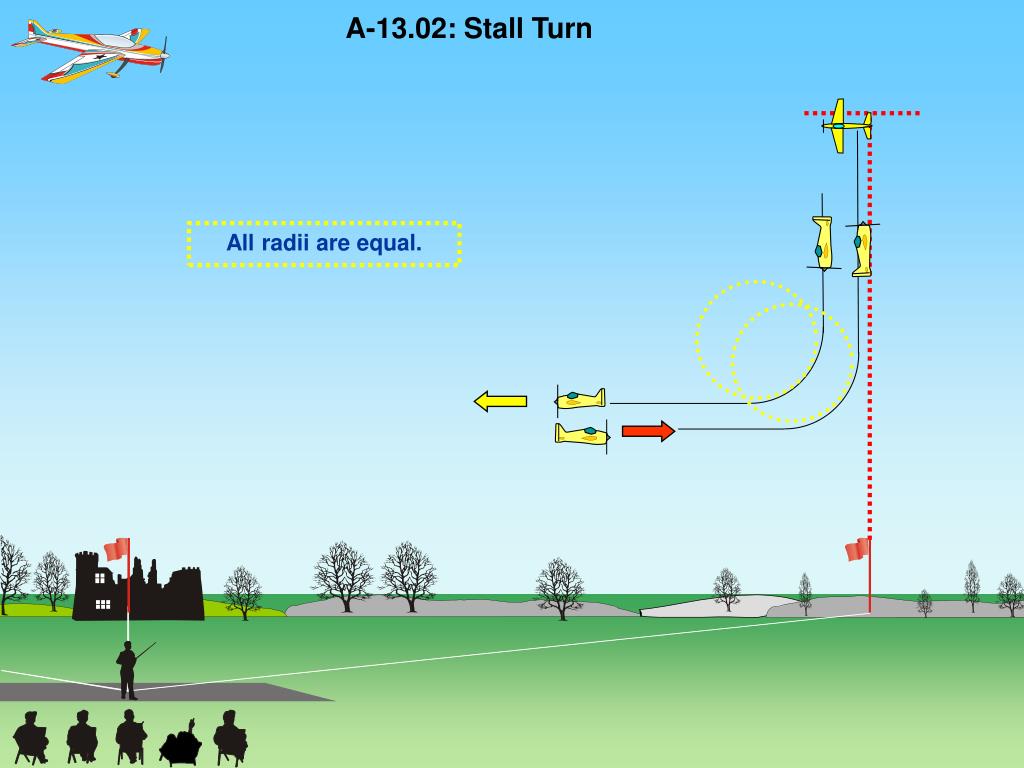

6. A-13.02: Stall Turn All radii are equal.

7. A-13.02: Stall Turn Pivot on CG Two wing spans or more – zero points!

8. A-13.02: Stall Turn

9. A-13.03: TWO of 4 point rolls rolls in opposite direction The ¼ rolls must have the same roll rate. Lines between part rolls must be of equal length.

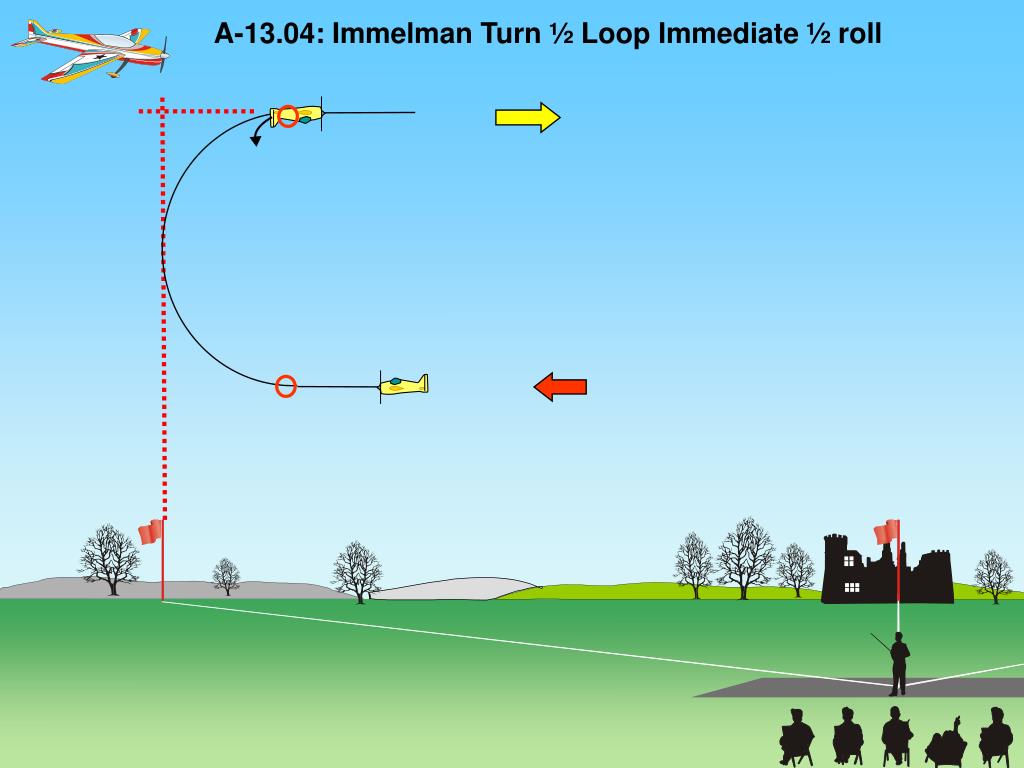

10. A-13.04: Immelman Turn ½ Loop Immediate ½ roll

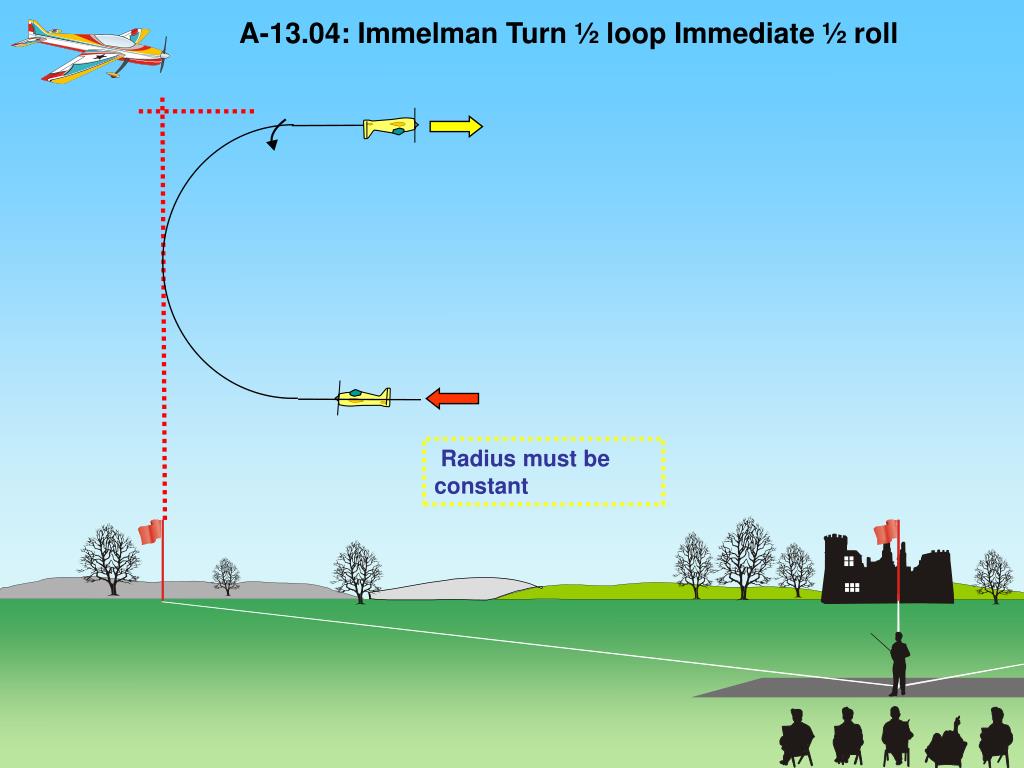

11. A-13.04: Immelman Turn ½ loop Immediate ½ roll Radius must be constant

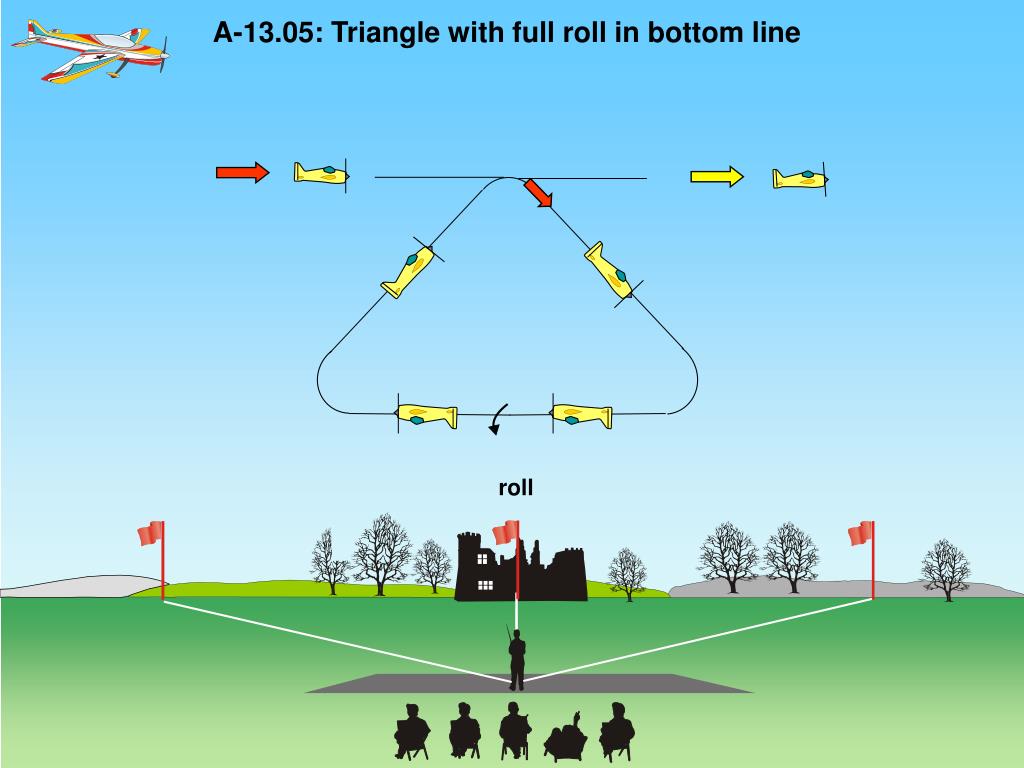

12. A-13.05: Triangle with full roll in bottom line roll

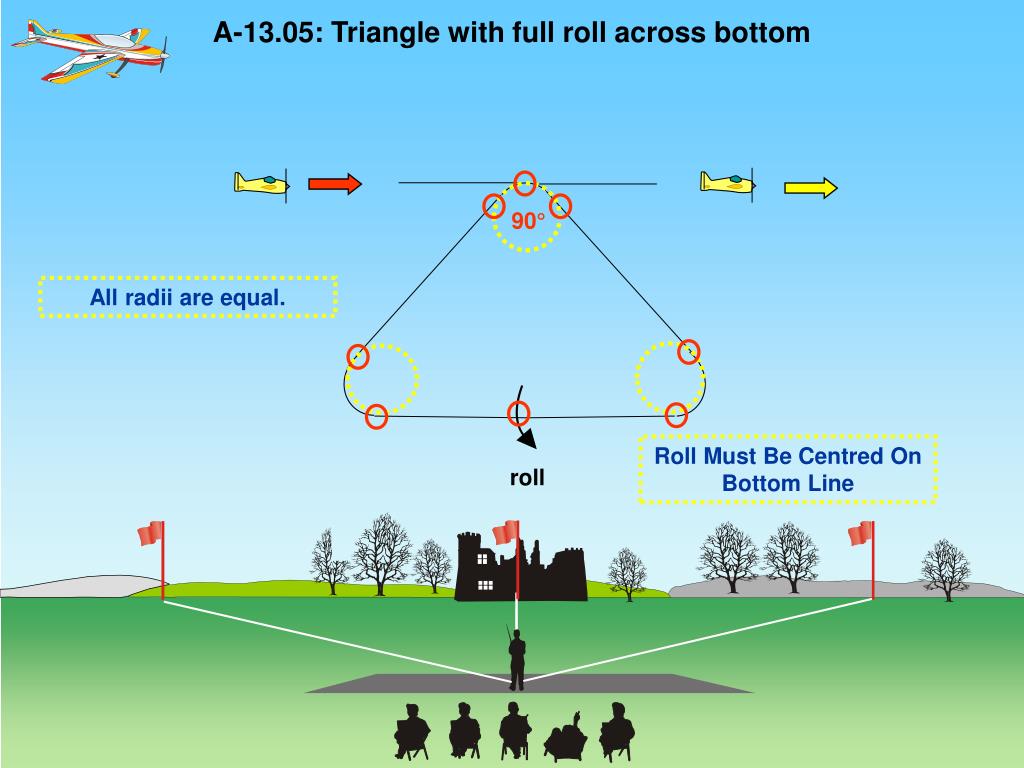

13. A-13.05: Triangle with full roll across bottom 90° All radii are equal. Roll Must Be Centred On Bottom Line roll

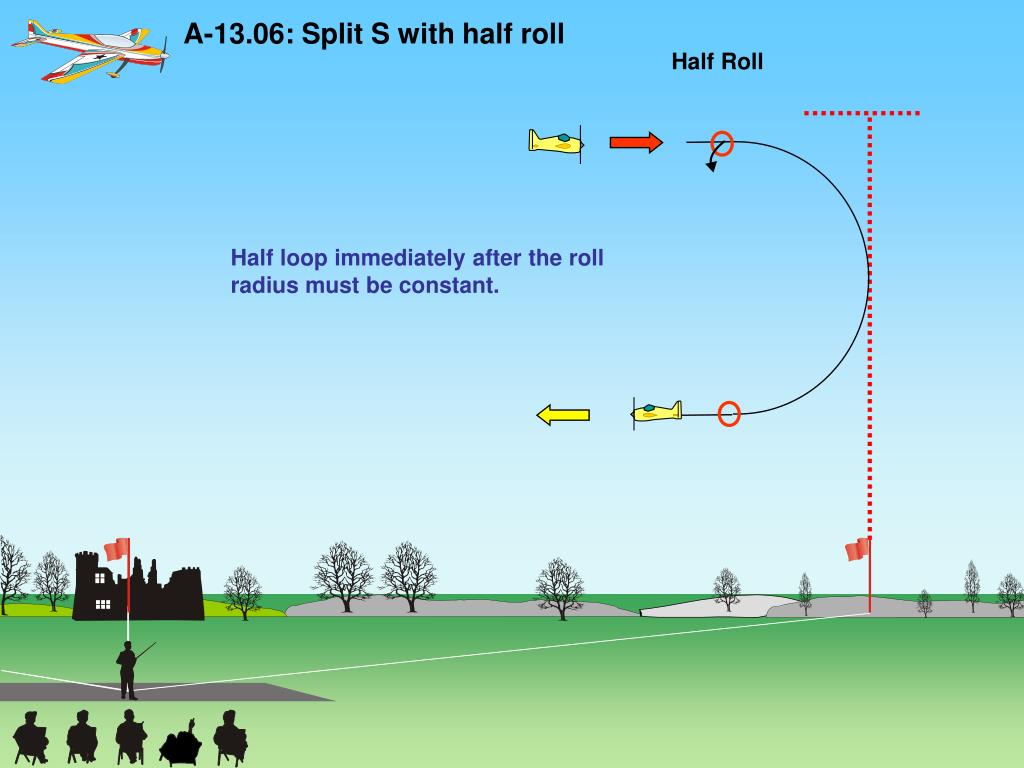

14. A-13.06: Split S with half roll Half Roll Half loop immediately after the roll radius must be constant.

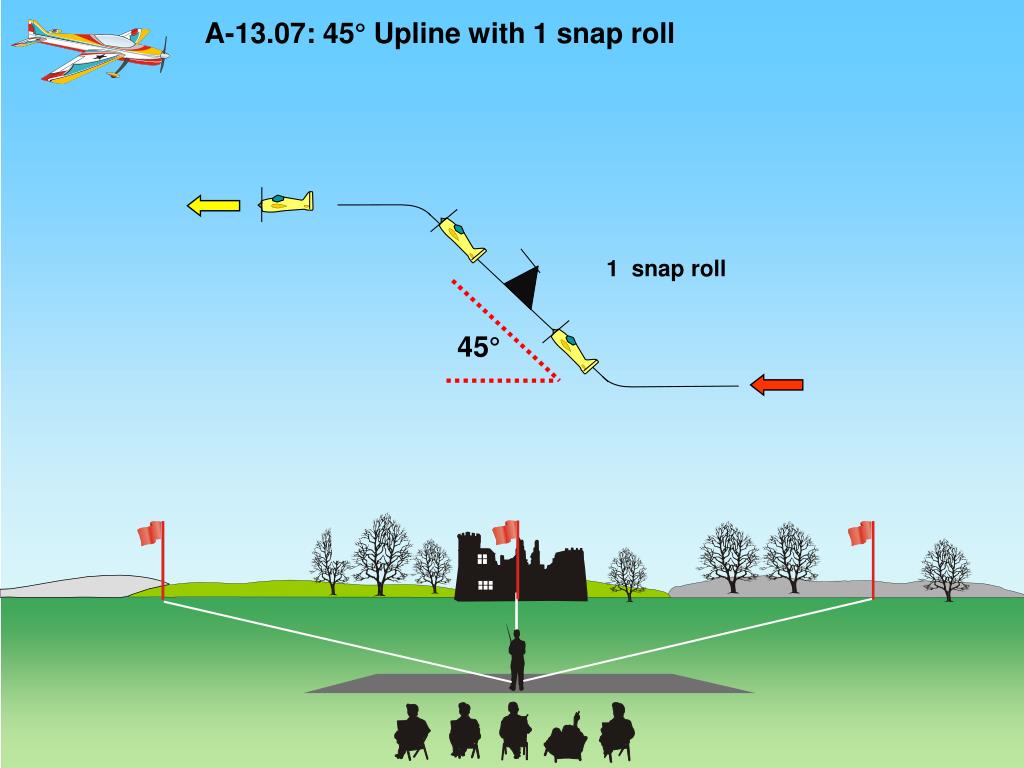

15. 45° A-13.07: 45° Upline with 1 snap roll 1 snap roll

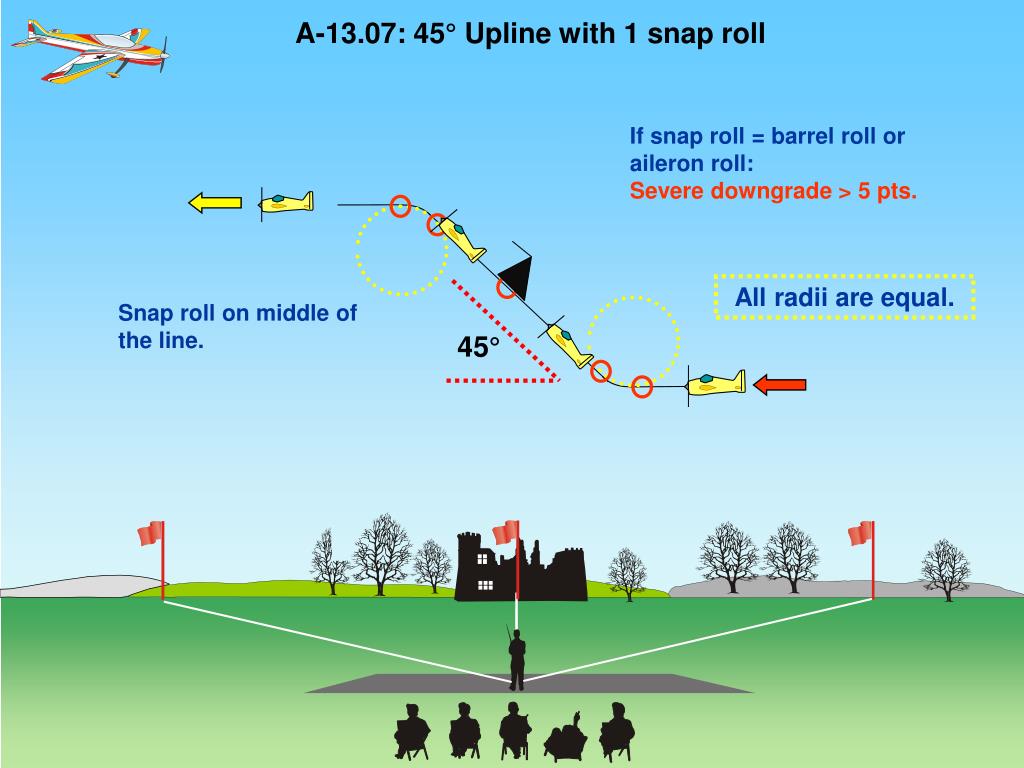

16. 45° A-13.07: 45° Upline with 1 snap roll If snap roll = barrel roll or aileron roll:Severe downgrade > 5 pts. All radii are equal. Snap roll on middle of the line.

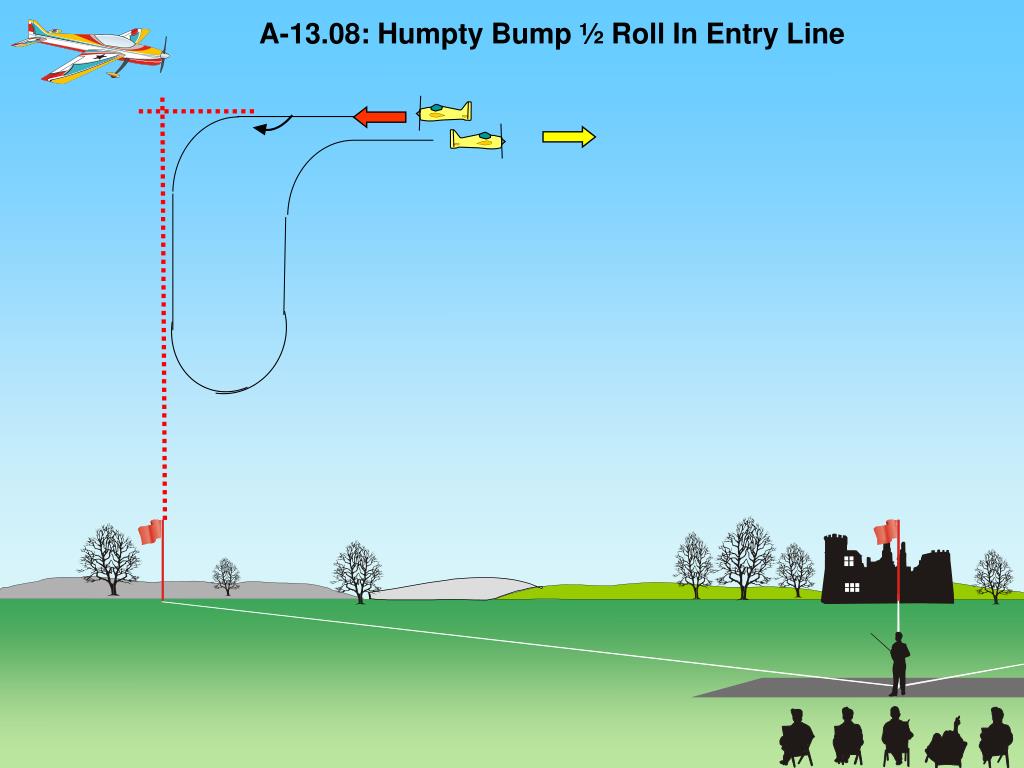

17. A-13.08: Humpty Bump ½ Roll In Entry Line

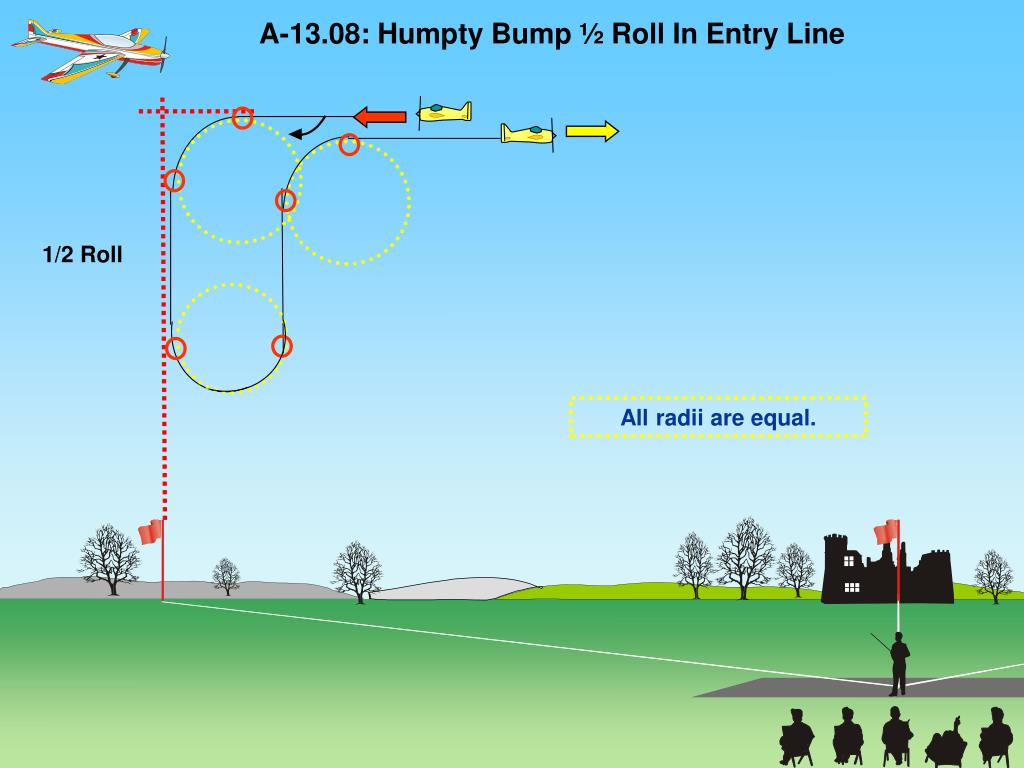

18. A-13.08: Humpty Bump ½ Roll In Entry Line 1/2 Roll All radii are equal.

19. A-11.10: Spin with 3 turns.

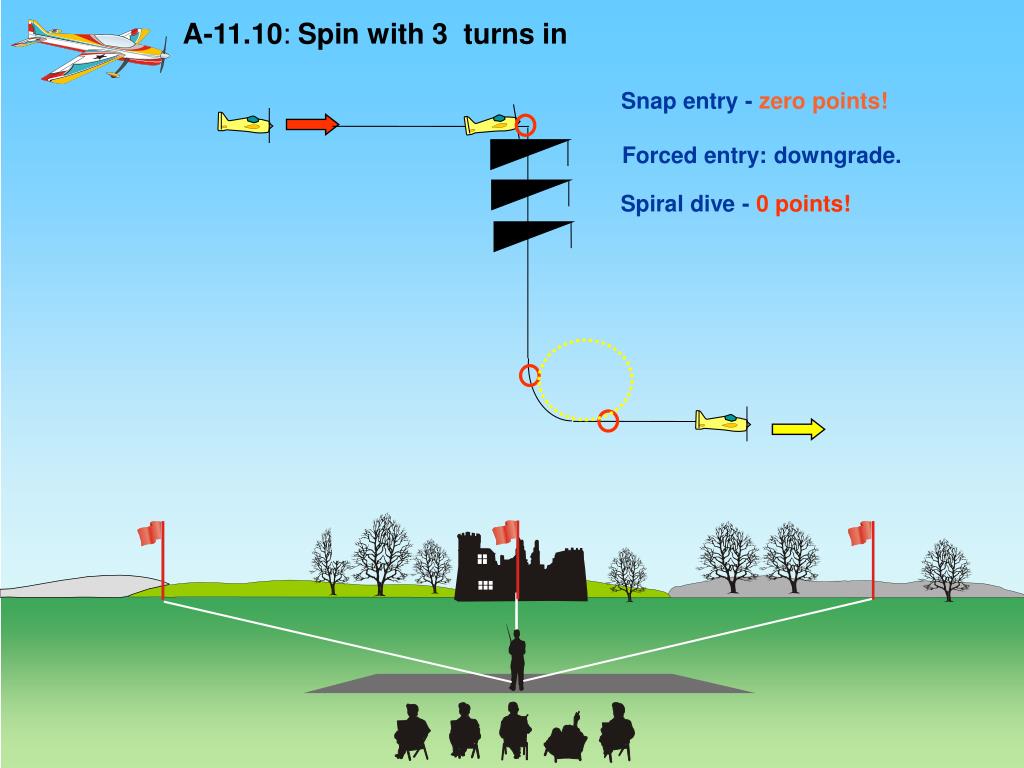

20. A-11.10: Spin with 3 turns in Snap entry - zero points! Forced entry: downgrade. Spiral dive - 0 points!

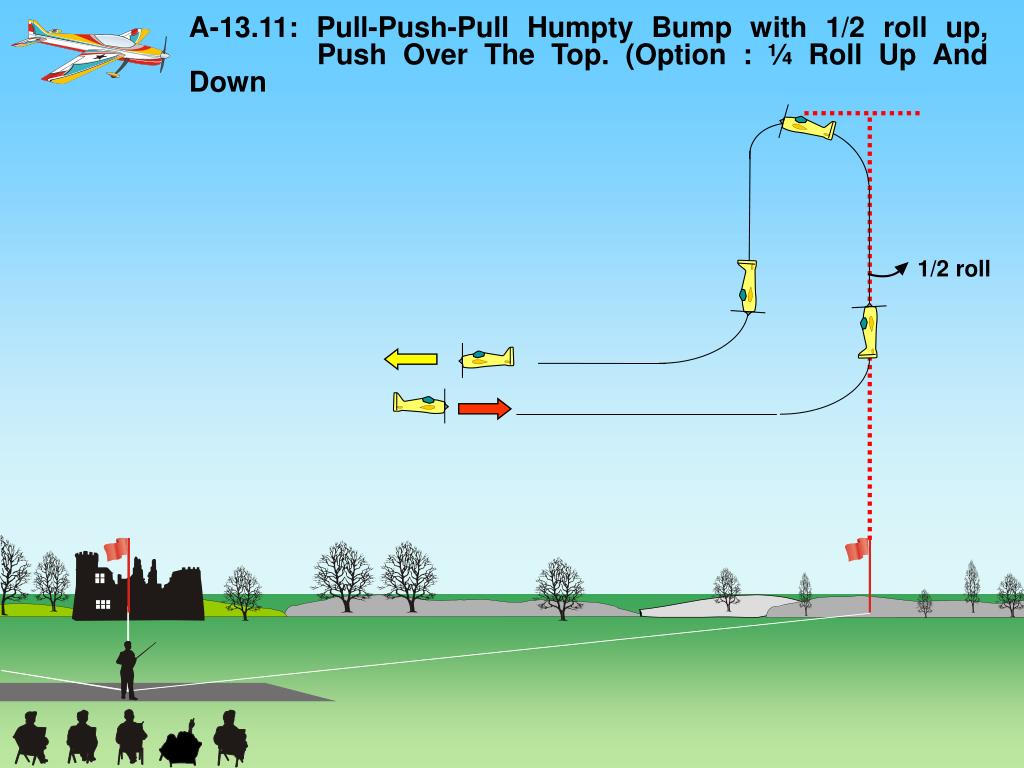

21. A-13.11: Pull-Push-Pull Humpty Bump with 1/2 roll up, Push Over The Top. (Option : ¼ Roll Up And Down 1/2 roll

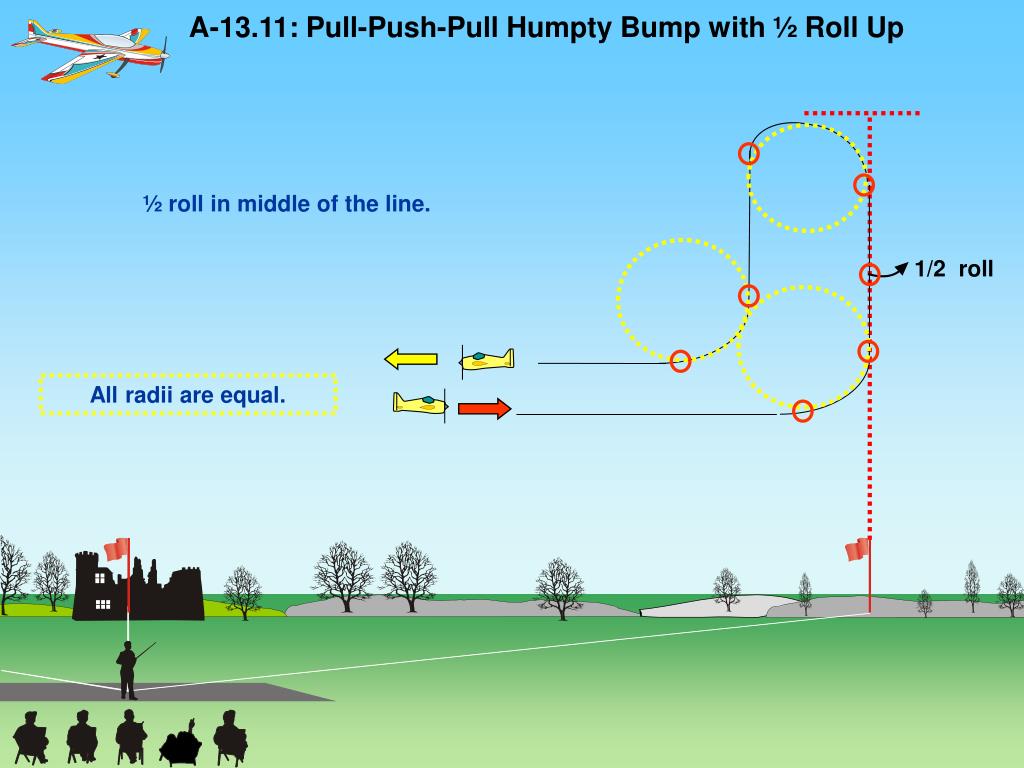

22. A-13.11: Pull-Push-Pull Humpty Bump with ½ Roll Up ½ roll in middle of the line. 1/2 roll All radii are equal.

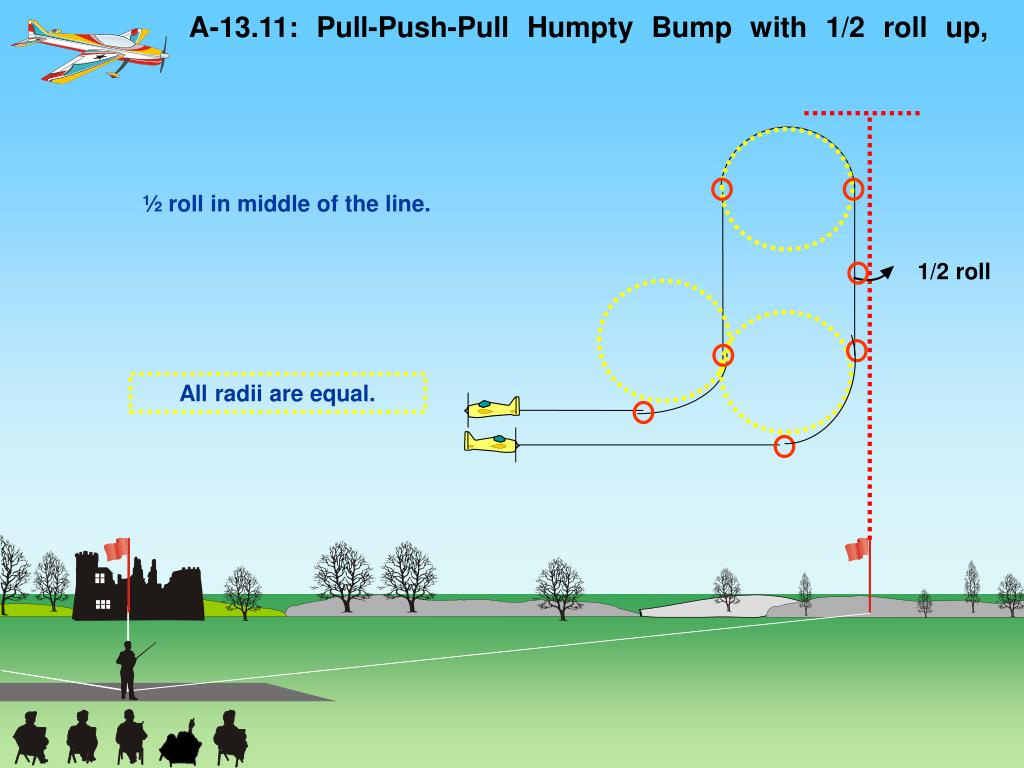

23. A-13.11: Pull-Push-Pull Humpty Bump with 1/2 roll up, ½ roll in middle of the line. 1/2 roll All radii are equal.

24. A-13.11: OPTION Pull-Push-Pull Humpty Bump with ¼ up, ¼ roll down Option ¼ roll Up And Down

25. E-13.11: Pull-Push-Pull Humpty Bump with ¼ roll up, ¼ roll down Option 1/4roll ¼ roll

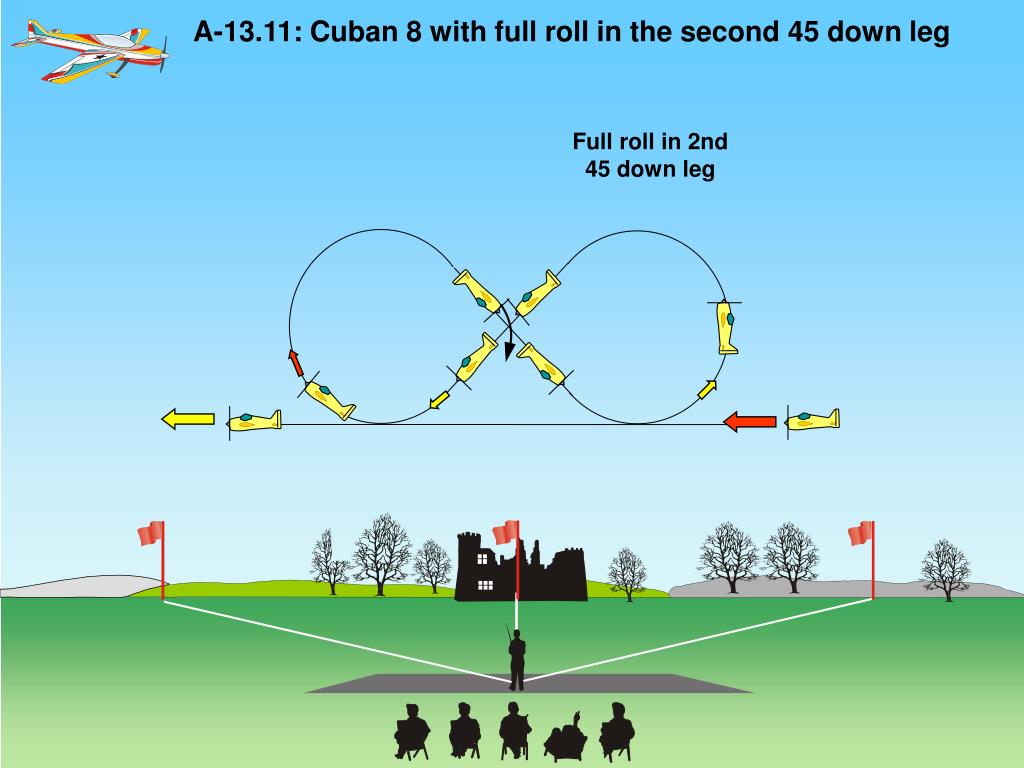

26. A-13.11: Cuban 8 with full roll in the second 45 down leg Full roll in 2nd 45 down leg

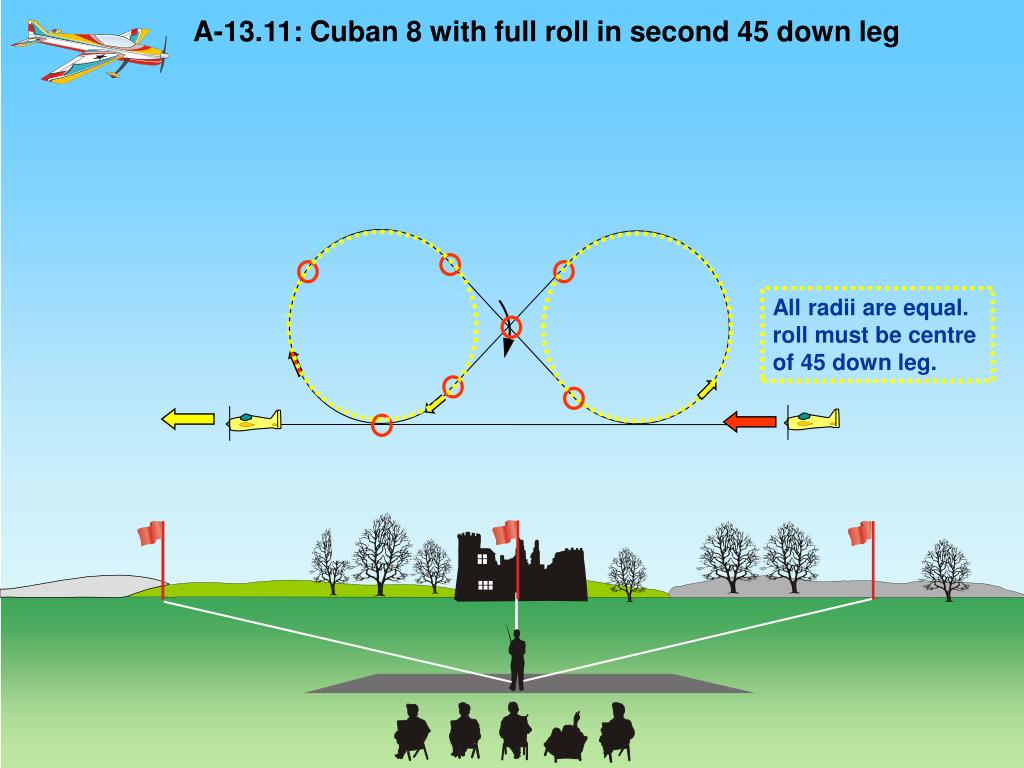

27. A-13.11: Cuban 8 with full roll in second 45 down leg All radii are equal. roll must be centre of 45 down leg.

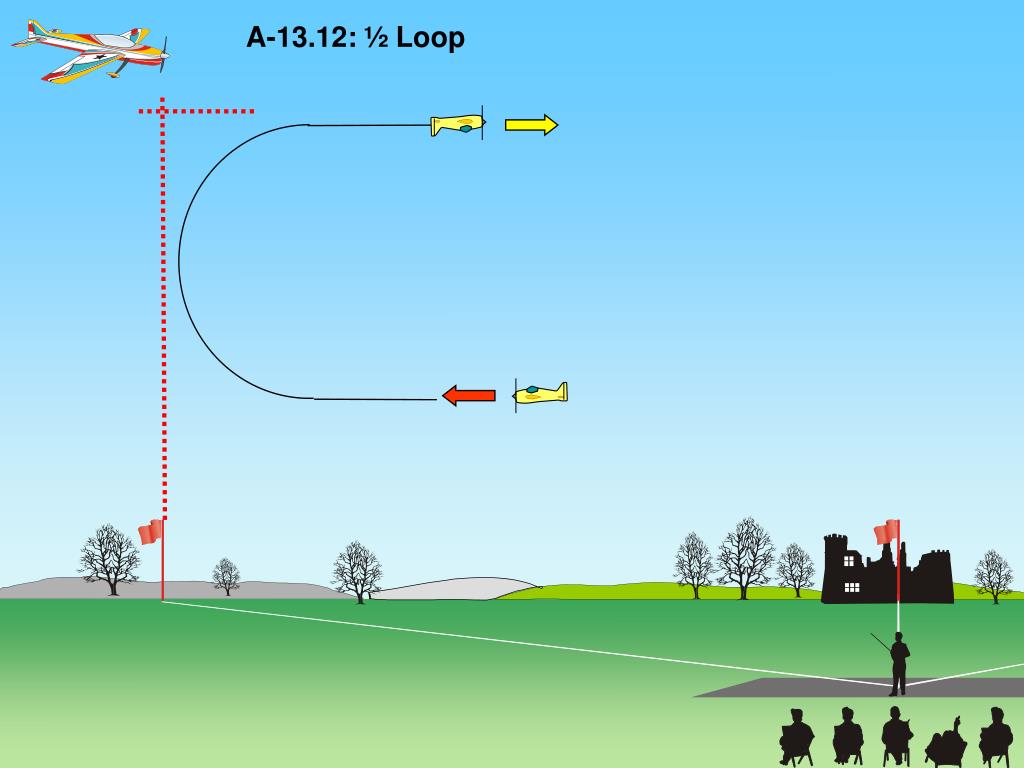

28. A-13.12: ½ Loop

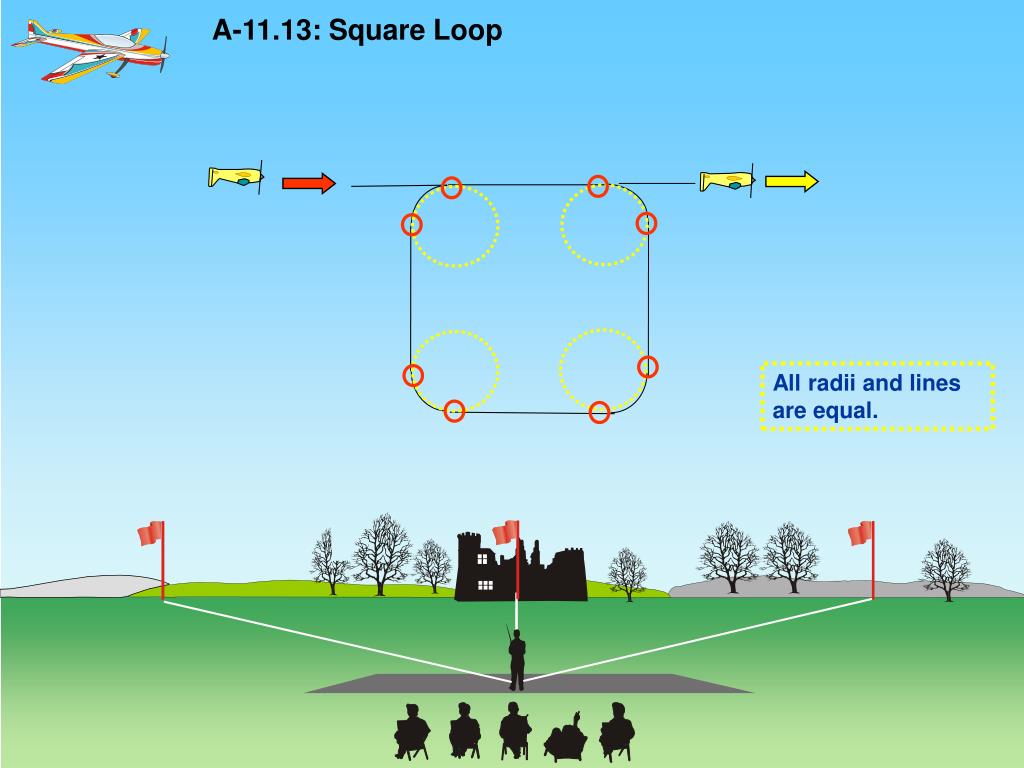

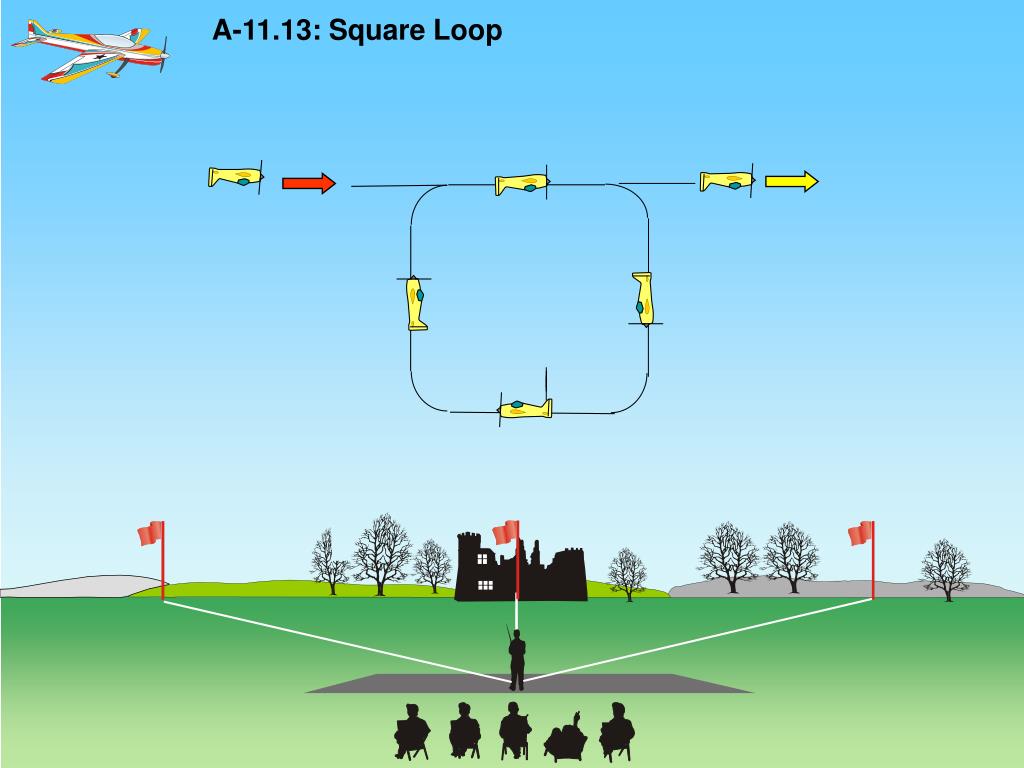

29. A-11.13: Square Loop

30. A-11.13: Square Loop All radii and lines are equal.

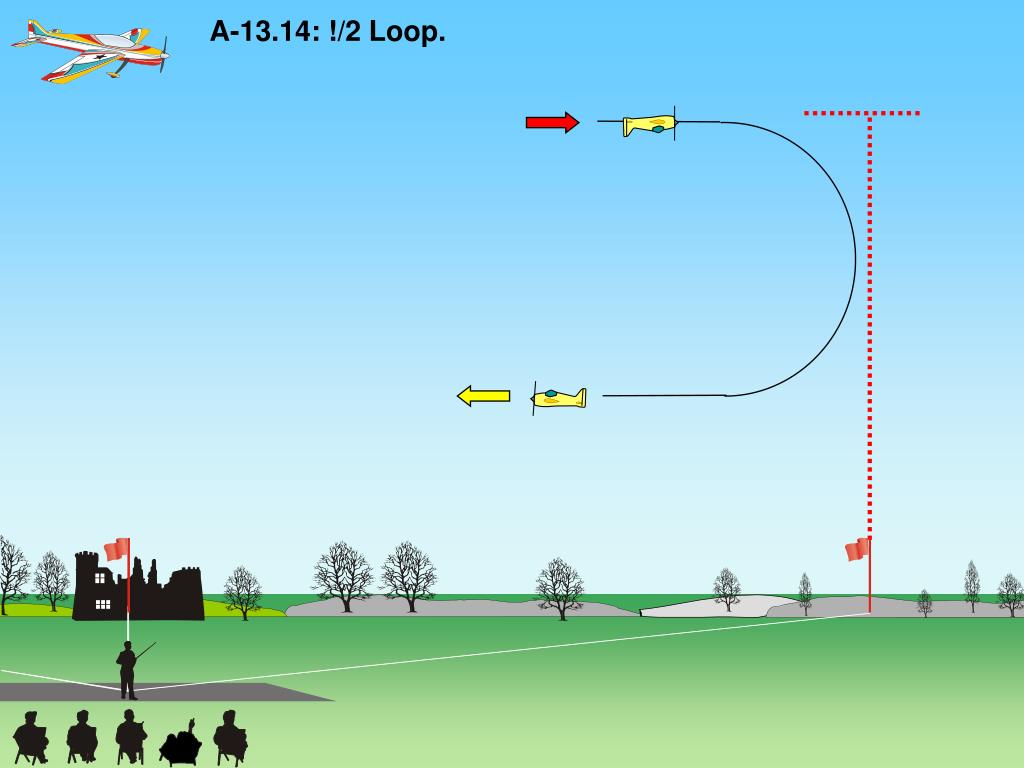

31. A-13.14: !/2 Loop.

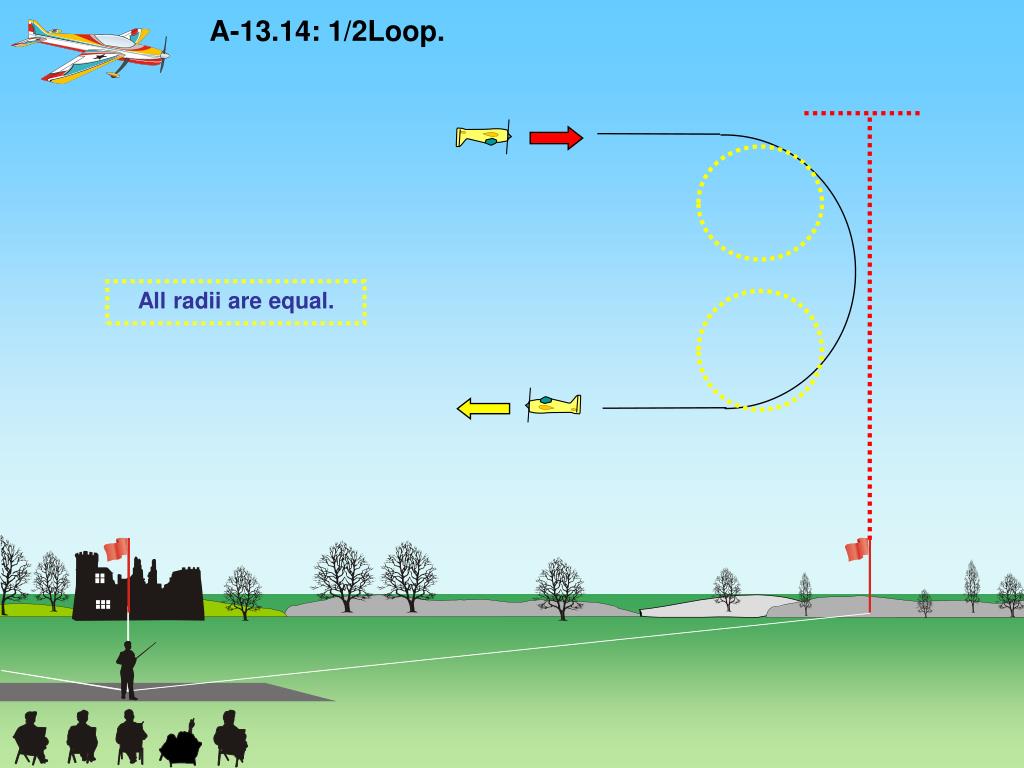

32. A-13.14: 1/2Loop. All radii are equal.

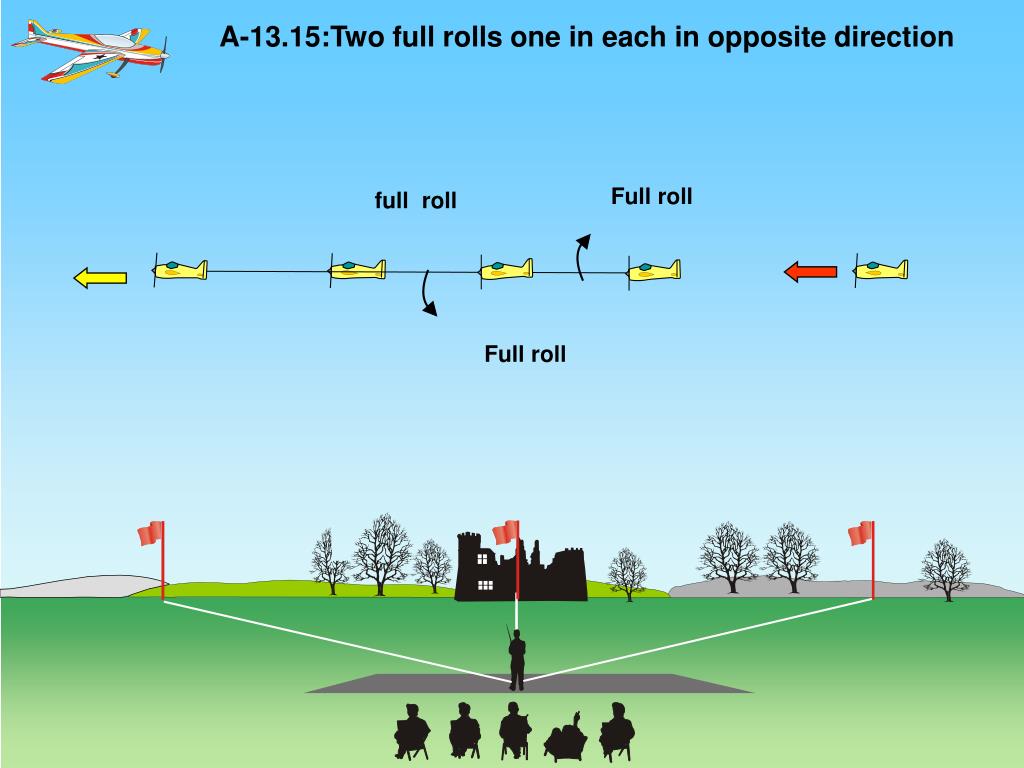

33. A-13.15:Two full rolls one in each in opposite direction Full roll full roll Full roll

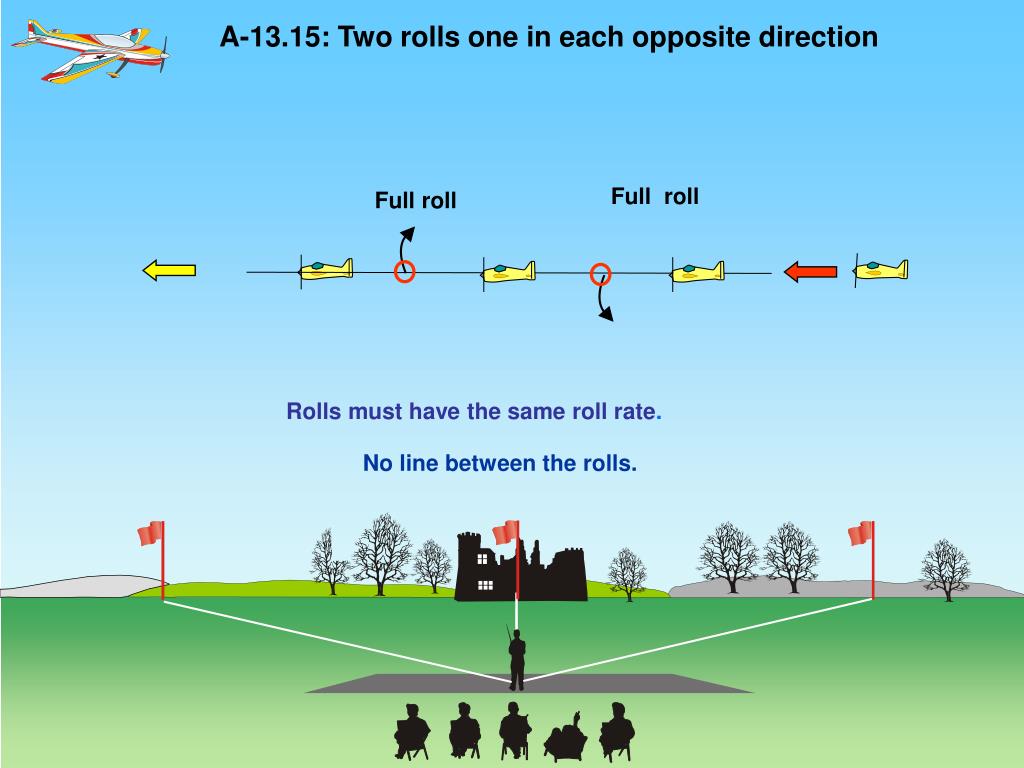

34. A-13.15: Two rolls one in each opposite direction Full roll Full roll Rolls must have the same roll rate. No line between the rolls.

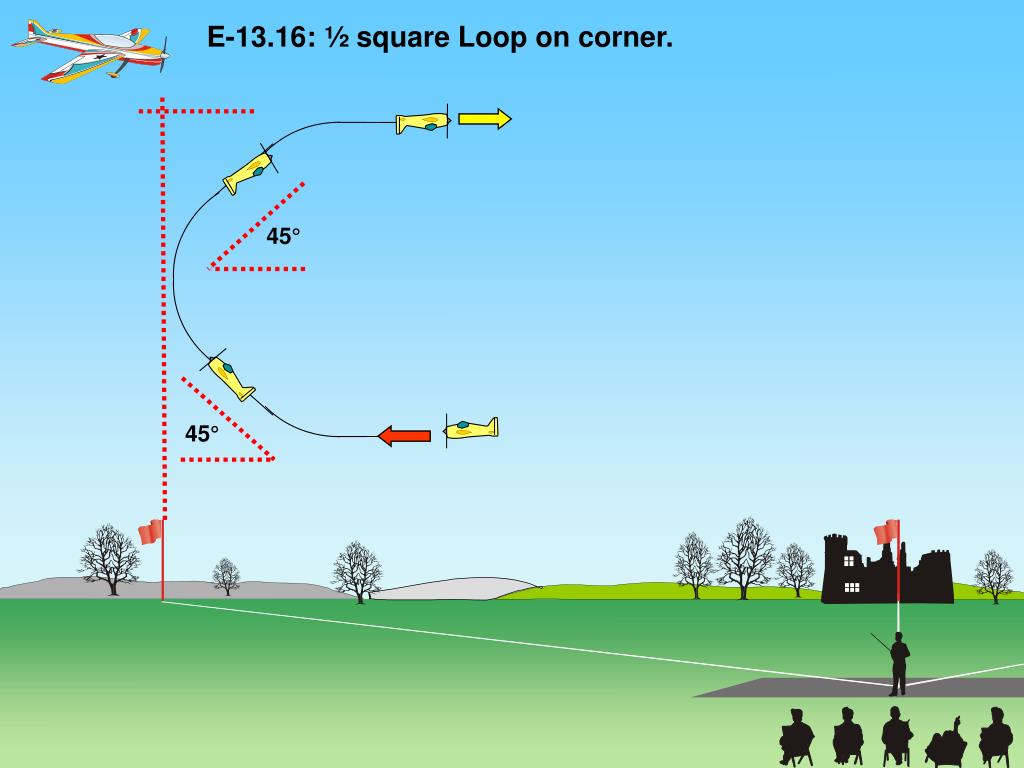

35. 45° E-13.16:½ square Loop on corner. 45°

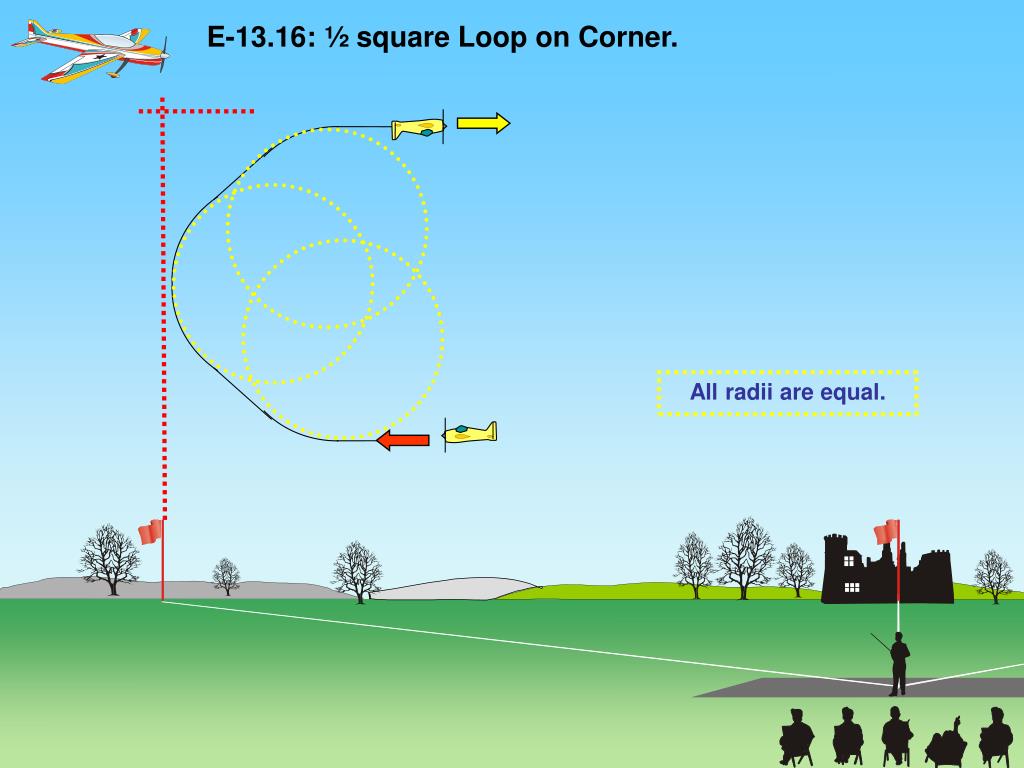

36. E-13.16:½ square Loop on Corner. All radii are equal.

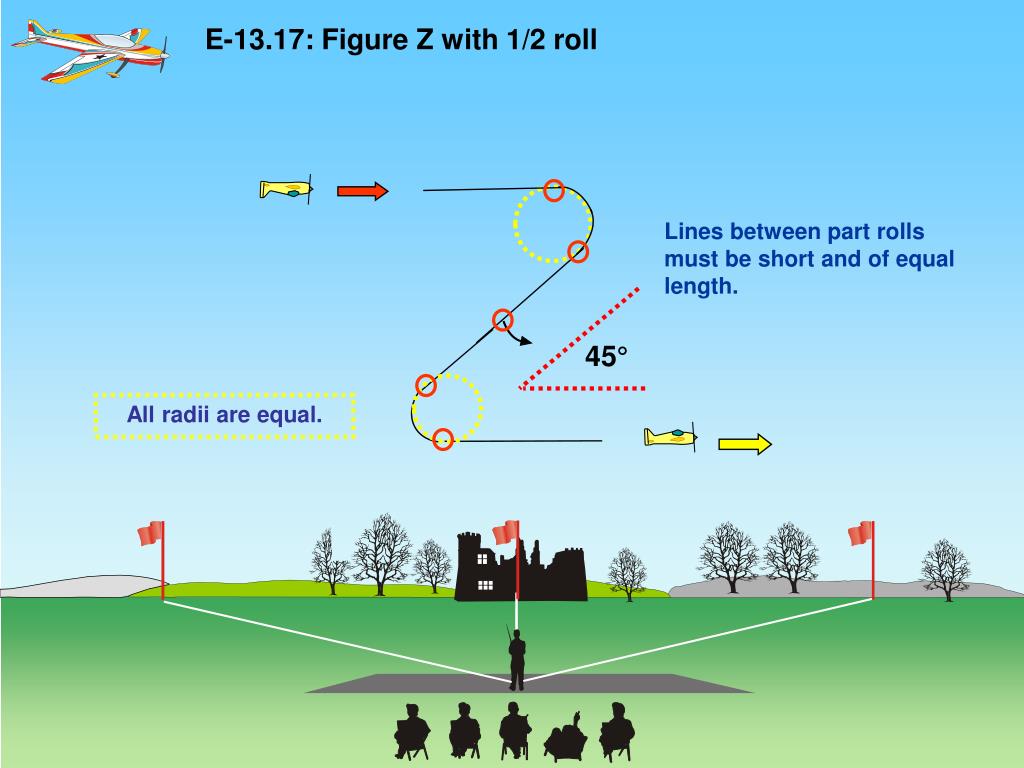

37. E-13.17: Figure Z with 1/2 roll 1/2 roll

38. 45° E-13.17: Figure Z with 1/2 roll Lines between part rolls must be short and of equal length. All radii are equal.

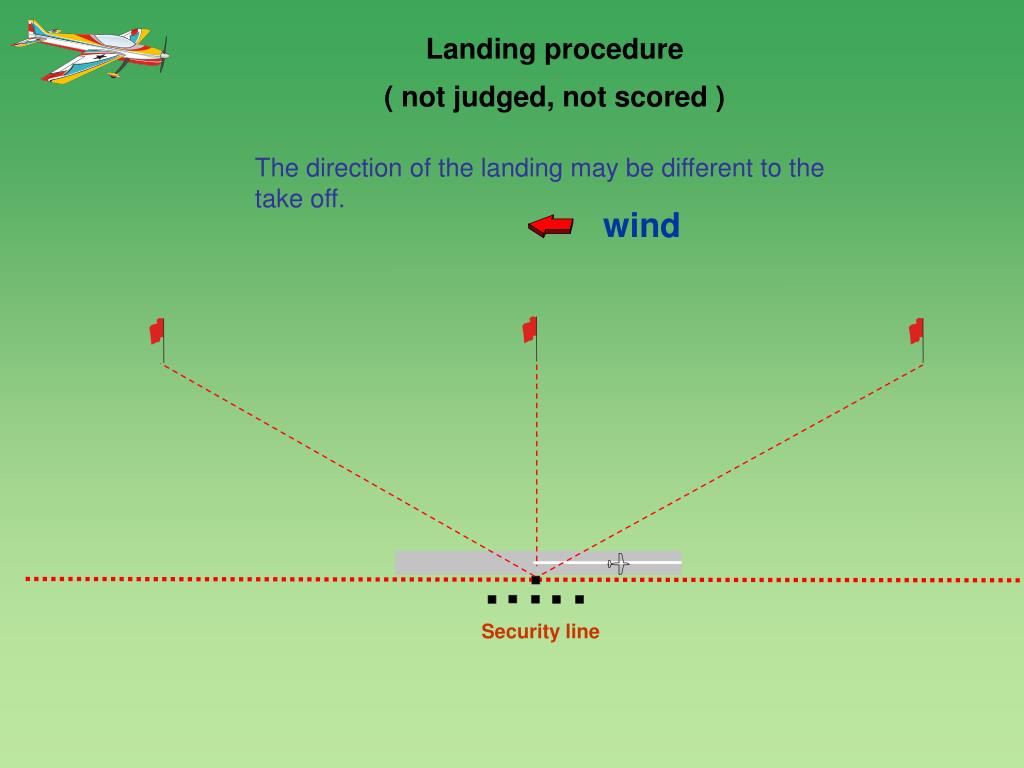

39. Landing procedure ( not judged, not scored ) The direction of the landing may be different to the take off. wind 1200 Security line 4
