  1. Intro to Biomechanics Professors: Thomas S. Buchanan (lecture) Kurt Manal (lab) TA: Justin Cowder

  2. Lab Goal • Muscles are the motors of the human body. Our goal is to explore how muscles’ generate force. Specifically: • How does maximal muscle force change as a function of its length? • How does maximal muscle force change as a function of its velocity?

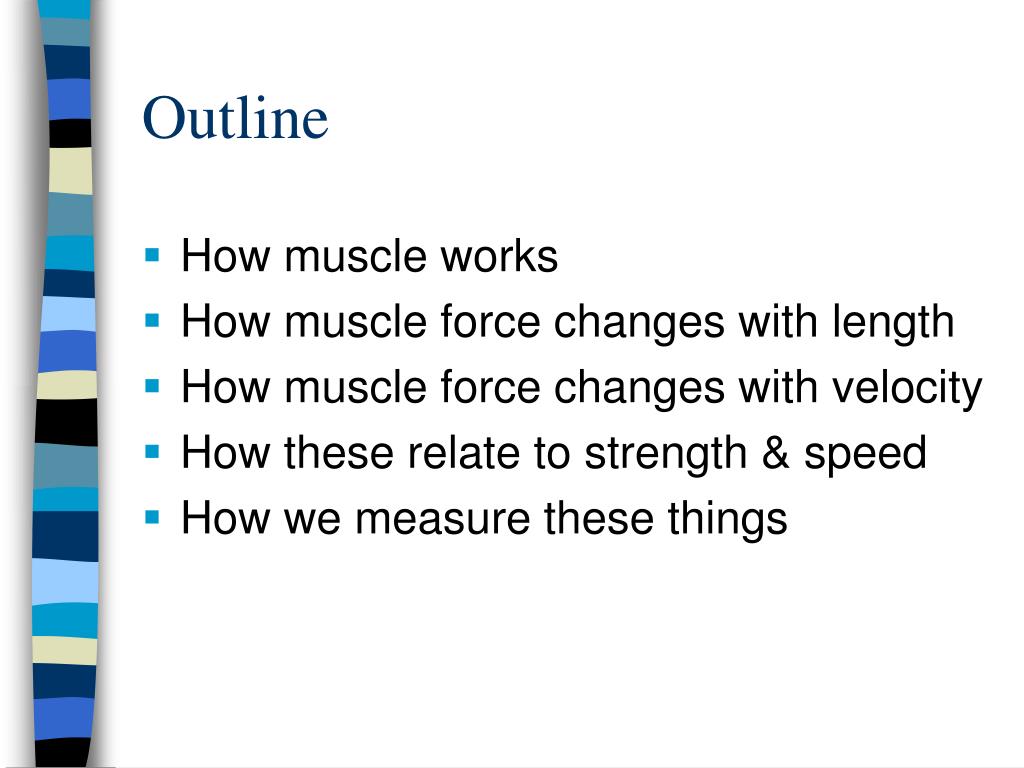

  3. Outline • How muscle works • How muscle force changes with length • How muscle force changes with velocity • How these relate to strength & speed • How we measure these things

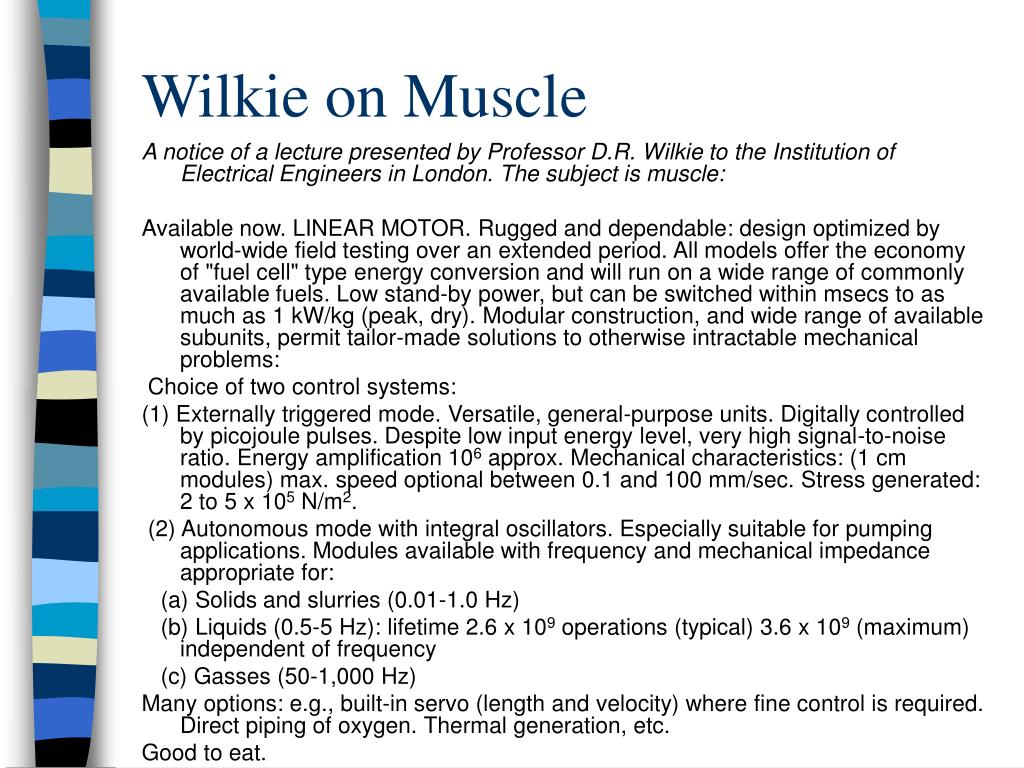

  4. Wilkie on Muscle A notice of a lecture presented by Professor D.R. Wilkie to the Institution of Electrical Engineers in London. The subject is muscle: Available now. LINEAR MOTOR. Rugged and dependable: design optimized by world-wide field testing over an extended period. All models offer the economy of "fuel cell" type energy conversion and will run on a wide range of commonly available fuels. Low stand-by power, but can be switched within msecs to as much as 1 kW/kg (peak, dry). Modular construction, and wide range of available subunits, permit tailor-made solutions to otherwise intractable mechanical problems: Choice of two control systems: (1) Externally triggered mode. Versatile, general-purpose units. Digitally controlled by picojoule pulses. Despite low input energy level, very high signal-to-noise ratio. Energy amplification 106 approx. Mechanical characteristics: (1 cm modules) max. speed optional between 0.1 and 100 mm/sec. Stress generated: 2 to 5 x 105 N/m2. (2) Autonomous mode with integral oscillators. Especially suitable for pumping applications. Modules available with frequency and mechanical impedance appropriate for: (a) Solids and slurries (0.01-1.0 Hz) (b) Liquids (0.5-5 Hz): lifetime 2.6 x 109 operations (typical) 3.6 x 109 (maximum) independent of frequency (c) Gasses (50-1,000 Hz) Many options: e.g., built-in servo (length and velocity) where fine control is required. Direct piping of oxygen. Thermal generation, etc. Good to eat.

  5. Muscles actuate movement by development of tension • That is, muscles pull they don’t push. • Muscles are grouped into antagonist pairs. • Movement involves coordination of many muscles.

  6. Muscle Structure Muscle Fascicles Myofibers Sarcomeres

  7. Fascicles are groups of fibers • One can dissect out muscle fascicles • Under a light microscope a stripped pattern is seen • A muscle cell may be 10-100mm in diameter and 1-30 cm long

  8. Muscle fibers are comprised of myofibrils • Under an electron microscope, one can clearly see individual myofibrils (threads) • The sources of the stripped patterns are also seen

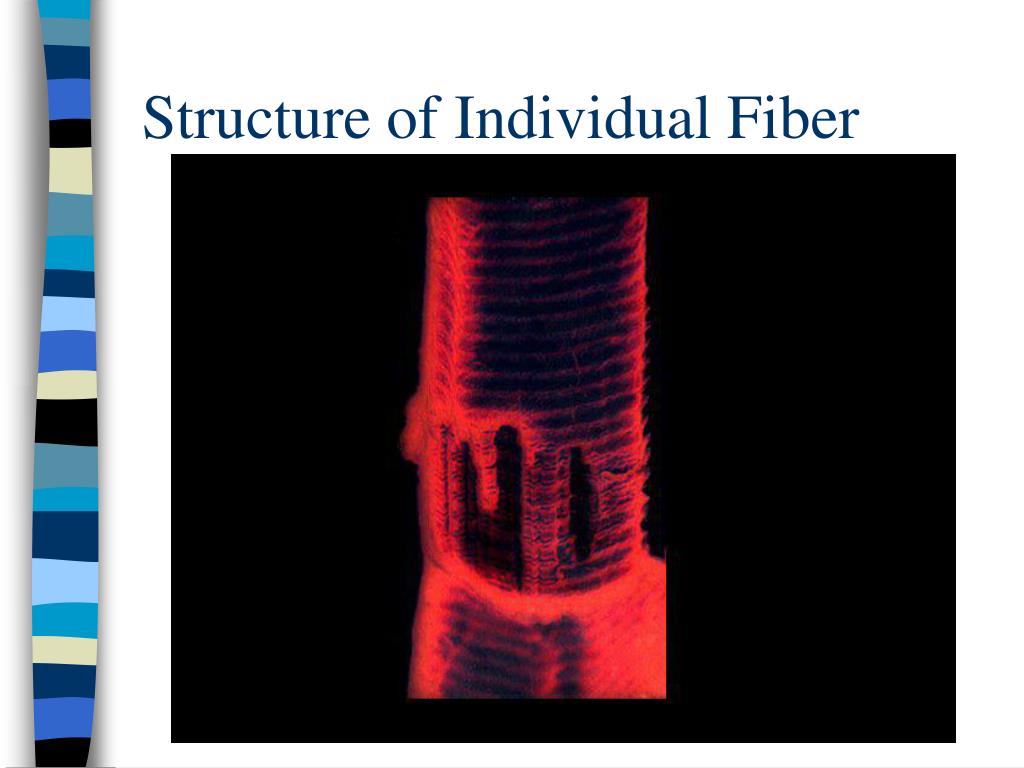

  9. Structure of Individual Fiber

  10. Sarcomeres • Sarcomeres—the fundamental units of muscle contraction. They are arranged in series, hence the total change in length of a muscle may be great while that of the individual sarcomeres is small. They are comprised of contractile filaments (thick and thin filaments). Together these form a stripped pattern when viewed under a light microscope, which is why skeletal muscle is sometimes called “striated” muscle.

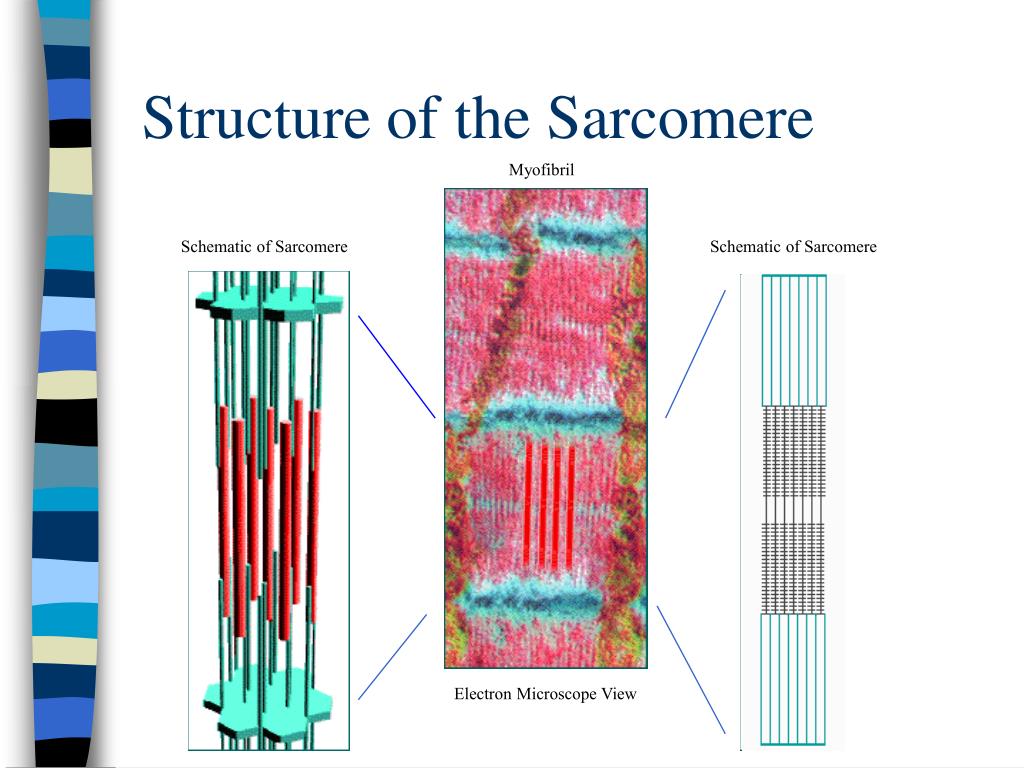

  11. Schematic of Sarcomere Schematic of Sarcomere Structure of the Sarcomere Myofibril Electron Microscope View

  12. Force is developed at the actin-myosin cross bridge • Thick filament is made of myosin (head and tail) • Actin is the primary component of thin filaments (10nm diameter)

  13. Sarcomere structure • A-band • I-band • Z-line • H-zone • M-line or M-region

  14. Sarcomere Structrure • A-band • I-band • Z-line • H-zone • M-line or M-region

  15. Outline • How muscle works • How muscle force changes with length • How muscle force changes with velocity • How these relate to strength & speed • How we measure these things

  16. Length-Tension Relationship • The tension a sarcomere can generate is a function of its length. • When the sarcomeres are very long, only a few of the myosin heads on each thick filament can reach a thin filament, so little force can be exerted.

  17. Length-Tension Relationship • At intermediate lengths, all of the myosin heads are within reach of the thin filaments, so maximum force can be exerted.

  18. Length-Tension Relationship • With further shortening, the ends of the thin filaments reach beyond the mid-points of the thick ones, to myosin heads that face the wrong direction and push on them instead of pulling. This reduces the force that the muscle fiber can exert.

  19. Length-Tension Relationship • Eventually, as shortening continues, the thick filaments collide with the Z-disks. Any further shortening distorts the filaments and the force falls rapidly.

  20. Length-Tension Relationship • The tension a sarcomere can generate is a function of its length.

  21. Length-Tension Relationship • There is an active and passive component to the L-T relationship. This is at 2.2 mm for a frog. “Optimal length” is about 2.8 mm for humans.

  22. Outline • How muscle works • How muscle force changes with length • How muscle force changes with velocity • How these relate to strength & speed • How we measure these things

  23. Force-Velocity Relationship • The force a muscle can exert depends upon how fast it is shortening as well as the sarcomere length. • The faster it is shortening, the less force it can exert. This is why you cannot lift heavy weights quickly. • However, a muscle that is being forcibly stretched exerts increased force.

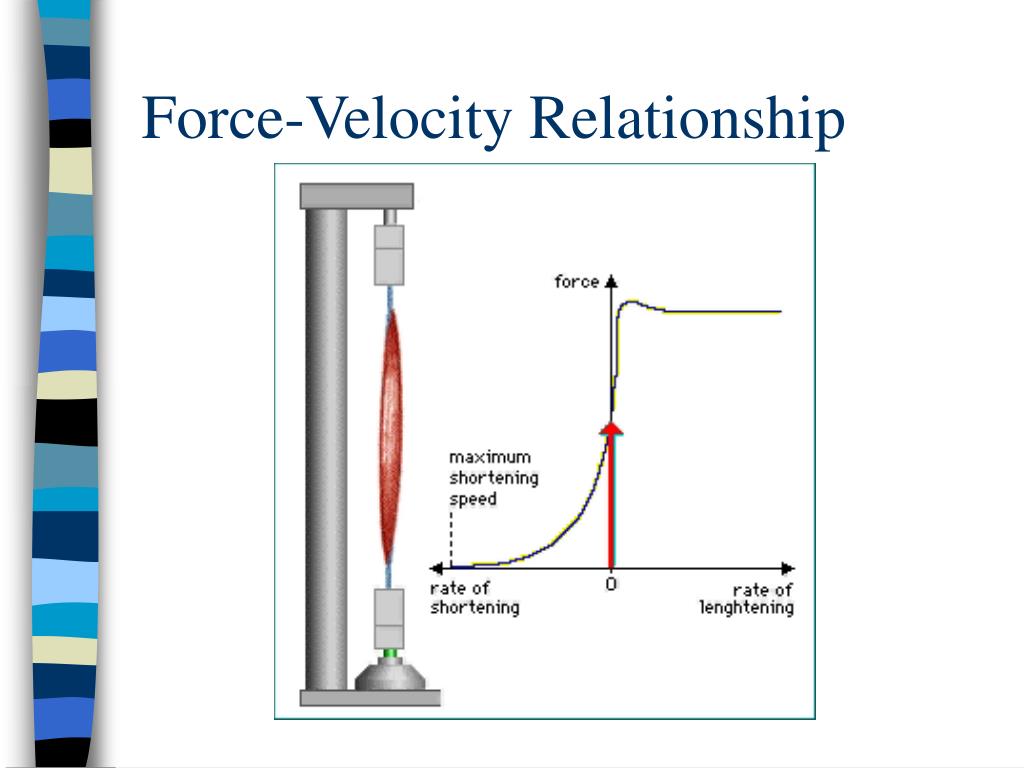

  24. Force-Velocity Relationship

  25. Concentric Eccentric Force-Velocity Relationship • F-V curve for isotonic contractions. • Note that it is typically plotted with increases in length being negative.

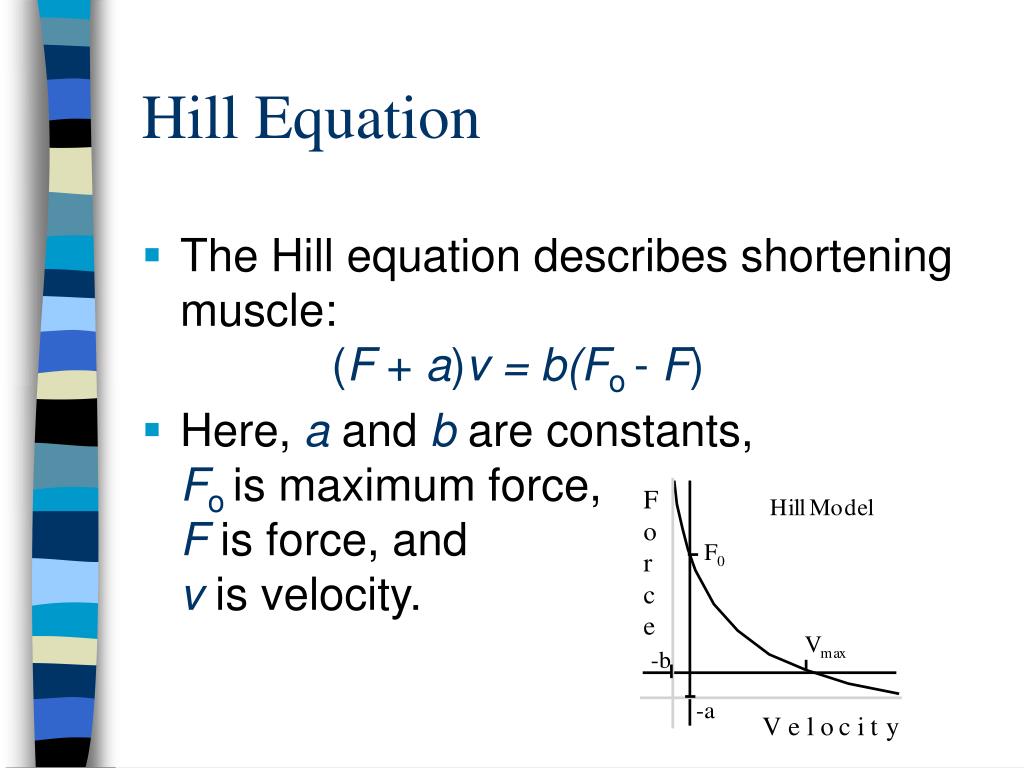

  26. Hill Equation • The Hill equation describes shortening muscle:(F + a)v = b(Fo - F) • Here, a and b are constants, Fo is maximum force, F is force, and v is velocity.

  27. Outline • How muscle works • How muscle force changes with length • How muscle force changes with velocity • How these relate to strength & speed • How we measure these things

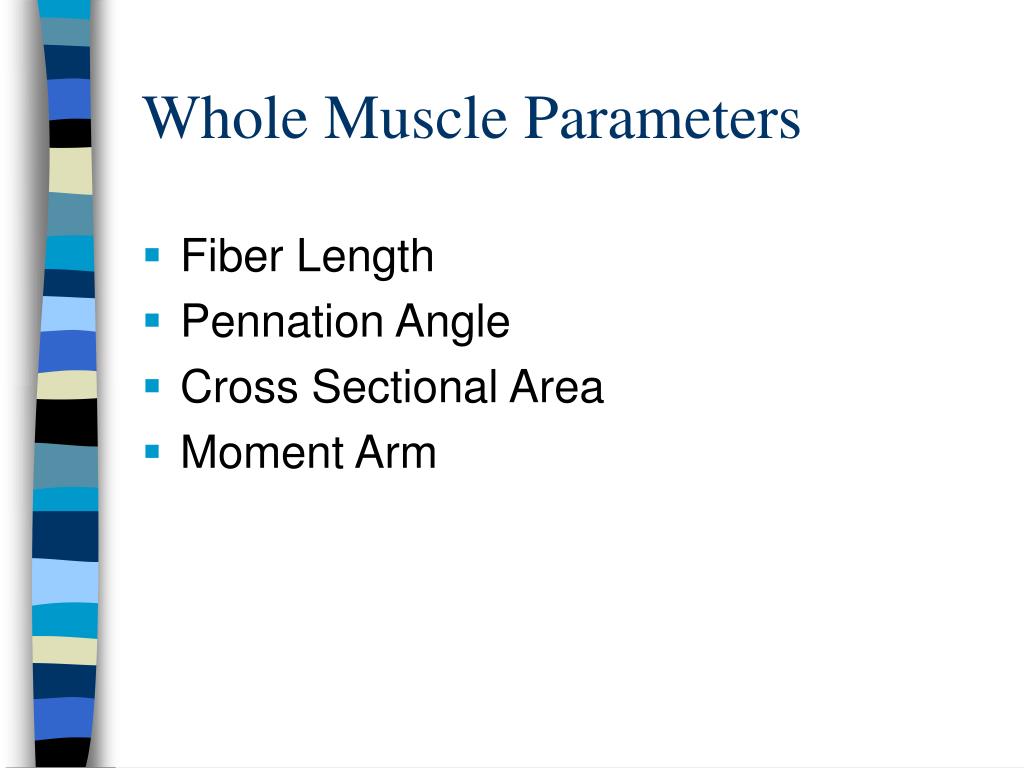

  28. Whole Muscle Parameters • Fiber Length • Pennation Angle • Cross Sectional Area • Moment Arm

  29. Muscle Architecture

  30. Muscle Architecture Parallel Fibered Pennate Muscle

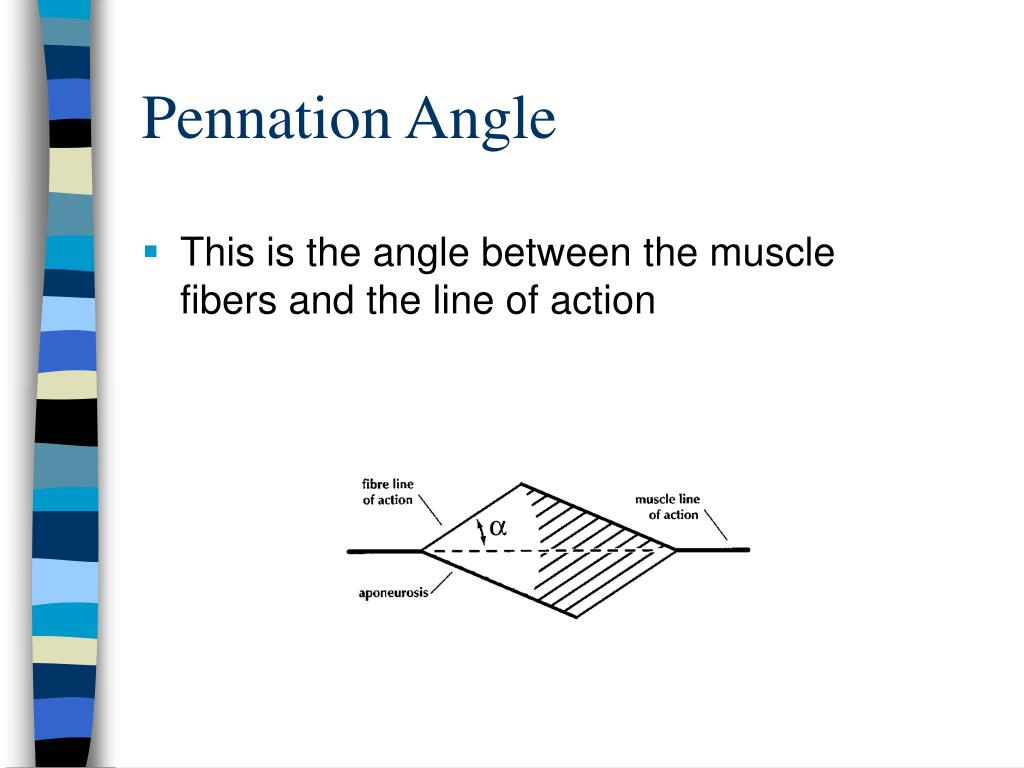

  31. Pennation Angle • This is the angle between the muscle fibers and the line of action

  32. Cross Sectional Area • Cross Sectional Area is related to the # of muscle fibers in parallel. • Hence, it should take into account the pennation angle, as shown below:

  33. Muscle Moment Arms • Moment arm of a muscle is the length from the joint center to the muscle. This is not a constant. • M = r x F

  34. For Muscle #1 Angle Angle Angle Joint Moment MA • For each muscle, maximal joint moment changes with joint angle. • It is the product of the moment arm curve and the muscle force curve. • “Strength” is the sum of the joint moment curves for every muscle that acts at the joint. Force Moment

  35. Moment Contributions • Note that large Peak Forces (OPF) or large Moment Arm (SAR) does not necessarily result in large Moments.

  36. Gastrocnemious has short, pennate fibers and a long tendon Sartorius has long, parallel fibers and very little tendon Static Properties The fiber length and pennation angle of muscles can vary considerably.

  37. Excursion vs Force Pennate fibers: Short excursion, Higher forces Parallel fibers: Long excursion, Lower forces

  38. Outline • How muscle works • How muscle force changes with length • How muscle force changes with velocity • How these relate to strength & speed • How we measure these things

  39. Lab Goal #1 • Q> How does maximal muscle force change as a function of its length? • To answer this we will measure maximal joint moment as a function of joint angle • We will provide estimates of muscle moment arms from literature. • You will take your measured joint moments and the supplied moment arms to estimate muscle force as a function of joint angle.

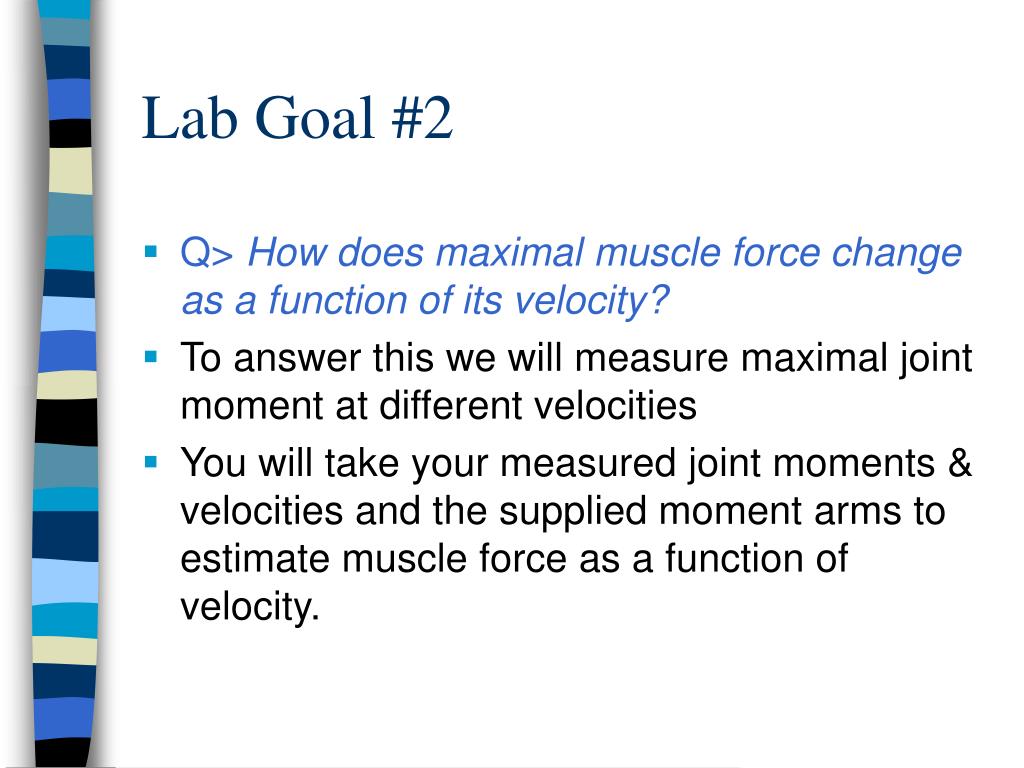

  40. Lab Goal #2 • Q> How does maximal muscle force change as a function of its velocity? • To answer this we will measure maximal joint moment at different velocities • You will take your measured joint moments & velocities and the supplied moment arms to estimate muscle force as a function of velocity.

  41. Joint Moment • We will measure joint moment using a Biodex Dynometer • Statically • Dynamically

  42. Muscle Parameters • Other muscle parameters can be measured in living people using an ultrasound machine: • Pennation Angle • Fiber length

  43. Muscle Activity • Muscle activation can be measured by putting electrodes on (or into) a muscle. • This is called electromyography and the resulting signals are called EMGs.

  44. EMG

  45. EMG and Muscle Force • EMG is related to muscle force • The relationship is nonlinear • EMG to muscle activation • Muscle force-length relationship • Muscle force-velocity relationship • Mathematical models describing this relationship are the topic of my research (in part)

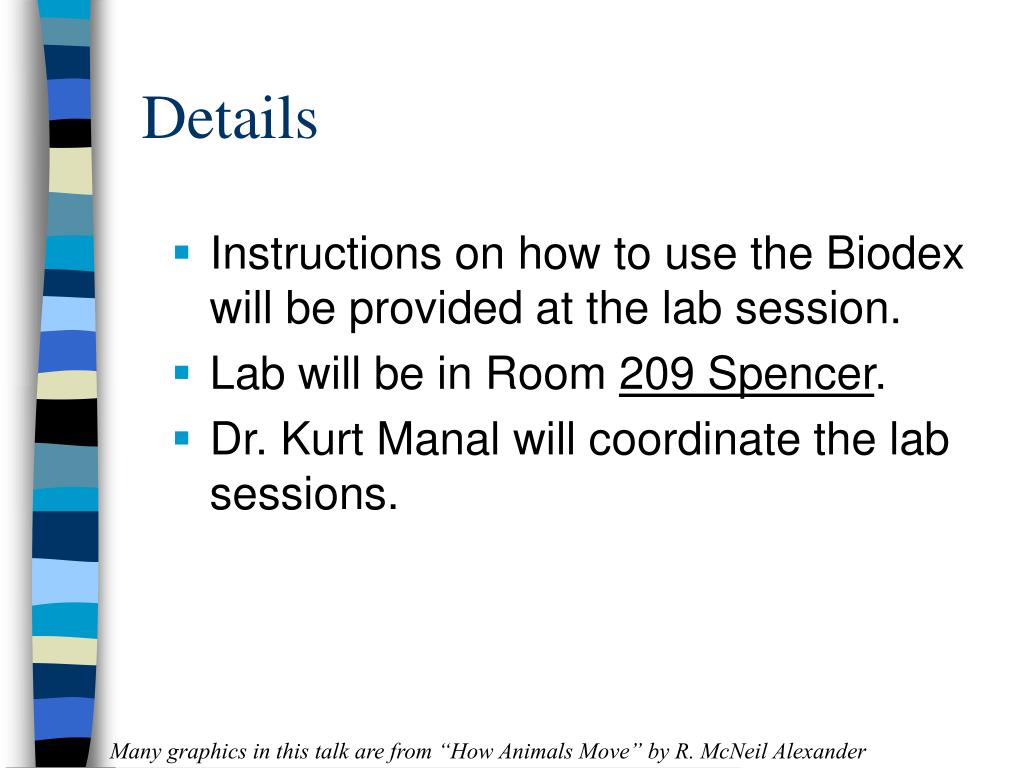

  46. Details • Instructions on how to use the Biodex will be provided at the lab session. • Lab will be in Room 209 Spencer. • Dr. Kurt Manal will coordinate the lab sessions. Many graphics in this talk are from “How Animals Move” by R. McNeil Alexander
