Cascade Control

Cascade Control. Using Cascade Control to Control Cascade Brought to You by Katie Feldt and Chris Mark. The Process. Detergent. Mixing Tank. Mixing Tank. Lemony Scent. The Controls. Detergent. Mixing Tank. Lemony Scent. FT. AT. FC. AC. Primary Controller. Detergent. Mixing Tank.

nathan
Télécharger la présentation

Cascade Control

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

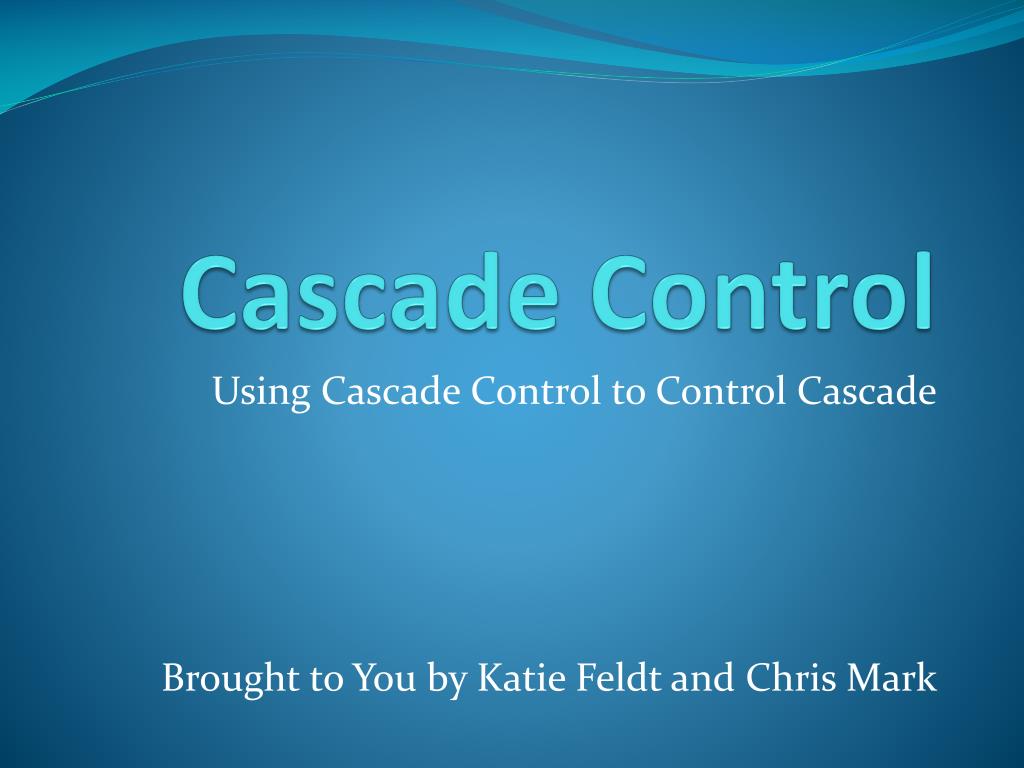

  1. Cascade Control Using Cascade Control to Control Cascade Brought to You by Katie Feldt and Chris Mark

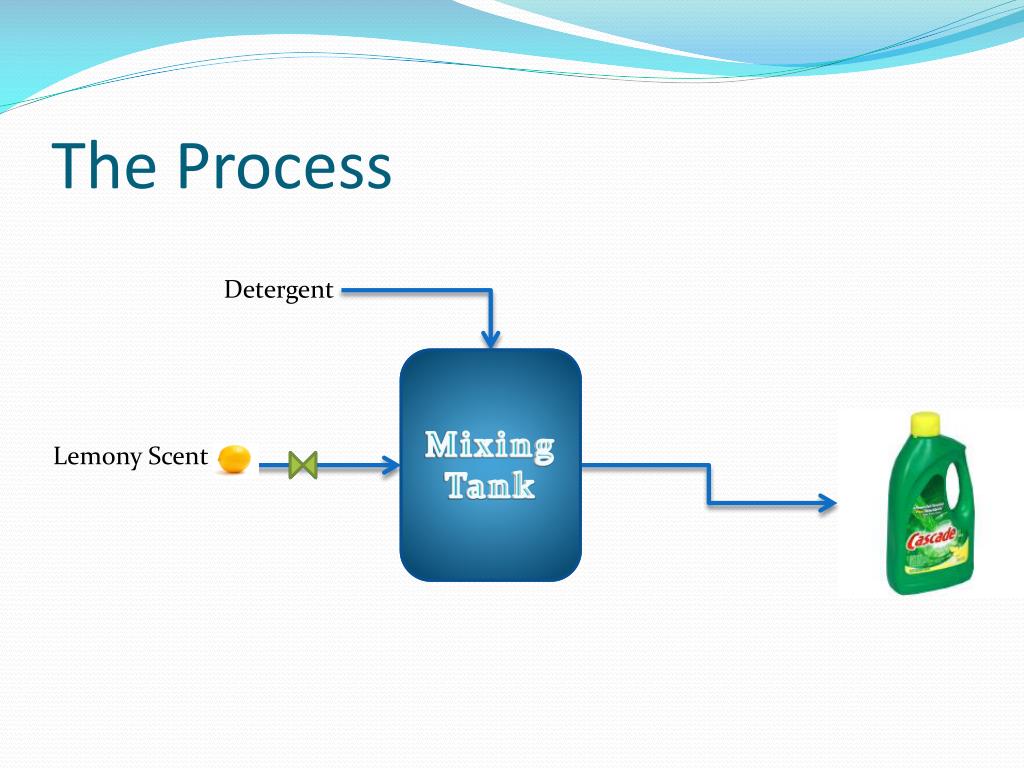

  2. The Process Detergent Mixing Tank Mixing Tank Lemony Scent

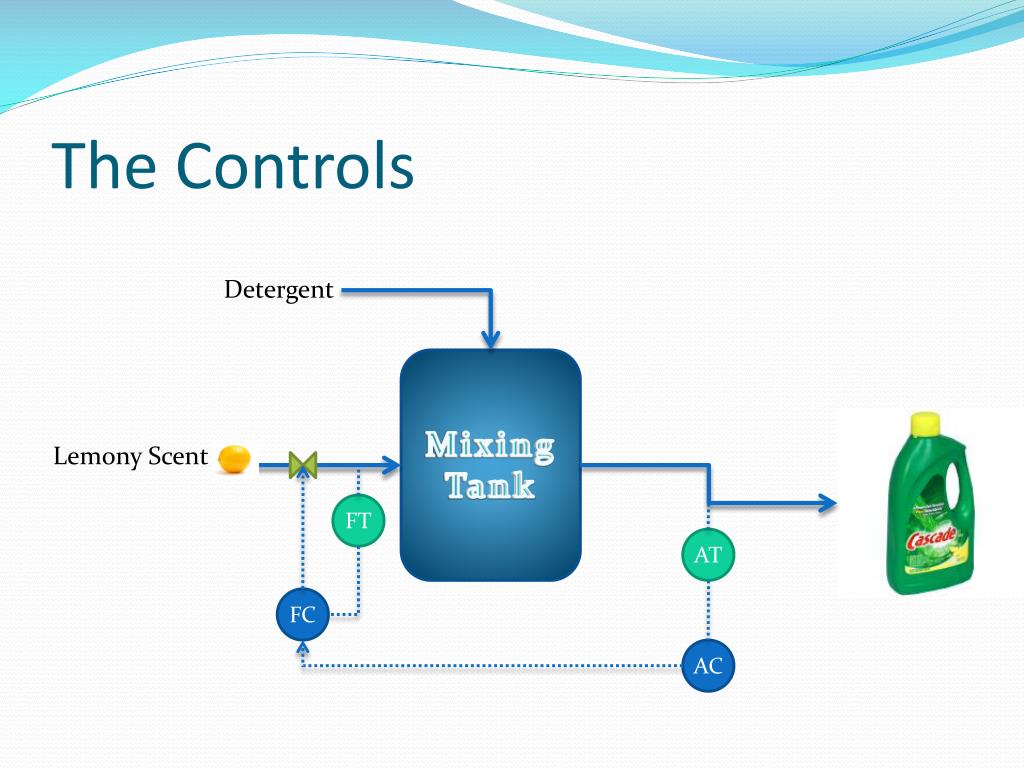

  3. The Controls Detergent Mixing Tank Lemony Scent FT AT FC AC

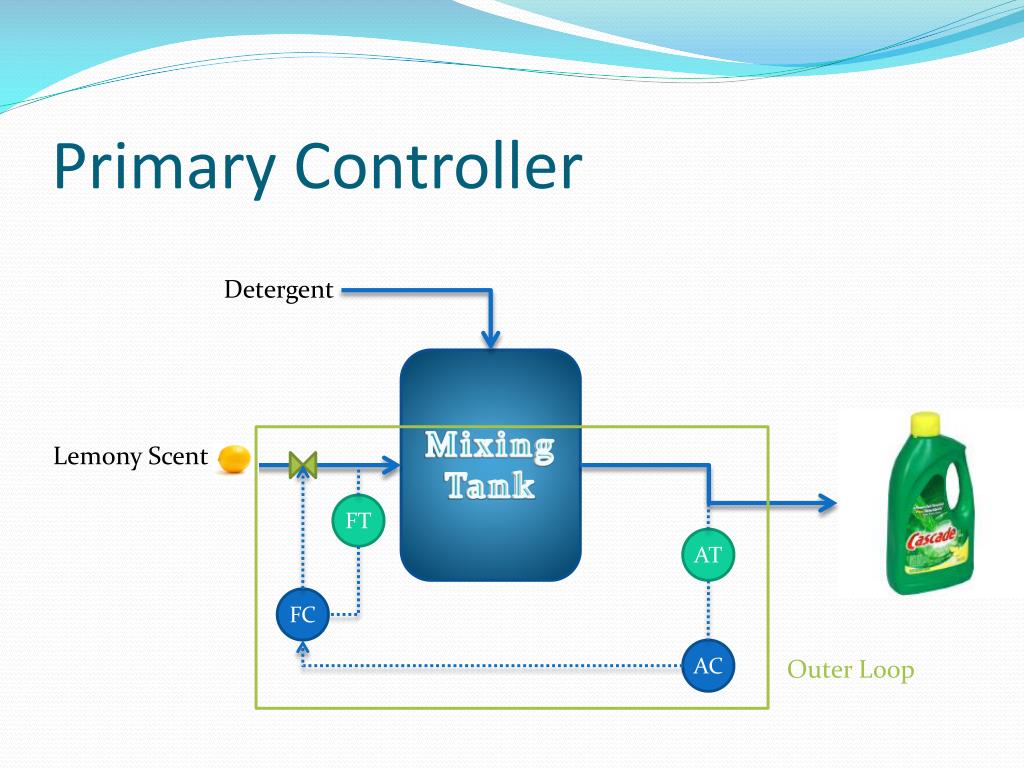

  4. Primary Controller Detergent Mixing Tank Lemony Scent FT AT FC AC Outer Loop

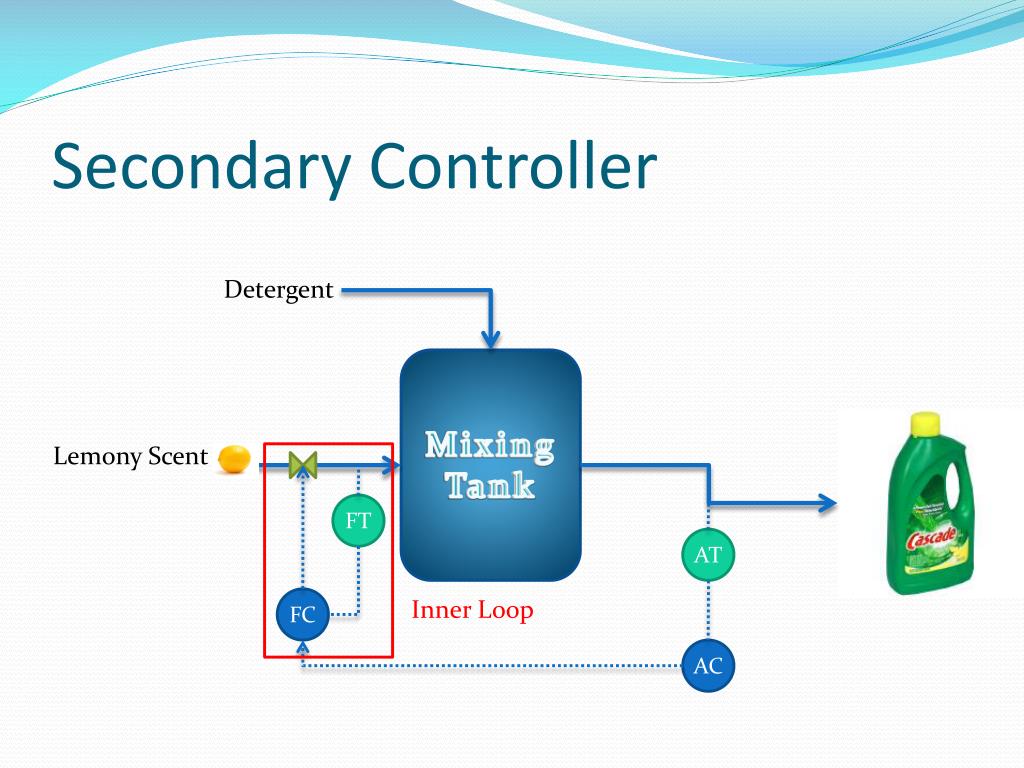

  5. Secondary Controller Detergent Mixing Tank Lemony Scent FT AT FC Inner Loop AC

  6. Cascade Control Architecture Detergent Mixing Tank Lemony Scent FT AT FC AC

  7. WIND UP! Detergent Mixing Tank Lemony Scent FT AT FC AC

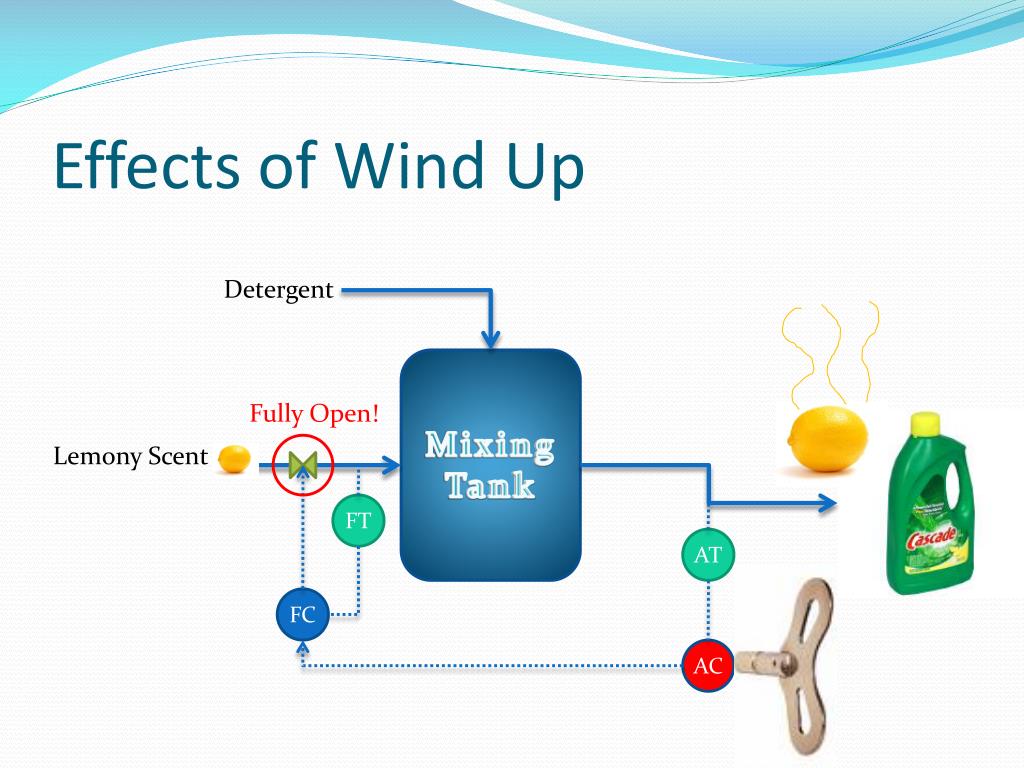

  8. Effects of Wind Up Detergent Mixing Tank Fully Open! Lemony Scent FT AT FC AC

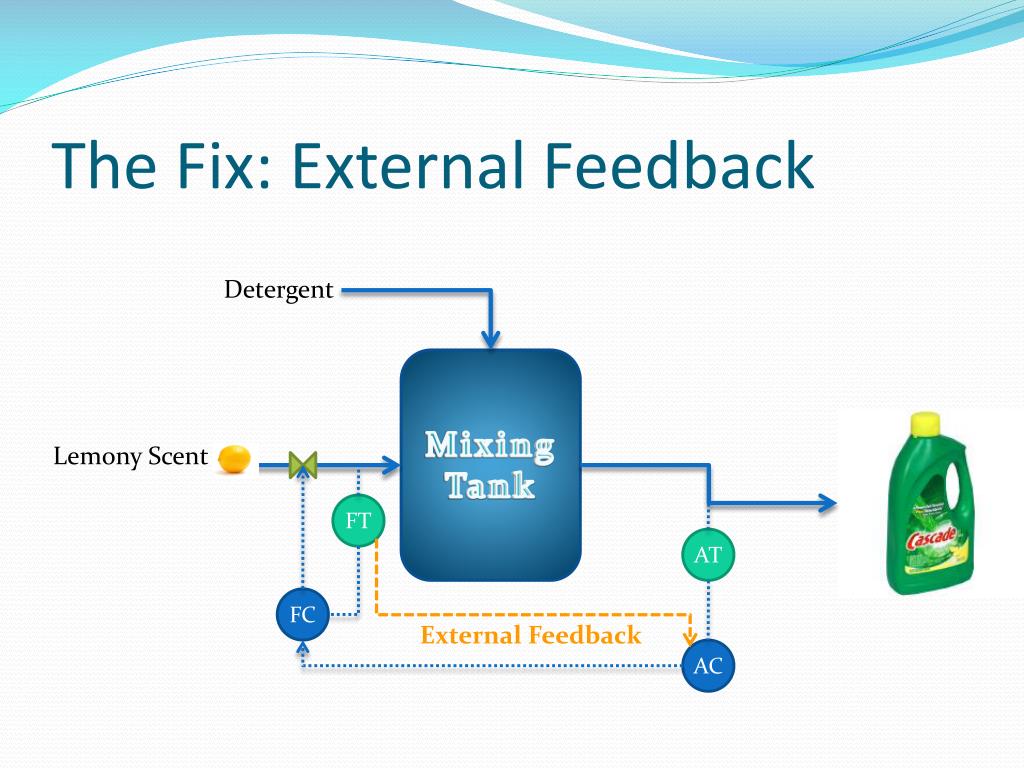

  9. The Fix: External Feedback Detergent Mixing Tank Lemony Scent FT AT FC External Feedback AC

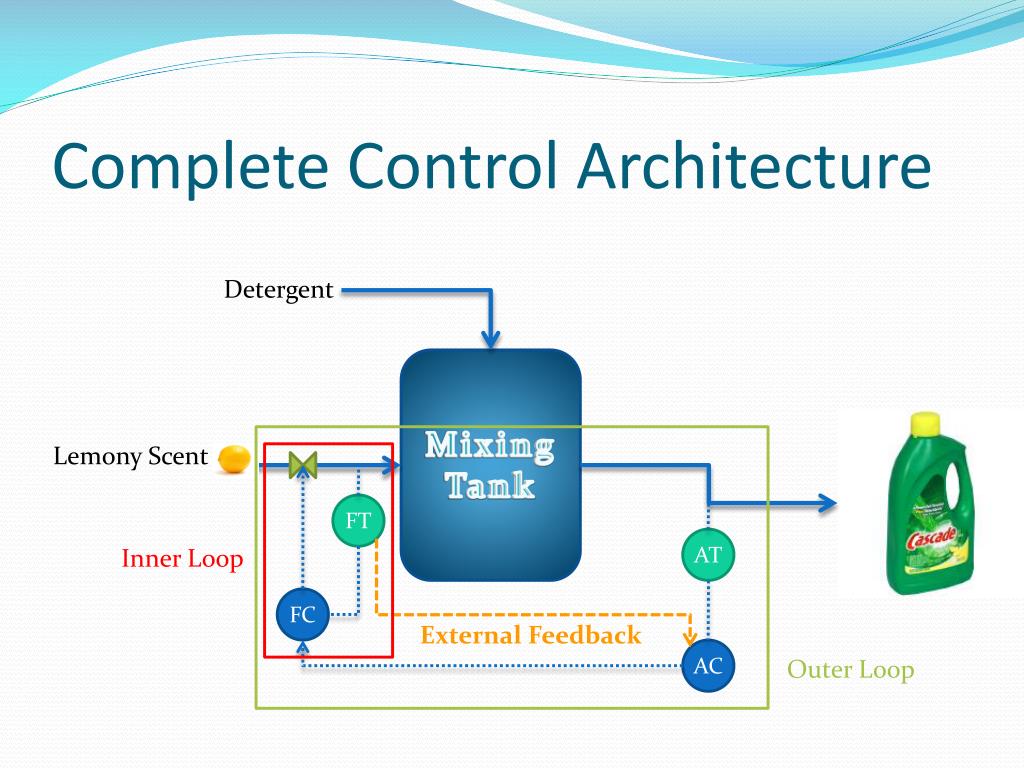

  10. Complete Control Architecture Detergent Mixing Tank Lemony Scent FT AT Inner Loop FC External Feedback AC Outer Loop

  11. Enjoy Cascade Detergent and Control!
