  1. Chapter 7 SECURING COMMUNICATIONS

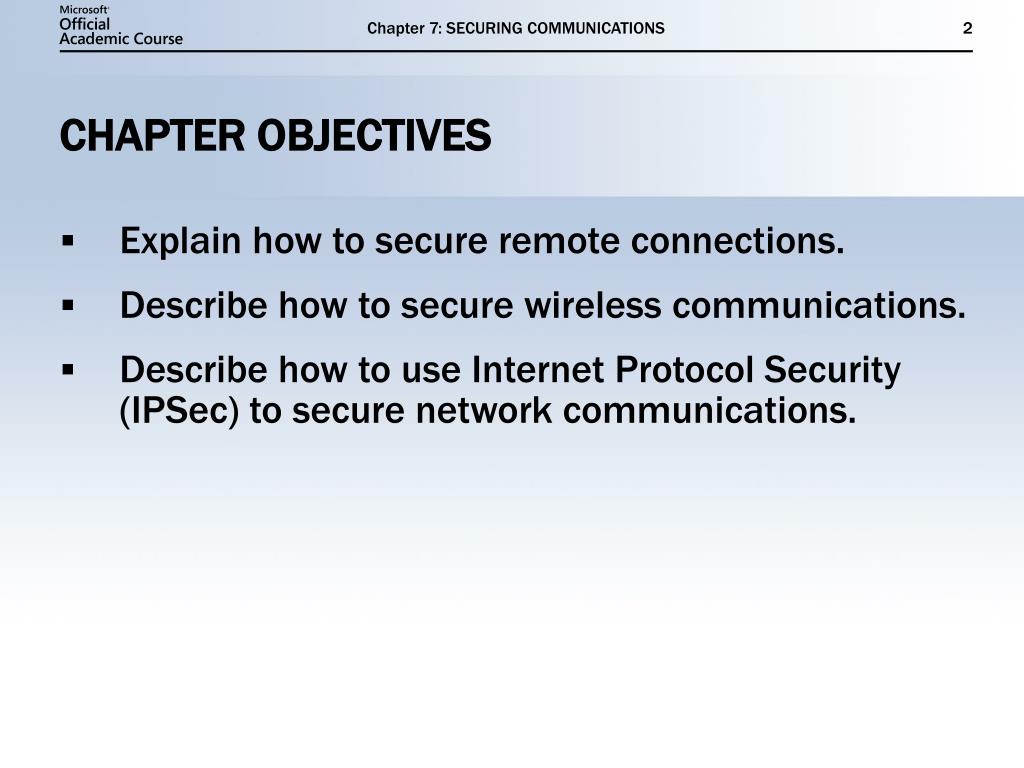

  2. Chapter 7: SECURING COMMUNICATIONS CHAPTER OBJECTIVES • Explain how to secure remote connections. • Describe how to secure wireless communications. • Describe how to use Internet Protocol Security (IPSec) to secure network communications.

  3. Chapter 7: SECURING COMMUNICATIONS SECURING REMOTE ACCESS • More workers are telecommuting now. • Remote users have various types of communication connections. • Remote connections have special security requirements.

  4. Chapter 7: SECURING COMMUNICATIONS CHOOSING REMOTE CONNECTION METHODS • Modems support user dial-in connections. • A remote connection grants Internet access to network users via remote access services. • Internet connectivity supports virtual private network (VPN) links. • Connection media are often insecure.

  5. Chapter 7: SECURING COMMUNICATIONS DIAL-UP VS. VPN

  6. Chapter 7: SECURING COMMUNICATIONS DIAL-UP CONNECTIONS • Modems establish the network link. • The remote access server • Hosts modem banks • Authenticates remote users • Acts as a router or proxy

  7. Chapter 7: SECURING COMMUNICATIONS DIAL-UP CONNECTIONS (CONT.)

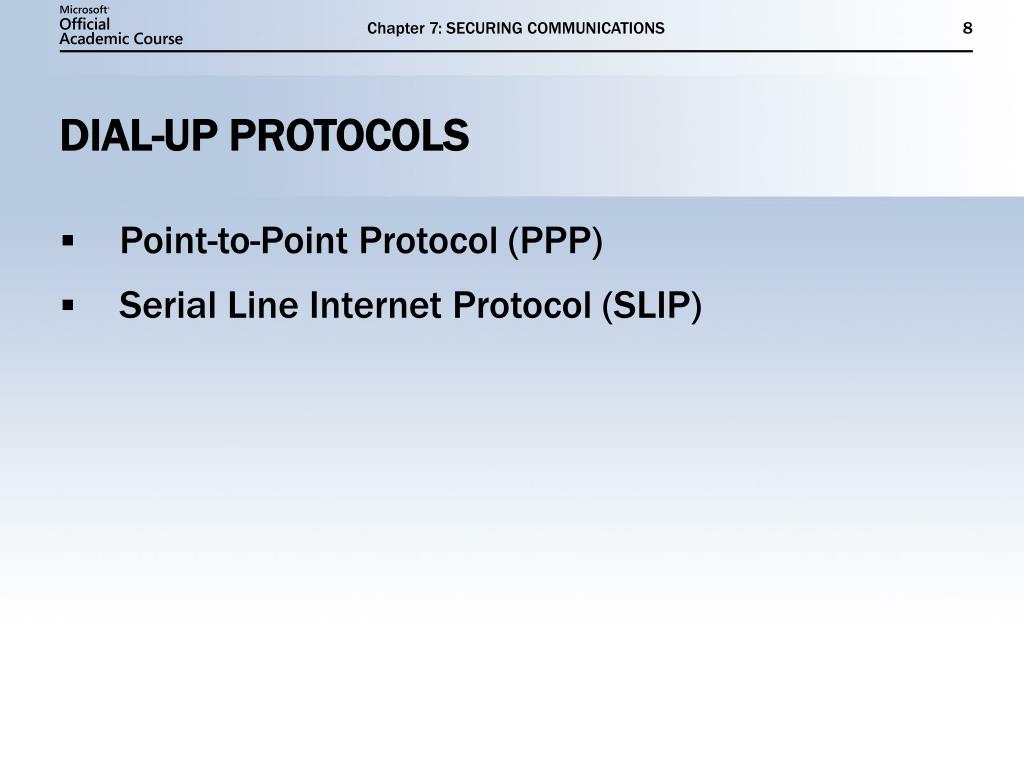

  8. Chapter 7: SECURING COMMUNICATIONS DIAL-UP PROTOCOLS • Point-to-Point Protocol (PPP) • Serial Line Internet Protocol (SLIP)

  9. Chapter 7: SECURING COMMUNICATIONS CONNECTION-LEVEL SECURITY • Callback Control Protocol (CBCP) • Predefined • User-defined • Caller ID • Automatic number identification (ANI)

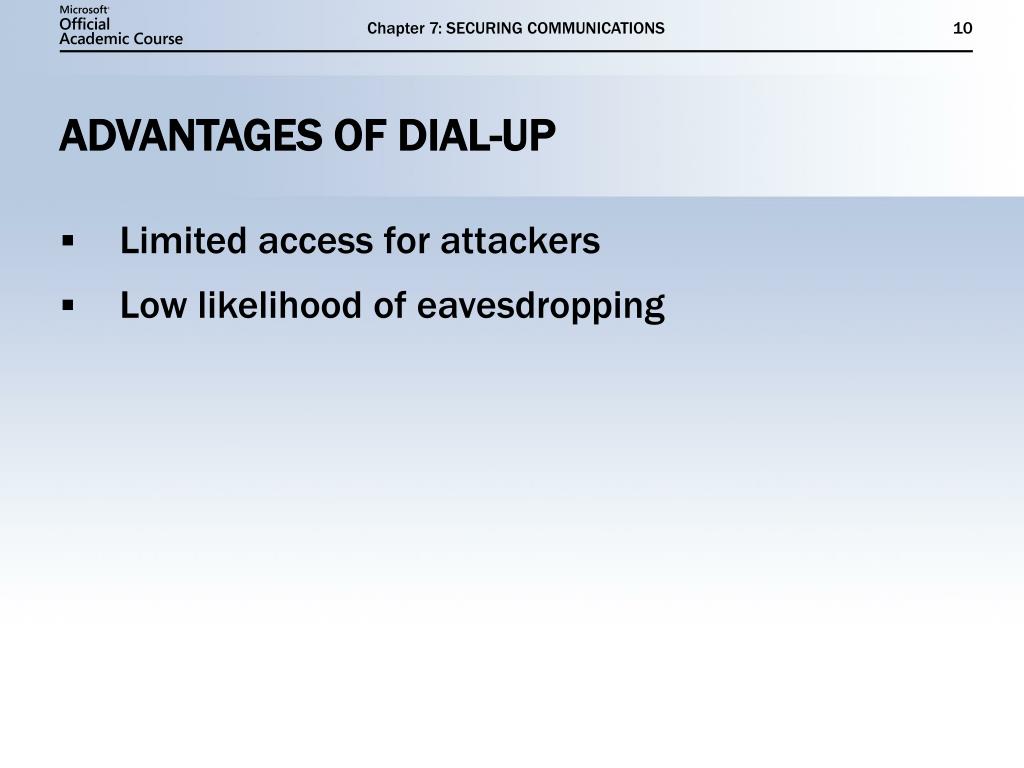

  10. Chapter 7: SECURING COMMUNICATIONS ADVANTAGES OF DIAL-UP • Limited access for attackers • Low likelihood of eavesdropping

  11. Chapter 7: SECURING COMMUNICATIONS DISADVANTAGES OF DIAL-UP • Cost • Low productivity • War dialing

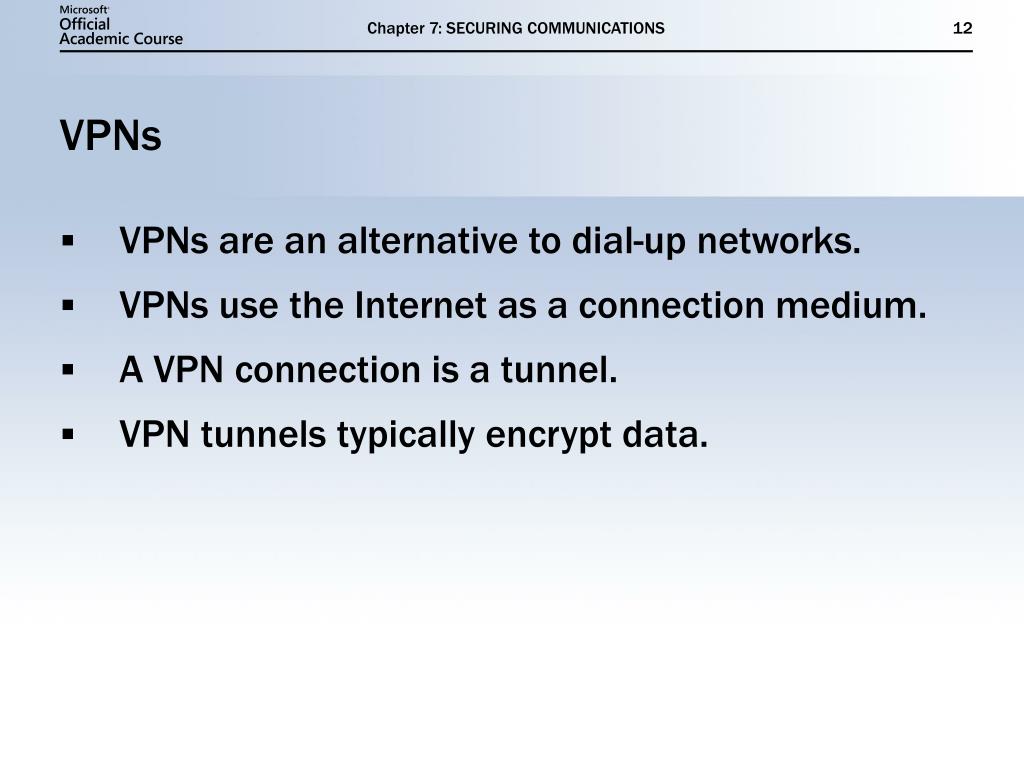

  12. Chapter 7: SECURING COMMUNICATIONS VPNs • VPNs are an alternative to dial-up networks. • VPNs use the Internet as a connection medium. • A VPN connection is a tunnel. • VPN tunnels typically encrypt data.

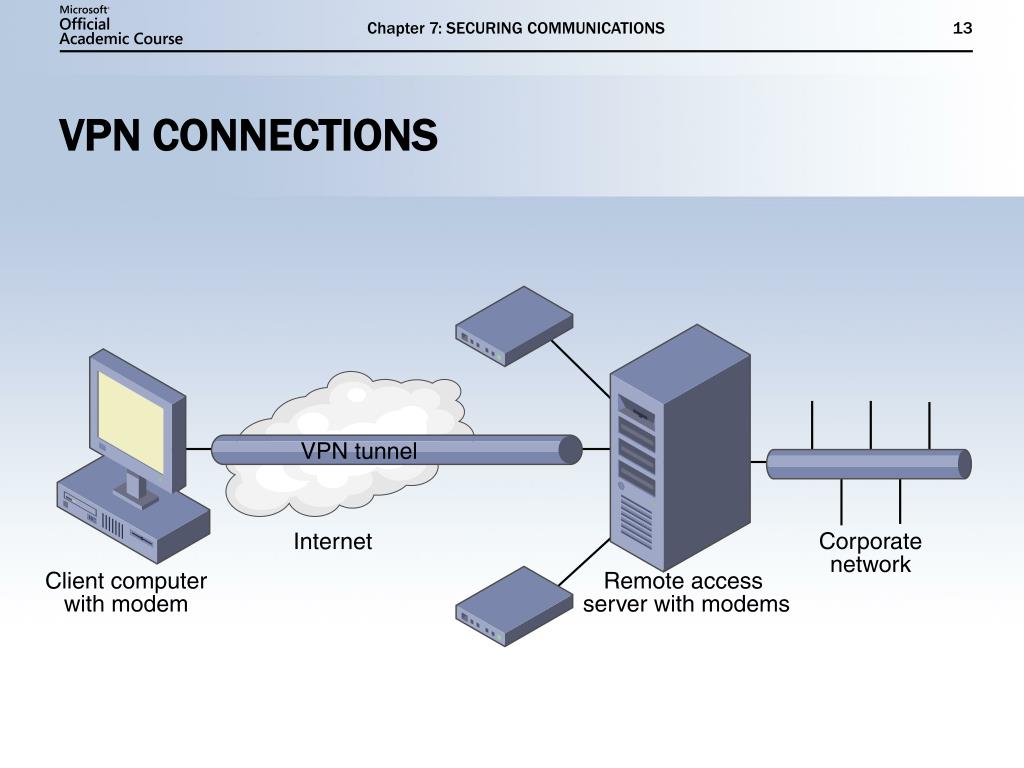

  13. Chapter 7: SECURING COMMUNICATIONS VPN CONNECTIONS

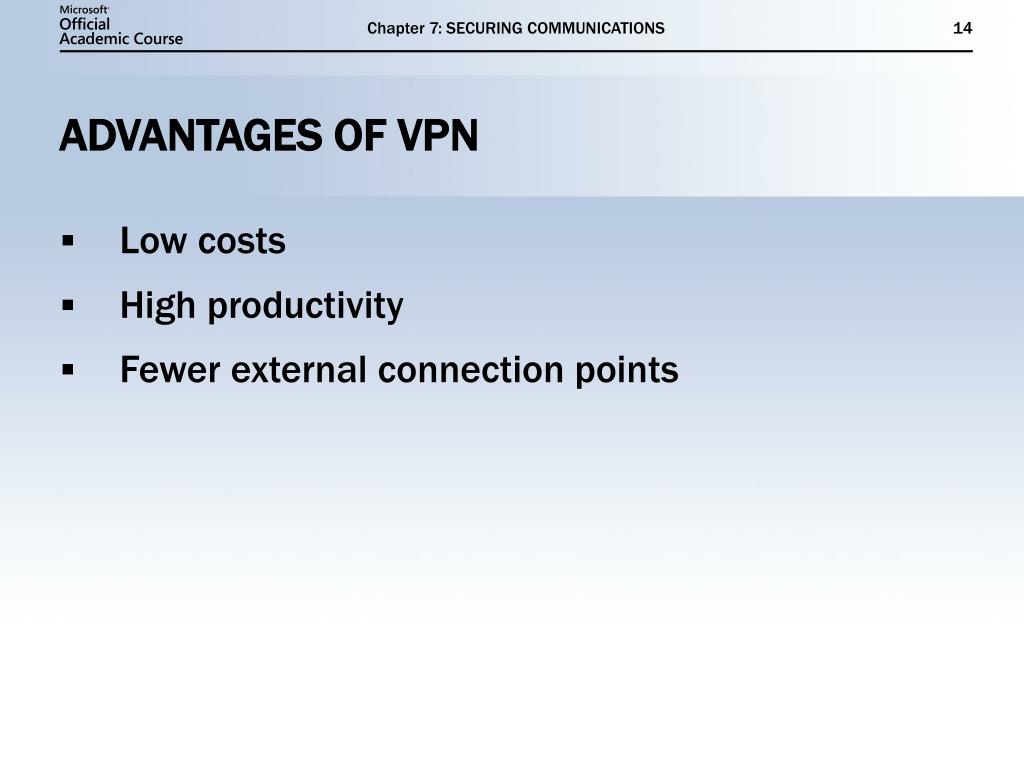

  14. Chapter 7: SECURING COMMUNICATIONS ADVANTAGES OF VPN • Low costs • High productivity • Fewer external connection points

  15. Chapter 7: SECURING COMMUNICATIONS DISADVANTAGES OF VPN • Risk of attacks • Risk of eavesdropping • High exposure to attackers

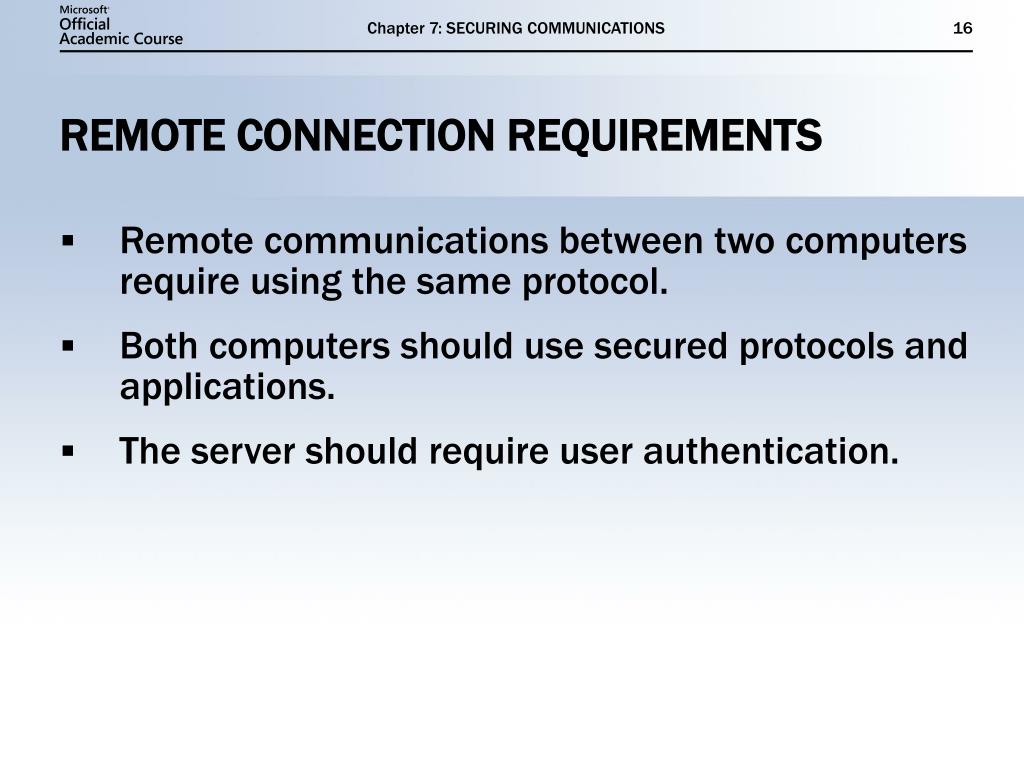

  16. Chapter 7: SECURING COMMUNICATIONS REMOTE CONNECTION REQUIREMENTS • Remote communications between two computers require using the same protocol. • Both computers should use secured protocols and applications. • The server should require user authentication.

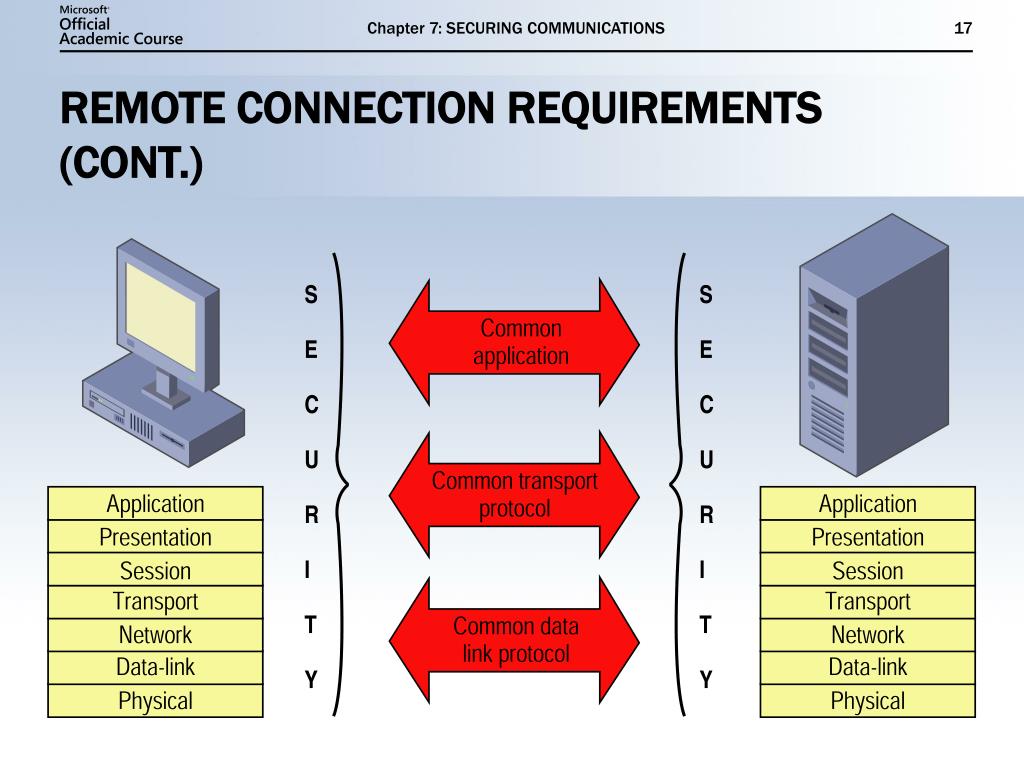

  17. Chapter 7: SECURING COMMUNICATIONS REMOTE CONNECTION REQUIREMENTS (CONT.)

  18. Chapter 7: SECURING COMMUNICATIONS COMMON AUTHENTICATION PROTOCOLS • Password Authentication Protocol (PAP) • Shiva Password Authentication Protocol (SPAP) • Challenge Handshake Authentication Protocol (CHAP)

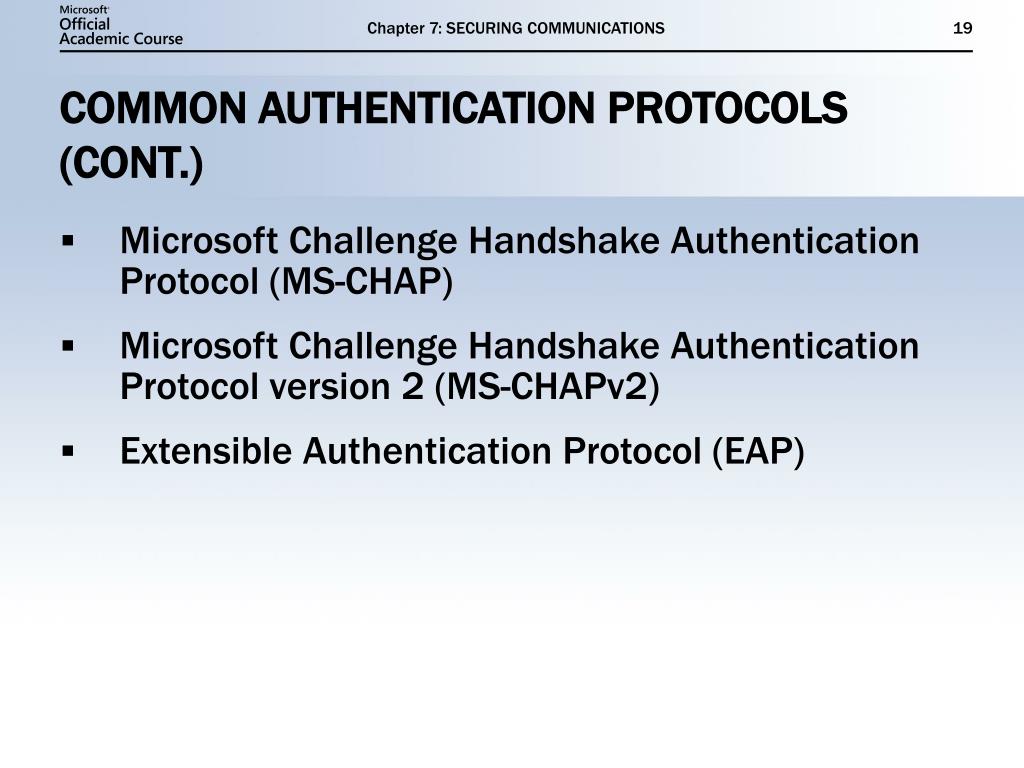

  19. Chapter 7: SECURING COMMUNICATIONS COMMON AUTHENTICATION PROTOCOLS (CONT.) • Microsoft Challenge Handshake Authentication Protocol (MS-CHAP) • Microsoft Challenge Handshake Authentication Protocol version 2 (MS-CHAPv2) • Extensible Authentication Protocol (EAP)

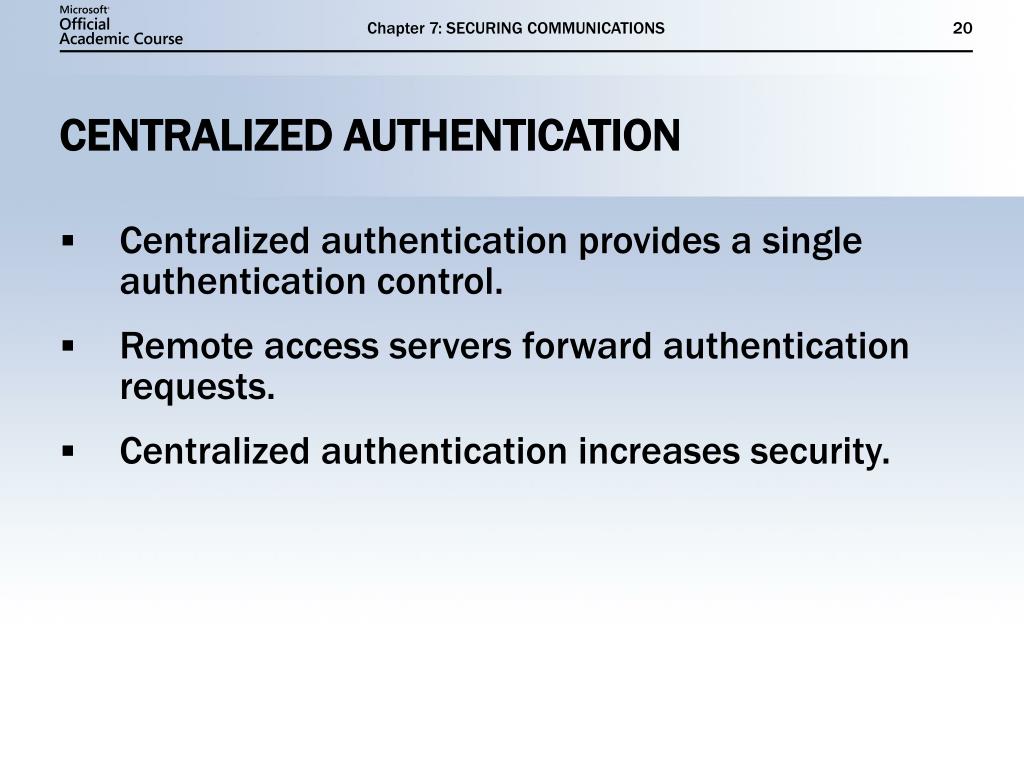

  20. Chapter 7: SECURING COMMUNICATIONS CENTRALIZED AUTHENTICATION • Centralized authentication provides a single authentication control. • Remote access servers forward authentication requests. • Centralized authentication increases security.

  21. Chapter 7: SECURING COMMUNICATIONS REMOTE ACCESS SERVER WITH CENTRALIZED AUTHENTICATION

  22. Chapter 7: SECURING COMMUNICATIONS CENTRALIZED AUTHENTICATION PROTOCOLS • Remote Authentication Dial-In User Service (RADIUS) • Terminal Access Controller Access Control Service (TACACS) • TACACS+

  23. Chapter 7: SECURING COMMUNICATIONS RADIUS • Provides authentication, authorization, and accounting services • Is vendor independent • Provides authentication encryption

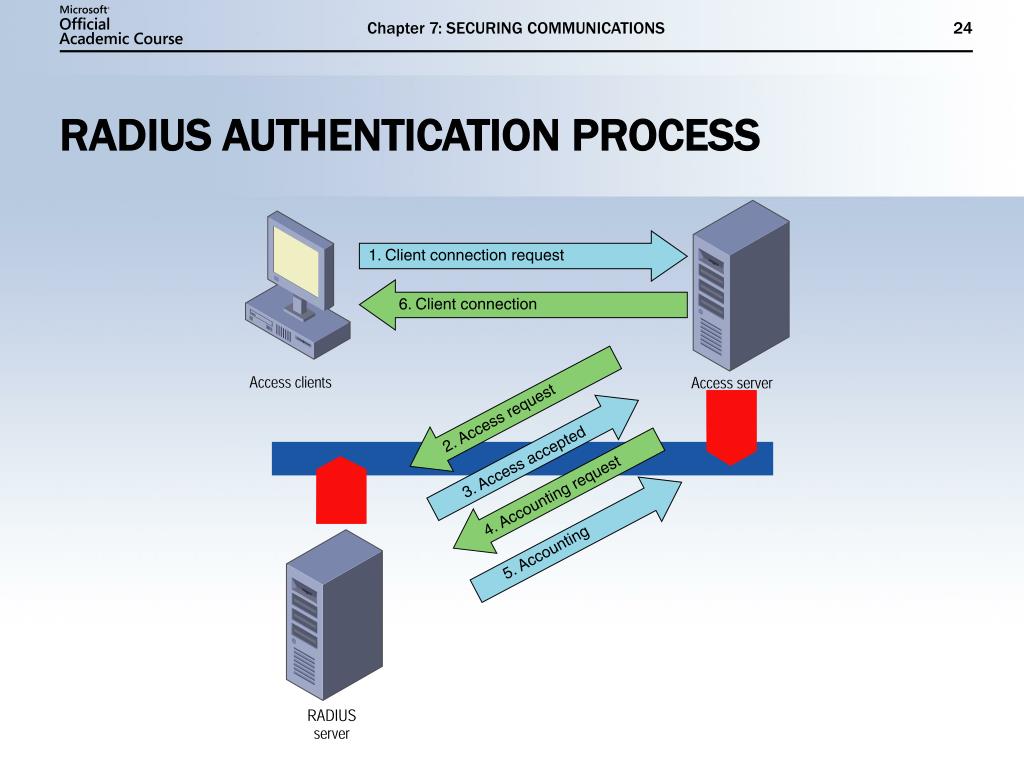

  24. Chapter 7: SECURING COMMUNICATIONS RADIUS AUTHENTICATION PROCESS

  25. Chapter 7: SECURING COMMUNICATIONS TACACS AND TACACS+ • Provide centralized access controls • Used by routers and remote access servers • Developed by Cisco Systems, Inc.

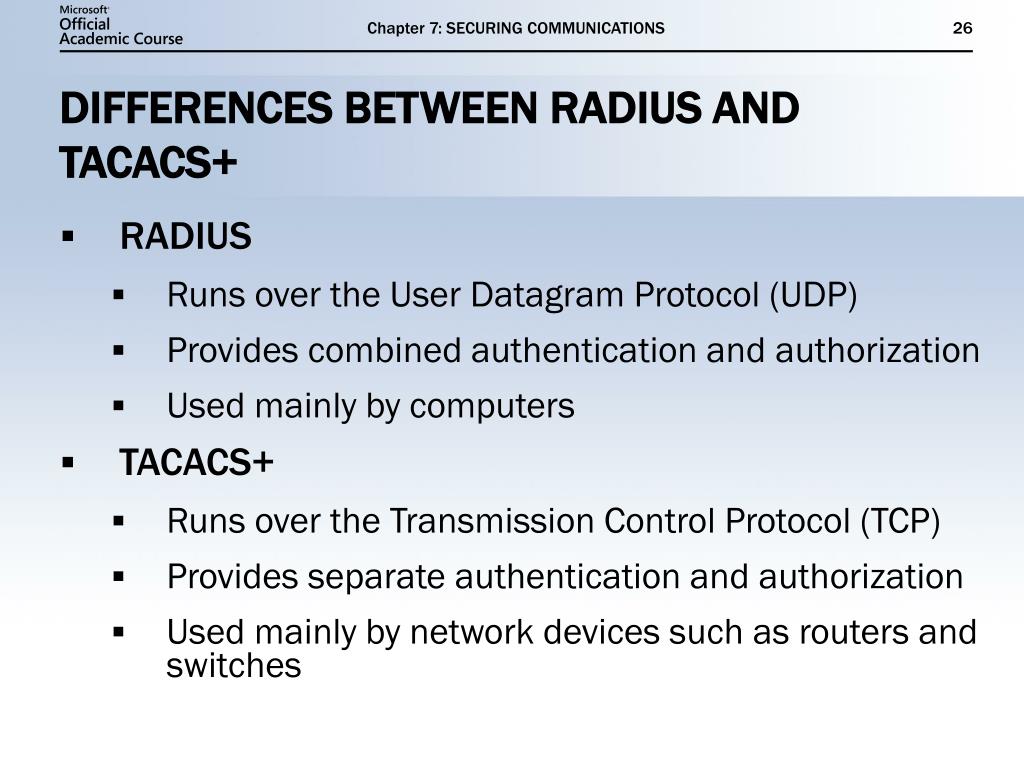

  26. Chapter 7: SECURING COMMUNICATIONS DIFFERENCES BETWEEN RADIUS AND TACACS+ • RADIUS • Runs over the User Datagram Protocol (UDP) • Provides combined authentication and authorization • Used mainly by computers • TACACS+ • Runs over the Transmission Control Protocol (TCP) • Provides separate authentication and authorization • Used mainly by network devices such as routers and switches

  27. Chapter 7: SECURING COMMUNICATIONS VPN PROTOCOLS • Point-to-Point Tunneling Protocol (PPTP) • Layer 2 Tunneling Protocol (L2TP) • IPSec

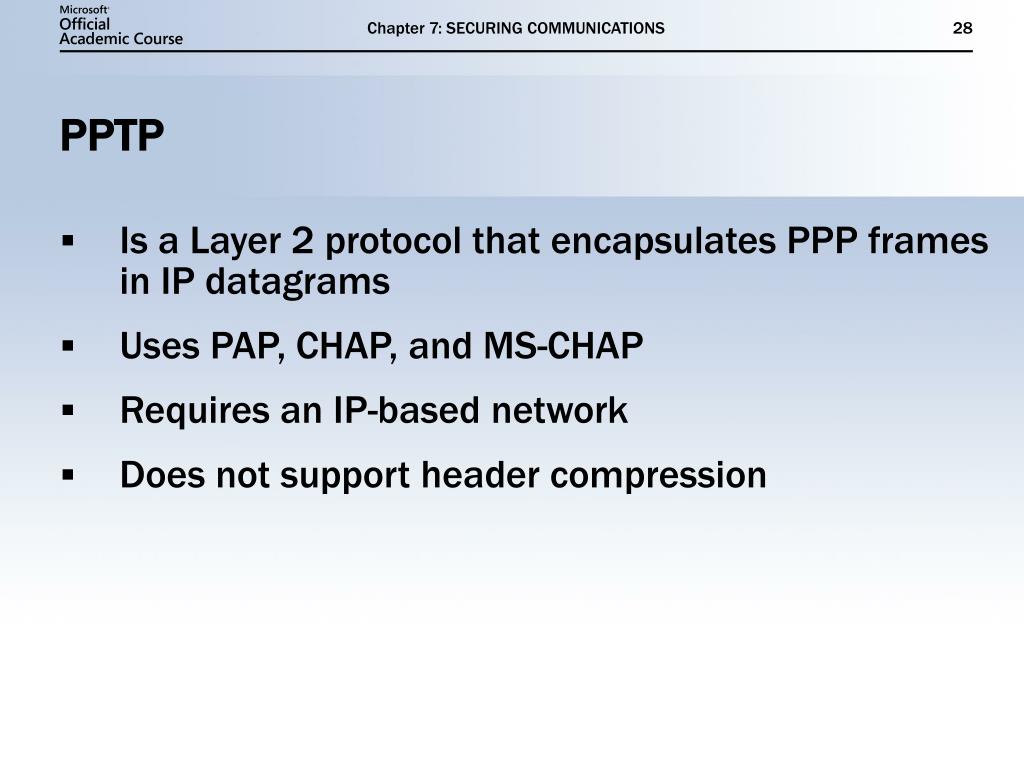

  28. Chapter 7: SECURING COMMUNICATIONS PPTP • Is a Layer 2 protocol that encapsulates PPP frames in IP datagrams • Uses PAP, CHAP, and MS-CHAP • Requires an IP-based network • Does not support header compression

  29. Chapter 7: SECURING COMMUNICATIONS L2TP • Is an extension of PPP • Encapsulates PPP frames to be sent over IP, X.25, frame relay, or Asynchronous Transfer Mode (ATM) networks • Can use encrypted or compressed frames • Includes no mechanisms for authentication or encryption • Often used with IPSec

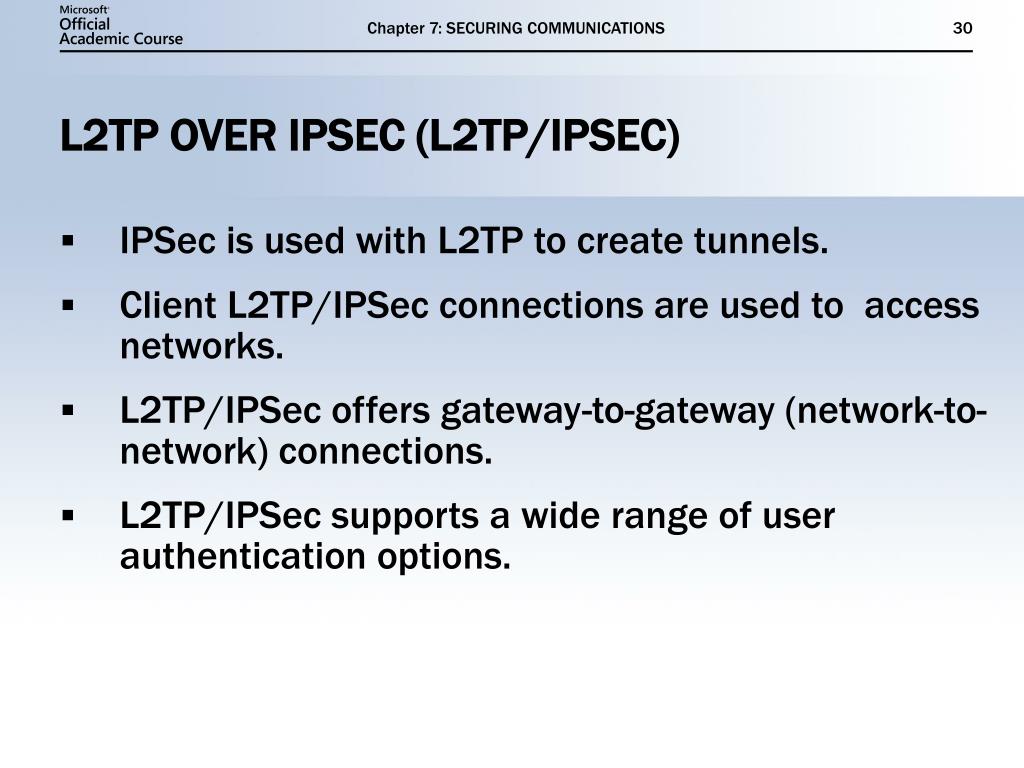

  30. Chapter 7: SECURING COMMUNICATIONS L2TP OVER IPSEC (L2TP/IPSEC) • IPSec is used with L2TP to create tunnels. • Client L2TP/IPSec connections are used to access networks. • L2TP/IPSec offers gateway-to-gateway (network-to-network) connections. • L2TP/IPSec supports a wide range of user authentication options.

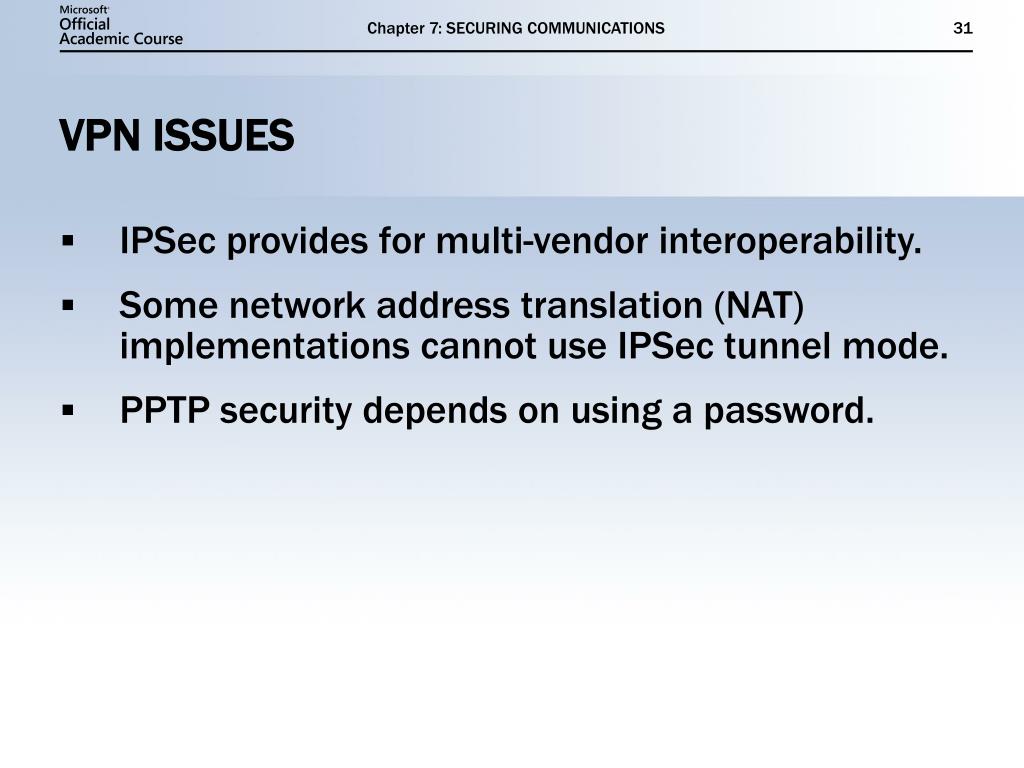

  31. Chapter 7: SECURING COMMUNICATIONS VPN ISSUES • IPSec provides for multi-vendor interoperability. • Some network address translation (NAT) implementations cannot use IPSec tunnel mode. • PPTP security depends on using a password.

  32. Chapter 7: SECURING COMMUNICATIONS SECURING VPN CONNECTIONS • Encrypt authentication and data. • Monitor traffic leaving a VPN connection. • Use strong multi-factor authentication. • Require VPN clients to comply with security policy. • VPN clients should not bypass security for Internet access.

  33. Chapter 7: SECURING COMMUNICATIONS TERMINAL SESSIONS • Provide remote access • Let you control a system using a remote client • Reduce hardware costs • Create inherent security risks

  34. Chapter 7: SECURING COMMUNICATIONS SECURE SHELL PROTOCOL (SSH) • Is a secure, low-level transport protocol • Provides remote control and access • Replaces Telnet, rlogin, and FTP • Has strong security features

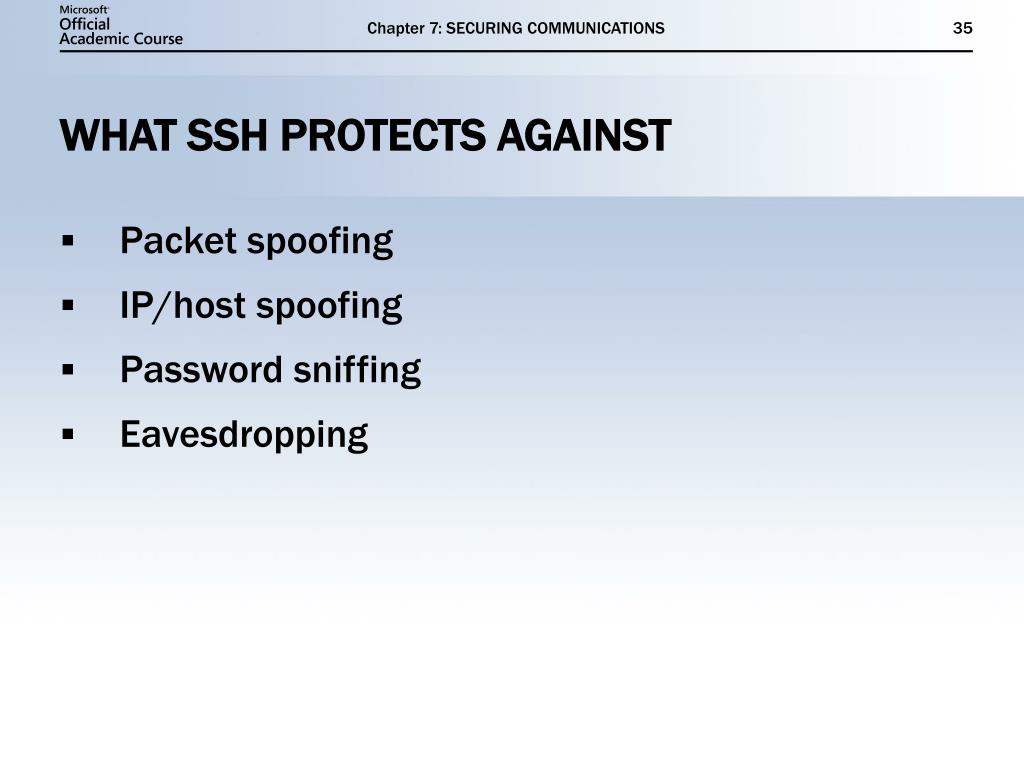

  35. Chapter 7: SECURING COMMUNICATIONS WHAT SSH PROTECTS AGAINST • Packet spoofing • IP/host spoofing • Password sniffing • Eavesdropping

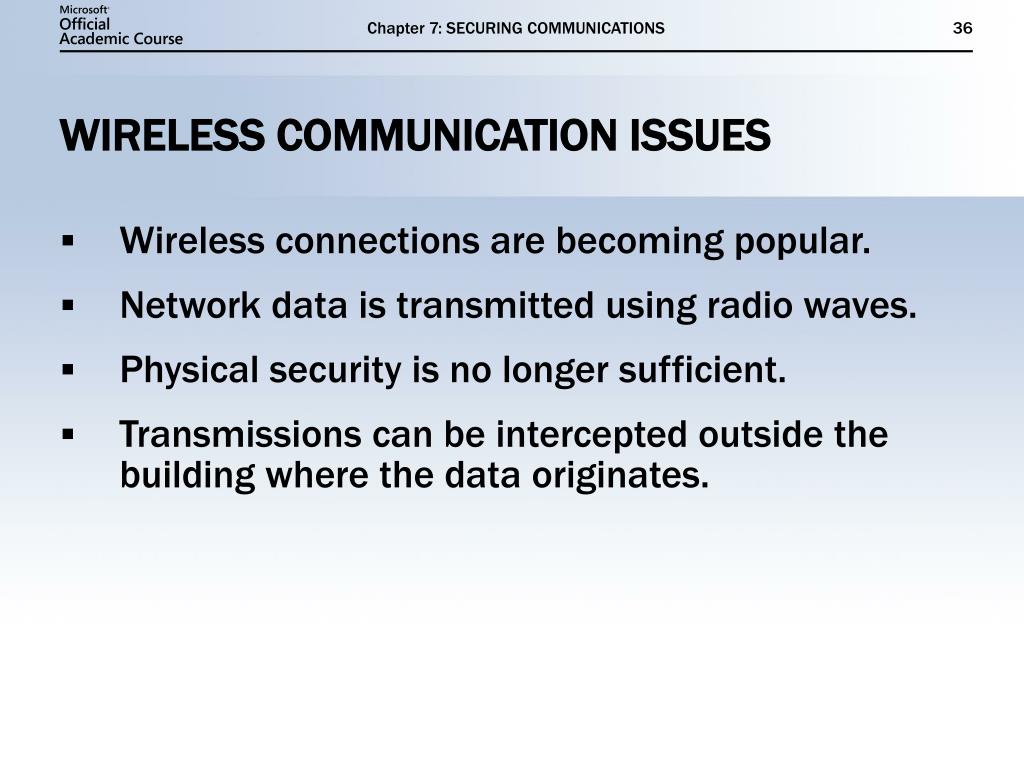

  36. Chapter 7: SECURING COMMUNICATIONS WIRELESS COMMUNICATION ISSUES • Wireless connections are becoming popular. • Network data is transmitted using radio waves. • Physical security is no longer sufficient. • Transmissions can be intercepted outside the building where the data originates.

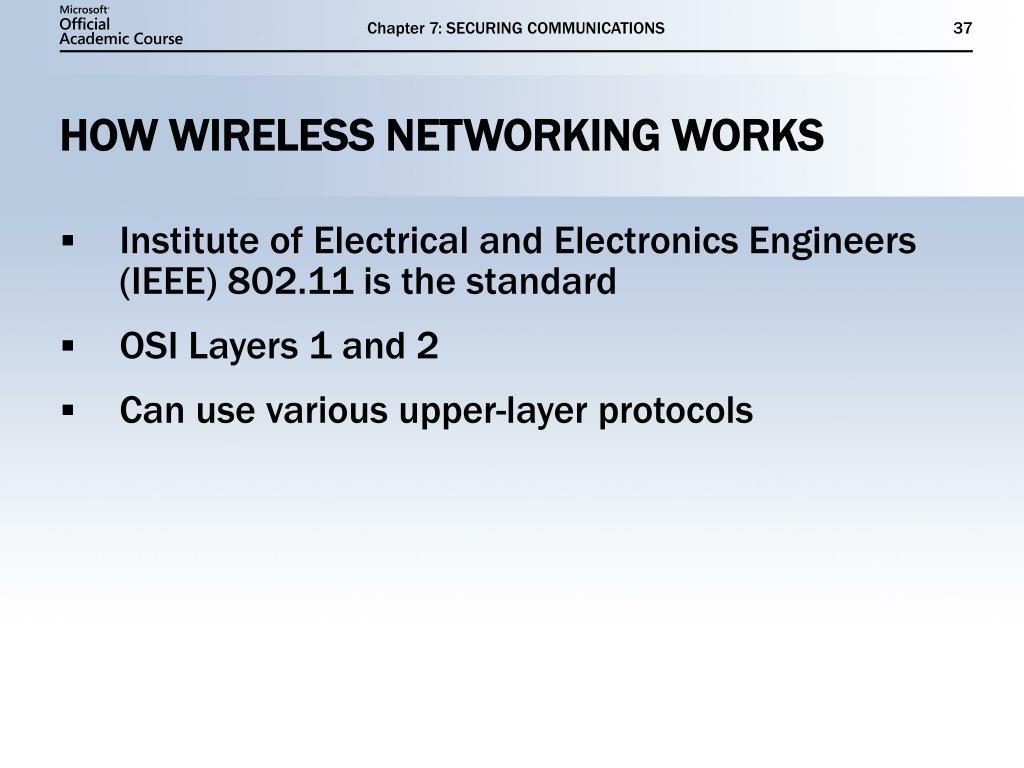

  37. Chapter 7: SECURING COMMUNICATIONS HOW WIRELESS NETWORKING WORKS • Institute of Electrical and Electronics Engineers (IEEE) 802.11 is the standard • OSI Layers 1 and 2 • Can use various upper-layer protocols

  38. Chapter 7: SECURING COMMUNICATIONS WIRELESS INFRASTRUCTURE MODE NETWORKING

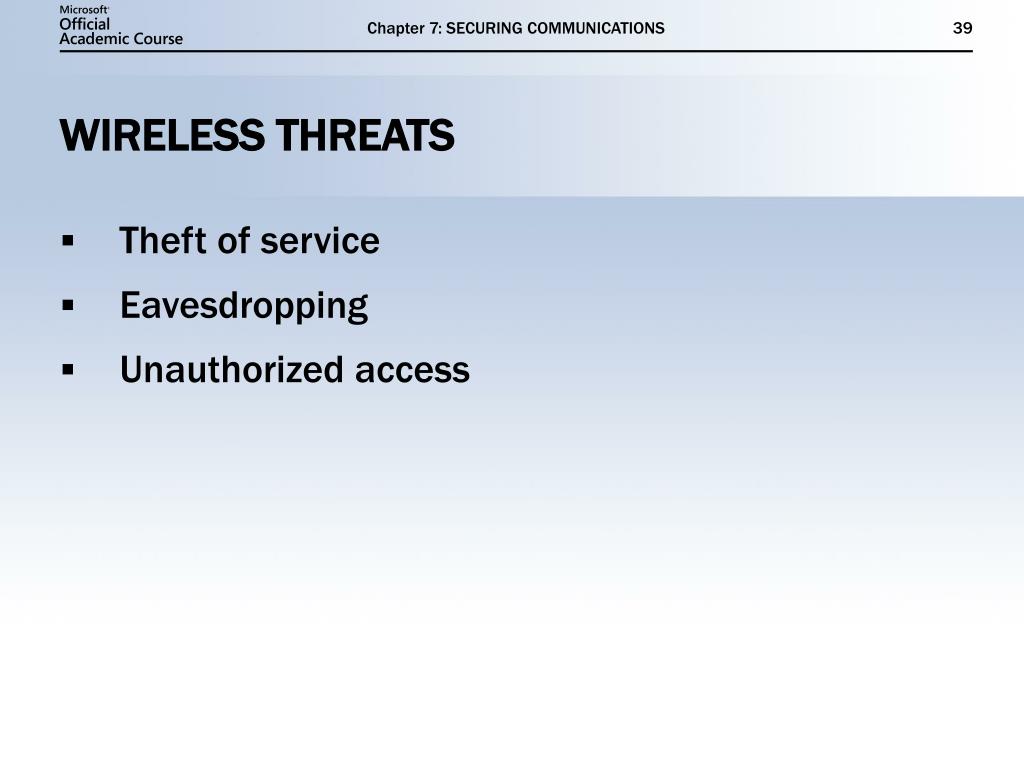

  39. Chapter 7: SECURING COMMUNICATIONS WIRELESS THREATS • Theft of service • Eavesdropping • Unauthorized access

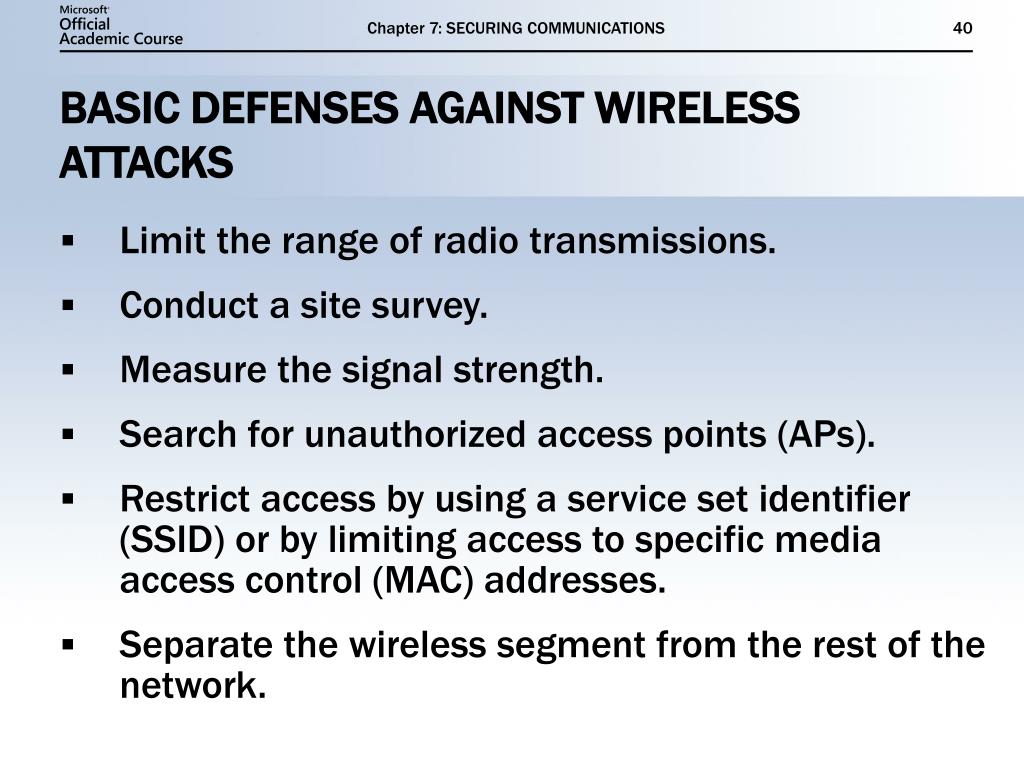

  40. Chapter 7: SECURING COMMUNICATIONS BASIC DEFENSES AGAINST WIRELESS ATTACKS • Limit the range of radio transmissions. • Conduct a site survey. • Measure the signal strength. • Search for unauthorized access points (APs). • Restrict access by using a service set identifier (SSID) or by limiting access to specific media access control (MAC) addresses. • Separate the wireless segment from the rest of the network.

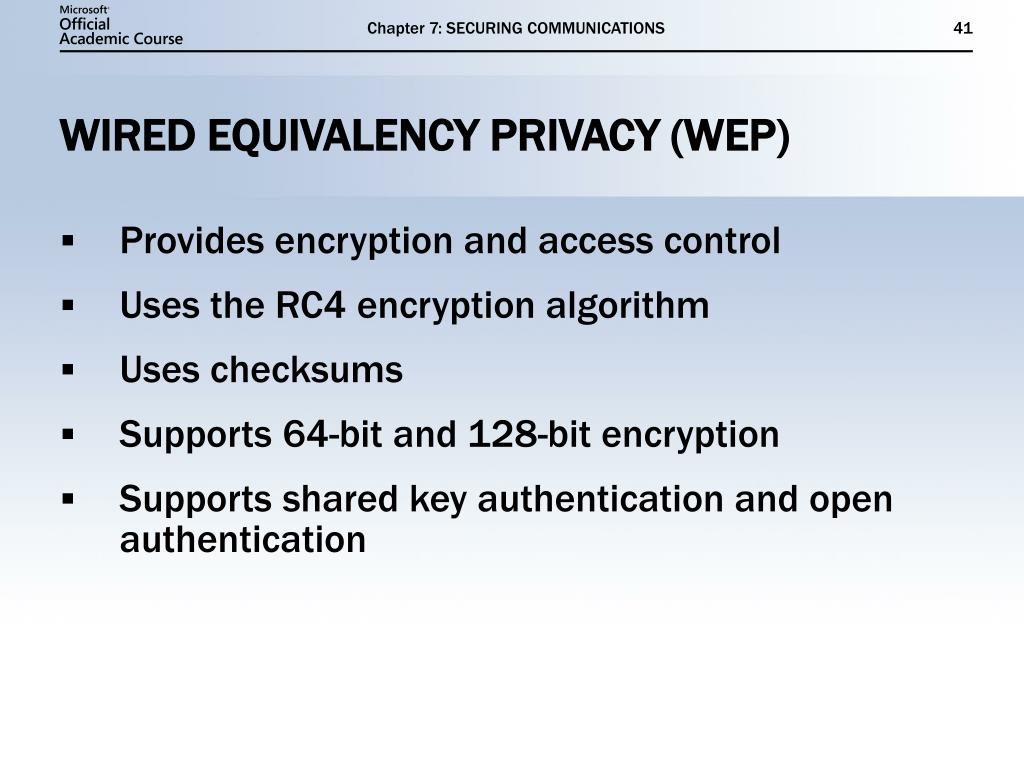

  41. Chapter 7: SECURING COMMUNICATIONS WIRED EQUIVALENCY PRIVACY (WEP) • Provides encryption and access control • Uses the RC4 encryption algorithm • Uses checksums • Supports 64-bit and 128-bit encryption • Supports shared key authentication and open authentication

  42. Chapter 7: SECURING COMMUNICATIONS WEP KEYS • An attacker can discover the WEP key by using a brute-force attack. • All computers use a single shared WEP key. • WEP does not define a secure means to distribute the key. • WEP keys can use manual or automated distribution methods.

  43. Chapter 7: SECURING COMMUNICATIONS ADVANTAGES OF WEP • All messages are encrypted. • Privacy is maintained. • WEP is easy to implement. • WEP provides a basic level of security. • Keys are user definable and unlimited.

  44. Chapter 7: SECURING COMMUNICATIONS DISADVANTAGES OF WEP • A hacker can easily discover the shared key. • You must tell users about key changes. • WEP alone does not provide sufficient wireless local area network (WLAN) security. • WEP must be implemented on every client and AP.

  45. Chapter 7: SECURING COMMUNICATIONS 802.1X PROTOCOL • Is a standard for port-based network access control • Requires authentication before access • Uses the Extensible Authentication Protocol over LAN (EAPOL) • Uses standard security protocols • Access is based on identity, not on media access control (MAC) • Supports extended forms of authentication

  46. Chapter 7: SECURING COMMUNICATIONS WIRELESS PROTECTED ACCESS (WPA) • IEEE is developing a new standard, 802.11i. • WPA is an interim standard that • Uses 802.1x authentication • Uses native key management • Can support WEP simultaneously

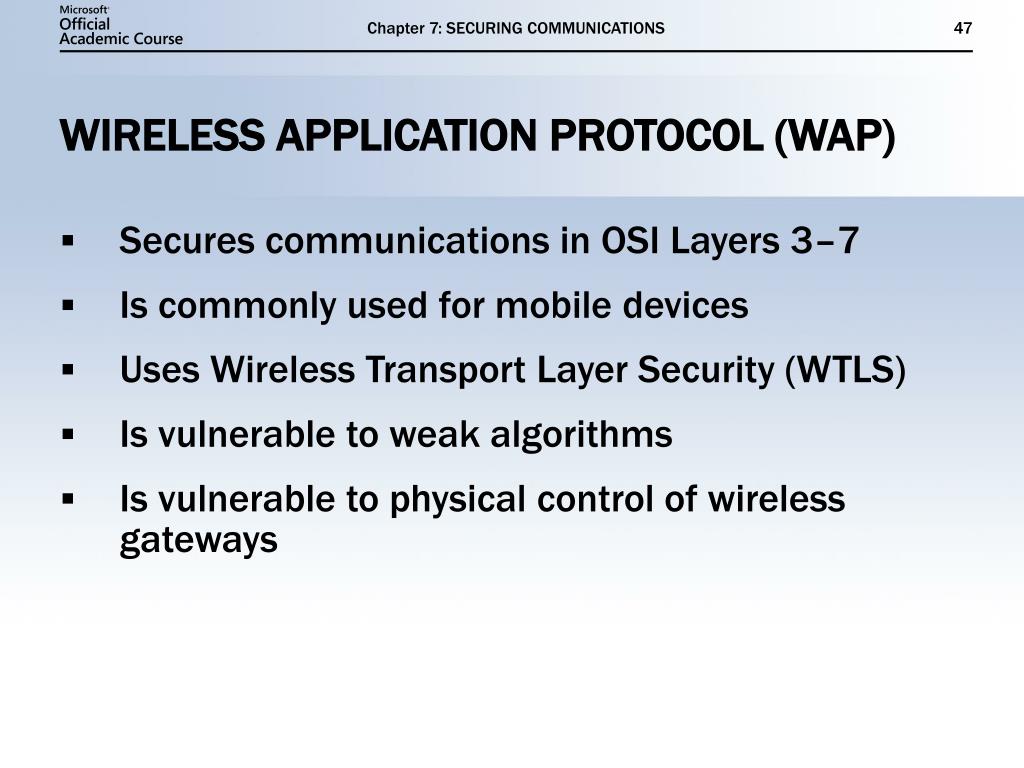

  47. Chapter 7: SECURING COMMUNICATIONS WIRELESS APPLICATION PROTOCOL (WAP) • Secures communications in OSI Layers 3–7 • Is commonly used for mobile devices • Uses Wireless Transport Layer Security (WTLS) • Is vulnerable to weak algorithms • Is vulnerable to physical control of wireless gateways

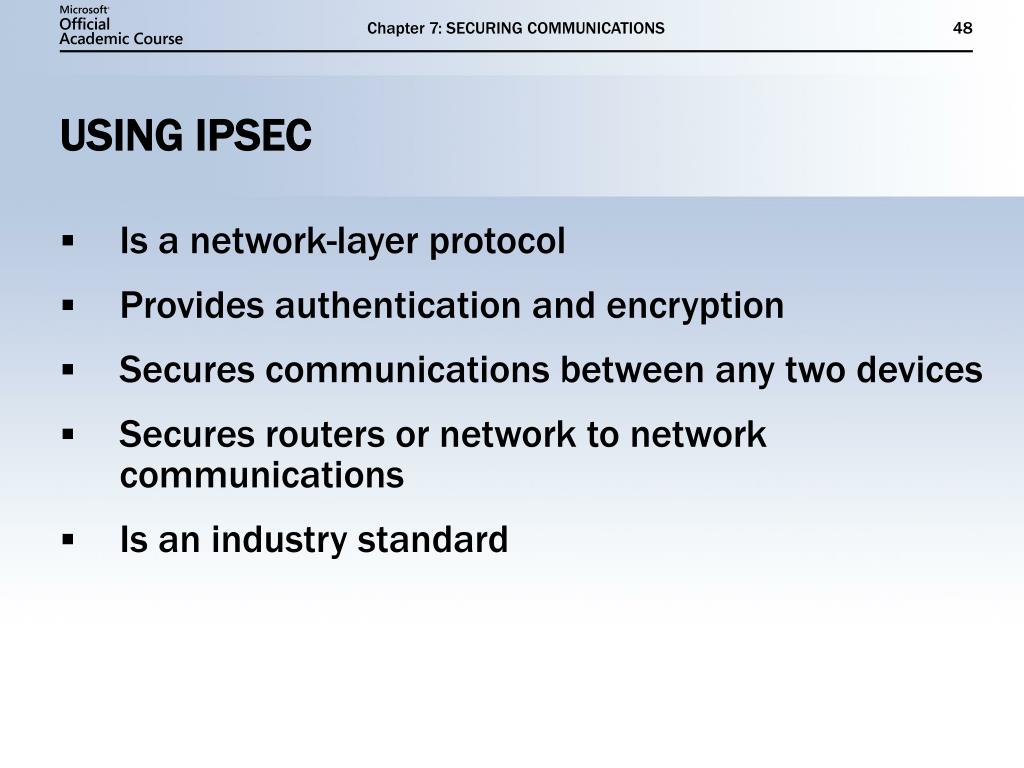

  48. Chapter 7: SECURING COMMUNICATIONS USING IPSEC • Is a network-layer protocol • Provides authentication and encryption • Secures communications between any two devices • Secures routers or network to network communications • Is an industry standard

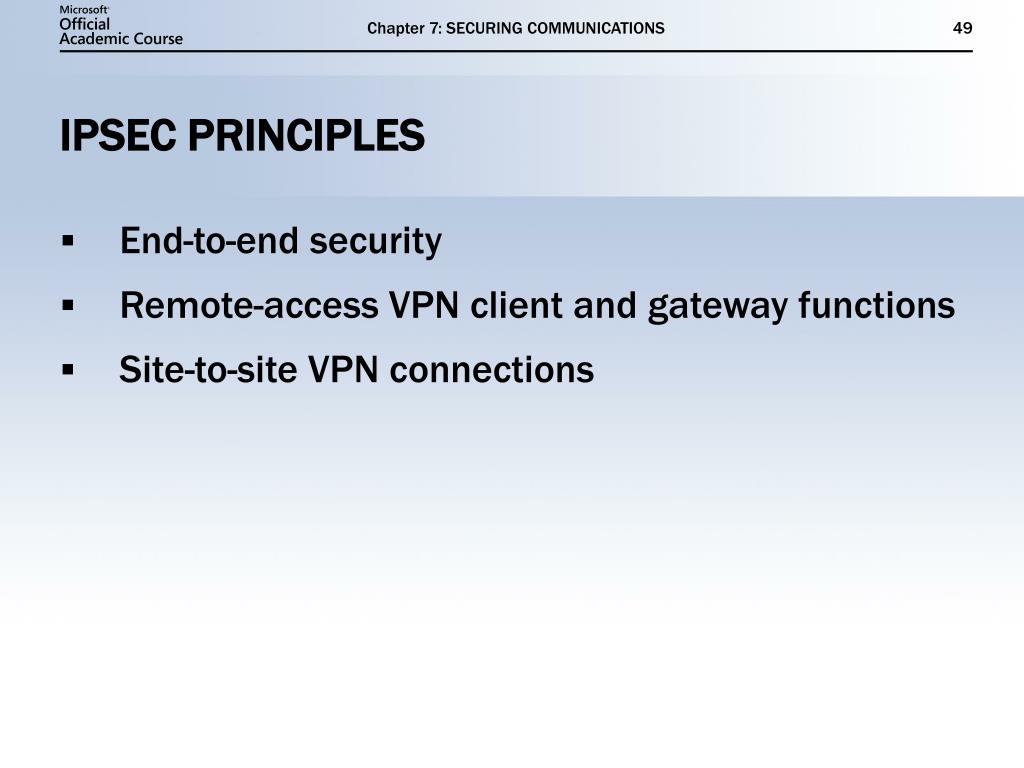

  49. Chapter 7: SECURING COMMUNICATIONS IPSEC PRINCIPLES • End-to-end security • Remote-access VPN client and gateway functions • Site-to-site VPN connections

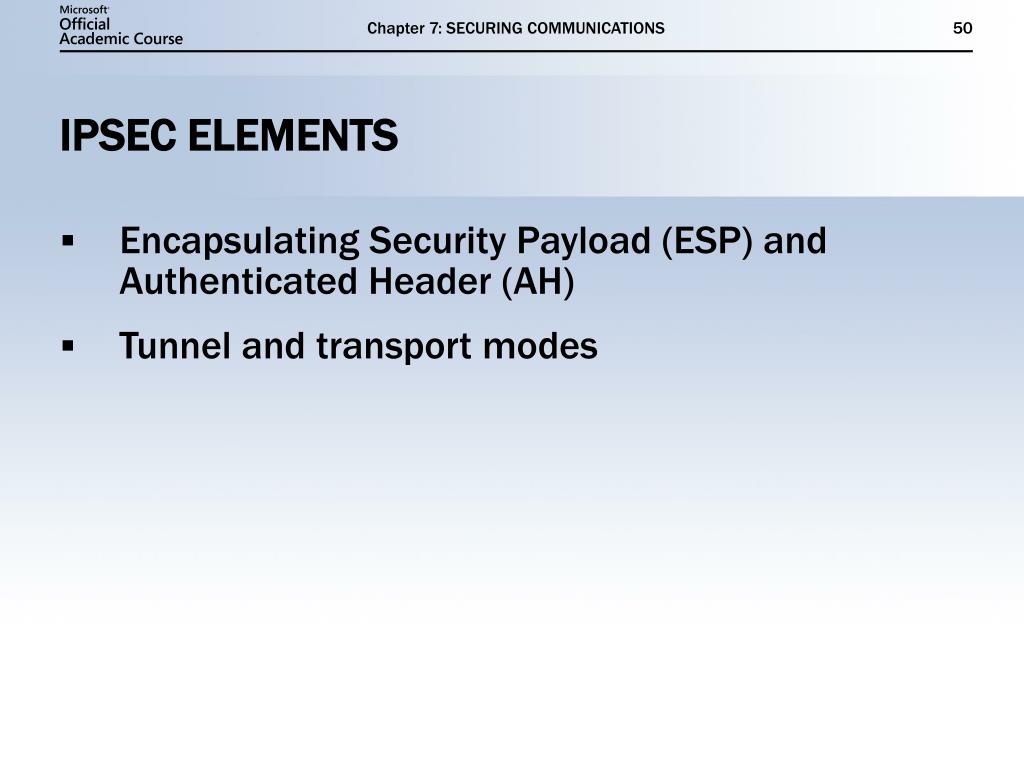

  50. Chapter 7: SECURING COMMUNICATIONS IPSEC ELEMENTS • Encapsulating Security Payload (ESP) and Authenticated Header (AH) • Tunnel and transport modes
