  1. To Kill a SingletonFactory Method Pattern Josh Mason 6/18/09

  2. To Kill a Singleton • Will try and answer these important questions • Who deletes a singleton? • How do you go about deleting a singleton?

  3. Original Design • Recall • Single Instance of a class • Class controls its own creation • Not addressed • Destructors • Deletion/Cleanup • Key ideas to keep in mind • Destruction order • Dangling references • Singletons typicallylong lived

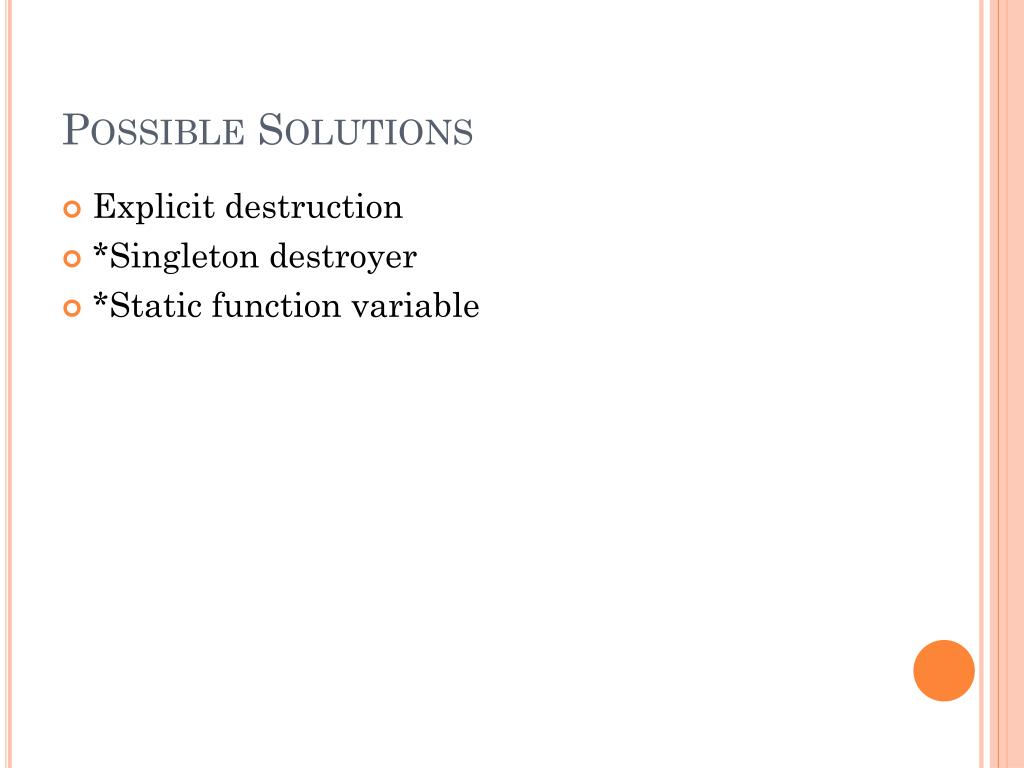

  4. Possible Solutions • Explicit destruction • *Singleton destroyer • *Static function variable

  5. Singleton Destroyer • Static object in Singleton class • Manages singleton instance • Automagically cleans up Singleton class on program exit • Consequences • Order of static object destruction undefined (in C++) • Requires use of friend keyword to access protected instance • Only cleaned up on process termination

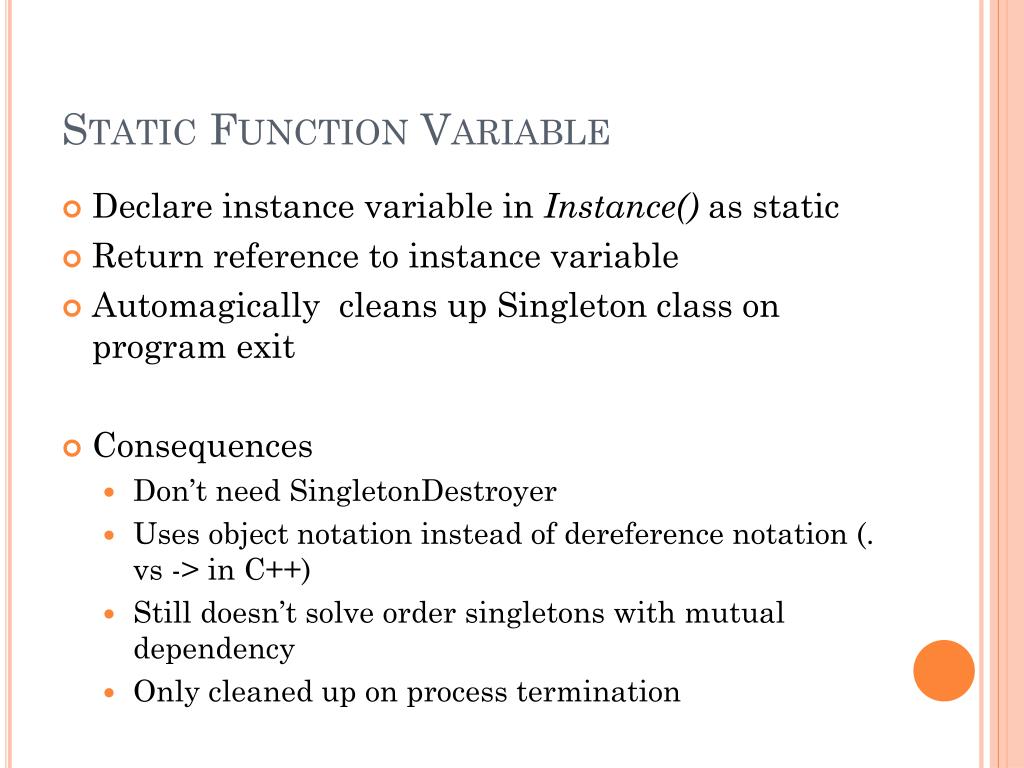

  6. Static Function Variable • Declare instance variable in Instance() as static • Return reference to instance variable • Automagically cleans up Singleton class on program exit • Consequences • Don’t need SingletonDestroyer • Uses object notation instead of dereference notation (. vs -> in C++) • Still doesn’t solve order singletons with mutual dependency • Only cleaned up on process termination

  7. Factory Method Pattern • Creational Pattern • Defines interface for creation of objects, but lets subclasses decide which class to instantiate • Defers instantiation to subclasses • Commonly used to “refer to any method whose main purpose is creation of objects”

  8. Applicability • Use the Factory Method Pattern when • A class can’t anticipate the class of objects it must create • A class wants its subclasses to specify the object it creates • Classes delegate responsibility to one of several helper subclasses, and you want to localize the knowledge of which helper subclass is the delegate.

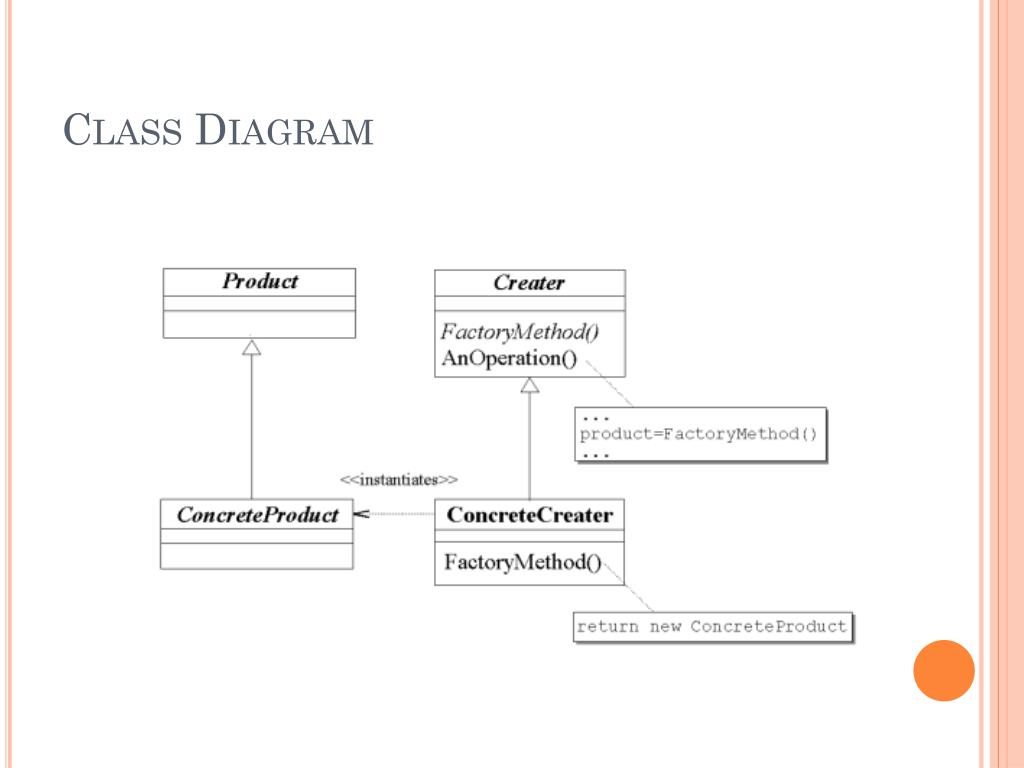

  9. Class Diagram

  10. Participants • Product • Defines product interface • Concrete Product • Implements Product interface • Creator • Declares FactoryMethod() • May call FactoryMethod() to create object • Concrete Creator • Overrides FactoryMethod() to return an instance of Concrete Product

  11. Consequences • Provides hooks for subclasses • Eliminates the need to bind application-specific classes into code. • Enables the subclasses to provide an extended version of an object • Connects parallel class hierarchies

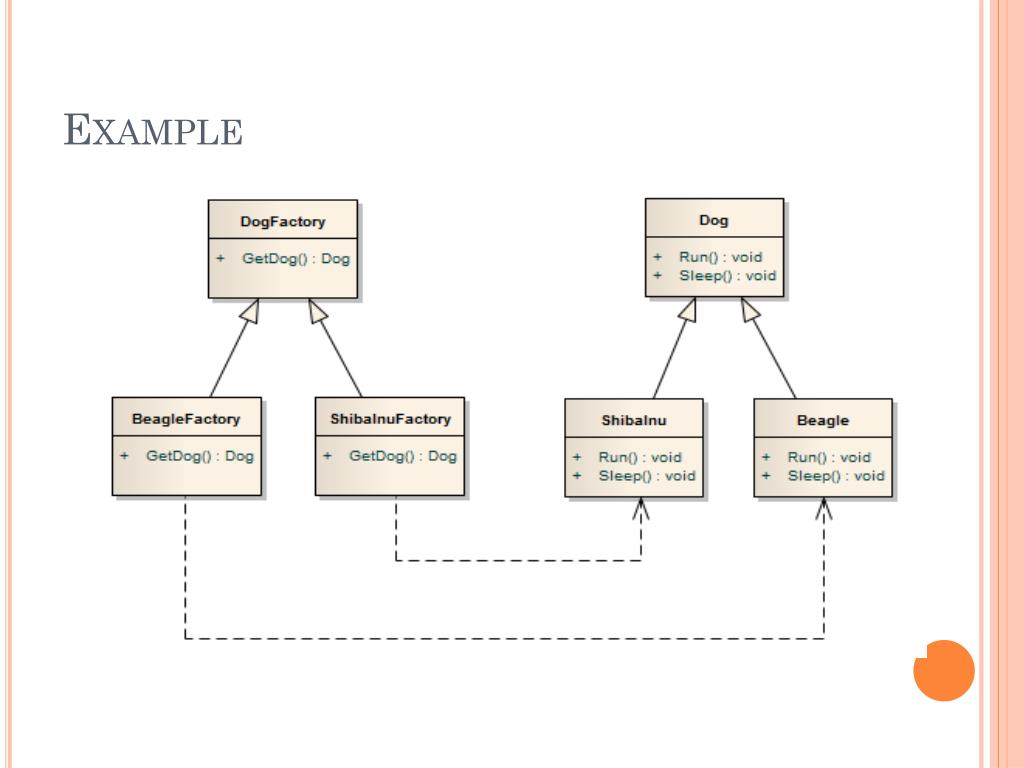

  12. Example

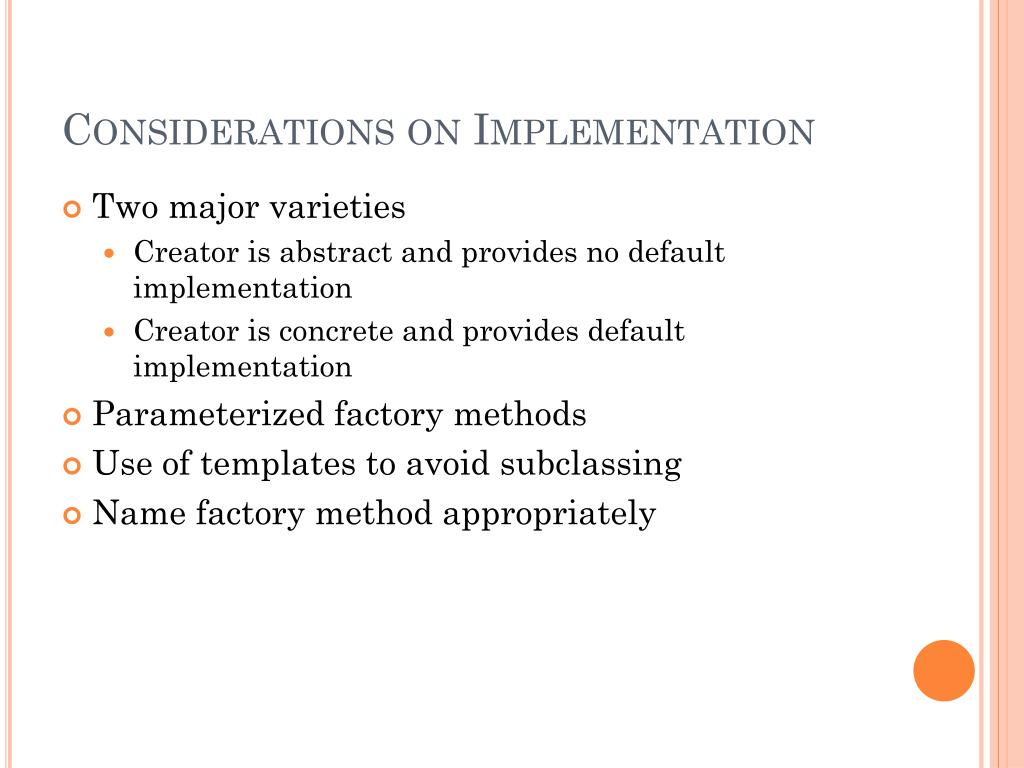

  13. Considerations on Implementation • Two major varieties • Creator is abstract and provides no default implementation • Creator is concrete and provides default implementation • Parameterized factory methods • Use of templates to avoid subclassing • Name factory method appropriately

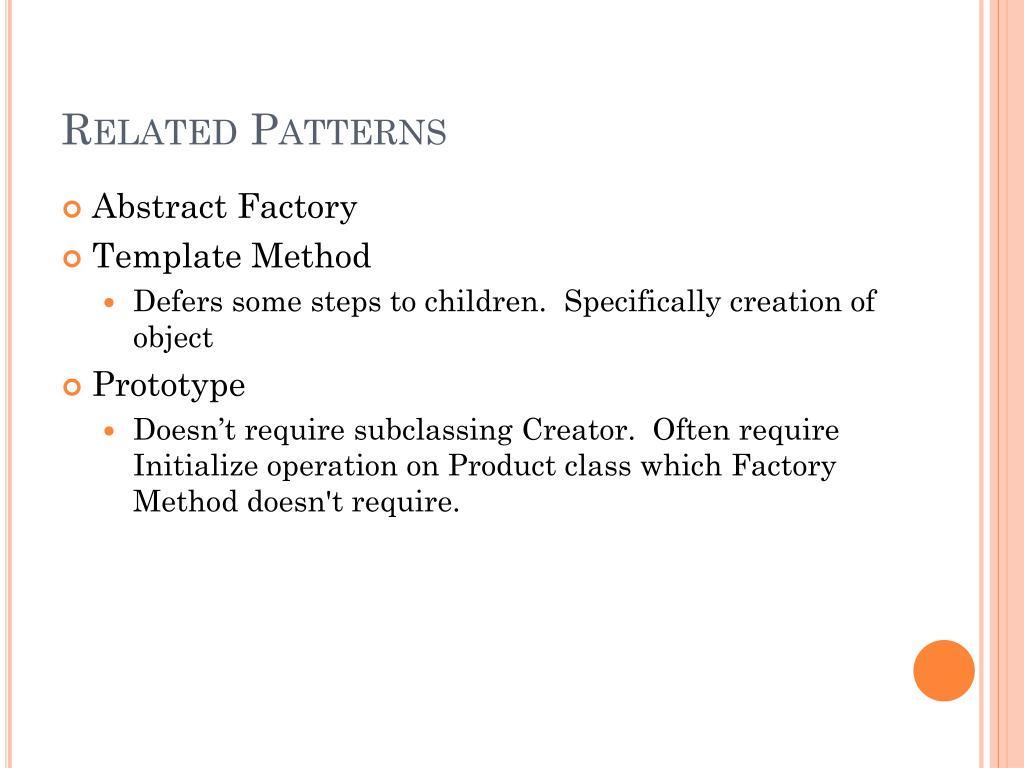

  14. Related Patterns • Abstract Factory • Template Method • Defers some steps to children. Specifically creation of object • Prototype • Doesn’t require subclassing Creator. Often require Initialize operation on Product class which Factory Method doesn't require.
