  1. Configuring Linux Radius Server • Objectives • This chapter will show you how to install and use Radius • Contents • An Overview Of How Radius Works • Configruation of Radius • Testing Radius server • Setting up Aironet Cisco1200 for radius • Client Setup Windows XP with wireless pccard • Practical • Implementing Radius server

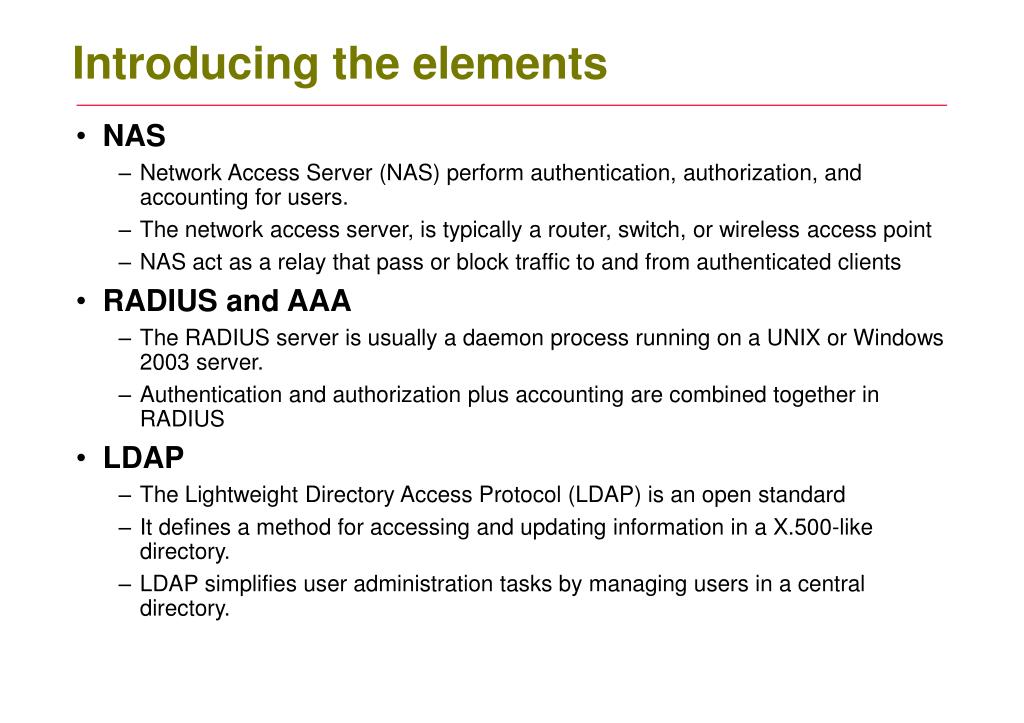

  2. Introducing the elements • NAS • Network Access Server (NAS) perform authentication, authorization, and accounting for users. • The network access server, is typically a router, switch, or wireless access point • NAS act as a relay that pass or block traffic to and from authenticated clients • RADIUS and AAA • The RADIUS server is usually a daemon process running on a UNIX or Windows 2003 server. • Authentication and authorization plus accounting are combined together in RADIUS • LDAP • The Lightweight Directory Access Protocol (LDAP) is an open standard • It defines a method for accessing and updating information in a X.500-like directory. • LDAP simplifies user administration tasks by managing users in a central directory.

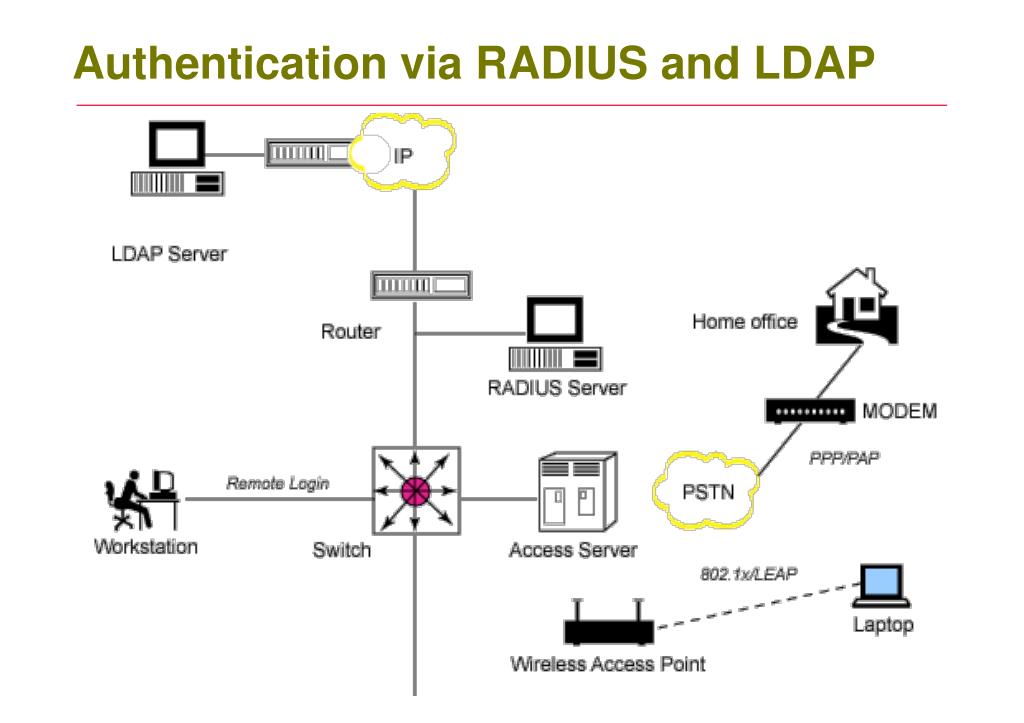

  3. Authentication via RADIUS and LDAP

  4. Installing FreeRADIUS • Add a testuser • Add a password for your testuser • Building from source • Usally a good idea for best optimized code • Start radiusd in debug mode • To see if any errors arrives • Modify /etc/shadow permission • Make the first radius auth test • Simulate a user trying to atenticate against the radius server 0 = fake NAS port testing123 is the mandatory common secret for localhost NAS clients is found in /etc/raddb/clients.conf • If radtest receives a response, the FreeRADIUS server is working. # useradd kalle # passwd kalle # tar -zxvf freeradius-1.0.2.tar.gz # ./configure # make # make install # radiusd -X # chmod g+r /etc/shadow # radtest kalle 123456 localhost 0 testing123

  5. Configure FreeRADIUS • FreeRADIUS configuration files are usually stored in the /etc/raddb folder • Modifying radiusd.conf to activate logging • Find and correct • Setup to enable unix account to serve as autentication and add default authentication port’s. Cisco ports can also be used, then change this. • Tell radius where you store the users to authenticate log_auth = yes log_auth_badpass = yes log_auth_goodpass = no port = 0 files { usersfile = ${confdir}/users acctusersfile = ${confdir}/acct_users compat = no }

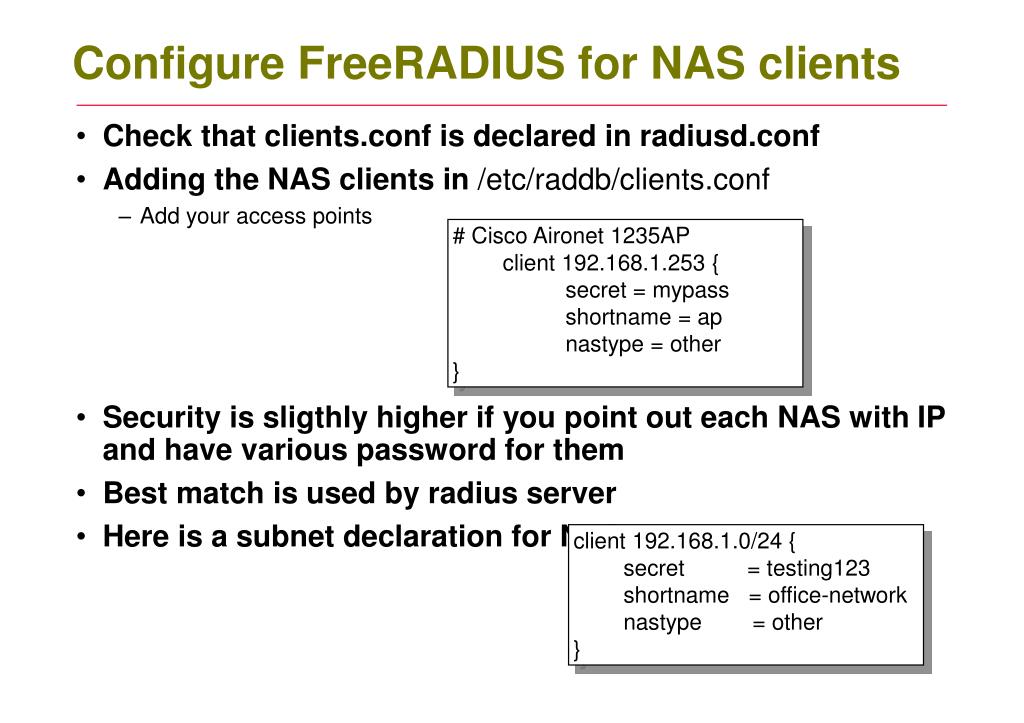

  6. Configure FreeRADIUS for NAS clients • Check that clients.conf is declared in radiusd.conf • Adding the NAS clients in /etc/raddb/clients.conf • Add your access points • Security is sligthly higher if you point out each NAS with IP and have various password for them • Best match is used by radius server • Here is a subnet declaration for NAS # Cisco Aironet 1235AP client 192.168.1.253 { secret = mypass shortname = ap nastype = other } client 192.168.1.0/24 { secret = testing123 shortname = office-network nastype = other }

  7. FreeRADIUS MAC authentication setting. • The file /etc/raddb/users contains authentication and configuration information for each user. • Add change thenfollowing links, place after the informative heater text: • We prepare for MAC authentication for users authenticate through the NAS • Authentication will be invisible for the enduser • For more users just add more MAC addresses • This can be used for almost any Cisco Switch or router. • Authentication is invisible, users does not need to enter something. # user-id (MAC) Authentication type password=MAC 00054e4d3d08 Auth-Type := Local, User-Password == "00054e4d3d08" 00186e8dc079 Auth-Type := Local, User-Password == "00186e8dc079"

  8. Configuring the Aironet 1200 (1/2) • For No security (open network), login to your AP and goto Express Security • Enter your SSID cisco • No VLAN (you can have VLAN for your different SSID if you like) • No security Click on APPLY • Activate your WLAN interfaces • Menu Security, check None or a WEP/Chiper if you like. We choose none for best network prestanda Customer is adviced to use cisco VPN client for security or similar. • Menu Security Server Manager • Select RADIUS in Current Server List, list should show <NEW> • Enter your radius server IP address and Shared secret • Standard radius Authentication port 1812 and Accounting port 1813 • Click Apply • Goto SSID manager and pick your SSID • Check Open Authentication and chose with MAC Authentication • At server priorities chose Customize and at priority 1 pick your radius server IP address. • Click APPLY

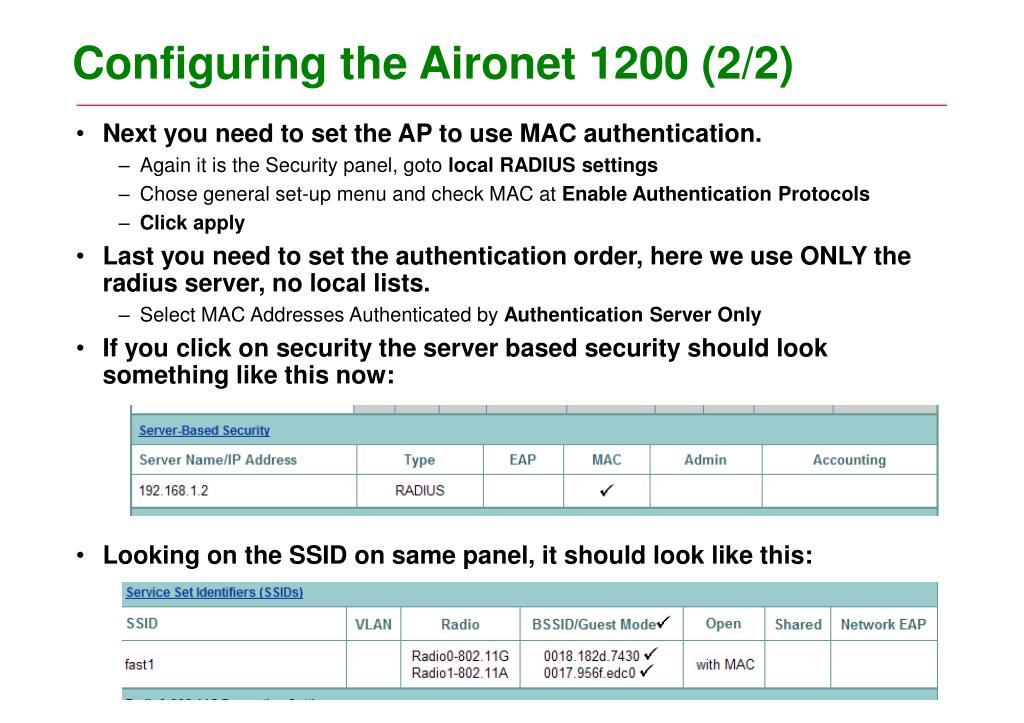

  9. Configuring the Aironet 1200 (2/2) • Next you need to set the AP to use MAC authentication. • Again it is the Security panel, goto local RADIUS settings • Chose general set-up menu and check MAC at Enable Authentication Protocols • Click apply • Last you need to set the authentication order, here we use ONLY the radius server, no local lists. • Select MAC Addresses Authenticated by Authentication Server Only • If you click on security the server based security should look something like this now: • Looking on the SSID on same panel, it should look like this:
