Constraint-Based Model Mining: Algorithms and Applications

1. Constraint-Based Model Mining: Algorithms and Applications Minos Garofalakis Internet Management Research Dept. Bell Labs, Lucent Technologies minos@research.bell-labs.com http://www.bell-labs.com/~minos/

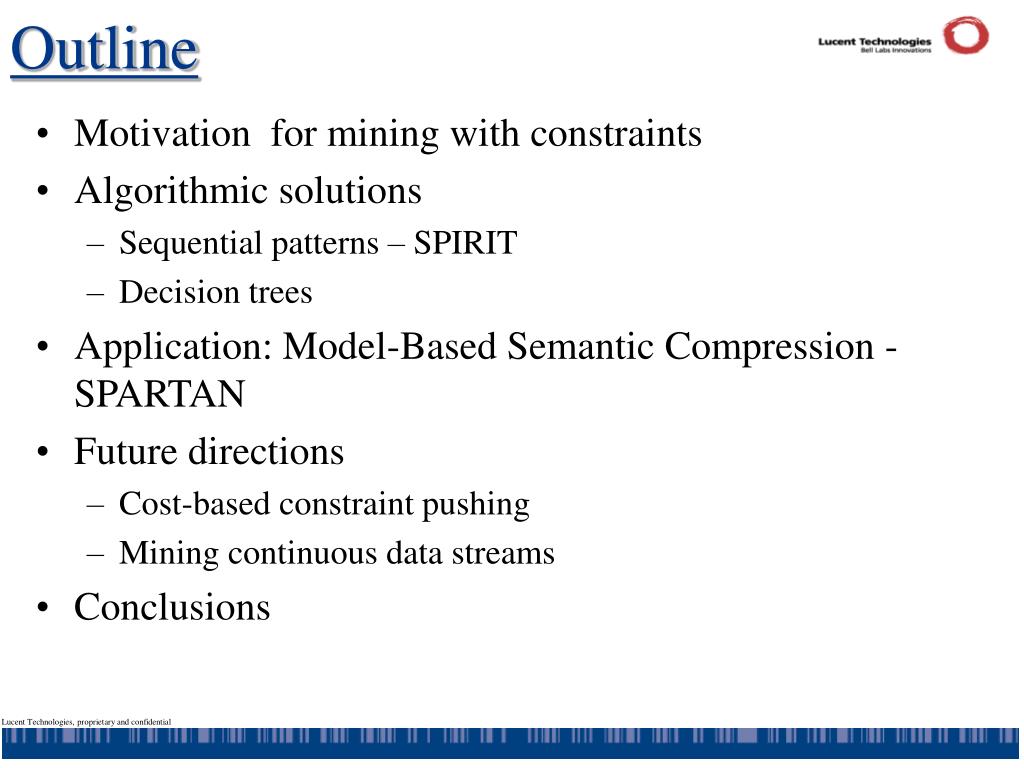

2. Outline • Motivation for mining with constraints • Algorithmic solutions • Sequential patterns – SPIRIT • Decision trees • Application: Model-Based Semantic Compression - SPARTAN • Future directions • Cost-based constraint pushing • Mining continuous data streams • Conclusions

3. Motivation • Data Mining: Extracting concise and interesting models from large data sets • I/O and computation intensive, multiple passes over the data • Lack of user-controlled focus – few “knobs” to specify models of interest to users • Patterns/Associations: Only specify a lower bound on support • Decision trees: Search for some “optimal” tree (e.g., MDL) • Often, huge numbers of patterns or models that are to large to comprehend/interpret • Decision trees with 100s of nodes are not at all “easy to assimilate”…

4. Motivation (contd.) • BUT ... users may only be interested in models of specific form!! • Patterns conforming to a specific structure • “Best” decision tree with <= k nodes (to get rough picture of data) • Problems with traditional, unfocused search: • Disproportionate cost for “selective” users • Overwhelming volume of (possibly) useless results • Sorting through the results to find model(s) of interest can be non-trivial • Goals of constraint-based data mining: • Flexible languages for specifying structural and other constraints on mining models • Algorithms for “pushing”/exploiting these constraints inside the mining loop • Cost should be commensurate with user selectivity

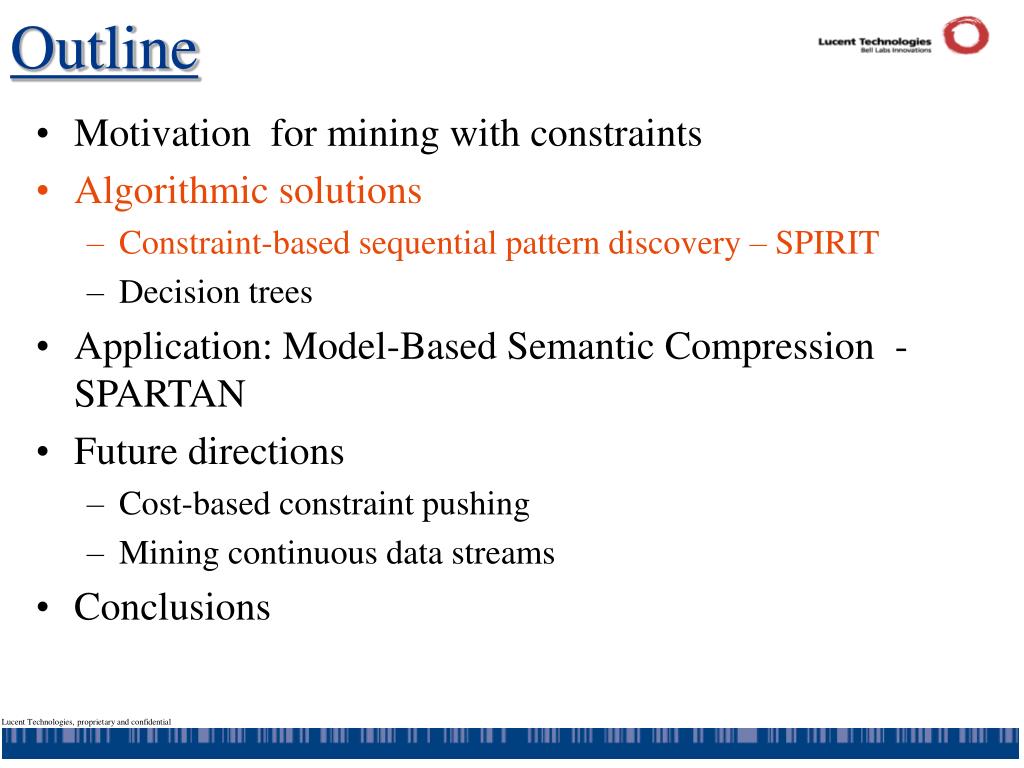

5. Outline • Motivation for mining with constraints • Algorithmic solutions • Constraint-based sequential pattern discovery – SPIRIT • Decision trees • Application: Model-Based Semantic Compression - SPARTAN • Future directions • Cost-based constraint pushing • Mining continuous data streams • Conclusions

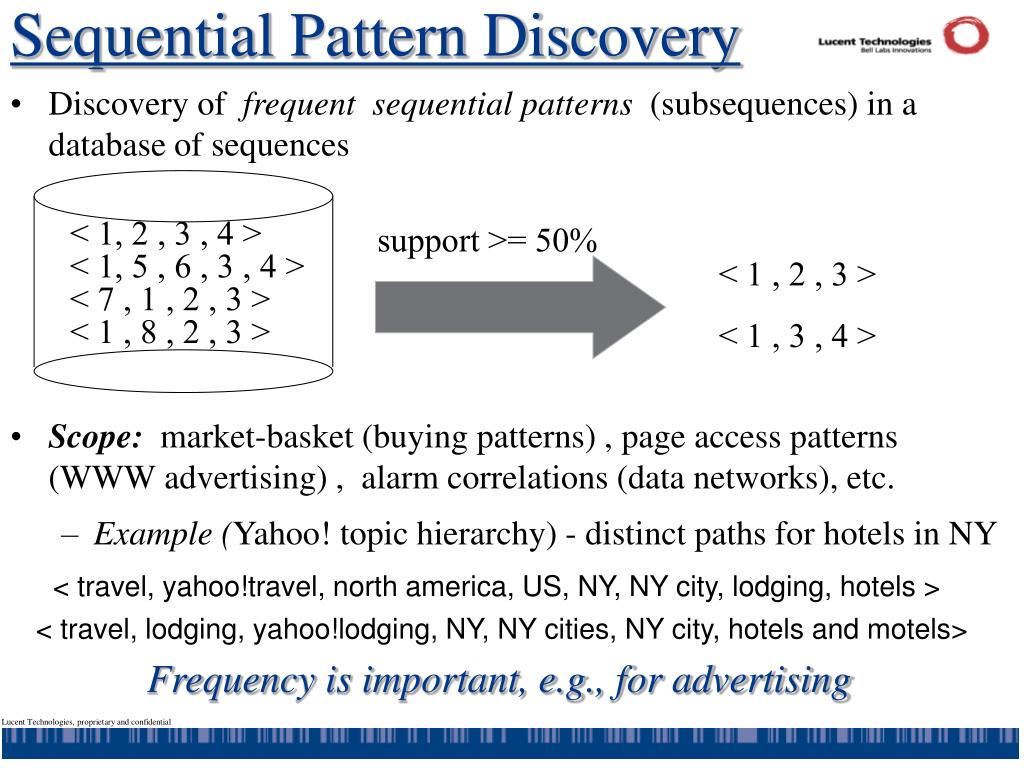

6. Sequential Pattern Discovery • Discovery of frequent sequential patterns (subsequences) in a database of sequences support >= 50% < 1, 2 , 3 , 4 > < 1, 5 , 6 , 3 , 4 > < 7 , 1 , 2 , 3 > < 1 , 8 , 2 , 3 > < 1 , 2 , 3 > < 1 , 3 , 4 > • Scope: market-basket (buying patterns) , page access patterns (WWW advertising) , alarm correlations (data networks), etc. • Example (Yahoo! topic hierarchy) - distinct paths for hotels in NY < travel, yahoo!travel, north america, US, NY, NY city, lodging, hotels > < travel, lodging, yahoo!lodging, NY, NY cities, NY city, hotels and motels> Frequency is important, e.g., for advertising

7. Our Work [VLDB’99,TKDE’02] • Srikant & Agrawal [ICDE’95,EDBT’96]: Unfocused search • User only specifies a lower bound on the pattern frequency (minimum support) • Our Contributions • Use of Regular Expressions (REs) as a user-level tool for specifying interesting pattern structures (natural syntax + expressive power), e.g., travel (lodging | NY | NY city)* (hotels | hotels and motels) • Novel algorithms (SPIRIT) for pushing REs inside the pattern mining loop • Differ in the degree to which the RE is enforced • Interesting insights into incorporating complex constraints in ad-hoc data mining

8. Problem Formulation • Sequence s = <s1,…, sn> contains pattern t = <t1,…,tm> if for some j < k < … < p : t1 = sj, t2 = sk, …, tm = sp s = < 1 , 2 , 4 , 5 , 7 , 9 > t = < 1 , 5 , 9 > p = < 2 , 4 , 5 > • Regular expression R: language L(R) over the alphabet of sequence / pattern elements R = 1*(2 2 | 2 3 4 | 4 4 ) L(R) = zero or more 1’s followed by 2 2 or 2 3 4 or 4 4

9. Problem Formulation (contd.) • Given: DB of sequences D , and (user-specified) minimum support minsup and RE constraint R • Find: All patterns that are contained in at least minsup sequences of D and belong to L(R) Extensions : sequences of itemsets , distance constraints

10. Definitions A(R) R 2 1 • Well-known fact: REs are equivalent to DFAs 2 1*(2 2 | 2 3 4 | 4 4) 3 4 a b c d Start state Accept state(s) 4 • A sequence s is : • Legal wrt state biff it defines a path in A(R) starting from b • Valid wrt state b iff it defines a path to an accept state of A(R) starting from b • Validiff it defines a path from the start state to an accept state of A(R) (i.e., s belongs to L(R) )

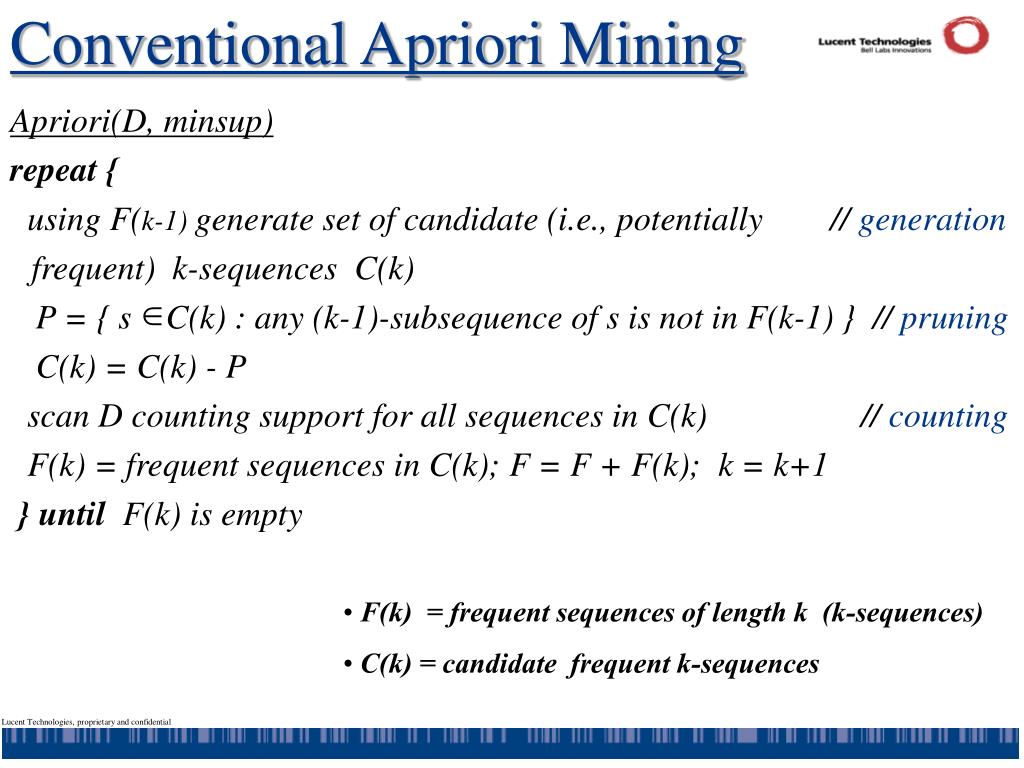

11. Conventional Apriori Mining Apriori(D, minsup) repeat { using F(k-1) generate set of candidate (i.e., potentially // generation frequent) k-sequences C(k) P = { s C(k) : any (k-1)-subsequence of s is not in F(k-1) } // pruning C(k) = C(k) - P scan D counting support for all sequences in C(k) // counting F(k) = frequent sequences in C(k); F = F + F(k); k = k+1 } until F(k) is empty • F(k) = frequent sequences of length k (k-sequences) • C(k) = candidate frequent k-sequences

12. The SPIRIT Framework SPIRIT(D , minsup , C) C’ = relaxation of C repeat{ using F and C’ generate // generation C(k) = { potentially frequent k-sequences that satisfy C’ } P = { s C(k): s has a subsequence that satisfies C’ // pruning and does not belong to F } C(k) = C(k) - P scan D counting support for sequences in C(k) // counting F(k) = frequent sequences in C(k); F = F +F(k); k = k+1 } until TerminatingCondition(F , C’) output sequences in F that satisfy C

13. The SPIRIT Framework (contd.) • Invariant: at the end of pass k , F is the set of frequent 1,2,…,k-sequences that satisfy C’ • “Strength” of the relaxation C’ determines the degree to which C = R is enforced during mining • Major cost = candidate counting ( proportional to |C(k)| ) • Goal: • Exploit minsup and C to restrict |C(k)| as much as possible BUT, pushing C “all the way” may not be the best strategy!!

14. The SPIRIT Framework (contd.) • SPIRIT employs two types of pruning to restrict C(k) • Constraint-based Pruning: ensuring candidates in C(k) satisfy C’ (during generation) • Support-based Pruning: ensuring all subsequences of a candidate that satisfy C’ are frequent (during pruning) • If C is anti-monotone (all subsequences of a sequence that satisfies C also satisfy C) then C’ = C is obviously best • If C is not anti-monotone (e.g., REs) things are not that clear-cut • Aggressive constraint-based pruning can have a negative impact on support-based pruning

15. The SPIRIT Algorithms • Specific instantiations of the framework • Explore the entire spectrum of choices for employing RE constraints during pattern mining Relaxation C’ ( C = R ) Algorithm SPIRIT(N) all elements appear in R SPIRIT(L) Legal wrt some state of A(R) SPIRIT(V) Valid wrt some state of A(R) SPIRIT(R) Valid (C’ = C = R)

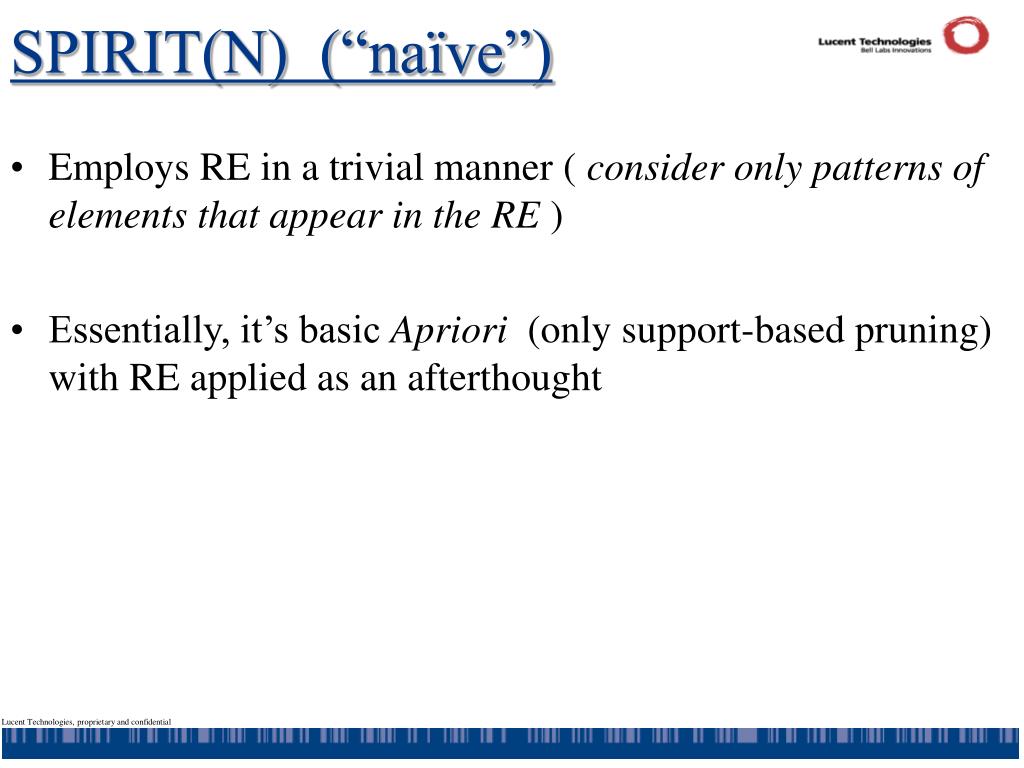

16. SPIRIT(N) (“naïve”) • Employs RE in a trivial manner ( consider only patterns of elements that appear in the RE ) • Essentially, it’s basic Apriori (only support-based pruning) with RE applied as an afterthought

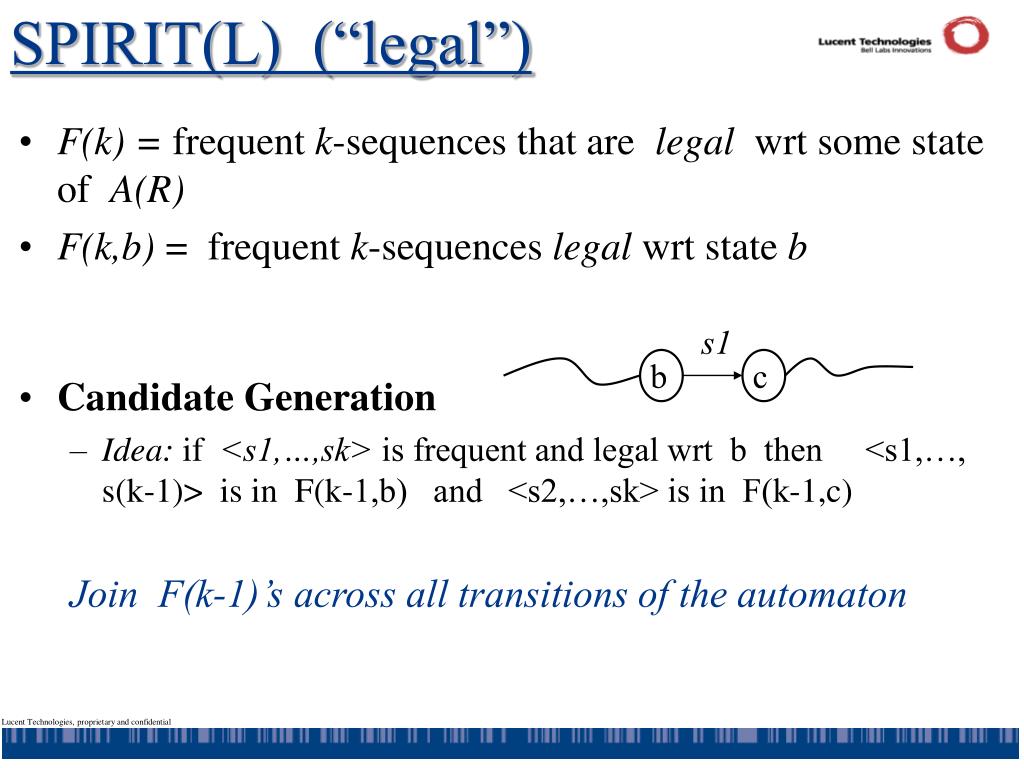

17. s1 b c SPIRIT(L) (“legal”) • F(k) = frequent k-sequences that are legal wrt some state of A(R) • F(k,b) = frequent k-sequences legal wrt state b • Candidate Generation • Idea: if <s1,…,sk> is frequent and legal wrt b then <s1,…, s(k-1)> is in F(k-1,b) and <s2,…,sk> is in F(k-1,c) Join F(k-1)’s across all transitions of the automaton

18. SPIRIT(L) (“legal”) (contd.) • Candidate Pruning • A candidate k-sequence can be pruned if any of its maximal legal subsequences is not frequent (cannot be found in F) • We have an efficient Dynamic Programming algorithm that works off the automaton to find such maximal legal subsequences • More expensive than Apriori pruning, but we found CPU overheads to be negligible compared to counting costs (details in the paper…)

19. 2 1 2 3 4 a b c d accept 4 Legal vs. Naive • <1 2 3 2> • <1 1 2 2> • <2 4 3 4> • <2 3 4 3> • <1 1 2 3> minsup = 2 D: SPIRIT(N): F(2) = { <1 1> , <1 2>, <1 3>, <2 2>, <2 3>, <2 4>, <3 4>, <4 3> } C(3) = { <1 1 1> , <1 1 2>, <1 1 3>, <1 2 2>, <1 2 3>, <2 2 2>,<2 2 3>,<2 2 4>, <2 3 4>, <2 4 3> } SPIRIT(L): F(2) = { <1 1> , <1 2>, <2 2>, <2 3>, <3 4>} C(3) = { <1 1 1> , <1 1 2>, <1 2 2>, <1 2 3>, <2 3 4> }

20. s1 b c SPIRIT(V) (“valid”) • F(k) = frequent k-sequences that are valid wrt some state of A(R) • F(k,b) = frequent k-sequences valid wrt state b accept • Candidate Generation • idea: if <s1,…,sk> is frequent and valid wrt b then <s2,…,sk> is in F(k-1,c) Extend F(k-1)’s “backwards” across all transitions • Candidate Pruning • a version of our Dynamic Programming strategy developed for SPIRIT(L) can be used

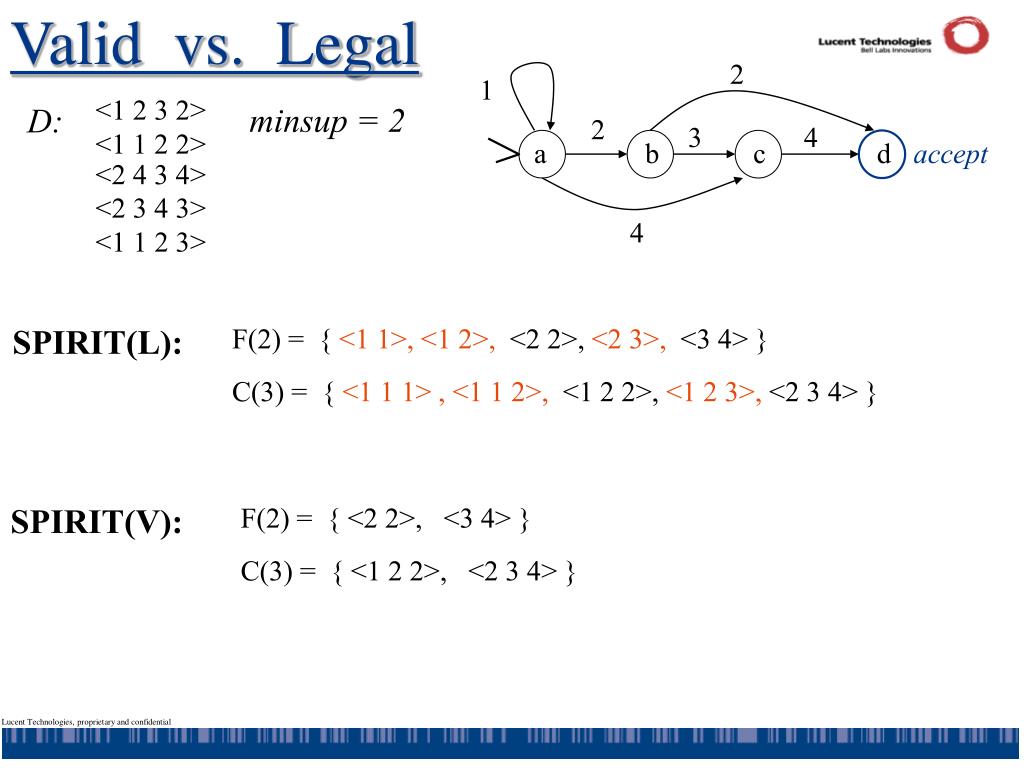

21. 2 1 2 3 4 a b c d accept 4 Valid vs. Legal • <1 2 3 2> • <1 1 2 2> • <2 4 3 4> • <2 3 4 3> • <1 1 2 3> minsup = 2 D: SPIRIT(L): F(2) = { <1 1>,<1 2>, <2 2>, <2 3>, <3 4> } C(3) = { <1 1 1> , <1 1 2>, <1 2 2>, <1 2 3>, <2 3 4> } SPIRIT(V): F(2) = { <2 2>, <3 4> } C(3) = { <1 2 2>, <2 3 4> }

22. SPIRIT(R) (“regular”) • F(k) = frequent k-sequences that are valid ( satisfy R ) • Candidate Generation • No efficient mechanism -- “brute-force” enumeration of paths in the automaton • Some optimizations (e.g., exploiting cycles) to reduce computation • Candidate Pruning • A version of our Dynamic Programming strategy is once again applicable

23. Experience with SPIRIT • Implemented and tested over real-life and synthetic data • Speedups of more than an order of magnitude possible if constraints are exploited • SPIRIT(V) offers a nice tradeoff and provides good performance over a range of RE constraints • BUT… • In general, the choice of the “best” strategy depends critically on the data-set and RE-constraint characteristics • E.g., RE “selectivity” • More on this later…

24. Outline • Motivation for mining with constraints • Algorithmic solutions • Sequential patterns – SPIRIT • Constraint-based decision-tree induction • Application: Model-Based Semantic Compression - SPARTAN • Future directions • Cost-based constraint pushing • Mining continuous data streams • Conclusions

25. salary < 20000 yes no education in graduate accept yes no accept reject Decision Trees 101 • Decision tree: Tree-structured predictor for a specified categorical class label using other data attributes • Built based on training data set CreditAnalysis • For numerical class labels: Regression tree

26. Conventional Decision-Tree Induction • Building phase • Recursively split nodes using “best” splitting attribute for node • E.g., using entropy of the split • Pruning phase • Smaller imperfect decision tree generally achieves better accuracy • Prune leaf nodes recursively to prevent overfitting • Typically based on MDL cost of subtrees

27. The Need for Constraint Support • MDL-optimal decision tree can be • Complex with hundreds or thousands of nodes • Difficult to comprehend • Users may only be interested in a rough picture of the patterns in their data • A simple, quick-to-build, approximate decision tree is much more useful

28. Our Work [KDD’00,DMKDJ’03] • Efficient algorithms for building MDL-optimal decision trees under • Size Constraints: the number of tree nodes is <= k • Error Constraints: the total number of misclassified records <= e • Applying the constraints after tree-building is simple, but … • A lot of effort is wasted on parts of the tree that are pruned later • Our algorithms: Integrate constraints in the tree-building phase • Reduce I/O and improve performance by early removal of useless parts of the tree • Guarantee that the final tree is identical to that obtained by “naïve” late pruning

29. tree-building N LB( MDLcost(N, k) ) Key Ideas • Basic problem: Building works top-down, pruning works bottom-up • How can we stop expanding “useless” nodes early? Don’t really know the true MDL cost of the tree underneath them… • Key Intuition: Branch & Bound based on lower bounds on subtree cost computed for “yet-to-expand” nodes • Details in the paper… • Performance speedup of up to an order of magnitude wrt “late pruning” • Similar ideas for constrained regression-trees

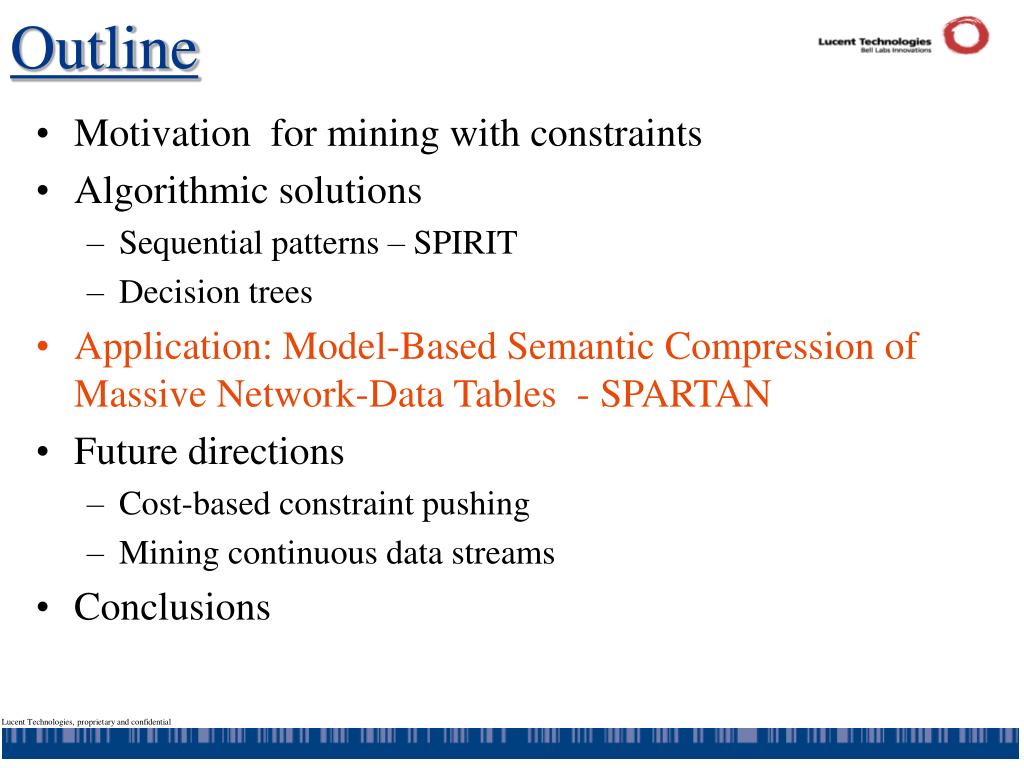

30. Outline • Motivation for mining with constraints • Algorithmic solutions • Sequential patterns – SPIRIT • Decision trees • Application: Model-Based Semantic Compression of Massive Network-Data Tables - SPARTAN • Future directions • Cost-based constraint pushing • Mining continuous data streams • Conclusions

31. Networks Create Data! • To effectively manage their networks Internet/Telecom Service Providers continuously gather utilization and traffic data • Managed IP network elements collect huge amounts of traffic data • Switch/router-level monitoring (SNMP, RMON, NetFlow, etc.) • Typical IP router: several 1000s SNMP counters • Service-Level Agreements (SLAs), Quality-of-Service (QoS) guarantees => finer-grain monitoring (per IP flow!!) • Telecom networks: Call-Detail Records (CDRs) for every call • CDR = 100s bytes of data with several 10s of fields/attributes (e.g., endpoint exchanges, timestamps, tarifs) • End Result: Massive collections of Network-Management (NM) data (can grow in the order of several TeraBytes/year!!)

32. Protocol DurationBytes Packets http 12 20K 3 http 16 24K 5 http 15 20K 8 http 19 40K 11 http 26 58K 18 ftp 27 100K 24 ftp 32 300K 35 ftp 18 80K 15 Compressing Massive Tables: A New Direction in Data Compression • Example table: IP-session measurements • Benefits of data compression are well established • Optimize storage, I/O, network bandwidth (e.g., data transfers, disconnected operation for mobile users) over the lifetime of the data • Faster query processing over synopses

33. Compressing Massive Tables: A New Direction in Data Compression • Several generic compression tools and algorithms(e.g., gzip, Huffman, Lempel-Ziv) • Syntactic methods: operate at the byte level, view data as large byte string • Lossless compression only • Effective compression of massive alphanumeric tables • Need novel methods that are semantic: account for and exploit the meaning and data dependencies of attributes in the table • Lossless or lossy compression: flexible mechanisms for users to specify acceptable information loss

34. SPARTAN : A Model-BasedSemantic Compressor [SIGMOD’01] • New, general paradigm: Model-Based Semantic Compression (MBSC) • Extract Data Mining models from the data table • Use the extracted models to construct an effective compression plan • Lossless or lossy compression (w/ guaranteed per-attribute error bounds) • SPARTAN system: Specific instantiation of MBSC framework • Key Idea: use carefully-selected collection of Classification and Regression Trees (CaRTs) to capture strong data correlations and predict values for entirecolumns

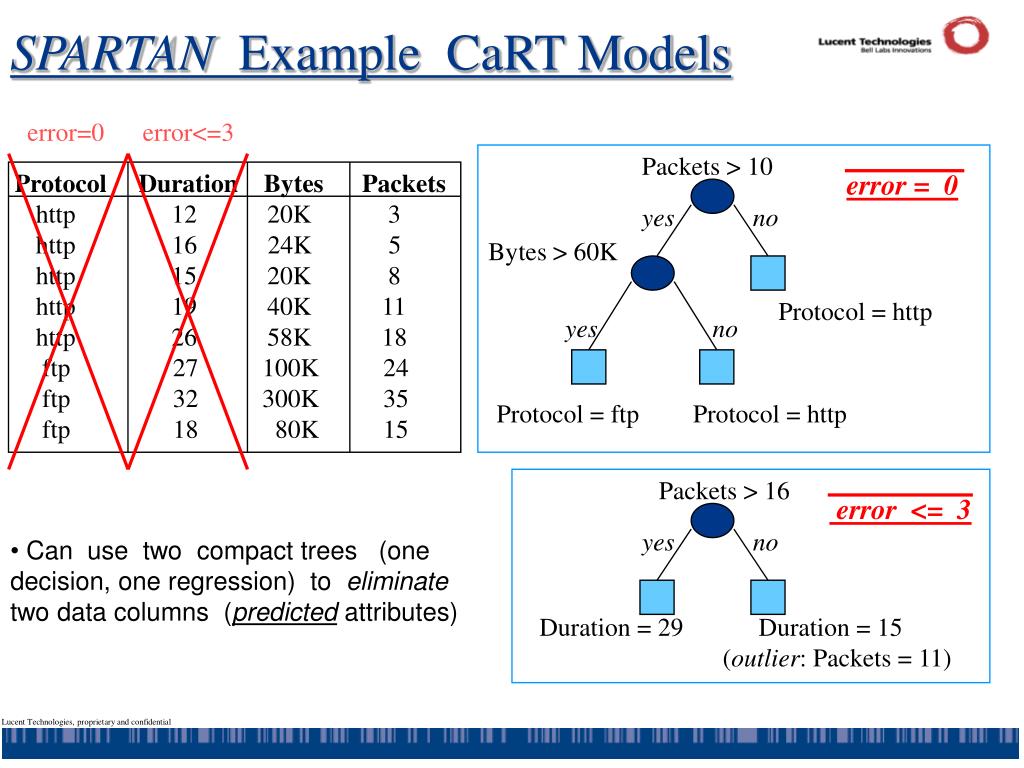

35. Packets > 10 error = 0 yes no Bytes > 60K Protocol = http yes no Protocol = ftp Protocol = http Packets > 16 error <= 3 yes no Duration = 29 Duration = 15 (outlier: Packets = 11) SPARTAN Example CaRT Models error=0 error<=3 Protocol DurationBytes Packets http 12 20K 3 http 16 24K 5 http 15 20K 8 http 19 40K 11 http 26 58K 18 ftp 27 100K 24 ftp 32 300K 35 ftp 18 80K 15 • Can use two compact trees (one decision, one regression) to eliminate two data columns (predictedattributes)

36. SPARTAN Compression Problem Formulation • Given: Data table T over set of attributes X and per-attribute error tolerances • Find: Set of attributes P to be predicted using CaRT models (and corresponding CaRTs+outliers) such that • Each CaRT uses only predictor attributes in X-P • Each attribute in P is predicted within its specified tolerance • The overall storage cost is minimized • Non-trivial problem! • Space of possible CaRT predictors is exponential in the number of attributes • CaRT construction is an expensive process (multiple passes over the data)

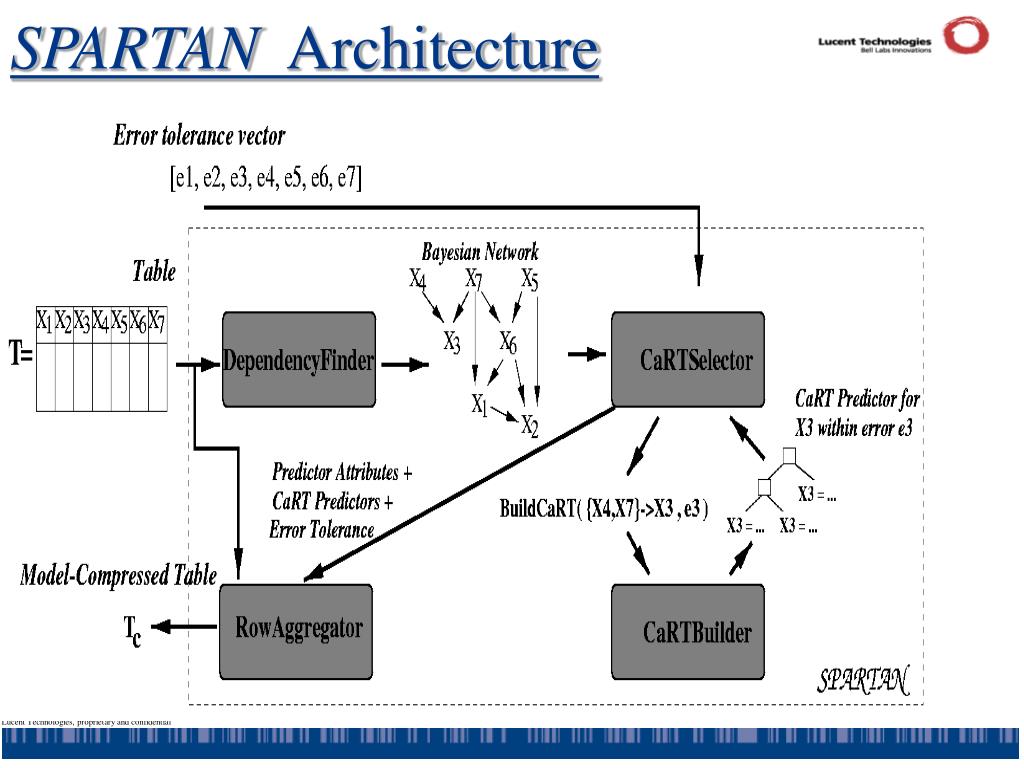

37. SPARTAN Architecture

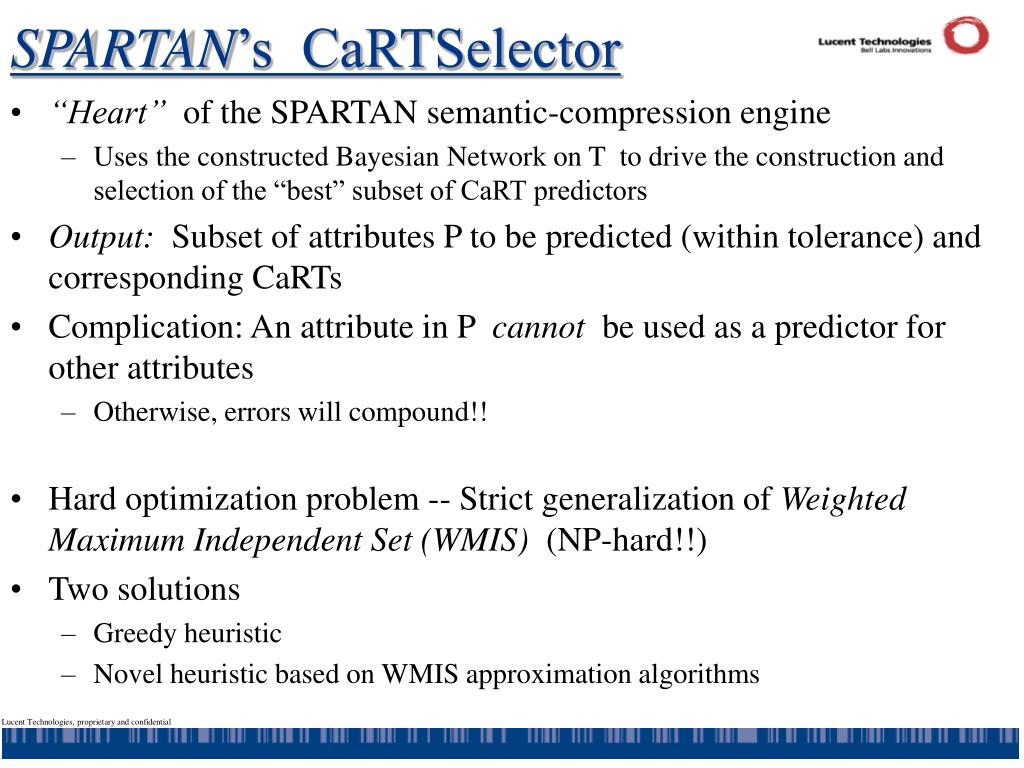

38. SPARTAN’s CaRTSelector • “Heart” of the SPARTAN semantic-compression engine • Uses the constructed Bayesian Network on T to drive the construction and selection of the “best” subset of CaRT predictors • Output: Subset of attributes P to be predicted (within tolerance) and corresponding CaRTs • Complication: An attribute in P cannot be used as a predictor for other attributes • Otherwise, errors will compound!! • Hard optimization problem -- Strict generalization of Weighted Maximum Independent Set (WMIS) (NP-hard!!) • Two solutions • Greedy heuristic • Novel heuristic based on WMIS approximation algorithms

39. The CaRTBuilder Component • Input: Target predicted attribute Xp; predictor attributes {X1,…,Xk}; and error tolerance for Xp • Output: Minimum-storage-cost CaRT for Xp using {X1,…,Xk} as predictors, within the specified error tolerance • Repeated calls from CaRTSelector: Efficiency is key! • Efficient CaRT construction algorithms that exploit error tolerances • Integrated tree building and error-constraint pruning based on our cost “lower bounding” ideas • To keep compression times low, SPARTAN models are built on samples of the data

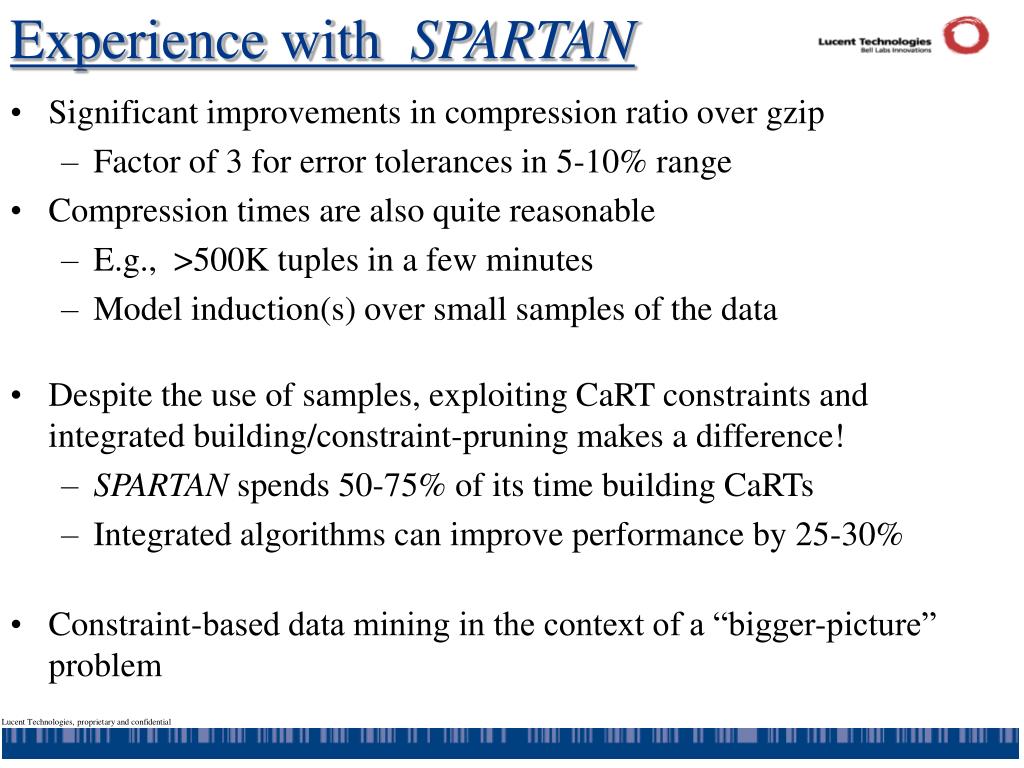

40. Experience with SPARTAN • Significant improvements in compression ratio over gzip • Factor of 3 for error tolerances in 5-10% range • Compression times are also quite reasonable • E.g., >500K tuples in a few minutes • Model induction(s) over small samples of the data • Despite the use of samples, exploiting CaRT constraints and integrated building/constraint-pruning makes a difference! • SPARTAN spends 50-75% of its time building CaRTs • Integrated algorithms can improve performance by 25-30% • Constraint-based data mining in the context of a “bigger-picture” problem

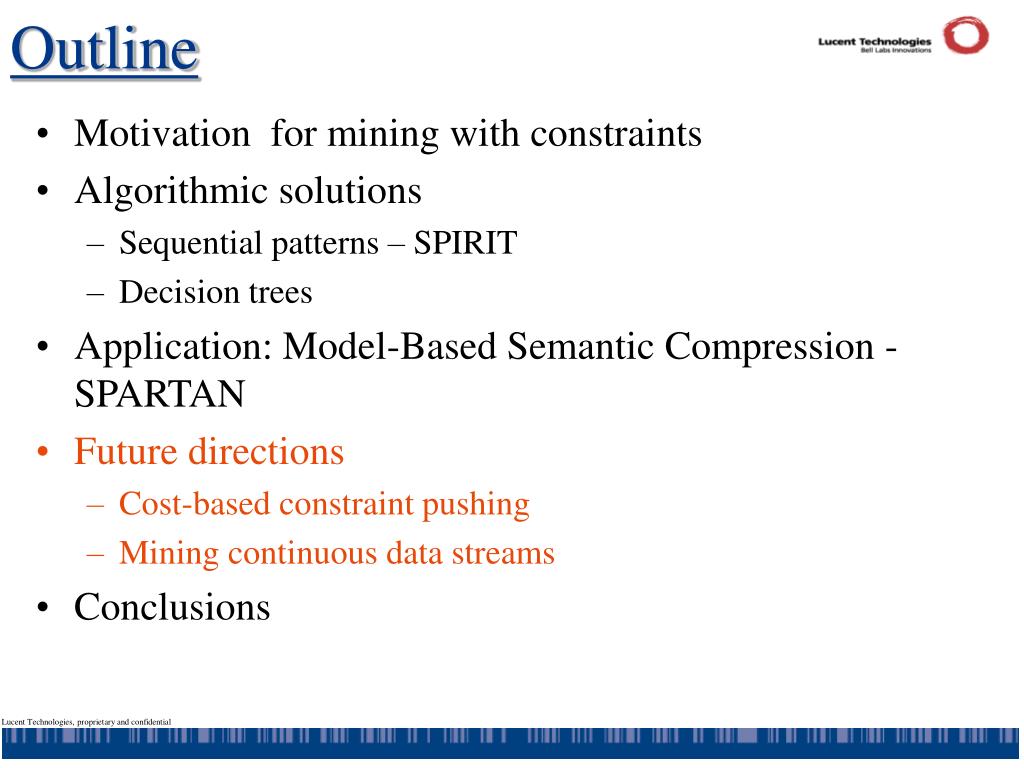

41. Outline • Motivation for mining with constraints • Algorithmic solutions • Sequential patterns – SPIRIT • Decision trees • Application: Model-Based Semantic Compression - SPARTAN • Future directions • Cost-based constraint pushing • Mining continuous data streams • Conclusions

42. Cost-based Constraint Pushing • Support for user/application-defined constraints is a “must” for large-scale, ad-hoc data mining • Interesting early work on simple constraint forms, e.g., for associations [J. Han et al.] • Need effective support for more complex constraint forms • E.g., structural constraints for mining structured/semi-structured data (sequences, trees, graphs, …)

43. Cost-based Constraint Pushing (contd.) • SPIRIT: Broad spectrum of available choices for dealing with complex, non-antimonotone constraints • Winning strategy? Not always obvious, and clearly dependent on constraint and data characteristics • E.g., “selectivity” of the RE constraint over the data sequences • Push highly-selective REs more aggressively to maximize the benefit from constraint-based pruning • Best strategy may in fact be adaptive • Different degrees of “constraint pushing” at different stages of the search

44. Cost-based Constraint Pushing (contd.) • Problem very reminiscent of query optimization in DBMSs • Mining operator with constraints = user query, processing strategy = query execution plan • Need a principled, cost-based approach to effectively handling complex data-mining constraints • “Optimizer” to evaluate alternatives and pick a “best” plan • Several issues need to be fundamentally rethought for pattern/inductive DBs • Appropriate statistical summaries (“histograms” for mining), plan optimization strategies, adaptive optimization/execution, … • Initial steps: “Adaptive SPIRIT” technique [J-F Boulicaut et al.] • Still, lots more interesting problems here!!

45. Network Operations Center (NOC) Measurements Alarms R1 R2 R3 Mining Continuous Data Streams • Stream-query processing arises naturally in Network Management • Data records arrive continuously, at high rates from different parts of the network • Shipped for archival storage off-site (expensive access) • Real-time reaction - data-analysis algorithms can only look at the tuples once, in the fixed order of arrival and with limited available memory IP Network

46. Stream Synopses (in memory) Data Streams Stream Analysis Engine (Approximate) Patterns/Models Mining Data Streams (contd.) • A data stream is a (massive) sequence of records: • General model permits deletion of records as well • Requirements for stream synopses • Single Pass: Each record is examined at most once, in fixed (arrival) order • Small Space: Log or poly-log in data stream size • Real-time: Per-record processing time (to maintain synopses) must be low

47. Mining Data Streams (contd.) • Several interesting recent results: Clustering [Guha et al.], Decision trees [Domingos et al.], Frequent itemsets [Manku et al.], … • Overview in data streaming tutorial with J. Gehrke, R. Rastogi [SIGMOD/VLDB/KDD’02] • Still, tons of open problems • Mining structured/semi-structured data streams (sequences, trees, graphs) is wide open • How can constraints on the models of interest be exploited in the streaming context? • Reduce synopsis size, improve error guarantees, etc… • “Sliding window” stream mining? • How do you expire the effects of stale data from your models? • CVFDT [Domingos et al.] takes some initial steps in this direction

48. Conclusions • Personal, biased perspective on constraint-based data mining through a brief summary of some of my own work in the area • Sequential patterns, decision/regression trees, and application to model-based semantic compression • Similarly-biased discussion of challenging directions for future work • Principled, cost-based constraint pushing, and data-stream mining • Effective support for constraints is essential for next-generation ad-hoc data mining, analysis, and exploration systems • So far, we’ve only scratched the surface… • As we move forward towards “Pattern/Inductive DBMSs” (and, DSMSs) research challenges abound!!

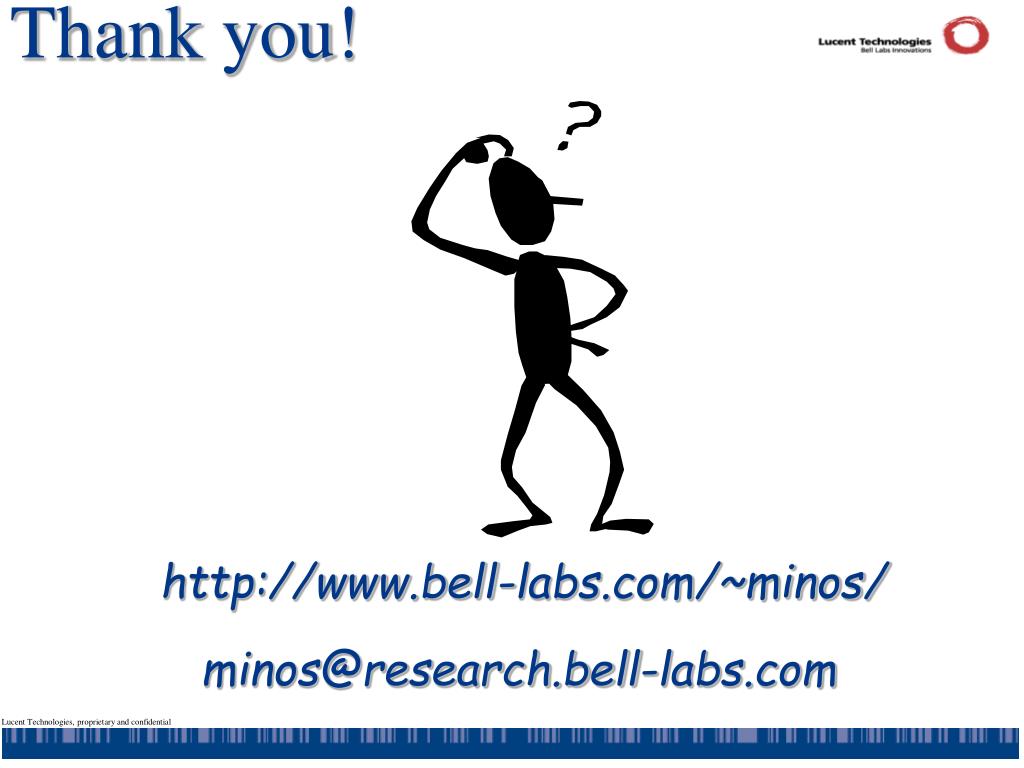

49. Thank you! http://www.bell-labs.com/~minos/ minos@research.bell-labs.com

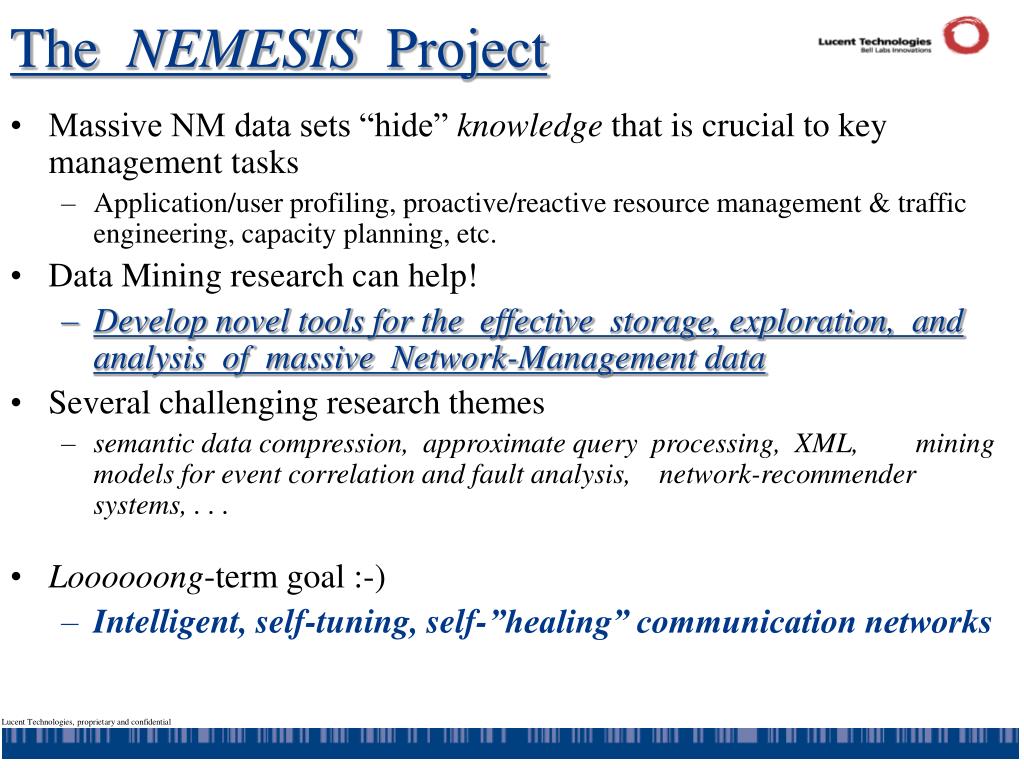

50. The NEMESIS Project • Massive NM data sets “hide” knowledge that is crucial to key management tasks • Application/user profiling, proactive/reactive resource management & traffic engineering, capacity planning, etc. • Data Mining research can help! • Develop novel tools for the effective storage, exploration, and analysis of massive Network-Management data • Several challenging research themes • semantic data compression, approximate query processing, XML, mining models for event correlation and fault analysis, network-recommender systems, . . . • Loooooong-term goal :-) • Intelligent, self-tuning, self-”healing” communication networks
