  1. Camera Control in DCN DCN CC Functional

  2. Camera Control in DCN • Introduction • Benefits & features • Product overview • System preparation DCN CC Functional

  3. Main User group • Delegates • Who has the floor DCN CC Functional

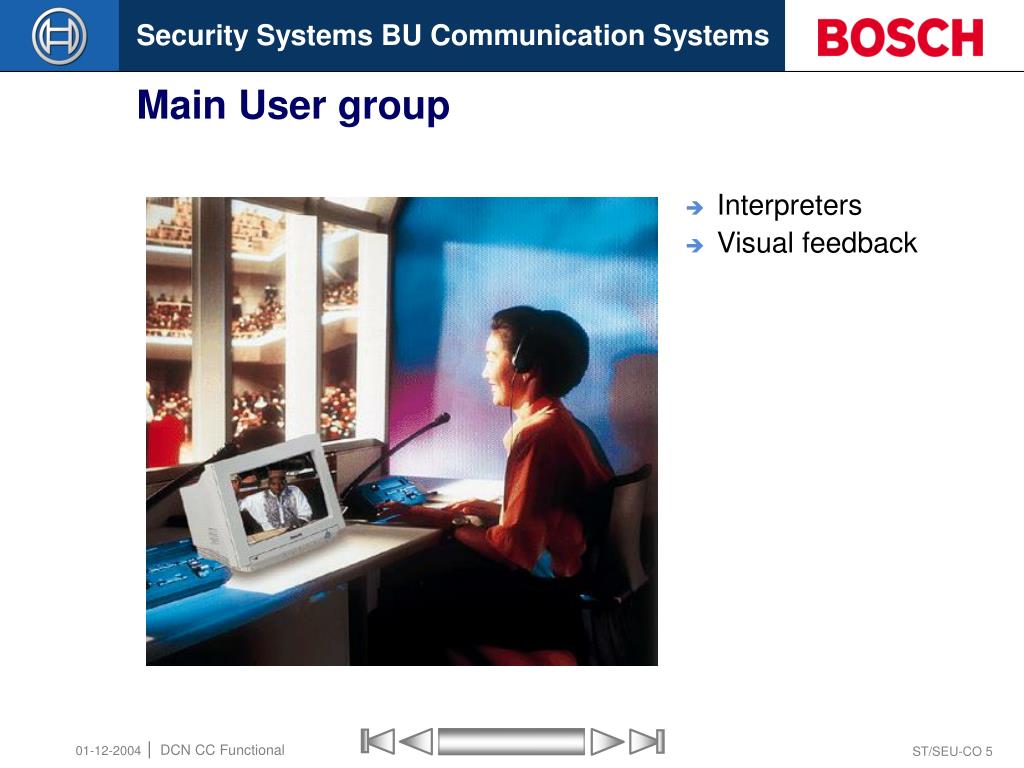

  4. Main User group • Interpreters • Visual feedback DCN CC Functional

  5. Main User group • Journalists • Press room • Video recordings can be used for television news reports. DCN CC Functional

  6. Main User group • Non participating observers • Hotel room DCN CC Functional

  7. Main User group • Non participatingobservers • Meeting rooms and offices DCN CC Functional

  8. Main User group • Public • Reception, lobby or hall DCN CC Functional

  9. Camera Control in DCN • Introduction • Benefits & features • Product overview • System preparation DCN CC Functional

  10. Who’s has the floor ? • Image of the speaker enlarged on a screen in- and outside the room • Automatic camera control software DCN CC Functional

  11. Who’s has the floor ? • Name of the person speaking will be displayed • screen line will be added • Cost effective stand alone camera control • specific software module, no PC required • No camera operator required • automatic camera control and switching DCN CC Functional

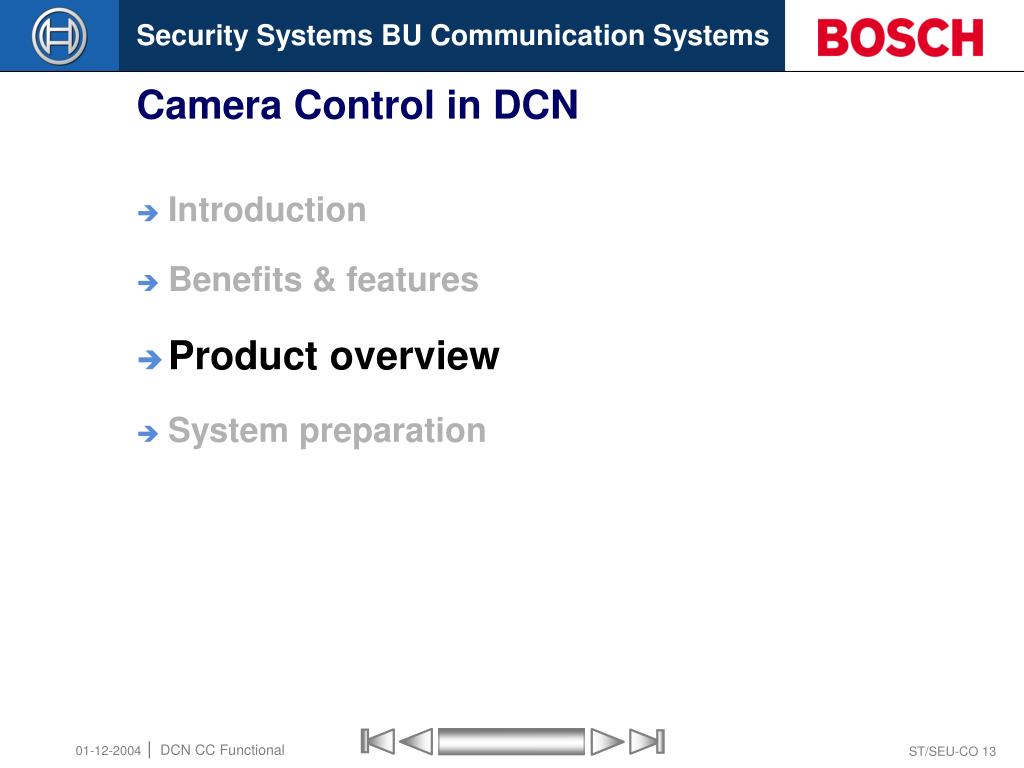

  12. Camera Control in DCN • Introduction • Benefits & features • Product overview • System preparation DCN CC Functional

  13. Required system components • DCN system, PC control or stand-alone • Allegiant switcher • Video Switcher keyboard • Camera control software • LBB 3588 or LBB 3562 • Fixed and /or AutoDome cameras • Monitors for Operator • Display facility for audience. DCN CC Functional

  14. Concentus DCN System • DCN system, PC controlled or stand-alone • Conference and /or discussion units • Flush mounted units • Software / Firmware version 8.00 or higher and V 9.00 in combination with Concentus DCN CC Functional

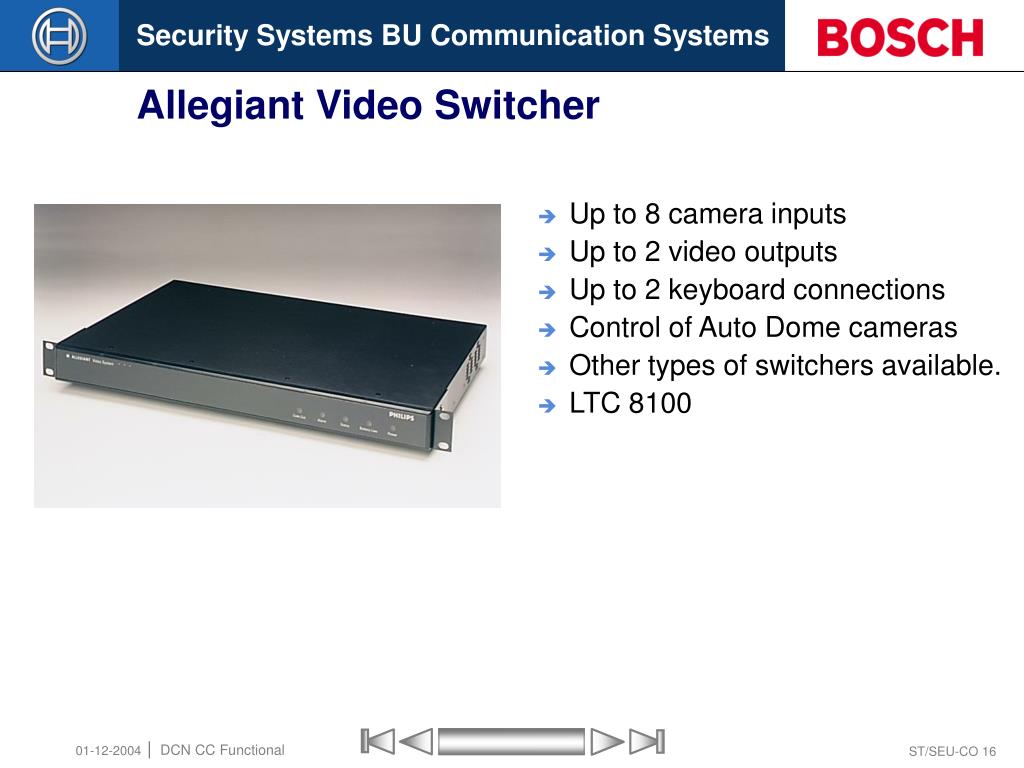

  15. Allegiant Video Switcher • Up to 8 camera inputs • Up to 2 video outputs • Up to 2 keyboard connections • Control of Auto Dome cameras • Other types of switchers available. • LTC 8100 DCN CC Functional

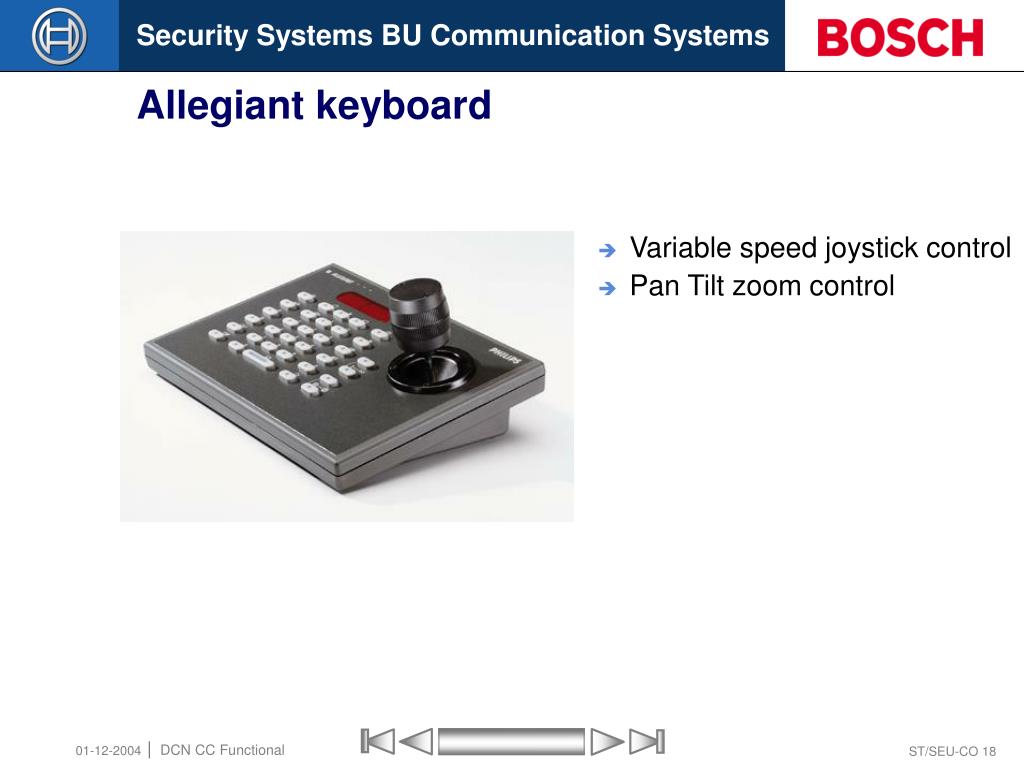

  16. Allegiant keyboard • Variable speed joystick control • Pan Tilt zoom control DCN CC Functional

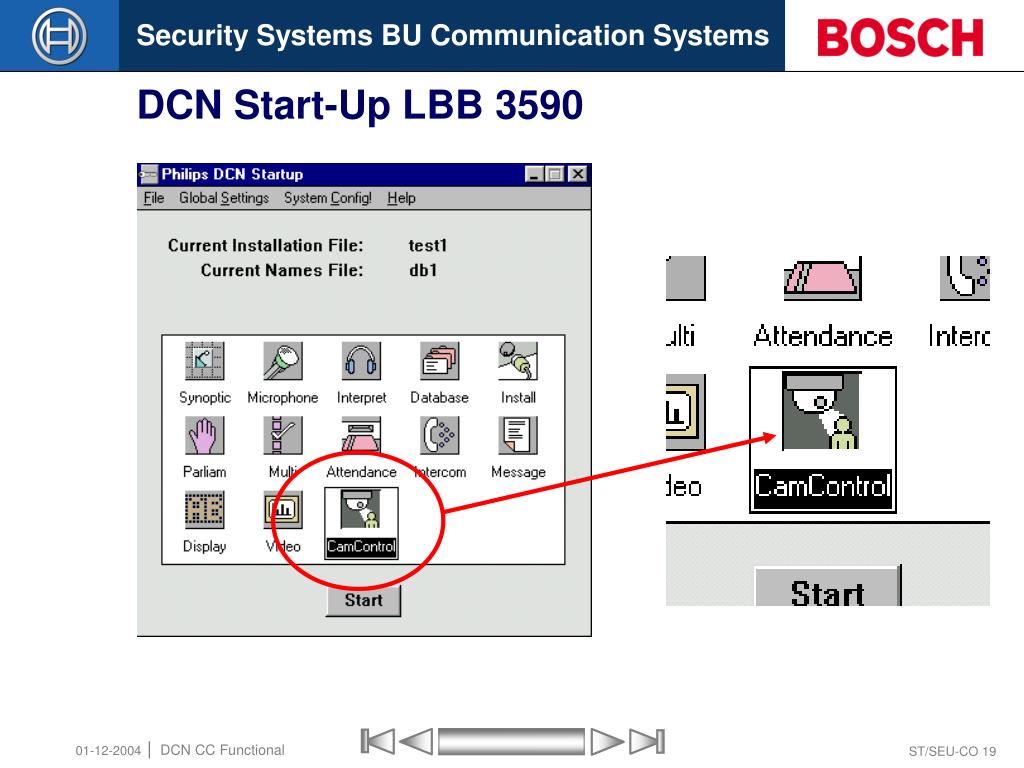

  17. DCN Start-Up LBB 3590 DCN CC Functional

  18. Software • Alligiant preparation and operation menus in different languages. • Stand alone LBB 3562/00 • PC controlled LBB 3588/00 DCN CC Functional

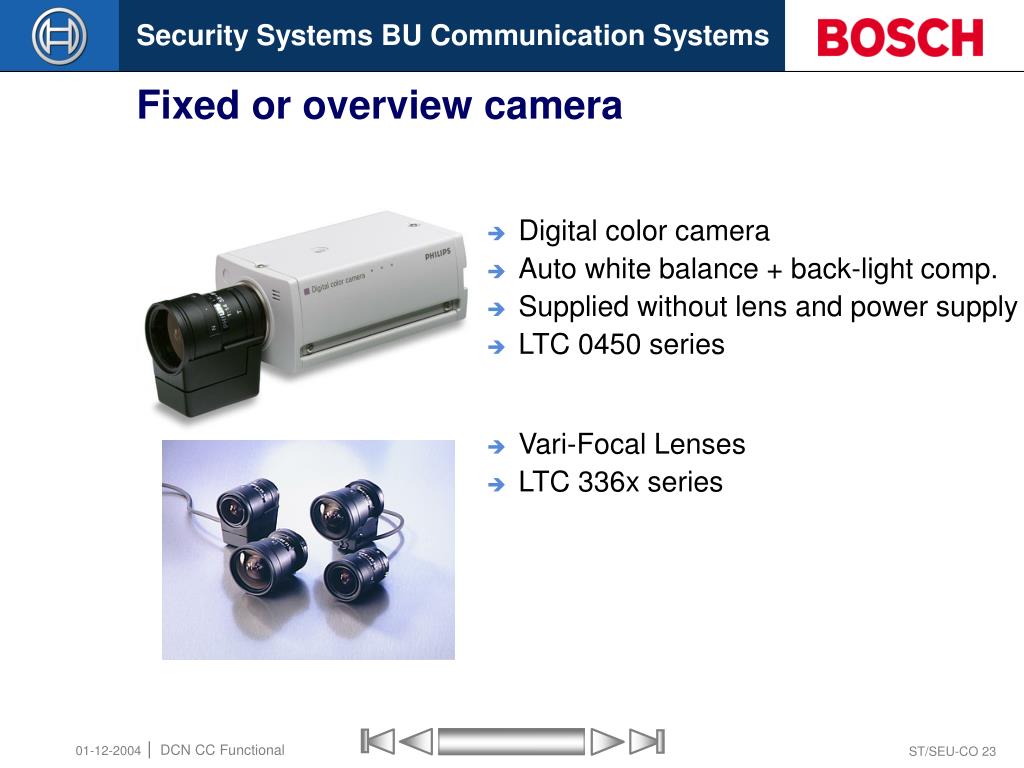

  19. Fixed or overview camera • Digital color camera • Auto white balance + back-light comp. • Supplied without lens and power supply • LTC 0450 series • Vari-Focal Lenses • LTC 336x series DCN CC Functional

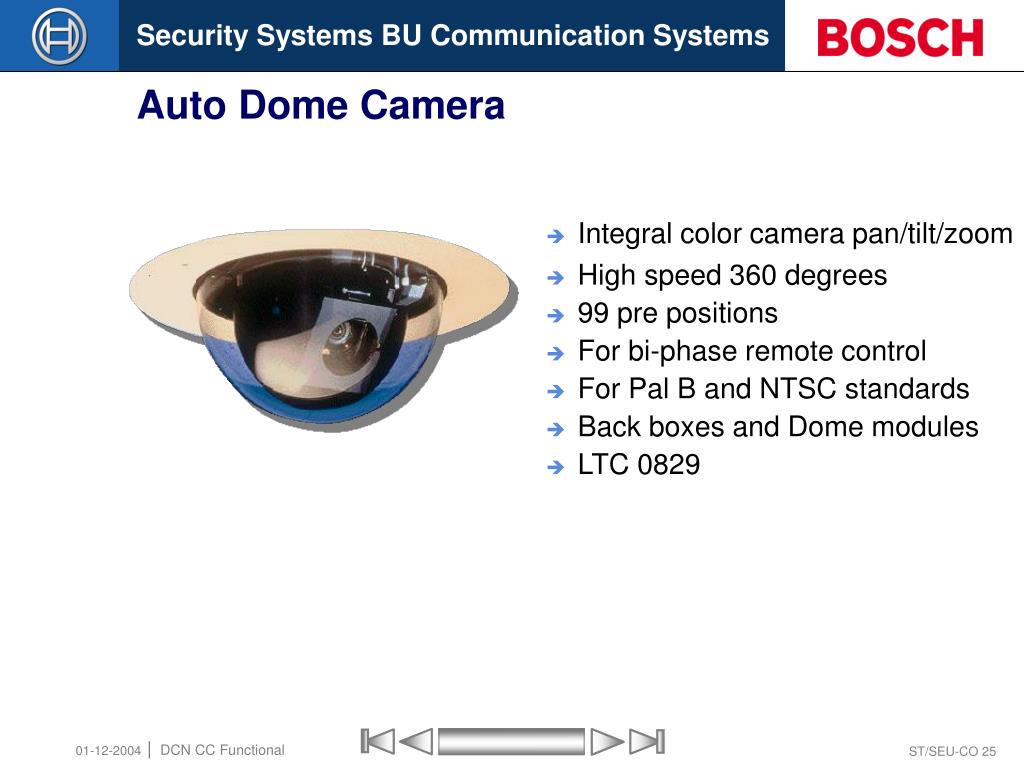

  20. Auto Dome Camera • Integral color camera pan/tilt/zoom • High speed 360 degrees • 99 pre positions • For bi-phase remote control • For Pal B and NTSC standards • Back boxes and Dome modules • LTC 0829 DCN CC Functional

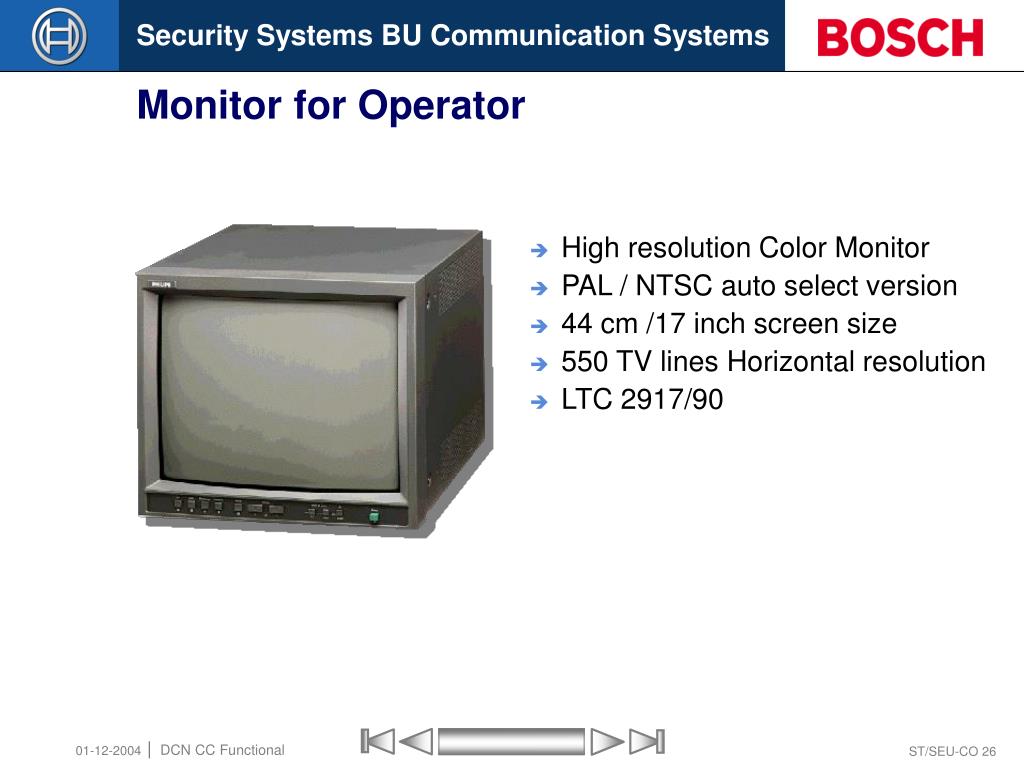

  21. Monitor for Operator • High resolution Color Monitor • PAL / NTSC auto select version • 44 cm /17 inch screen size • 550 TV lines Horizontal resolution • LTC 2917/90 DCN CC Functional

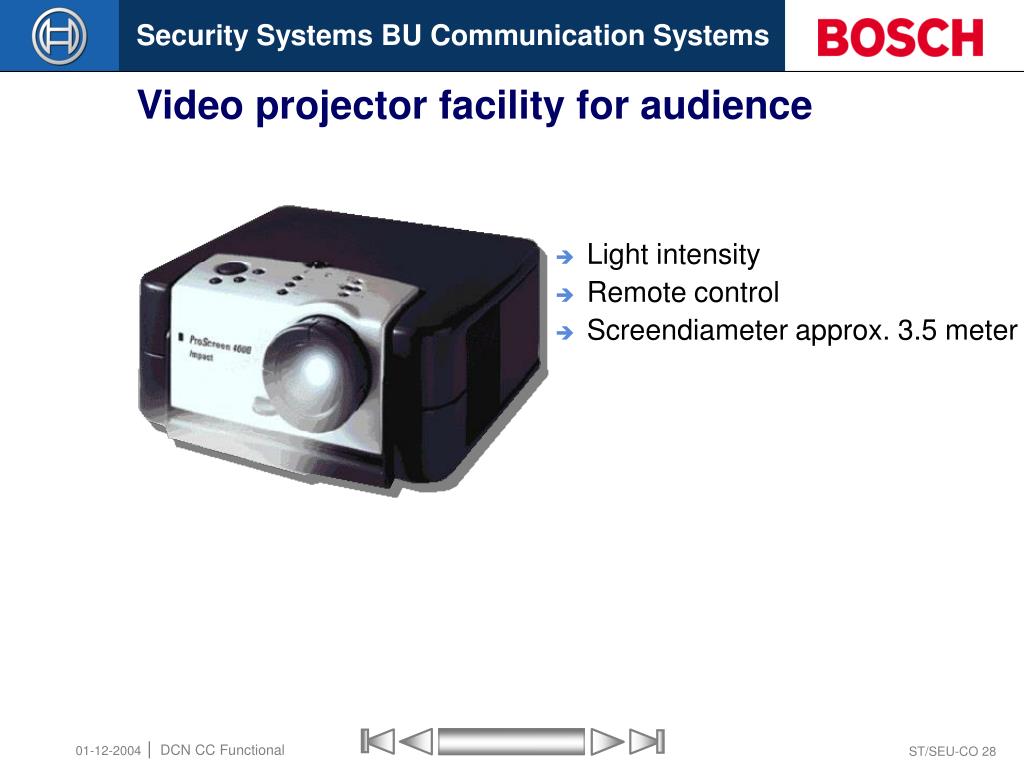

  22. Video projector facility for audience • Light intensity • Remote control • Screendiameter approx. 3.5 meter DCN CC Functional

  23. Camera Control in DCN • Introduction • Benefits & features • Product overview • System preparation DCN CC Functional

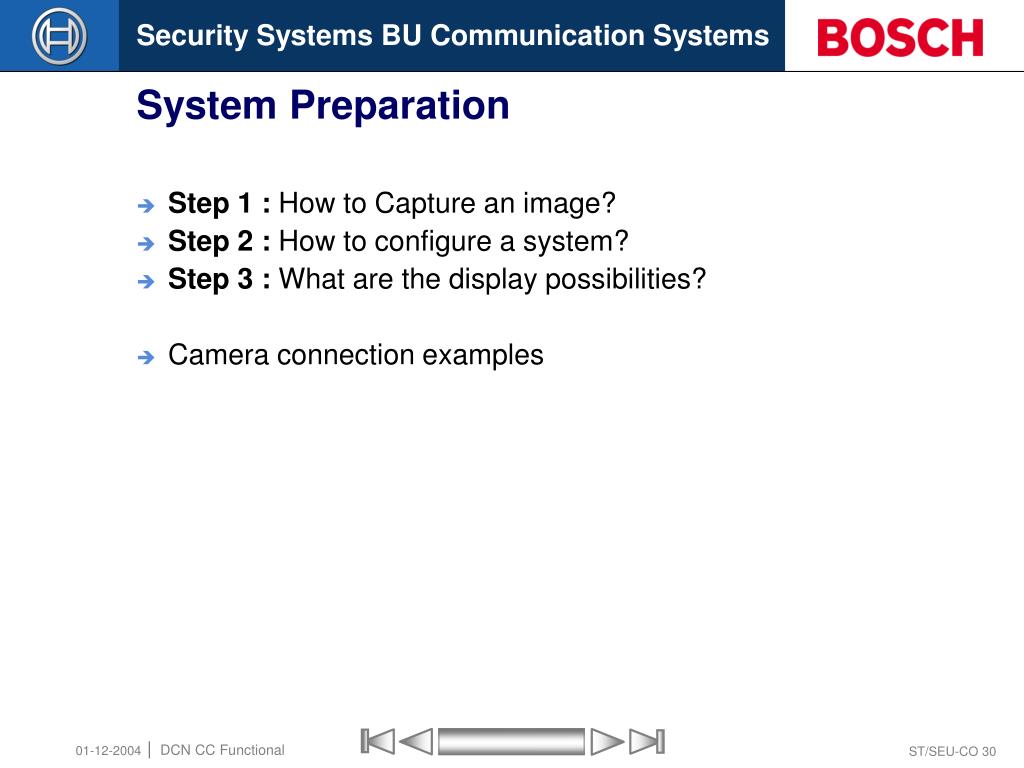

  24. System Preparation • Step 1 : How to Capture an image? • Step 2 : How to configure a system? • Step 3 : What are the display possibilities? • Camera connection examples DCN CC Functional

  25. System PreparationDesign Step 1 • How to capture an image? • Use a fixed camera with a “Vari-focal” lens or an Auto Dome camera • Capture an overview image • Calculate the field of view using the Field View Calculator DCN CC Functional

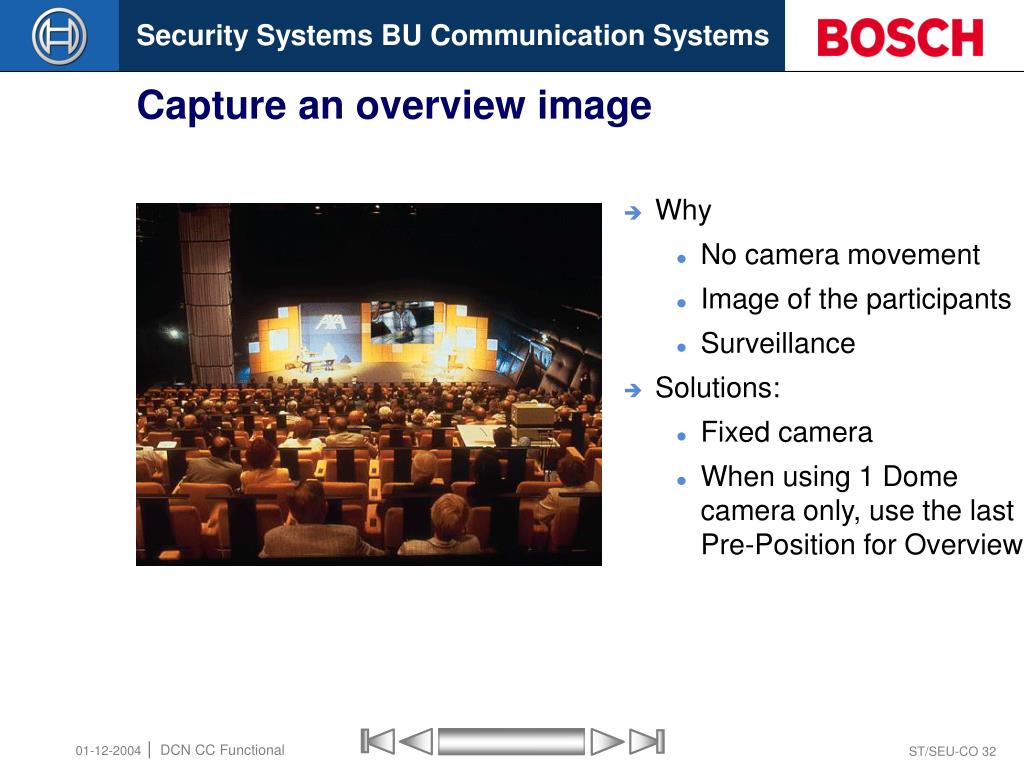

  26. Capture an overview image • Why • No camera movement • Image of the participants • Surveillance • Solutions: • Fixed camera • When using 1 Dome camera only, use the last Pre-Position for Overview DCN CC Functional

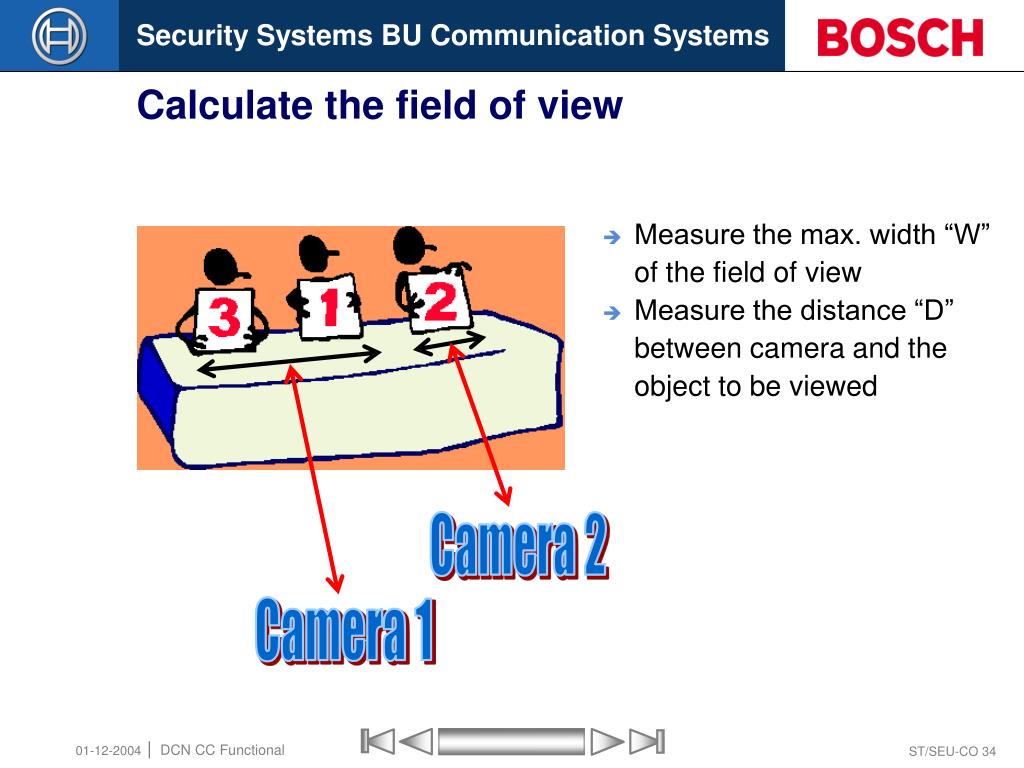

  27. Calculate the field of view • Measure the max. width “W” of the field of view • Measure the distance “D” between camera and the object to be viewed Camera 2 Camera 1 DCN CC Functional

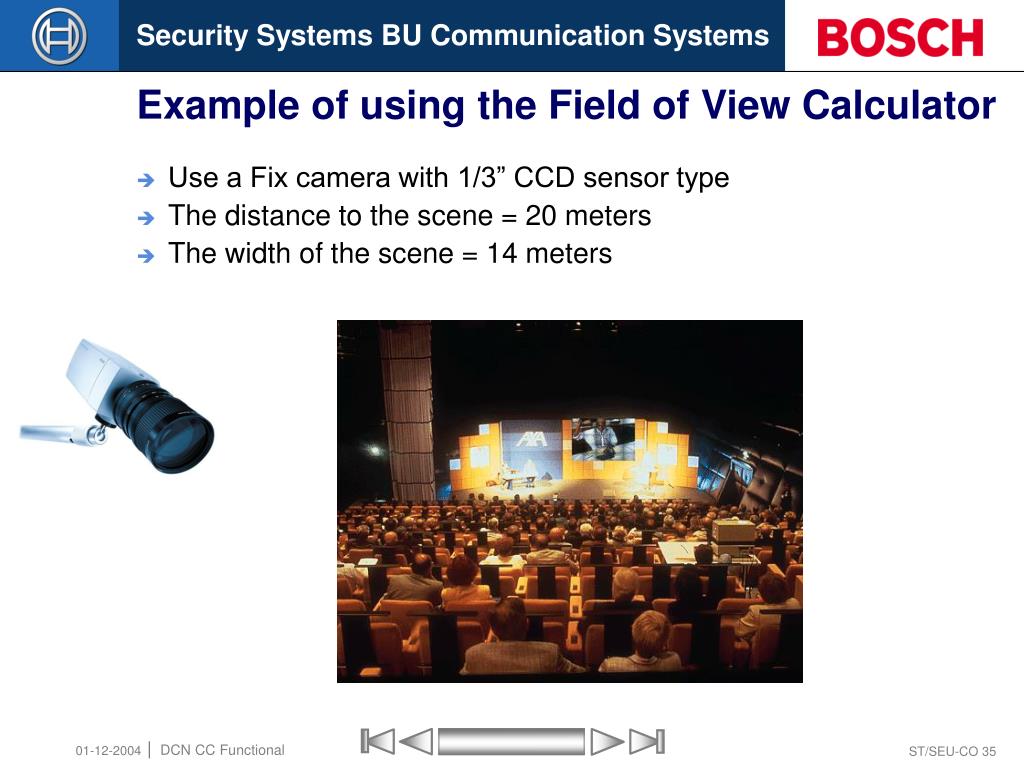

  28. Example of using the Field of View Calculator • Use a Fix camera with 1/3” CCD sensor type • The distance to the scene = 20 meters • The width of the scene = 14 meters DCN CC Functional

  29. Example of using the Field of View Calculator • First step: • Find Imager (CCD sensor) format (1/3”) DCN CC Functional

  30. Example of using the Field of View Calculator • Second step Align image device mark (1/3”) with object distance (20 m) scale. lock the Field View Calculator to keep this setting fixed. DCN CC Functional

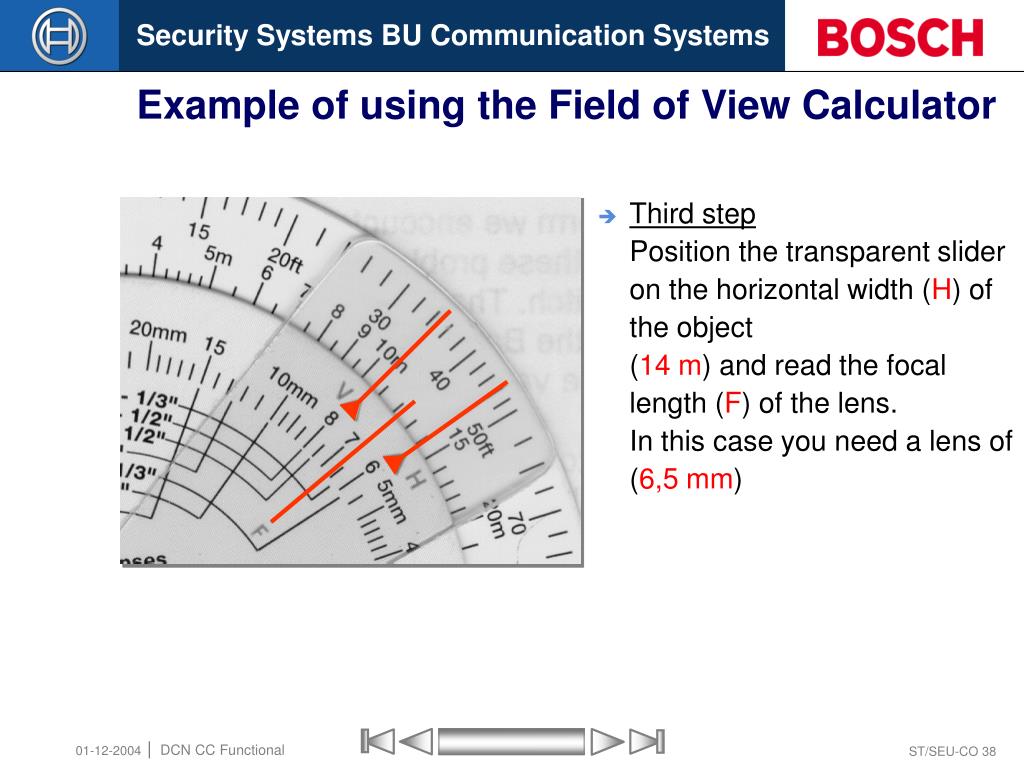

  31. Example of using the Field of View Calculator • Third step Position the transparent slider on the horizontal width (H) of the object (14 m) and read the focal length (F) of the lens. In this case you need a lens of (6,5 mm) DCN CC Functional

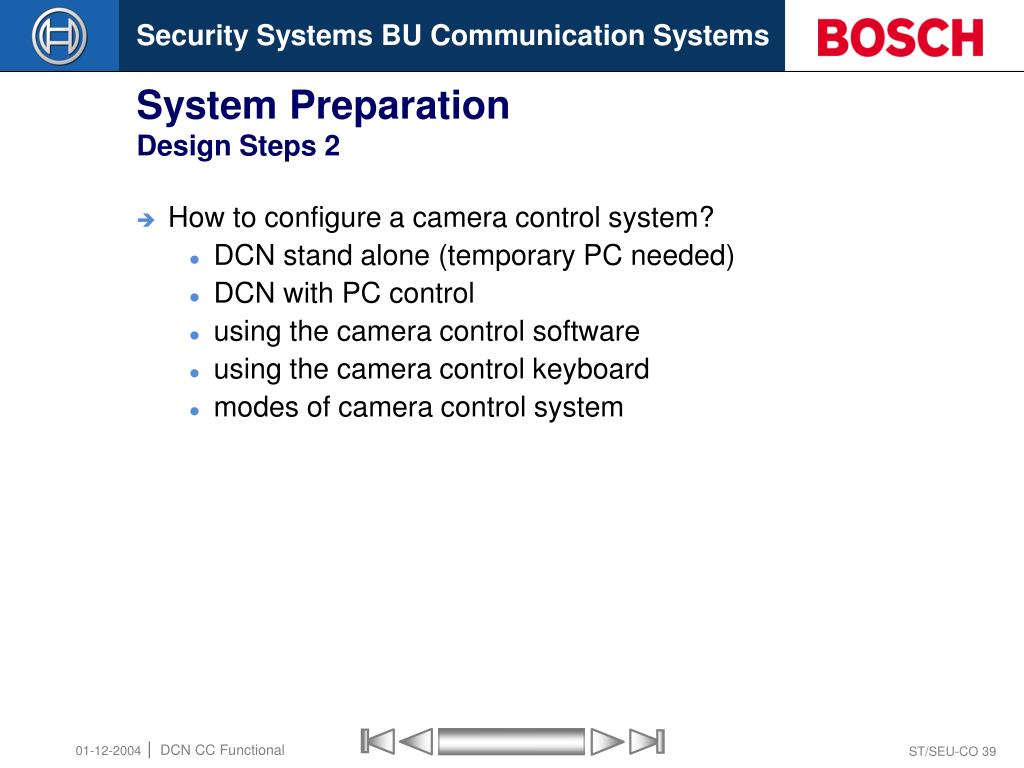

  32. System PreparationDesign Steps 2 • How to configure a camera control system? • DCN stand alone (temporary PC needed) • DCN with PC control • using the camera control software • using the camera control keyboard • modes of camera control system DCN CC Functional

  33. Configuring a stand alone system(Temporary installation PC needed !) DCN CC Functional

  34. Configuring a stand alone system (Temporary installation PC removed !) DCN CC Functional

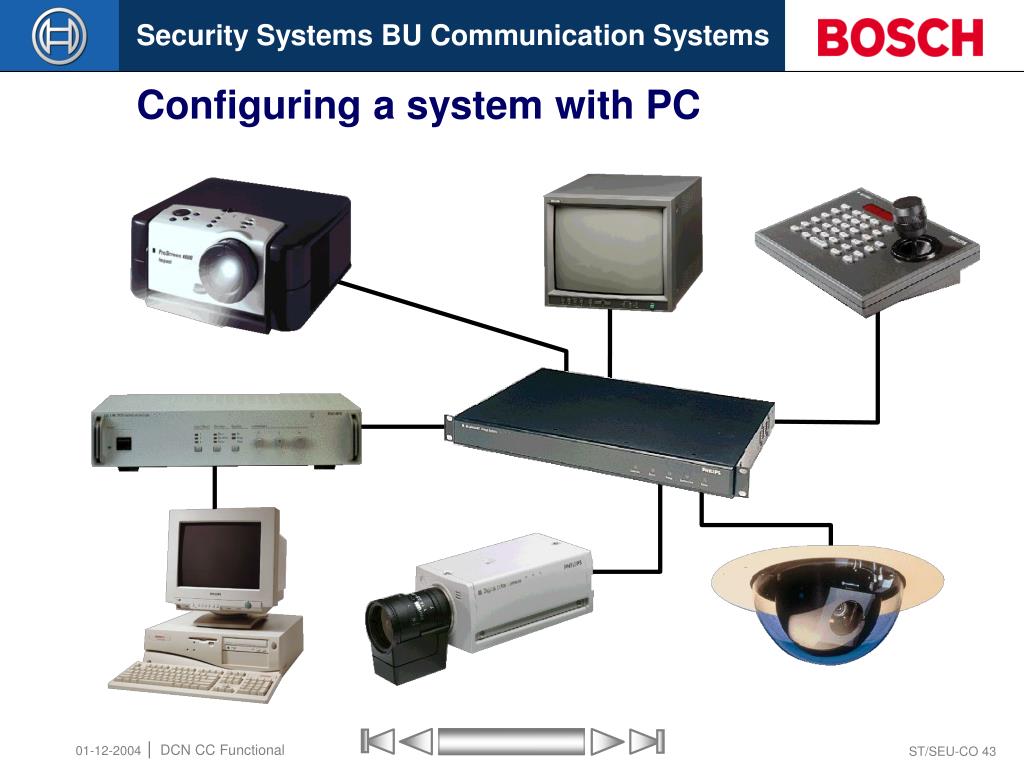

  35. Configuring a system with PC DCN CC Functional

  36. Camera control Software DCN CC Functional

  37. Camera control Software DCN CC Functional

  38. Camera control Software DCN CC Functional

  39. Using keyboard Monitor Camera Focus Iris Enter DCN CC Functional

  40. Mic 1 Camera with Override mode 1 Mic active DCN CC Functional

  41. Mic 2 Camera with Override mode 1 Mic active DCN CC Functional

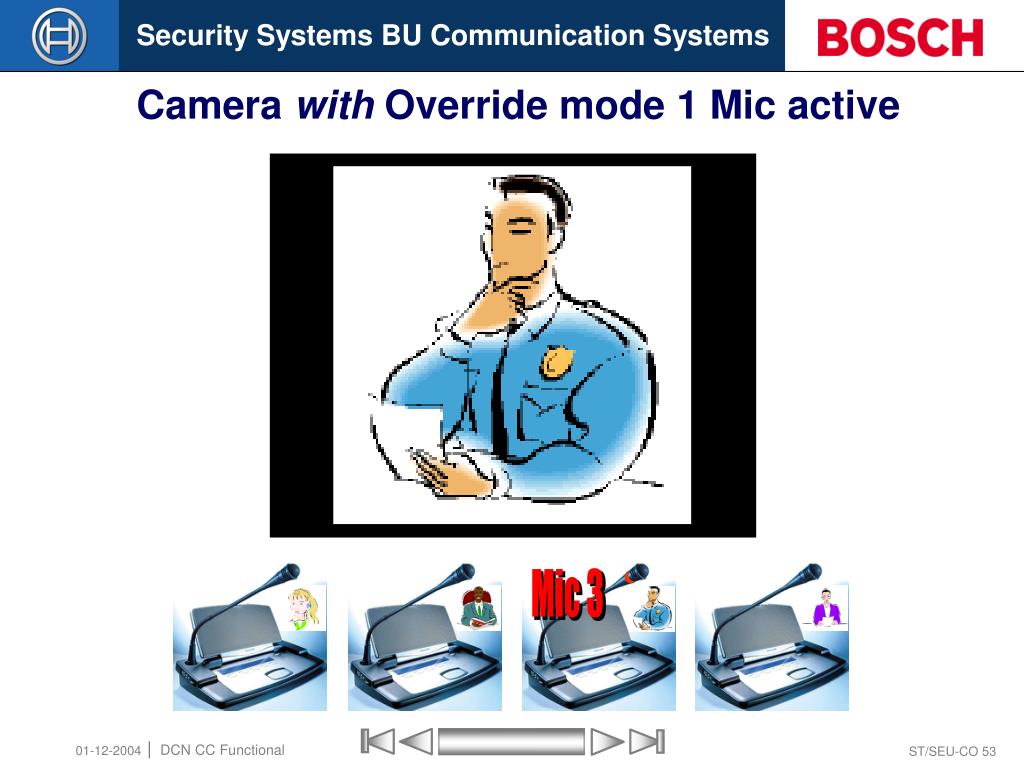

  42. Mic 3 Camera with Override mode 1 Mic active DCN CC Functional

  43. Mic 4 Camera with Override mode 1 Mic active DCN CC Functional

  44. Mic 1 Camera without Override and 2 Mics active DCN CC Functional

  45. Mic 1 Mic 2 Camera without Override and 2 Mics active DCN CC Functional

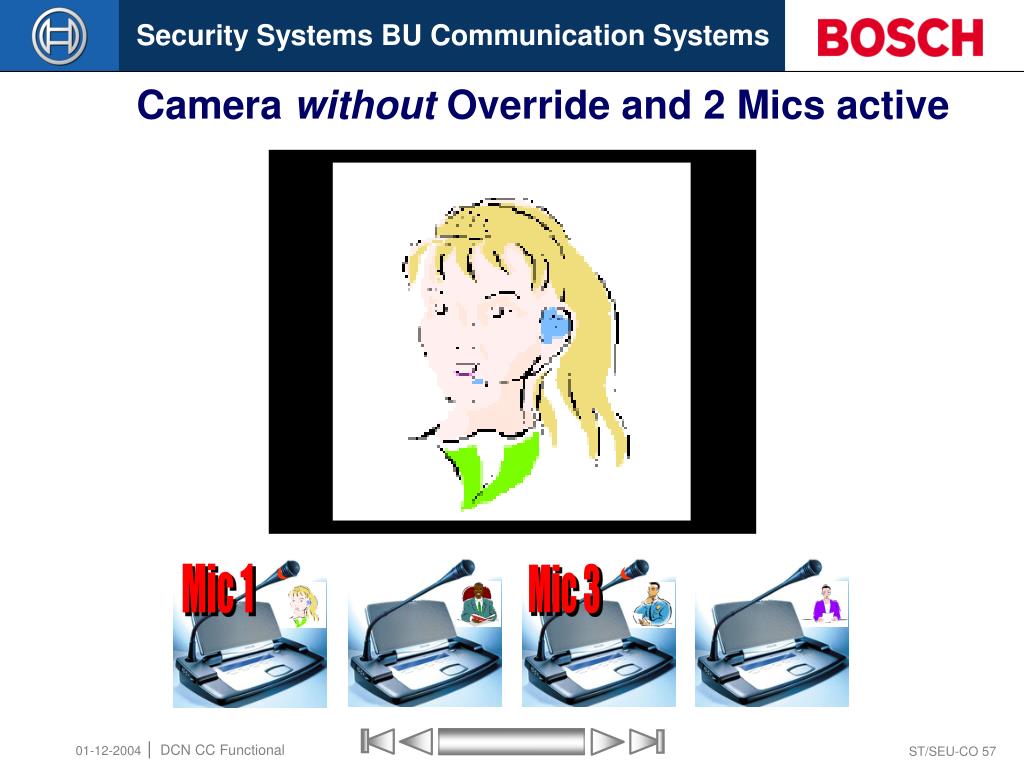

  46. Mic 1 Mic 3 Camera without Override and 2 Mics active DCN CC Functional

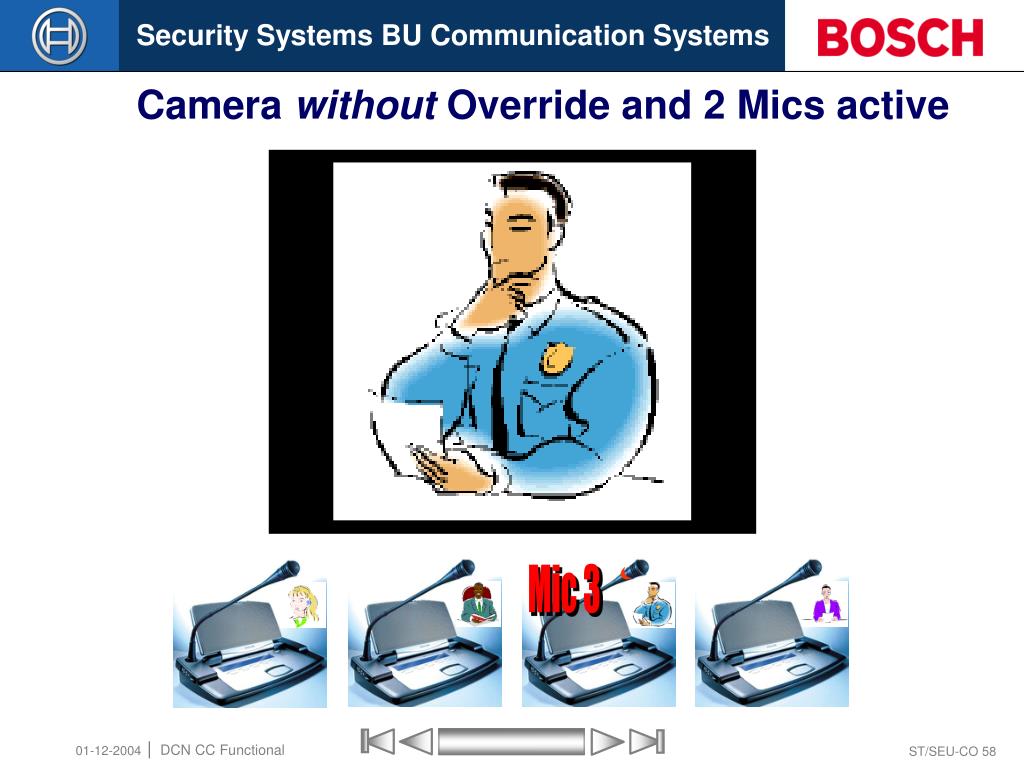

  47. Mic 3 Camera without Override and 2 Mics active DCN CC Functional

  48. Mic 3 Mic 4 Camera without Override and 2 Mics active DCN CC Functional

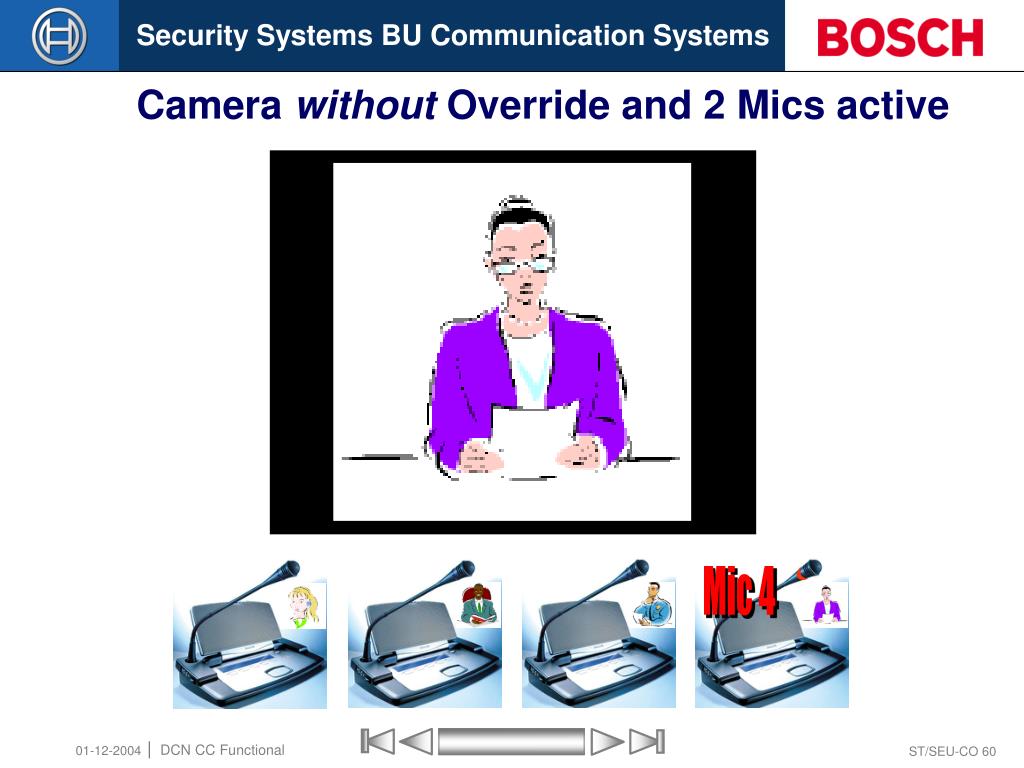

  49. Mic 4 Camera without Override and 2 Mics active DCN CC Functional

  50. Mic 1 Camera movement time DCN CC Functional
