Presentation Transcript

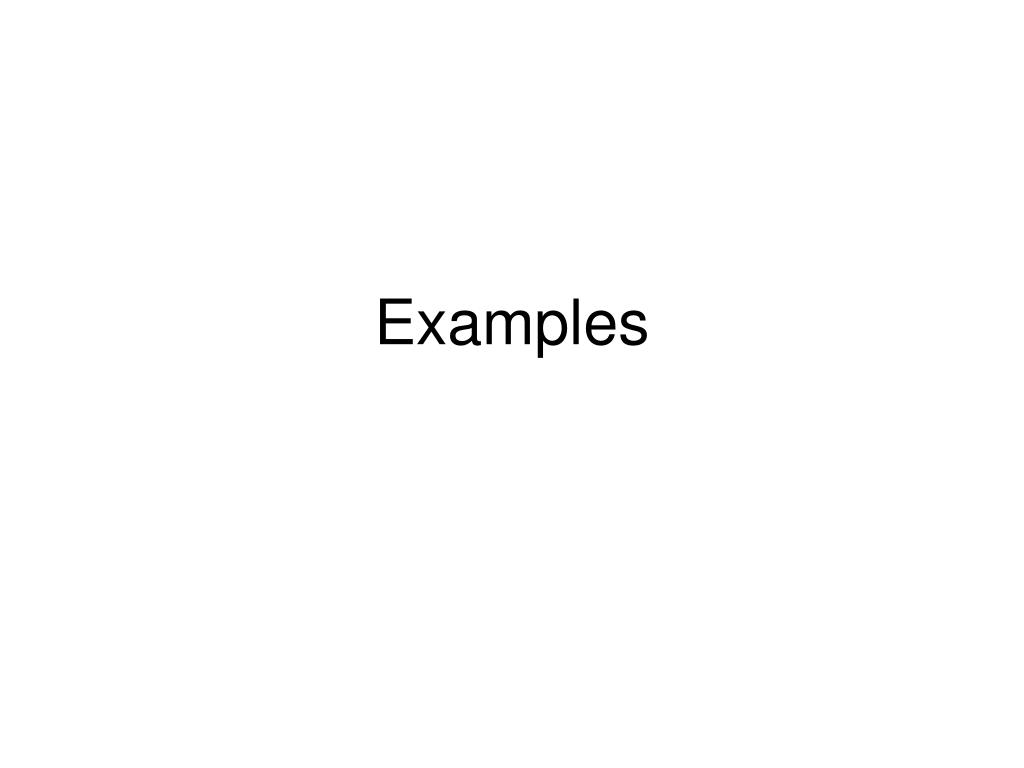

Examples

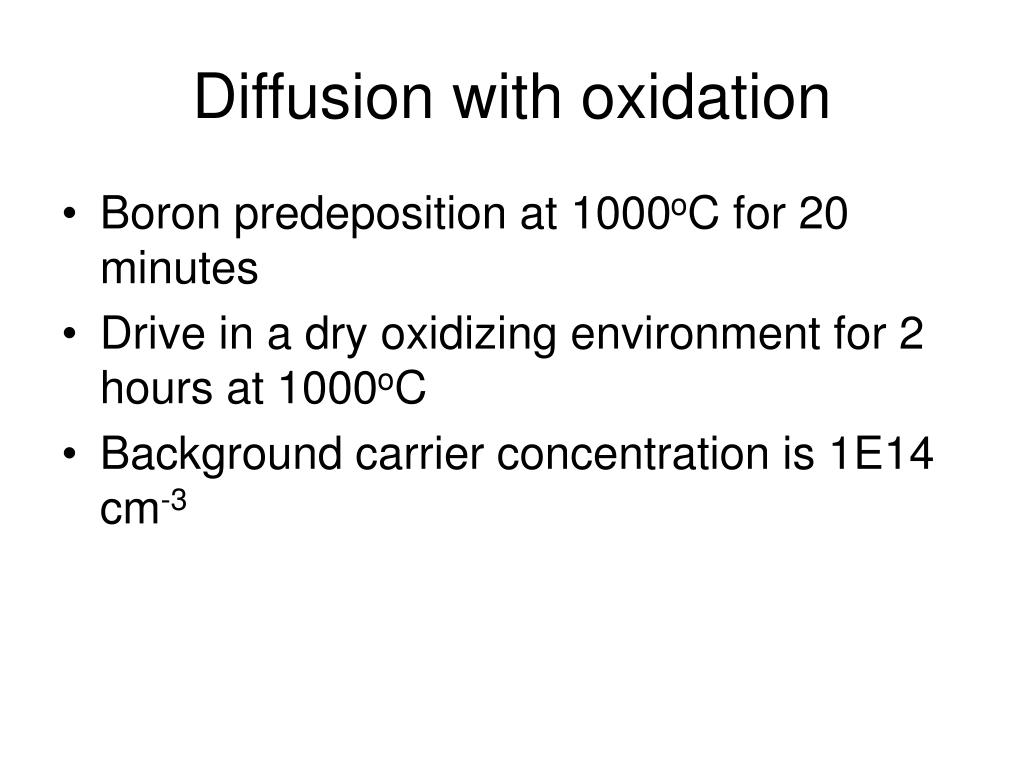

Diffusion with oxidation • Boron predeposition at 1000oC for 20 minutes • Drive in a dry oxidizing environment for 2 hours at 1000oC • Background carrier concentration is 1E14 cm-3

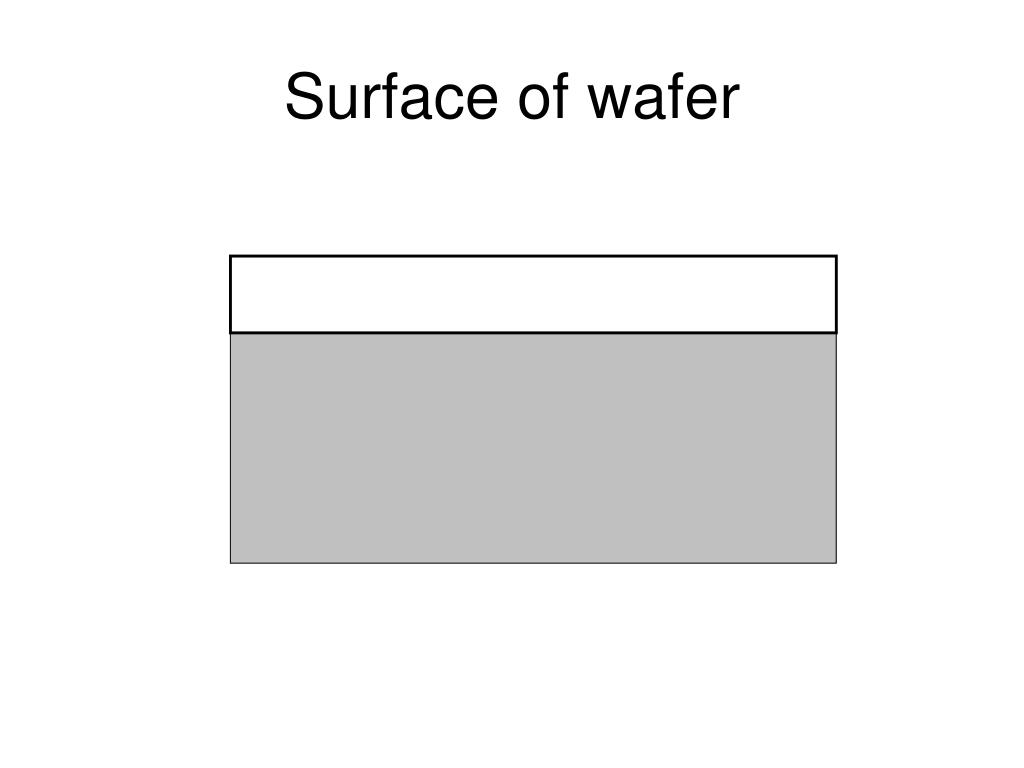

Surface of wafer

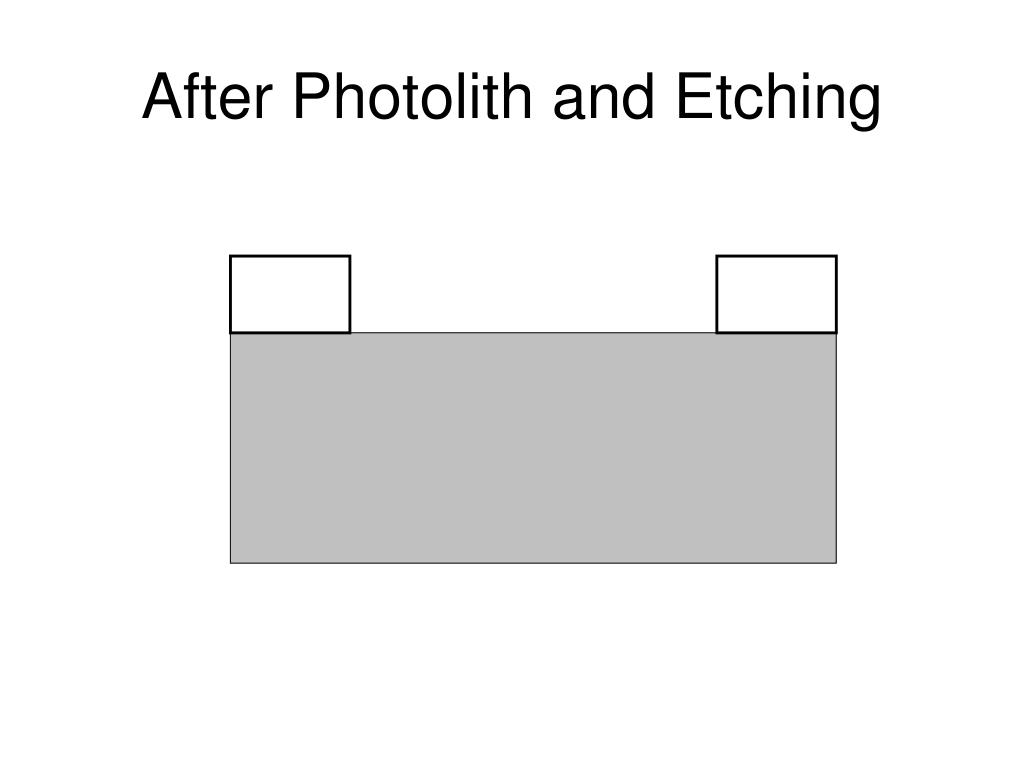

After Photolith and Etching
Diffusion
Boron implant with Q = 9.22x1014 cm-2 • Implant energy = 30keV • Drive in a dry oxidizing environment for 2 hours at 1000oC • Background carrier concentration is 1E14 cm-3
