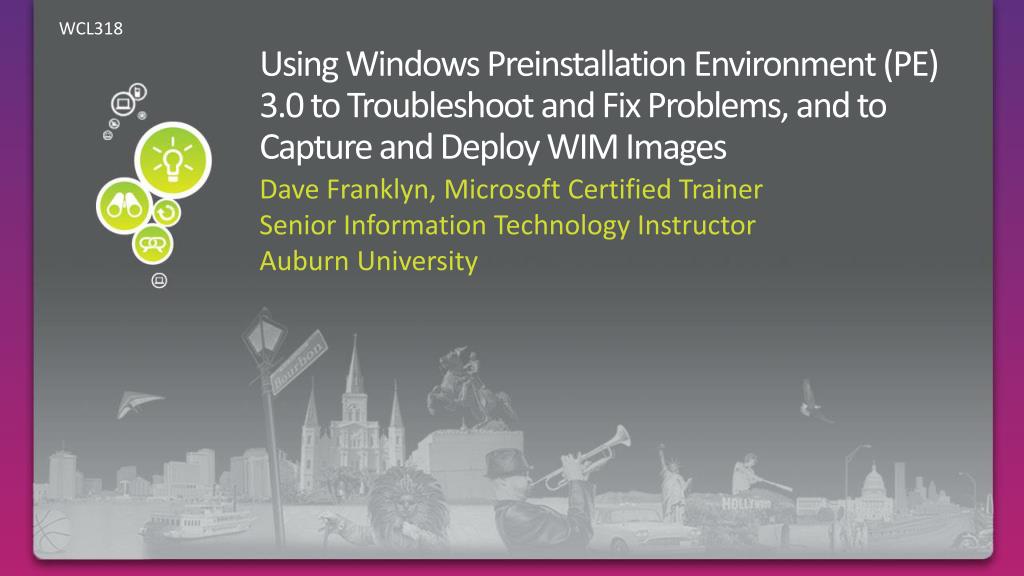

  1. WCL318 Using Windows Preinstallation Environment (PE) 3.0 to Troubleshoot and Fix Problems, and to Capture and Deploy WIM Images Dave Franklyn, Microsoft Certified Trainer Senior Information Technology Instructor Auburn University

  2. INTRODUCTIONS • Presenter • MCT, MCSE, MCITP: Enterprise Administrator; Enterprise Messaging Administrator; Enterprise Support Technician; Enterprise Desktop Support Technician 7 • Senior Trainer, Auburn University, Montgomery Campus • E-mail: dfranklyn@aum.edu • Website: www.MCTdave.com

  3. SESSION OBJECTIVES • How to create a fully functioning Windows PE 3.0 ISO with the recovery tools installed and place it on a Universal Serial Bus (USB) Flash Drive (UFD) • How to boot to Windows PE, and then use the recovery tools to repair or modify a computer. • How to use Windows PE along with imagex to capture and deploy reference images to and from WIM files.

  4. DEMONSTRATIONS • Use the Windows Automated Installation Kit (WAIK) to extract the recovery tools and create a Windows PE ISO • Create a USB Flash Disk (UFD) version & Use it to recover and repair • Using Windows PE to capture an image of a Windows 7 machine and deploy an image to a bare metal machine

  5. INTRODUCTION TO WINDOWS PE 3.0 • What Windows PE is: • An operating system built to help deploy other operating systems or repair them • Also part of Windows 7 Setup vie Recovery Environment • Customizable to allow you to apply, deploy, and repair • Replaces DOS boot disks • What Windows PE is NOT: • An operating system you can use for production purposes beyond deployment or repair • A client or server operating system

  6. FEATURES AND USAGE OF WINDOWS PE • Can be used in a variety of settings • Bootable from CD-ROM, hard drive, or UFD • Bootable over network with Preinstallation Execution Environment (PXE) • Less than 250MB compressed • Boots fast <= 1 minute on contemporary machine • Uses RAM disk, very small memory space needs (512MB) • Allows access to hard drives • Format and manipulate without rebooting • Provides temporary storage space to applications • Can load drivers, network components and APIs

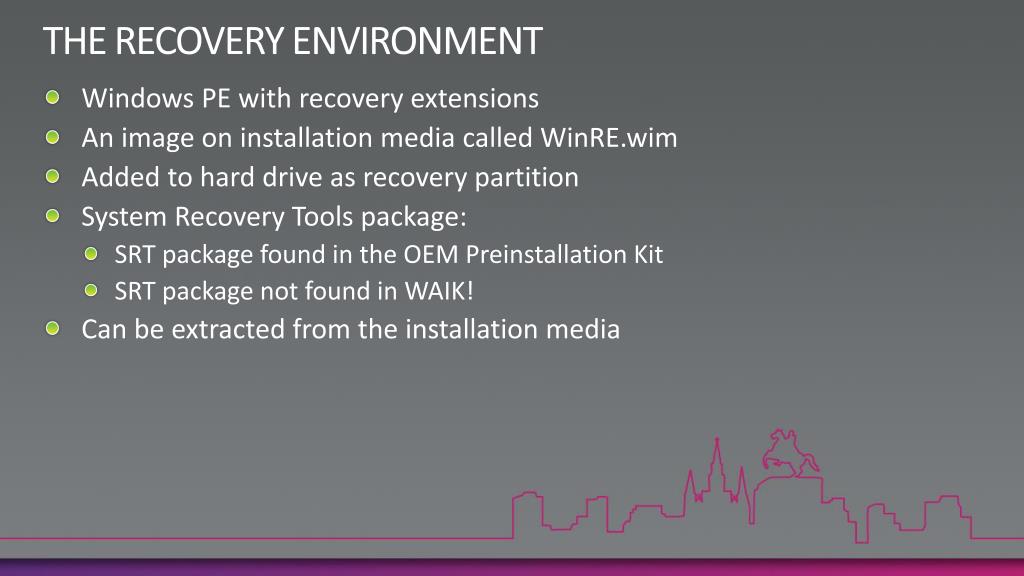

  7. THE RECOVERY ENVIRONMENT • Windows PE with recovery extensions • An image on installation media called WinRE.wim • Added to hard drive as recovery partition • System Recovery Tools package: • SRT package found in the OEM Preinstallation Kit • SRT package not found in WAIK! • Can be extracted from the installation media

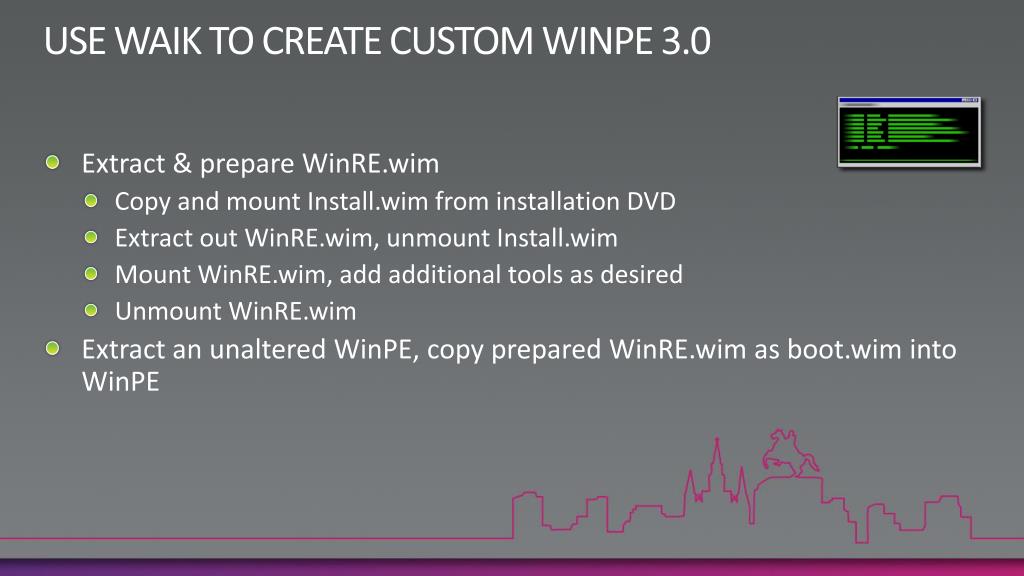

  8. USE WAIK TO CREATE CUSTOM WINPE 3.0 • Extract & prepare WinRE.wim • Copy and mount Install.wim from installation DVD • Extract out WinRE.wim, unmount Install.wim • Mount WinRE.wim, add additional tools as desired • Unmount WinRE.wim • Extract an unaltered WinPE, copy prepared WinRE.wim as boot.wim into WinPE

  9. USING WAIK TO CREATE THE CUSTOM WINDOWS PE ISO DEMO

  10. BOOTING FROM A CUSTOM WINPE 3.0 UFD WITH RECOVERY TOOLS • Prepare and partition UFD • Copy altered WinPE to UFD • Boot into recovery environment with UFD

  11. UFD CREATION AND USING CUSTOM WINPE TO RECOVER AND REPAIR DEMO

  12. USING WINPE TO PERFORM OPERATING SYSTEMS MIGRATIONS • Imagex.exe • Boot to capture a master image • Boot to deploy an image

  13. USING WINDOWS PE TO CAPTURE AN IMAGE OF A WINDOWS 7 MACHINE AND DEPLOY AN IMAGE TO A BARE METAL MACHINE DEMO

  14. QUESTIONS

  15. Required Slide Speakers, please list the Breakout Sessions, Interactive Sessions, Labs and Demo Stations that are related to your session. Related Content • Breakout Sessions (WCL309 | Keeping Windows Running Efficiently with the Microsoft Diagnostics and Recovery Toolset) • Interactive Sessions (WCL07-INT | Meet the Deployment Guys) • Hands-on Labs (WCL03-HOL | Microsoft Diagnostics and Recovery Toolset / WCL05-HOL | Introduction to Deploying Windows 7 Using the Windows Automated Installation Kit • Product Demo Stations (TLC-41 | Windows 7 Deployment and Application Management)
