  1. Introduction to Programming in MATLAB Intro. MATLAB Peer Instruction Lecture Slides by Dr. Cynthia Lee, UCSD is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported License.Based on a work at www.peerinstruction4cs.org.

  2. Which image results from the following code segment: >> im = imread('rainbow.jpg');>> part = im(1:floor(end/2),1:end,:);>> imshow(part) a) c) b) d) e) None/other/error

  3. Which image results from the following code segment: >> im = imread('rainbow.jpg');>> part = im(1:floor(end/2),floor(end/2)+1:end,:);>> imshow(part) a) c) b) d) e) None/other/error

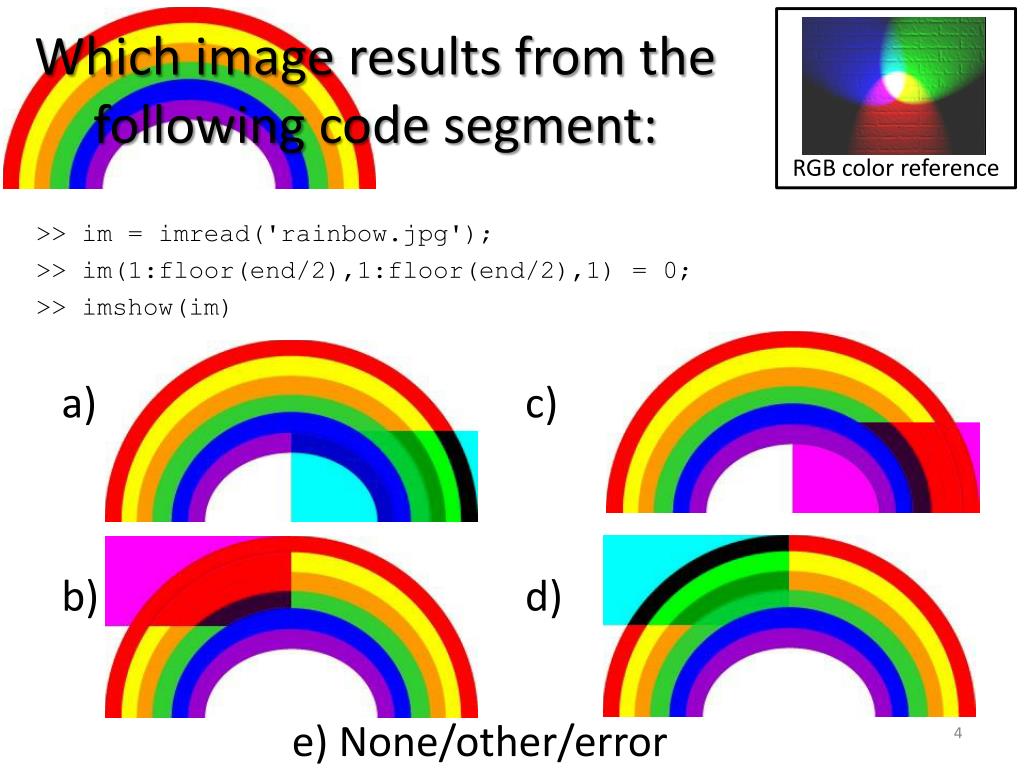

  4. RGB color reference Which image results from the following code segment: >> im = imread('rainbow.jpg'); >> im(1:floor(end/2),1:floor(end/2),1) = 0; >> imshow(im) a) c) b) d) e) None/other/error

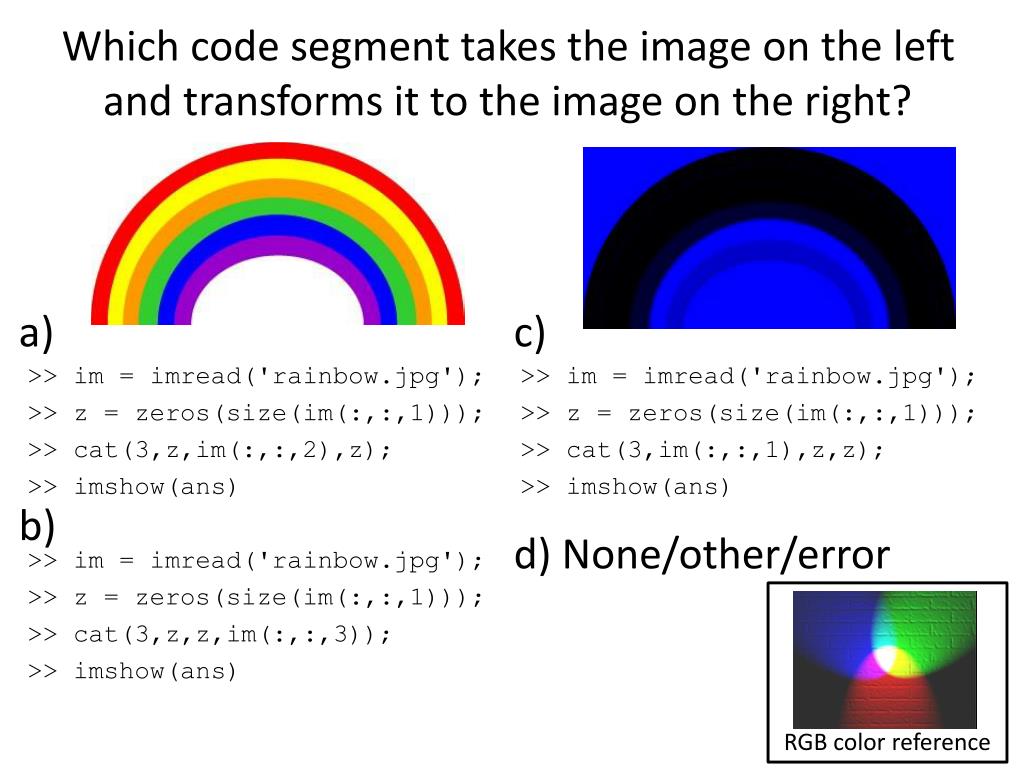

  5. Which code segment takes the image on the left and transforms it to the image on the right? >> im = imread('rainbow.jpg'); >> z = zeros(size(im(:,:,1))); >> cat(3,im(:,:,1),z,z); >> imshow(ans) >> im = imread('rainbow.jpg'); >> z = zeros(size(im(:,:,1))); >> cat(3,z,im(:,:,2),z); >> imshow(ans) >> im = imread('rainbow.jpg'); >> z = zeros(size(im(:,:,1))); >> cat(3,z,z,im(:,:,3)); >> imshow(ans) a) c) b) d) None/other/error RGB color reference
