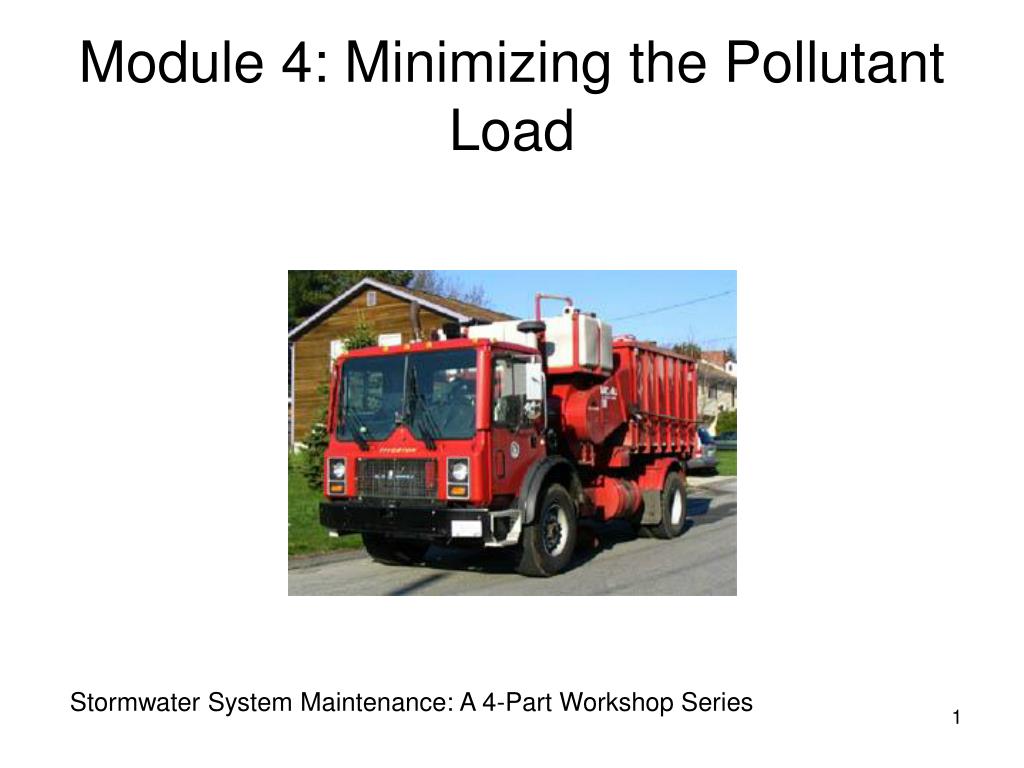

Module 4: Minimizing the Pollutant Load

1. Module 4: Minimizing the Pollutant Load Stormwater System Maintenance: A 4-Part Workshop Series

2. We will review Sweeping Program Controls to reduce floatables Managing storm system wastes

3. We will • Review the goals as written in the General Permit • Clarify or expand as needed • Review what we are doing now • Review how we report our activities • Look for ways to improve our effectiveness and/or efficiency

4. Street & Road Sweeping Program

5. O&M Program • Required Goal • Procedures for regular street/road sweeping program • Annual sweeping • Change frequency based on records • Complaints • Filled catch basins • Plugged outfalls

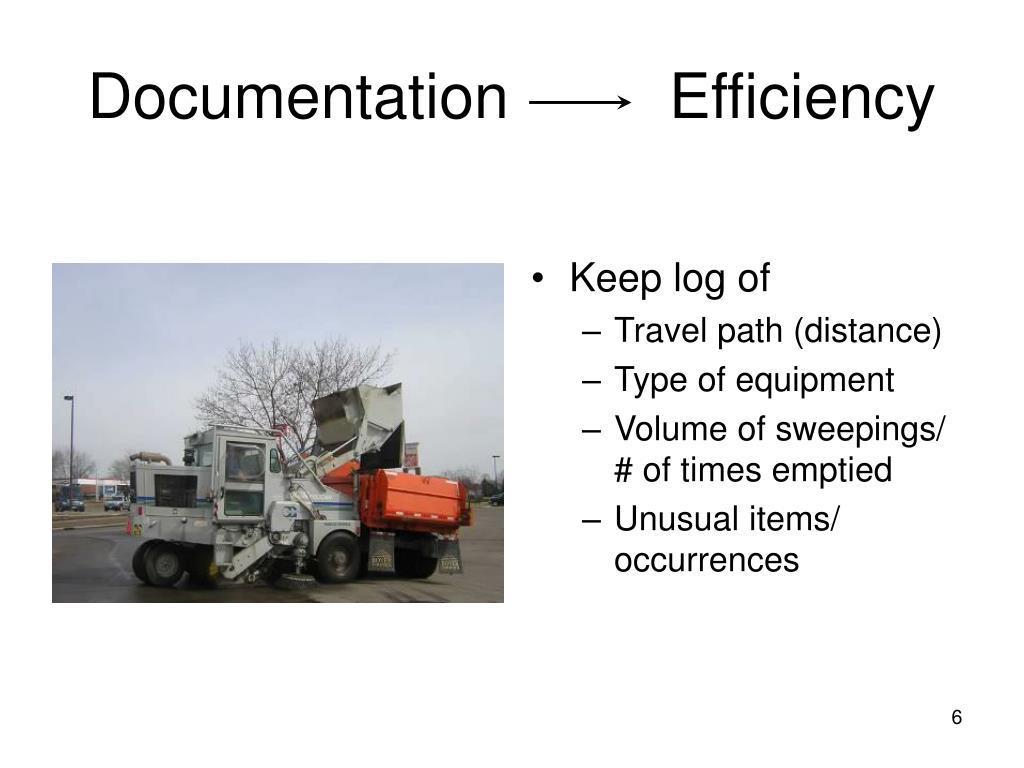

6. Documentation Efficiency • Keep log of • Travel path (distance) • Type of equipment • Volume of sweepings/ # of times emptied • Unusual items/ occurrences

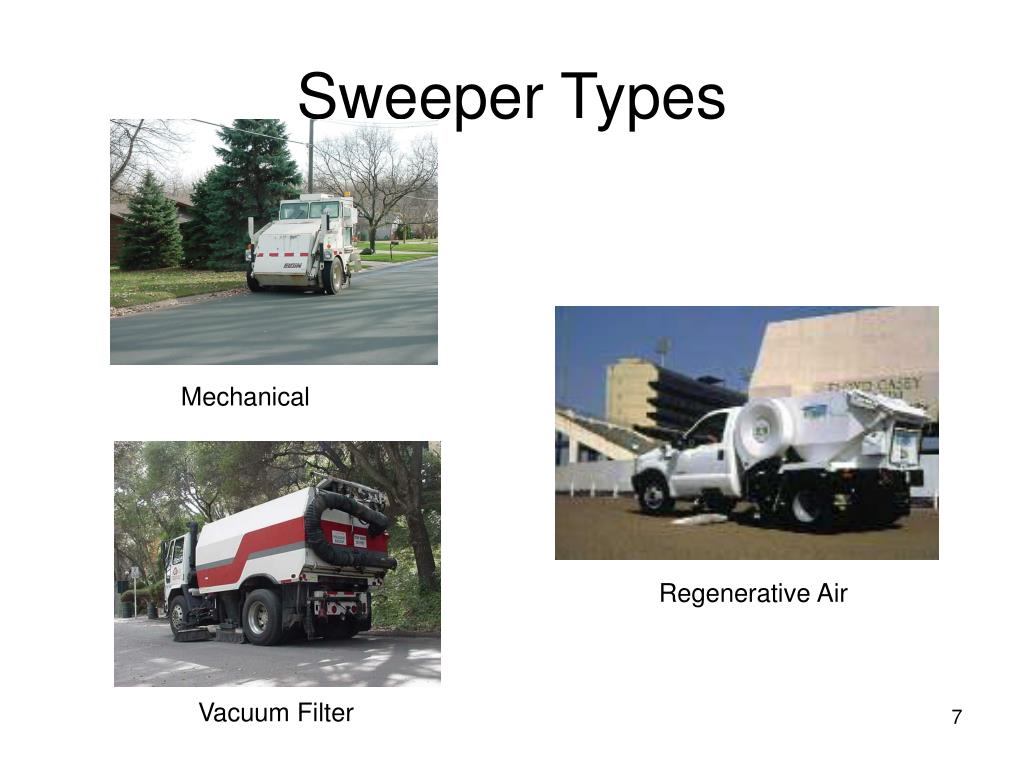

7. Sweeper Types Mechanical Regenerative Air Vacuum Filter

8. Our Sweeping Procedures • Maps • Sweeping frequency/schedule • Equipment • Forms and/or logs

9. Suggestions for improvement? • Avoid problems with parked cars • Post temporary signs prior to sweeping • Develop & distribute flyers notifying residents of sweeping schedule

10. Suggestions/recommendations Porous pavement should be vacuumed

11. Scheduling Suggestions • Hit areas closest to sensitive waters earliest in spring • Coordinate with catch basin, roadside inspections • Try to coordinate with Water Department so sweeping is shortly before hydrant flushing when catch basins are near by

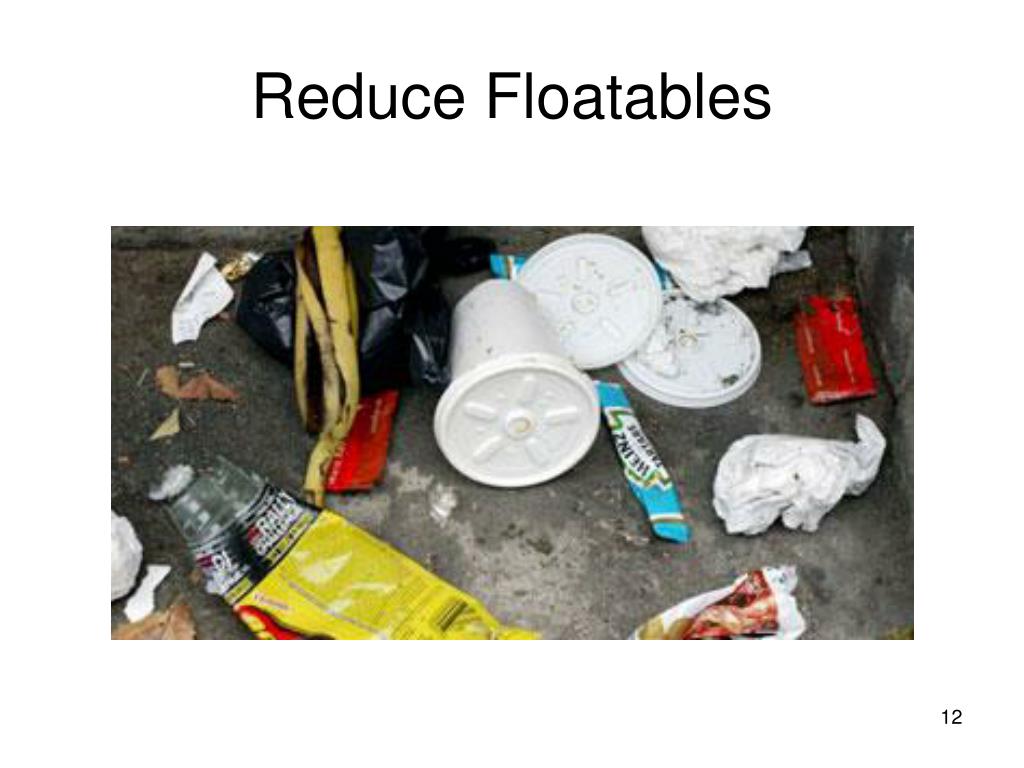

12. Reduce Floatables

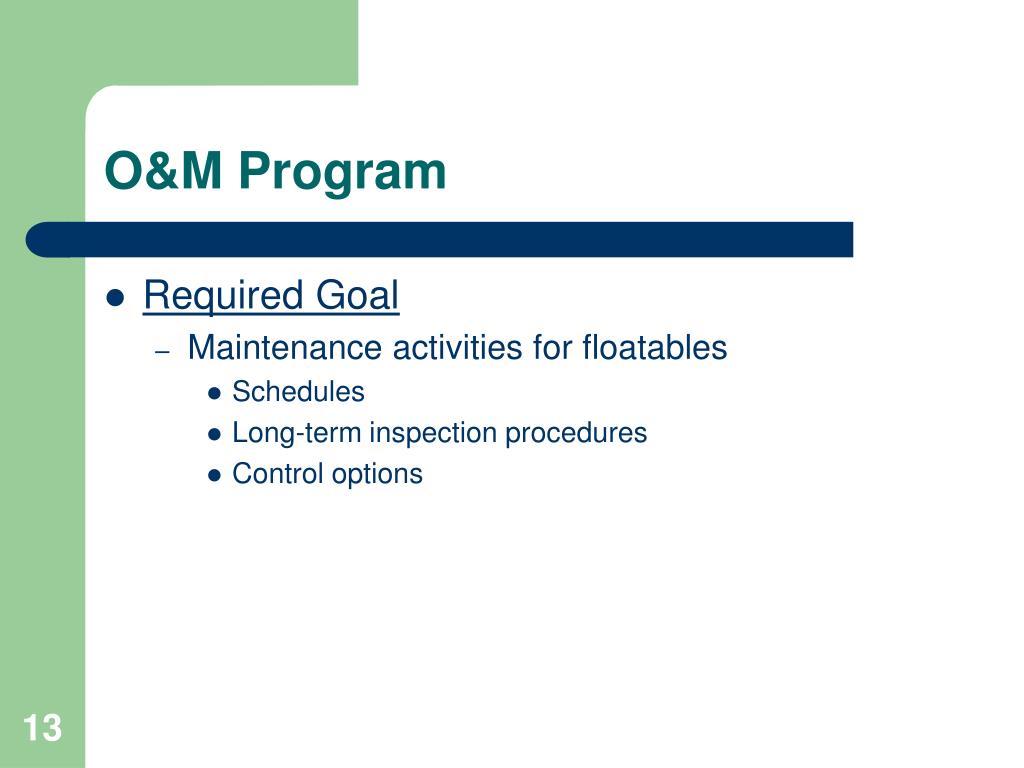

13. O&M Program • Required Goal • Maintenance activities for floatables • Schedules • Long-term inspection procedures • Control options

14. Common types of floatables Litter Pet Waste Foliage

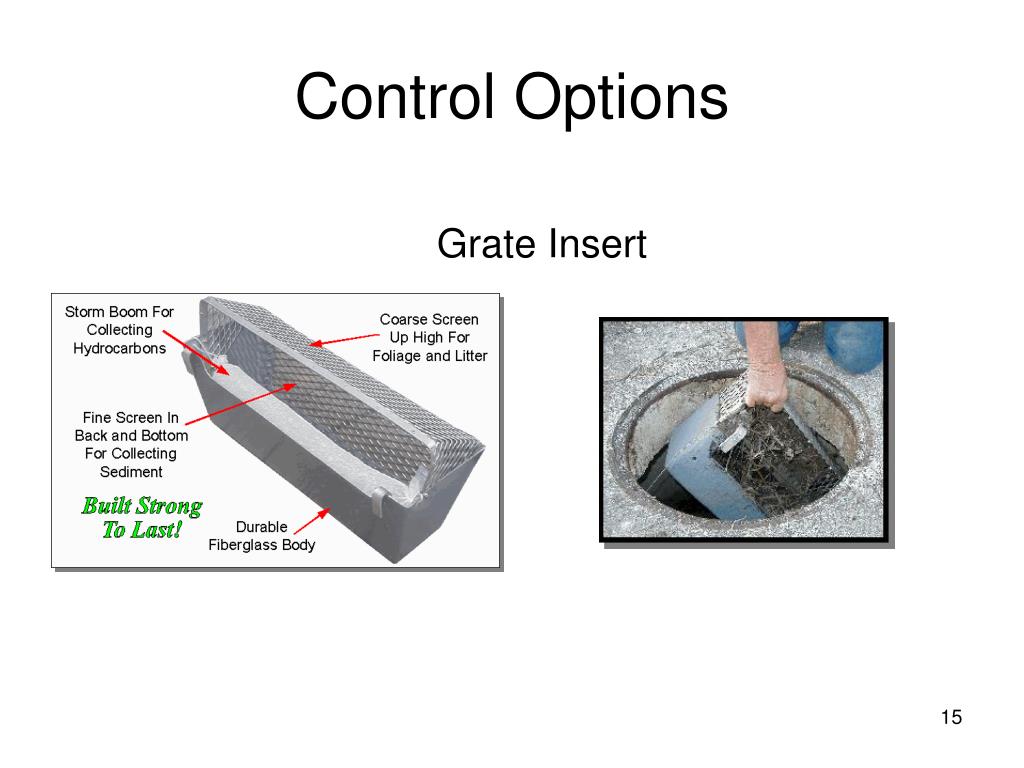

15. Control Options Grate Insert

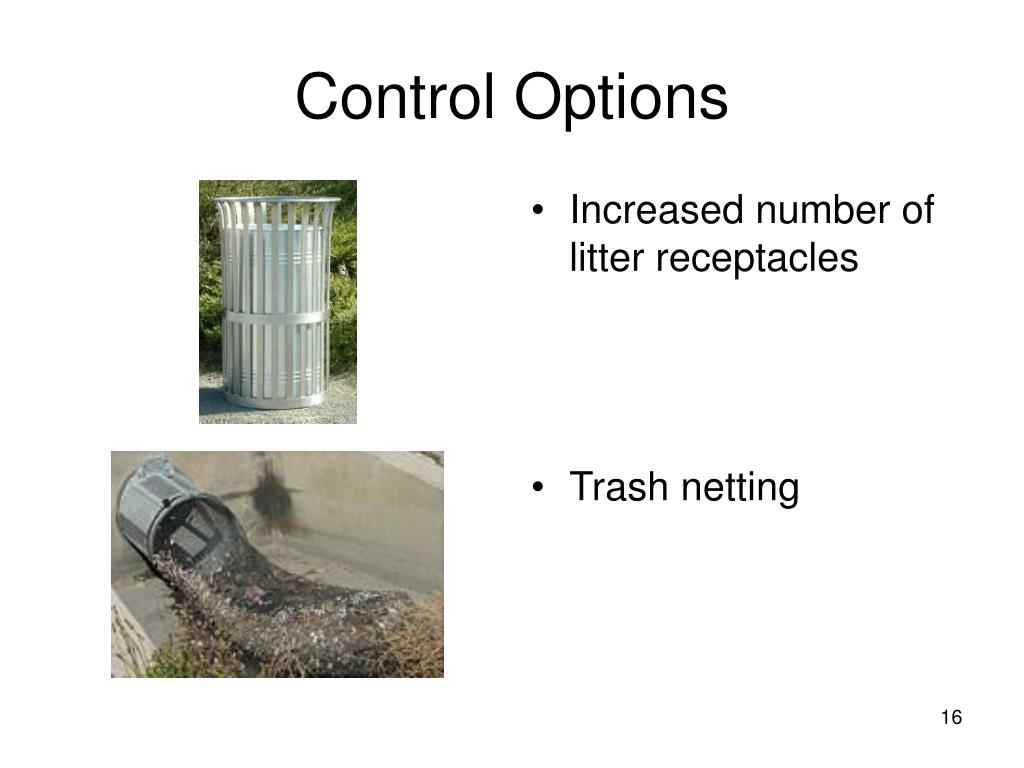

16. Control Options • Increased number of litter receptacles • Trash netting

17. Control options Doggie Parks Doggie bags & containers

18. Control options Volunteer patrols Leaf pick-up

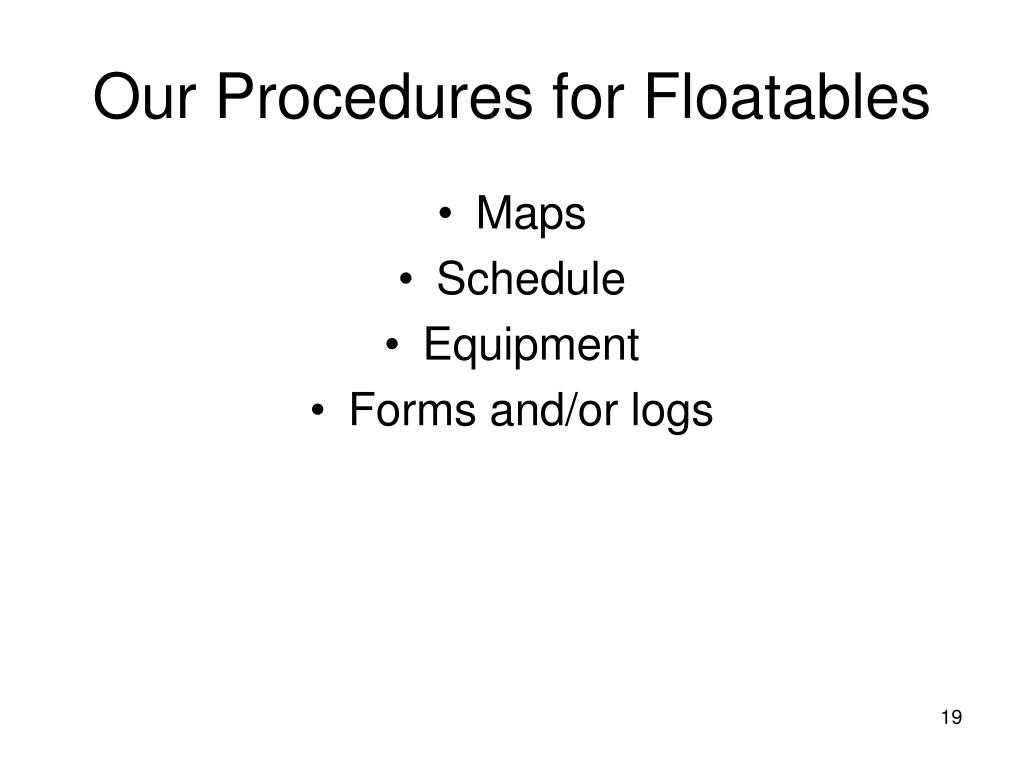

19. Our Procedures for Floatables • Maps • Schedule • Equipment • Forms and/or logs

21. Floatables Action Plan • Identify high generation areas • Determine drainage pathways from those areas, relation to sensitive waters • Determine suitability of different trapping systems for each • Identify suitable locations for traps • Prepare list of priority potential locations with goal of maximum reduction per $ spent

22. High Generation Areas Illegal dumping Within 1 mile of fast food Places where people congregate Around transfer stations

23. Managing Storm System Wastes

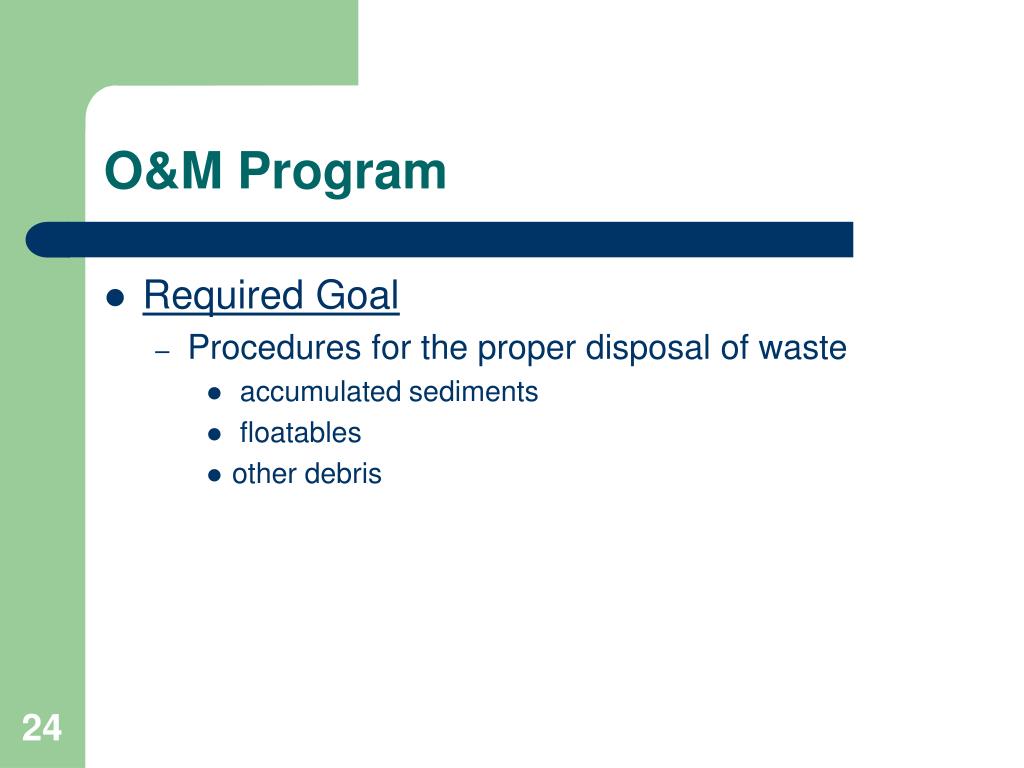

24. O&M Program • Required Goal • Procedures for the proper disposal of waste • accumulated sediments • floatables • other debris

25. Materials Management under SWPPP

26. Types of Wastes • Leaves/vegetation • Litter/floatables • Sweepings • Catch Basin cleanings • Sediment from ditches • Sediment from structural BMPs

27. Keep in mind potential for • Hazardous waste (especially petroleum products) • Sharps/biohazards • Invasive species

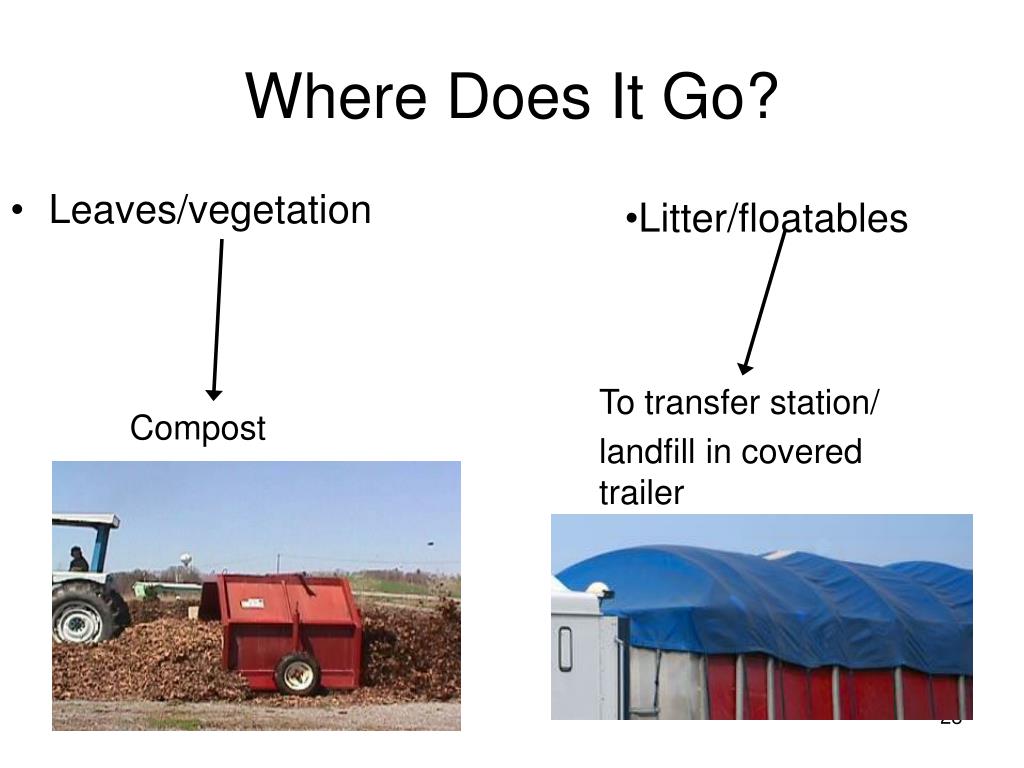

28. Leaves/vegetation Where Does It Go? • Litter/floatables To transfer station/ landfill in covered trailer Compost

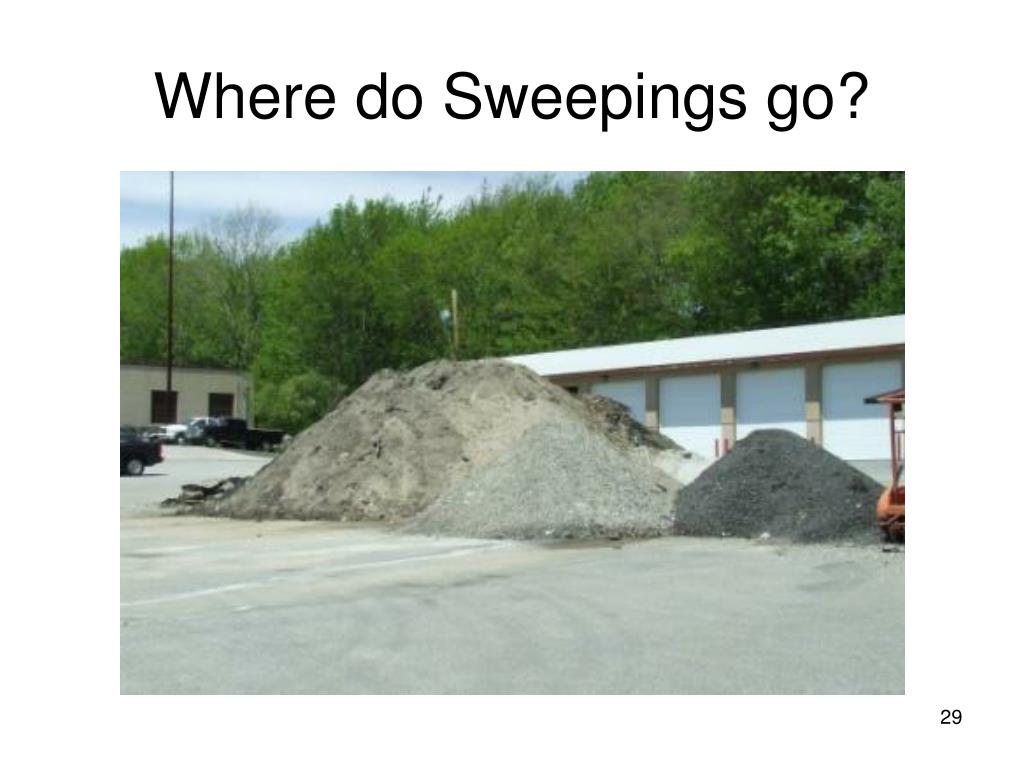

29. Where do Sweepings go?

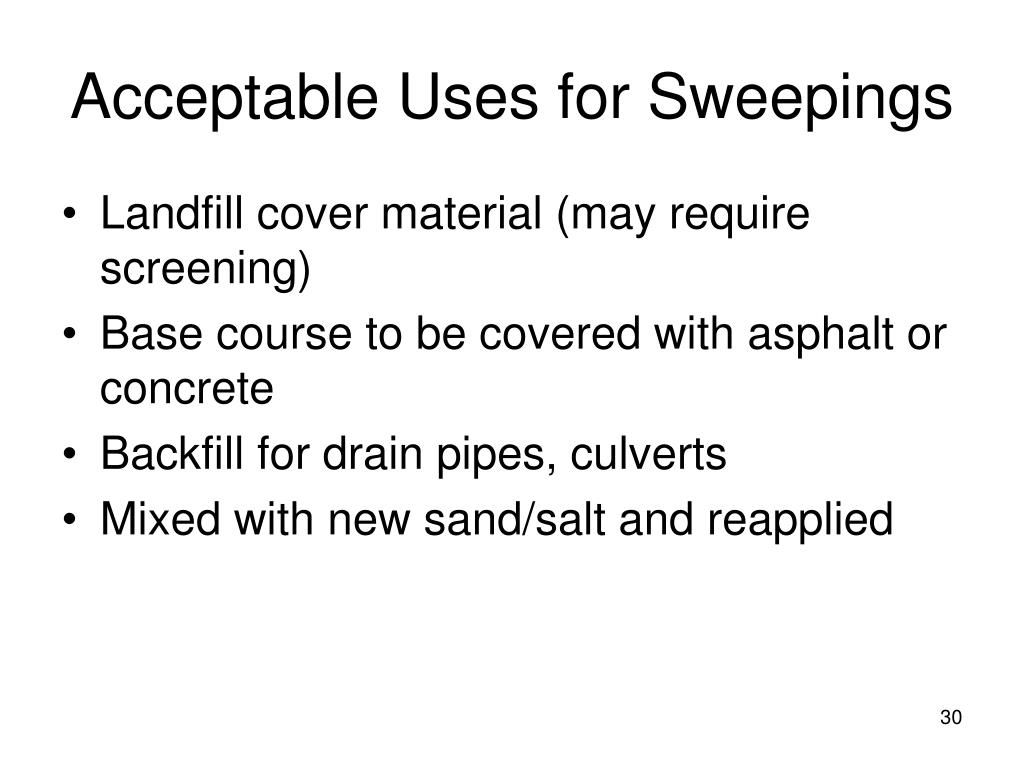

30. Acceptable Uses for Sweepings • Landfill cover material (may require screening) • Base course to be covered with asphalt or concrete • Backfill for drain pipes, culverts • Mixed with new sand/salt and reapplied

31. Resource Recovery says • Will use as alternate cover • Must be screened • No fee for municipalities • In past year, received from • RIDOT • 12 municipalities

32. Our Procedures • Uses of sweepings • Temporary storage • Screening equipment • Forms and/or logs

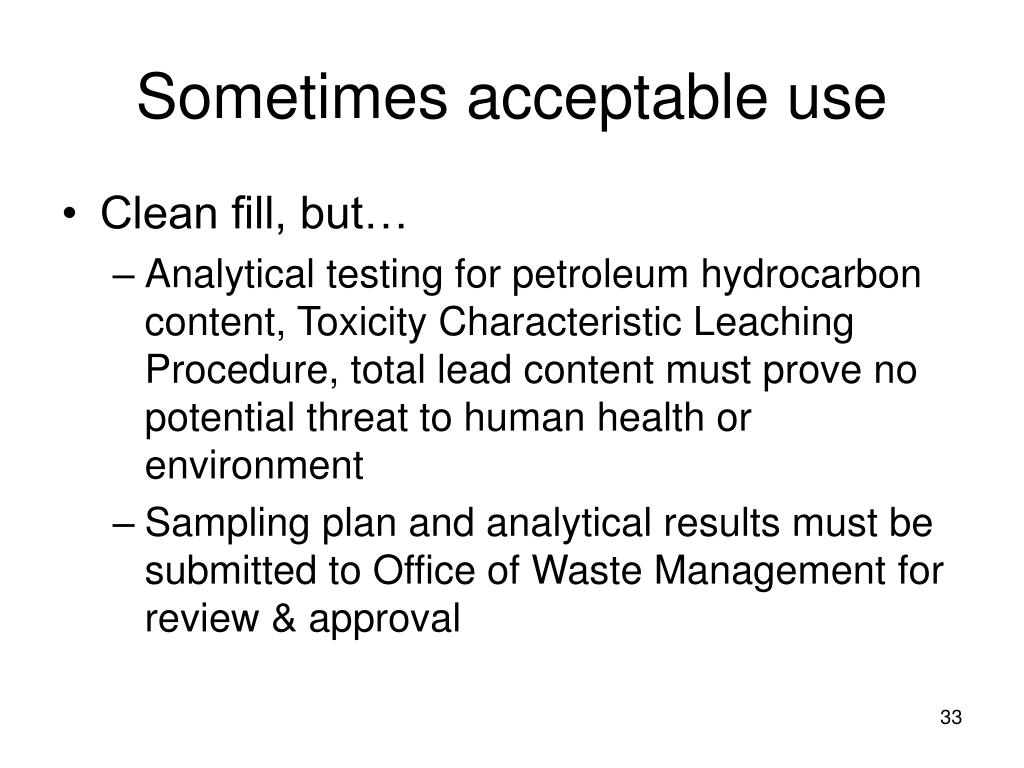

33. Sometimes acceptable use • Clean fill, but… • Analytical testing for petroleum hydrocarbon content, Toxicity Characteristic Leaching Procedure, total lead content must prove no potential threat to human health or environment • Sampling plan and analytical results must be submitted to Office of Waste Management for review & approval

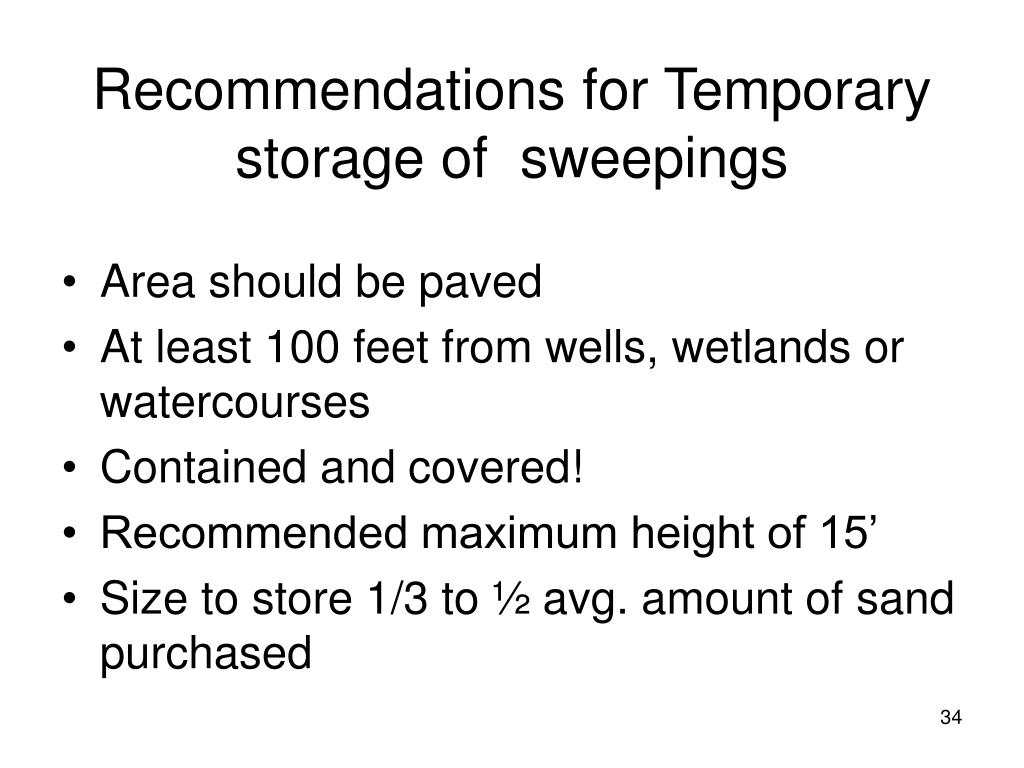

34. Recommendations for Temporary storage of sweepings • Area should be paved • At least 100 feet from wells, wetlands or watercourses • Contained and covered! • Recommended maximum height of 15’ • Size to store 1/3 to ½ avg. amount of sand purchased

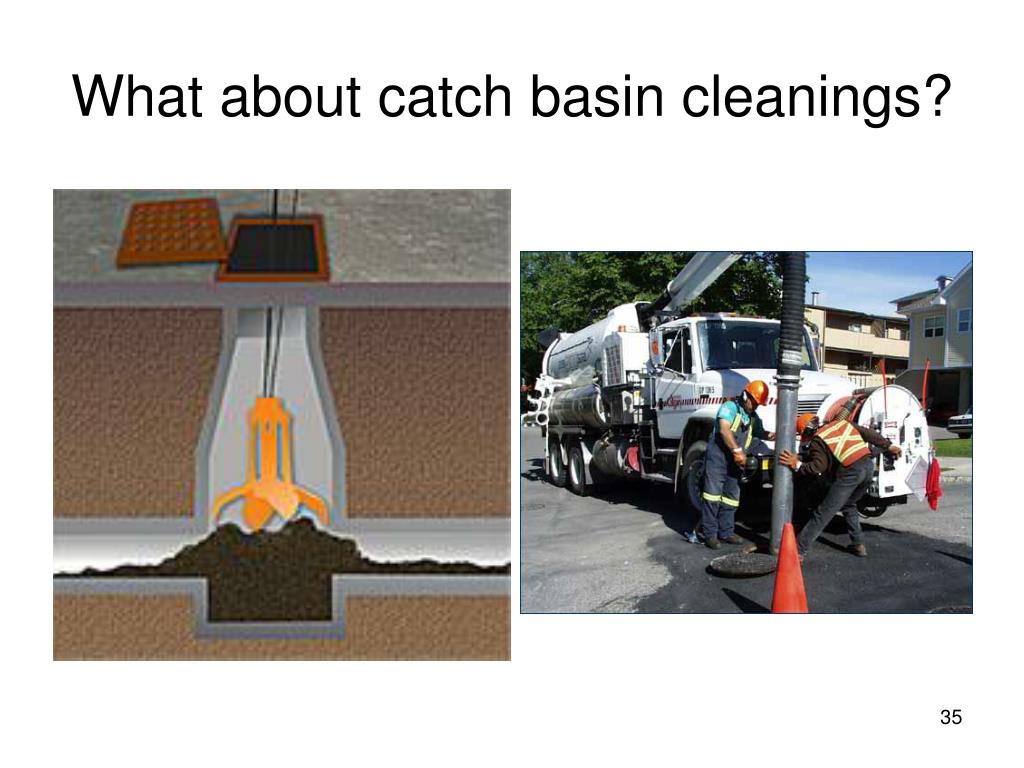

35. What about catch basin cleanings?

36. Our Procedures • Transport equipment • Temporary storage location • Dewatering • Testing & uses of cleanings • Forms and/or logs

37. Dewatering options • Vactor trucks decant to sanitary sewer (with permission) • Drying beds/dewatering facilities (may need separate RIPDES permit)

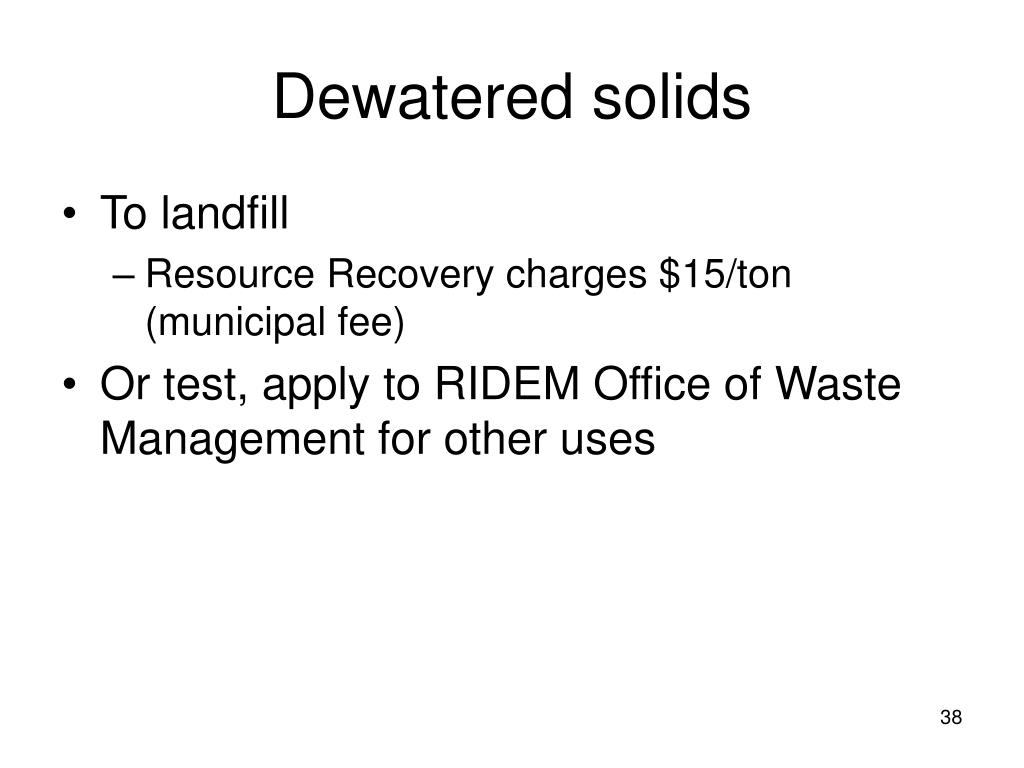

38. Dewatered solids • To landfill • Resource Recovery charges $15/ton (municipal fee) • Or test, apply to RIDEM Office of Waste Management for other uses

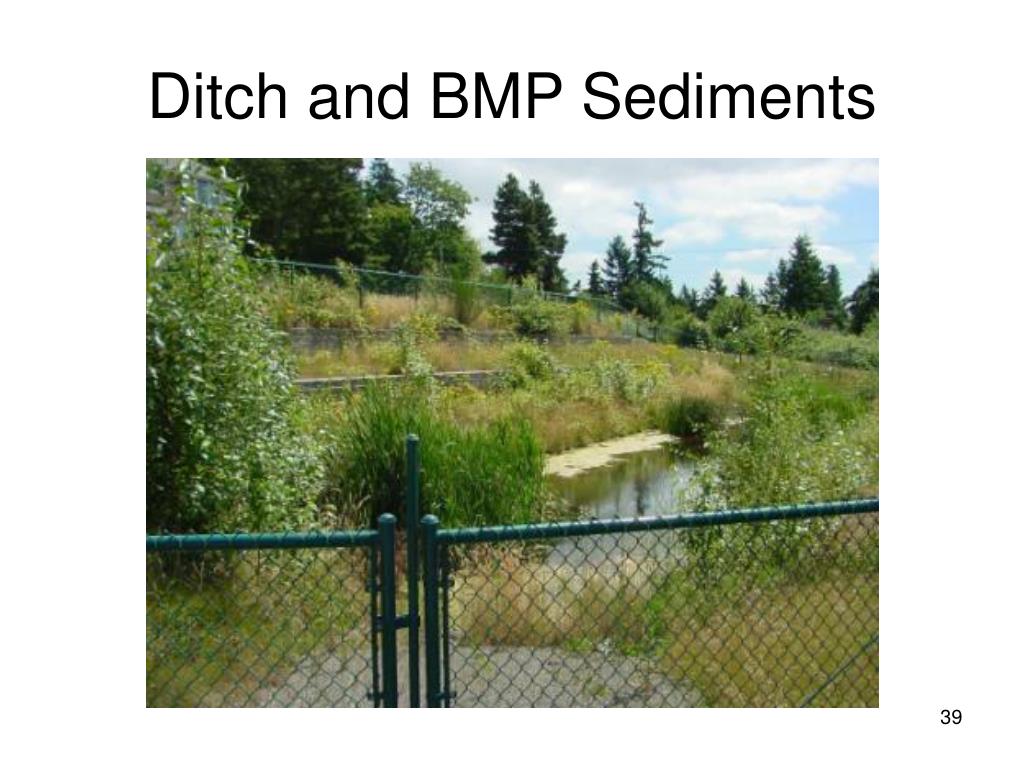

39. Ditch and BMP Sediments

40. Prevent spread of invasives • Segregate spoil that may have rhizomes of invasive species • If possible, screen out invasives • Contain under black plastic until dessicated

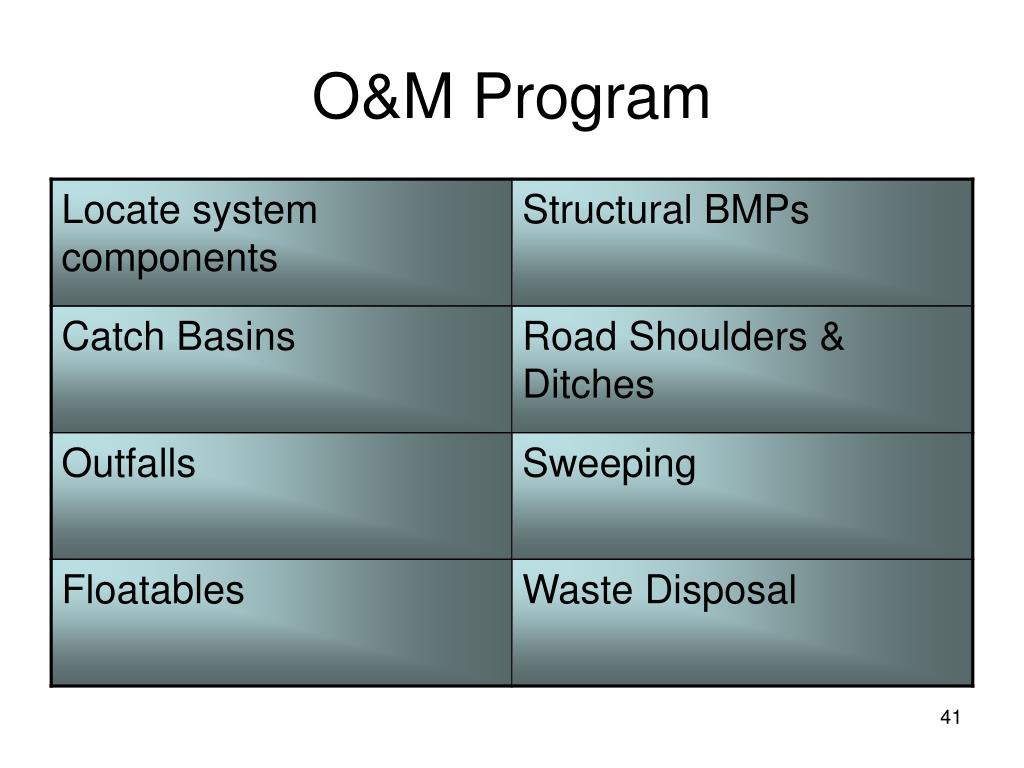

41. O&M Program

43. Stormwater System Maintenance: Employee Training Brought to you by: This program was developed by the Southern Rhode Island Conservation District in partnership with the URI Cooperative Extension RI NEMO Program and the Rhode Island T2 Center. Funding was provided by the RI Department of Environmental Management and the RI Department of Transportation under the Phase II Stormwater Education and Outreach Project.
