  1. Rocket Construction UA Summer Engineering Program 2012

  2. Our Goal • Some questions: • What do we hope to accomplish? • What specification are required to accomplish this goal? • How can we design to those specifications? • What elements can we change with this rocket? UA Summer Engineering Program 2012

  3. Parts of a Model Rocket • Body Tube • Cylindrical cardboard tube • Engine Mount Assembly • Fixes engine to body tube • Launch Lugs • Small tubes (straws) attached to the body tube during launch • Nose Cone • Tapered to cut through air • Shock Cord • Connects body tube and nose cone UA Summer Engineering Program 2012

  4. Parts of a Model Rocket, cont. • Recovery System • Consists of a parachute or streamers and lines to connect to the nose cone • Recovery Wadding • Prevents hot gas of the ejection from damaging the recovery system • Engine • Several slides to follow. • Fins • Several slides to follow. UA Summer Engineering Program 2012

  5. Engine Engine casing contains: • Nozzle • Usually made of clay • Must withstand exhaust temperatures • Solid Propellant • Produces the hot gases • Igniter used for combustion • Used during powered flight • Delay Charge • Coasts to maximum altitude • Leaves a smoke trail • The length of the delay variesfrom 2 to 8 seconds • Ejection Charge • Produces a small explosion to expand hot gas through the engine mount, ejects the nose cone, and deploys the recovery system. UA Summer Engineering Program 2012

  6. Types of Engines • Engine markings denote the thrust, impulse and delay time. • Thrust in Newtons • Sizes: • Color matters too: Also sized for CII, D, E Note: “T” denotes mini UA Summer Engineering Program 2012

  7. Phases of Rocket • 1. Electrical Ignition and Launch • 2. Powered Ascent • Thrust • 3. Coast Phase • Tracking Smoke • 4. Peak Altitude • Apogee • 5. Ejection • 6. Recovery • 7. Touchdown http://www.youtube.com/watch?v=parRoxcG2rw&feature=player_embedded UA Summer Engineering Program 2012

  8. Fins • Fins give directional stability • Made of plastic, balsa wood or stiff cardboard. • Fixed • Fins should be attached in a symmetrical form of three, four or possibly more. • The four parts of a fin: • leading edge • trailing edge • root edge • tip UA Summer Engineering Program 2012

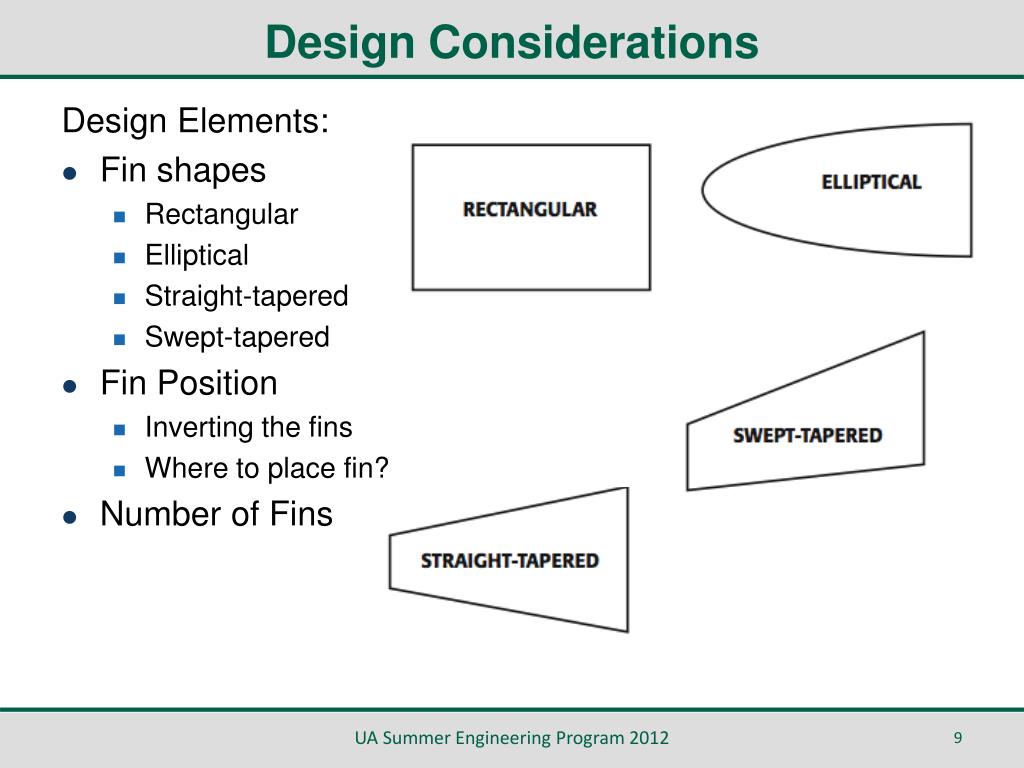

  9. Design Considerations Design Elements: • Fin shapes • Rectangular • Elliptical • Straight-tapered • Swept-tapered • Fin Position • Inverting the fins • Where to place fin? • Number of Fins UA Summer Engineering Program 2012

  10. Fin Position Ideas from Estes UA Summer Engineering Program 2012

  11. What’s In the Viking Kit • 5 Fins • Cardstock • Shape: Swept-tapered • Body Tube • Length: 12.1 in.(30.7 cm) • Diameter: 0.74 in.(18.8 mm) • Molded Nose Cone • Streamer (Recovery) • Shock cord & Eyelet • Mount Assembly • Mount tube & Centering ring • Decals to decorate UA Summer Engineering Program 2012

  12. References • Rocket Engine: • http://www.grc.nasa.gov/WWW/K-12/rocket/rktengine.html • http://www2.estesrockets.com/pdf/Estes_Model_Rocket_Engines.pdf • Rocket Parts: • http://www.grc.nasa.gov/WWW/K-12/rocket/rktparts.html • http://www2.estesrockets.com/pdf/ERL_T_9-12_3.pdf • http://www2.estesrockets.com/pdf/Fins%20and%20Nose%20Cones.pdf • http://www.estesrockets.com/rockets/kits/skill-1/001949-vikingtm • Rocket Flight: • http://www.grc.nasa.gov/WWW/K-12/rocket/rktflight.html UA Summer Engineering Program 2012
