Towards an Integrated Scheme for Semantic Annotation of Multimodal Dialogue Data

neona avatar
neona
17 diapositives · 301 Views · Aug 06, 2014

This study presents an integrated framework for semantic annotation of multimodal dialogue data, addressing the necessity of flexible coding schemes that can incorporate various communicative actions. The research is grounded in multiple well-known corpora such as the AMI and IFA Dialog Video corpora. It explores the limitations of existing annotation schemes and proposes enhancements that adequately cover facets of nonverbal behavior and dialogue acts. The findings underscore the complexity of human communication, highlighting significant features such as facial expressions, gestures, and their roles in effective dialogue management.

#towards an integrated scheme for semantic annotation of multimodal dialogue data #towards an integrated scheme for semantic annotation of multimodal dialogue data ppt #powerpoint #presentation
Towards an Integrated Scheme for Semantic Annotation of Multimodal Dialogue Data - slide 1
01 / 17Towards an Integrated Scheme for Semantic Annotation of Multimodal Dialogue Data
1 / 17

Télécharger la présentation

Towards an Integrated Scheme for Semantic Annotation of Multimodal Dialogue Data
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

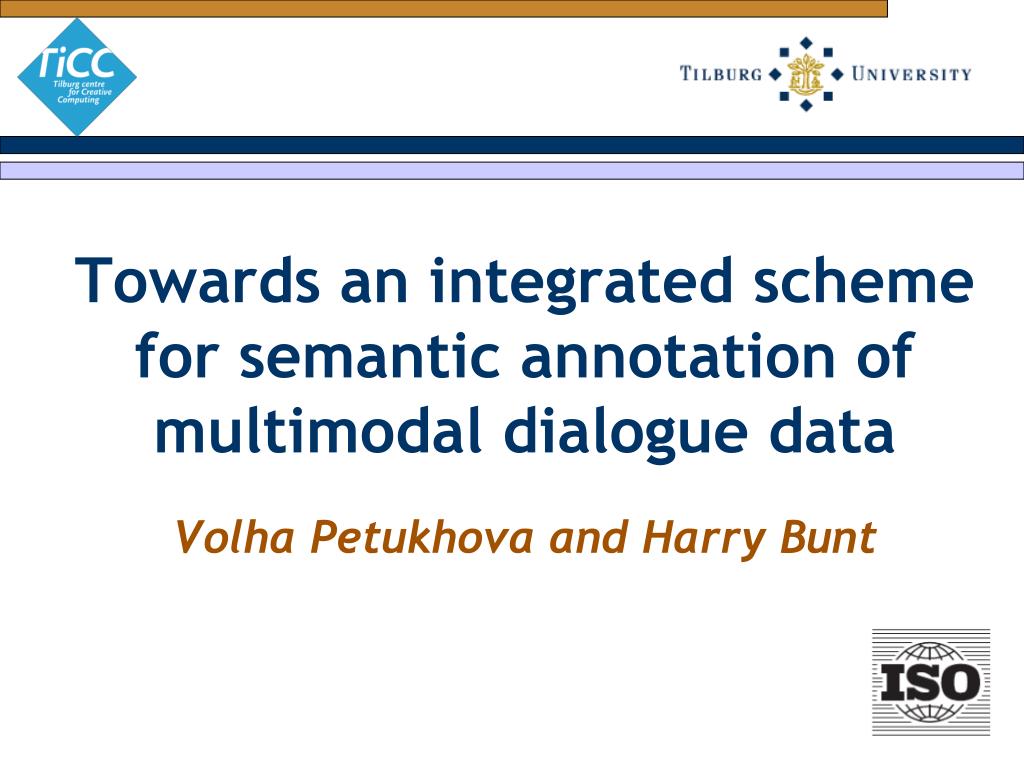

  1. Towards an integrated scheme for semantic annotation of multimodal dialoguedata Volha Petukhova and Harry Bunt

  2. Motivation Several corpora with multimodal data transcriptions: AMI meeting corpus (http://www.amiproject.org); IFA Dialog Video corpus (http://www.fon.hum.uva.nl/ IFA-SpokenLanguageCorpora/IFADVcorpus); ISL meeting corpus (Burger et al., 2002)

  3. Motivation • coding schemes for the analysis of nonverbal actions in terms of behavioural low-level features: • Facial Action Coding System (FACS) ; • Ham-NoSys • coding schemes of semantic andpragmatic information in visual expressions: • SmartKom Coding scheme(Steininger, 2001) • DIME-DAMSL(Pineta et al., 2005) • MUMIN annotation scheme (Allwood etal., 2004)

  4. Motivation • the majority of these schemes are designed for a particularpurpose and are used solely by their creators (Dybkjær and Bernsen, 2002) • The AAMASworkshop ‘Towards a StandardMarkup Language forEmbodied Dialogue Acts’ in 2008 and 2009 • ISO project 24617-2 “Semantic annotationframework, Part 2: Dialogue acts”

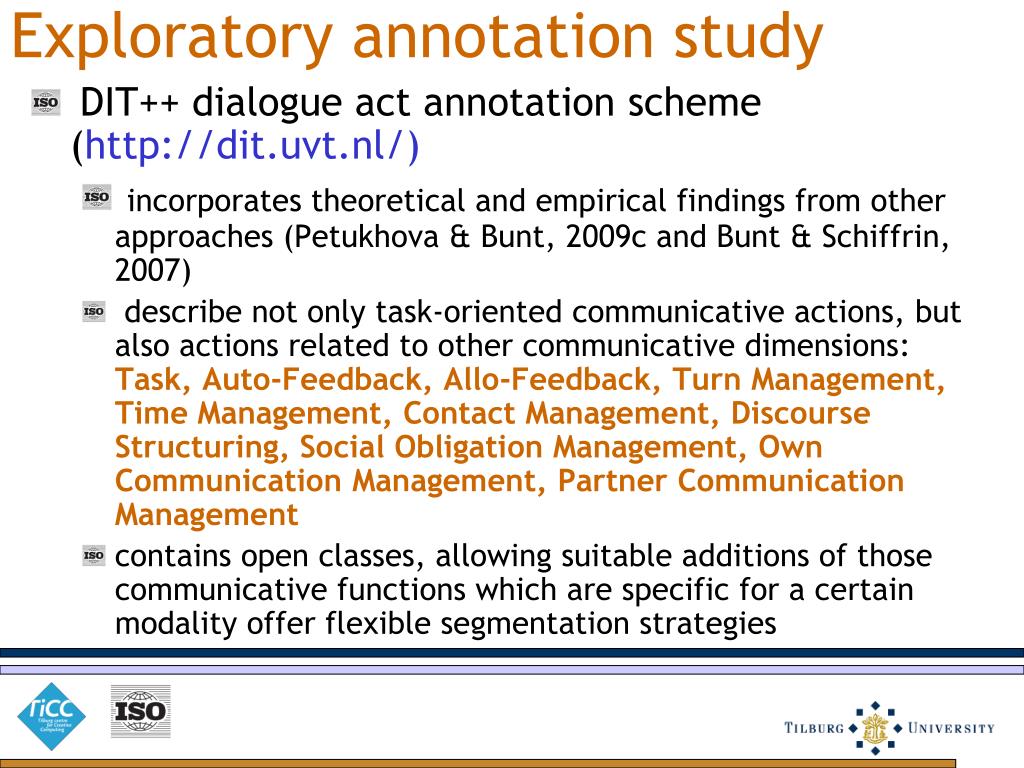

  5. Exploratory annotation study • DIT++ dialogue act annotation scheme (http://dit.uvt.nl/) • incorporates theoretical and empirical findings from otherapproaches (Petukhova & Bunt, 2009c and Bunt & Schiffrin, 2007) • describe not only task-oriented communicative actions,but also actions related to other communicative dimensions: Task, Auto-Feedback, Allo-Feedback, Turn Management, Time Management, Contact Management, Discourse Structuring, Social Obligation Management, Own Communication Management, Partner Communication Management • contains open classes, allowing suitable additions of those communicative functions which are specific for a certain modalityoffer flexible segmentationstrategies

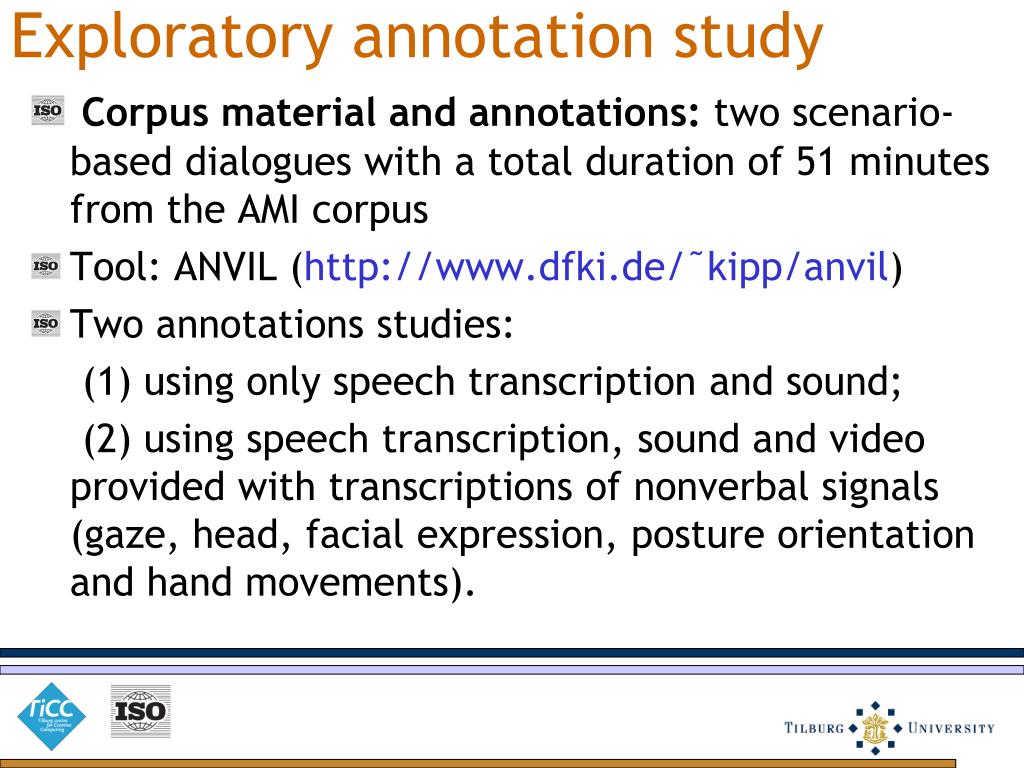

  6. Exploratory annotation study • Corpus material and annotations: two scenario-based dialogues witha total duration of 51 minutes from the AMI corpus • Tool: ANVIL (http://www.dfki.de/˜kipp/anvil) • Two annotations studies: (1) using only speech transcription and sound; (2) using speech transcription, sound and video provided with transcriptions of nonverbal signals (gaze, head, facial expression, posture orientation and hand movements).

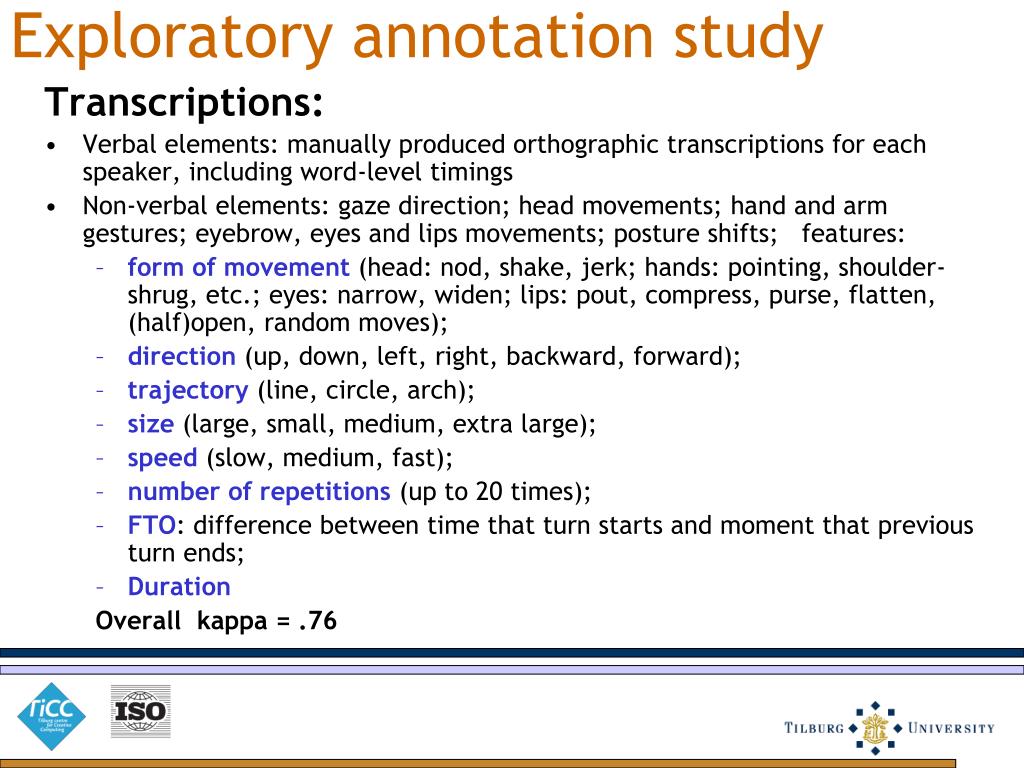

  7. Exploratory annotation study Transcriptions: • Verbal elements: manually produced orthographic transcriptions for each speaker, including word-level timings • Non-verbal elements: gaze direction; head movements; hand and arm gestures; eyebrow, eyes and lips movements; posture shifts; features: • form of movement (head: nod, shake, jerk; hands: pointing, shoulder-shrug, etc.; eyes: narrow, widen; lips: pout, compress, purse, flatten, (half)open, random moves); • direction (up, down, left, right, backward, forward); • trajectory (line, circle, arch); • size (large, small, medium, extra large); • speed (slow, medium, fast); • number of repetitions (up to 20 times); • FTO: difference between time that turn starts and moment that previous turn ends; • Duration Overall kappa = .76

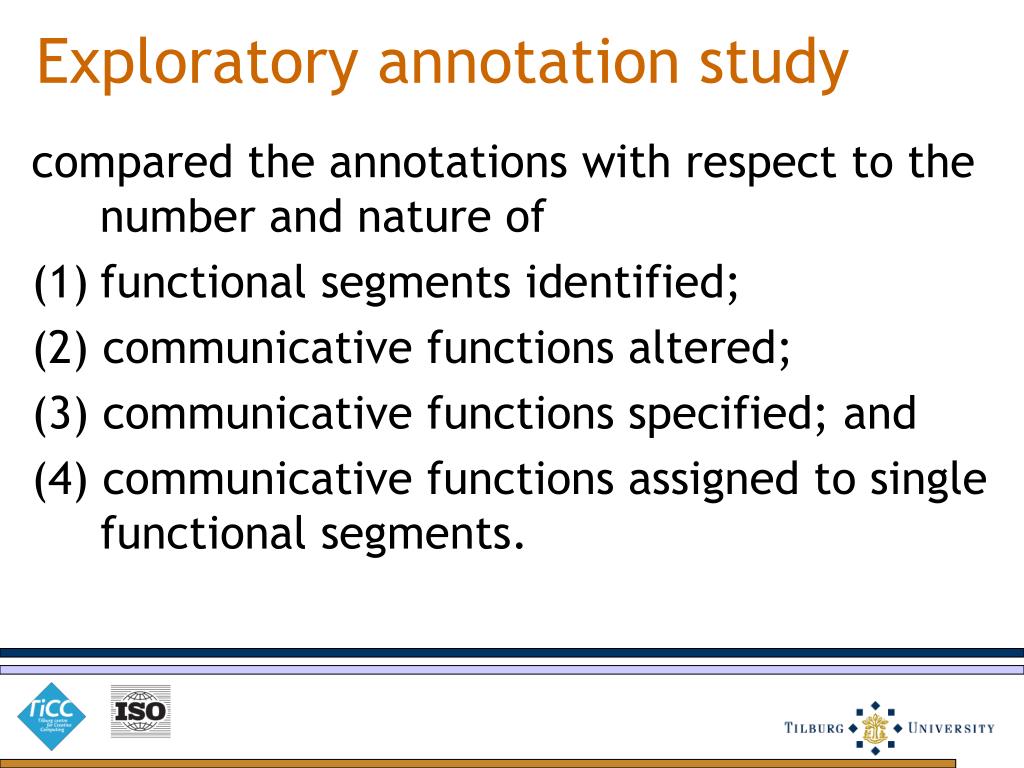

  8. Exploratory annotation study compared the annotations with respect to the numberand nature of • functional segments identified; (2) communicativefunctions altered; (3) communicative functionsspecified; and (4) communicative functions assigned to singlefunctional segments.

  9. Results Nonverbal communicative behaviourmay serve fourpurposes: • emphasizing or articulating the semantic content of dialogueacts; • emphasizing or supporting the communicative functionsof synchronous verbal behaviour; • performing separate dialogue acts in parallel to whatis contributed by the partner; • expressing a separate communicative function in parallelto what the same speaker is expressing verbally.

  10. Results • Full-fledged dialogue acts (20% new segments): • Feedback acts (68.5%): positive (65.3%), negative (3.2%): • Time Management (24.8%) • Turn Management(4.7%) • Discourse Structuring(2%)

  11. Results are reflected in a significant majority of annotation schemes: We analyzed 18 well-known dialogue act annotation schemes: DAMSL, SWBD-DAMSL, LIRICS, DIT++, MRDA, Coconut, Verbmobil, HCRC MapTask, Linlin, TRAINS, AMI, SLSA, Alparon, C-Star, Primula, Matis, Chiba and SPAAC Feedback is not defined only in Linlin and Primula; Turn management acts are not defined in HCRC MapTask, Verbmobil, Linlin, Alparon and C-Star; Discourse Structuring is not defined in TRAINS and Alparon; and Time Management is not defined in MRDA, HCRC MapTask, Linlin, Maltus, Primula and Chiba.

  12. Results • Communicative function alteration andspecification: • adjustment of the level of feedback (understanding vs agreement) • express degree of certainty about the validity of the proposition • reveal speaker’s attitude towards the addressee(-s), towards the content of what he is saying, or towards the actions he is considering to perform • signal speaker’s emotionalor cognitive state (Pavelin (2002): modalizers)

  13. Results • Communicative function alteration andspecification: - no existing dialogue act annotationscheme deals with this type of information Proposal: a setof qualifiers that can be attached to communicative functionin order to describe the speaker’s behaviour more accurately

  14. Results

  15. Results • Multifunctionality in multimodal utterances: • A verbal functional segment has on average 1.3 communicativefunctions (also confirmed in Bunt, 2009) • multimodal segment has 1.4 functions on average • very often concerned with feedback and other interaction management dimensions such as Own Communication Management and Time Management; Task and Turn Management; Task and Discourse Structuring; Task and Allo-Feedback • Dialogue act taxonomies that take the multifunctionality of utterances into account such as DIT++, LIRICS, DAMSL, MRDA and Coconut, known as multidimensional dialogue act annotation schemes

  16. Results Articulating semantic content(about 39%): They are relating tothe propositional or referential meaning of an utterance For example deictic gestures: wording:Press this little presentation hand: ........point................. pure semantic acts, as a rule do not have a communicativefunction on their own

  17. Conclusions • Multidimensional schemes could be used for annotation of multimodal data (such as DIT++, LIRICS, DAMSL, MRDA and Coconut) • Extension is needed: with respect to uncertainty, speaker’s attitude and speaker’s emotions • Proposal: • Amused Suggestion’ and ’Uncertain Answer’ (undesirable) • better to have qualifiers that can be attached to communicative function
