PHYSICS 231 INTRODUCTORY PHYSICS I

neron avatar
neron
27 diapositives · 629 Views · Jul 30, 2014

PHYSICS 231 INTRODUCTORY PHYSICS I. Lecture 10. Last Lecture. Elastic Collisions: Multi-part Collision Problems (conserve E or p) Angular motion. Angular Speed. Can also be given in Revolutions/s Degrees/s. (in rad/s). Linear (tangential) Speed at r. (  in rad/s). Example 7.2.

PHYSICS 231 INTRODUCTORY PHYSICS I - slide 1
01 / 27PHYSICS 231 INTRODUCTORY PHYSICS I
1 / 17

Télécharger la présentation

PHYSICS 231 INTRODUCTORY PHYSICS I
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. PHYSICS 231INTRODUCTORY PHYSICS I Lecture 10

  2. Last Lecture • Elastic Collisions: • Multi-part Collision Problems (conserve E or p) • Angular motion

  3. Angular Speed • Can also be given in • Revolutions/s • Degrees/s (in rad/s) • Linear (tangential) Speed at r ( in rad/s)

  4. Example 7.2 A race car engine can turn at a maximum rate of 12,000 rpm. (revolutions per minute). a) What is the angular velocity in radians per second. b) If helicopter blades were attached to the crankshaft while it turns with this angular velocity, what is the maximum radius of a blade such that the speed of the blade tips stays below the speed of sound. DATA: The speed of sound is 343 m/s a) 1256 rad/s b) 27 cm

  5. Angular Acceleration • Denoted by a • w in rad/s •  rad/s² • Every point on rigid object has same w and a

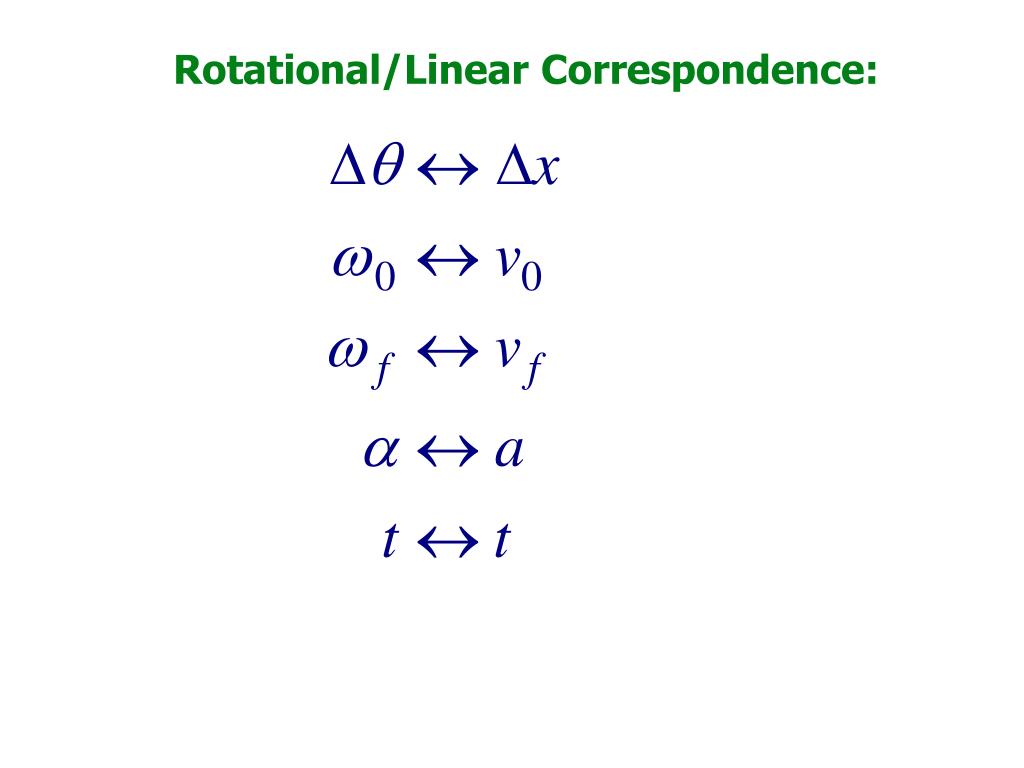

  6. Rotational/Linear Correspondence:

  7. Rotational/Linear Correspondence, cont’d Rotational Motion Linear Motion Constant  Constant a

  8. Example 7.3 A pottery wheel is accelerated uniformly from rest to a rotation speed of 10 rpm in 30 seconds. a.) What was the angular acceleration? (in rad/s2) b.) How many revolutions did the wheel undergo during that time? a) 0.0349 rad/s2 b) 2.50 revolutions

  9. Distance Speed Acceleration Linear movement of a rotating point Different points have different linear speeds! Angles must be in radians!

  10. Wheel (radius r) rolls without slipping Angular motion of wheel gives linear motion of car Distance Speed Acceleration Special Case - Rolling

  11. Example 7.4 A coin of radius 1.5 cm is initially rolling with a rotational speed of 3.0 radians per second, and comes to a rest after experiencing a slowing down of a = 0.05 rad/s2. a.) Over what angle (in radians) did the coin rotate? b.) What linear distance did the coin move? a) 90 rad b) 135 cm

  12. Centripetal Acceleration • Moving in circle at constant SPEEDdoes not mean constant VELOCITY • Centripetal acceleration results from CHANGING DIRECTION of the velocity • Acceleration points toward center of circle

  13. Derivation: acent = w2r = v2/r • Similar triangles: • Small times: • Using or

  14. Forces Cause Centripetal Acceleration • Newton’s Second Law • Radial acceleration requires radial force • Examples of forces • Spinning ball on a string • Gravity • Electric forces, e.g. atoms

  15. A Example 7.5a B C An astronaut is in circular orbitaround the Earth.Which vector might describe the astronaut’s velocity? a) Vector A b) Vector B c) Vector C

  16. A Example 7.5b B C An astronaut is in circular orbitaround the Earth.Which vector might describe the astronaut’s acceleration? a) Vector A b) Vector B c) Vector C

  17. A Example 7.5c B An astronaut is in circular orbitaround the Earth.Which vector might describe the gravitational force acting on the astronaut? C a) Vector A b) Vector B c) Vector C

  18. A Example 7.6a B Dale Earnhart drives 150 mph around a circular track at constant speed.Neglecting air resistance, which vector best describes the frictionalforce exerted on the tires from contact with the pavement? C a) Vector A b) Vector B c) Vector C

  19. A Example 7.6b B Dale Earnhart drives 150 mph around a circular track at constant speed.Which vector best describes the frictional force Dale Earnhart experiences from the seat? C a) Vector A b) Vector B c) Vector C

  20. Ball-on-String Demo

  21. Example 7.7 A puck (m=.25 kg), sliding on a frictionless table, is attached to a string of length 0.5 m. The other end of the string is fixed to a point on the table and the puck is sent revolving around the fixed point. It take 2 seconds to make a complete revolution. • What is the acceleration of the puck? • What is the tension in the string? a) 4.93 m/s2 b) 1.23 N

  22. DEMO: FLYING POKER CHIPS

  23. Example 7.8 • A race car speeds around a circular track. • If the coefficient of friction with the tires is 1.1, what is the maximum centripetal acceleration (in “g”s) that the race car can experience? • What is the minimum circumference of the track that would permit the race car to travel at 300 km/hr? a) 1.1 “g”s b) 4.04 km (in real life curves are banked)

  24. Example 7.9 A curve with a radius of curvature of 0.5 km on a highway is banked at an angle of 20. If the highway were frictionless, at what speed could a car drive without sliding off the road? 42.3 m/s = 94.5 mph

  25. Example 7.11a Which vector represents acceleration? A b) E c) F d) B e) I

  26. Example 7.11b If car moves at "design" speed, which vector represents the force acting on car from contact with road D b) E c) G d) I e) J

  27. Example 7.11c If car moves slower than "design" speed, which vector represents frictional force acting on car from contact with road (neglect air resistance) B b) C c) E d) F e) I
