  1. HP BladeSystem c-Class Taras Vercešuks ESS Presales, Hewlett Packard Latvia

  2. 2002 2003 2004 2005 2006 2007 2008 2009 2012+ • BladeSystem p-Class • 5+ years of technology support • New blades • BL60p IPF blade server (HP-UX) • Latest Intel Xeon: BL20p G4 • AMD Opteron Rev F: BL25p G2, BL45p G2 Support 5 yrs • Same unified infrastructure management • Same connection to the datacenter • Power • Network/SAN • Rack • Same standard ProLiant technologies Transition period BladeSystem c-Class Transition at own pace with coexistence • Support for 5-7 years of technologies • Next generations of virtualization • Storage blades & new fabrics

  3. c7000 Enclosure Front View • Server blades • 2x features, 2x the density 10U 8-16 blades • Storage blades • A new paradigm for “bladed” storage solutions • Integrated power • Simplified configuration and greater efficiency • Same flexibility, capacity and redundancy • Onboard Administrator • HP Insight Display • Simple set-up delivered out of the box

  4. c7000 Enclosure Rear View • Active Cool fans • Adaptive flow for maximum power efficiency, air movement & acoustics • Interconnect bays • 8 bays; up to 4 redundant I/O fabrics • Up to 94% reduction in cables • Ethernet, Fibre Channel, iSCSI, SAS, IB • Enclosure Mid-plane aggregate bandwidth capacity of 5Tbs • Power management • Choice of single-phase or three-phase enclosures • AC redundant mode or power supply redundant mode • Best performance per watt • Onboard Administrator • Remote administration view • Robust, multi-enclosure control

  5. c7000 Enclosure – fully redundant Rear View • Active Cool fans • Redundant fan design • Interconnect bays • 4 Redundant Interconnect fabrics • Redundant connections to each server blade • Onboard Administrator and Mid-plane • Redundant Active/Passive design • Mid-plane is fully redundant (no active components) • Both OA’s can fail, and the enclosure will still run! • Power management • AC Redundant (3+3 Power supplies) • No power zones! • Only 3 PS needed for a full enclosure

  6. p-Class c-Class Greater density in the next generation 14U 10U 16 BL20p Server Blades 16 BL20p Equivalents

  7. Taking server blades to the next level C-Class 2 times the memory capacity compared to today’s Intel blades! 2 times the I/O expansion compared to today’s blades! Support for the future technologies: >4Gb FC, 10GbE, 20 Gb/s Infiniband! First to deliver DL380-class features set in a blade form factor! Hot-plug SAS hard drive support on every blade! P-Class Variety of processors supported: AMD Opteron, Intel Xeon, and Intel Itanium Equivalent to ProLiant 2P and 4P server designs iLO included with every blade

  8. HP BladeSystem c-Class key technologies Server Blades Power and Cooling

  9. Enclosure Power • (1) Single-phase enclosure available worldwide for use with in-rack PDUs which accept C19 – C20 power cords; C-19 16A • (2) Three-Phase enclosure with a pair of US/Japan power cords with NEMA L15-30P power connectors NA/JPN L15-30p • (3) Three-Phase enclosure with a pair of International power cords with IEC 309 16A power connectors Intl IEC309 5-Pin, 6h, 16A

  10. Dynamic Power Saver • Example: 1800W draw system • 6 power supplies, 300W each, 75% efficiency • 2400W in for 1800W out • 600W wasted • 2 power supplies, 900W each, 89% efficiency • 2048W in for 1800W out • Saving of 352W per enclosure • 4 supplies in standby – available if power draw increases • 20 enclosures @ 0.075 per kW hr can save ≈ $4600 per year

  11. Blade Zone 2 2 FH or 4 HH Blade Zone 1 2 FH or 4 HH Blade Zone 3 2 FH or 4 HH Blade Zone 4 2 FH or 4 HH Fan 1 Fan 6 Fan 7 Fan 2 Fan 8 Fan 3 Fan 4 Fan 8 Fan 5 Fan 10 PS 1 PS 2 PS 3 PS 4 PS 5 PS 6 c7000 PARSEC Architecture • Hybrid Model • Advantages of both local and central cooling • Blades are divided into 4 zones • Fans in each zone provide • Cooling for blades in that zone • Plus redundant cooling for other blades • Centralized Cooling Done Right

  12. HP Active Cool Fan • Custom fan design delivering better than industry performance • High air flow • High pressure • Best in class reliability • Superior acoustics across entire operating range • Cool Facts • 4 Active Cool fans could cool an IBM BladeCenter with N+1 redundancy • 1 Active Cool fan could cool 5 DL360G4

  13. HP BladeSystem c-Class key technologies Server Blades

  14. HP ProLiant BL460c

  15. HP ProLiant BL460c Internal View Embedded Smart Array E200i Controller integrated on drive backplane • Two Mezzanine Slots • One x4 • One x8 Two hot-plug SAS/SATA drives 8 DIMM Slots Fully-Buffered DIMMsDDR2 667MHz

  16. HP ProLiant BL480c

  17. HP ProLiant BL480c Internal View Embedded Smart Array P400i Controller integrated on drive backplane • Three Mezzanine Slots • One x4 • Two x8 Four hot-plug SAS/SATA drives 12 DIMM Slots Fully-Buffered DIMMsDDR2 667MHz

  18. HP ProLiant BL465c * When 4GB DIMMS are available

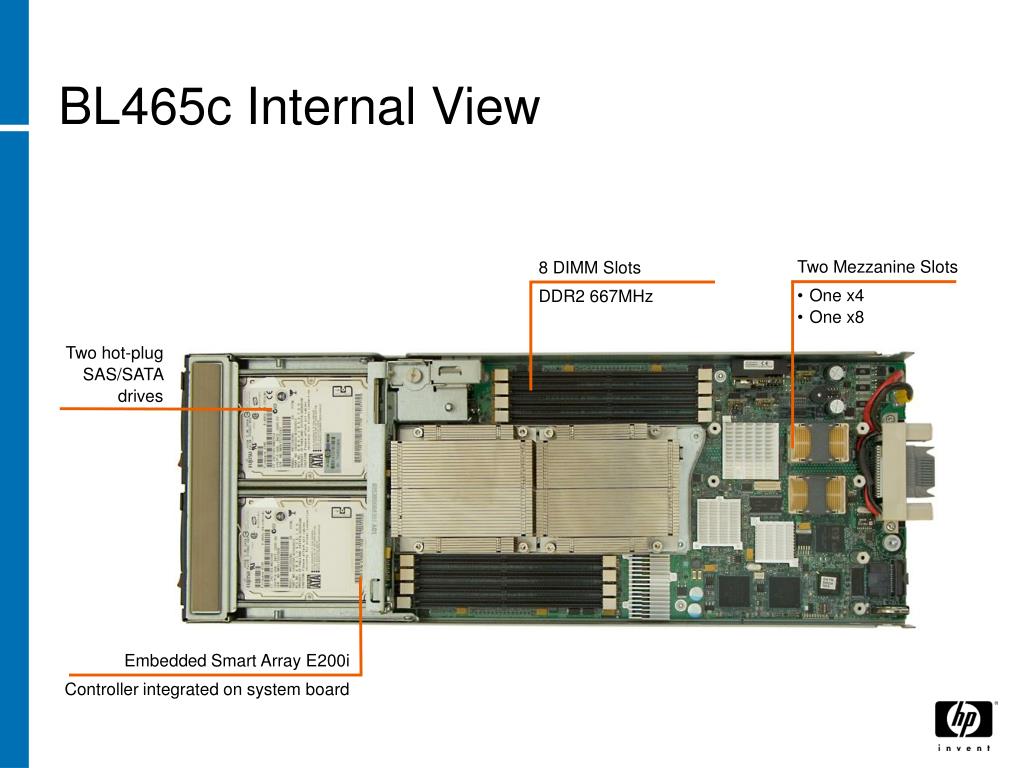

  19. BL465c Internal View • Two Mezzanine Slots • One x4 • One x8 8 DIMM Slots DDR2 667MHz Two hot-plug SAS/SATA drives Embedded Smart Array E200i Controller integrated on system board

  20. HP BladeSystem c-Class key technologies Storage Blades

  21. HP c-Class BladeSystemStorage Blades Direct-Attach Storage Blade Shared Storage Blade • Simple way to add additional drive capacity – add up to 6 hot-plug SAS or SATA drives • Delivers high performance – better performance than internal drives • HW based RAID 0,1 and 5 Up to 6 hot-plug SAS or SATA drives for adjacent blade Up to 15 storage blades for the entire enclosure to share • Optimized for boot, swap, and non-mission-critical data • Stateless blades – get drives out of the server without giving up local storage • Single GUI for storage mgmt and provisioning – easy set-up for server admin • HW based RAID 0,1 and 5

  22. HP BladeSystem c-Class key technologies Interconnects

  23. HP BladeSystem c-Classconnect any way you want Interconnect Module Classes Bays for 4 Double-Wide Interconnect Modules • Virtual Connect • Reduce cables without adding switches to manage • Cleanly separate Server enclosure from LAN & SAN • Infiniband Switch • 4x DDR Infiniband switch • High-speed interconnect for scale-out clusters • Managed Ethernet and FC Switches • Reduce cables with your favorite switch brands • Pass-Through Modules • When you must have a 1:1 server/network connection • Ethernet and FC • Choose the Ethernet, FC, & IB modules you need & plug them in • Two of same module side-by-sideprovides redundancy

  24. LAN/Mezzanine signal mapping Slots 1and 2 reserved for LAN switches Integrated LAN Mezzanine cards LAN/SAN switches 1 2 LAN 1 2 Half Height 1 1 3 4 Server blade 2 2 1 5 6 Full Height 2 3 1 7 8 2 Rear view of enclosure Dual ports/paths Backplane signals

  25. HP BladeSystem c-Class key technologies HP Virtual Connect

  26. NIC NIC NIC NIC HBA HBA HBA HBA traditional choicesToo many cables or Too many switches & everyone gets in the act… Server Administrator MAC addr • Pass-thru modules can drown you in cables • Switches work great but can overwhelm in numbers • LANs & SANs must follow the moving server, requiring effort from everyone & delaying resolution Network Administrator A ENET Switch LAN WWN B Storage Administrator C FC Switch SAN Spare Blade Enclosure

  27. NIC NIC NIC NIC HBA HBA HBA HBA Server-Edge Virtualization Virtual Connect solves these & makes IT change-ready Server Administrator • Reduces cables w/o adding switchesto manage • No new FC domains • Maintains end-to-end connections • of your favorite brands • (Cisco, Nortel, Brocade, McData, etc.) • Cleanly separates Server from LAN & SAN • Relieves LAN & SAN admins from server maintenance • Servers are Change-Ready - add, move, replace, upgrade w/o affecting LAN or SAN • MAC & WWN are locally administered so LAN & SAN connections stay constant • Change servers when your business needs it, not when you can fit it into everyone’s calendar Network Administrator A LAN B HP Virtual Connect Modules Storage Administrator C SAN Spare Blade Enclosure

  28. HP BladeSystem c-Class Fibre Channel interconnects Ethernet Interconnects

  29. Physical Cable Software Functions Cluster Storage Network NC373M PCI Express Multifunction Gigabit Server Adapter • HP’s first PCI Express Multifunction Gigabit Server Adapter supporting TOE, iSCSI, and RDMA in the HP BladeSystem c-Class environment • One connection, multiple functions * Denotes a feature that will be available 4Q 2006

  30. HP 1GB Ethernet pass-thru module Hardware/feature overview • Straight through LAN connectivity • 1:1 NIC to patch panel connection • Non-Blocking • Management • No LAN management inside the enclosure • Basic power, temperature and status monitored by the On Board Administrator • Communications support for ILO • Performance • Full Duplex 1G Ethernet only • No auto-negotiation • Redundant connections from servers to external switches with a pair of pass through modules

  31. HP GbE2c Hardware overview • A new switch for HP’s nextgeneration of blade servers • Connectivity • Designed for low cost, high performance LAN connectivity • Configuration: • 16 internal downlinks, 5 RJ-45 external uplinks, 2 internal cross connects • 1 GbE Internal Management Interface • 1 Serial Management Interface Port

  32. HP GbE2c Feature overview • Firmware • Layer 2 functionality • Support of all Layer 2 IEEE industry standards • Includes the GbE2 feature set • Interface & Management • SNMP v.1/2/3, CLI, RMON, and Web-based Management • Redundant failover capability • HP designated MIB’s for enclosure management • Port and System Status LED’s • Performance • Full Duplex, Non-Blocking Gigabit Ethernet on all ports • Wire speed performance on all ports

  33. Cisco Catalyst Blade Switch 3020 Hardware overview 16 internal downlinks, 8 uplinks 17x Cisco Ethernet Blade Switch 3020 17 21 17 23x SYST STAT DLX SPD 20 24 MODE 20 24x UID CONSOLE 17 18 19 20 18x • Integrated copper uplinks and optional SFP’s for fiber support • 8 configurable uplinks • Up to 8 fixed RJ-45 • 4 uplinks can be optional SFP fiber SX Modules • 2 of the RJ-45 uplinks can be directed to be internal cross connects • One Internal Management Interface • One Serial Management Interface Port

  34. Cisco Catalyst Blade Switch 3020 Feature overview • Layer 2+ functionality • Industry Standards Based Feature • Cisco Proprietary Extensions and ACL’s • Interface & Management • Cisco embedded Web Based Management, CiscoWorks, and Cisco IOS CLI • Redundant failover capability • Performance • Full Duplex, Non-Blocking Gigabit Ethernet on all ports • Wire speed performance on all ports

  35. HP BladeSystem c-Class Fibre Channel interconnects Fibre Channel interconnects

  36. Emulex LPe1105 FC Mezzaninefor HP BladeSystem c-Class • Dual port 4Gb Fibre Channel to PCI Express Mezzanine HBA from Emulex LPe11000 family • Emulex design and manufacturing • Based on Zephyr ASIC • 100,000 I/O’s each channel per second • Unique hardware independent driver architecture • Single driver across entire portfolio • Simplified SAN Management • Comprehensive O/S support • Full fabric support with automatic topology and speed adaptation • Support for HP StorageWorks and third party storage targets

  37. QLogic QMH2462 FC Mezzaninefor HP BladeSystem c-Class • Dual port 4Gb Fibre Channel to PCI Express Mezzanine HBA from QLogic QLE2462 HBA family • QLogic design and manufacturing • Enterprise class performance • 200,000 IOPs • 1600 MBps throughput • PCI Express x 4 bus speeds • Simplified Management • QLogic SANSurfer Pro • Fully compatible with mgmt applications supporting SNIA API and SMI-S • Comprehensive O/S support • Guaranteed interoperability • Support for HP StorageWorks and third partystorage targets Mezzanine card fits allc-Class server blades

  38. Fibre Channel Pass-Through Module for HP BladeSystem c-Class • 16 port FC pass-through • Fully independent FC ports • 1 pass-through module per kit • Order 2 kits for redundant fabric connections • SFPs included in kit • Support auto-negotiatefeature with independentfabric speed for each port • 1, 2, & 4Gb connections • iLO Link for Management

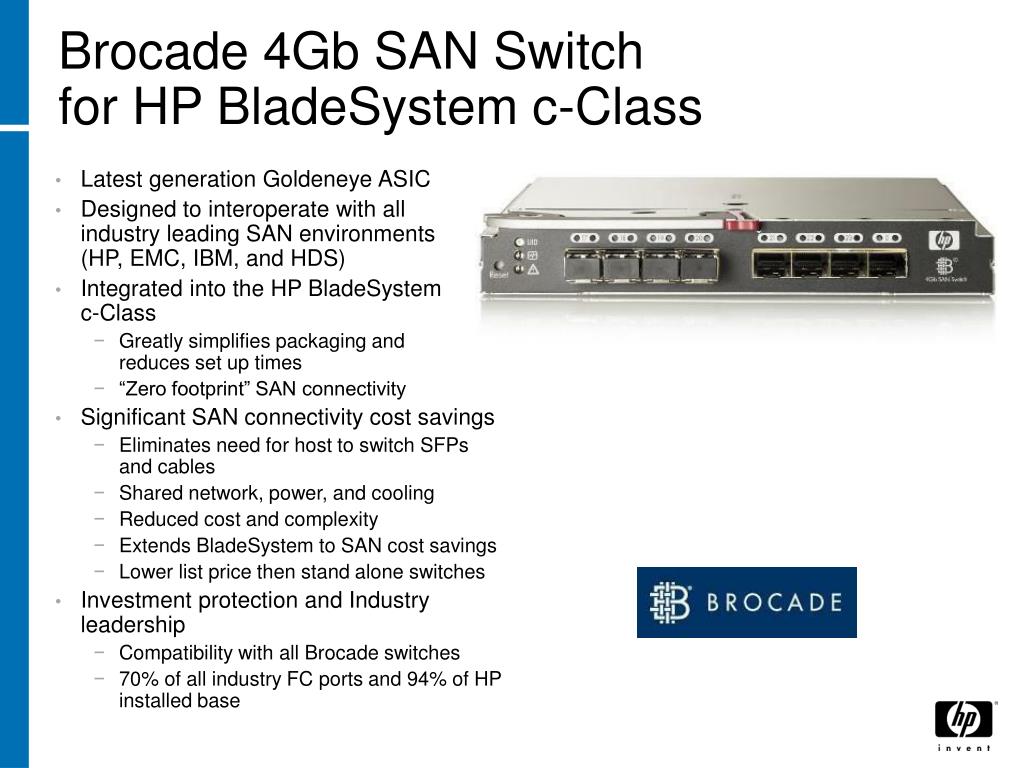

  39. Brocade 4Gb SAN Switchfor HP BladeSystem c-Class • Latest generation Goldeneye ASIC • Designed to interoperate with all industry leading SAN environments (HP, EMC, IBM, and HDS) • Integrated into the HP BladeSystem c-Class • Greatly simplifies packaging and reduces set up times • “Zero footprint” SAN connectivity • Significant SAN connectivity cost savings • Eliminates need for host to switch SFPs and cables • Shared network, power, and cooling • Reduced cost and complexity • Extends BladeSystem to SAN cost savings • Lower list price then stand alone switches • Investment protection and Industry leadership • Compatibility with all Brocade switches • 70% of all industry FC ports and 94% of HP installed base

  40. 12-port Full Fabric (12 ports in any internal/external combination; 2 SFP’s) 24-port Full Fabric (16 internal, 8 external; 4 SFP’s) 24-port Full Fabric Power Pack (16 internal, 8 external; 4 SFP’s) 12-port Full Fabric Upgrade (no SFP’s included) Brocade 4Gb SAN Switch for HP c-Class BladeSystem

  41. Insight Control Management intelligent infrastructure Insight Control Management intelligent infrastructure

  42. HP SIM & Essentials Automation Engine What is insight control? HP SIM and Essentials combined with c-Class Intelligent Infrastructure • HP SIM & Essentials • Provisioning and Recovery • Monitoring & Performance • Security Scan and Patch • Onboard Administrator • Simplifies enclosure setup • Power and cooling management • Integrated enclosure mgt Intelligent Infrastructure • iLO 2 • Remote Administration • Virtual KVM access HP Confidential

  43. Local Remote HP Onboard Administrator Simplified enclosure management out-of-the-box • Simple setup and configuration typical: less than 5 minutes • Diagnostics for rapid troubleshooting • Automated power and cooling management • Integrated local and remote management • Role based security for servers, network, and storage administrators • Integrates with Insight Control management software

  44. HP Insight Display Local BladeSystem Management Simple and easy to learn! • Simplifies installation and setup • Visual indicators of faults • Visual info on ambient inflow temperatures • Monitors device status • Graphical instructions on fixing configuration issues • Secure local management

  45. HP Onboard Administrator Remote BladeSystem Management The intelligence of the c7000 BladeSystem! • Real-time power and cooling control • Device health and configuration (enclosure, blade, switch) • Integrated iLO 2 with each server blade providing single sign-on for easy access

  46. Enclosure Management Rack-level BTU/hour Enclosure inflow and outflow temperatures Actual power usage Maximum power available

  47. Integrated Lights-Out 2 Improved performance, versatility and ease-of-use • Remote console performance for everyday server administration • Virtual KVM • Total system control from a single java-free console • Integrated Remote Console • Independently accessible hardware status • Embedded System Health • Embedded system power monitoring • Power Meter Data Reporting • Integration with Onboard Administrator • Single-sign on, power management and more • New licensing • iLO 2 Standard Blade Edition • iLO Select Pack NEW

  48. iLO 2 Standard Blade Edition • HP Virtual KVM • Integrated Remote Console • Terminal Services Pass-through • Virtual Media (browser single server) • Blade specific features - setup wizard, rackview, enclosure alerting, static IP bay configuration • Embedded System Health • Remote Serial Console • Virtual power, Unit ID • Event logs, SIM integration iLO Select Pack • Power Regulator Reporting • Virtual Media (scripted multi-server) • Enterprise security • Directory services • Two-factor Authentication Introducing iLO 2 licensing fornew ProLiant BL servers • iLO 2 Standard Blade Edition • Essential Lights-Out features bundled with iLO 2 based ProLiant BL servers • Begins with ProLiant BL20p G4 • Traditional iLO Standard PLUS blade specific and selected new iLO 2 features • iLO Select Pack • Optional licensed Lights-Out upgrades for new ProLiant BL servers • Activates security, new power management, scripted virtual media and more in the future • Flexible licensing including site licenses and an eight blade kit

  49. Insight Control Data Center Edition V1.0 Integrated Tools for Time-Smart Management HP Systems Insight Manager Graphical BladeSystem Discovery, Monitoring and Administration Remote Server and OS Deployment Performance Management and Bottleneck Analysis Consolidated Vulnerability & Patch Management

  50. Transition Slide Thank You! Contacts: Taras Vercešuks ESS Presales / Latvia 7030726 tarasv@hp.com
