Vertical Curve Elevation Calculation for Crest Curve Connecting Grades

This document discusses the calculations for a crest vertical curve with a length of 400 ft, connecting grades of +1.0% and -1.75%. It includes the location of the vertical point of intersection (VPI) at station 35+00 with an elevation of 549.2 ft. The calculations proceed to determine the elevations and stations for the vertical point of curvature (VPC) and the vertical point of tangency (VPT). The provided formulas illustrate how to derive these values, resulting in elevations of 547.20 ft for VPC and 545.70 ft for VPT, along with their corresponding stations.

nevina
Télécharger la présentation

Vertical Curve Elevation Calculation for Crest Curve Connecting Grades

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

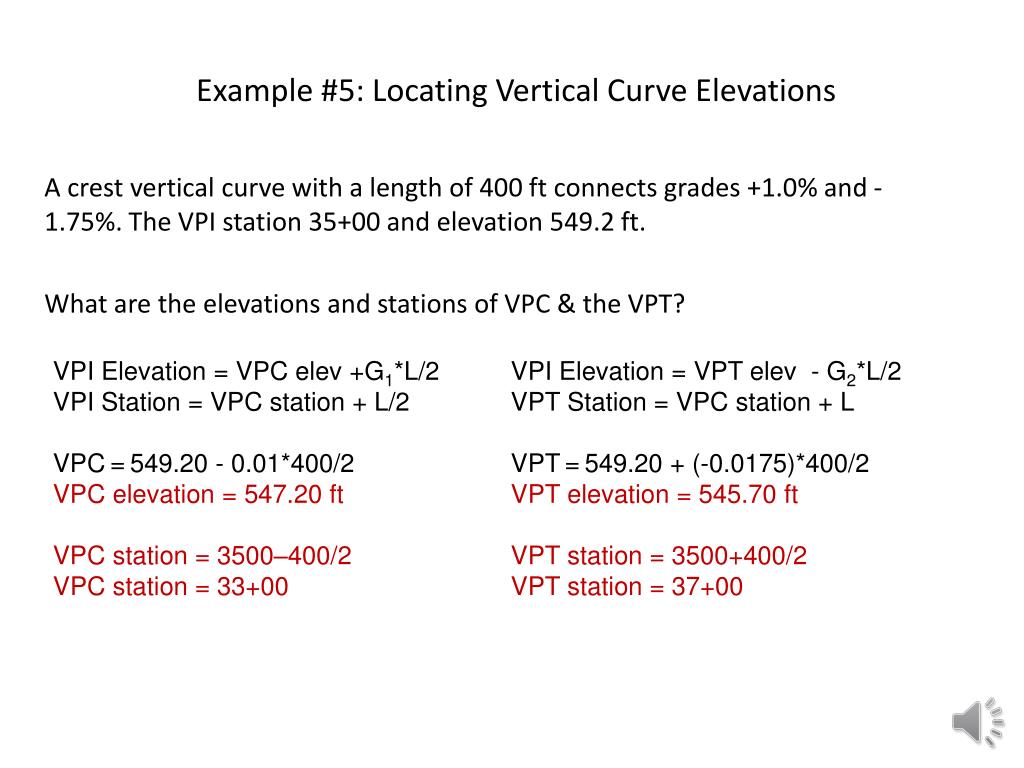

  1. Example #5: Locating Vertical Curve Elevations A crest vertical curve with a length of 400 ft connects grades +1.0% and -1.75%. The VPI station 35+00 and elevation 549.2 ft. What are the elevations and stations of VPC & the VPT? VPI Elevation = VPC elev +G1*L/2 VPI Station = VPC station + L/2 VPC=549.20 - 0.01*400/2 VPC elevation = 547.20 ft VPC station = 3500–400/2 VPC station = 33+00 VPI Elevation = VPT elev - G2*L/2 VPT Station = VPC station + L VPT=549.20 + (-0.0175)*400/2 VPT elevation = 545.70 ft VPT station = 3500+400/2 VPT station = 37+00
