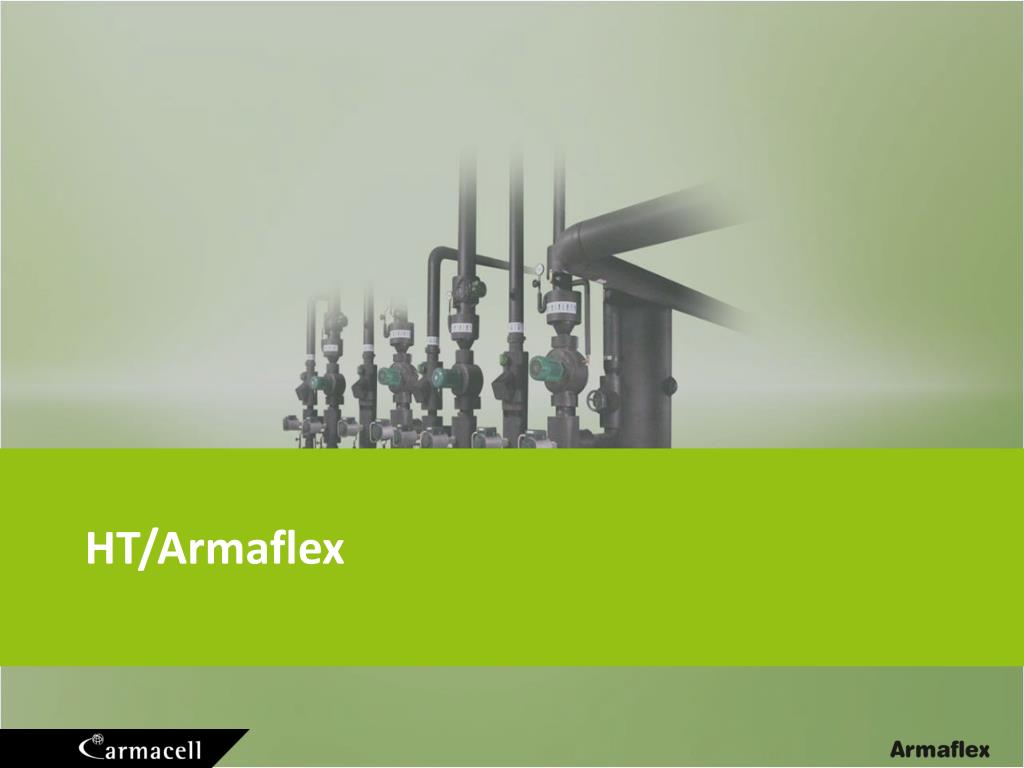

  1. HT/Armaflex

  2. HT/Armaflex THE FLEXIBLE EXPERT F0R INCREASED EFFICIENCY IN HIGH TEMPERATURE APPLICATIONS • Withstand a large range of normal weathering • Built-in water vapour barrier reduces risk ofcorrosion under insulation (CUI) • Retain its physical characteristics throughout its service life • Low maintenance and repair costs • Outstandingdurability • High degree of stability in wide temperature range • Minimum energy loss through low thermalconductivity

  3. HT/Armaflex • Maximum Line Temperature: • Up to +175°C – short time • Up to +150°C - constant • Thermal Conductivityl(40°c) 0,042 W/(m·K)tubes • 0,045 W/(m·K)sheets • Difussionresistancecoefficientm ≥ 4000tubes • m ≥ 3000sheets • Reaction to FireClass D-s3,d0 • UV resistant For Solar and industrial applications

  4. HT/ArmaflexProductRange Tubes 2m sticks

  5. HT/ArmaflexProductRange HT/ArmaflexTubes 2m coils HT/ArmaflexSheets HT/ArmaflexTape 3 mm

  6. HT/Armaflex S PRECOVERED, EASY TO INSTALL INSULATION FOR HIGH TEMPERATURE OUTDOOR APPLICATIONS Suitable for solar thermal flat plate collector applications • Built-in water vapour barrier reduces risk of corrosion under insulation (CUI) • Tear-resistant coating made of a polyolefincopolymer • High degree of stability under exposure to ultravioletlight • Resistant to temperatureextremes

  7. HT/Armaflex S • Maximum Line Temperature: • Up to +175°C – short time • Up to +150°C - constant • Thermal Conductivityl(40°c) 0,042 W/(m·K) • Difussionresistancecoefficientm ≥ 4000tubes • Reactionto FireClass E • UV resistant

  8. HT/Armaflex S ProductRange Highly flexible, closed cell insulation material based on extruded elastomeric foam, covered with a polyolefin- copolymer coating. • Colour of thecoatingblack and white • insulation thickness13, 20, 32 mm • tubeslenght 2 m • Dimenssionsrange  12 do 64 mm /white/ • Dimenssionsrange  15 do 42 mm /black/ HT Armaflexselfadhesivetapeblack and white

  9. 9 Adhesive HT 625 – specialglue For EPDM insulationuseonlyArmaflex HT 625 Adhesive Thisadhesivecan be usedwithallotherArmaflexinsulations Availableincans: 0,2; 0,5; 1 litre HT/Armaflex

  10. Thank you www.armacell.com
