  1. Introduction to Data Analysis in R Department of Statistical Sciences and Operations Research Computation Seminar Series Speaker: Edward Boone Email: elboone@vcu.edu

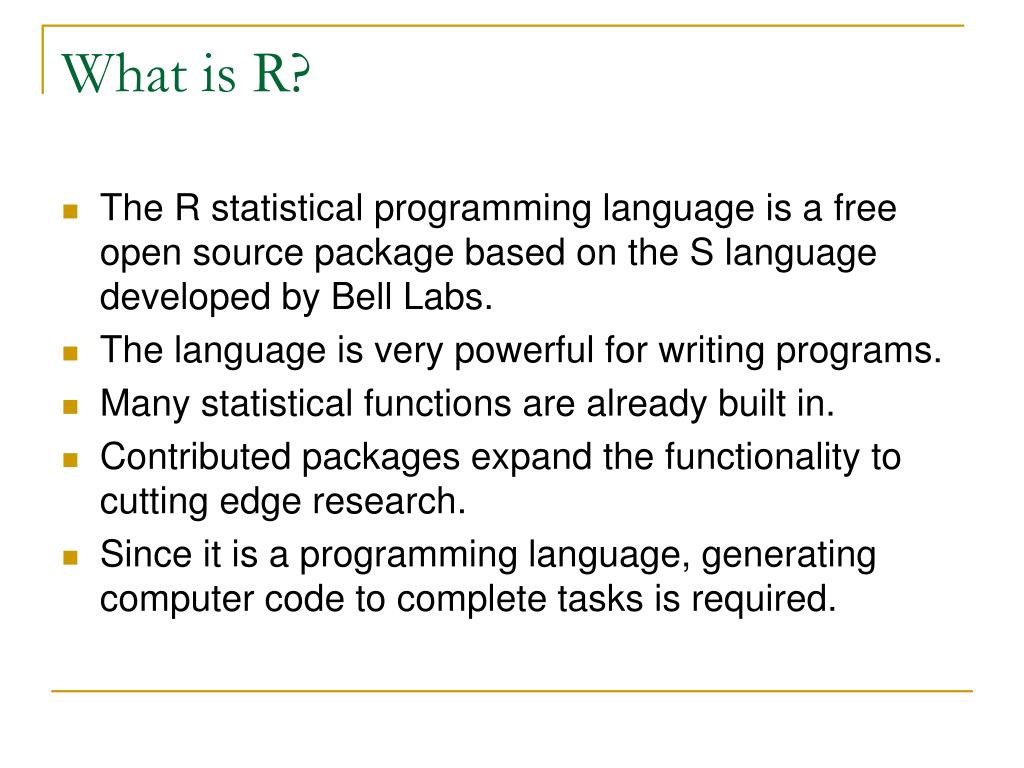

  2. What is R? • The R statistical programming language is a free open source package based on the S language developed by Bell Labs. • The language is very powerful for writing programs. • Many statistical functions are already built in. • Contributed packages expand the functionality to cutting edge research. • Since it is a programming language, generating computer code to complete tasks is required.

  3. Getting Started • Where to get R? • Go to www.r-project.org • Downloads: CRAN • Set your Mirror: Anyone in the USA is fine. • Select Windows 95 or later. • Select base. • Select R-2.4.1-win32.exe • The others are if you are a developer and wish to change the source code.

  4. Getting Started • The R GUI?

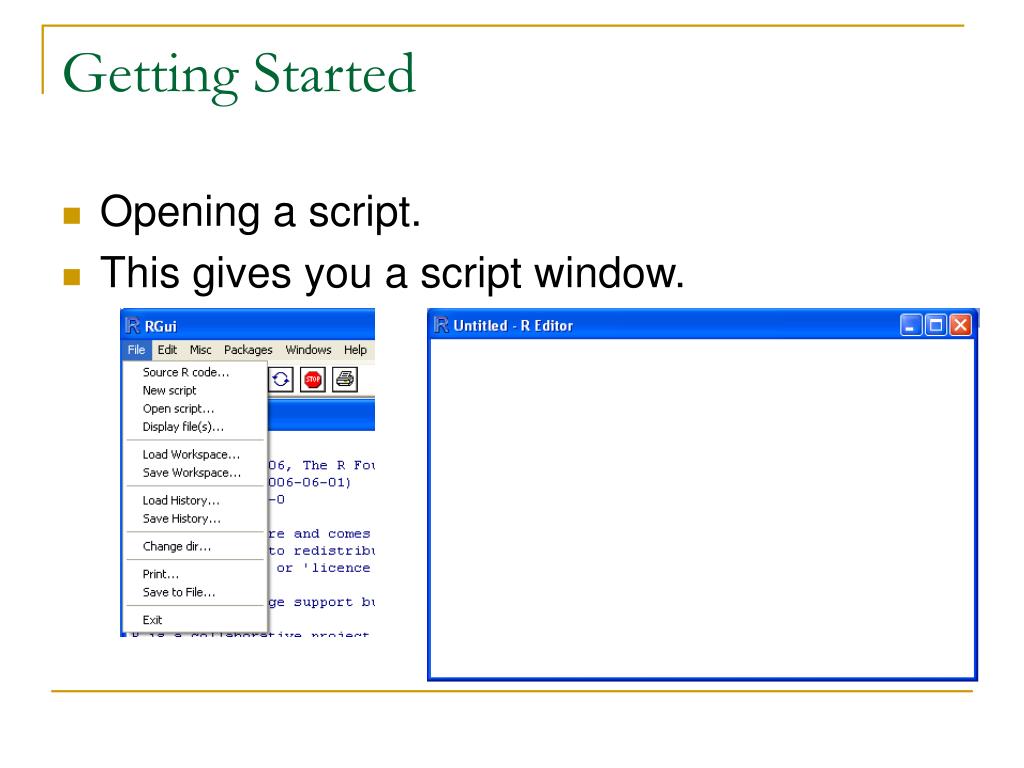

  5. Getting Started • Opening a script. • This gives you a script window.

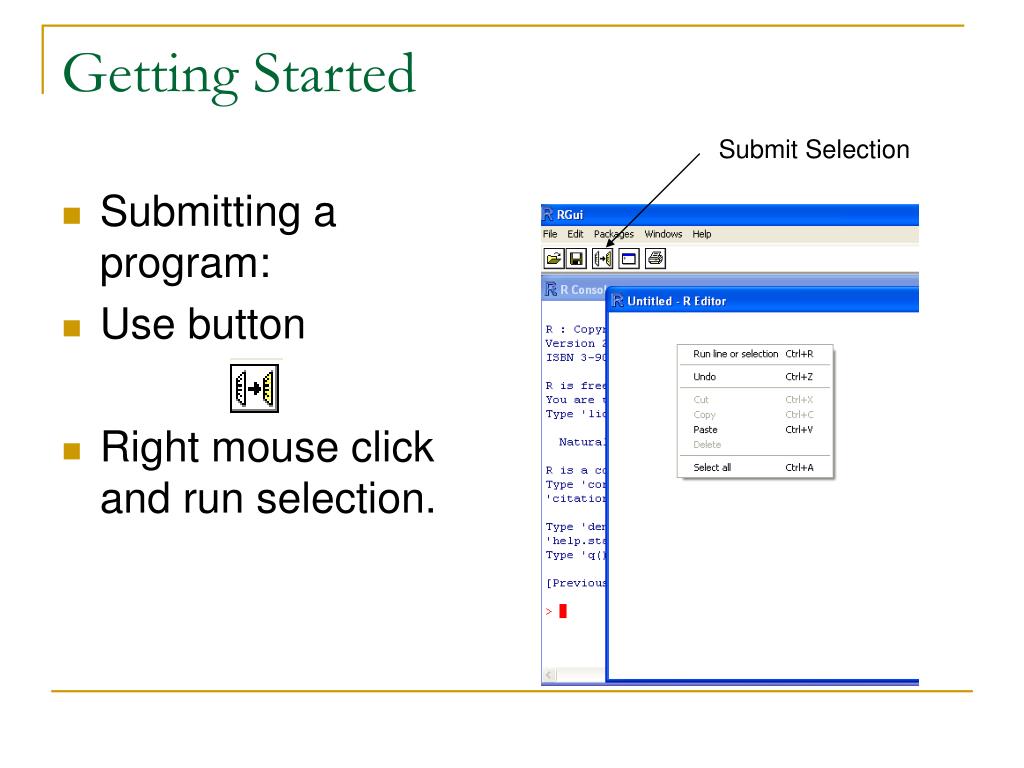

  6. Getting Started Submit Selection • Submitting a program: • Use button • Right mouse click and run selection.

  7. Getting Started • Basic assignment and operations. • Arithmetic Operations: • +, -, *, /, ^ are the standard arithmetic operators. • Matrix Arithmetic. • * is element wise multiplication • %*% is matrix multiplication • Assignment • To assign a value to a variable use “<-”

  8. Getting Started • How to use help in R? • R has a very good help system built in. • If you know which function you want help with simply use ?_______ with the function in the blank. • Ex: ?hist. • If you don’t know which function to use, then use help.search(“_______”). • Ex: help.search(“histogram”).

  9. Importing Data • How do we get data into R? • Remember we have no point and click… • First make sure your data is in an easy to read format such as CSV (Comma Separated Values). • Use code: • D <- read.table(“path”,sep=“,”,header=TRUE)

  10. Working with data. • Accessing columns. • D has our data in it…. But you can’t see it directly. • To select a column use D$column.

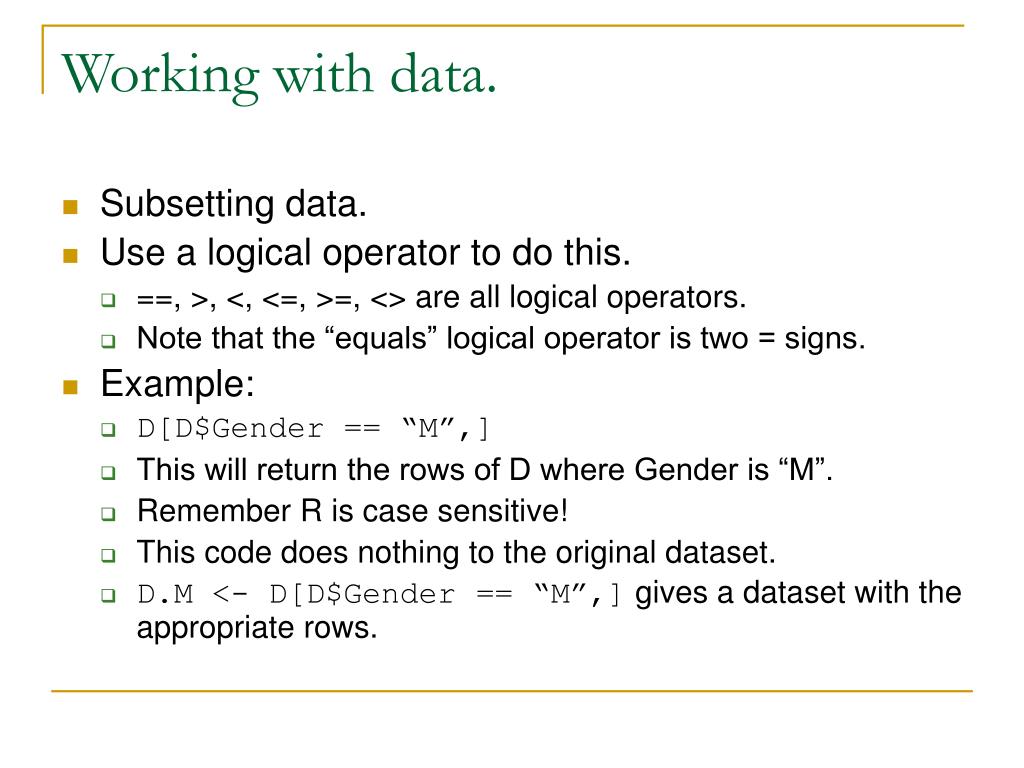

  11. Working with data. • Subsetting data. • Use a logical operator to do this. • ==, >, <, <=, >=, <> are all logical operators. • Note that the “equals” logical operator is two = signs. • Example: • D[D$Gender == “M”,] • This will return the rows of D where Gender is “M”. • Remember R is case sensitive! • This code does nothing to the original dataset. • D.M <- D[D$Gender == “M”,] gives a dataset with the appropriate rows.

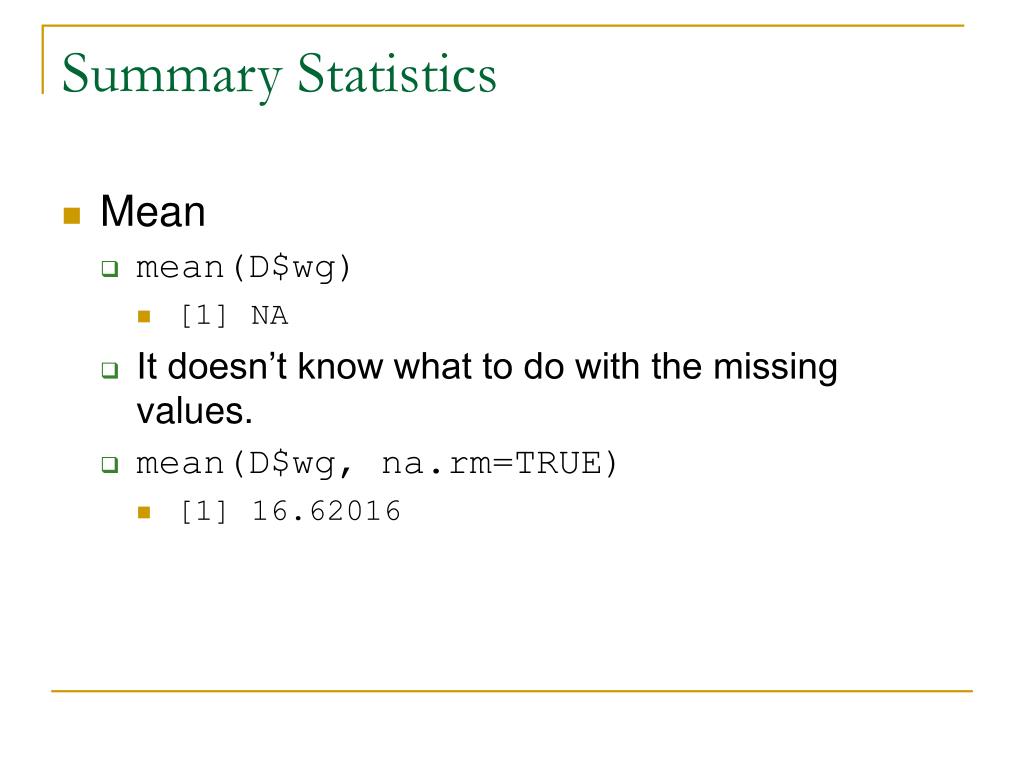

  12. Summary Statistics • Mean • mean(D$wg) • [1] NA • It doesn’t know what to do with the missing values. • mean(D$wg, na.rm=TRUE) • [1] 16.62016

  13. Summary Statistics Median median(D$wg,na.rm=TRUE) [1] 15 Quantiles quantile(D$wg,c(.25,.5,.75),na.rm=TRUE) 25% 50% 75% 8 15 20 Summary summary(D$wg) Min. 1st Qu. Median Mean 3rd Qu. Max. NA's 0.00 8.00 15.00 16.62 20.00 70.00 132.00

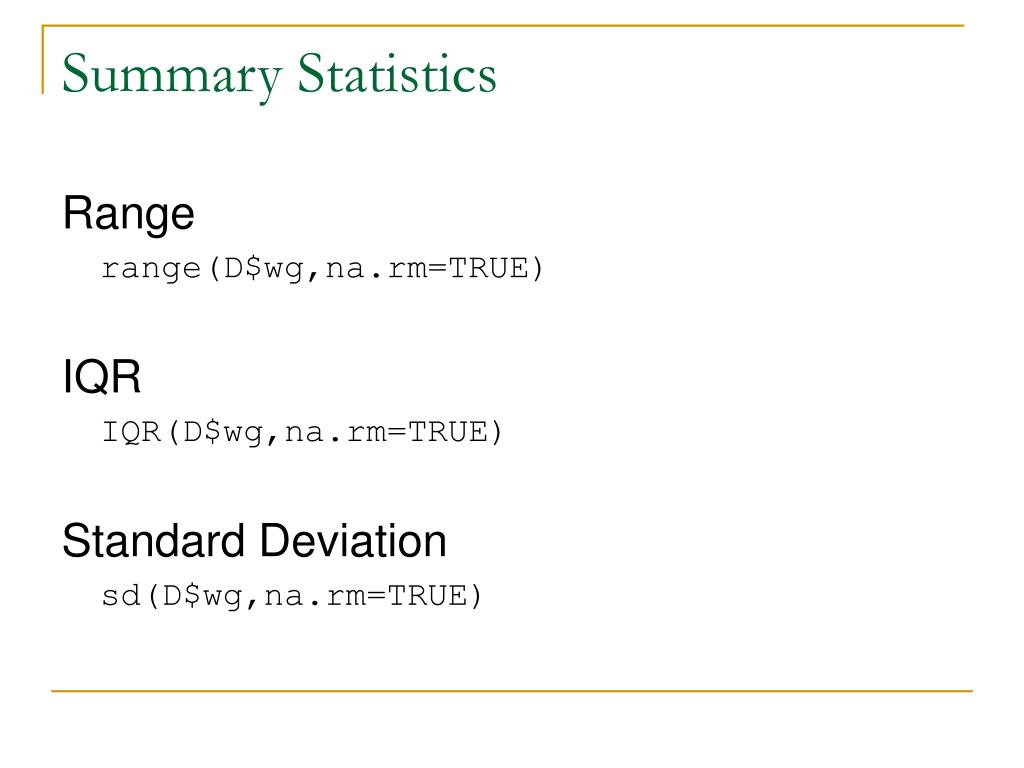

  14. Summary Statistics Range range(D$wg,na.rm=TRUE) IQR IQR(D$wg,na.rm=TRUE) Standard Deviation sd(D$wg,na.rm=TRUE)

  15. Basic Testing • One Sample T-Test t.test(D$wg, alternative="greater", mu=10, conf.level=0.95) • Output One Sample t-test data: D$wg t = 8.7429, df = 257, p-value < 2.2e-16 alternative hypothesis: true mean is greater than 10 95 percent confidence interval: 15.37016 Inf sample estimates: mean of x 16.62016

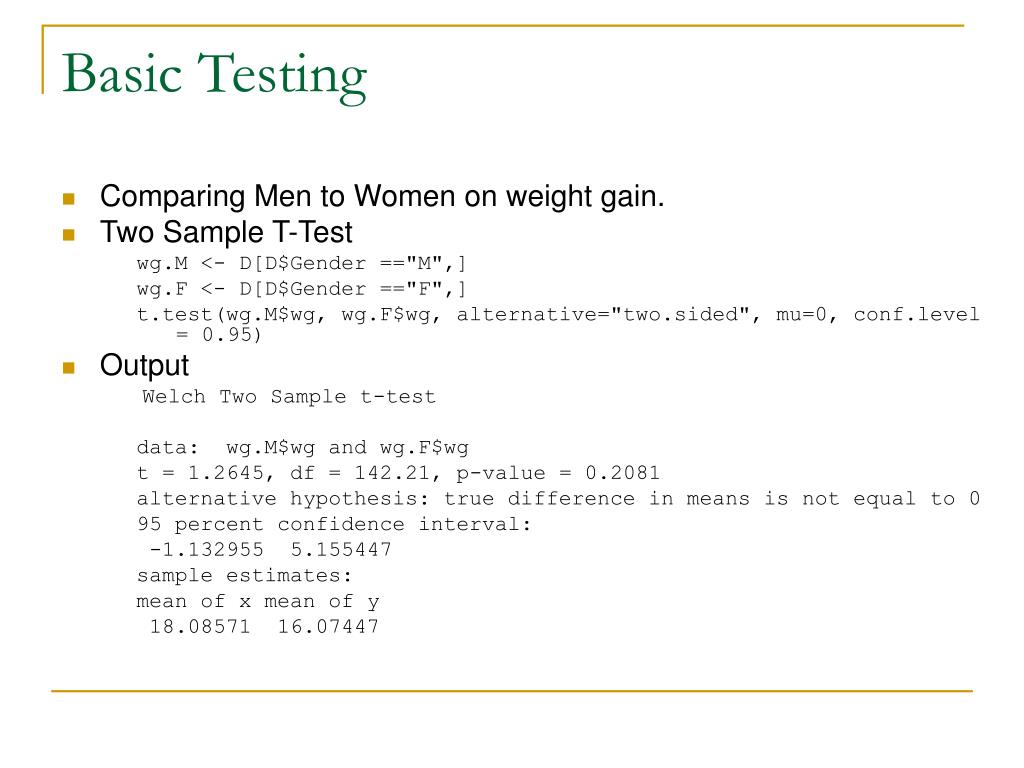

  16. Basic Testing • Comparing Men to Women on weight gain. • Two Sample T-Test wg.M <- D[D$Gender =="M",] wg.F <- D[D$Gender =="F",] t.test(wg.M$wg, wg.F$wg, alternative="two.sided", mu=0, conf.level = 0.95) • Output Welch Two Sample t-test data: wg.M$wg and wg.F$wg t = 1.2645, df = 142.21, p-value = 0.2081 alternative hypothesis: true difference in means is not equal to 0 95 percent confidence interval: -1.132955 5.155447 sample estimates: mean of x mean of y 18.08571 16.07447

  17. Basic Testing • Paired T-Test Pt <- read.csv("H:\\Pairedt.csv",header=TRUE) t.test(Pt$A,Pt$B, alternative="two.sided", mu=0, paired = TRUE, conf.level = 0.95) • Output Paired t-test data: Pt$A and Pt$B t = -0.1064, df = 9, p-value = 0.9176 alternative hypothesis: true difference in means is not equal to 0 95 percent confidence interval: -1.558007 1.418007 sample estimates: mean of the differences -0.07

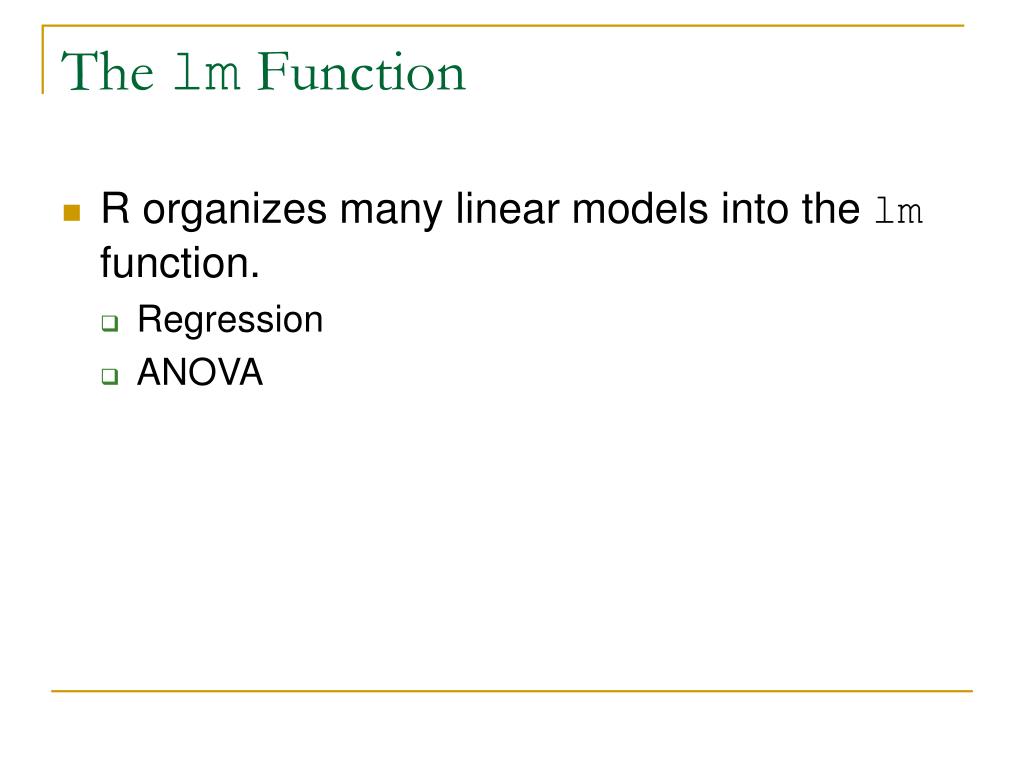

  18. The lm Function • R organizes many linear models into the lm function. • Regression • ANOVA

  19. Regression • Consider the following dataset. cherry <- read.csv("H:\\cherry.csv",header=TRUE) plot(cherry$Height,cherry$Volume)

  20. Regression • Fit a regression model to the data. lm(Volume ~ Height, data = cherry) • Output: Call: lm(formula = Volume ~ Height, data = cherry) Coefficients: (Intercept) Height -87.124 1.543

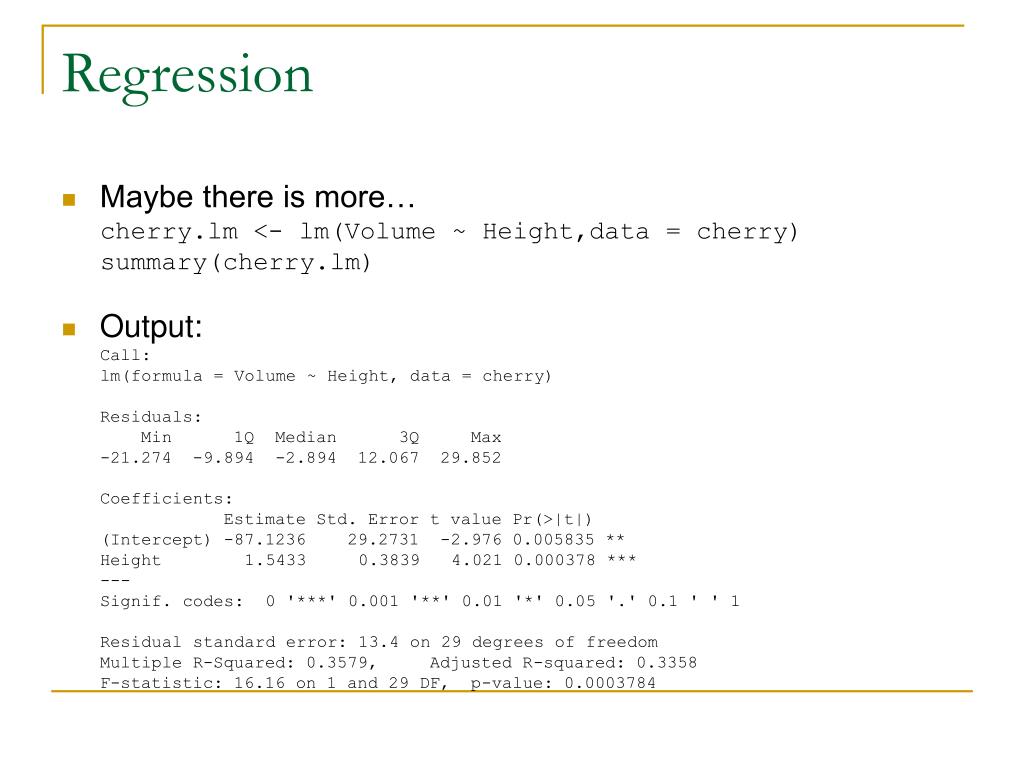

  21. Regression • Maybe there is more… cherry.lm <- lm(Volume ~ Height,data = cherry) summary(cherry.lm) • Output: Call: lm(formula = Volume ~ Height, data = cherry) Residuals: Min 1Q Median 3Q Max -21.274 -9.894 -2.894 12.067 29.852 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -87.1236 29.2731 -2.976 0.005835 ** Height 1.5433 0.3839 4.021 0.000378 *** --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 Residual standard error: 13.4 on 29 degrees of freedom Multiple R-Squared: 0.3579, Adjusted R-squared: 0.3358 F-statistic: 16.16 on 1 and 29 DF, p-value: 0.0003784

  22. Regression • And more… par(mfrow=c(2,2)) plot(cherry.lm)

  23. Regression • What all is there? names(cherry.lm) • Output [1] "coefficients" "residuals" "effects" "rank" [5] "fitted.values" "assign" "qr" "df.residual" [9] "xlevels" "call" "terms" "model"

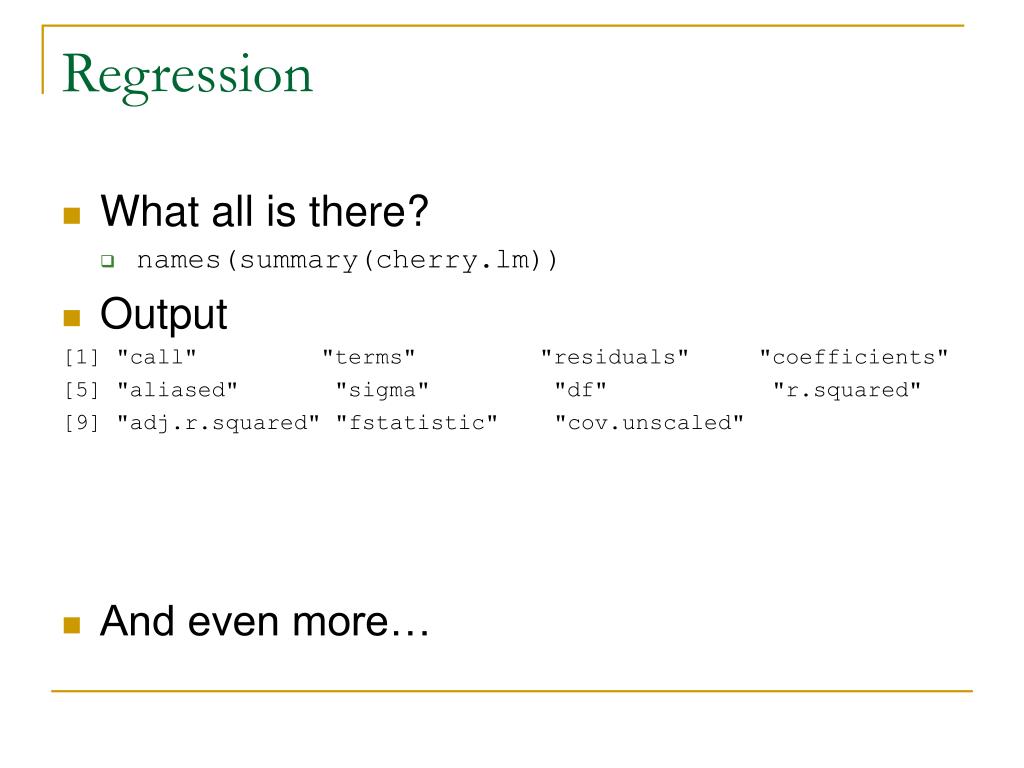

  24. Regression • What all is there? • names(summary(cherry.lm)) • Output [1] "call" "terms" "residuals" "coefficients" [5] "aliased" "sigma" "df" "r.squared" [9] "adj.r.squared" "fstatistic" "cov.unscaled" • And even more…

  25. Regression Plot the line par(mfrow=c(1,1)) plot(cherry$Height, cherry$Volume) abline(cherry.lm)

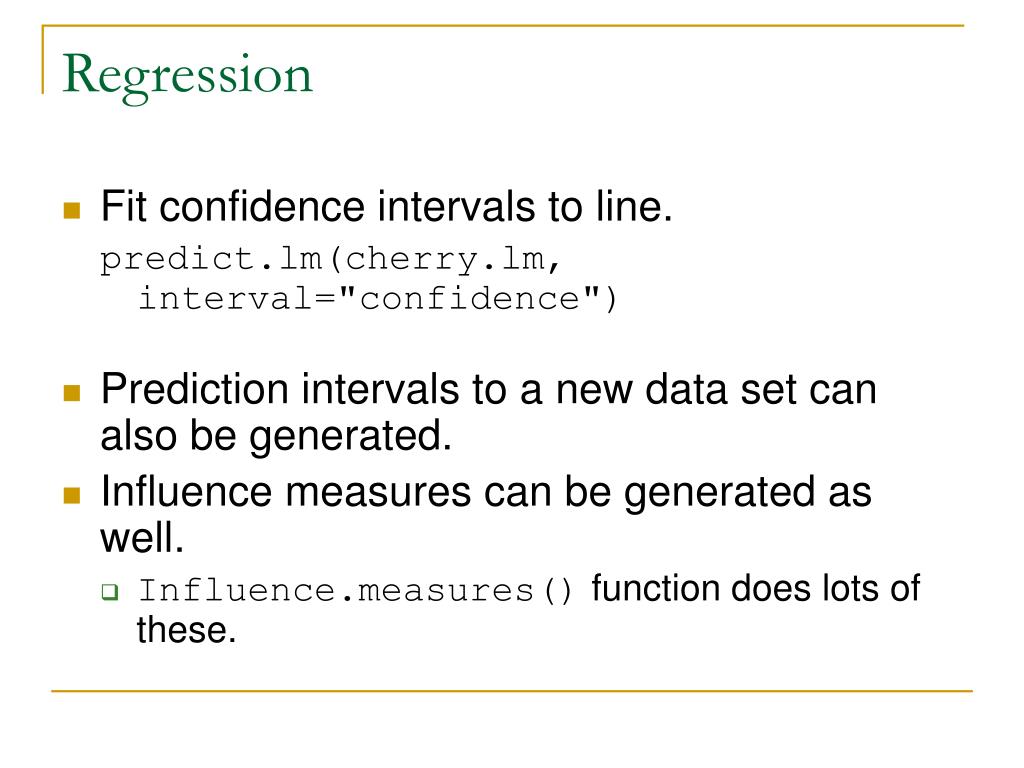

  26. Regression • Fit confidence intervals to line. predict.lm(cherry.lm, interval="confidence") • Prediction intervals to a new data set can also be generated. • Influence measures can be generated as well. • Influence.measures() function does lots of these.

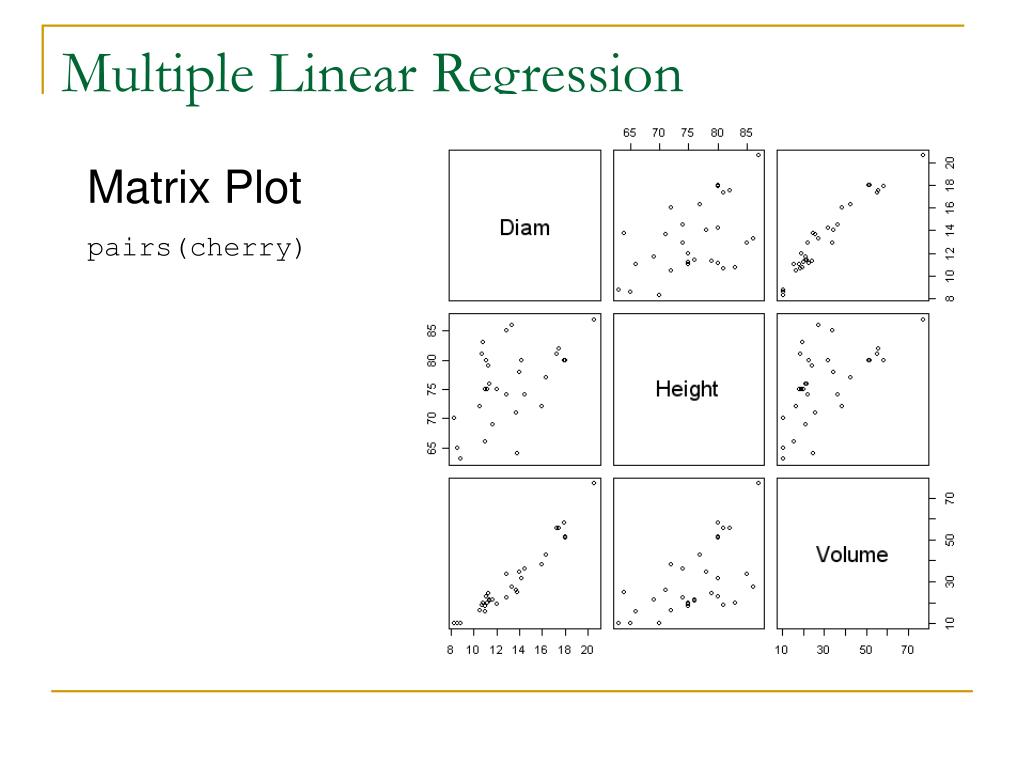

  27. Multiple Linear Regression Matrix Plot pairs(cherry)

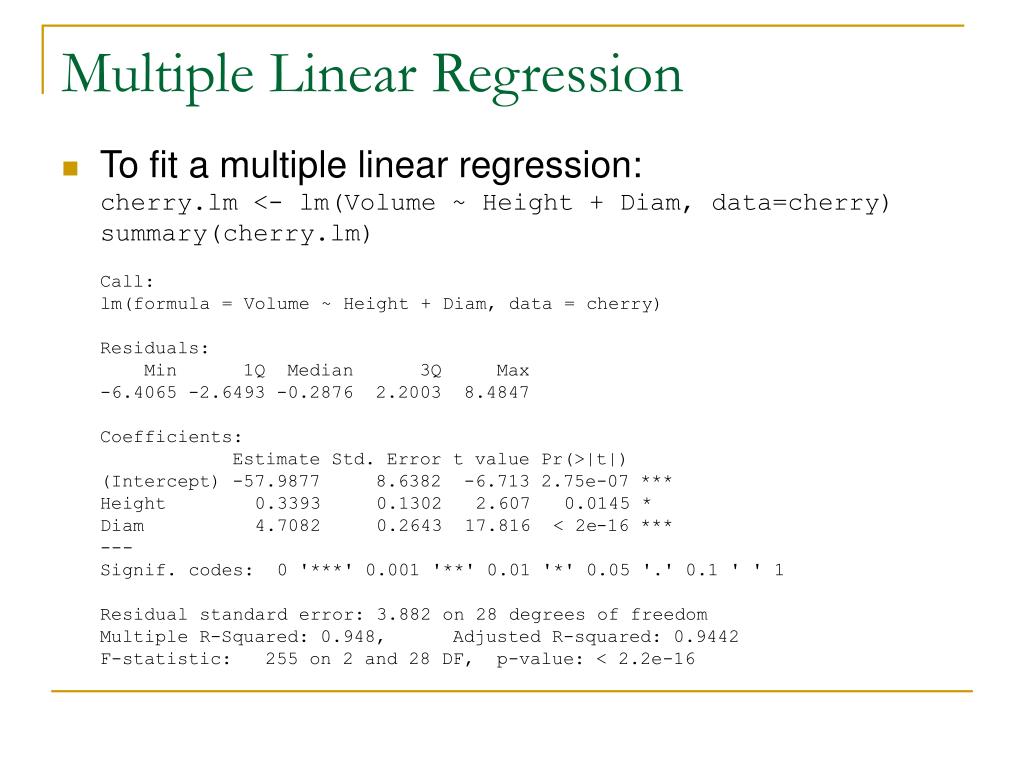

  28. Multiple Linear Regression • To fit a multiple linear regression: cherry.lm <- lm(Volume ~ Height + Diam, data=cherry) summary(cherry.lm) Call: lm(formula = Volume ~ Height + Diam, data = cherry) Residuals: Min 1Q Median 3Q Max -6.4065 -2.6493 -0.2876 2.2003 8.4847 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -57.9877 8.6382 -6.713 2.75e-07 *** Height 0.3393 0.1302 2.607 0.0145 * Diam 4.7082 0.2643 17.816 < 2e-16 *** --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 Residual standard error: 3.882 on 28 degrees of freedom Multiple R-Squared: 0.948, Adjusted R-squared: 0.9442 F-statistic: 255 on 2 and 28 DF, p-value: < 2.2e-16

  29. Regression • ANOVA anova(cherry.lm) Analysis of Variance Table Response: Volume Df Sum Sq Mean Sq F value Pr(>F) Height 1 2901.2 2901.2 192.53 4.503e-14 *** Diam 1 4783.0 4783.0 317.41 < 2.2e-16 *** Residuals 28 421.9 15.1 --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 What type of Sums of Squares are these?

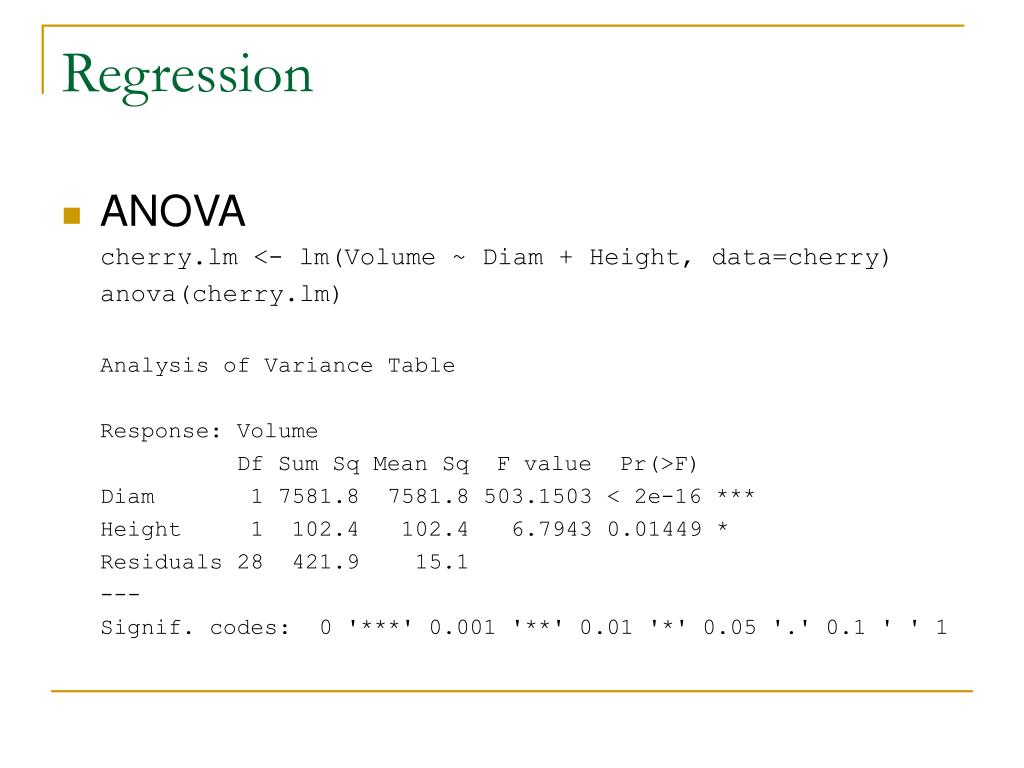

  30. Regression • ANOVA cherry.lm <- lm(Volume ~ Diam + Height, data=cherry) anova(cherry.lm) Analysis of Variance Table Response: Volume Df Sum Sq Mean Sq F value Pr(>F) Diam 1 7581.8 7581.8 503.1503 < 2e-16 *** Height 1 102.4 102.4 6.7943 0.01449 * Residuals 28 421.9 15.1 --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

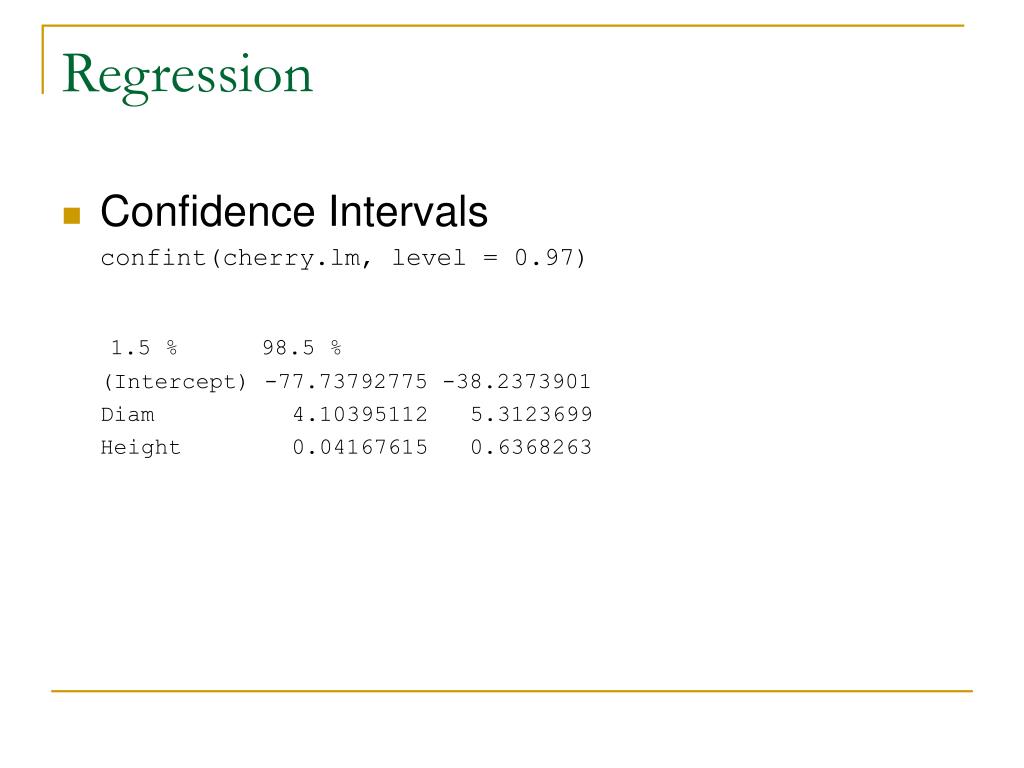

  31. Regression • Confidence Intervals confint(cherry.lm, level = 0.97) 1.5 % 98.5 % (Intercept) -77.73792775 -38.2373901 Diam 4.10395112 5.3123699 Height 0.04167615 0.6368263

  32. Model Search • AIC extractAIC(cherry.lm) [1] 3.00000 86.93578 The first value is the effective degrees of freedom and the second value is the AIC • Stepwise. step(cherry.lm) This is based on AIC however can be specified to use BIC. Default is AIC Can do forward, backward and stepwise selection. Default is stepwise.

  33. ANOVA • ANOVA do2 <- read.csv("H:\\do2.csv",header=TRUE) do2.aov <- aov(DO2 ~ Stream, data=do2) summary(do2.aov) • Output Df Sum Sq Mean Sq F value Pr(>F) Stream 2 37.056 18.528 4.5595 0.01898 * Residuals 29 117.844 4.064 --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

  34. ANOVA • You can also use the lm framework do2.lm <- lm(DO2 ~ Stream, data=do2) anova(do2.lm) • Output Analysis of Variance Table Response: DO2 Df Sum Sq Mean Sq F value Pr(>F) Stream 2 37.056 18.528 4.5595 0.01898 * Residuals 29 117.844 4.064 --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

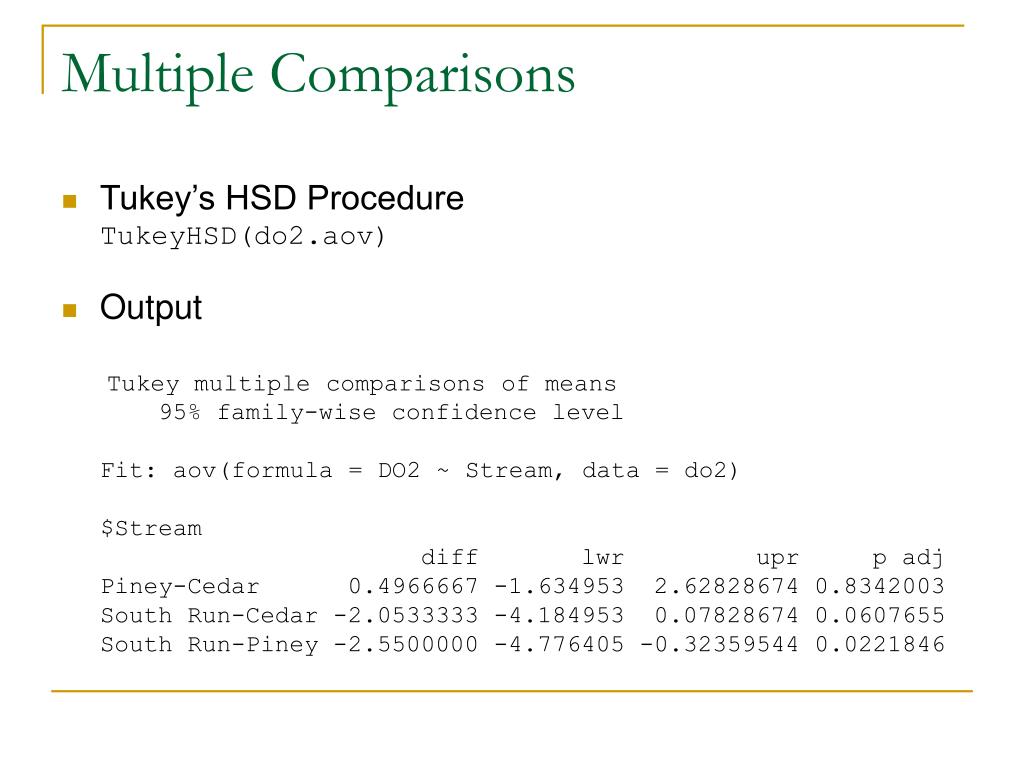

  35. Multiple Comparisons • Tukey’s HSD Procedure TukeyHSD(do2.aov) • Output Tukey multiple comparisons of means 95% family-wise confidence level Fit: aov(formula = DO2 ~ Stream, data = do2) $Stream diff lwr upr p adj Piney-Cedar 0.4966667 -1.634953 2.62828674 0.8342003 South Run-Cedar -2.0533333 -4.184953 0.07828674 0.0607655 South Run-Piney -2.5500000 -4.776405 -0.32359544 0.0221846

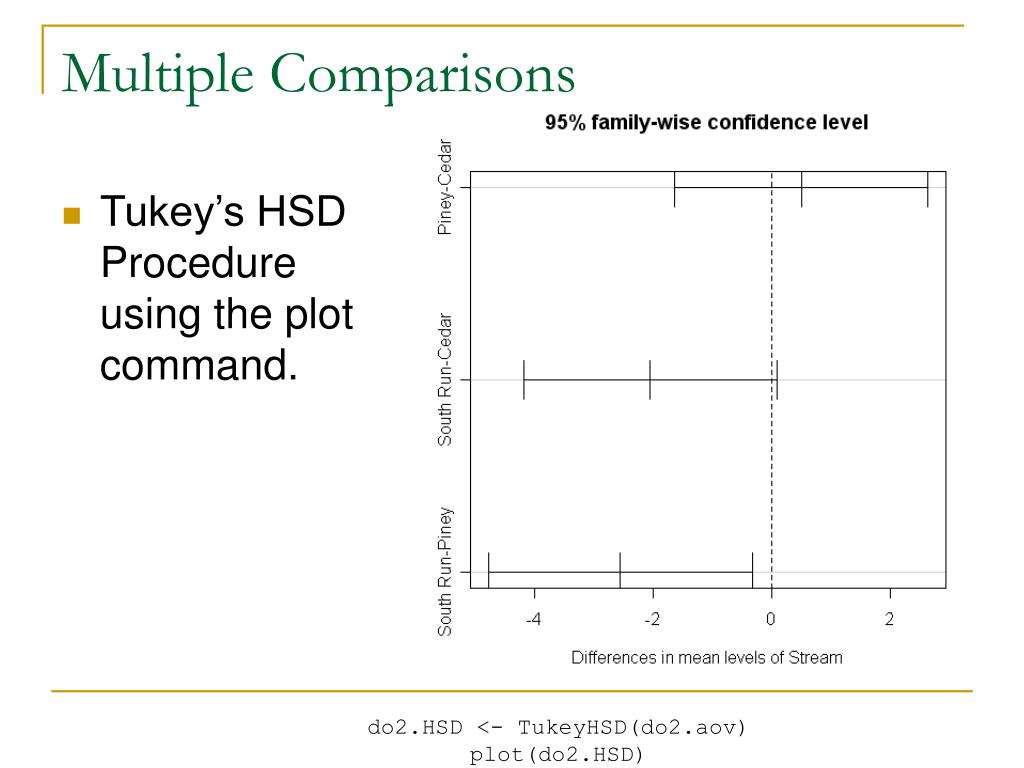

  36. Multiple Comparisons • Tukey’s HSD Procedure using the plot command. • do2.HSD <- TukeyHSD(do2.aov) • plot(do2.HSD)

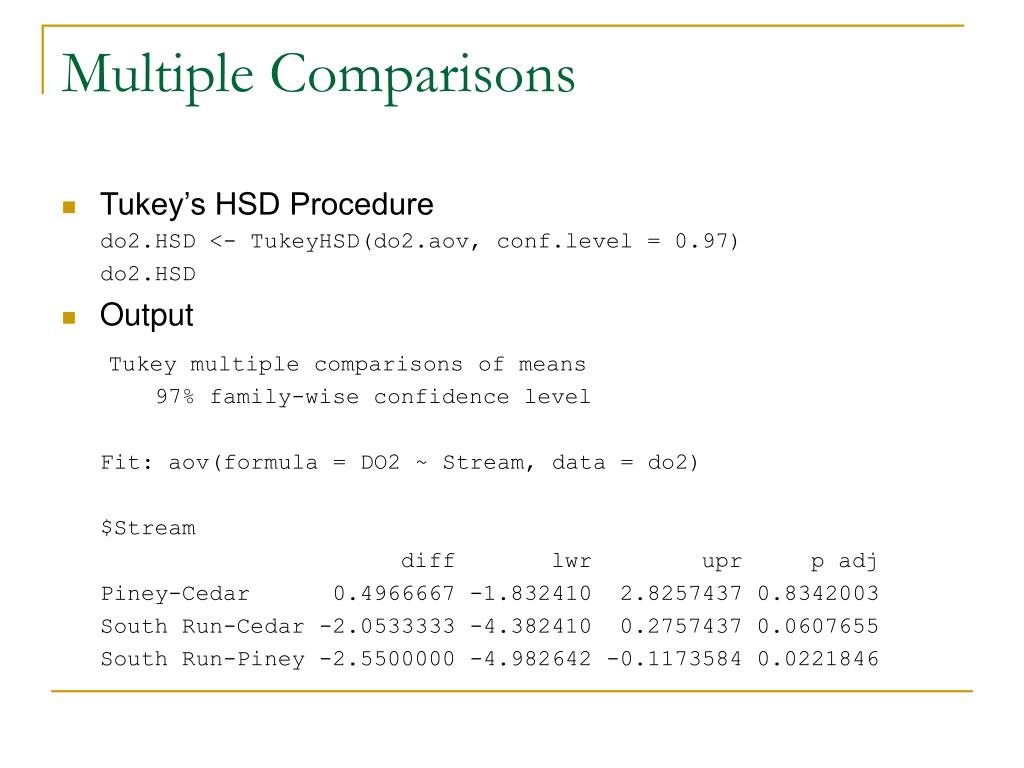

  37. Multiple Comparisons • Tukey’s HSD Procedure do2.HSD <- TukeyHSD(do2.aov, conf.level = 0.97) do2.HSD • Output Tukey multiple comparisons of means 97% family-wise confidence level Fit: aov(formula = DO2 ~ Stream, data = do2) $Stream diff lwr upr p adj Piney-Cedar 0.4966667 -1.832410 2.8257437 0.8342003 South Run-Cedar -2.0533333 -4.382410 0.2757437 0.0607655 South Run-Piney -2.5500000 -4.982642 -0.1173584 0.0221846

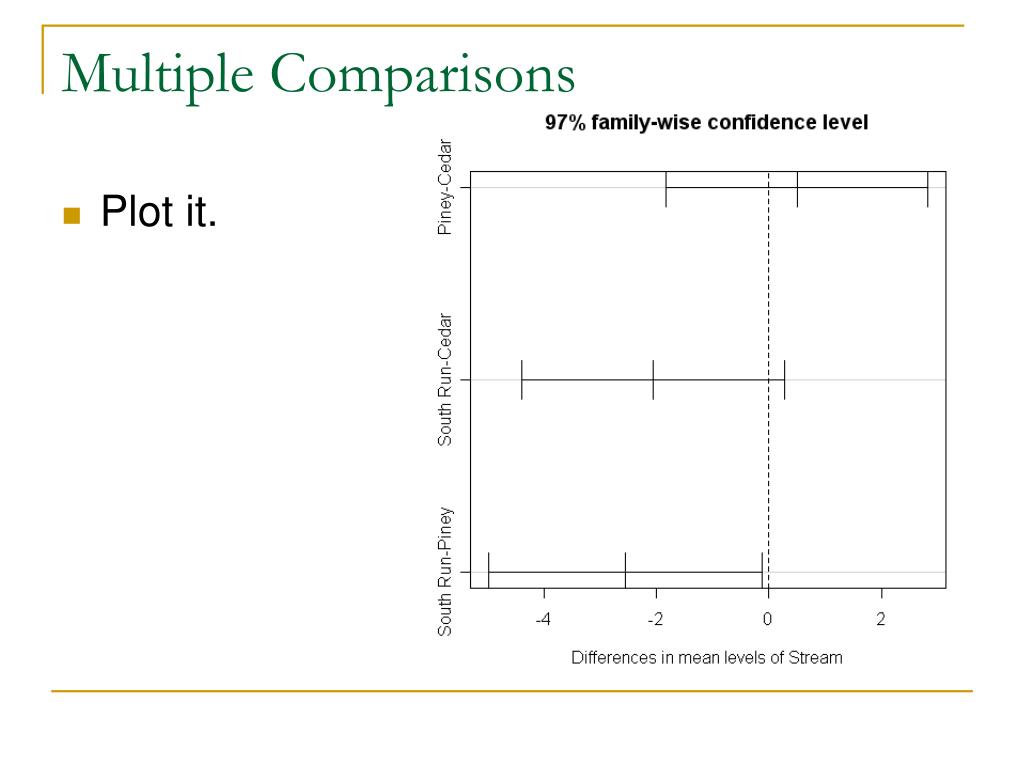

  38. Multiple Comparisons • Plot it.

  39. Kruskal Wallis Test • Tukey’s HSD Procedure kruskal.test(DO2 ~ Stream, data=do2) • Output Kruskal-Wallis rank sum test data: DO2 by Stream Kruskal-Wallis chi-squared = 7.5097, df = 2, p-value = 0.02340

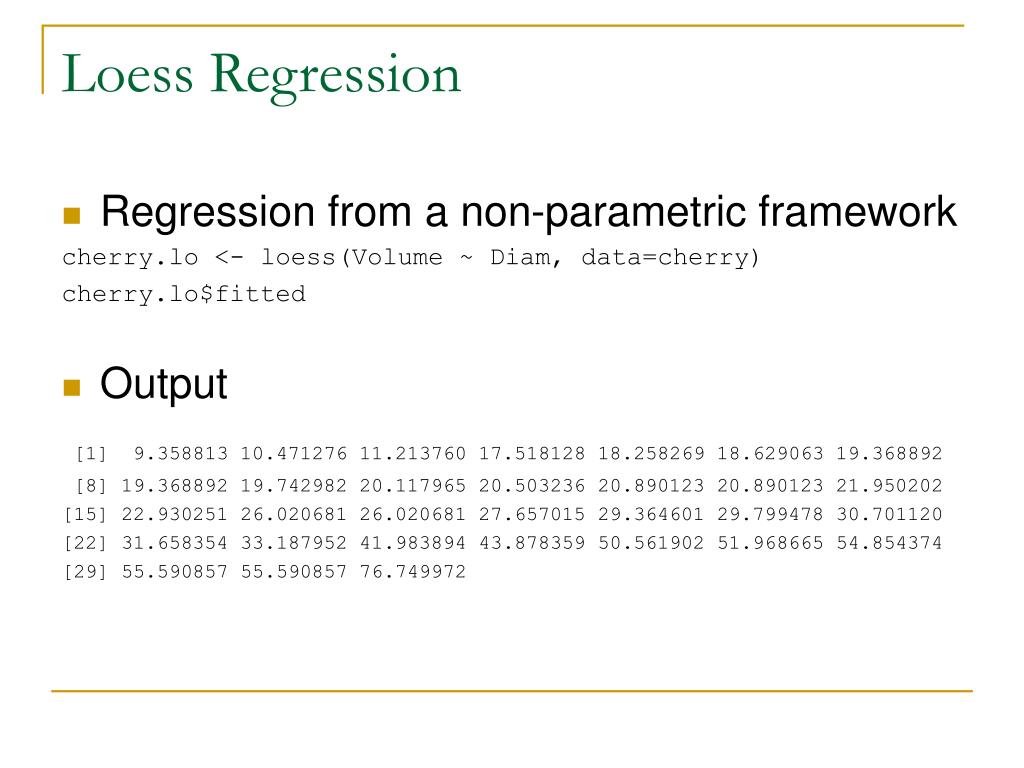

  40. Loess Regression • Regression from a non-parametric framework cherry.lo <- loess(Volume ~ Diam, data=cherry) cherry.lo$fitted • Output [1] 9.358813 10.471276 11.213760 17.518128 18.258269 18.629063 19.368892 [8] 19.368892 19.742982 20.117965 20.503236 20.890123 20.890123 21.950202 [15] 22.930251 26.020681 26.020681 27.657015 29.364601 29.799478 30.701120 [22] 31.658354 33.187952 41.983894 43.878359 50.561902 51.968665 54.854374 [29] 55.590857 55.590857 76.749972

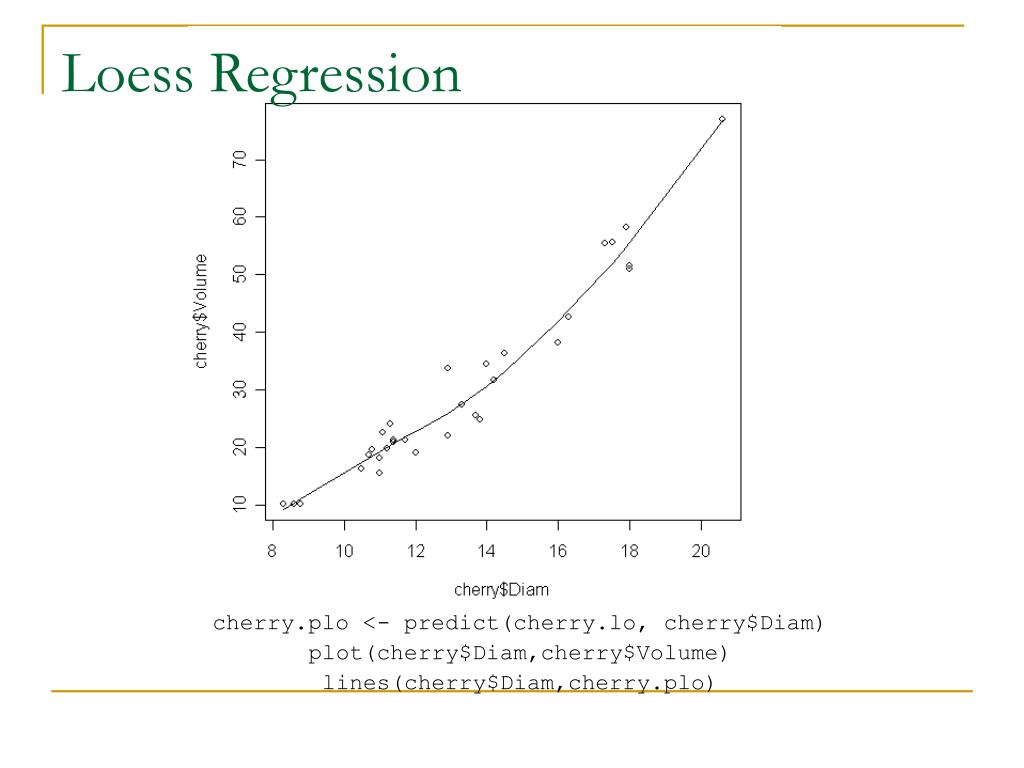

  41. Loess Regression cherry.plo <- predict(cherry.lo, cherry$Diam) plot(cherry$Diam,cherry$Volume) lines(cherry$Diam,cherry.plo)

  42. Summary • R is programming environment with many standard statistical procedures already included. • Easy to control the procedure you are interested in. • No support. • Allows user to modify many existing procedures.

  43. Summary • All of the R code and files can be found at: www.people.vcu.edu/~elboone2/CSS.htm
