  1. Advanced Tools

  2. Summary of Topics • Latest and Greatest Receivers • Mobile Mapping • Advanced DNRGarmin

  3. Casio GPS Watch Latest GPS Technology Thales Mobile Mapper Trimble Geo CE XT and XM Garmin 60Cx & 60CSx CSI DGPS Max and MiniMax

  4. Garmin’s NavTalk GSM Wireless Phone Latest Communication Technology Garmin Rino FRS / GRSM Radio and GPS Reciever

  5. Latest Communication Technology CSI GT300 GPS Enabled Digital Cell Telephone Racal Project 25 Voice / Data Radio

  6. Summary of Topics • Latest and Greatest Receivers • Mobile Mapping • Advanced DNR Garmin

  7. Data Collection Softwares • Trimble TerraSync • ESRI ArcPad • Fieldworker • TDS Solo CE • Various PalmPilot Softwares

  8. TerraSync ERSI’s ArcPAD Latest Mapping Technology

  9. Why Digital Mapping? • Interchange background maps • Real-time data validation • Quick identification of GPS user blunders • Efficient in-field development of GIS ready spatial data and databases.

  10. ArcPad & GPS The Real-World “Digitizer”

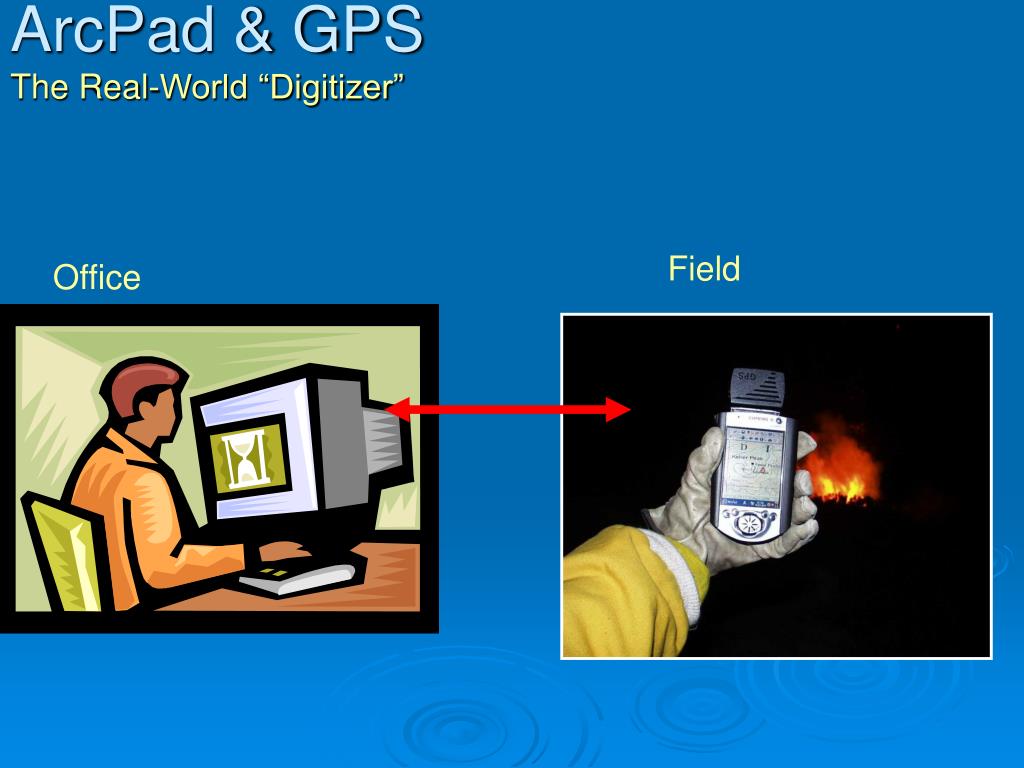

  11. ArcPad & GPS The Real-World “Digitizer” Field Office

  12. Common Mobile Mapping System SetupGPS Receiver + Field Computer + ArcPad = Digital Mapping Capability

  13. Handheld ComputersAll Shapes and Sizes Points to Consider: • After one or two long traverses, size and weight do matter. • Ruggedness? increase cost by 2x • Monochrome vs. Color Screens • Keyboard Needed? • Indoor or Outdoor Screens? • Software and CPU chip compatibility? • Is display of multiple vector files and image backgrounds? • Quick on & off?

  14. GPS Handheld ComputersDisplay + Computer + GPS Receiver

  15. Some of the Many Uses • Safety-of-Life operations – Search-and Rescue, Fire, Homeland Security, Transportation, etc. • Law Enforcement • Natural and Cultural Resource data collection andmonitoring • Facilities management • Navigation for these and many other activities

  16. Windows CE based • Palm Size • Tablet Mobile GIS / GPS Are you there yet? • Mobile Mapping

  17. Mobile GIS / GPS • Questions to Ask.. • Does viewing Raster data on a 3” screen make your job easier • Is your GIS shop ready • High Res. Raster • Cabling Systems • Power

  18. ArcPad Tool: Fire Mapping Applet - designed for fire fighters- standard symbols- shortcuts

  19. Summary of Topics • Latest and Greatest Receivers • Mobile Mapping • Advanced DNR Garmin

  20. DNRGarmin - Other FeaturesCalculate CEP

  21. DNR Garmin - OtherFeaturesImage Hotlinking

  22. DNR Garmin in ArcMap

  23. DNR Garmin in ArcMap DNR Garmin has ArcMap functions when ArcMap is open – no need for an extension…

  24. DNR Garmin in ArcMap ArcMap Map Document Open Save To… ArcMap… • Shapefile • Geodatabase • Graphic DNR Garmin Application Open

  25. DNR Garmin in ArcMap Shapefile Automatically Added to ArcMap Project!

  26. DNR Garmin in ArcMap Reverse! Send files to GPS Receiver Load From… ArcMap… • Layer • Graphic

  27. Summary of Topics • Latest and Greatest Receivers • Mobile Mapping • Advanced DNRGarmin

  28. Movie: The Role of GPS/GIS Technology in Fire Fighting
