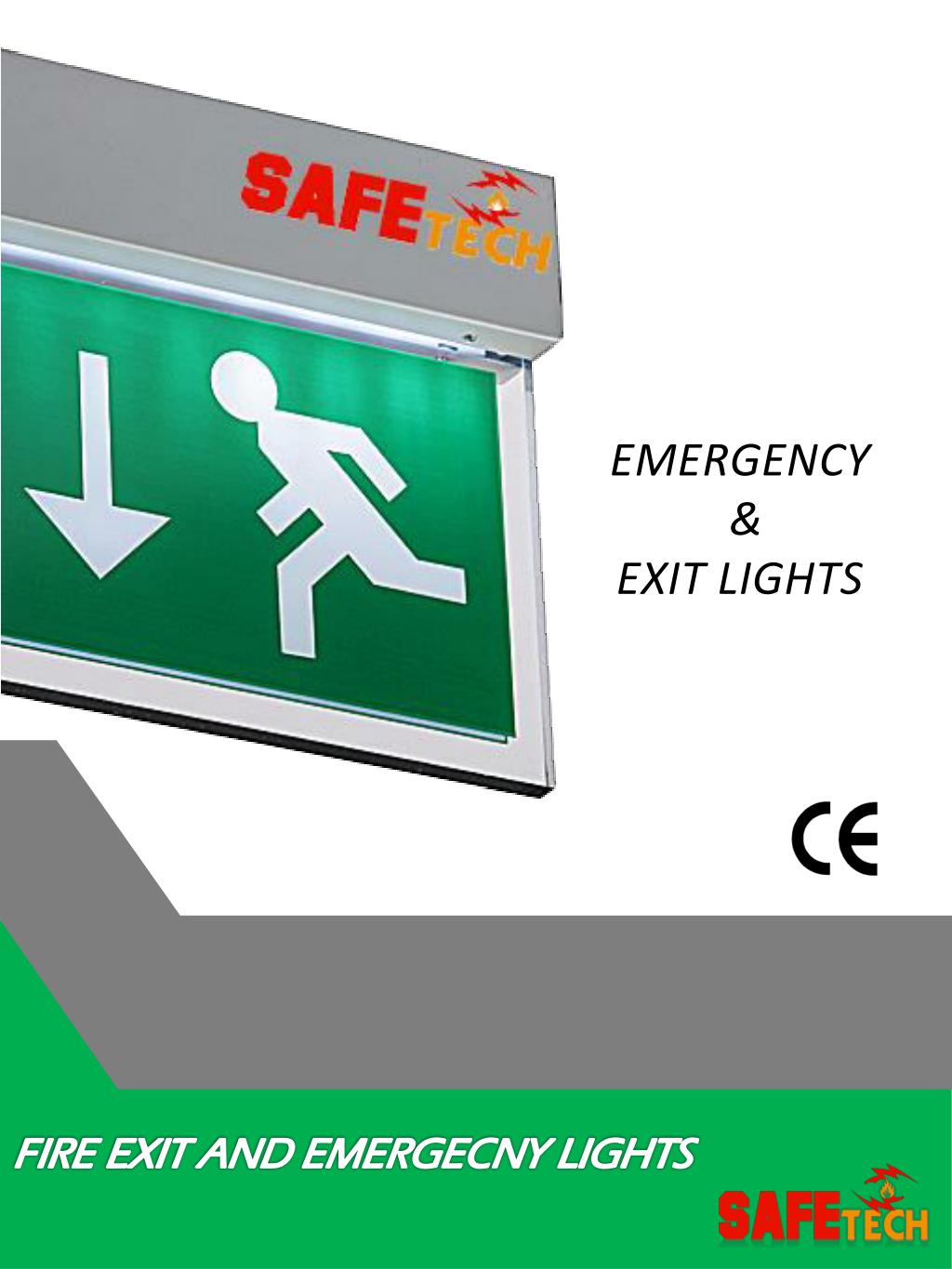

1. EMERGENCY & EXIT LIGHTS QUALITY EXIT & EMERGENCY LIGHT FIRE EXIT AND EMERGECNY LIGHTS

2. Aziz Manufacturing Advanced Technology Products Aziz was established in 2008 as a subsidiary of a Aziz Group of Companies. Since its start of operations, Aziz has set the standards in developing the Advanced Technology Products in Qatar. Aziz have achieved a supreme degree of technical competence, to meet most demanding market requirements and to serve a wider area. As an effective response to the modern market challenge, Aziz has developed state of the art facilities to include R & D, engineering and computer controlled machinery. Aziz adopts all international type tests.

3. CONTENTS EMERGENCY LUMINAIRES Self Contained, Mains, Slave EXIT LUMINAIRES Self Contained, Mains, Slave CENTRAL BATTERY SYSTEM General System Description

4. EMERGENCY LUMINAIRES Self Contained, Mains, Slave - 100 A SERIES Compact for interior use, IP20 rated. Hinged gear tray and rear entry, designed for easy installation. Clear polycarbonate clip and white polycarbonate base. Dimensions: Length 350mm x Width 108mm x Depth 80mm Options: Economy version , High Output Version , White Finished Semi-recess Trim , Silver Grey Finished RAL 9006 Semi-recess Trim , Self-adhesive exit legend kit EMERGENCY LUMINAIRES Self Contained, Mains, Slave - 100 B SERIES Robust polycarbonate bulkhead sealed to IP65 with hinged gear tray and techno-linear lens for improved performance. Clear diffuser with white base. Options: Economy version High Output Version White Finished Semi-recess Trim Silver Grey Finished RAL 9006 Semi-recess Trim Self-adhesive exit legend kit Dimensions: Length 350mm x Width 108mm x Depth 80mm

5. EMERGENCY LUMINAIRES Self Contained, Mains, Slave - 100 C SERIES High quality luminaire for interior use with sheet steel base and prismatic polycarbonate diffuser. With options for an alternative opal or freznel diffuser. Dimensions: Length 370mm x Width 150mm x Depth 100mm Options: High Output Version , White Recessing Flange ‘ Silver RAL 9006 Recessing Flange; Self-adhesive exit legend kit EMERGENCY LUMINAIRES Self Contained, Mains, Slave - 100 D SERIES Fully recessed emergency luminaire with prismatic polycarbonate diffuser and white steel construction. For opal diffuser suffix /O. Dimensions: Length 410mm x Width 155mm x Depth 90mm Cut-out Size: 325mm x 130mm Edge-Lit Legend Size (Below Ceiling): Length 300mm x Width 160mm x Depth 8mm Options: High Output Version , Brass Finish Fascia ; Chrome Finish Fascia Self-adhesive exit legend kit

6. EMERGENCY LUMINAIRES Self Contained, Mains, Slave - 100 C SERIES • Materialspolycarbonate body and diffuserSpecifications• 2.4V 4.5Ah Ni-Cd batteries• Fluorescent lamp T5 8W• Protection level IP30• Emergency operation time 3 hours• Supplied including lamp• DC or AC/DC operated Dimensions: Length 352mm x Width 117mm x Depth 76mm EMERGENCY LUMINAIRES Self Contained, Mains, Slave - 100 C SERIES Emergency light(Ceiling light) Power supply: AC 220V, 50HZ(2W LED)Emergency time：≥90 minutes Switching time: <0.25SRecharging time: <24 hoursBattery type:0.4AH/4.8V Ni-Cd batteryMaterials:Cold rolled steel sheet, plastic shade Dimensions: 285mm x 105 320mm x 105

7. EMERGENCY LUMINAIRES Self Contained, Mains, Slave - 100 E SERIES Non-maintained emergency light grey floodlighting units for industrial applications. Supplied with 5 year life maintenance-free sealed lead acid batteries. tungsten halogen lamps are used in the 20 and 55 watt versions. Dimensions: Length 315mm x Height 310mm x Depth 110mm IP65 Version: Length 380mm x Height 370mm x Depth 310mm Fluorescent Version: Length 315mm x Height 420mm x Depth 110mm Options: Weatherproof Enclosure , Self Testing Luminaire EMERGENCY LUMINAIRES Self Contained, Mains, Slave - 100 F SERIES Emergency Light:Wall mounted Power supply: AC 220V, 50HZ(2W LED)Emergency time：≥90 minutes Switching time: <0.25SRecharging time: <24 hoursBattery type:0.4AH/4.8V Ni-Cd batteryMaterials:Cold rolled steel sheet Dimensions: Length 224mm x Width 140mm x Depth 34mm

8. EXIT LUMINAIRES Self Contained, Mains, Slave 200 A SERIES Stylish edge-lit exit sign in single and double-sided formats. Supplied with chain and mounting baton and choice of standard easy fit legend panel. Available in brass standard. With options for an alternative chrome or white finish. Dimensions: Length 445mm x Width 90mm x Depth 340mm Recessed Version Cut-Out: 420mm x 130mm 200A3: Length 335mm x Width 90mm x Depth 280mm Options: Recessed Trim (235mm Depth) , Chrome Finish , White Finish , Self Testing EXIT LUMINAIRES Self Contained, Mains, Slave 200 A SERIES white metal exit sign, complete with threshold down light panel and a choice of standard legends. Dimensions: Length 385mm x Width 200mm x Depth 95mm (Low Profile 65mm) IP 65Version : 445mm x 225mm x Depth 95mm Options: Single sided signs , Black Finish , Brass Finish , Chrome Finish , Self Testing Luminaire , Push to Test Switch

9. CENTRAL BATTERY SYSTEM General System Description Central systems have advantages over self-contained emergency luminaires as follows; • Mains luminaires can be used in place of conventional emergency luminaires allowing higher light levels to be obtained. • The central system and battery cubicles, being centrally located, make maintenance, control and monitoring easier. • With a wide range of battery types and sizes the design life of the battery and duration of discharge can be specifically designed around the parameters of the individual application. • The luminaires being mounted remotely from their power source can be placed in environments where a battery may not be capable of correct operation due to extreme heat or cold. In general terms the range can be described as follows, - Low Power AC/DC Systems 12 and 24V employing 6Ah to 65Ah5-year design life batteries (BS 6745). Non Maintained & Maintained outputs 1, 2 or 3 hours duration. - Medium/High Power AC/DC Systems 24, 50 and 110V DC output, employing 30Ah to 150Ah 10 or 25 year design life batteries, Non Maintained & Maintained outputs 1, 2 or 3 hours duration.

10. CENTRAL BATTERY SYSTEM Modes of Operation Maintained Systems (M) A maintained system provides an output to the load at all times. When the mains are healthy via a step down isolating Transformer which is usually AC. When the mains fail the battery is connected to the load via a changeover device. The output can be AC (if an inverter is included in the system) or DC. Control of the primary circuit allows for switching of the load when not required e.g. when the building is unoccupied. This can be done automatically with timers, conventional switching arrangements or solar dial. In the event of a mains failure and regardless of the state of the primary circuit the maintained output will function and connect to the load terminals. The maintained circuit is normally used in conjunction with local sub-circuit monitors. Non-maintained Systems (NM) A non-maintained system is not normally energized until failure of the permanent or monitored mains supply, whereupon the battery is directly connected to the load via a changeover device. The output can be either AC (if an inverter is included in the system) or DC. When the mains are restored the changeover device disconnects the load from the battery, which is then recharged from the mains supply. Central System Design Considerations The overall objective is to provide emergency escape lighting and/or open area lighting in the event of a local or major mains failure. BS5266 recommends that emergency lighting be zoned into sub circuits, and each subcircuit may be associated with a specific distribution board or building feature e.g. a stairwell. It is important that local mains failures are detected, so that an area or zone will always have a lighting supply. In the event of a local mains failure with the system maintained, the load will be supplied via the maintaining transformer, where the battery is not employed unless the central system senses fails its local mains supply. This is important because it preserves the full rated capacity of the system for the maximum period of time or until a major power failure occurs. Battery Type 10 Year Life SLA Nickel Cadmium Alkaline Flat Plate Lead Acid

11. THINK SAFETY - THINK AZIZ AZIZ MANUFACTURING ADVANCE TECHNOLOGY PRODUCTS P.O. BOX 30291 Industrial Area-Small & Medium Industries, Area-Plot 6018, DOHA QATAR TEL. NO.: 00974-44634811/44634820 FAX NO.: 00974-44631884 EMAIL ADD: aziz@aziz.com.qa . info@azizfactory.com WEBSITE: www.azizfactory.com
