  1. Motors Physics 102 Professor Lee Carkner Lecture 21

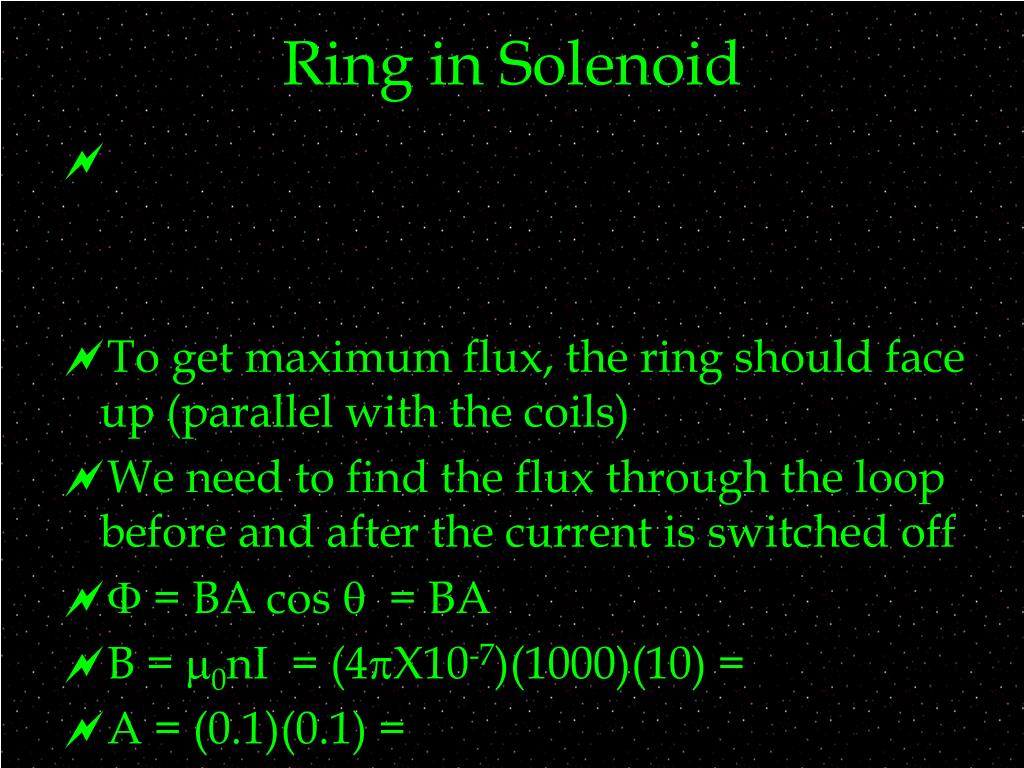

  2. Ring in Solenoid • To get maximum flux, the ring should face up (parallel with the coils) • We need to find the flux through the loop before and after the current is switched off • F = BA cos q = BA • B = m0nI = (4pX10-7)(1000)(10) = • A = (0.1)(0.1) =

  3. Current in Ring • F = BA = (0.0126)(0.01) = • In 1 second the flux goes to 0 • DF = (1.26 X 10-4) - (0) = 1.26 X 10-4 • Dt = 1 • e = -N(DF/Dt) = (1)(1.26 X 10-4) = • DV = IR or I = e/R = 1.26 X 10-4/10 • I =

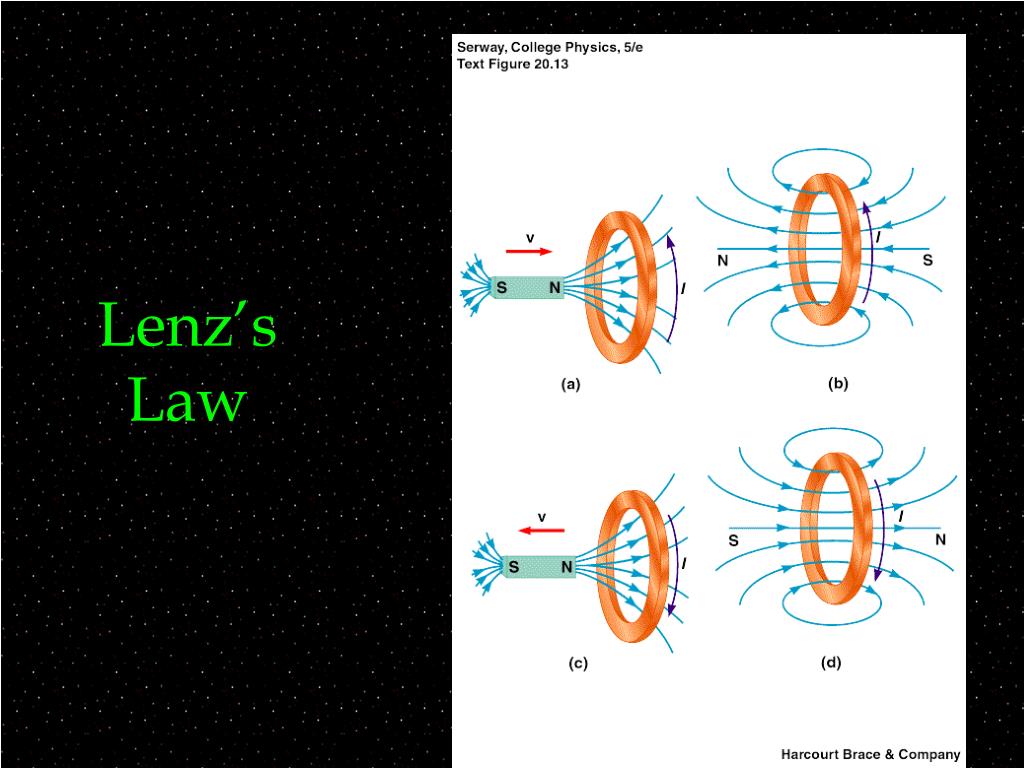

  4. Lenz’s Law

  5. Direction of Current (PAL) • If the solenoid has clockwise current what is direction of induced current? • The flux goes from down to zero • Ring tries to counteract change and get original flux back

  6. Motional emf • Instead of changing the magnetic field, what if we change the loop? • called motional emf • How does motion in a field translate to voltage?

  7. Induced Potential • Suppose we have a straight wire moving in a magnetic field • We can relate the deflection force to the electric force • qE = qvB or E = vB • Since DV = Ed, if L is the length of the wire: • Potential induced in a wire of length L moving at velocity v through a magnetic field B

  8. The area of the loop increases by LDx in time Dt DF/Dt = (BLDx)/Dt e = N(DF/Dt) = BLv Motional emf - Derived X B field into page v L x Dx in time Dt

  9. Motional emf -- Direction • If the area decreases, the flux decreases and thus the induced B field is in the same direction as the original

  10. Generators • What is the best way to use inductance to produce current? • This changing flux produces an emf in the loop • Falling water, rising steam etc. • Generator converts work into emf

  11. Alternating Current • Which way does the current flow? • Thus the current flows in one direction and then the other • e.g. household current is at 60 Hz, or 60 cycles per second • This is called alternating current

  12. emf From a Generator • Consider a loop of wire rotating in a magnetic field with angular speedw • From Faraday’s Law: • The flux is equal to BA cos q • The change of F with time is thus BAw sin wt, so the emf is: e = NBAw sin wt

  13. Frequency • How does the emf vary? • As the loop makes one complete rotation (w goes from 0 to 2p radians) the emf goes from 0, to maximum +, to maximum -, and back to zero again • 1 turn per second (f=1) means 2p radians per second (w=2p) emax

  14. Today’s PAL • Consider a generator that consists of a single 1 meter by 1 meter loop of wire with a resistance of 15 W in a magnetic field of 2 T • How many times per second must you rotate the loop to produce a maximum current of 12 amps?

  15. Power Generation • Produced (in general) in two ways: • Chemical reactions separate charges so that one terminal is + and one is - • A changing magnetic field separates charges

  16. An Alternating Current Generator

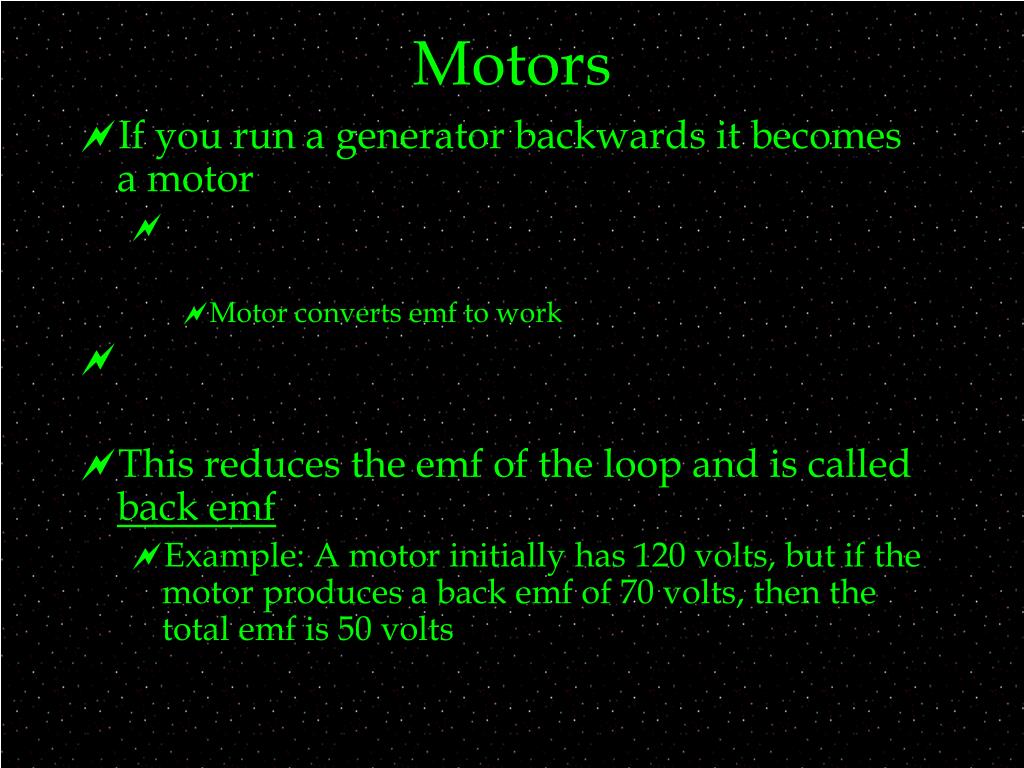

  17. Motors • If you run a generator backwards it becomes a motor • Motor converts emf to work • This reduces the emf of the loop and is called back emf • Example: A motor initially has 120 volts, but if the motor produces a back emf of 70 volts, then the total emf is 50 volts

  18. Force on Eddy Curents

  19. Eddy Currents • As the field through the loop drops, it induces a field in the same direction • If the object is not a loop, circular currents can still be induced which have the same effect • Net effect: • Metal objects moving through a magnetic field will be slowed

  20. Next Time • Read 21.7, 21.9-21.11 • Homework: Ch 21, P 14, 23, 30, 39
