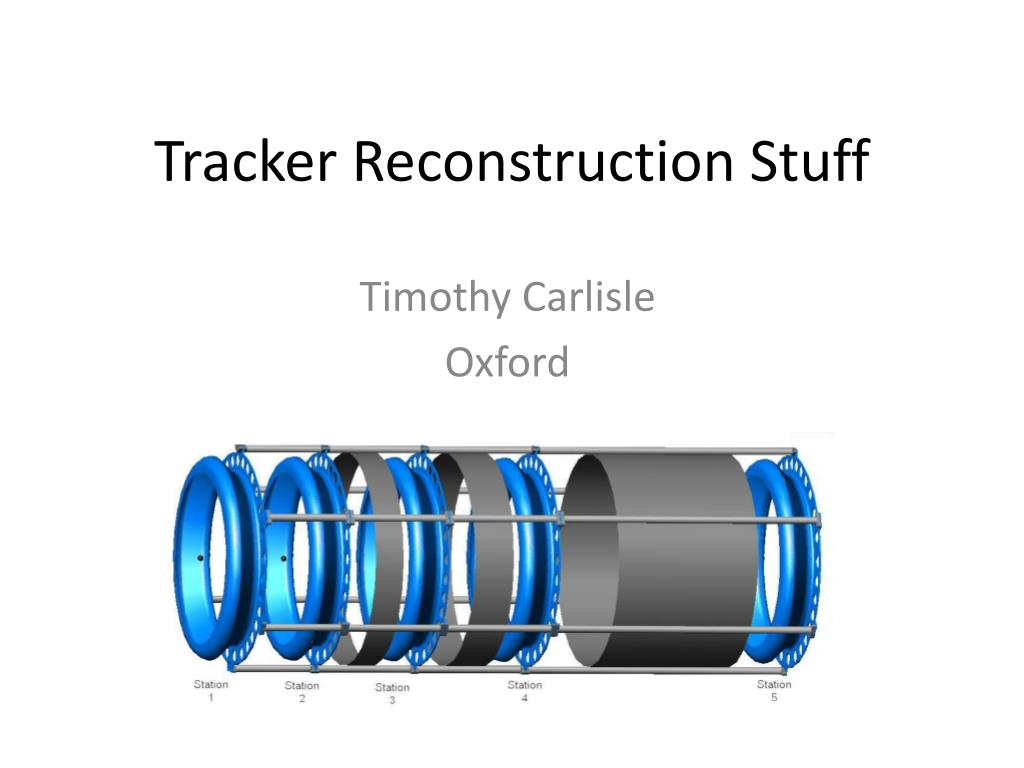

  1. Tracker Reconstruction Stuff Timothy Carlisle Oxford

  2. Track Finding... Upstream Tracker Downstream Tracker 10,000 muons 6mm beam Two Trackers, no material Step IV fields

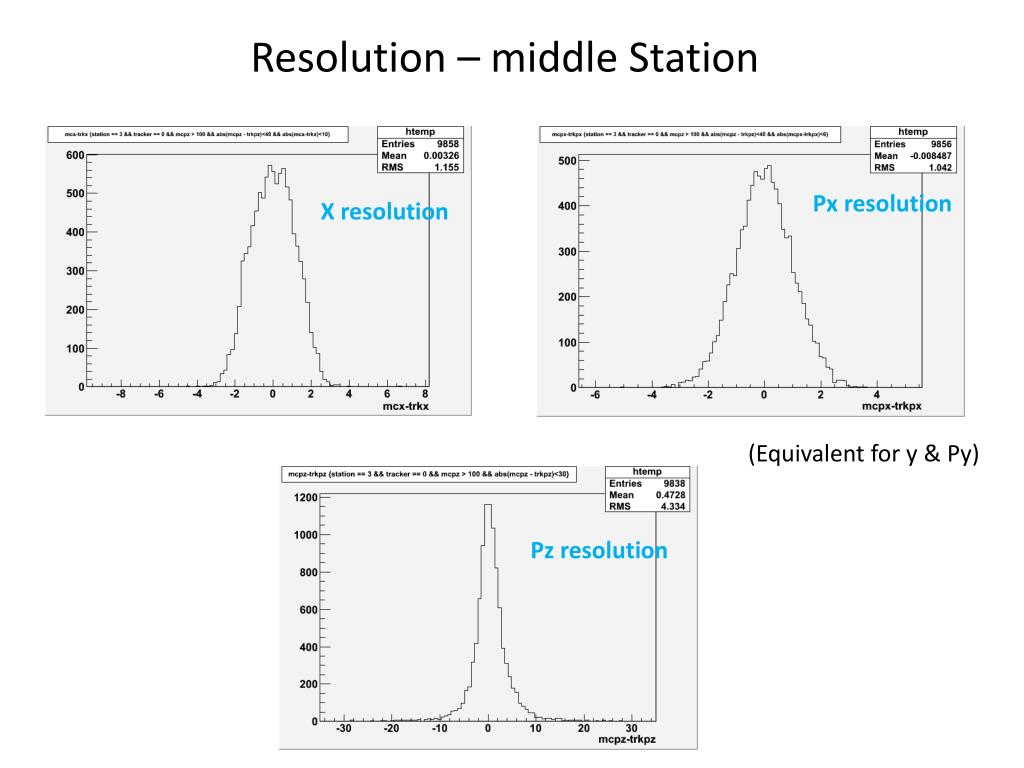

  3. Resolution – middle Station Px resolution X resolution (Equivalent for y & Py) Pz resolution

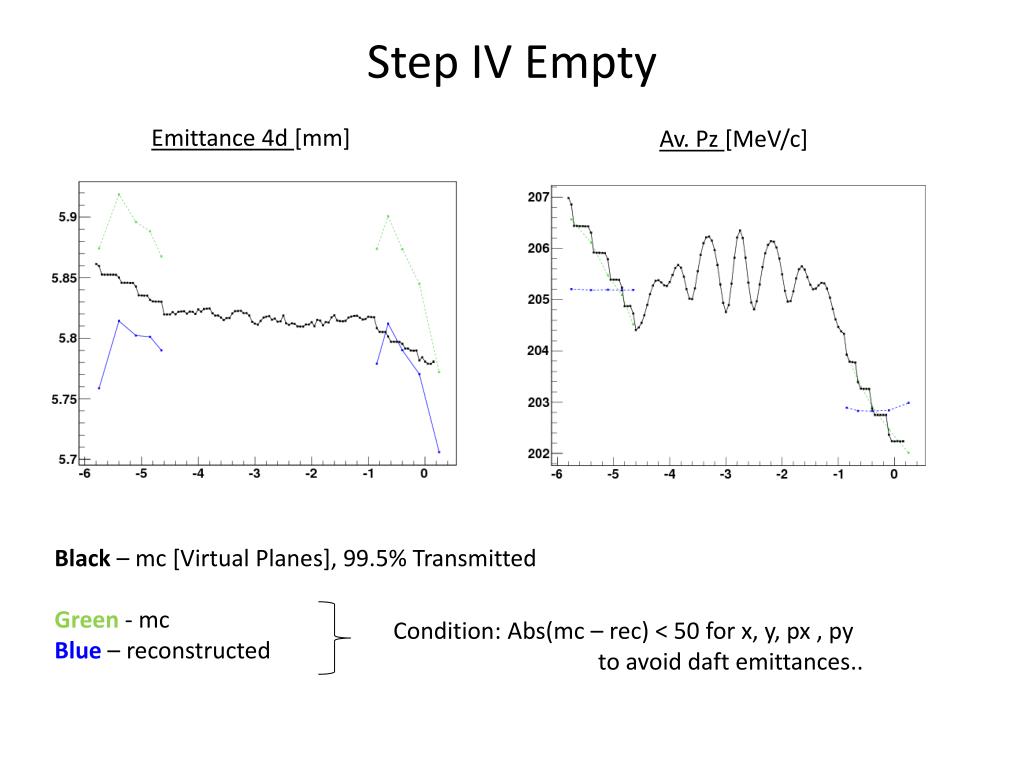

  4. Step IV Empty Emittance 4d [mm] Av. Pz[MeV/c] Black – mc [Virtual Planes], 99.5% Transmitted Green - mc Blue – reconstructed Condition: Abs(mc – rec) < 50 for x, y, px, py to avoid daft emittances..

  5. Step IV with 63mm LiH Emittance 4d [mm] Av. Pz[MeV/c] Black – mc [Virtual Planes] Green - mc Blue – reconstructed
