Experimental Design

Experimental Design. True Experimental Designs. Random assignment Two comparison groups Controls threats to internal validity Strongest evidence for cause-effect. Quasi Experimental Designs. Lacks randomization or Lacks control group Accommodates for natural setting. Group Assignment.

niesha
Télécharger la présentation

Experimental Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Experimental Design

  2. True Experimental Designs • Random assignment • Two comparison groups • Controls threats to internal validity • Strongest evidence for cause-effect

  3. Quasi Experimental Designs • Lacks randomization or • Lacks control group • Accommodates for natural setting

  4. Group Assignment • Completely randomized (between subjects) • Randomized block design • Repeated measures design (within subjects)

  5. Selecting a Design • How many IV are being tested? • How many levels does each IV have, and are these levels experimental or control conditions? • How many groups of subjects are being tested?

  6. Selecting a Design • How will subjects be selected, and how will they be assigned to groups? • How often will observations of responses be made? • What is the temporal sequence of interventions and measurements?

  7. True Experimental Designs • Single factor designs for independent groups • One way design

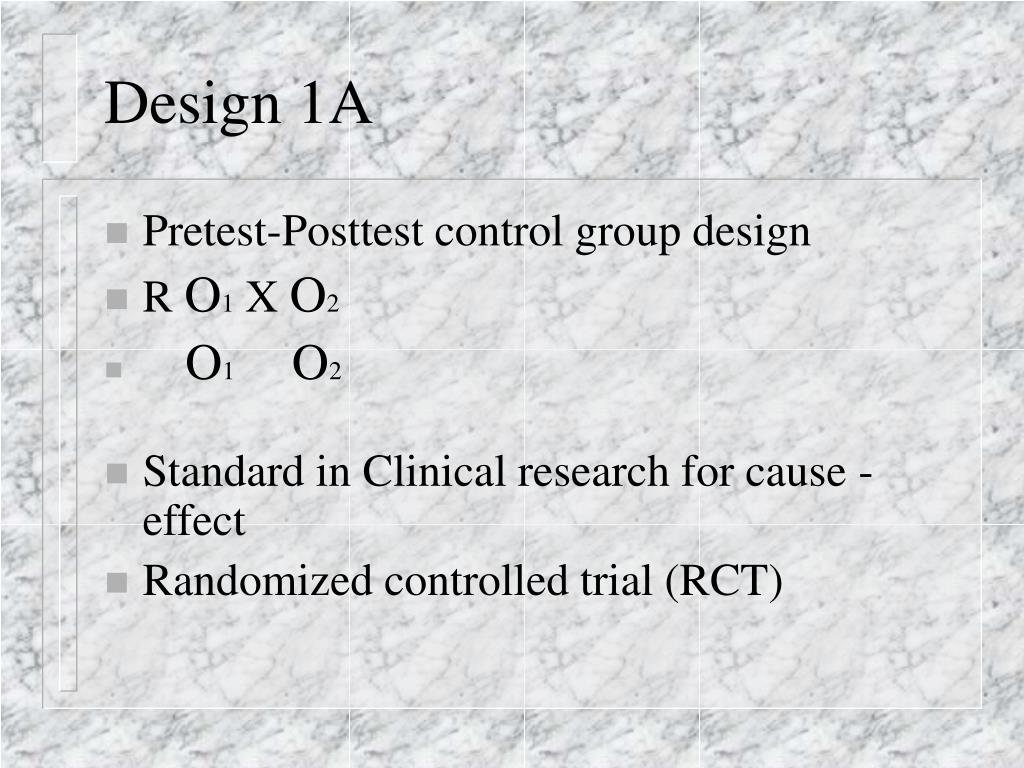

  8. Design 1A • Pretest-Posttest control group design • R O1 X O2 • O1O2 • Standard in Clinical research for cause -effect • Randomized controlled trial (RCT)

  9. Design 1B • Two group pretest-posttest design • O1 X1O2 • R O1 X2O2 • New vs. old • Difference between 2 treatments

  10. Design 1C • Multigroup pretest-posttest control group design • O1 X1 O2 • R O1 X2 O2 • O1O2 • Threat to internal validity is attrition • Threat to external validity is the interaction of treatment and testing

  11. Analysis of Design 1 • Utilize change scores • Interval-ratio data 2 groups unpaired t-test • 3 groups ANOVA • Ordinal data 2 groups Mann-Whitney U • 3 groups Kruskal-Wallis analysis of variance

  12. Design 2 • Posttest-only design • R X1 O2 • O2 • True experimental design • Internal validity is strong • External validity is strong • Analysis is identical to Design 1

  13. Multifactor Designs for Independent Groups • Design 3 Factorial • Design 4 Randomized Block • Design 5 Nested

  14. Design 3 Factorial Design • 2 or more Independent variables • Has factor and levels • 2 x 2 • 3 x 3 • 4 x 4

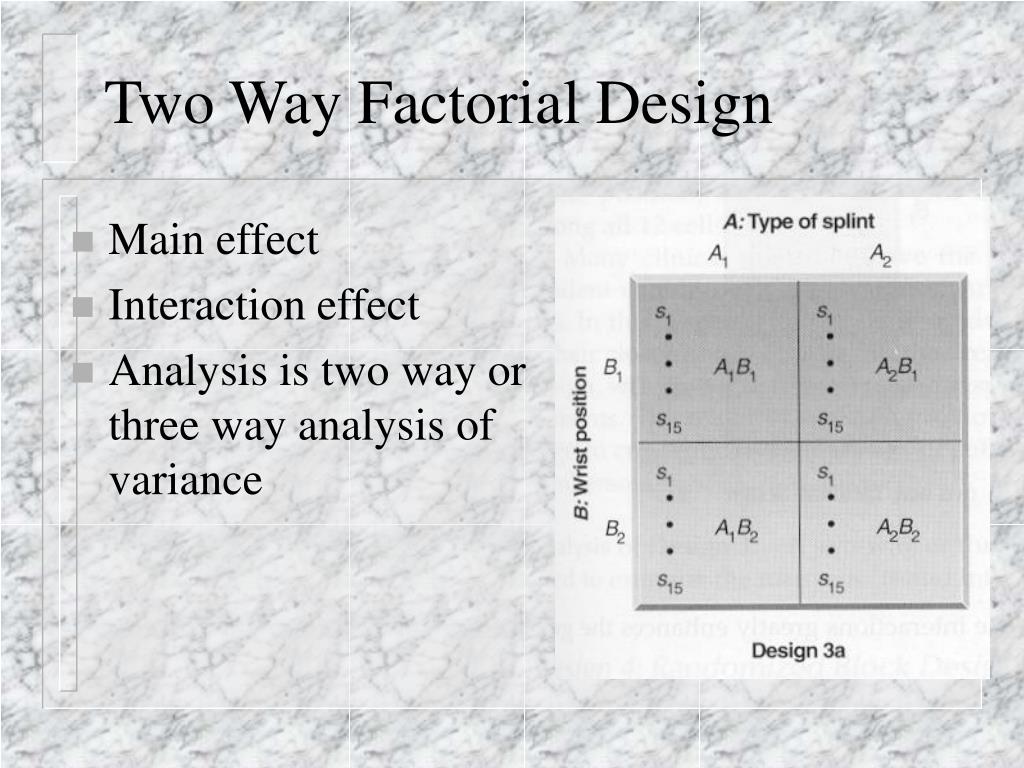

  15. Two Way Factorial Design • Main effect • Interaction effect • Analysis is two way or three way analysis of variance

  16. Design 4: Randomized Block Design • Concern over an extraneous variable • Attributed variable is crossed with an active IV • Analysis is 2 way analysis of variance or multiple regression analysis

  17. Design 5: Nested Design • Some attribute variables cannot be crossed

  18. Repeated Measures Design • Design 6 One Way Repeated Measures Design • Design 7 Crossover Design • Design 8 Latin Square Design

  19. Design 6: One Way Repeated Measures Design • All subjects exposed to all levels of one treatment variable • X1 O1 • X2 O2 • X3 O3 • Internal threat is carry over • Analysis one-way ANOVA

  20. Design 7: Cross Over Design • Minimizes bias of test sequence • Counterbalances treatment conditions • Washout period • R O1 X1 O2 ... O3 X2 O4 • O1 X2 O2 ... O3 X1 O4 • Analysis: Paired T-test or 2 way ANOVA • Ordinal data Wilcoxon signed ranks test

  21. Design 8: Latin Square Design • Sequencing of treatment order is concern • Randomizes treatment order • 3 x 3 or 4 x 4

  22. Multifactor Designs for Repeated Measures • Design 9 Two-way design with two repeated measures • Design 10 Mixed design

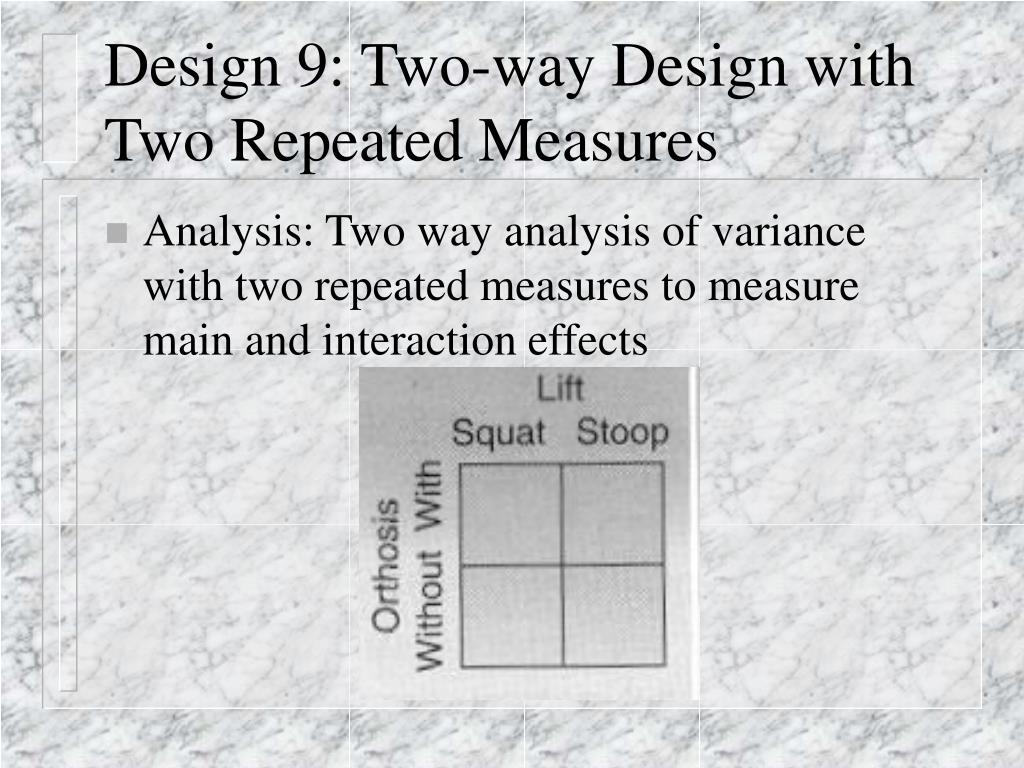

  23. Design 9: Two-way Design with Two Repeated Measures • Analysis: Two way analysis of variance with two repeated measures to measure main and interaction effects

  24. Design 10: Mixed Design • Analysis: 2 way anova with one repeated measure for main effect two way design with one repeated factor for interaction effects

  25. Quasi Experimental Designs • Do not use random assignments • Potential bias of sample • Strong control over design

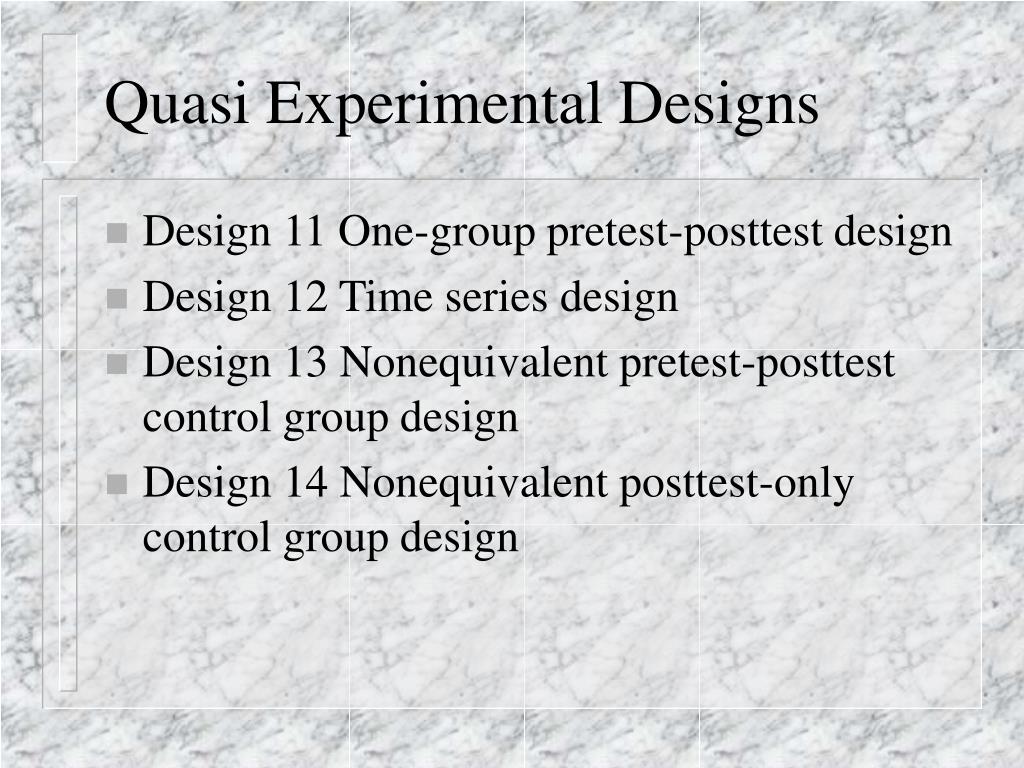

  26. Quasi Experimental Designs • Design 11 One-group pretest-posttest design • Design 12 Time series design • Design 13 Nonequivalent pretest-posttest control group design • Design 14 Nonequivalent posttest-only control group design

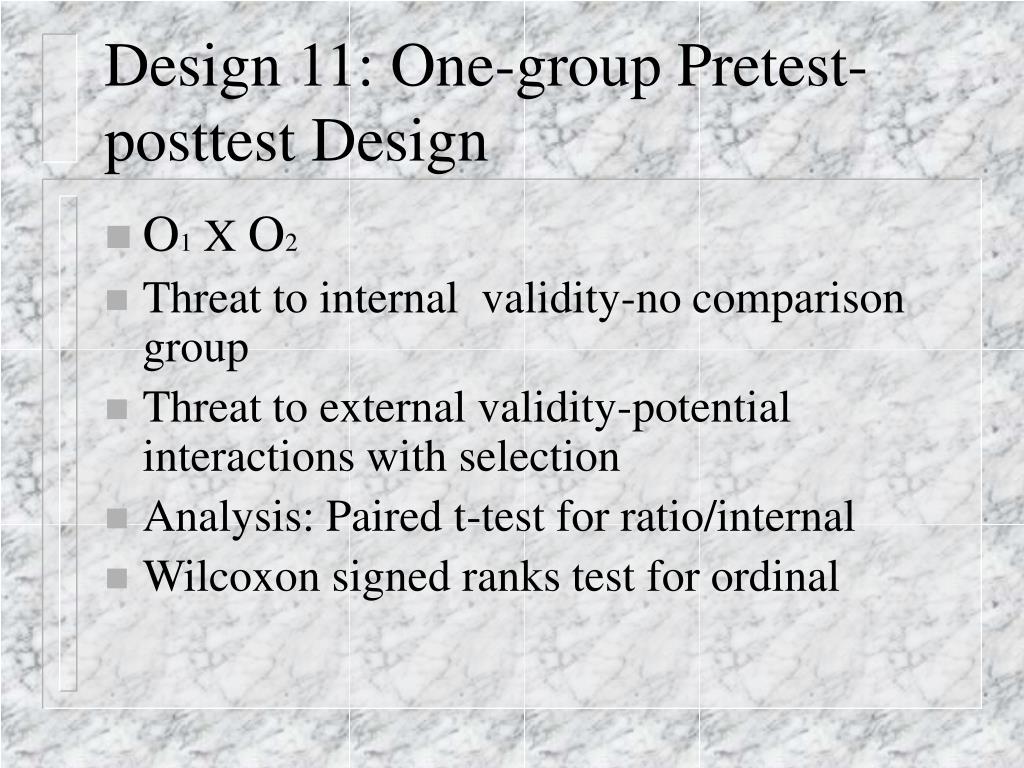

  27. Design 11: One-group Pretest-posttest Design • O1 X O2 • Threat to internal validity-no comparison group • Threat to external validity-potential interactions with selection • Analysis: Paired t-test for ratio/internal • Wilcoxon signed ranks test for ordinal

  28. Multigroup Design • Design 12 Time series design • O1O2O3O4 X O5O6 O7O8 • Effect of tx on physiological or psychological variables over time • IV is time • Threat to internal validity is history • Variations 2 or more groups, tx withdrawal

  29. Design 13: Nonequivalent Pretest-posttest Control Design • O1 X O2 O1O2 • Threat to internal validity is interaction of selection with history and maturation • Analysis: Unpairted T-test, anova-interval or ratio • Mann-Whitney U-test-Ordinal

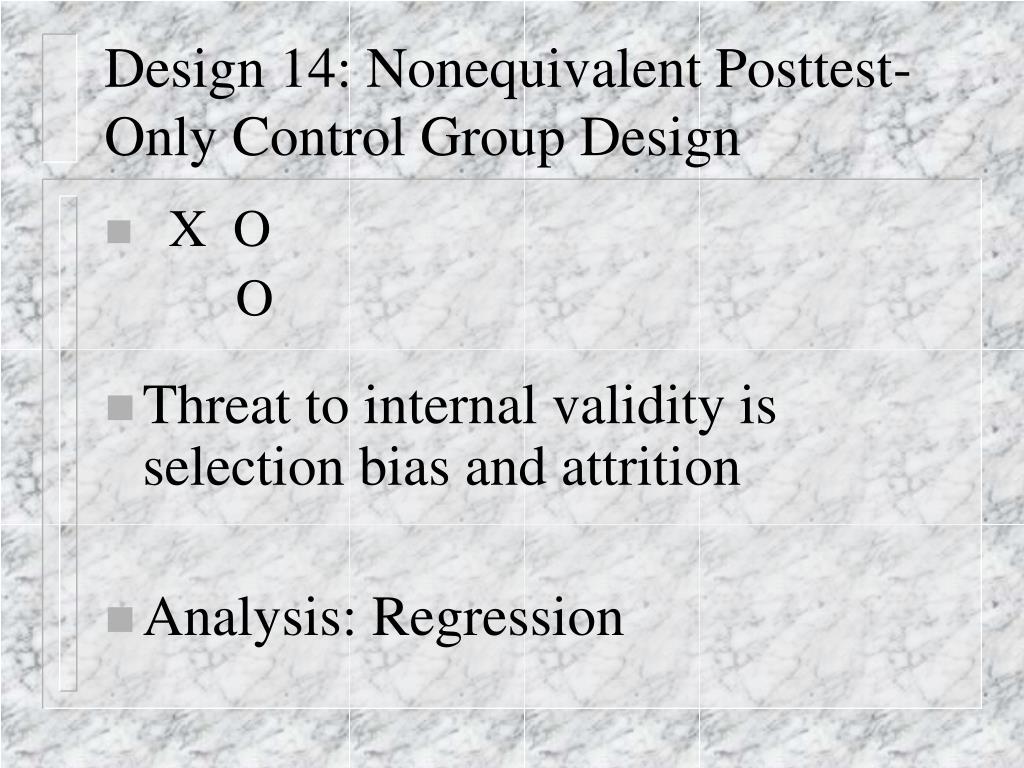

  30. Design 14: Nonequivalent Posttest-Only Control Group Design • X O O • Threat to internal validity is selection bias and attrition • Analysis: Regression
