  1. StellarSpectralclassificationThe First Step in Quantitative Spectral AnalysisPART I AND II Ewa Niemczura AstronomicalInstitute, University of Wrocław eniem@astro.uni.wroc.pl

  2. References • Book: „Stellarspectralclassification”, R.O. Gray & C.J. Corbally • Lecture and paper: „Stellar spectral classification”. R.O. Gray, Spring School of Spectroscopic Data Analyses, Wrocław 2013 • http://stellar.phys.appstate.edu/Standards/

  3. Classification – essentialactivityof Science

  4. How to do spectralclassification? Viadirect comparison with spectra ofstandard stars; • Spectralregion/resolution are of secondary importance; • Spectraltype and luminosityclassare fundamental data onlyifno theoryorother data is used; • Standard stars: Anchorpoints, Primarystandards, Secondarystandards; • Method: visual (orauthomatical); we needcomparisonstars: when observingyourstars, observe alsofew standards; • Complicated and iterativeprocess.

  5. Whyspectralclassificationisimportant? Independent source of information and the beginning point for further spectral analysis: • locatestar in theH-R diagram; • firstestimate of Teff, logg,[m/H], rotationvelocity; • Identification ofchemicallypeculiar stars and astrophysicalyinterestingobjects; • useful “reality check” to an analysis based on stellar atmosphere theory.

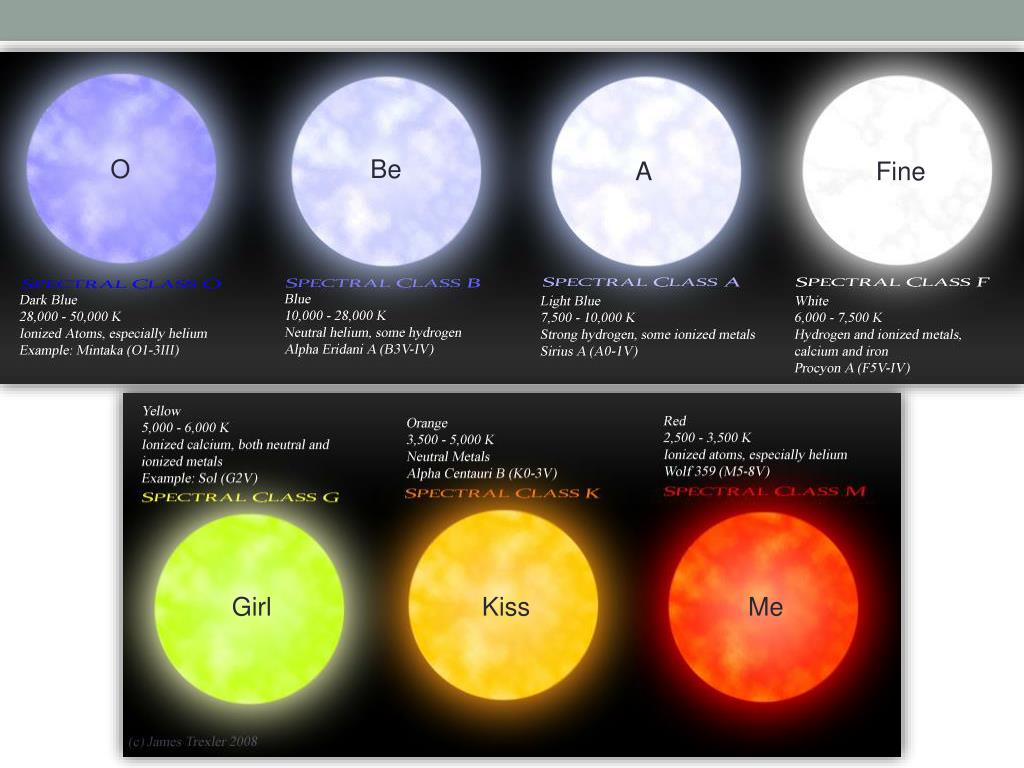

  6. O Be A Fine Girl Kiss Me

  7. Stellarspectralclassification

  8. O and B-typestars • O-typestars: • Teff from ~28000 to ~50000 K • M from 16 to ~100 Msun • B-typestars: • Tefffrom ~10000 to ~28000 K • M from 2to ~16 Msun

  9. Spectra of O- and B-typestarsOptical part H He C N O Ne Mg Al Si S Fe

  10. SpectralclassificationOptical part – spectraltype • Balmer lines of hydrogen • Helium lines: He I (B-typestars) • Helium lines: He II (O-typestars)

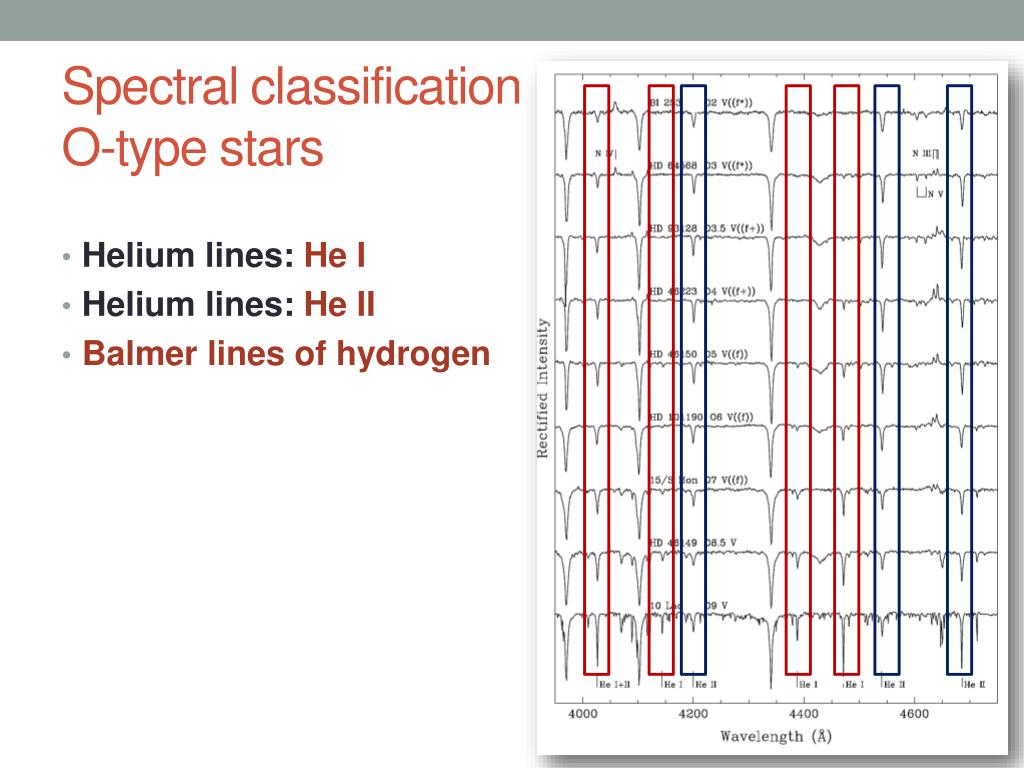

  11. SpectralclassificationO-typestars • Helium lines: He I • Helium lines: He II • Balmerlines of hydrogen

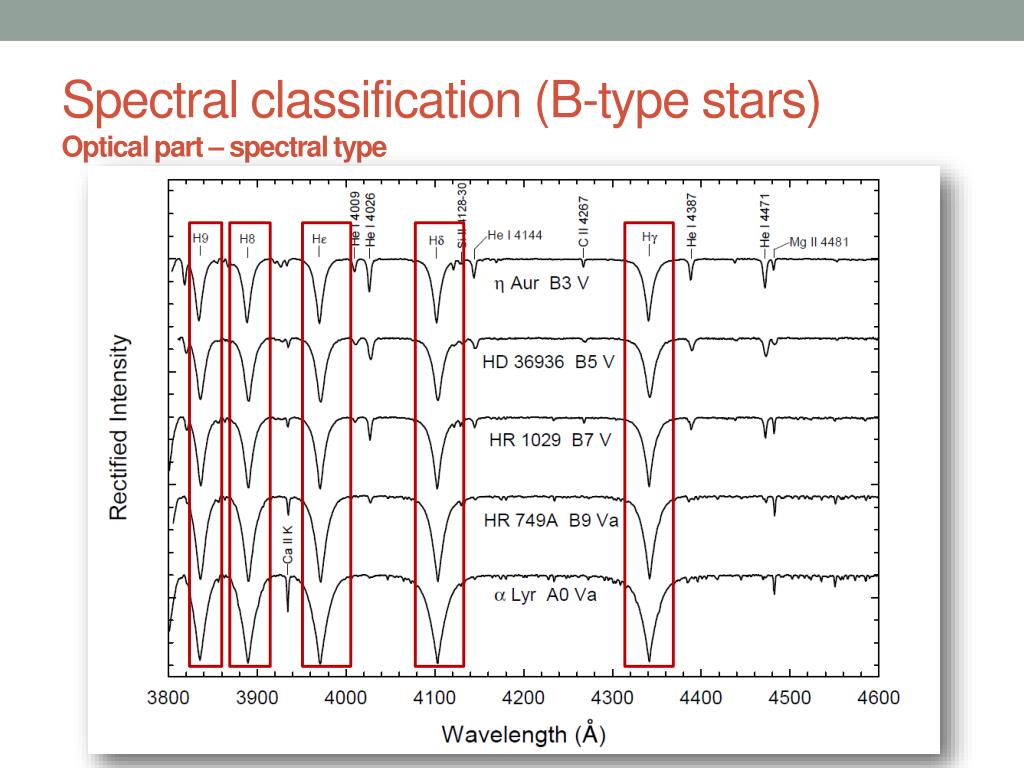

  12. Spectralclassification (B-typestars)Optical part – spectraltype

  13. Spectralclassification (B-typestars)Optical part – spectraltype

  14. Spectralclassification(B-typestars)Optical part – spectraltype

  15. Spectralclassification (B-typestars)Optical part – spectraltype

  16. SpectralclassificationOptical part – spectraltype • Helium lines: He I(from O-typestars, maximum at a spectraltype of B2; disappearingat a spectraltype of A0) • Helium lines: He II (O-typestars) • Balmer lines of hydrogen(maximum at a spectraltype of A2) • Spectralclassification: He I,II and Balmer lines • In case of B-typestars: helium abundanceanomalies • Solution:silicon lines ratios: Si III/Si II and Si IV/Si III

  17. Spectralclassification (B-typestars)Optical part – spectraltype

  18. Spectralclassification (B-typestars)Optical part – spectraltype

  19. SpectralclassificationOptical part – spectraltype • Helium lines: He IHelium lines: He II • Balmer lines of hydrogenSpectralclassification: He I and Balmer lines • Helium abundanceanomalies • Silicon lines ratios: Si III/Si II and Si IV/Si III • Balmer lines and Si lines areluminositysensitive • Mg II (4481 Å): ratio He I (4471 Å)/Mg II (4481 Å)

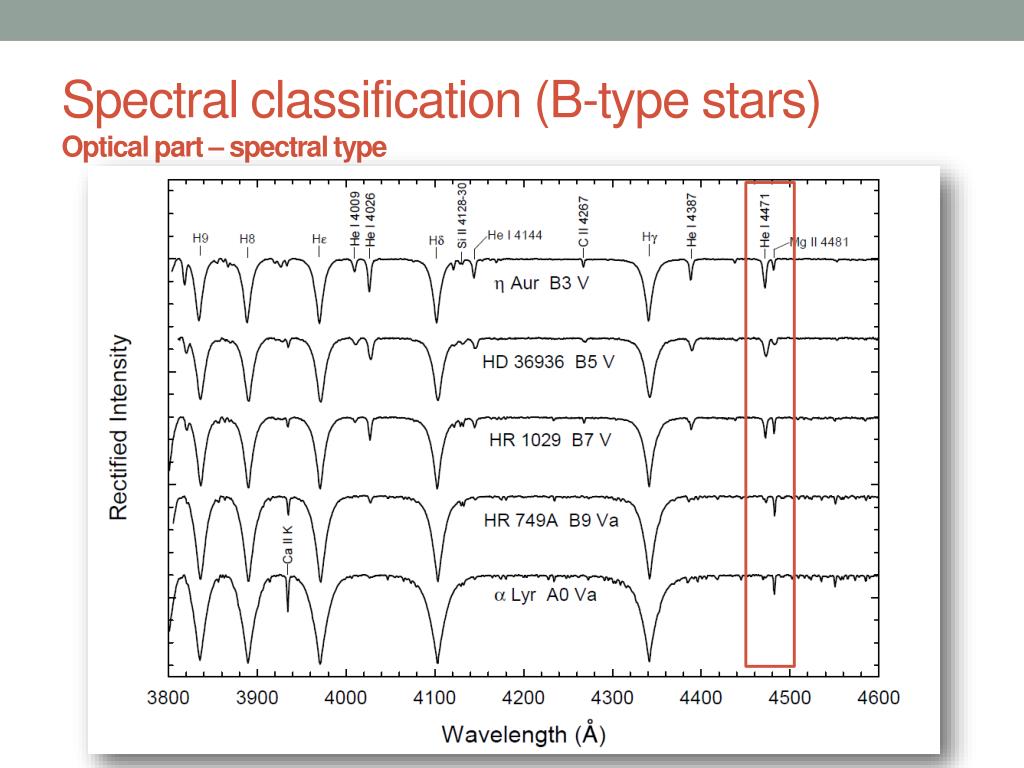

  20. Spectralclassification (B-typestars)Optical part – spectraltype

  21. Spectralclassification (B-typestars)Optical part – spectraltype

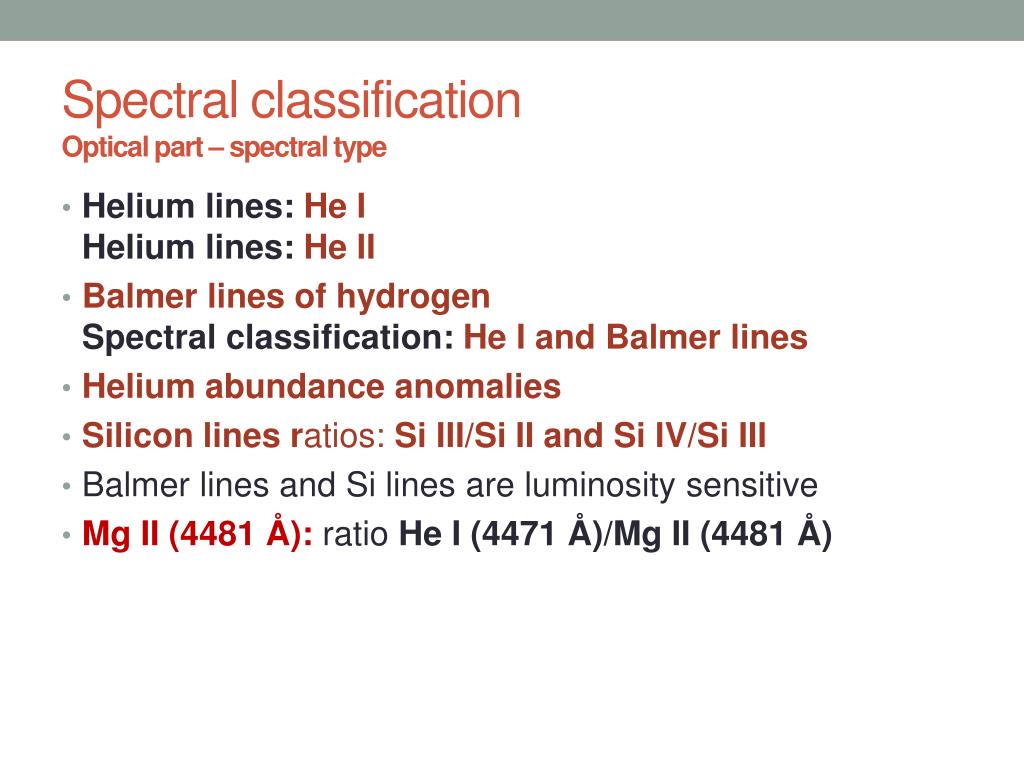

  22. SpectralclassificationOptical part – spectraltype • Helium lines: He IHelium lines: He II • Balmer lines of hydrogenSpectralclassification: He I and Balmer lines • Helium abundanceanomalies • Silicon lines ratios: Si III/Si II and Si IV/Si III • Balmer lines and Si lines areluminositysensitive • Mg II (4481 Å): ratio He I (4471 Å)/Mg II (4481 Å)

  23. SpectralclassificationOptical part – luminosityclass • Balmer lines of hydrogen(luminositysensitivityisgreatest in the late B-typestars)

  24. SpectralclassificationOptical part – luminosityclass • Balmer lines of hydrogen(luminositysensitivityisgreatest in the late B-typestars) • B-typestars: O II lines(increase in strength with increasingluminosity) Ratios: O II with Balmer lines and the He I lines

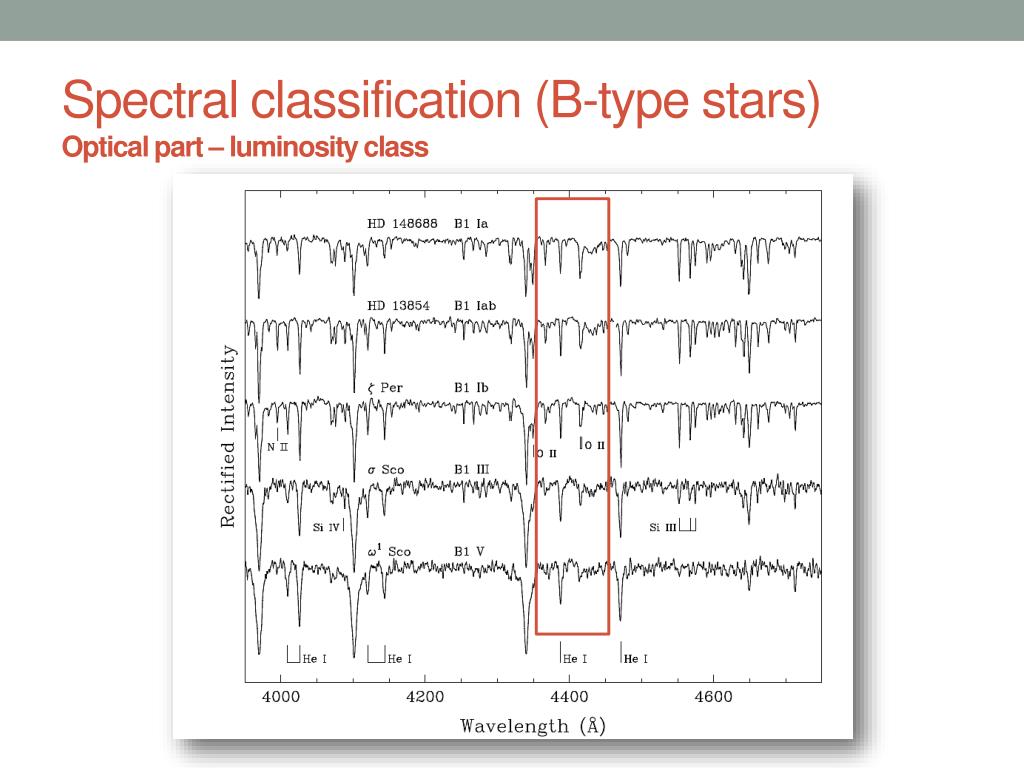

  25. Spectralclassification (B-typestars)Optical part – luminosityclass

  26. SpectralclassificationOptical part – luminosityclass • Balmer lines of hydrogen(luminositysensitivityisgreatest in the late B-typestars) • O II lines(increase with strength with increasingluminosity) • Rations: O II with Balmer lines and the He I lines • But: CNO peculiarities • Solution: ratios of silicon lines to He I

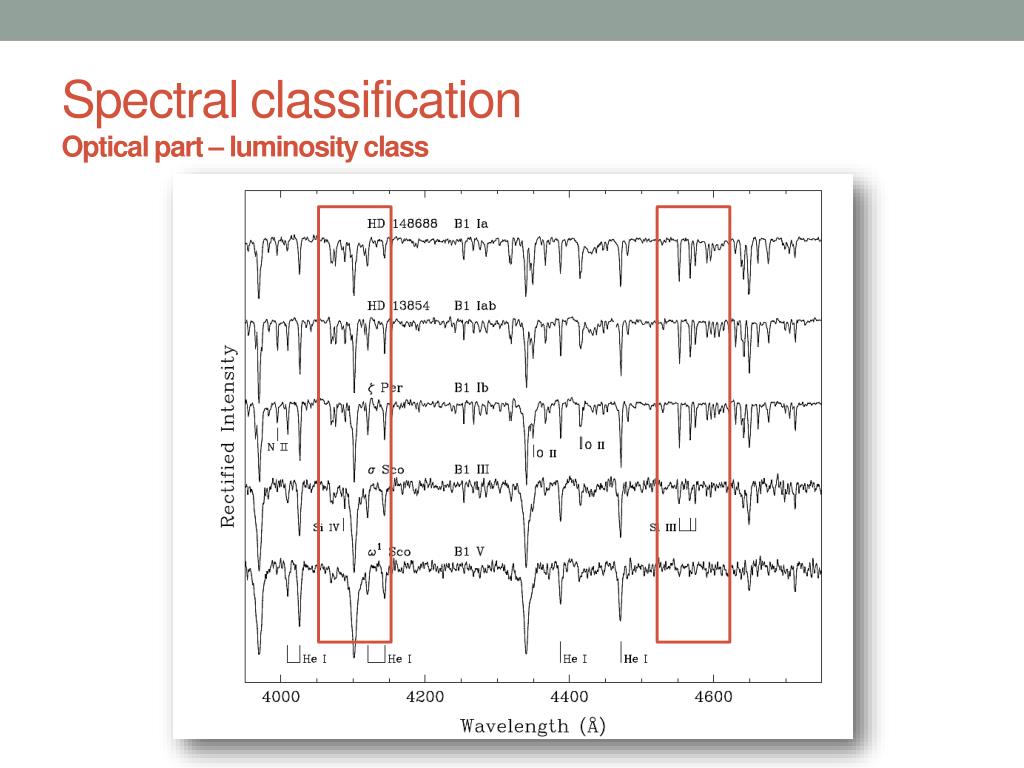

  27. SpectralclassificationOptical part – luminosityclass

  28. SpectralclassificationOptical part – luminosityclass • Balmer lines of hydrogen(luminositysensitivityisgreatest in the late B-typestars) • O II lines(increase with strength with increasingluminosity) • Rations: O II with Balmer lines and the He I lines • But: CNO peculiarities • Solution: ratios of silicon lines to He I • N II (3995 Å)

  29. SpectralclassificationOptical part – luminosityclass

  30. Spectralclassification (O-typestars)Optical part – luminosityclass • N III • Si IV • S IV

  31. Spectralclassification (O-typestars)Optical part – luminosityclass • Balmer lines • Si IV / H • Si IV/ He I

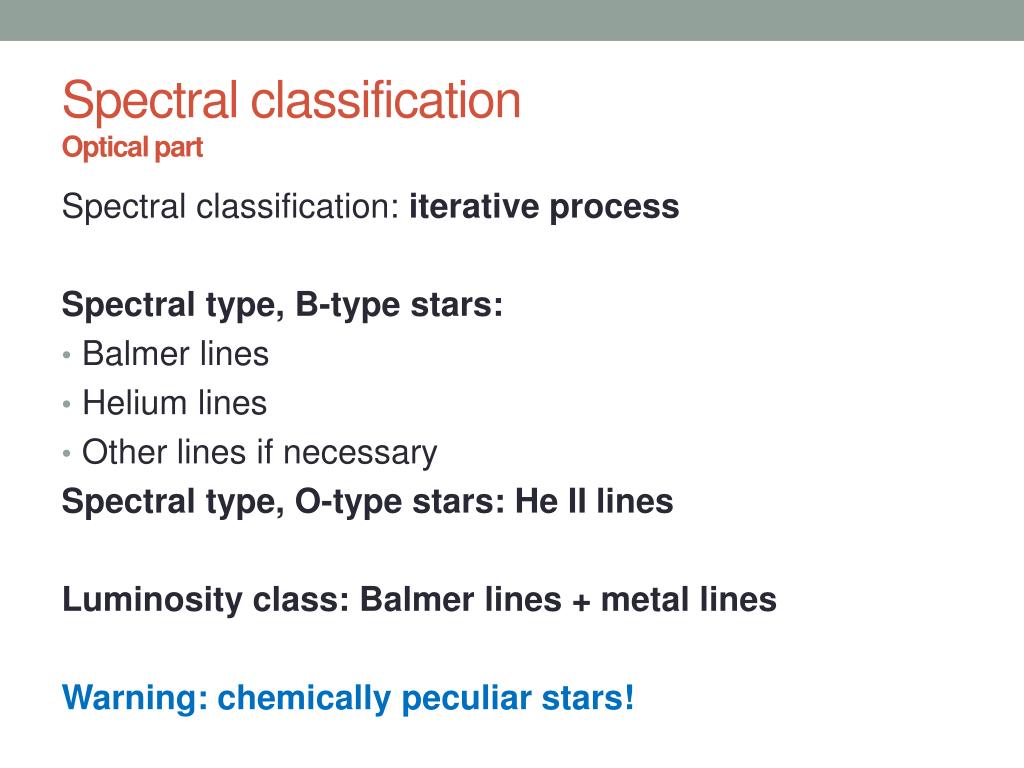

  32. SpectralclassificationOptical part Spectralclassification: iterativeprocess Spectraltype, B-typestars: • Balmer lines • Helium lines • Other lines ifnecessary Spectraltype, O-typestars: He II lines Luminosityclass: Balmer lines + metal lines Warning: chemicallypeculiarstars!

  33. Chemicallypeculiarstars B-typestars Helium-strongstars, He-s • Spectraltypes: B3 orearlier • Strong lines of He I

  34. Chemicallypeculiar B stars: He-strong • Spectraltypes: B3 orearlier • Strong lines of He I • Strongmagneticfields • Photometric and spectroscopicvariability– oblique rotator model (magneticaxisisinclined with respect to the rotationalaxis).

  35. Oblique rotator model: magneticaxisisinclined with respect to the rotationalaxis.

  36. Chemicallypeculiar B-typestars Helium-weakstars, He-w • Spectraltypes: B3 orlater • Weaklines of He I • Variability • Magnetic field

  37. Chemicallypeculiar B-typestars Helium-weak star subclasses: • Si stars ( enhanced Si II lines) • PGastars • SrTistars

  38. Chemicallypeculiar B-typestars Helium-weakstars, He-w • Spectraltypes: B3 orlater • Weak lines of He I • Variability • Magneticfield Helium-weakstarssubclasses: • Si stars(enhancedSi II lines, hotterthanclassicalAp Si stars) • SrTistars(enhancedSr and Ti, lines, hotterthanclassicalApSr stars) Magnetic He-weak B-typestars – hot end of the magneticApstars

  39. Chemicallypeculiar B-typestars Helium-weakstars, He-w • Spectraltypes: B3 orlater • Weak lines of He I • Variability • Magneticfield Helium-weakstarssubclasses: • Si stars(enhancedSi II lines, hotterthanclassicalAp Si stars) • SrTistars(enhancedSr and Ti lines, hotterthanclassicalApSr stars) • PGastars(enhanced P and Ga lines, hot end of HgMnstars, no detection of magnetic field)

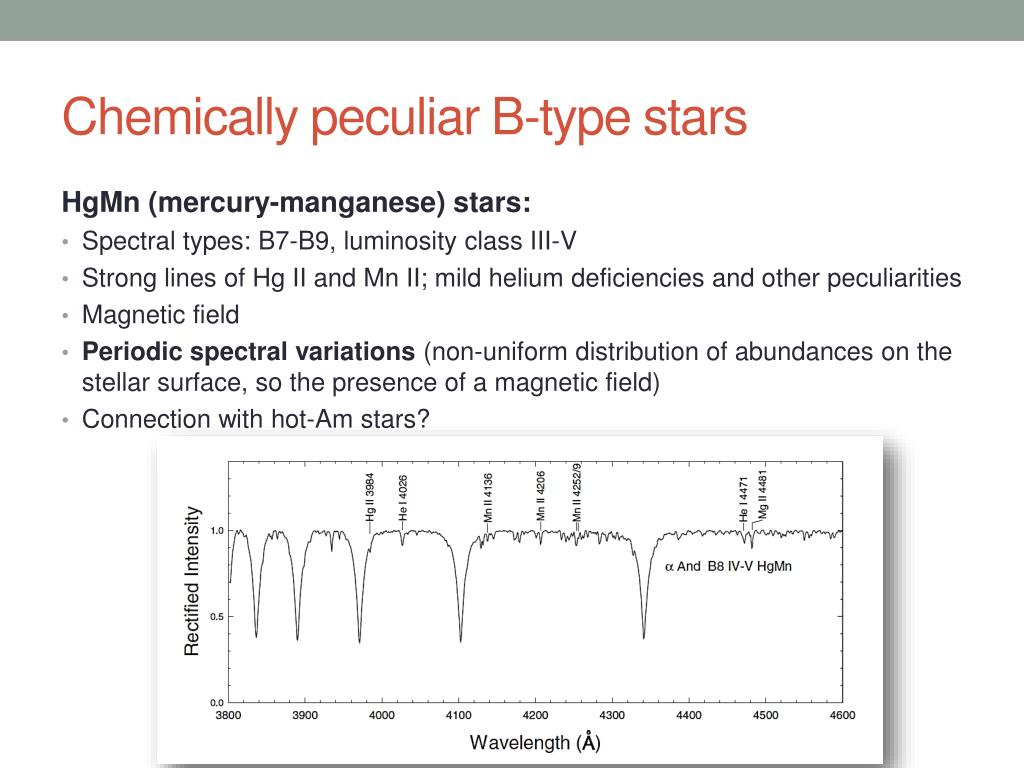

  40. Chemicallypeculiar B-typestars HgMn (mercury-manganese) stars: • Spectraltypes: B7-B9, luminosityclass III-V • Strong lines of Hg II and Mn II; mild helium deficienciesand otherpeculiarities • Magnetic field • Periodicspectralvariations(non-uniform distribution of abundances on the stellarsurface, so the presence of a magnetic field) • Connection with hot-Am stars?

  41. Chemicallypeculiar B-typestars • Helium-strong • Helium-weak • Si • SrTi • PGa • HgMn • Bp stars • Si II • Cr II • Sr II • Eu II

  42. Chemicallypeculiar B-typestarsSummary

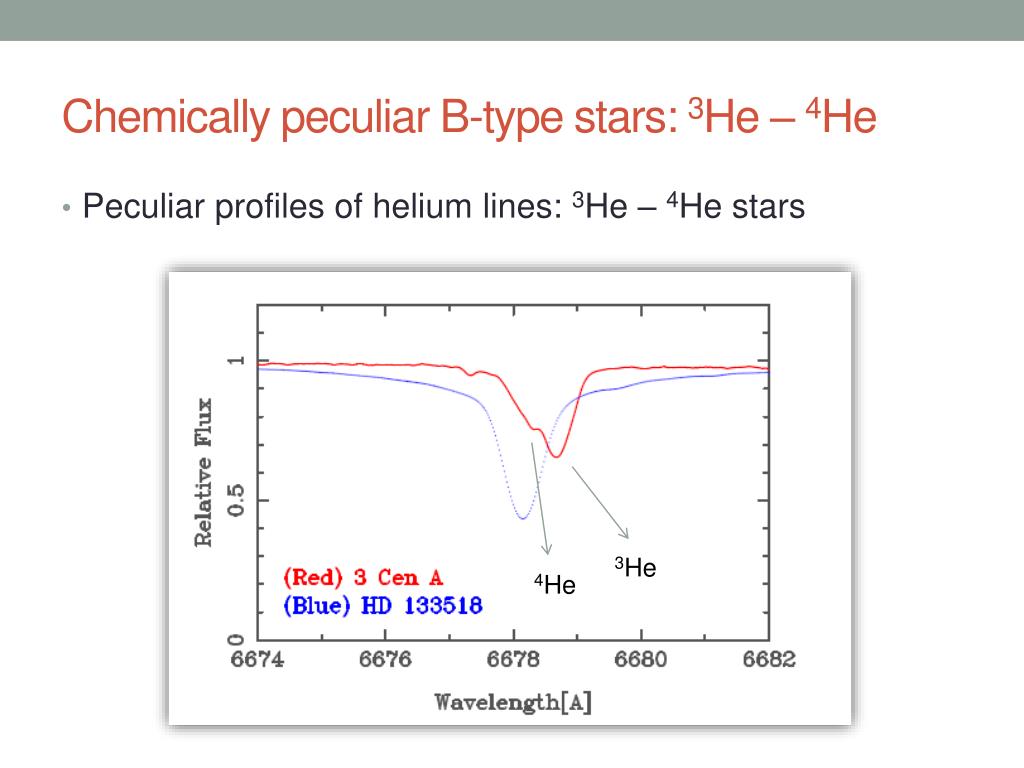

  43. Chemicallypeculiar B-typestars: 3He – 4He • Peculiarprofiles of helium lines: 3He – 4He stars 3He 4He

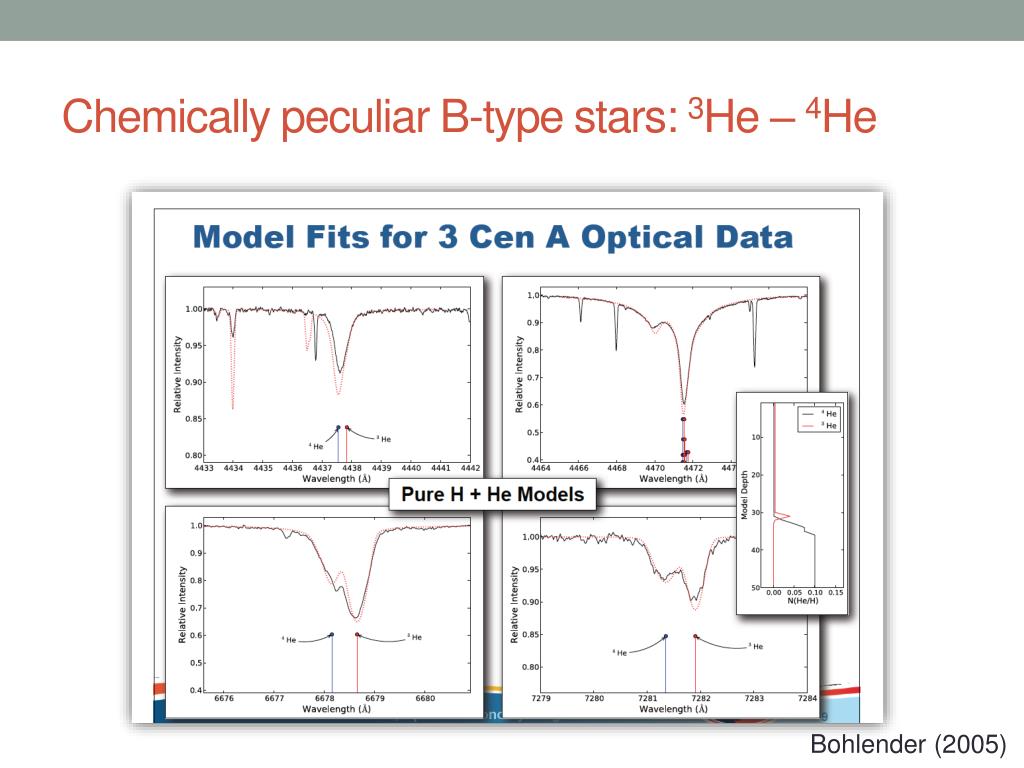

  44. Chemicallypeculiar B-typestars: 3He – 4He Bohlender (2005)

  45. CP starson H-R diagram Bohlender (2005)

  46. A and F-typestars • A-typestars: • Teff from ~7500 to ~10000K; M from ~1.4 to ~2.1 Msun • F-typestars: • Tefffrom ~6000 to ~7500K; Mfrom ~1.04 to ~1.4 Msun

  47. 10000 K 9000 K 8000 K 7000 K 6000 K
